n_network.h File Reference

Network Engine. More...

#include "n_common.h"
#include "n_str.h"
#include "n_list.h"
#include "n_hash.h"
#include <openssl/err.h>
#include <openssl/ssl.h>
#include <openssl/crypto.h>

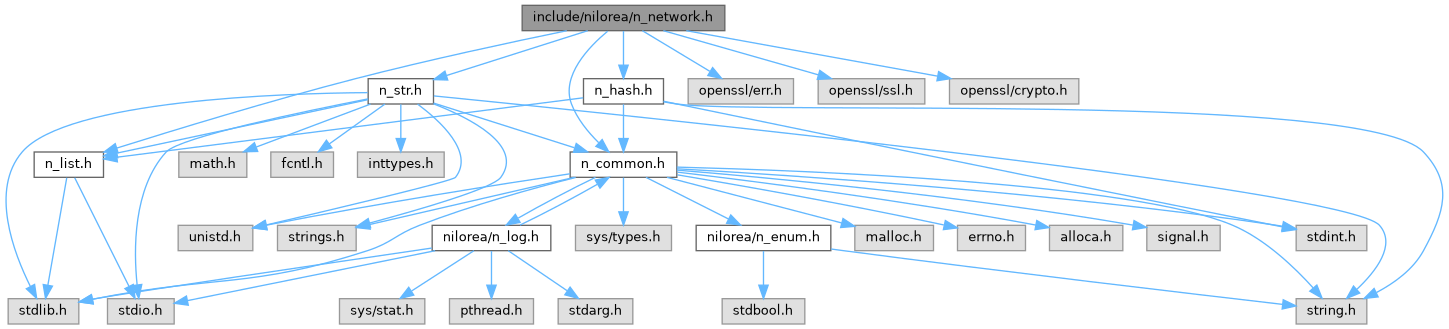

Include dependency graph for n_network.h:

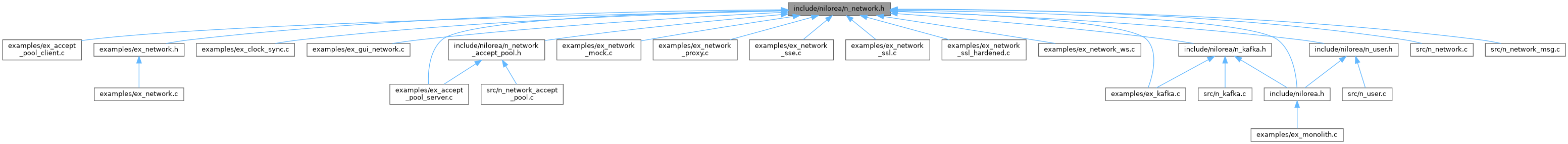

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	N_HTTP_MULTIPART_PART
	a single part of a parsed multipart/form-data body More...
struct	N_HTTP_REQUEST
	parsed HTTP request for mock server callback More...
struct	N_HTTP_RESPONSE
	HTTP response to send from mock server callback. More...
struct	N_MOCK_SERVER
	mock HTTP server handle More...
struct	N_PROXY_CFG
	Parsed proxy URL components. More...
struct	N_SOCKET
	Structure of a N_SOCKET. More...
struct	N_SSE_CONN
	SSE connection handle. More...
struct	N_SSE_EVENT
	SSE event received from server. More...
struct	N_URL
	parsed URL components More...
struct	N_URL_PARAM
	a single query parameter key=value pair More...
struct	N_WS_CONN
	WebSocket connection. More...
struct	N_WS_FRAME
	A single parsed WebSocket frame (RFC 6455). More...
struct	N_WS_MESSAGE
	WebSocket message. More...
struct	NETWORK
	Structure of a NETWORK. More...
struct	NETWORK_HTTP_INFO
	structure for splitting HTTP requests More...
struct	NETWORK_POOL
	structure of a network pool More...

Macros
#define	_OPEN_SYS_SOCK_IPV6   1
#define	HEAD_CODE   3
	Code of a HEAD message.
#define	HEAD_SIZE   10
	Size of a HEAD message.
#define	N_ENUM_netw_code_type(_)
	Network codes definition.
#define	N_URL_MAX_PARAMS   64
	maximum number of parsed query parameters
#define	N_WS_OP_BINARY   0x02
#define	N_WS_OP_CLOSE   0x08
#define	N_WS_OP_PING   0x09
#define	N_WS_OP_PONG   0x0A
#define	N_WS_OP_TEXT   0x01
	WebSocket opcodes per RFC 6455.
#define	netw_atomic_read_reactor_handle(netw)   __atomic_load_n(&(netw)->reactor_handle, __ATOMIC_ACQUIRE)
	Same contract for the back-pointer to the reactor.
#define	netw_atomic_read_reactor_mode(netw)   __atomic_load_n(&(netw)->reactor_mode, __ATOMIC_ACQUIRE)
	Lock-free atomic read of the reactor_mode flag.
#define	netw_atomic_read_state(netw)   __atomic_load_n(&(netw)->state, __ATOMIC_ACQUIRE)
	Lock-free atomic read of the network state field.
#define	netw_atomic_write_reactor_handle(netw, val)   __atomic_store_n(&(netw)->reactor_handle, (val), __ATOMIC_RELEASE)
#define	netw_atomic_write_reactor_mode(netw, val)   __atomic_store_n(&(netw)->reactor_mode, (val), __ATOMIC_RELEASE)
#define	netw_atomic_write_state(netw, val)   __atomic_store_n(&(netw)->state, (val), __ATOMIC_RELEASE)
	Lock-free atomic write of the network state field.
#define	NETW_COMPRESS_MIN_RATIO   10u
#define	NETW_COMPRESS_THRESHOLD   256u
	Opportunistic compression policy.
#define	NETW_COMPRESSED   NETW_COMPRESSED_ZLIB
	Legacy alias, the first compression commit shipped a single NETW_COMPRESSED flag before LZ4 was added.
#define	NETW_IO_WANT_READ   -10
	single-attempt I/O (send_data_once / recv_data_once): the operation cannot progress until the socket is READABLE.
#define	NETW_IO_WANT_WRITE   -11
	single-attempt I/O: the operation cannot progress until the socket is WRITABLE.
#define	NETW_MAX_RETRIES   8
	Send or recv max number of retries.
#define	NETW_RETRY_DELAY   1000
	Send or recv delay between retries in usec.
#define	NETW_SOCKET_DISCONNECTED   -2
	Code for a disconnected recv.
#define	NETW_SOCKET_ERROR   -1
	code for a socket error
#define	NETW_THR_EXIT_ERROR   666
	Internal DONE value indicating a send/recv thread observed NETW_ERROR without an in-flight local shutdown.
#define	NETW_THR_EXIT_OK   100
	Internal DONE value indicating a send/recv thread reached end-of-life cleanly (peer QUIT or local NETW_EXIT_ASKED ack'd).
#define	NETWORK_CONSECUTIVE_SEND_WAIT   2048
	Flag to set consecutive send waiting timeout
#define	NETWORK_DEPLETE_QUEUES_TIMEOUT   1024
	Flag to set network queues depletion timeout
#define	NETWORK_DEPLETE_SOCKET_TIMEOUT   512
	Flag to set send buffer depletion timeout
#define	NETWORK_DISABLE_ZERO_LENGTH_RECV   FALSE
	Enable/disable recv of length 0.
#define	NETWORK_IPALL   0
	Flag for auto detection by OS of ip version to use.
#define	NETWORK_IPV4   1
	Flag to force IPV4
#define	NETWORK_IPV6   2
	Flag to force IPV6
#define	NETWORK_TCP   0
	Flag for TCP transport (default)
#define	NETWORK_UDP   1
	Flag for UDP transport.
#define	NETWORK_WAIT_CLOSE_TIMEOUT   4096
	Flag to set network closing wait timeout.
#define	SOCKET_SIZE_FORMAT   "%d"
	socket associated printf style

Typedefs
typedef ssize_t(*	netw_func) (void *, char *, uint32_t)
	send/recv func ptr type
typedef int(*	netw_sni_pick_cb) (const char *sni, N_STR **cert_pem, N_STR **key_pem, void *user_data)
	SNI cert-pick callback for netw_accept_ssl_with_sni_cb: given the client SNI host (may be NULL), fill *cert_pem and *key_pem with a server certificate and key (newly allocated; n_network frees them).
typedef int	SOCKET
	default socket declaration

Enumerations
enum	__netw_code_type {   NETW_CLIENT = 2 , NETW_SERVER = 4 , NETW_RESTART_TIMER = 8 , NETW_EMPTY_SENDBUF = 16 ,   NETW_EMPTY_RECVBUF = 32 , NETW_RUN = 64 , NETW_EXIT_ASKED = 128 , NETW_EXITED = 256 ,   NETW_ERROR = 512 , NETW_ENCRYPT_NONE = 1024 , NETW_ENCRYPT_OPENSSL = 2048 , NETW_THR_ENGINE_STARTED = 4096 ,   NETW_THR_ENGINE_STOPPED = 8192 , NETW_DESTROY_RECVBUF = 16384 , NETW_DESTROY_SENDBUF = 32768 , NETW_COMPRESSED_ZLIB = 65536 ,   NETW_COMPRESSED_LZ4 = 131072 , ____netw_code_type_UNKNOWN_VALUE__ }
	Network codes declaration. More...
enum	NETW_COMPRESS_MODE { NETW_COMPRESS_NONE = 0 , NETW_COMPRESS_ZLIB = 1 , NETW_COMPRESS_LZ4 = 2 }
	Compression mode selector for NETWORK.compress_mode. More...

Functions
int	deplete_send_buffer (int fd, int timeout)
	wait for send buffer to be empty
size_t	htonst (size_t value)
	host to network size_t
N_STR *	n_http_build_multipart (LIST *parts, const char *boundary)
	build a multipart/form-data body from a LIST of N_HTTP_MULTIPART_PART* using boundary (without "--"); returns a new N_STR (free with free_nstr) or NULL.
int	n_http_decompress_body (const N_STR *body, const char *encoding, N_STR **out)
	decompress an HTTP body per its Content-Encoding ("gzip"/"deflate"; identity/NULL/unknown copies through).
int	n_http_multipart_boundary (const char *content_type, char *out, size_t outsz)
	copy the boundary token from a Content-Type value into out (without the leading "--").
void	n_http_multipart_free (LIST **parts)
	free a LIST returned by n_http_parse_multipart and NULL the pointer
LIST *	n_http_parse_multipart (const N_STR *body, const char *boundary)
	parse a multipart body (boundary given without "--") into a LIST of N_HTTP_MULTIPART_PART*; free with n_http_multipart_free.
int	n_http_status_class (int status_code)
	leading digit of an HTTP status code (1..5), or 0 when outside 100..599
int	n_http_status_is_client_error (int status_code)
	1 when status_code is a client error (4xx), else 0
int	n_http_status_is_informational (int status_code)
	1 when status_code is informational (1xx), else 0
int	n_http_status_is_redirect (int status_code)
	1 when status_code is a redirect (3xx), else 0
int	n_http_status_is_server_error (int status_code)
	1 when status_code is a server error (5xx), else 0
int	n_http_status_is_success (int status_code)
	1 when status_code is success (2xx), else 0
void	n_mock_server_free (N_MOCK_SERVER **server)
	free a mock server and close the listening socket
void	n_mock_server_run (N_MOCK_SERVER *server)
	run the mock server accept loop (blocks until stop_flag is set)
N_MOCK_SERVER *	n_mock_server_start (int port, void(*on_request)(N_HTTP_REQUEST *, N_HTTP_RESPONSE *, void *), void *user_data)
	start a mock HTTP server on localhost:port (returns immediately)
void	n_mock_server_stop (N_MOCK_SERVER *server)
	signal the mock server to stop accepting connections
void	n_netw_clear_connect_errors (void)
	Clear pre-connection errors on this thread.
void	n_netw_clear_errors (NETWORK *netw)
	Clear captured errors on a NETWORK handle.
const char *	n_netw_get_connect_error (int index)
	Get pre-connection error message by index.
int	n_netw_get_connect_error_count (void)
	Get number of pre-connection errors captured on this thread.
const char *	n_netw_get_error (const NETWORK *netw, int index)
	Get captured error message by index (0 = oldest).
int	n_netw_get_error_count (const NETWORK *netw)
	Get number of captured errors on a NETWORK handle.
void	n_proxy_cfg_free (N_PROXY_CFG **cfg)
	Free an N_PROXY_CFG created by n_proxy_cfg_parse().
N_PROXY_CFG *	n_proxy_cfg_parse (const char *url)
	Parse a proxy URL string into an N_PROXY_CFG struct.
int	n_proxy_connect_socks5 (const N_PROXY_CFG *proxy, const char *target_host, int target_port)
	Open a TCP connection through a SOCKS5 proxy.
int	n_proxy_connect_tunnel (const N_PROXY_CFG *proxy, const char *target_host, int target_port)
	Open a TCP connection through an HTTP proxy using CONNECT tunneling.
int	n_proxy_connect_tunnel_ssl (const N_PROXY_CFG *proxy, const char *target_host, int target_port)
	Open a TCP connection through an HTTPS proxy using CONNECT tunneling.
void	n_sse_conn_free (N_SSE_CONN **conn)
	free an SSE connection
N_SSE_CONN *	n_sse_connect (const char *host, const char *port, const char *path, int use_ssl, const char *user_agent, void(*on_event)(N_SSE_EVENT *, N_SSE_CONN *, void *), void *user_data)
	connect to an SSE endpoint and start reading events (blocks until stopped).
void	n_sse_event_clean (N_SSE_EVENT *event)
	free an SSE event's contents (does not free the event struct itself)
void	n_sse_stop (N_SSE_CONN *conn)
	signal the SSE connection to stop reading
N_STR *	n_url_build (const N_URL *u)
	build a URL string from parsed components
N_STR *	n_url_canonicalize (const N_URL *u)
	produce a canonical URL string for dedup (lowercase scheme/host, drop default port, remove .
N_STR *	n_url_canonicalize_string (const char *url)
	parse and canonicalize a URL string in one call
N_STR *	n_url_decode (const char *str)
	decode a percent-encoded string (returns N_STR)
N_STR *	n_url_encode (const char *str)
	percent-encode a string for use in URLs (delegates to n_str_url_encode())
void	n_url_free (N_URL **u)
	free a N_URL and all its members
N_URL *	n_url_parse (const char *url)
	parse a URL string into components
N_STR *	n_url_resolve (const char *base, const char *ref)
	resolve a (possibly relative) reference against an absolute base URL (RFC 3986 section 5)
void	n_ws_close (N_WS_CONN *conn)
	send close frame and close the connection
void	n_ws_conn_free (N_WS_CONN **conn)
	free a WebSocket connection structure
N_WS_CONN *	n_ws_connect (const char *host, const char *port, const char *path, int use_ssl)
	connect to a WebSocket server (ws:// or wss://) and perform the HTTP/1.1 upgrade handshake
size_t	n_ws_frame_build (int fin, int opcode, int do_mask, const unsigned char *payload, size_t len, const unsigned char mask_key[4], unsigned char *out, size_t out_cap)
	build a WebSocket frame into out (optionally masking the payload).
int	n_ws_frame_parse (const unsigned char *buf, size_t len, N_WS_FRAME *frame, size_t *consumed)
	parse one WebSocket frame from a byte buffer (stateless).
int	n_ws_recv (N_WS_CONN *conn, N_WS_MESSAGE *msg_out)
	receive one WebSocket frame
int	n_ws_send (N_WS_CONN *conn, const char *payload, size_t len, int opcode)
	send a WebSocket frame (client always masks)
void	n_ws_unmask (unsigned char *dst, const unsigned char *src, size_t len, const unsigned char mask[4])
	XOR-unmask len bytes of src into dst using a 4-byte WebSocket mask key.
NETWORK *	netw_accept_from (NETWORK *from)
	Accepting routine.
NETWORK *	netw_accept_from_ex (NETWORK *from, size_t send_list_limit, size_t recv_list_limit, int blocking, int *retval)
	Accepting routine extended.
NETWORK *	netw_accept_nonblock_from (NETWORK *from, int blocking)
	Accepting routine.
NETWORK *	netw_accept_ssl_with_sni_cb (NETWORK *listen, netw_sni_pick_cb pick, void *user_data)
	accept a TLS connection, selecting the server certificate per client SNI via pick() during the handshake
int	netw_add_msg (NETWORK *netw, N_STR *msg)
	Add a message to send in aimed NETWORK.
int	netw_add_msg_ex (NETWORK *netw, char *str, unsigned int length)
	Add a char message to send in the aimed NETWORK.
int	netw_adopt_client_fd (NETWORK **netw, SOCKET fd, const char *host, const char *port)
	adopt an already-connected socket fd into a fresh client NETWORK (plain send/recv)
int	netw_bind_udp (NETWORK **netw, char *addr, char *port, int ip_version)
	Create a UDP bound socket.
int	netw_build_http_response (N_STR **http_response, int status_code, const char *server_name, const char *content_type, char *additional_headers, N_STR *body)
	build HTTP response
size_t	netw_calculate_urlencoded_size (const char *str, size_t len)
	calculate URL-encoded size
int	netw_close (NETWORK **netw)
	Closing.
int	netw_connect (NETWORK **netw, char *host, char *port, int ip_version)
	Connecting.
int	netw_connect_ex (NETWORK **netw, char *host, char *port, size_t send_list_limit, size_t recv_list_limit, int ip_version, char *ssl_key_file, char *ssl_cert_file)
	Connecting, extended.
int	netw_connect_ex_to (NETWORK **netw, char *host, char *port, size_t send_list_limit, size_t recv_list_limit, int ip_version, char *ssl_key_file, char *ssl_cert_file, int connect_timeout_ms)
	Connecting, extended, with a bounded connection-establishment time (connect_timeout_ms, 0 = OS default)
int	netw_connect_to (NETWORK **netw, char *host, char *port, int ip_version, int connect_timeout_ms)
	Connecting, with a bounded connection-establishment time (connect_timeout_ms, 0 = OS default)
int	netw_connect_udp (NETWORK **netw, char *host, char *port, int ip_version)
	Connect a UDP socket to a remote host.
int	netw_destroy_pool (NETWORK_POOL **netw_pool)
	destroy pool
NETWORK_HTTP_INFO	netw_extract_http_info (char *request)
	extract HTTP info from request
char *	netw_extract_http_request_type (const char *request)
	extract HTTP request type
int	netw_get_http_date (char *buffer, size_t buffer_size)
	get current HTTP date string
const char *	netw_get_http_status_message (int status_code)
	get HTTP status message string
N_STR *	netw_get_msg (NETWORK *netw)
	Get a message from aimed NETWORK.
int	netw_get_queue_status (NETWORK *netw, size_t *nb_to_send, size_t *nb_to_read)
	get queue status
int	netw_get_state (NETWORK *netw, uint32_t *state, int *thr_engine_status)
	Get flags from network.
int	netw_get_url_from_http_request (const char *request, char *url, size_t size)
	get URL from HTTP request
const char *	netw_guess_http_content_type (const char *url)
	guess HTTP content type from URL
int	netw_info_destroy (NETWORK_HTTP_INFO http_request)
	destroy HTTP info structure
int	netw_init_openssl (void)
	init ssl helper
int	netw_init_wsa (int mode, int v1, int v2)
	Used by Init & Close network.
int	netw_make_listening (NETWORK **netw, char *addr, char *port, int nbpending, int ip_version)
	Listening network.
NETWORK_POOL *	netw_new_pool (size_t nb_min_element)
	init pools
HASH_TABLE *	netw_parse_post_data (const char *post_data)
	parse POST data into hash table
int	netw_pool_add (NETWORK_POOL *netw_pool, NETWORK *netw)
	add network to pool
int	netw_pool_broadcast (NETWORK_POOL *netw_pool, const NETWORK *from, N_STR *net_msg)
	broadcast message to pool
size_t	netw_pool_nbclients (NETWORK_POOL *netw_pool)
	get nb clients
void	netw_pool_netw_close (void *netw_ptr)
	close pool
int	netw_pool_remove (NETWORK_POOL *netw_pool, NETWORK *netw)
	remove network from pool
void *	netw_recv_func (void *NET)
	Thread Receiving management function.
void *	netw_send_func (void *NET)
	Thread Sending management function.
int	netw_send_ident (NETWORK *netw, int type, int id, N_STR *name, N_STR *passwd)
	send ident message
int	netw_send_ping (NETWORK *netw, int type, int id_from, int id_to, int time)
	send ping message
int	netw_send_position (NETWORK *netw, int id, double X, double Y, double vx, double vy, double acc_x, double acc_y, int time_stamp)
	send position message
int	netw_send_quit (NETWORK *netw)
	send quit message
int	netw_send_string_to (NETWORK *netw, int id_to, N_STR *name, N_STR *chan, N_STR *txt, int color)
	send string to a specific target
int	netw_send_string_to_all (NETWORK *netw, N_STR *name, N_STR *chan, N_STR *txt, int color)
	send string to all targets
int	netw_set (NETWORK *netw, int flag)
	Set flags on network.
int	netw_set_blocking (NETWORK *netw, unsigned long int is_blocking)
	set blocking mode
int	netw_set_compression_mode (NETWORK *netw, int mode)
	Pick send-side compression algorithm for this NETWORK: NETW_COMPRESS_NONE, _ZLIB, _LZ4.
void	netw_set_connect_abort_cb (int(*cb)(void *ctx), void *ctx)
	register a process-wide callback polled during connect; non-zero aborts the in-progress connect (NULL removes)
int	netw_set_crypto (NETWORK *netw, char *key, char *certificate)
	set SSL
int	netw_set_crypto_chain (NETWORK *netw, char *key, char *certificate, char *ca_file)
	set SSL certificate chain from PEM file
int	netw_set_crypto_chain_pem (NETWORK *netw, const char *key_pem, const char *cert_pem, const char *ca_pem)
	set SSL certificate chain from PEM strings in memory
int	netw_set_crypto_pem (NETWORK *netw, const char *key_pem, const char *cert_pem)
	set SSL from PEM strings in memory
int	netw_set_crypto_pem_ctx (NETWORK *netw, const N_STR *key_pem, const N_STR *cert_pem)
	install an in-memory cert/key on THIS connection's SSL only (per-connection, unlike the context-wide netw_set_crypto_pem)
int	netw_set_user_id (NETWORK *netw, int id)
	set user id on a netw
int	netw_setsockopt (NETWORK *netw, int optname, int value)
	Set common socket options (disable naggle, send/recv buf, reuse addr)
int	netw_ssl_connect (NETWORK **netw, char *host, char *port, int ip_version, char *ssl_key_file, char *ssl_cert_file)
	connect ssl helper
int	netw_ssl_connect_client (NETWORK **netw, char *host, char *port, int ip_version)
	connect as SSL client without client certificate (TCP + SSL_CTX, no handshake yet)
int	netw_ssl_connect_client_to (NETWORK **netw, char *host, char *port, int ip_version, int connect_timeout_ms)
	like netw_ssl_connect_client but bounds the TCP connect by connect_timeout_ms (0 = OS default)
int	netw_ssl_do_handshake (NETWORK *netw, const char *sni_hostname)
	complete the SSL handshake on a NETWORK whose ctx was already created
const char *	netw_ssl_get_sni (NETWORK *netw)
	get the SNI server_name the peer requested in its ClientHello, or NULL
int	netw_ssl_get_verify_result (NETWORK *netw, const char *expected_host, char *errbuf, size_t errsz)
	evaluate the peer certificate (chain trust + host match) against the system trust store, independently of the connection verify mode
int	netw_ssl_server_handshake (NETWORK *netw, netw_sni_pick_cb pick, void *user_data)
	upgrade an already-accepted plaintext connection to a TLS server, selecting the cert per client SNI via pick() during the handshake (for proxy CONNECT)
int	netw_ssl_set_ca (NETWORK *netw, const char *ca_file, const char *ca_path)
	set custom CA verify path or file
int	netw_ssl_set_client_cert (NETWORK *netw, const char *cert_file, const char *key_file)
	load client certificate and private key for mTLS
int	netw_ssl_set_verify (NETWORK *netw, int enable)
	enable or disable peer certificate verification
int	netw_ssl_start_client (NETWORK *netw)
	set up a client SSL_CTX on an already-connected NETWORK (no handshake yet)
int	netw_start_thr_engine (NETWORK *netw)
	Create the sending and receiving thread of a NETWORK.
int	netw_stop_thr_engine (NETWORK *netw)
	Stop a NETWORK connection sending and receiving thread.
ssize_t	netw_udp_recvfrom (NETWORK *netw, char *buf, uint32_t n, struct sockaddr *src_addr, socklen_t *src_len)
	UDP recvfrom with source address capture.
ssize_t	netw_udp_sendto (NETWORK *netw, char *buf, uint32_t n, struct sockaddr *dest_addr, socklen_t dest_len)
	UDP sendto with explicit destination.
int	netw_unload_openssl (void)
	unload ssl helper
char *	netw_urldecode (const char *str)
	URL-decode a string.
char *	netw_urlencode (const char *str, size_t len)
	URL-encode a string.
int	netw_wait_close (NETWORK **netw)
	Closing for peer.
int	netw_wait_close_timed (NETWORK **netw, size_t timeout)
	Closing for peer with timeout.
N_STR *	netw_wait_msg (NETWORK *netw, unsigned int refresh, size_t timeout)
	Wait a message from aimed NETWORK.
size_t	ntohst (size_t value)
	network to host size_t
ssize_t	recv_data (void *netw, char *buf, uint32_t n)
	Reading from a socket.
ssize_t	recv_data_once (void *netw, char *buf, uint32_t n)
	Single-attempt read (see NETWORK.recv_data_once contract)
ssize_t	recv_php (SOCKET s, int *_code, char **buf)
	receive from php
ssize_t	recv_ssl_data (void *netw, char *buf, uint32_t n)
	SSL Reading from a socket.
ssize_t	recv_ssl_data_once (void *netw, char *buf, uint32_t n)
	SSL single-attempt read (see recv_data_once contract)
ssize_t	recv_udp_data (void *netw, char *buf, uint32_t n)
	UDP recv data from socket.
ssize_t	send_data (void *netw, char *buf, uint32_t n)
	Writing to a socket.
ssize_t	send_data_once (void *netw, char *buf, uint32_t n)
	Single-attempt write (see NETWORK.send_data_once contract)
ssize_t	send_php (SOCKET s, int _code, char *buf, int n)
	sending to php
ssize_t	send_ssl_data (void *netw, char *buf, uint32_t n)
	SSL Writing to a socket.
ssize_t	send_ssl_data_once (void *netw, char *buf, uint32_t n)
	SSL single-attempt write (see send_data_once contract)
ssize_t	send_udp_data (void *netw, char *buf, uint32_t n)
	UDP send data to connected peer or specified addr.

Detailed Description

Network Engine.

Author

Castagnier Mickael

Version

2.0

Date

11/03/2015

Definition in file n_network.h.
