Data Structures

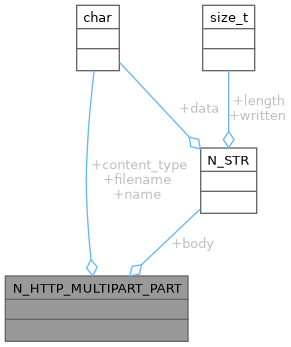

struct	N_HTTP_MULTIPART_PART
	a single part of a parsed multipart/form-data body More...

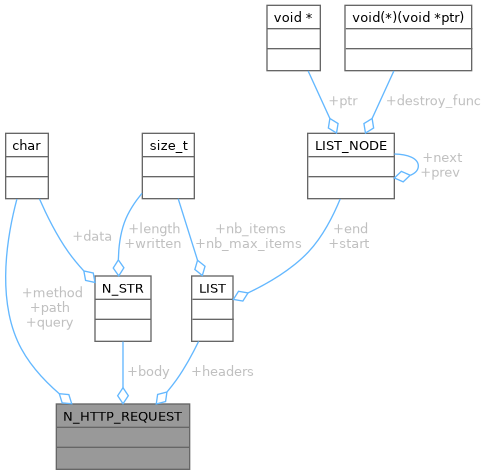

struct	N_HTTP_REQUEST
	parsed HTTP request for mock server callback More...

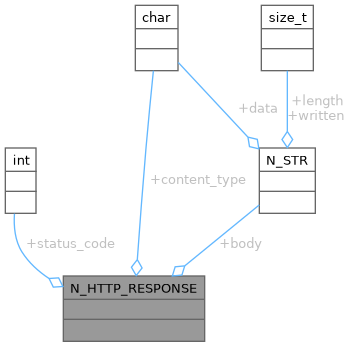

struct	N_HTTP_RESPONSE
	HTTP response to send from mock server callback. More...

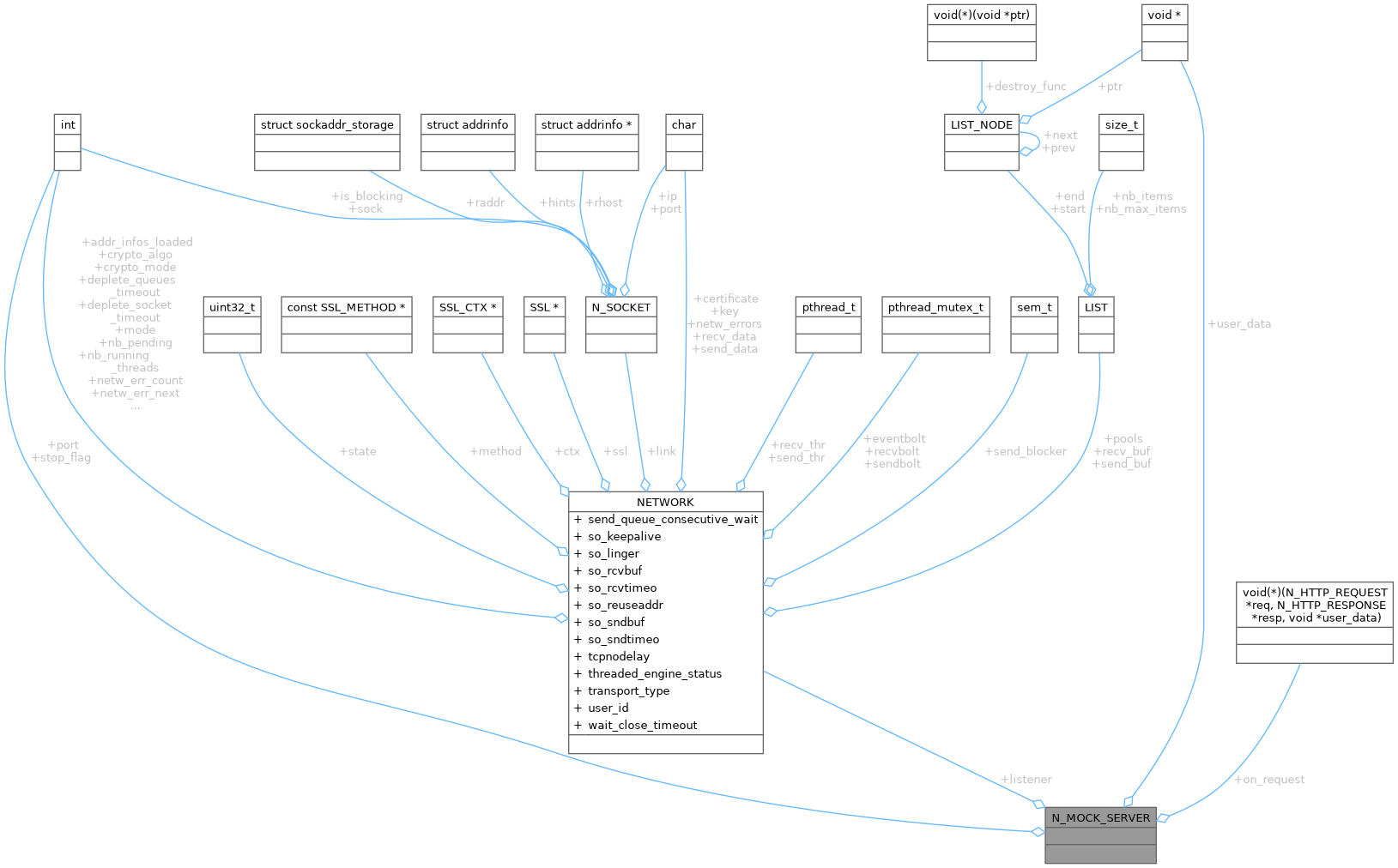

struct	N_MOCK_SERVER
	mock HTTP server handle More...

struct	N_PROXY_CFG
	Parsed proxy URL components. More...

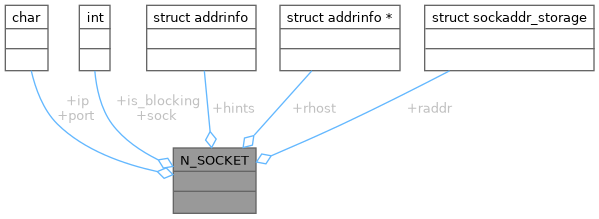

struct	N_SOCKET
	Structure of a N_SOCKET. More...

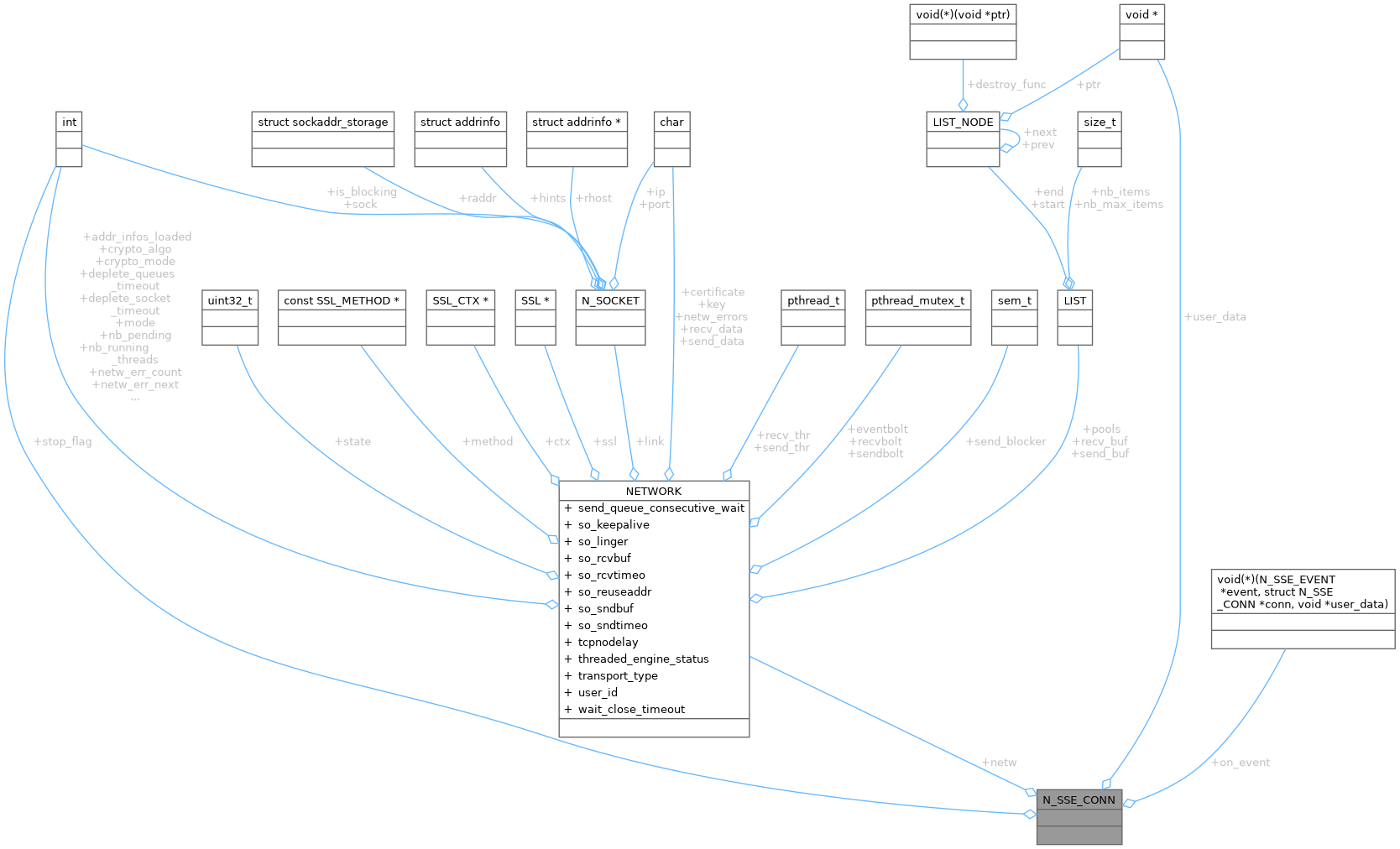

struct	N_SSE_CONN
	SSE connection handle. More...

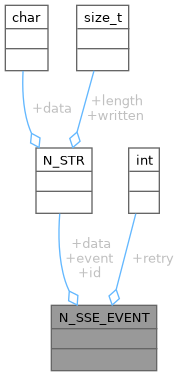

struct	N_SSE_EVENT
	SSE event received from server. More...

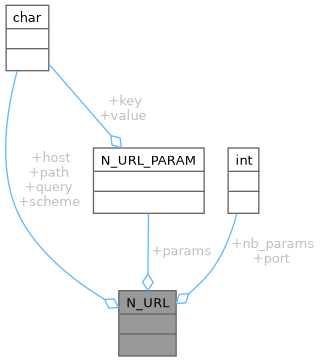

struct	N_URL
	parsed URL components More...

struct	N_URL_PARAM
	a single query parameter key=value pair More...

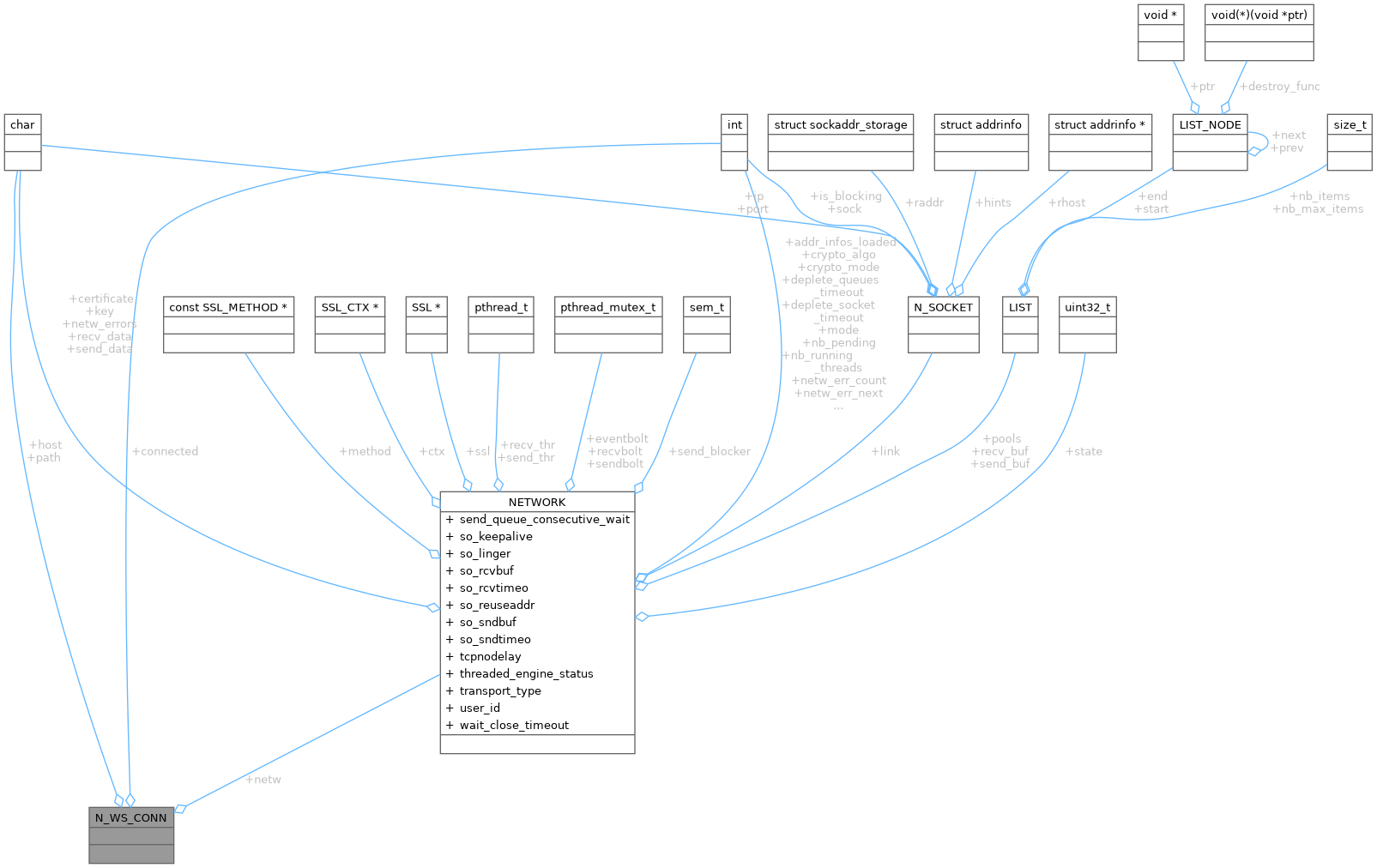

struct	N_WS_CONN
	WebSocket connection. More...

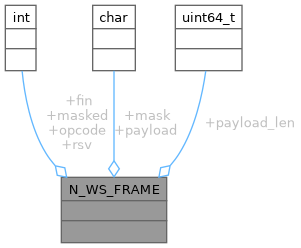

struct	N_WS_FRAME
	A single parsed WebSocket frame (RFC 6455). More...

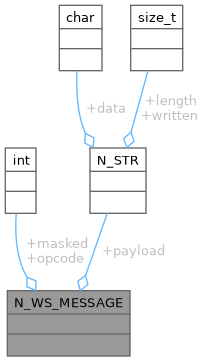

struct	N_WS_MESSAGE
	WebSocket message. More...

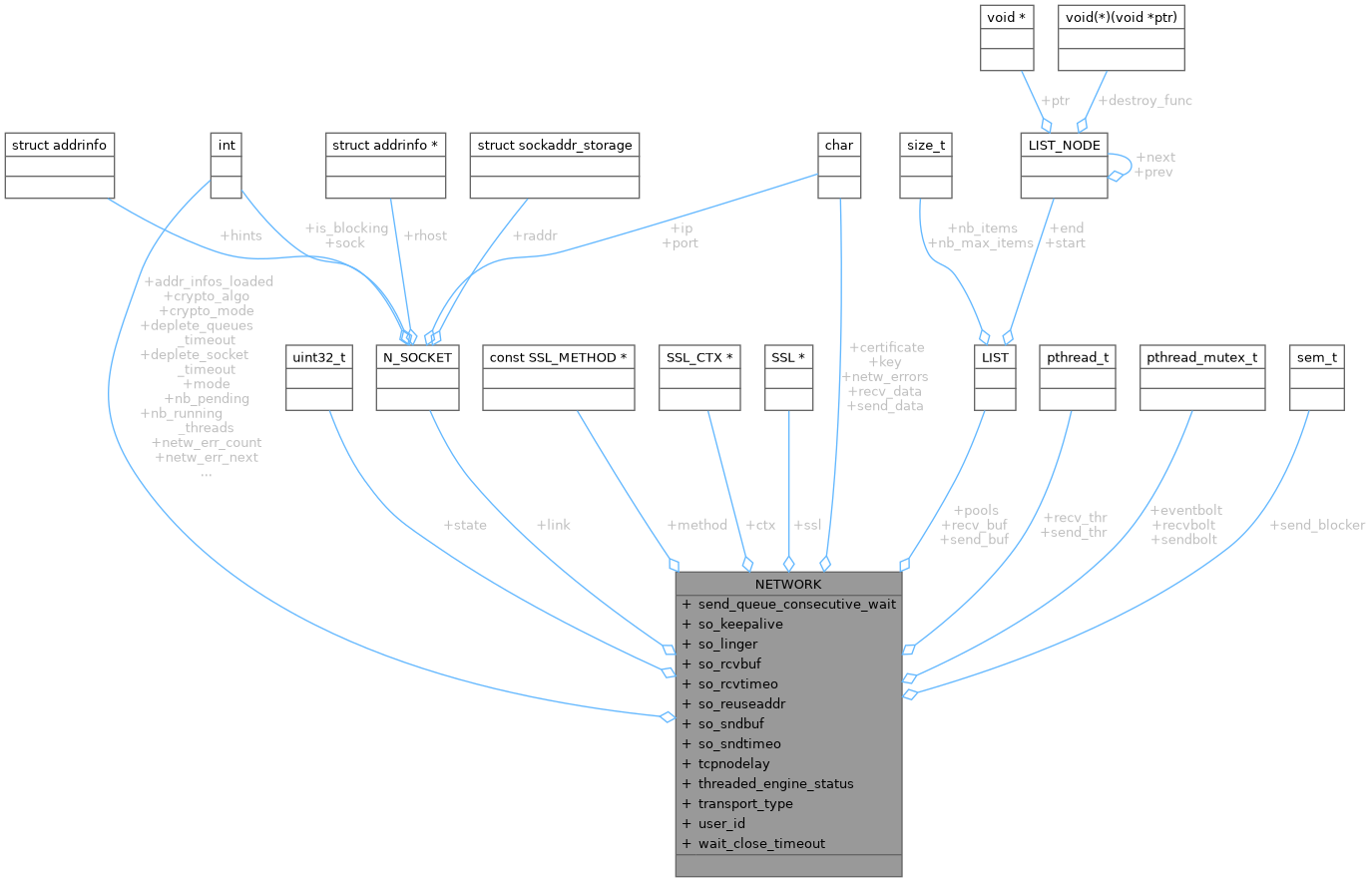

struct	NETWORK
	Structure of a NETWORK. More...

struct	NETWORK_HTTP_INFO
	structure for splitting HTTP requests More...

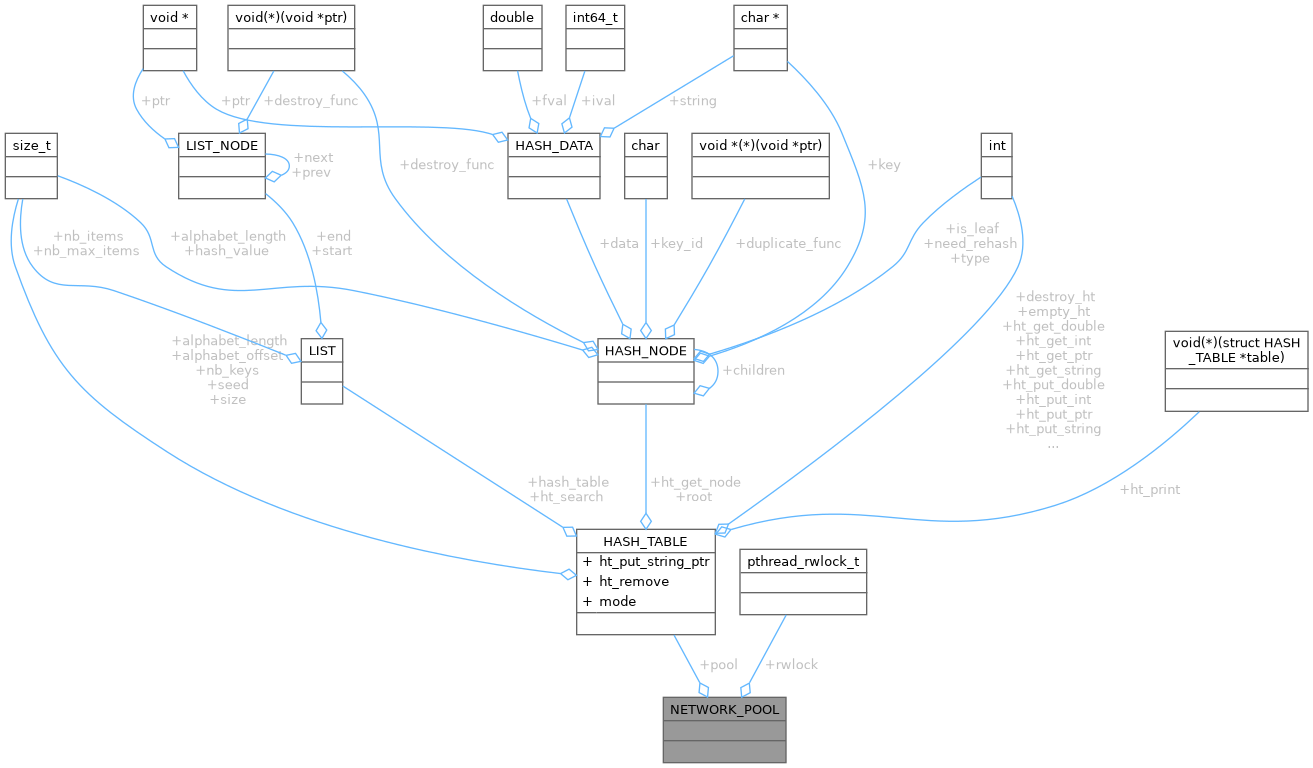

struct	NETWORK_POOL
	structure of a network pool More...

Macros
#define	_OPEN_SYS_SOCK_IPV6 1

#define	HEAD_CODE 3
	Code of a HEAD message.

#define	HEAD_SIZE 10
	Size of a HEAD message.

#define	N_ENUM_netw_code_type(_)
	Network codes definition.

#define	N_URL_MAX_PARAMS 64
	maximum number of parsed query parameters

#define	N_WS_OP_BINARY 0x02

#define	N_WS_OP_CLOSE 0x08

#define	N_WS_OP_PING 0x09

#define	N_WS_OP_PONG 0x0A

#define	N_WS_OP_TEXT 0x01
	WebSocket opcodes per RFC 6455.

#define	netw_atomic_read_reactor_handle(netw) __atomic_load_n(&(netw)->reactor_handle, __ATOMIC_ACQUIRE)
	Same contract for the back-pointer to the reactor.

#define	netw_atomic_read_reactor_mode(netw) __atomic_load_n(&(netw)->reactor_mode, __ATOMIC_ACQUIRE)
	Lock-free atomic read of the reactor_mode flag.

#define	netw_atomic_read_state(netw) __atomic_load_n(&(netw)->state, __ATOMIC_ACQUIRE)
	Lock-free atomic read of the network state field.

#define	netw_atomic_write_reactor_handle(netw, val) __atomic_store_n(&(netw)->reactor_handle, (val), __ATOMIC_RELEASE)

#define	netw_atomic_write_reactor_mode(netw, val) __atomic_store_n(&(netw)->reactor_mode, (val), __ATOMIC_RELEASE)

#define	netw_atomic_write_state(netw, val) __atomic_store_n(&(netw)->state, (val), __ATOMIC_RELEASE)
	Lock-free atomic write of the network state field.

#define	NETW_COMPRESS_MIN_RATIO 10u

#define	NETW_COMPRESS_THRESHOLD 256u
	Opportunistic compression policy.

#define	NETW_COMPRESSED NETW_COMPRESSED_ZLIB
	Legacy alias, the first compression commit shipped a single NETW_COMPRESSED flag before LZ4 was added.

#define	NETW_IO_WANT_READ -10
	single-attempt I/O (send_data_once / recv_data_once): the operation cannot progress until the socket is READABLE.

#define	NETW_IO_WANT_WRITE -11
	single-attempt I/O: the operation cannot progress until the socket is WRITABLE.

#define	NETW_MAX_RETRIES 8
	Send or recv max number of retries.

#define	NETW_RETRY_DELAY 1000
	Send or recv delay between retries in usec.

#define	NETW_SOCKET_DISCONNECTED -2
	Code for a disconnected recv.

#define	NETW_SOCKET_ERROR -1
	code for a socket error

#define	NETW_THR_EXIT_ERROR 666
	Internal DONE value indicating a send/recv thread observed NETW_ERROR without an in-flight local shutdown.

#define	NETW_THR_EXIT_OK 100
	Internal DONE value indicating a send/recv thread reached end-of-life cleanly (peer QUIT or local NETW_EXIT_ASKED ack'd).

#define	NETWORK_CONSECUTIVE_SEND_WAIT 2048
	Flag to set consecutive send waiting timeout

#define	NETWORK_DEPLETE_QUEUES_TIMEOUT 1024
	Flag to set network queues depletion timeout

#define	NETWORK_DEPLETE_SOCKET_TIMEOUT 512
	Flag to set send buffer depletion timeout

#define	NETWORK_DISABLE_ZERO_LENGTH_RECV FALSE
	Enable/disable recv of length 0.

#define	NETWORK_IPALL 0
	Flag for auto detection by OS of ip version to use.

#define	NETWORK_IPV4 1
	Flag to force IPV4

#define	NETWORK_IPV6 2
	Flag to force IPV6

#define	NETWORK_TCP 0
	Flag for TCP transport (default)

#define	NETWORK_UDP 1
	Flag for UDP transport.

#define	NETWORK_WAIT_CLOSE_TIMEOUT 4096
	Flag to set network closing wait timeout.

#define	SOCKET_SIZE_FORMAT "%d"
	socket associated printf style

Typedefs
typedef ssize_t(*	netw_func) (void , char , uint32_t)
	send/recv func ptr type

typedef int(*	netw_sni_pick_cb) (const char sni, N_STR cert_pem, N_STR key_pem, void user_data)
	SNI cert-pick callback for netw_accept_ssl_with_sni_cb: given the client SNI host (may be NULL), fill cert_pem and key_pem with a server certificate and key (newly allocated; n_network frees them).

typedef int	SOCKET
	default socket declaration

Enumerations
enum	__netw_code_type { NETW_CLIENT = 2 , NETW_SERVER = 4 , NETW_RESTART_TIMER = 8 , NETW_EMPTY_SENDBUF = 16 , NETW_EMPTY_RECVBUF = 32 , NETW_RUN = 64 , NETW_EXIT_ASKED = 128 , NETW_EXITED = 256 , NETW_ERROR = 512 , NETW_ENCRYPT_NONE = 1024 , NETW_ENCRYPT_OPENSSL = 2048 , NETW_THR_ENGINE_STARTED = 4096 , NETW_THR_ENGINE_STOPPED = 8192 , NETW_DESTROY_RECVBUF = 16384 , NETW_DESTROY_SENDBUF = 32768 , NETW_COMPRESSED_ZLIB = 65536 , NETW_COMPRESSED_LZ4 = 131072 , ____netw_code_type_UNKNOWN_VALUE__ }
	Network codes declaration. More...

enum	NETW_COMPRESS_MODE { NETW_COMPRESS_NONE = 0 , NETW_COMPRESS_ZLIB = 1 , NETW_COMPRESS_LZ4 = 2 }
	Compression mode selector for NETWORK.compress_mode. More...

Functions

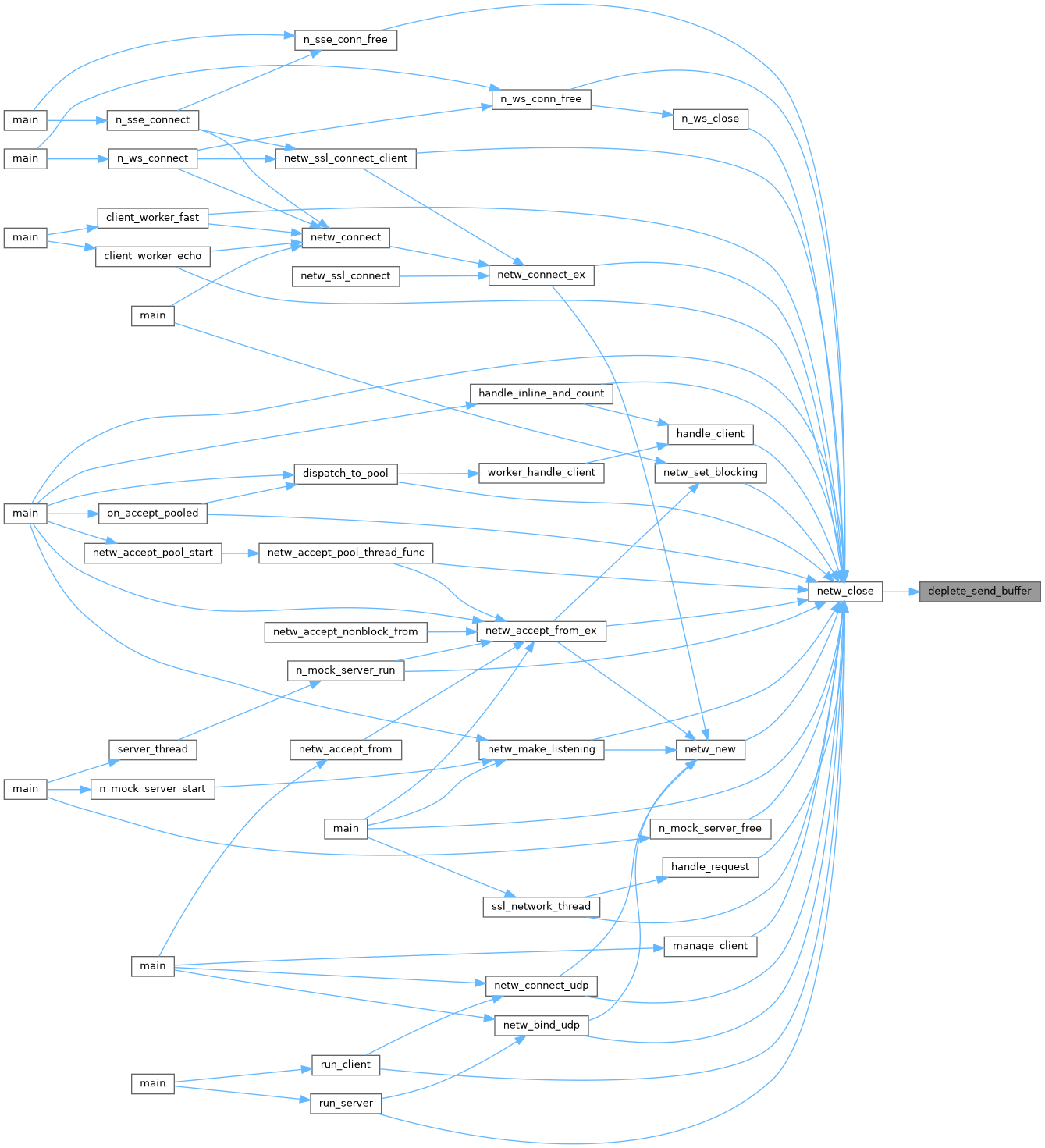

int	deplete_send_buffer (int fd, int timeout)
	wait for send buffer to be empty

size_t	htonst (size_t value)
	host to network size_t

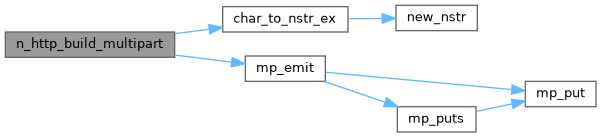

N_STR *	n_http_build_multipart (LIST parts, const char boundary)
	build a multipart/form-data body from a LIST of N_HTTP_MULTIPART_PART* using boundary (without "--"); returns a new N_STR (free with free_nstr) or NULL.

int	n_http_decompress_body (const N_STR body, const char encoding, N_STR **out)
	decompress an HTTP body per its Content-Encoding ("gzip"/"deflate"; identity/NULL/unknown copies through).

int	n_http_multipart_boundary (const char content_type, char out, size_t outsz)
	copy the boundary token from a Content-Type value into out (without the leading "--").

void	n_http_multipart_free (LIST **parts)
	free a LIST returned by n_http_parse_multipart and NULL the pointer

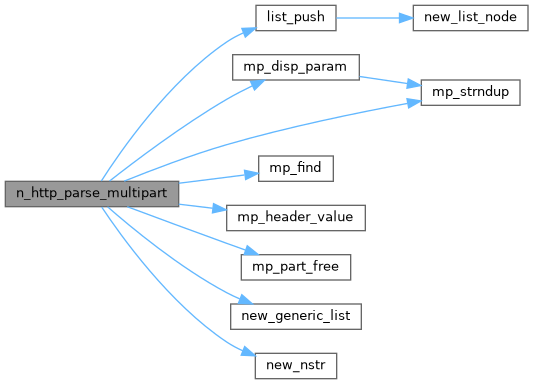

LIST *	n_http_parse_multipart (const N_STR body, const char boundary)
	parse a multipart body (boundary given without "--") into a LIST of N_HTTP_MULTIPART_PART*; free with n_http_multipart_free.

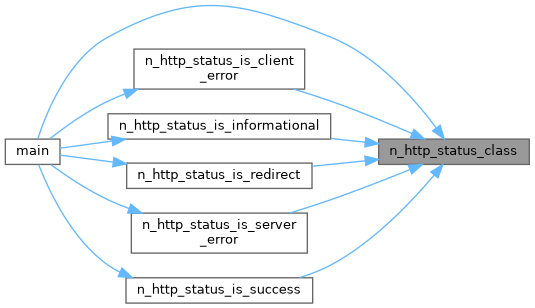

int	n_http_status_class (int status_code)
	leading digit of an HTTP status code (1..5), or 0 when outside 100..599

int	n_http_status_is_client_error (int status_code)
	1 when status_code is a client error (4xx), else 0

int	n_http_status_is_informational (int status_code)
	1 when status_code is informational (1xx), else 0

int	n_http_status_is_redirect (int status_code)
	1 when status_code is a redirect (3xx), else 0

int	n_http_status_is_server_error (int status_code)
	1 when status_code is a server error (5xx), else 0

int	n_http_status_is_success (int status_code)
	1 when status_code is success (2xx), else 0

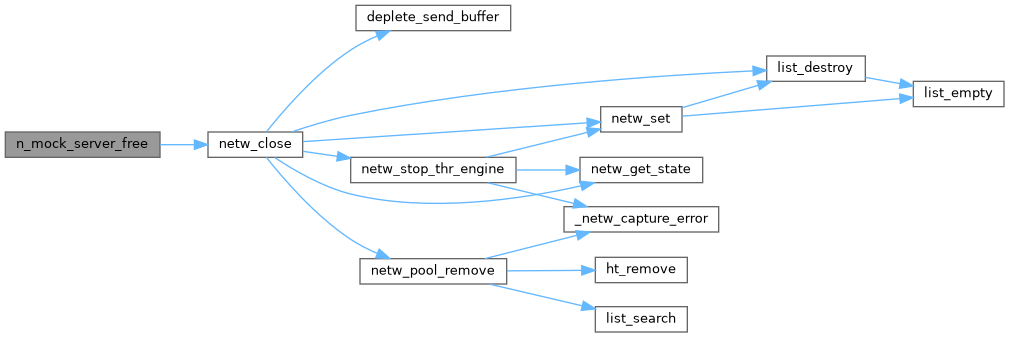

void	n_mock_server_free (N_MOCK_SERVER **server)
	free a mock server and close the listening socket

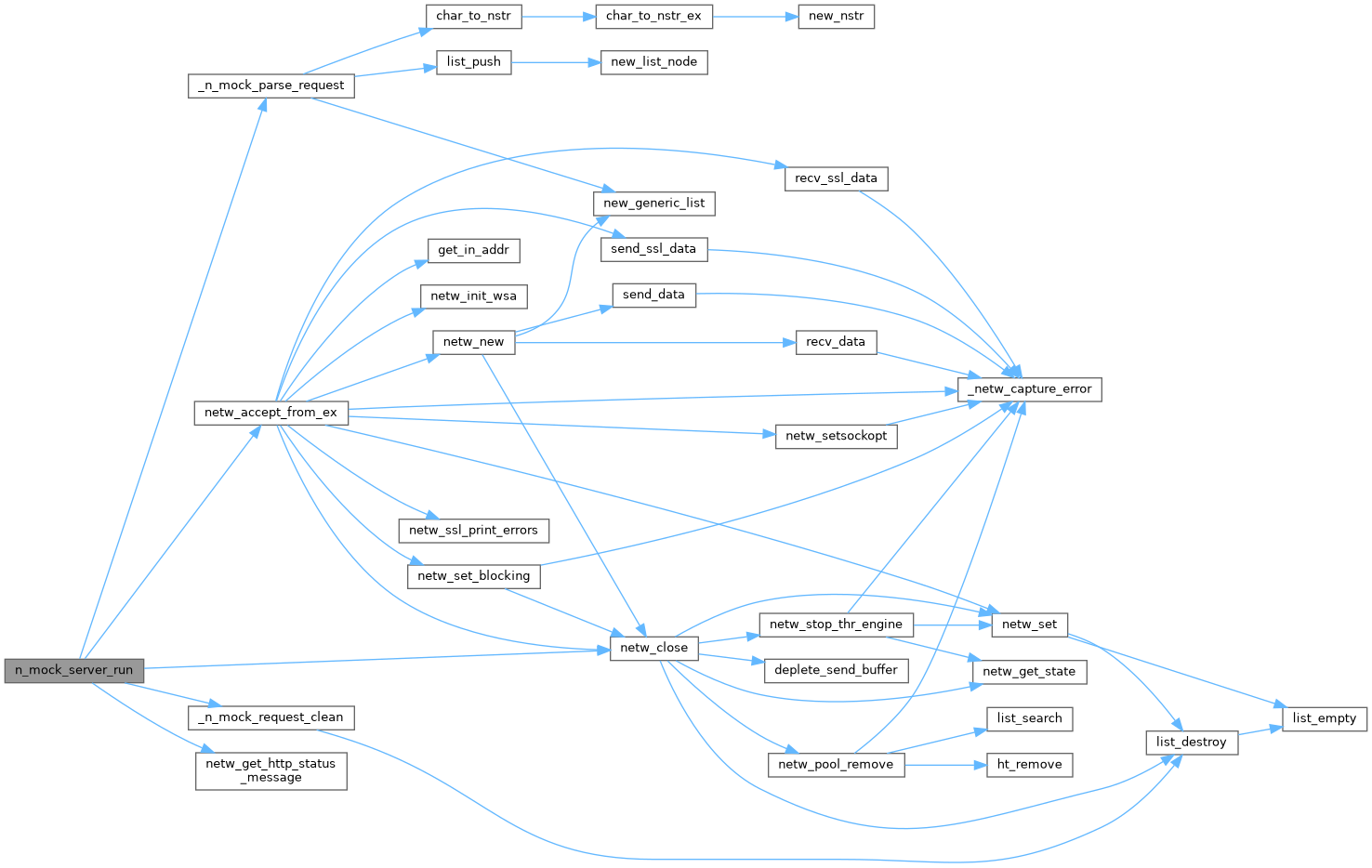

void	n_mock_server_run (N_MOCK_SERVER *server)
	run the mock server accept loop (blocks until stop_flag is set)

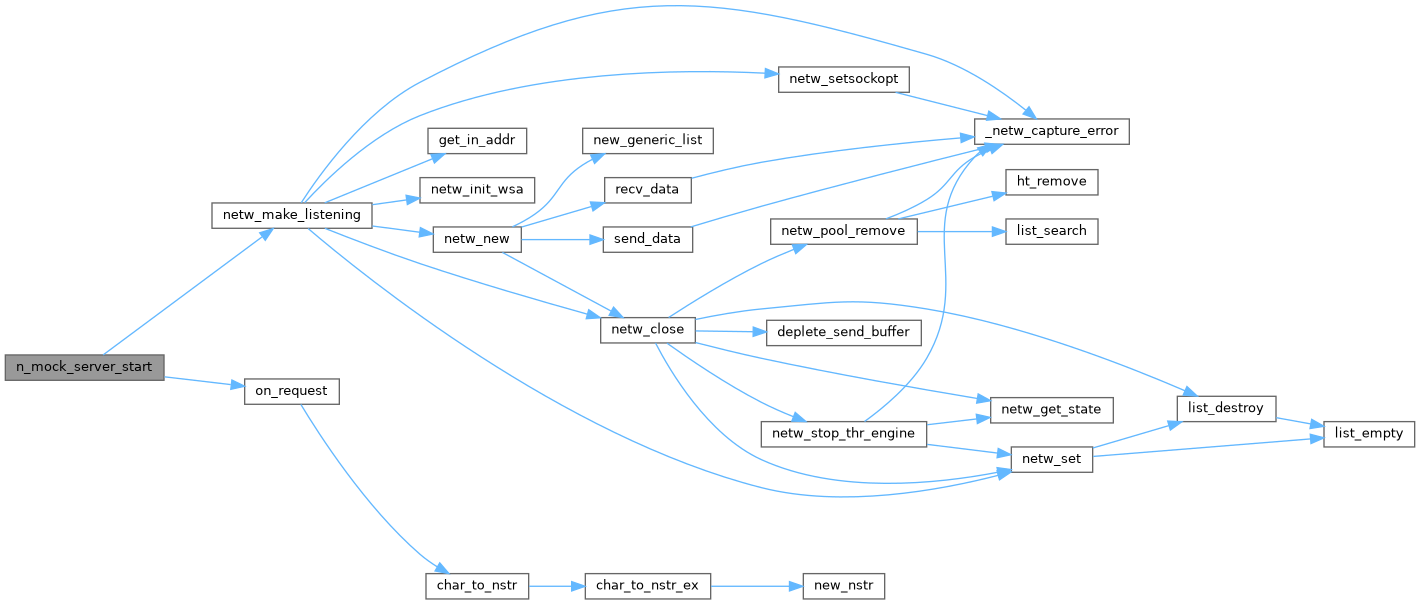

N_MOCK_SERVER *	n_mock_server_start (int port, void(on_request)(N_HTTP_REQUEST , N_HTTP_RESPONSE , void ), void *user_data)
	start a mock HTTP server on localhost:port (returns immediately)

void	n_mock_server_stop (N_MOCK_SERVER *server)
	signal the mock server to stop accepting connections

void	n_netw_clear_connect_errors (void)
	Clear pre-connection errors on this thread.

void	n_netw_clear_errors (NETWORK *netw)
	Clear captured errors on a NETWORK handle.

const char *	n_netw_get_connect_error (int index)
	Get pre-connection error message by index.

int	n_netw_get_connect_error_count (void)
	Get number of pre-connection errors captured on this thread.

const char *	n_netw_get_error (const NETWORK *netw, int index)
	Get captured error message by index (0 = oldest).

int	n_netw_get_error_count (const NETWORK *netw)
	Get number of captured errors on a NETWORK handle.

void	n_proxy_cfg_free (N_PROXY_CFG **cfg)
	Free an N_PROXY_CFG created by n_proxy_cfg_parse().

N_PROXY_CFG *	n_proxy_cfg_parse (const char *url)
	Parse a proxy URL string into an N_PROXY_CFG struct.

int	n_proxy_connect_socks5 (const N_PROXY_CFG proxy, const char target_host, int target_port)
	Open a TCP connection through a SOCKS5 proxy.

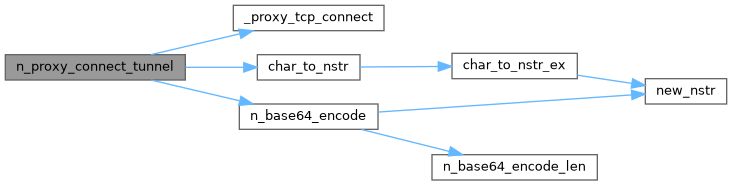

int	n_proxy_connect_tunnel (const N_PROXY_CFG proxy, const char target_host, int target_port)
	Open a TCP connection through an HTTP proxy using CONNECT tunneling.

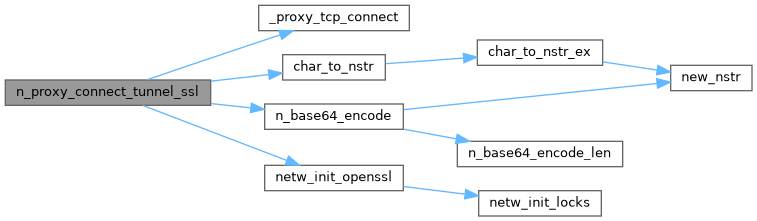

int	n_proxy_connect_tunnel_ssl (const N_PROXY_CFG proxy, const char target_host, int target_port)
	Open a TCP connection through an HTTPS proxy using CONNECT tunneling.

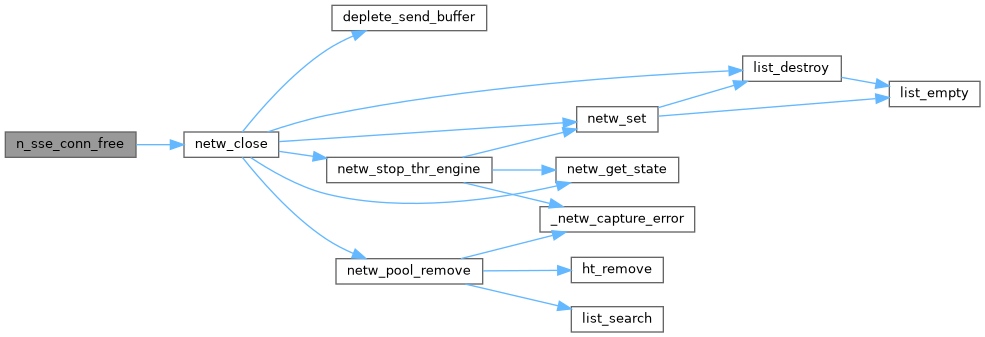

void	n_sse_conn_free (N_SSE_CONN **conn)
	free an SSE connection

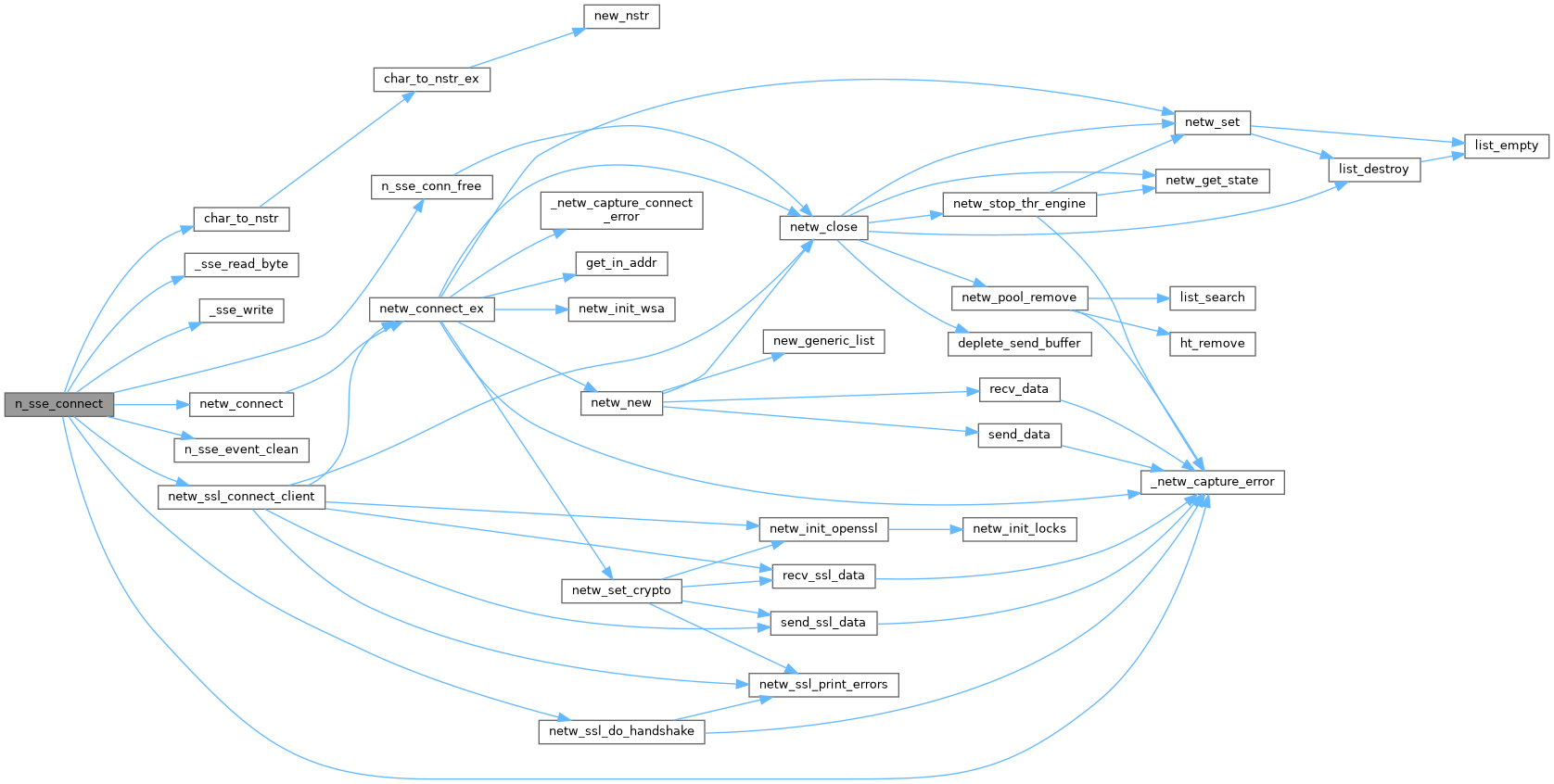

N_SSE_CONN *	n_sse_connect (const char host, const char port, const char path, int use_ssl, const char user_agent, void(on_event)(N_SSE_EVENT , N_SSE_CONN , void ), void *user_data)
	connect to an SSE endpoint and start reading events (blocks until stopped).

void	n_sse_event_clean (N_SSE_EVENT *event)
	free an SSE event's contents (does not free the event struct itself)

void	n_sse_stop (N_SSE_CONN *conn)
	signal the SSE connection to stop reading

N_STR *	n_url_build (const N_URL *u)
	build a URL string from parsed components

N_STR *	n_url_canonicalize (const N_URL *u)
	produce a canonical URL string for dedup (lowercase scheme/host, drop default port, remove .

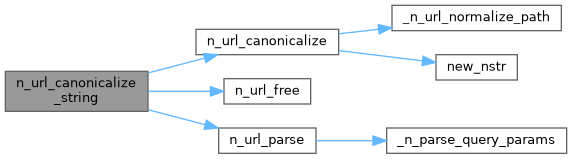

N_STR *	n_url_canonicalize_string (const char *url)
	parse and canonicalize a URL string in one call

N_STR *	n_url_decode (const char *str)
	decode a percent-encoded string (returns N_STR)

N_STR *	n_url_encode (const char *str)
	percent-encode a string for use in URLs (delegates to n_str_url_encode())

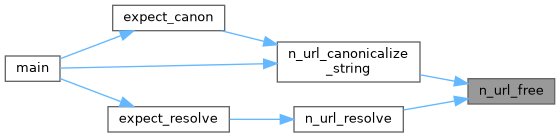

void	n_url_free (N_URL **u)
	free a N_URL and all its members

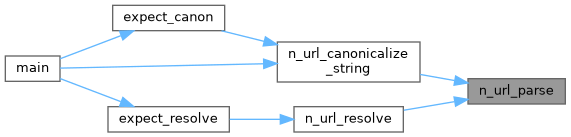

N_URL *	n_url_parse (const char *url)
	parse a URL string into components

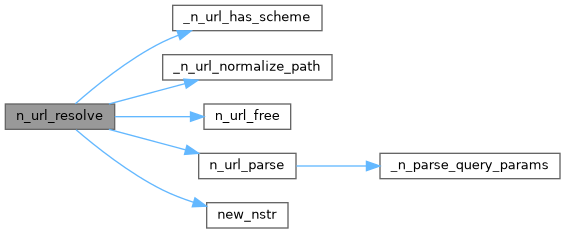

N_STR *	n_url_resolve (const char base, const char ref)
	resolve a (possibly relative) reference against an absolute base URL (RFC 3986 section 5)

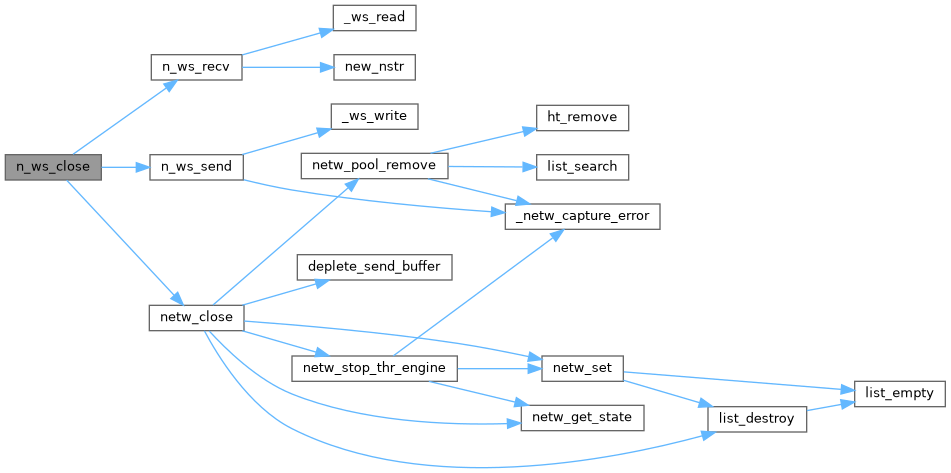

void	n_ws_close (N_WS_CONN *conn)
	send close frame and close the connection

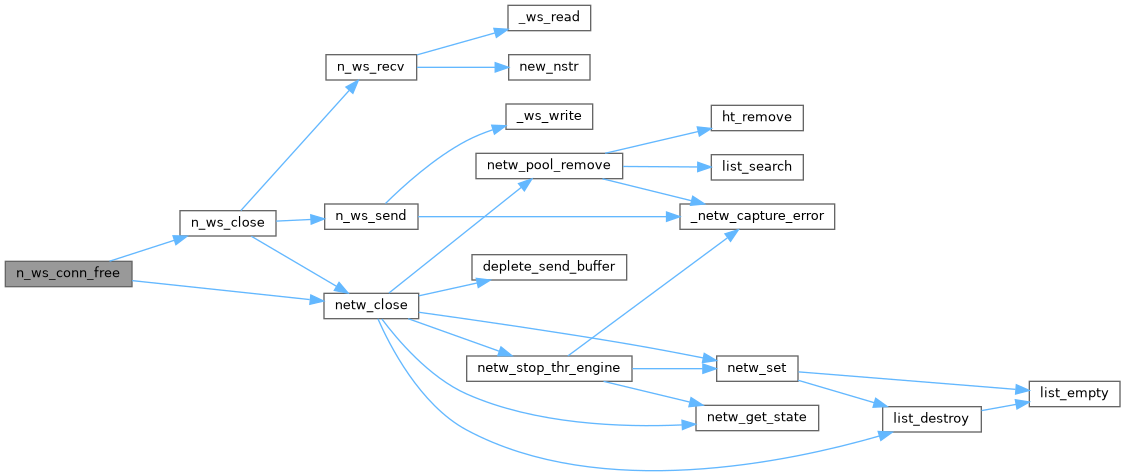

void	n_ws_conn_free (N_WS_CONN **conn)
	free a WebSocket connection structure

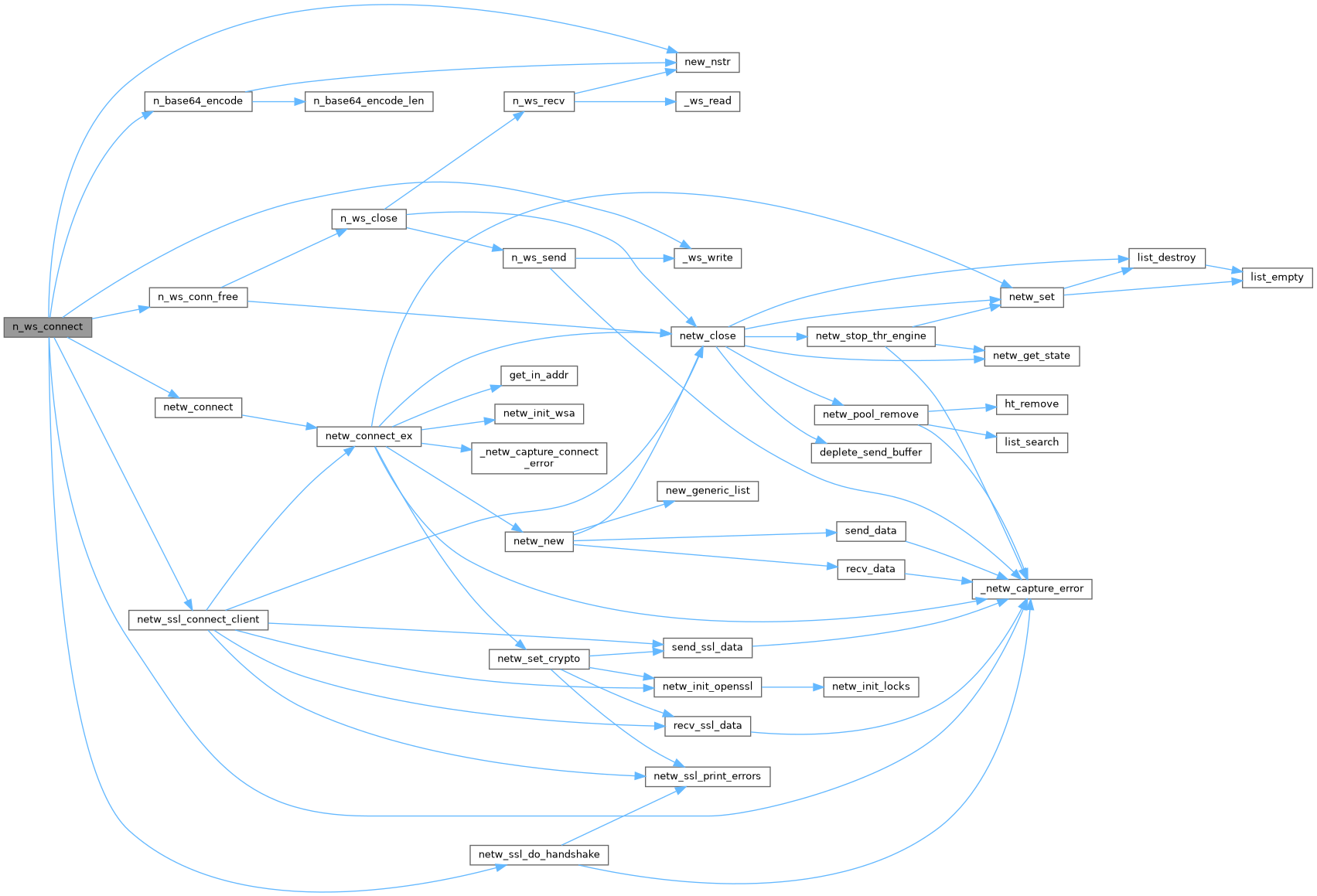

N_WS_CONN *	n_ws_connect (const char host, const char port, const char *path, int use_ssl)
	connect to a WebSocket server (ws:// or wss://) and perform the HTTP/1.1 upgrade handshake

size_t	n_ws_frame_build (int fin, int opcode, int do_mask, const unsigned char payload, size_t len, const unsigned char mask_key[4], unsigned char out, size_t out_cap)
	build a WebSocket frame into out (optionally masking the payload).

int	n_ws_frame_parse (const unsigned char buf, size_t len, N_WS_FRAME frame, size_t *consumed)
	parse one WebSocket frame from a byte buffer (stateless).

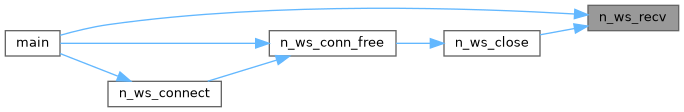

int	n_ws_recv (N_WS_CONN conn, N_WS_MESSAGE msg_out)
	receive one WebSocket frame

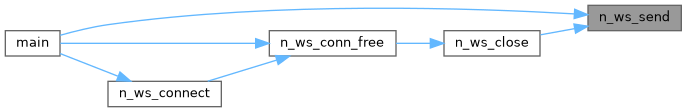

int	n_ws_send (N_WS_CONN conn, const char payload, size_t len, int opcode)
	send a WebSocket frame (client always masks)

void	n_ws_unmask (unsigned char dst, const unsigned char src, size_t len, const unsigned char mask[4])
	XOR-unmask len bytes of src into dst using a 4-byte WebSocket mask key.

NETWORK *	netw_accept_from (NETWORK *from)
	Accepting routine.

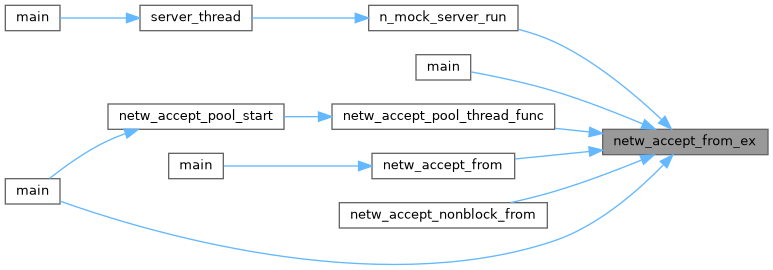

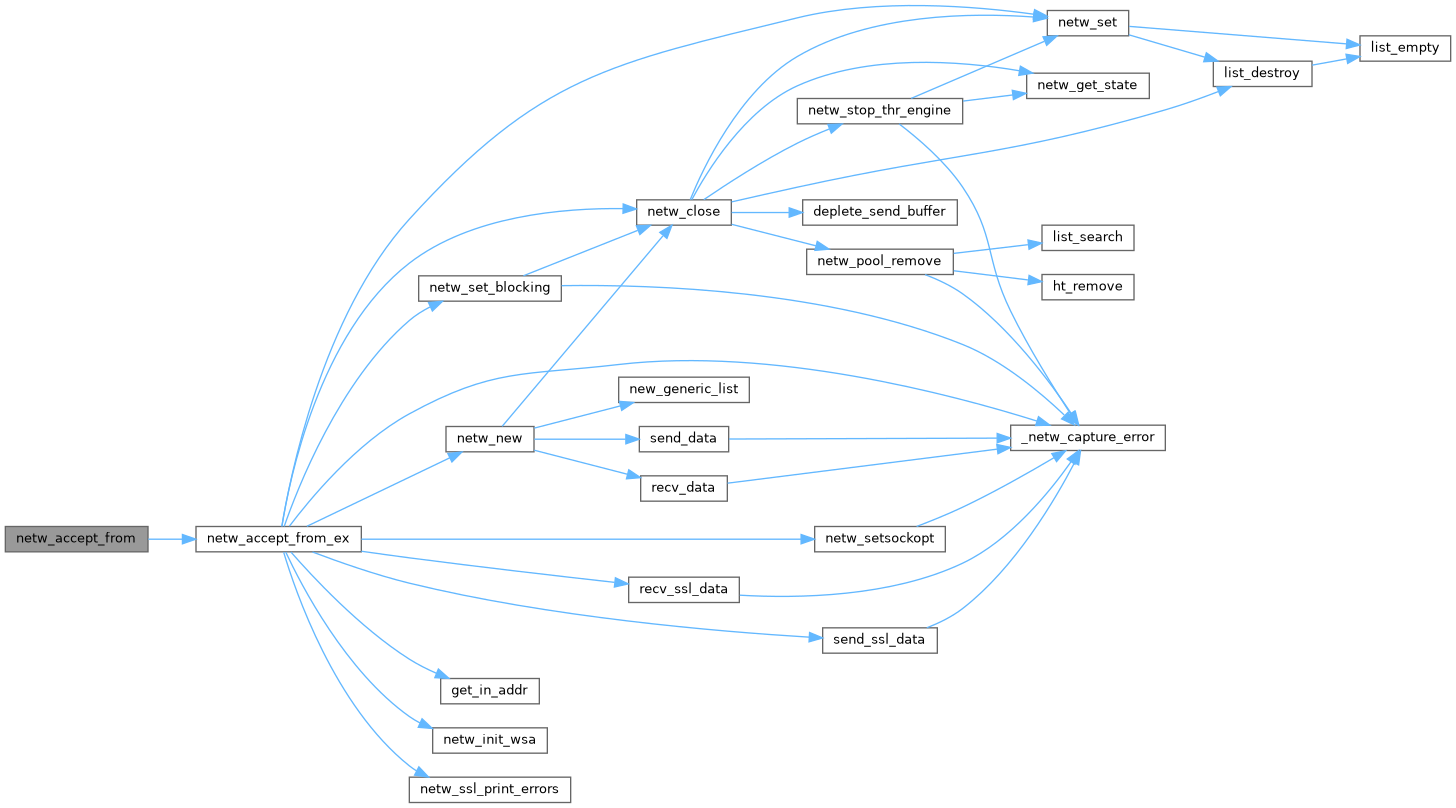

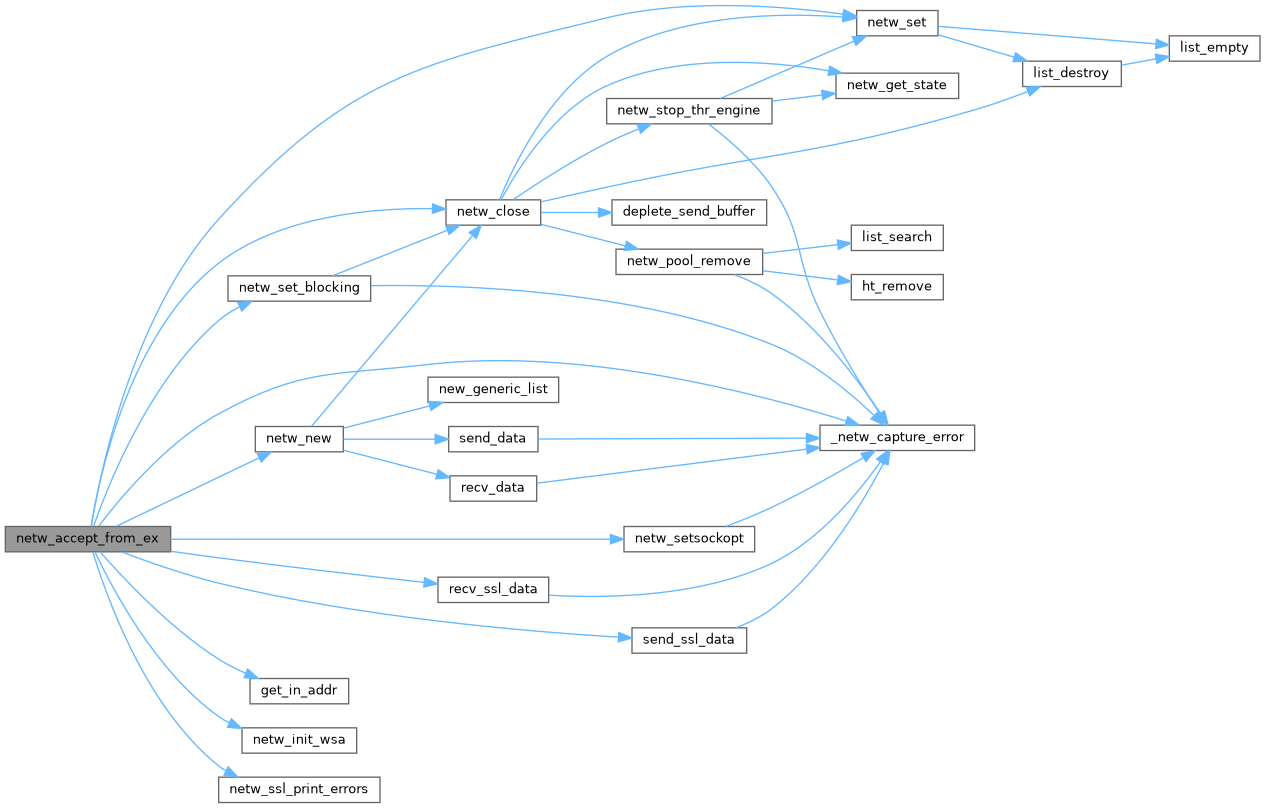

NETWORK *	netw_accept_from_ex (NETWORK from, size_t send_list_limit, size_t recv_list_limit, int blocking, int retval)
	Accepting routine extended.

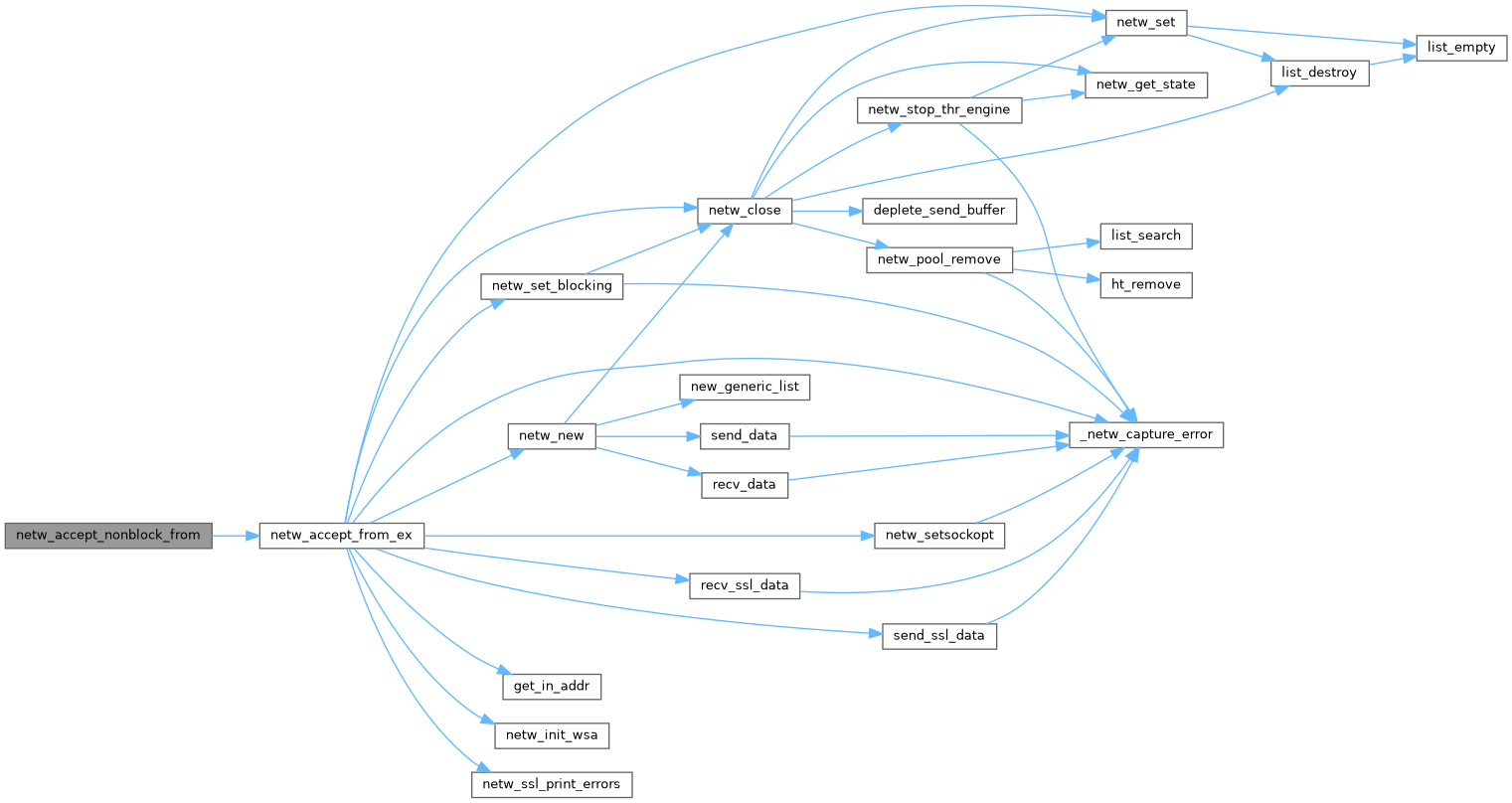

NETWORK *	netw_accept_nonblock_from (NETWORK *from, int blocking)
	Accepting routine.

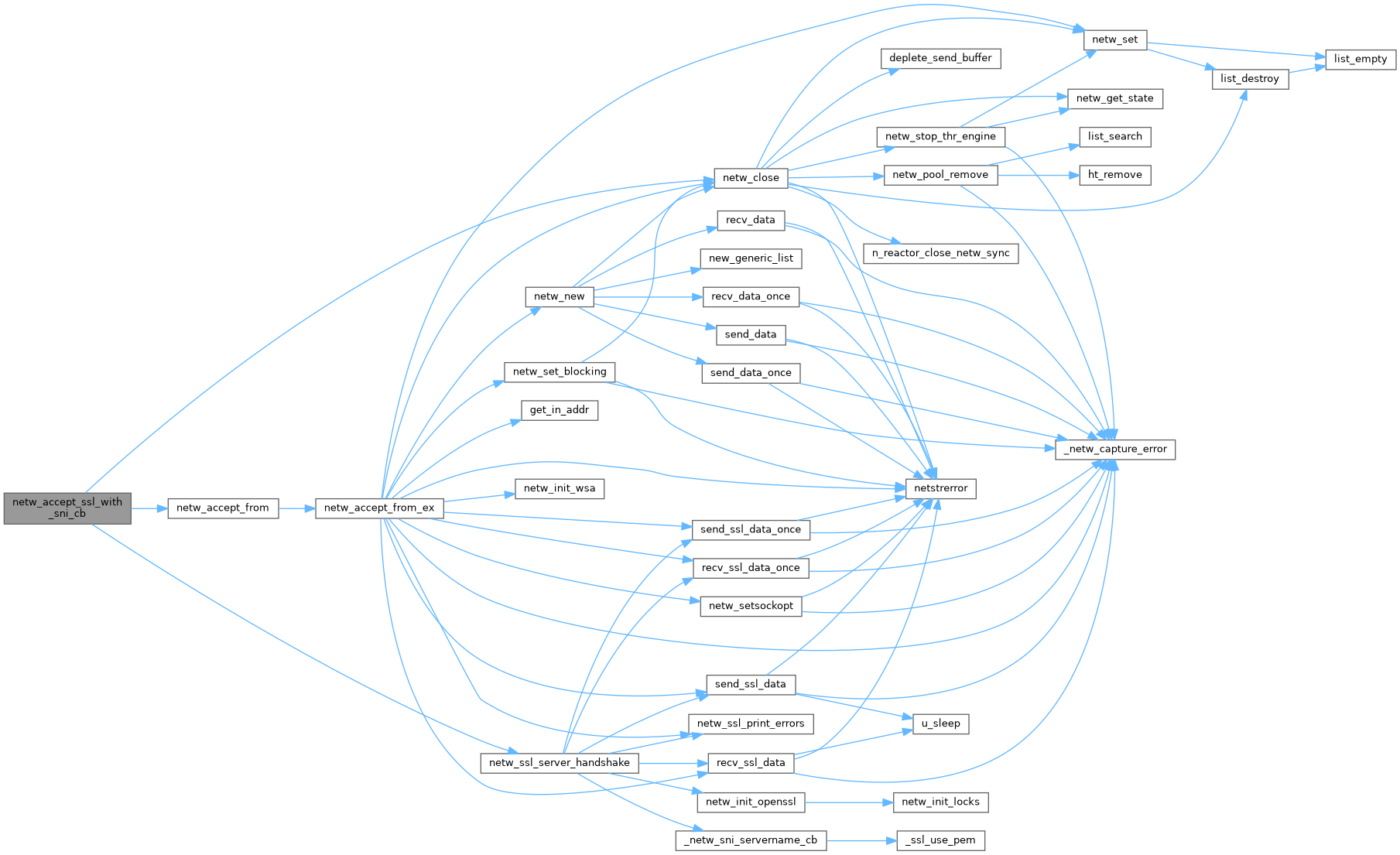

NETWORK *	netw_accept_ssl_with_sni_cb (NETWORK listen, netw_sni_pick_cb pick, void user_data)
	accept a TLS connection, selecting the server certificate per client SNI via pick() during the handshake

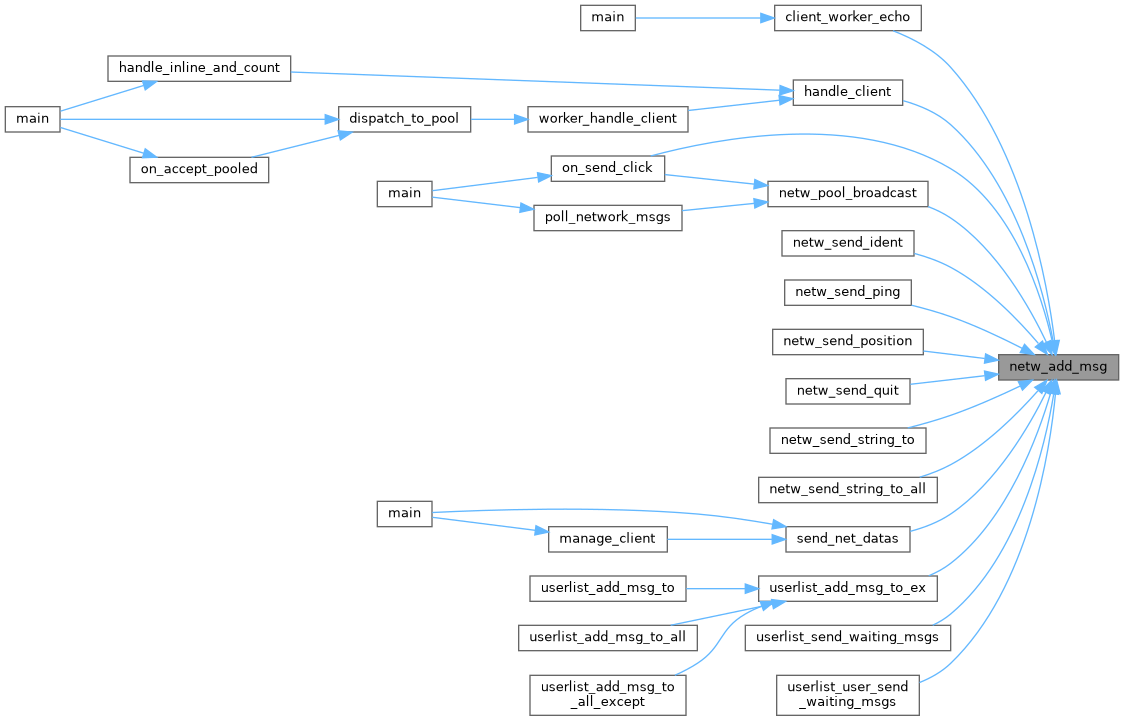

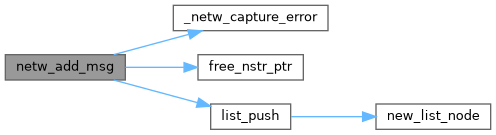

int	netw_add_msg (NETWORK netw, N_STR msg)
	Add a message to send in aimed NETWORK.

int	netw_add_msg_ex (NETWORK netw, char str, unsigned int length)
	Add a char message to send in the aimed NETWORK.

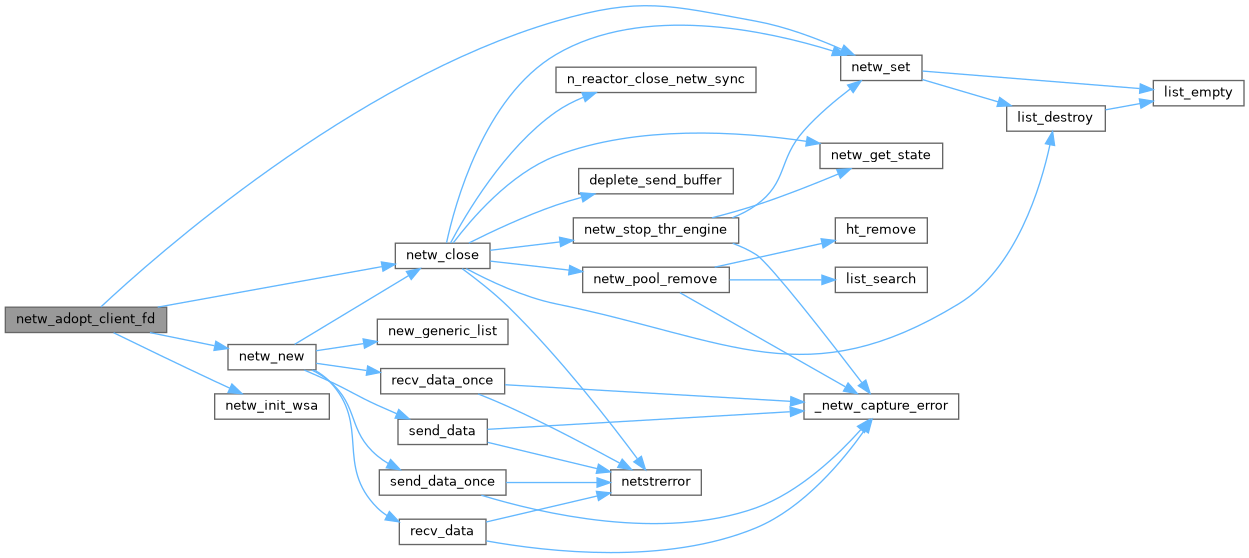

int	netw_adopt_client_fd (NETWORK *netw, SOCKET fd, const char host, const char *port)
	adopt an already-connected socket fd into a fresh client NETWORK (plain send/recv)

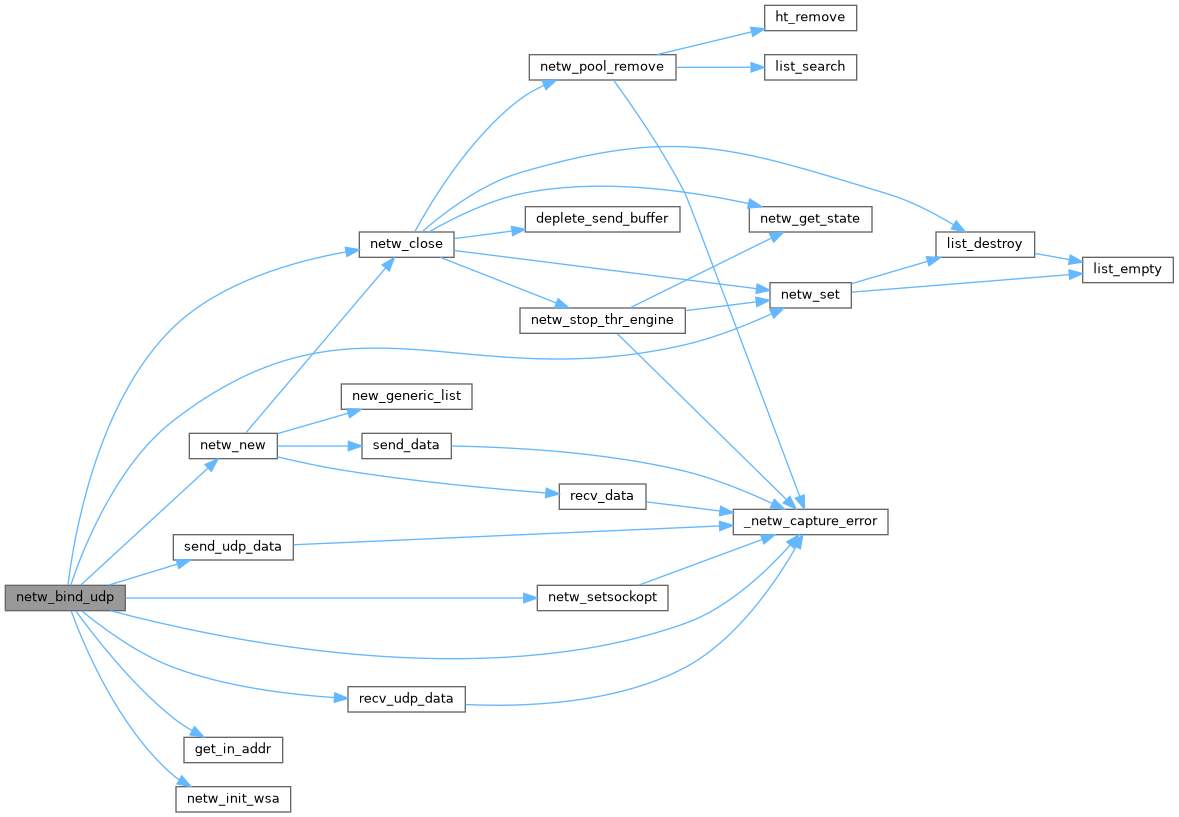

int	netw_bind_udp (NETWORK *netw, char addr, char *port, int ip_version)
	Create a UDP bound socket.

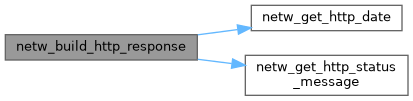

int	netw_build_http_response (N_STR *http_response, int status_code, const char server_name, const char content_type, char additional_headers, N_STR *body)
	build HTTP response

size_t	netw_calculate_urlencoded_size (const char *str, size_t len)
	calculate URL-encoded size

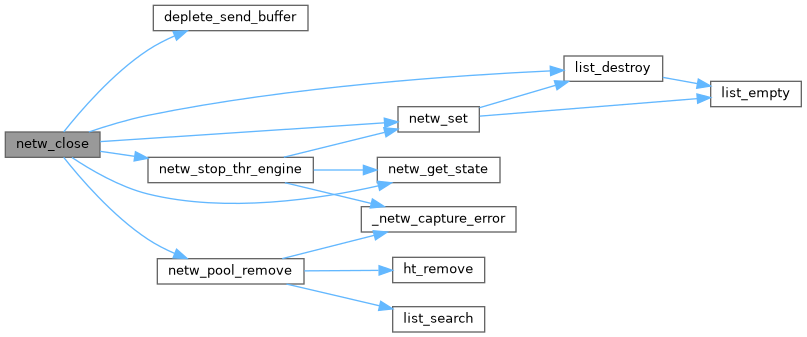

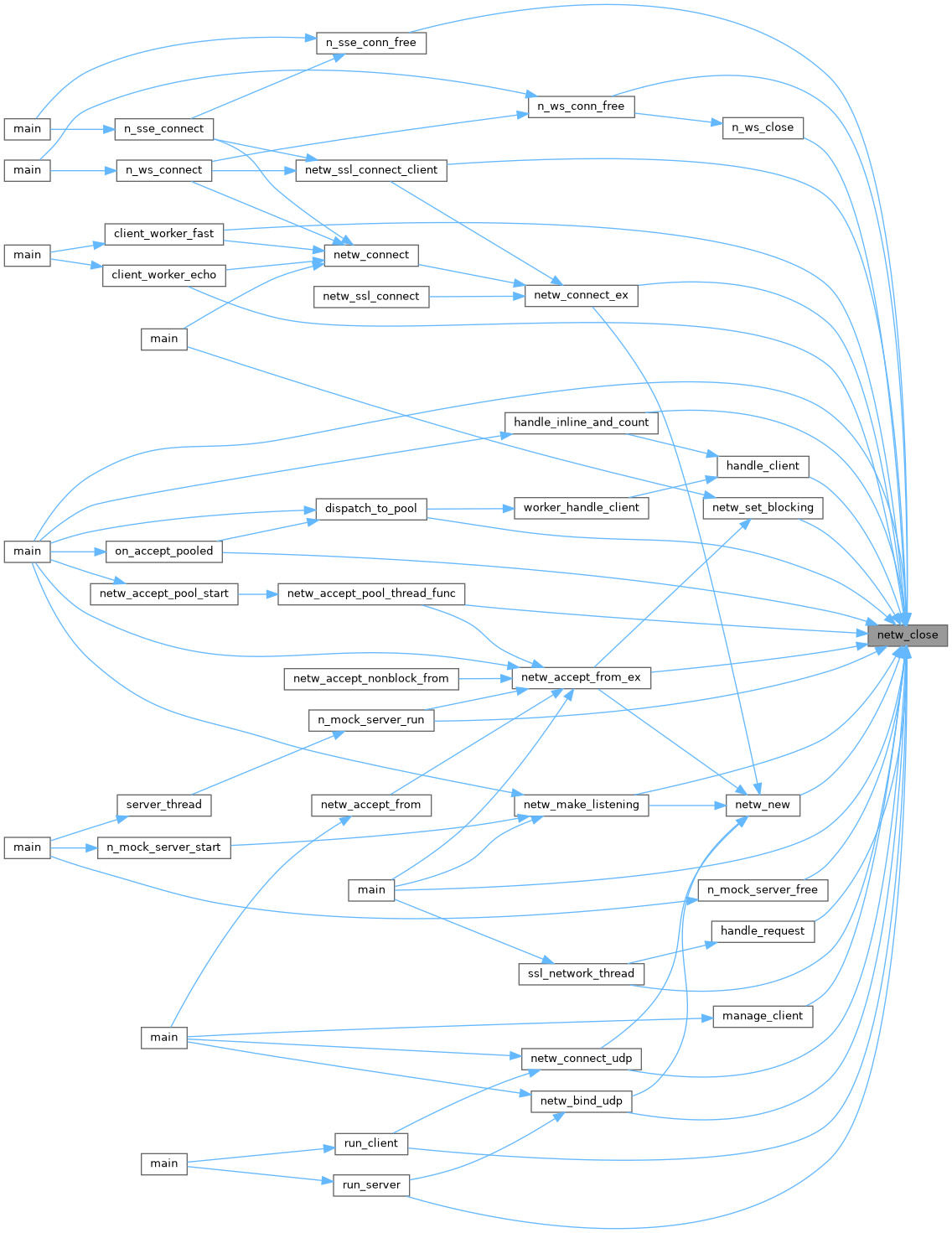

int	netw_close (NETWORK **netw)
	Closing.

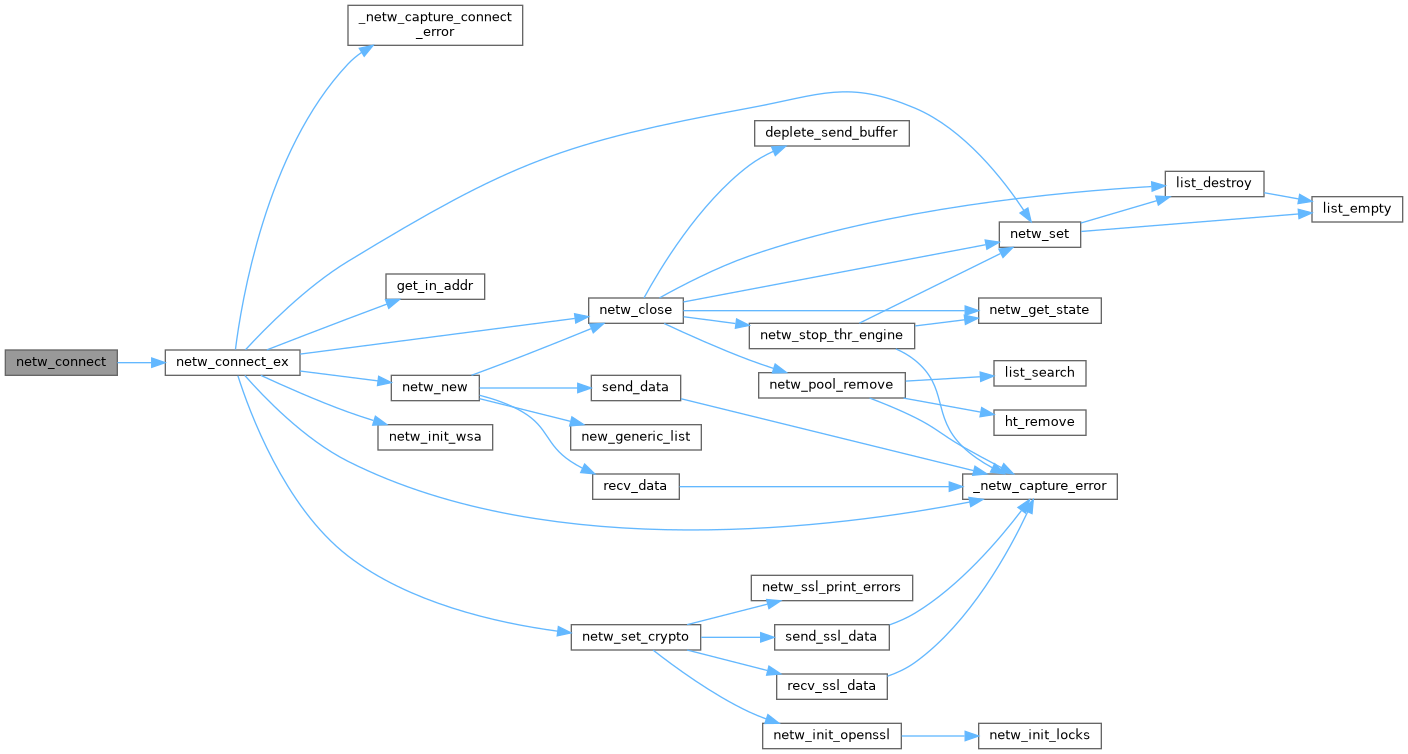

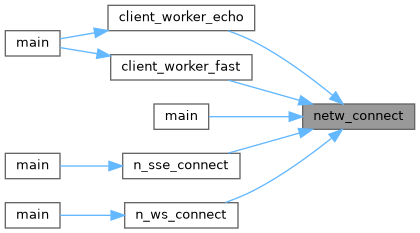

int	netw_connect (NETWORK *netw, char host, char *port, int ip_version)
	Connecting.

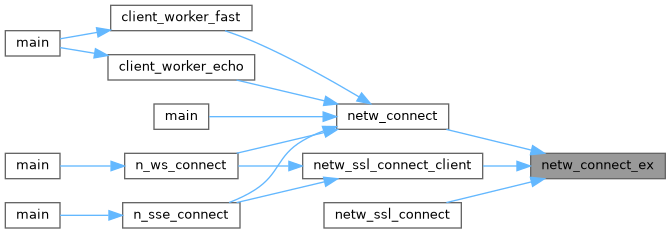

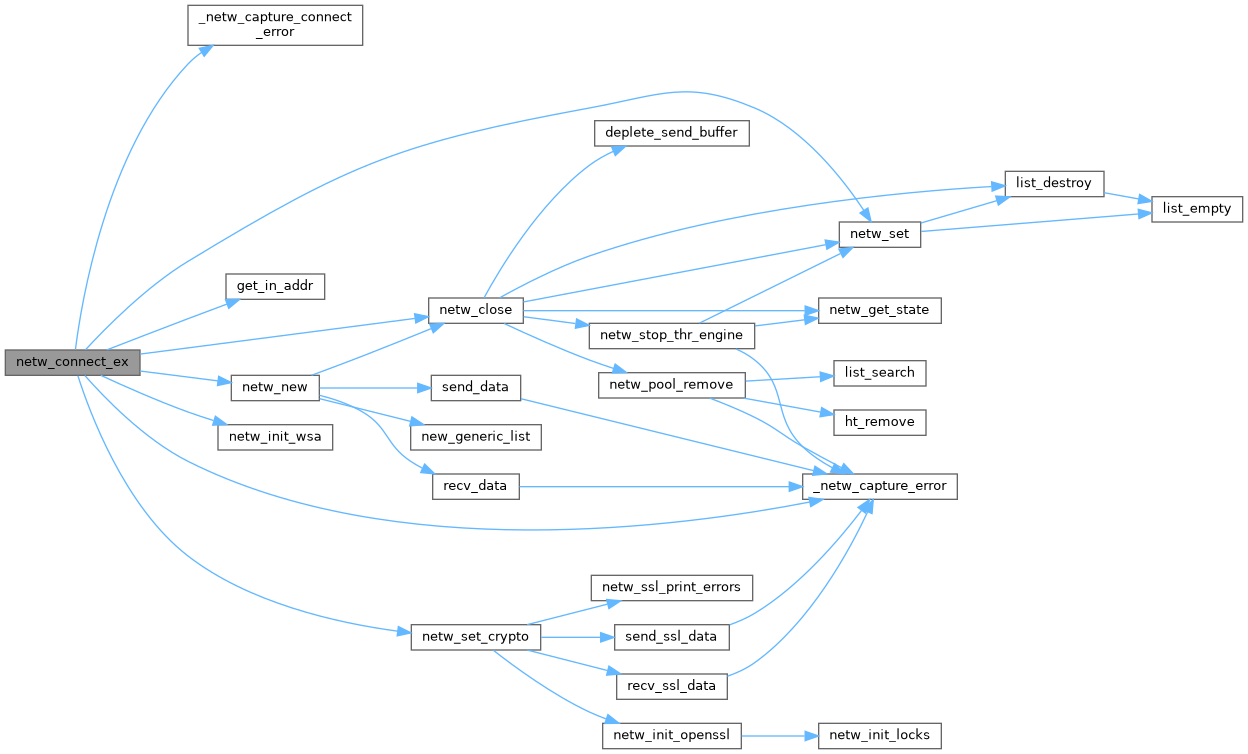

int	netw_connect_ex (NETWORK *netw, char host, char port, size_t send_list_limit, size_t recv_list_limit, int ip_version, char ssl_key_file, char *ssl_cert_file)
	Connecting, extended.

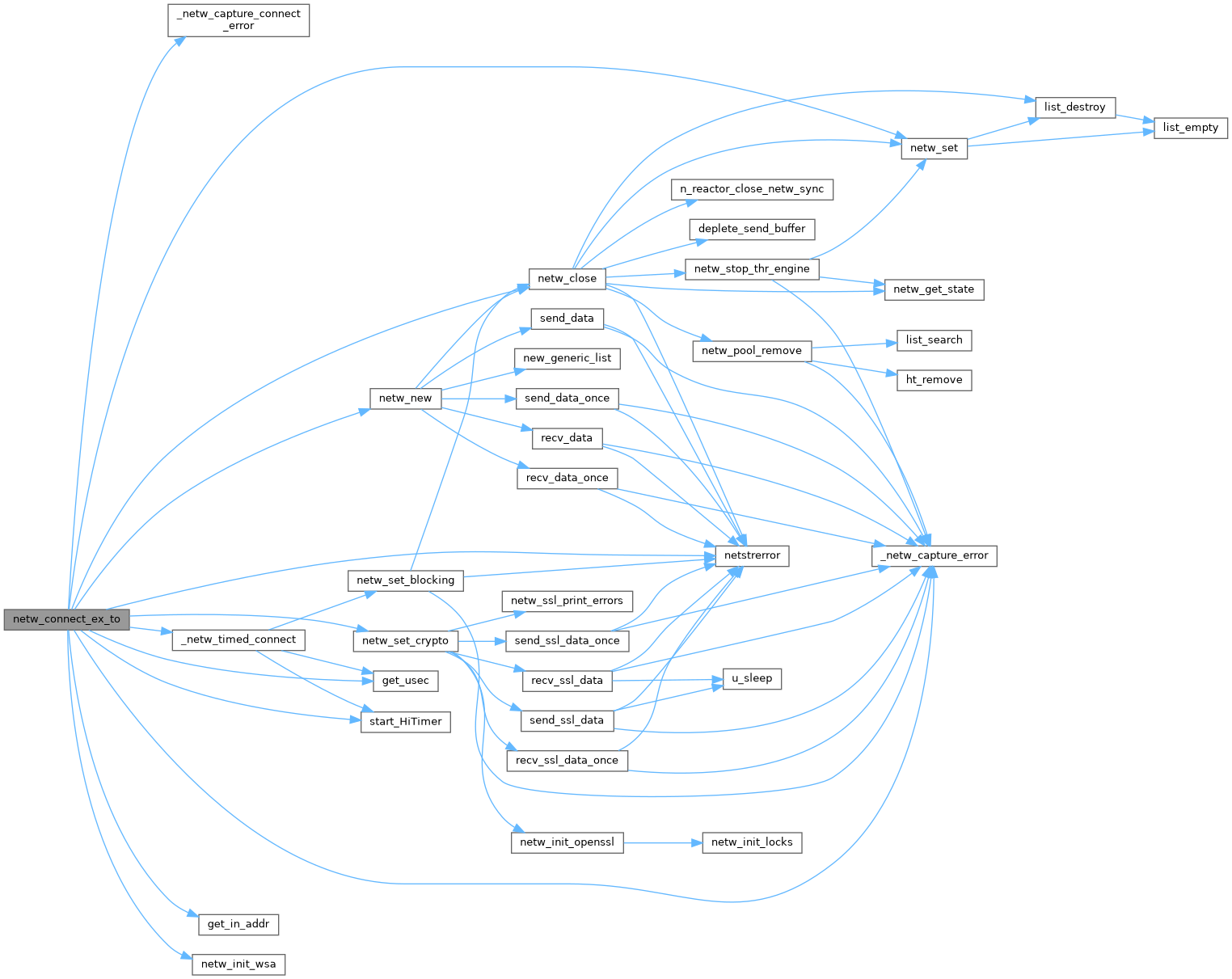

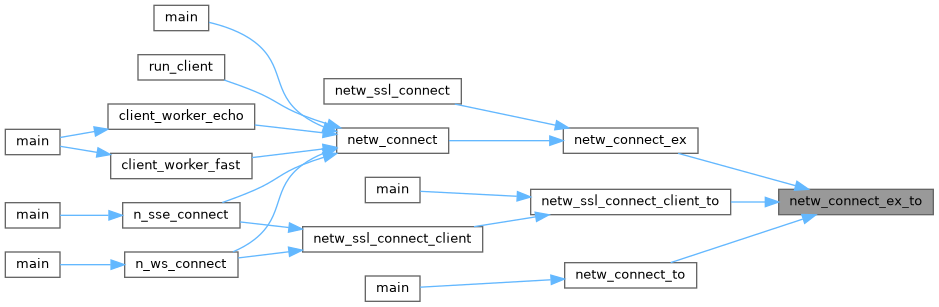

int	netw_connect_ex_to (NETWORK *netw, char host, char port, size_t send_list_limit, size_t recv_list_limit, int ip_version, char ssl_key_file, char *ssl_cert_file, int connect_timeout_ms)
	Connecting, extended, with a bounded connection-establishment time (connect_timeout_ms, 0 = OS default)

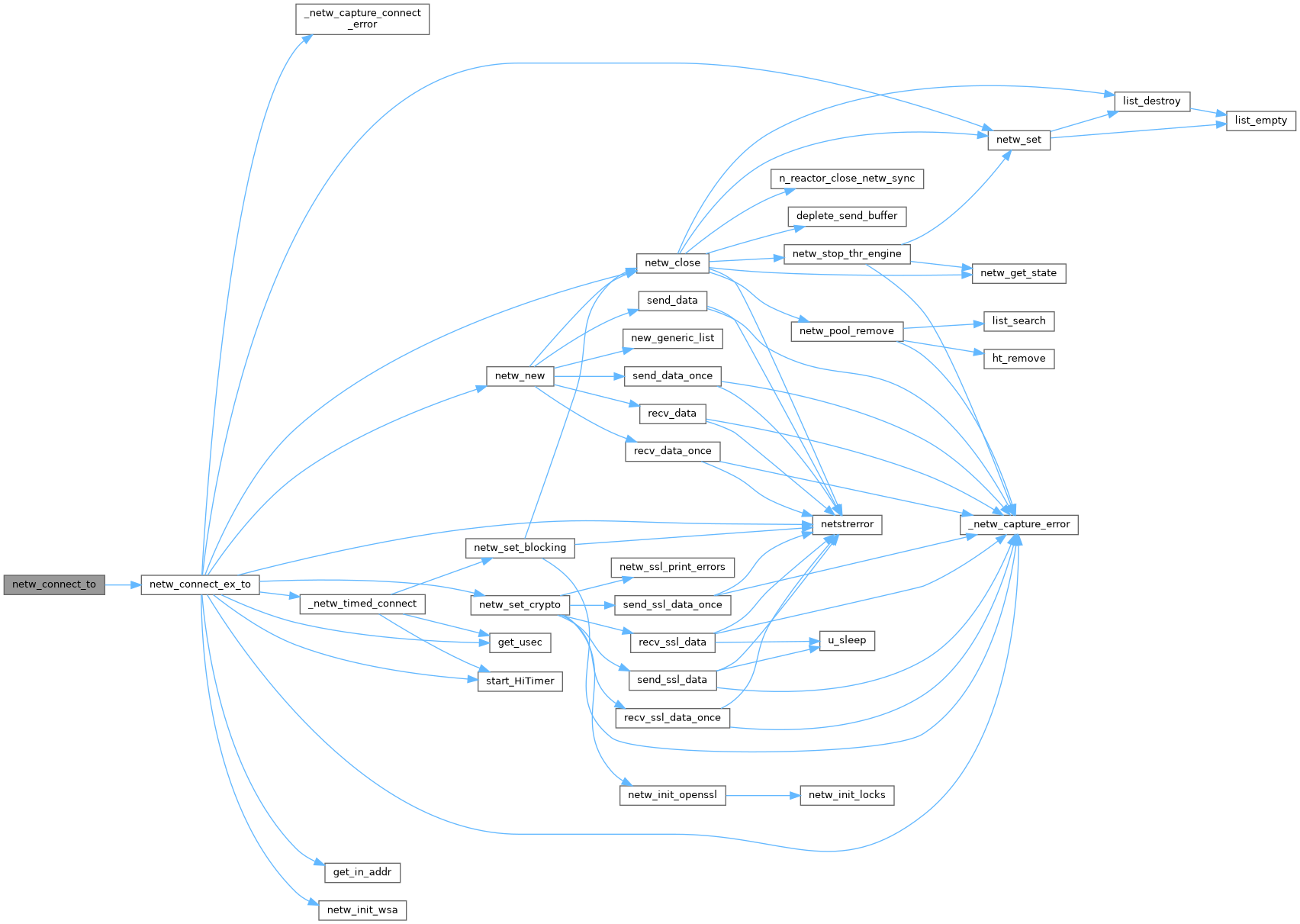

int	netw_connect_to (NETWORK *netw, char host, char *port, int ip_version, int connect_timeout_ms)
	Connecting, with a bounded connection-establishment time (connect_timeout_ms, 0 = OS default)

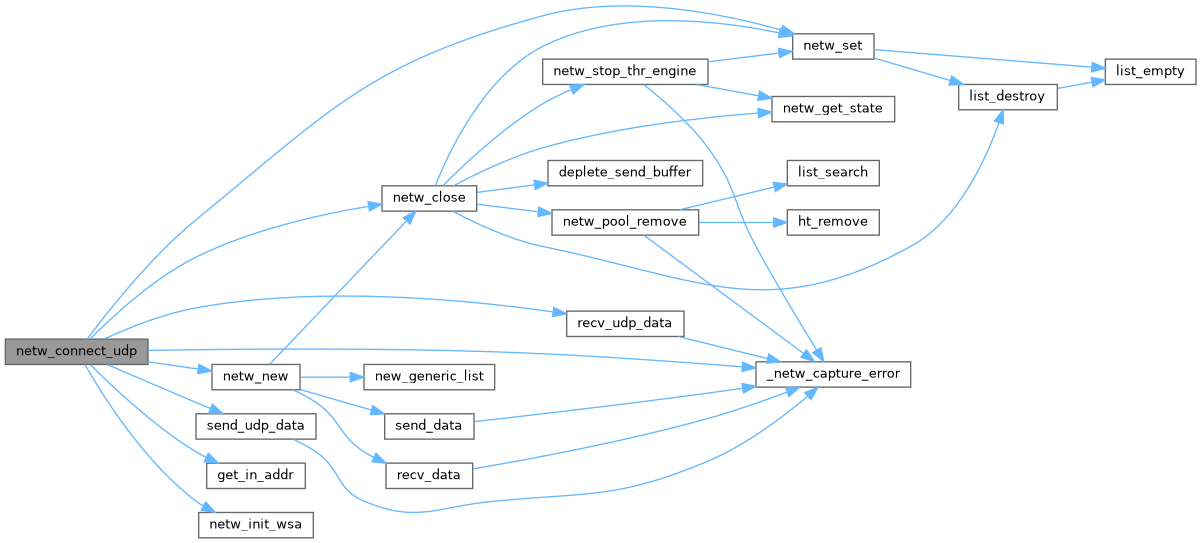

int	netw_connect_udp (NETWORK *netw, char host, char *port, int ip_version)
	Connect a UDP socket to a remote host.

int	netw_destroy_pool (NETWORK_POOL **netw_pool)
	destroy pool

NETWORK_HTTP_INFO	netw_extract_http_info (char *request)
	extract HTTP info from request

char *	netw_extract_http_request_type (const char *request)
	extract HTTP request type

int	netw_get_http_date (char *buffer, size_t buffer_size)
	get current HTTP date string

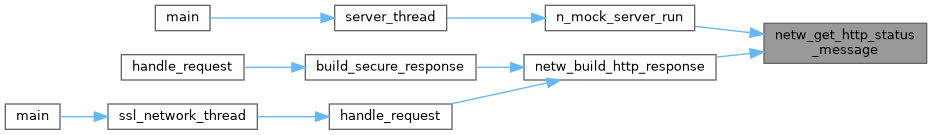

const char *	netw_get_http_status_message (int status_code)
	get HTTP status message string

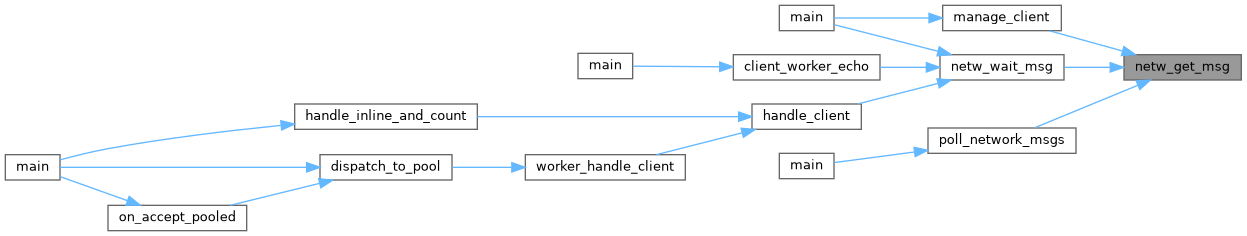

N_STR *	netw_get_msg (NETWORK *netw)
	Get a message from aimed NETWORK.

int	netw_get_queue_status (NETWORK netw, size_t nb_to_send, size_t *nb_to_read)
	get queue status

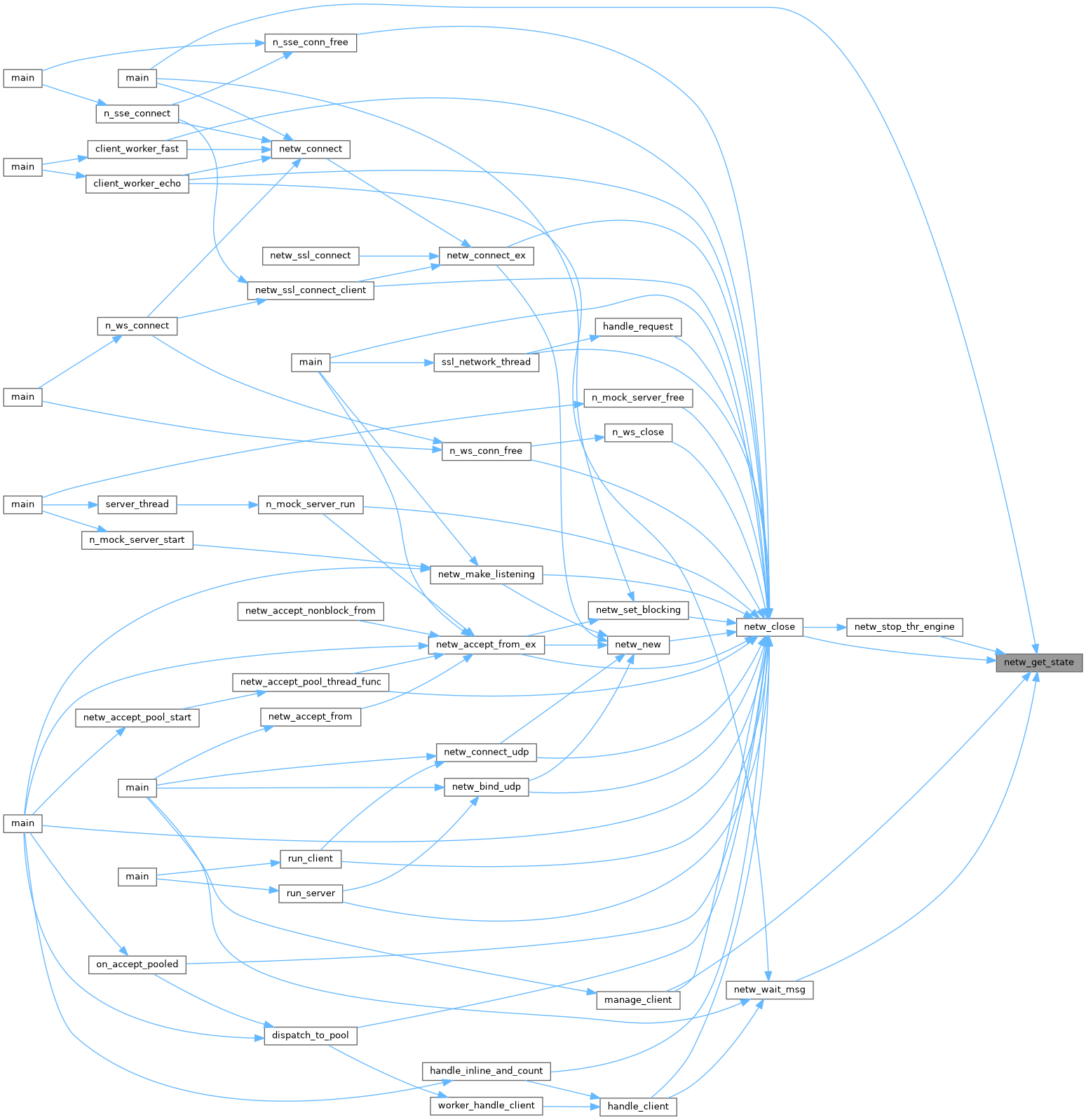

int	netw_get_state (NETWORK netw, uint32_t state, int *thr_engine_status)
	Get flags from network.

int	netw_get_url_from_http_request (const char request, char url, size_t size)
	get URL from HTTP request

const char *	netw_guess_http_content_type (const char *url)
	guess HTTP content type from URL

int	netw_info_destroy (NETWORK_HTTP_INFO http_request)
	destroy HTTP info structure

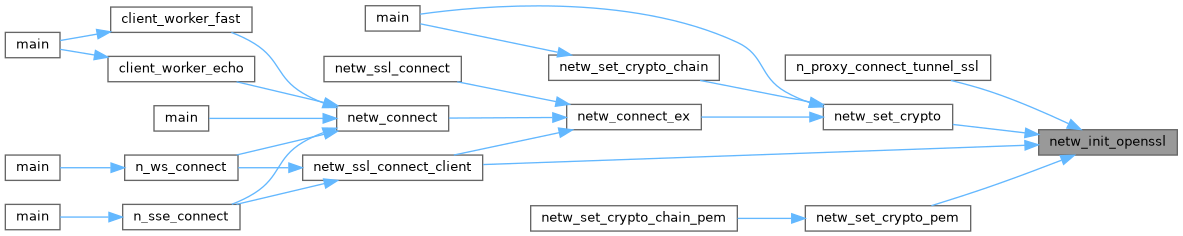

int	netw_init_openssl (void)
	init ssl helper

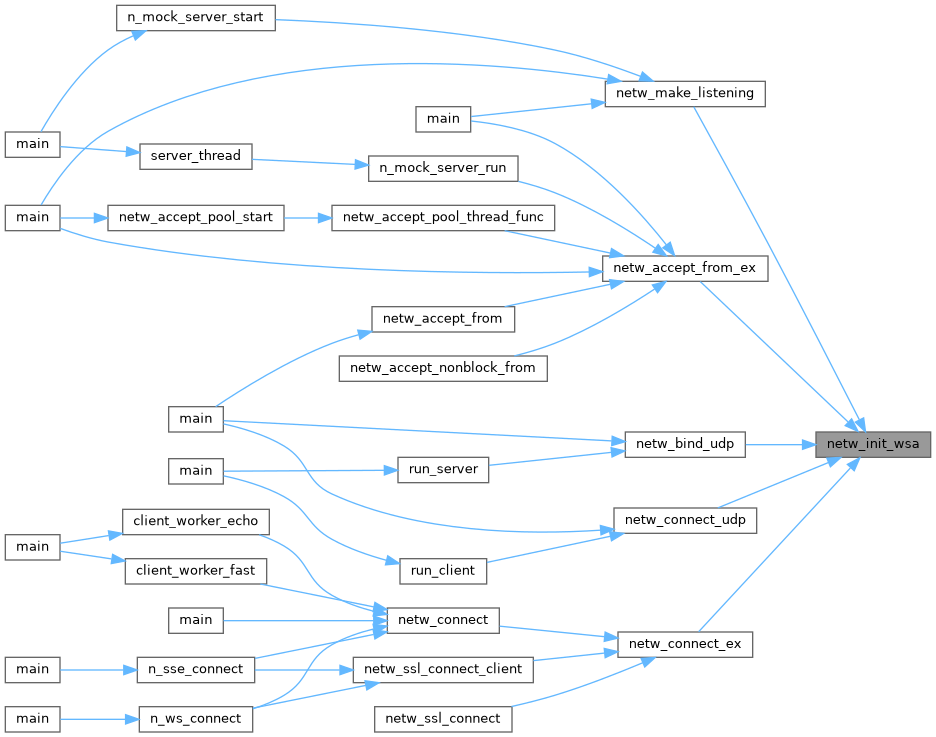

int	netw_init_wsa (int mode, int v1, int v2)
	Used by Init & Close network.

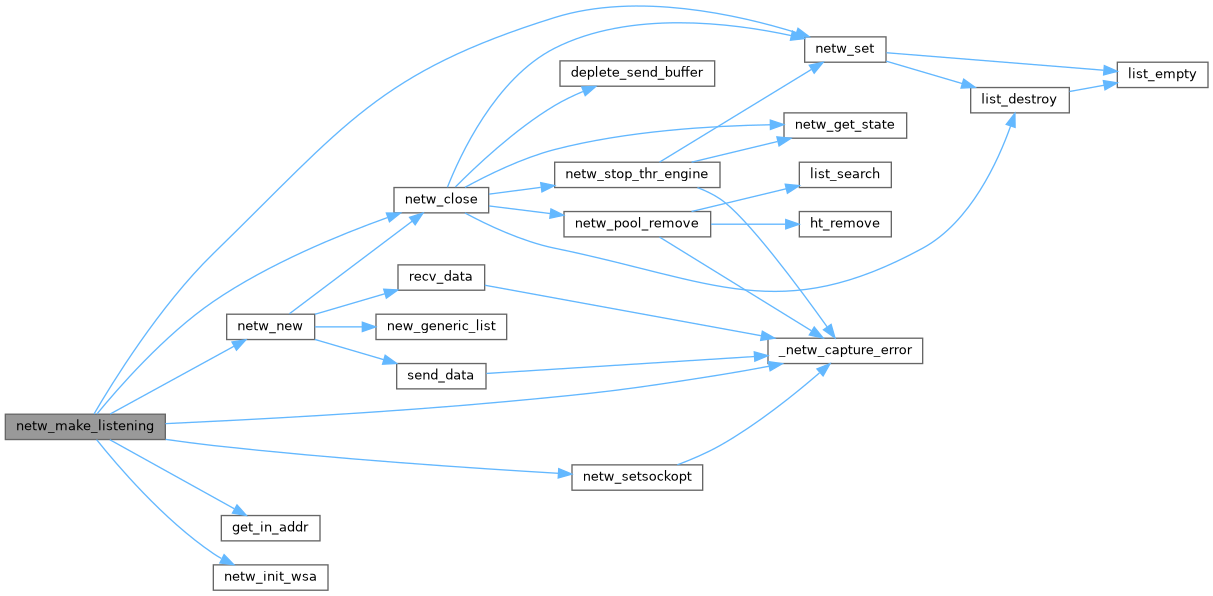

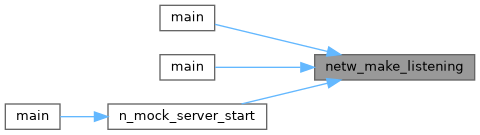

int	netw_make_listening (NETWORK *netw, char addr, char *port, int nbpending, int ip_version)
	Listening network.

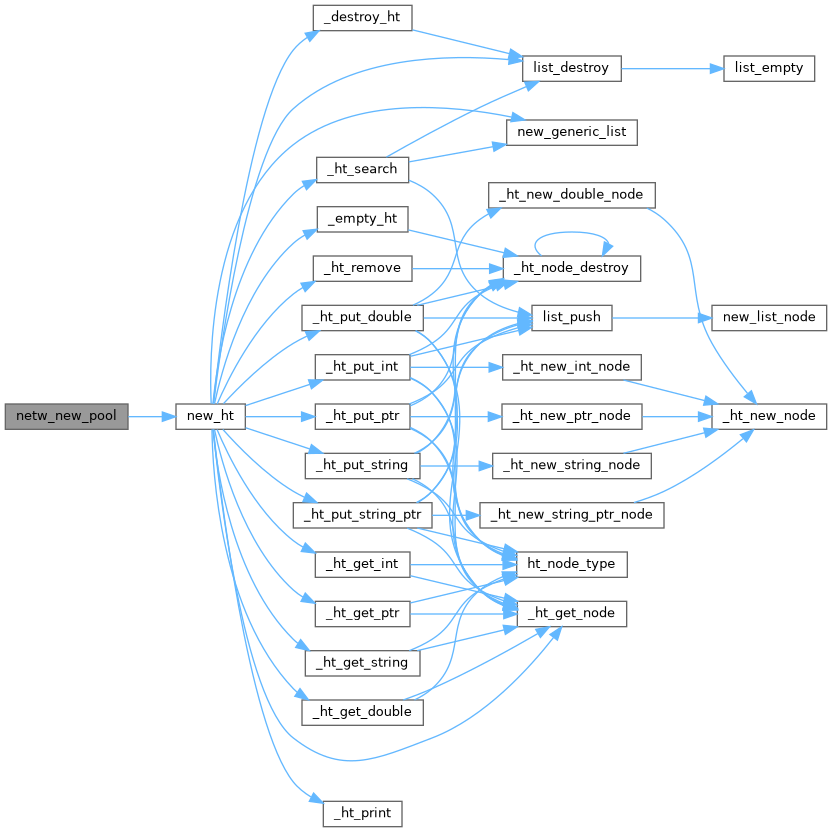

NETWORK_POOL *	netw_new_pool (size_t nb_min_element)
	init pools

HASH_TABLE *	netw_parse_post_data (const char *post_data)
	parse POST data into hash table

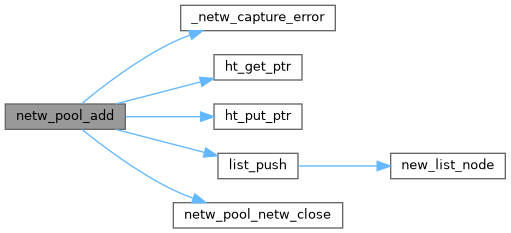

int	netw_pool_add (NETWORK_POOL netw_pool, NETWORK netw)
	add network to pool

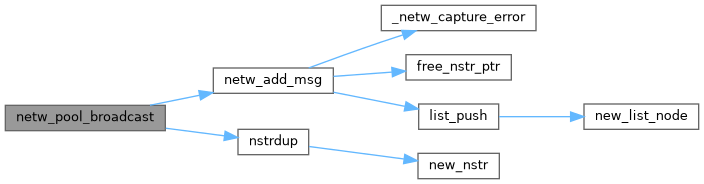

int	netw_pool_broadcast (NETWORK_POOL netw_pool, const NETWORK from, N_STR *net_msg)
	broadcast message to pool

size_t	netw_pool_nbclients (NETWORK_POOL *netw_pool)
	get nb clients

void	netw_pool_netw_close (void *netw_ptr)
	close pool

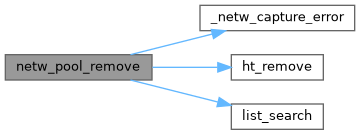

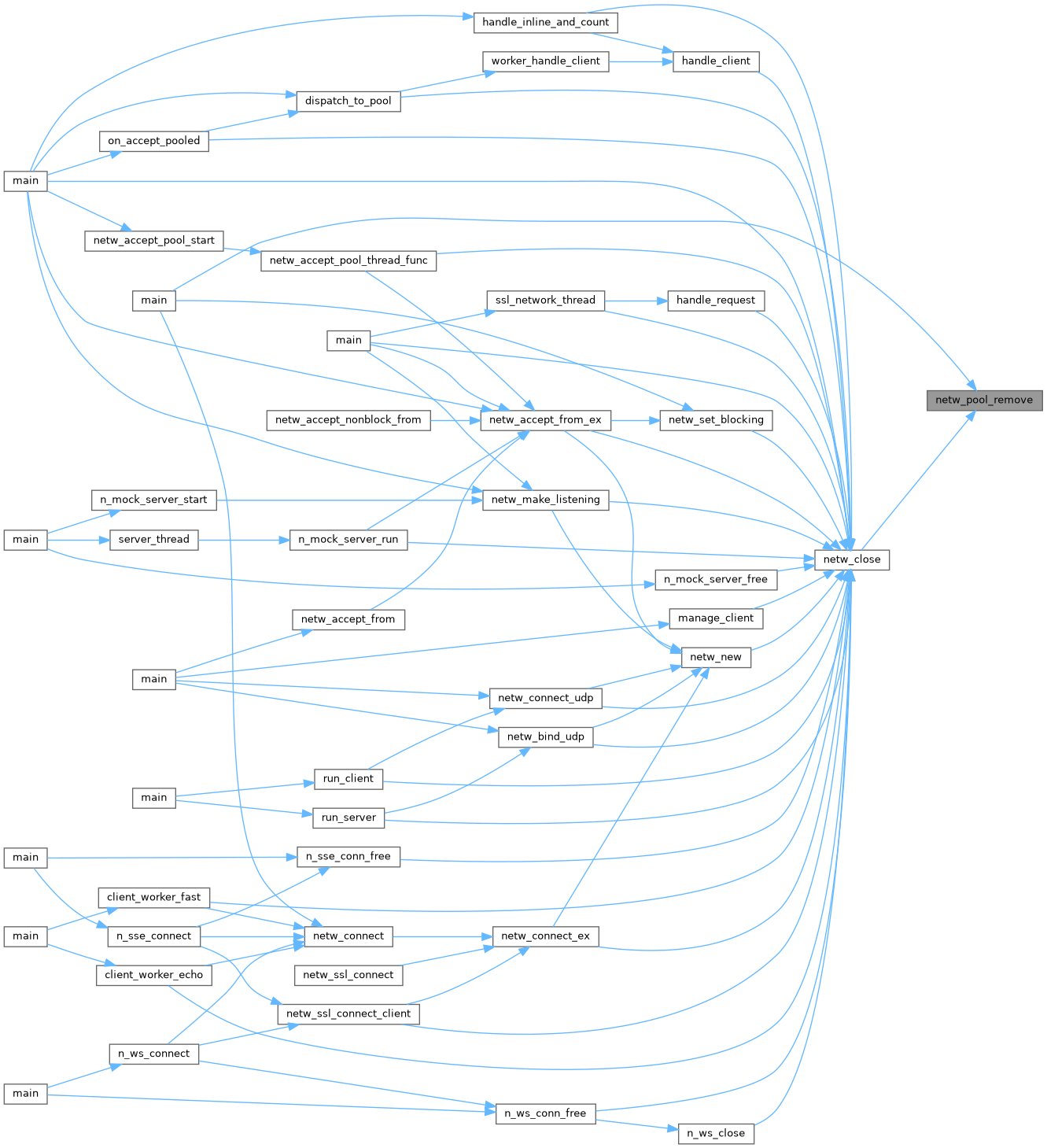

int	netw_pool_remove (NETWORK_POOL netw_pool, NETWORK netw)
	remove network from pool

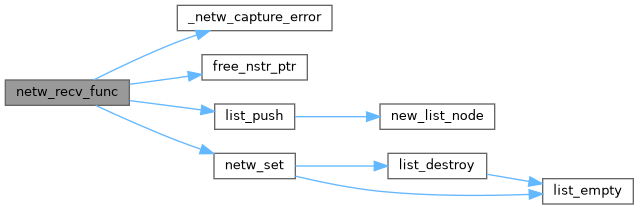

void *	netw_recv_func (void *NET)
	Thread Receiving management function.

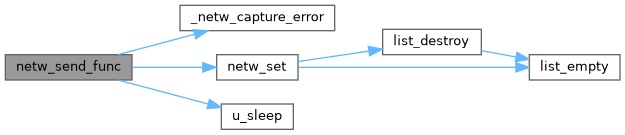

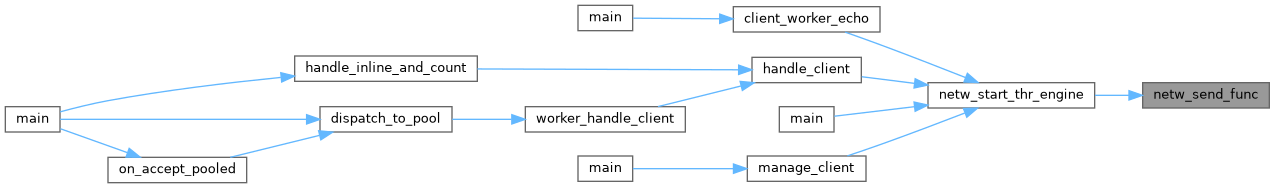

void *	netw_send_func (void *NET)
	Thread Sending management function.

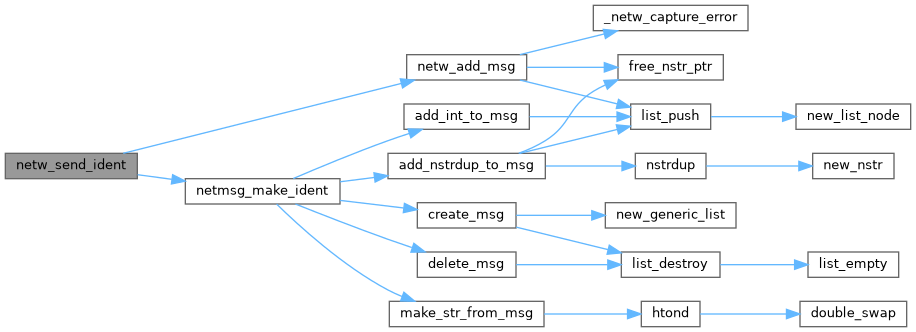

int	netw_send_ident (NETWORK netw, int type, int id, N_STR name, N_STR *passwd)
	send ident message

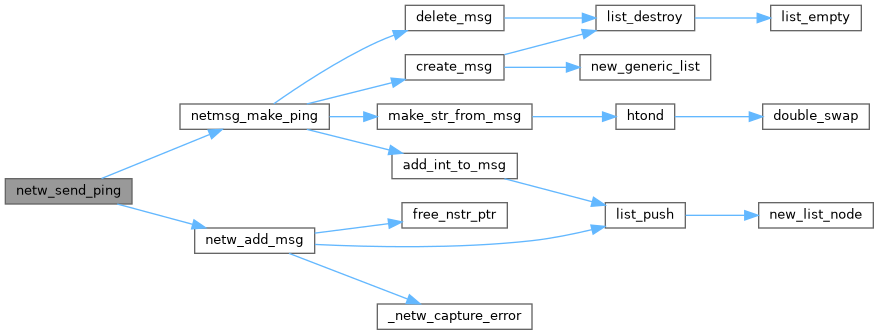

int	netw_send_ping (NETWORK *netw, int type, int id_from, int id_to, int time)
	send ping message

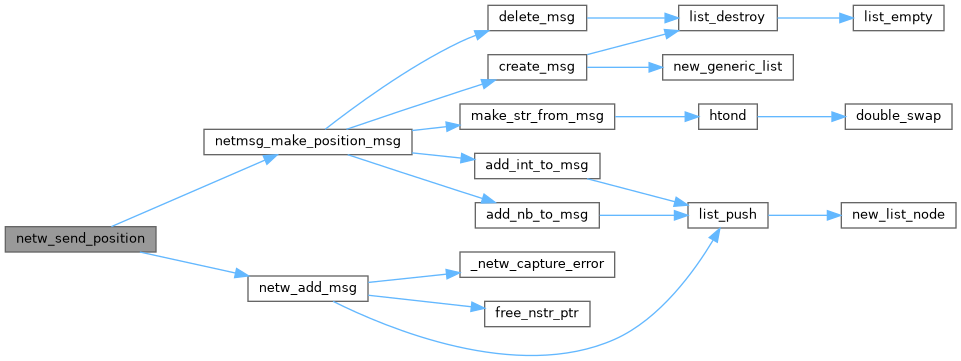

int	netw_send_position (NETWORK *netw, int id, double X, double Y, double vx, double vy, double acc_x, double acc_y, int time_stamp)
	send position message

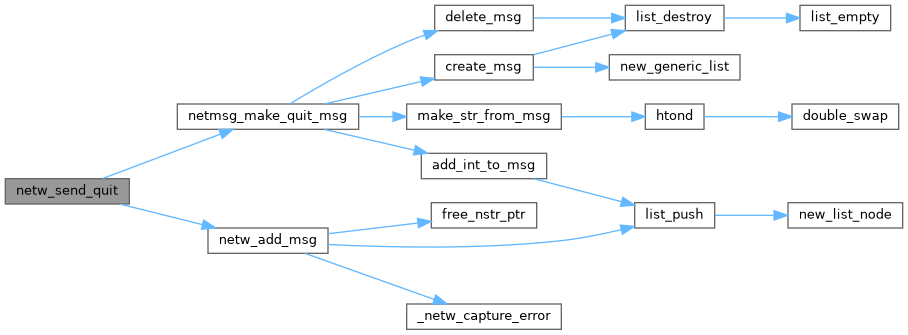

int	netw_send_quit (NETWORK *netw)
	send quit message

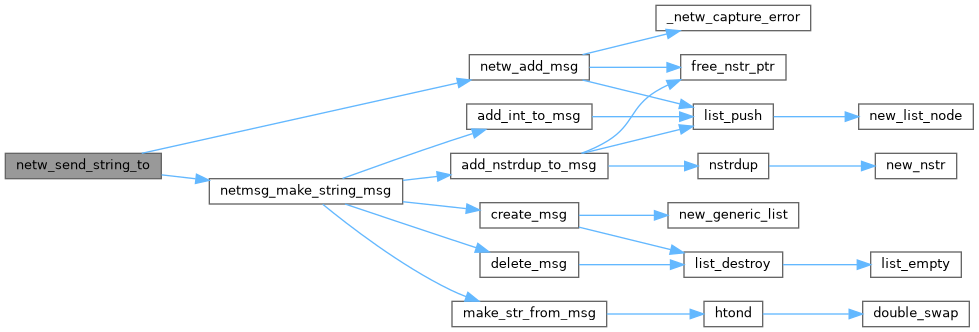

int	netw_send_string_to (NETWORK netw, int id_to, N_STR name, N_STR chan, N_STR txt, int color)
	send string to a specific target

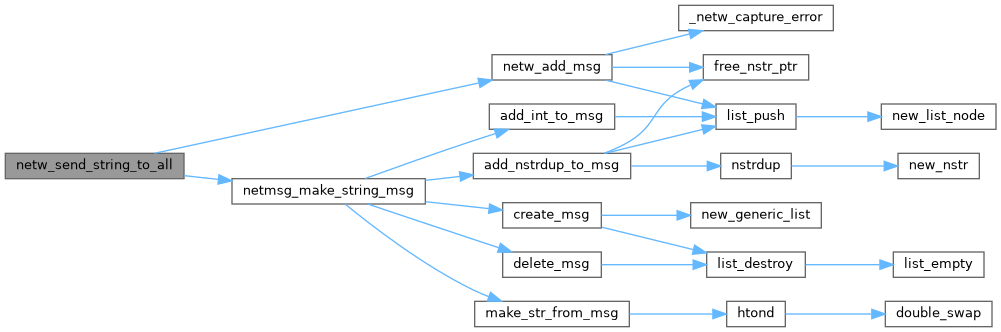

int	netw_send_string_to_all (NETWORK netw, N_STR name, N_STR chan, N_STR txt, int color)
	send string to all targets

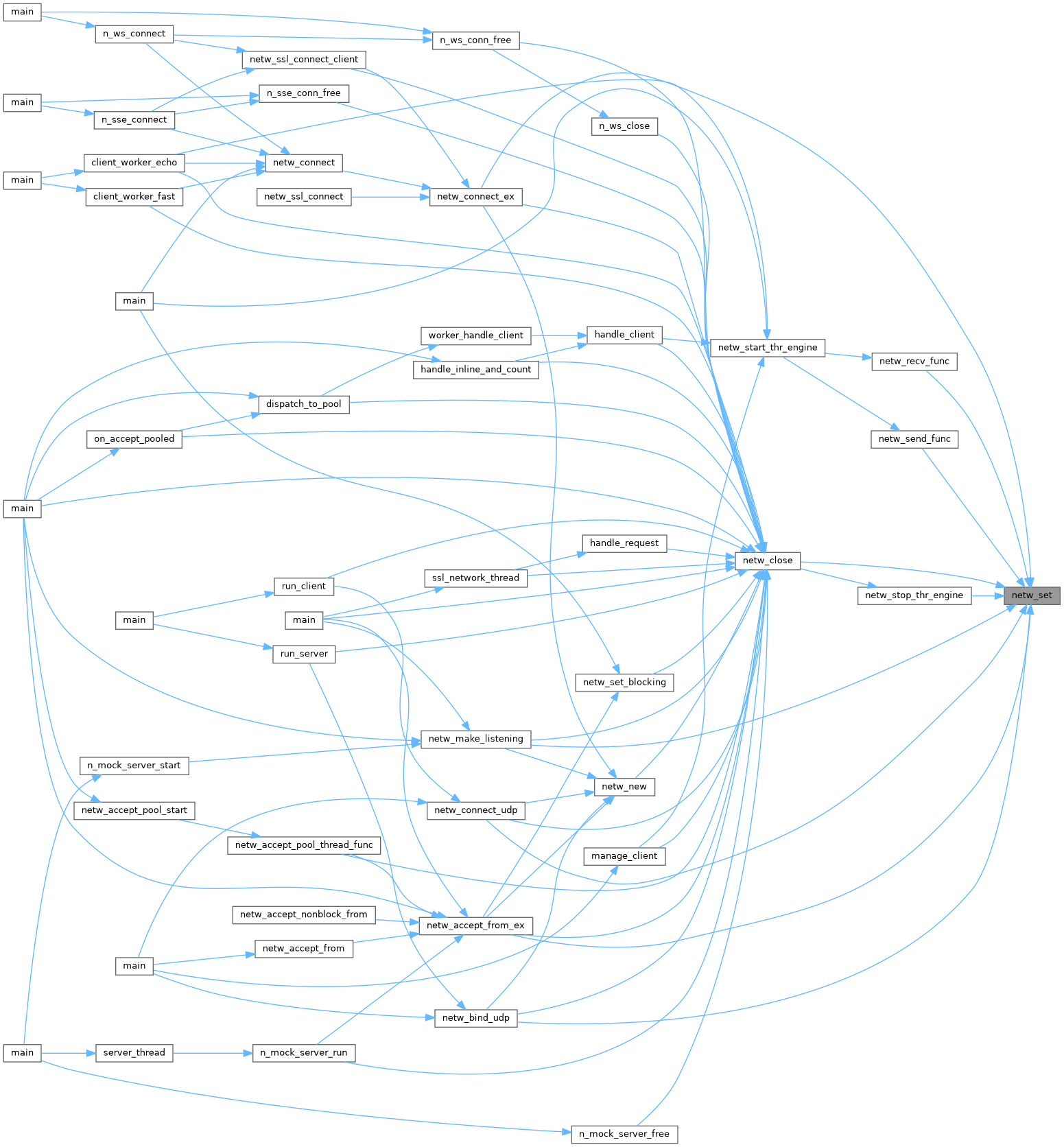

int	netw_set (NETWORK *netw, int flag)
	Set flags on network.

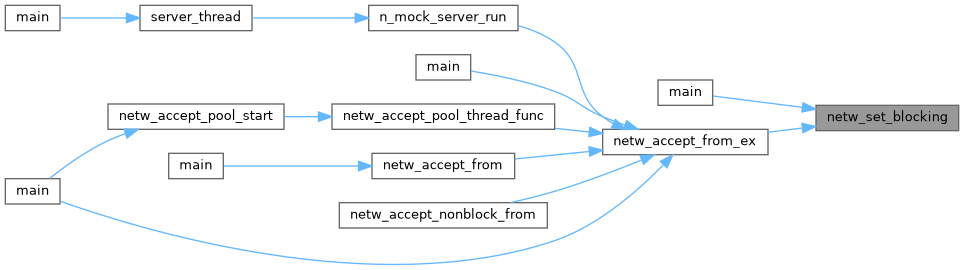

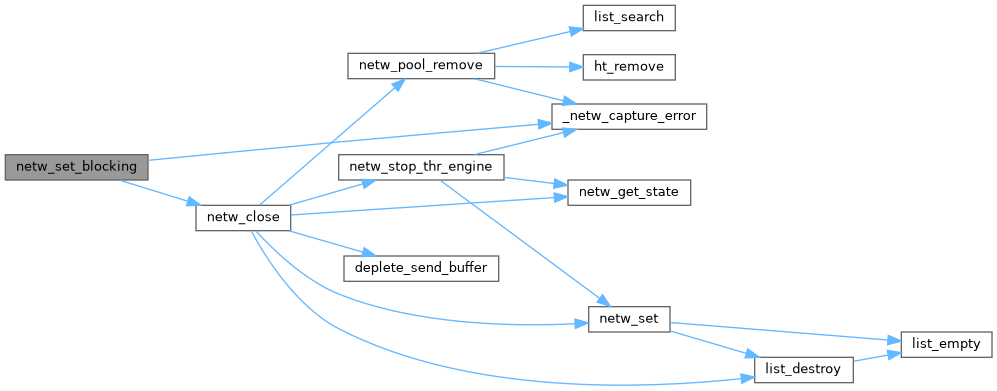

int	netw_set_blocking (NETWORK *netw, unsigned long int is_blocking)
	set blocking mode

int	netw_set_compression_mode (NETWORK *netw, int mode)
	Pick send-side compression algorithm for this NETWORK: NETW_COMPRESS_NONE, _ZLIB, _LZ4.

void	netw_set_connect_abort_cb (int(cb)(void ctx), void *ctx)
	register a process-wide callback polled during connect; non-zero aborts the in-progress connect (NULL removes)

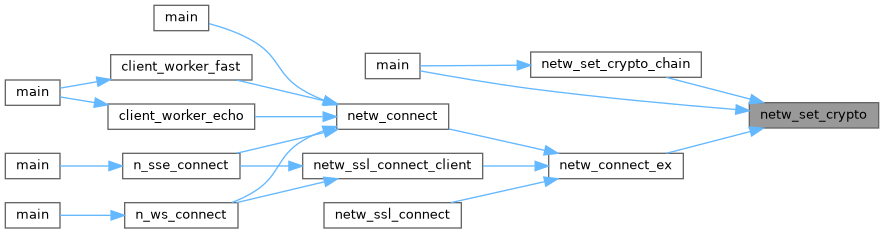

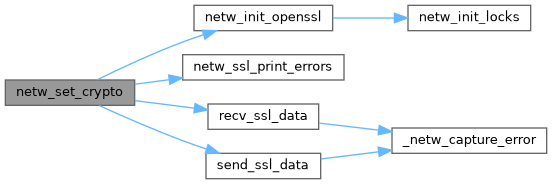

int	netw_set_crypto (NETWORK netw, char key, char *certificate)
	set SSL

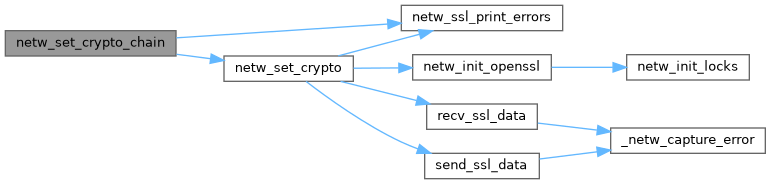

int	netw_set_crypto_chain (NETWORK netw, char key, char certificate, char ca_file)
	set SSL certificate chain from PEM file

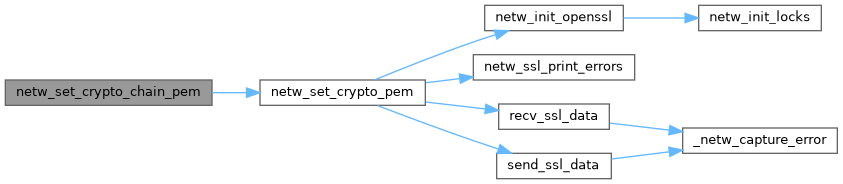

int	netw_set_crypto_chain_pem (NETWORK netw, const char key_pem, const char cert_pem, const char ca_pem)
	set SSL certificate chain from PEM strings in memory

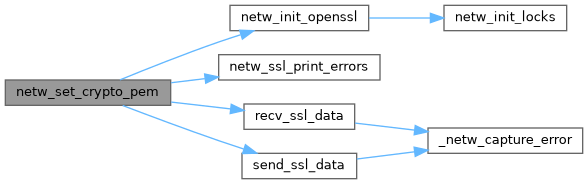

int	netw_set_crypto_pem (NETWORK netw, const char key_pem, const char *cert_pem)
	set SSL from PEM strings in memory

int	netw_set_crypto_pem_ctx (NETWORK netw, const N_STR key_pem, const N_STR *cert_pem)
	install an in-memory cert/key on THIS connection's SSL only (per-connection, unlike the context-wide netw_set_crypto_pem)

int	netw_set_user_id (NETWORK *netw, int id)
	set user id on a netw

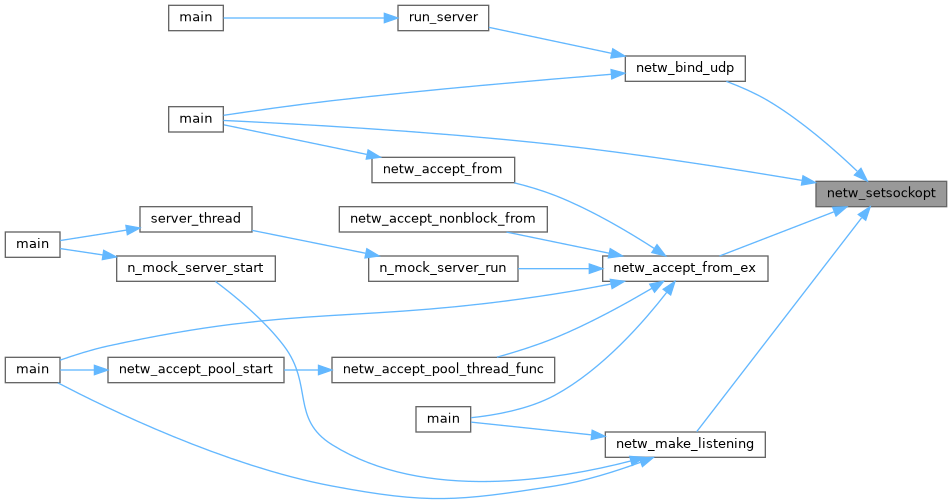

int	netw_setsockopt (NETWORK *netw, int optname, int value)
	Set common socket options (disable naggle, send/recv buf, reuse addr)

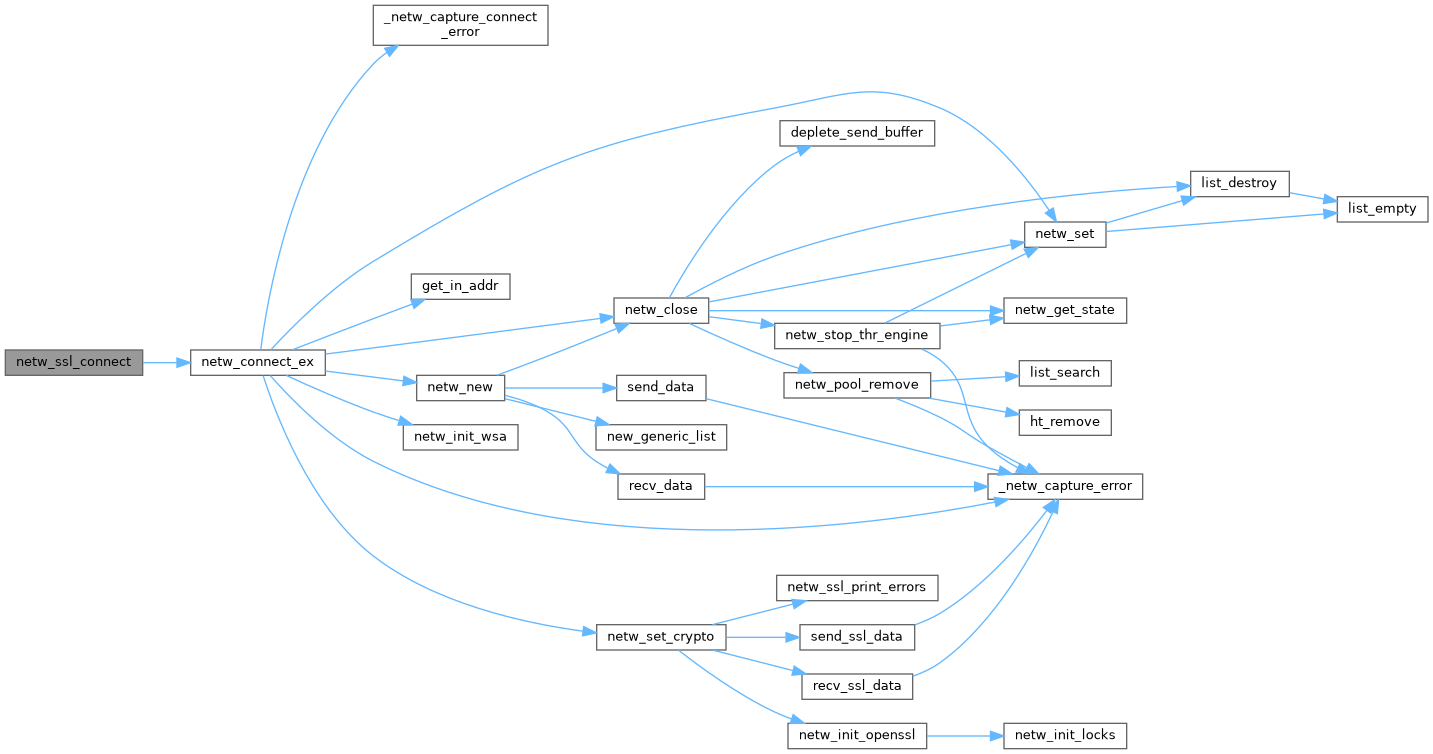

int	netw_ssl_connect (NETWORK *netw, char host, char port, int ip_version, char ssl_key_file, char *ssl_cert_file)
	connect ssl helper

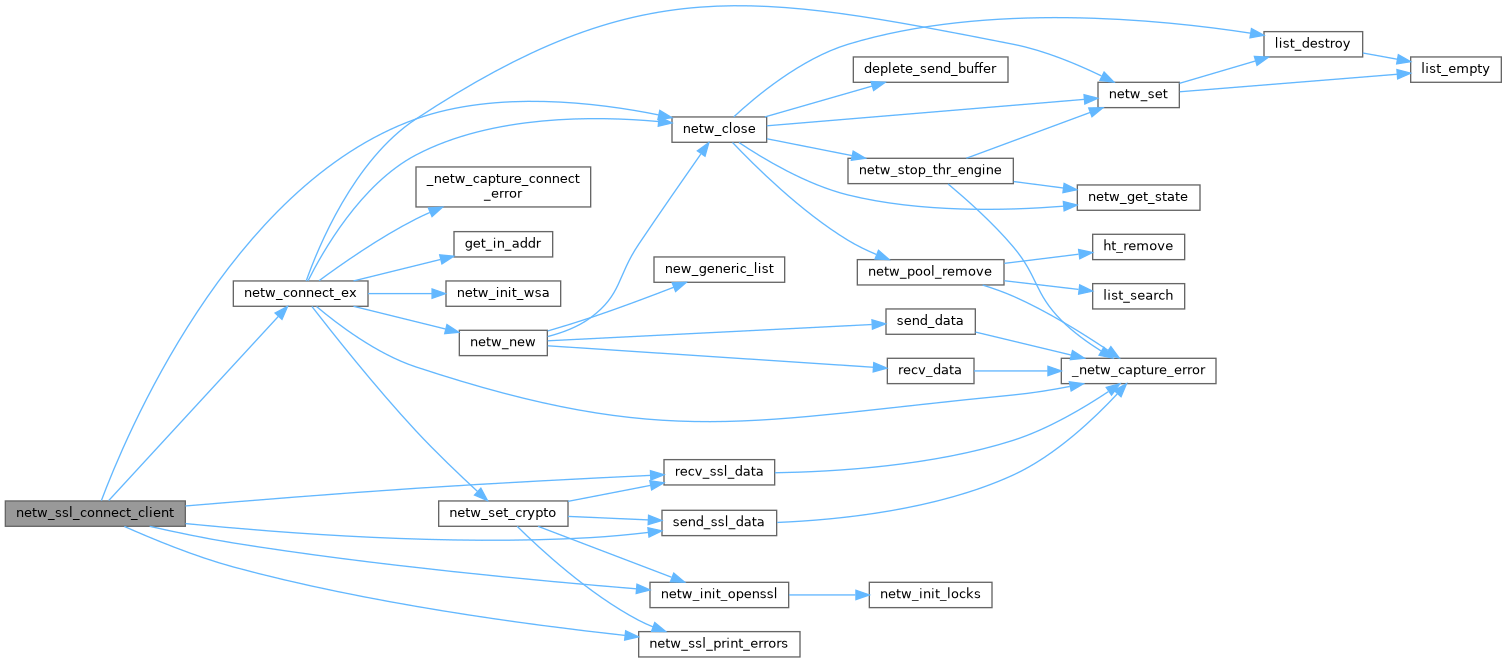

int	netw_ssl_connect_client (NETWORK *netw, char host, char *port, int ip_version)
	connect as SSL client without client certificate (TCP + SSL_CTX, no handshake yet)

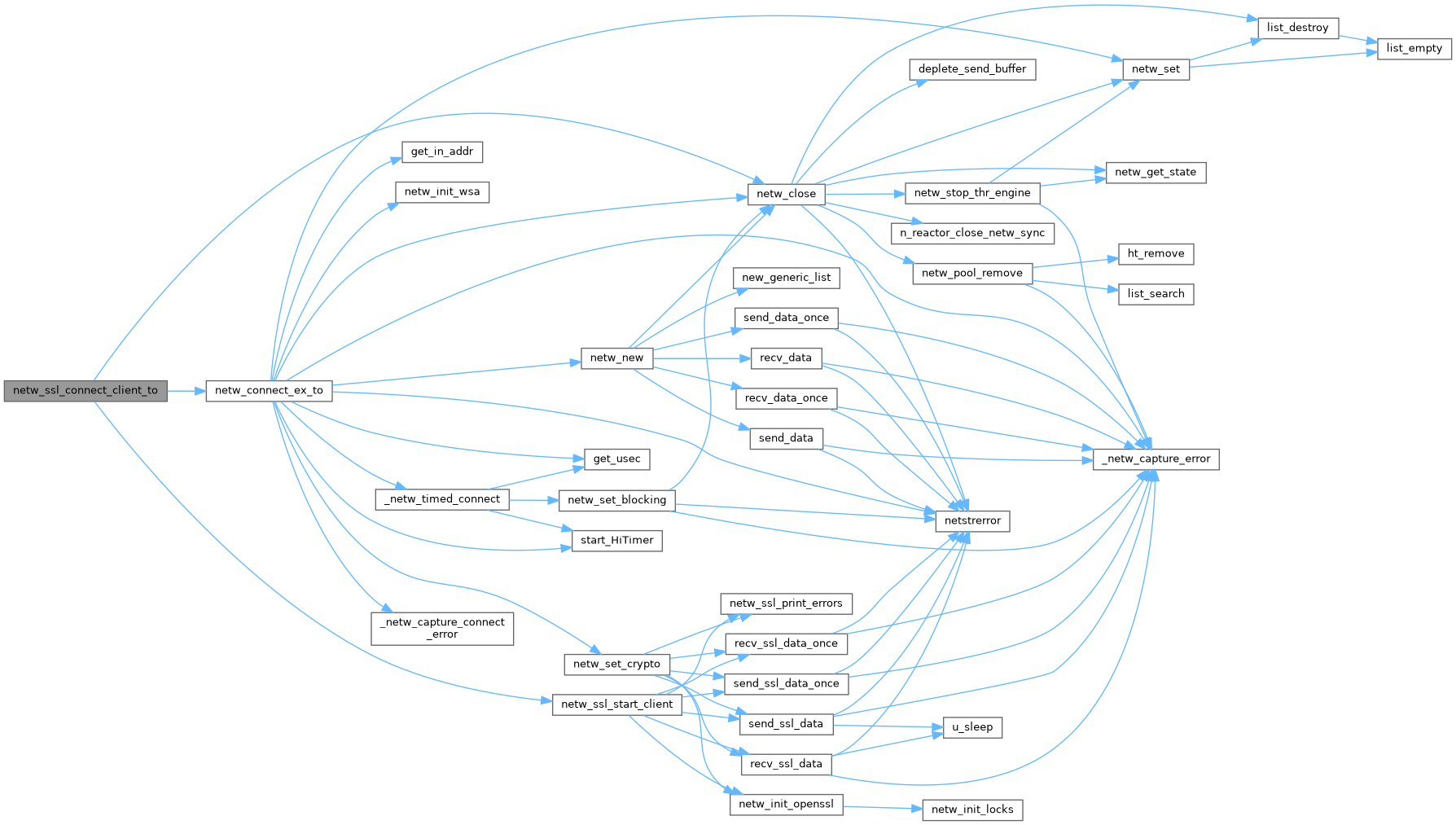

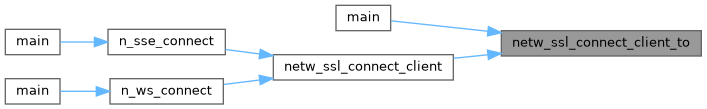

int	netw_ssl_connect_client_to (NETWORK *netw, char host, char *port, int ip_version, int connect_timeout_ms)
	like netw_ssl_connect_client but bounds the TCP connect by connect_timeout_ms (0 = OS default)

int	netw_ssl_do_handshake (NETWORK netw, const char sni_hostname)
	complete the SSL handshake on a NETWORK whose ctx was already created

const char *	netw_ssl_get_sni (NETWORK *netw)
	get the SNI server_name the peer requested in its ClientHello, or NULL

int	netw_ssl_get_verify_result (NETWORK netw, const char expected_host, char *errbuf, size_t errsz)
	evaluate the peer certificate (chain trust + host match) against the system trust store, independently of the connection verify mode

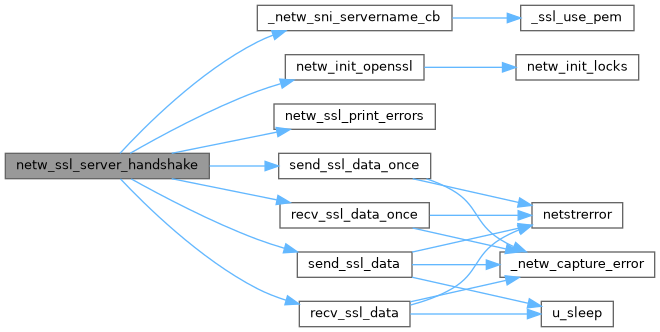

int	netw_ssl_server_handshake (NETWORK netw, netw_sni_pick_cb pick, void user_data)
	upgrade an already-accepted plaintext connection to a TLS server, selecting the cert per client SNI via pick() during the handshake (for proxy CONNECT)

int	netw_ssl_set_ca (NETWORK netw, const char ca_file, const char *ca_path)
	set custom CA verify path or file

int	netw_ssl_set_client_cert (NETWORK netw, const char cert_file, const char *key_file)
	load client certificate and private key for mTLS

int	netw_ssl_set_verify (NETWORK *netw, int enable)
	enable or disable peer certificate verification

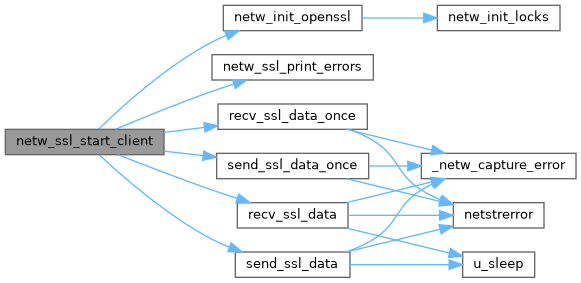

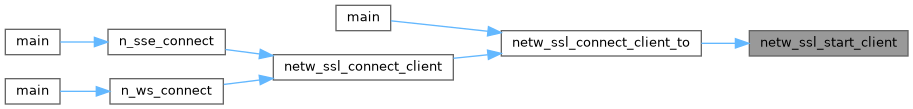

int	netw_ssl_start_client (NETWORK *netw)
	set up a client SSL_CTX on an already-connected NETWORK (no handshake yet)

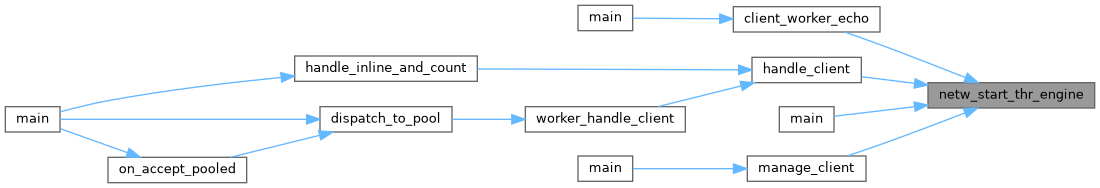

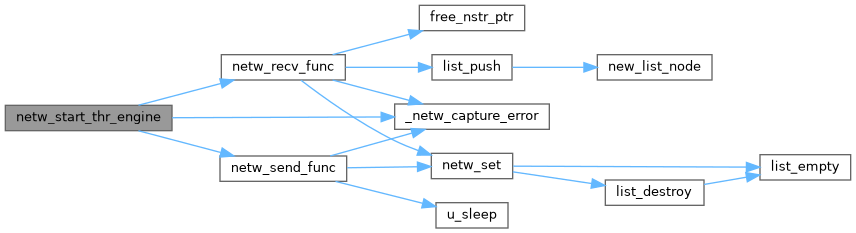

int	netw_start_thr_engine (NETWORK *netw)
	Create the sending and receiving thread of a NETWORK.

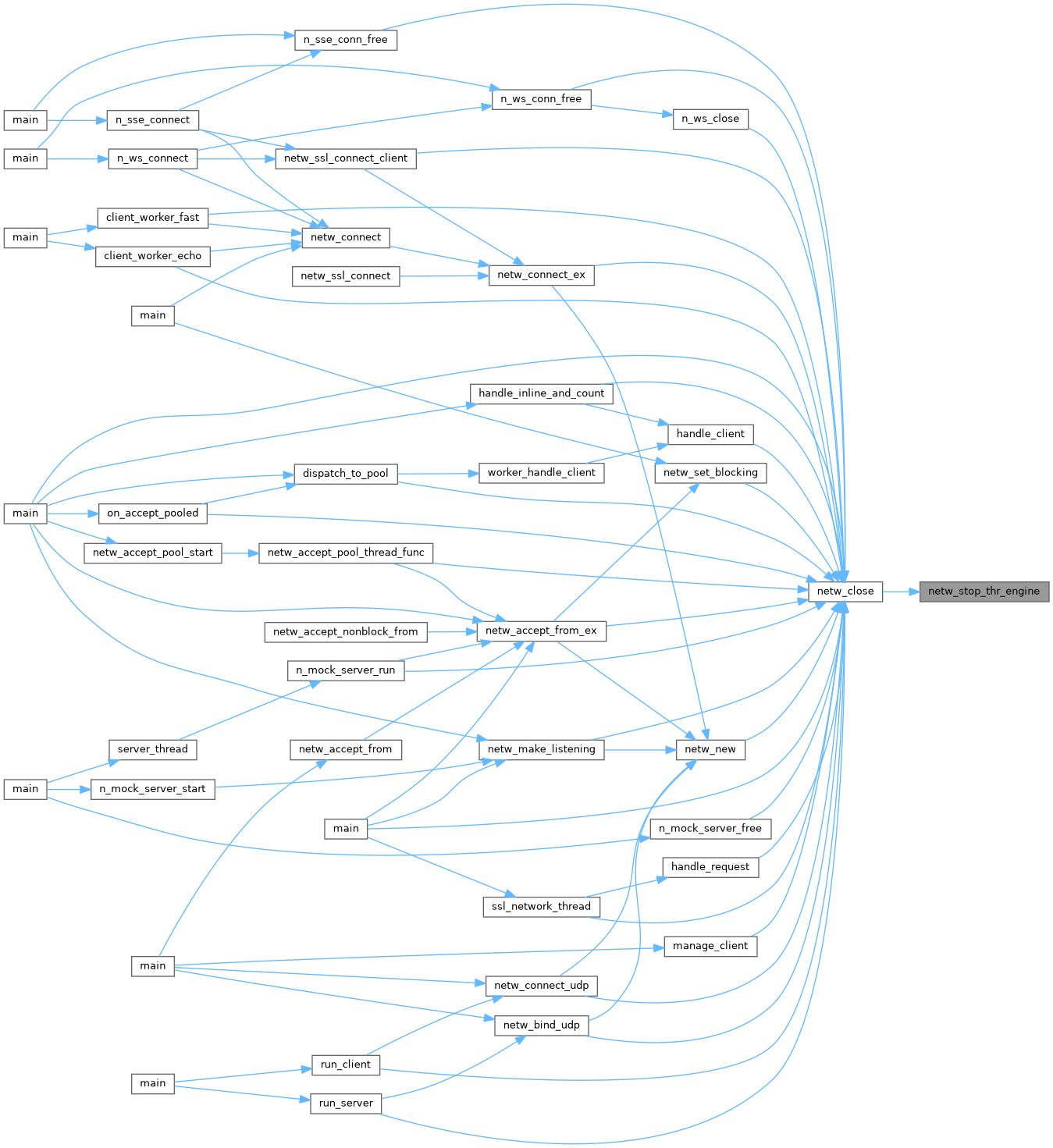

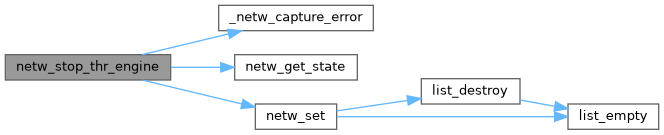

int	netw_stop_thr_engine (NETWORK *netw)
	Stop a NETWORK connection sending and receiving thread.

ssize_t	netw_udp_recvfrom (NETWORK netw, char buf, uint32_t n, struct sockaddr src_addr, socklen_t src_len)
	UDP recvfrom with source address capture.

ssize_t	netw_udp_sendto (NETWORK netw, char buf, uint32_t n, struct sockaddr *dest_addr, socklen_t dest_len)
	UDP sendto with explicit destination.

int	netw_unload_openssl (void)
	unload ssl helper

char *	netw_urldecode (const char *str)
	URL-decode a string.

char *	netw_urlencode (const char *str, size_t len)
	URL-encode a string.

int	netw_wait_close (NETWORK **netw)
	Closing for peer.

int	netw_wait_close_timed (NETWORK **netw, size_t timeout)
	Closing for peer with timeout.

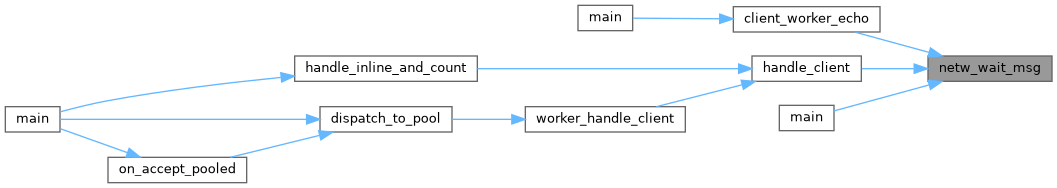

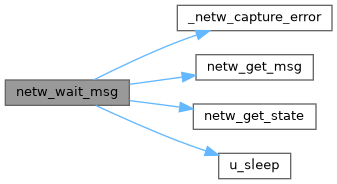

N_STR *	netw_wait_msg (NETWORK *netw, unsigned int refresh, size_t timeout)
	Wait a message from aimed NETWORK.

size_t	ntohst (size_t value)
	network to host size_t

ssize_t	recv_data (void netw, char buf, uint32_t n)
	Reading from a socket.

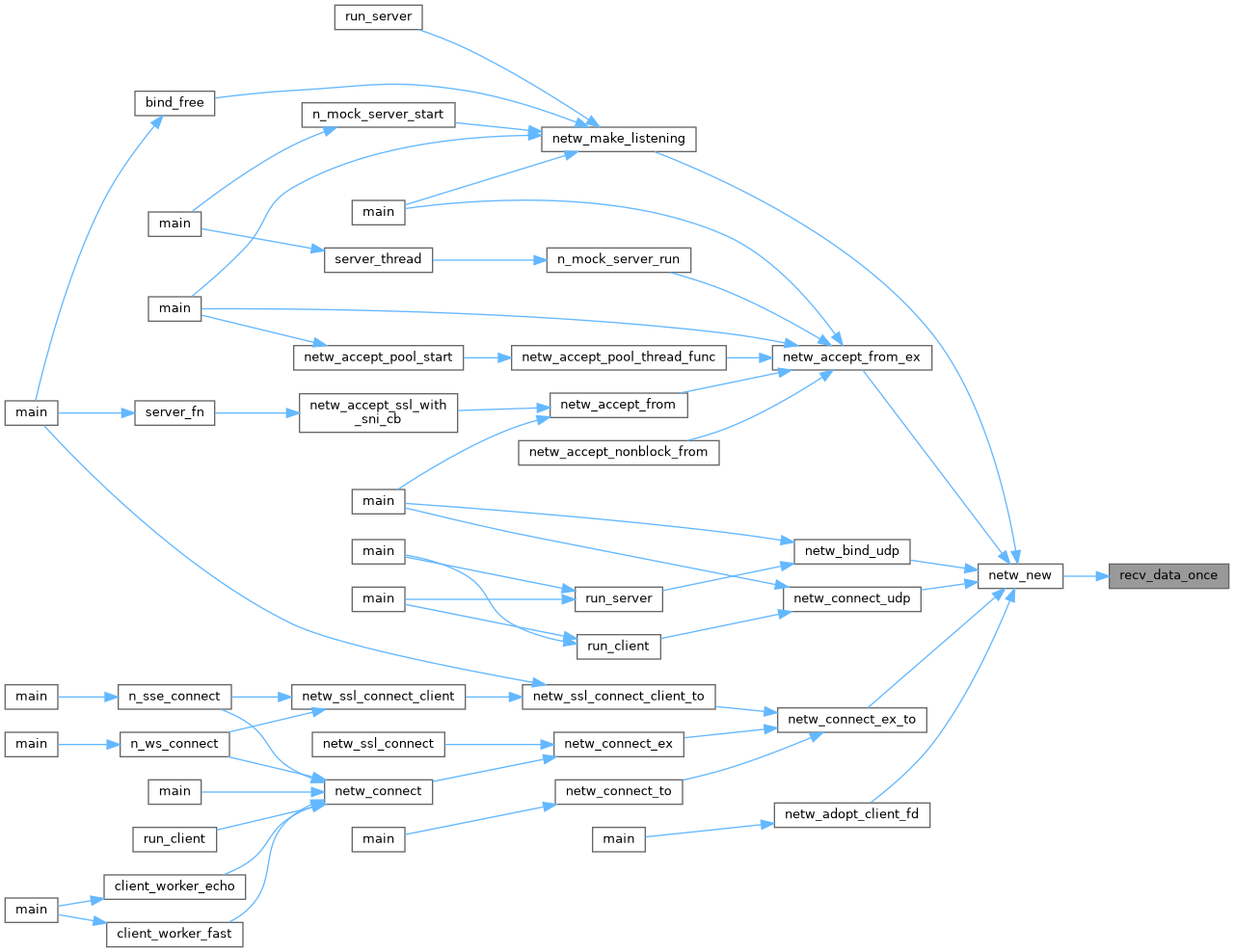

ssize_t	recv_data_once (void netw, char buf, uint32_t n)
	Single-attempt read (see NETWORK.recv_data_once contract)

ssize_t	recv_php (SOCKET s, int _code, char *buf)
	receive from php

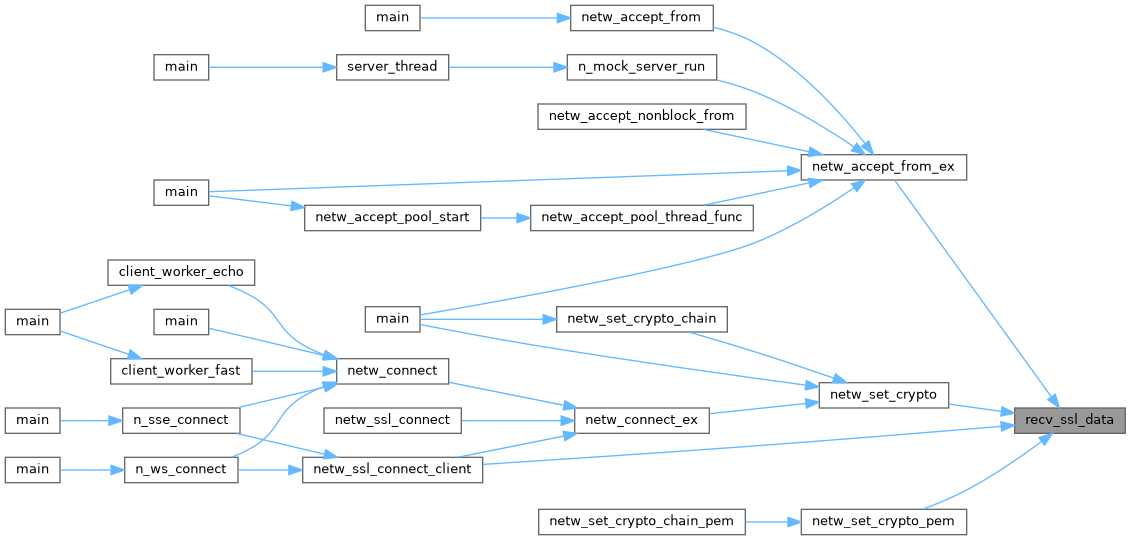

ssize_t	recv_ssl_data (void netw, char buf, uint32_t n)
	SSL Reading from a socket.

ssize_t	recv_ssl_data_once (void netw, char buf, uint32_t n)
	SSL single-attempt read (see recv_data_once contract)

ssize_t	recv_udp_data (void netw, char buf, uint32_t n)
	UDP recv data from socket.

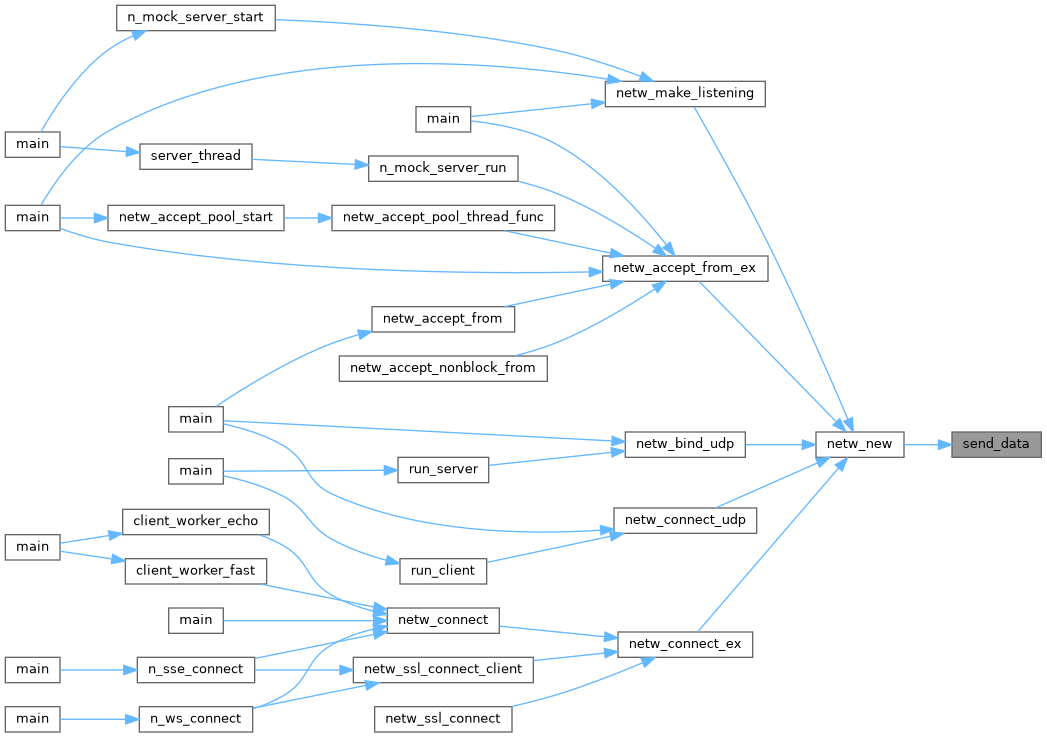

ssize_t	send_data (void netw, char buf, uint32_t n)
	Writing to a socket.

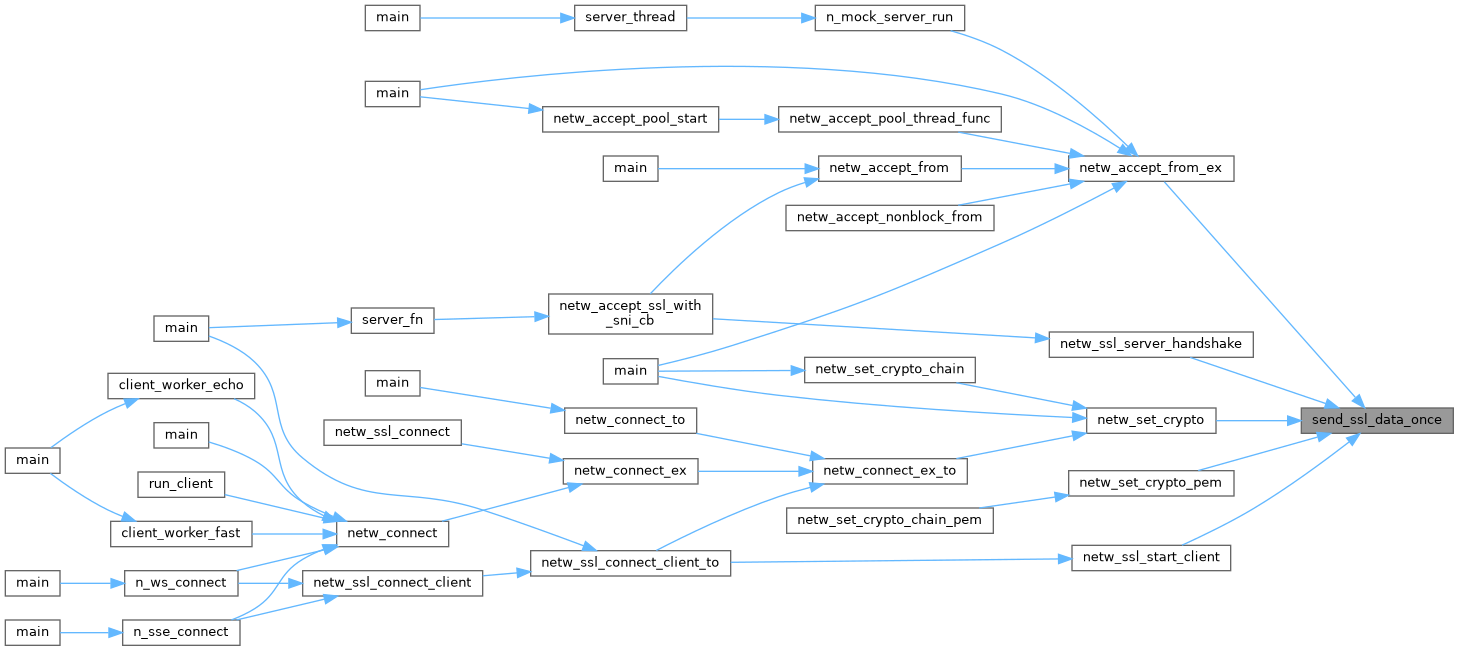

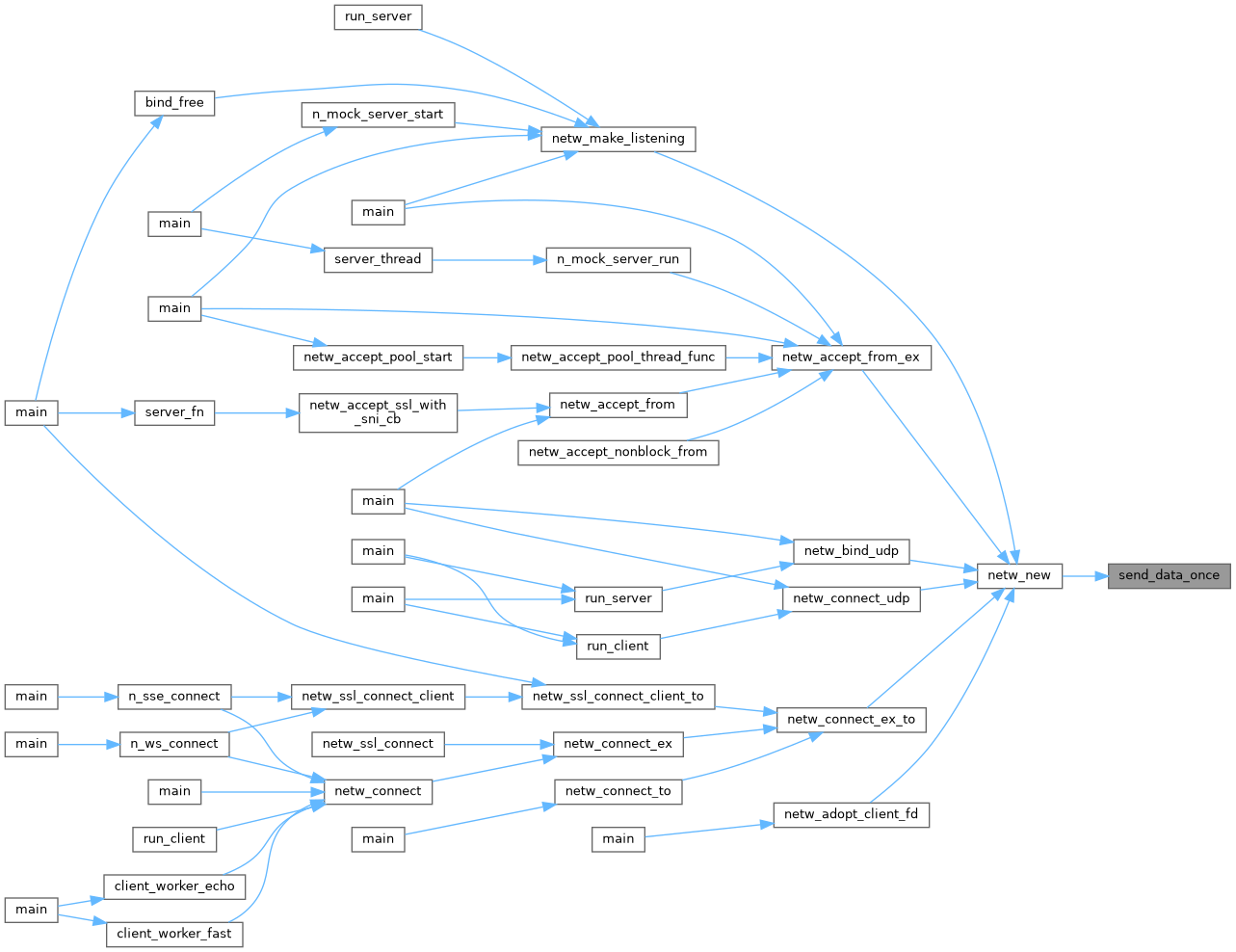

ssize_t	send_data_once (void netw, char buf, uint32_t n)
	Single-attempt write (see NETWORK.send_data_once contract)

ssize_t	send_php (SOCKET s, int _code, char *buf, int n)
	sending to php

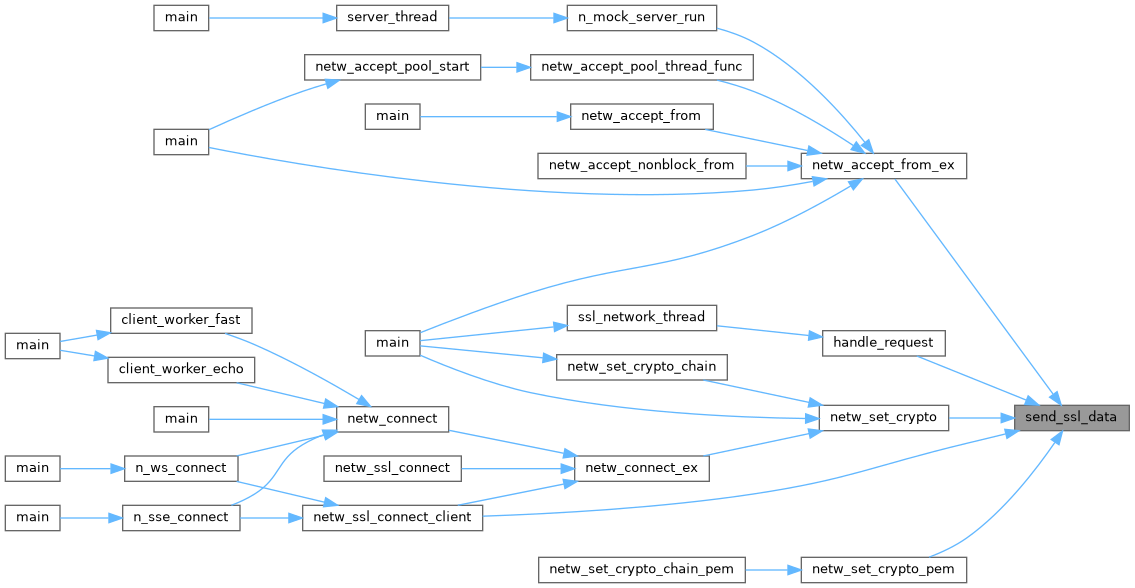

ssize_t	send_ssl_data (void netw, char buf, uint32_t n)
	SSL Writing to a socket.

ssize_t	send_ssl_data_once (void netw, char buf, uint32_t n)
	SSL single-attempt write (see send_data_once contract)

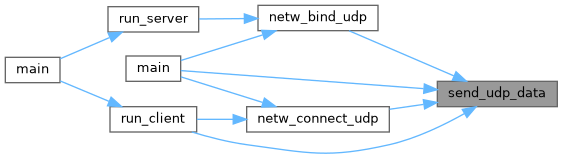

ssize_t	send_udp_data (void netw, char buf, uint32_t n)
	UDP send data to connected peer or specified addr.

Detailed Description

Data Structure Documentation

◆ N_HTTP_MULTIPART_PART

struct N_HTTP_MULTIPART_PART

a single part of a parsed multipart/form-data body

Examples: ex_url.c.

Definition at line 790 of file n_network.h.

Collaboration diagram for N_HTTP_MULTIPART_PART:

Data Fields
N_STR *	body	the part's raw body bytes (binary-safe), or NULL
char *	content_type	the part's Content-Type, or ""
char *	filename	Content-Disposition filename, or "".
char *	name	Content-Disposition form-field name, or "".

◆ N_HTTP_REQUEST

struct N_HTTP_REQUEST

parsed HTTP request for mock server callback

Examples: ex_network_mock.c.

Definition at line 1037 of file n_network.h.

Collaboration diagram for N_HTTP_REQUEST:

Data Fields
N_STR *	body	request body (or NULL)
LIST *	headers	list of char* "Name: Value" strings
char	method[16]	HTTP method.
char	path[2048]	request path
char	query[2048]	query string (or empty)

◆ N_HTTP_RESPONSE

struct N_HTTP_RESPONSE

HTTP response to send from mock server callback.

Examples: ex_network_mock.c.

Definition at line 1046 of file n_network.h.

Collaboration diagram for N_HTTP_RESPONSE:

Data Fields
N_STR *	body	response body
char	content_type[128]	Content-Type header value.
int	status_code	HTTP status code.

◆ N_MOCK_SERVER

struct N_MOCK_SERVER

mock HTTP server handle

Examples: ex_network_mock.c.

Definition at line 1053 of file n_network.h.

Collaboration diagram for N_MOCK_SERVER:

Data Fields
NETWORK *	listener
	listening network

void(*	on_request )(N_HTTP_REQUEST req, N_HTTP_RESPONSE resp, void *user_data)
	request handler

int	port
	listening port

volatile int	stop_flag
	atomic stop flag

void *	user_data
	user data for handler

Field Documentation

◆ listener

NETWORK* N_MOCK_SERVER::listener

listening network

Definition at line 1054 of file n_network.h.

◆ on_request

void(* N_MOCK_SERVER::on_request) (N_HTTP_REQUEST *req, N_HTTP_RESPONSE *resp, void *user_data)

request handler

Definition at line 1056 of file n_network.h.

◆ port

int N_MOCK_SERVER::port

listening port

Definition at line 1058 of file n_network.h.

◆ stop_flag

volatile int N_MOCK_SERVER::stop_flag

atomic stop flag

Definition at line 1055 of file n_network.h.

◆ user_data

void* N_MOCK_SERVER::user_data

user data for handler

Definition at line 1057 of file n_network.h.

◆ N_PROXY_CFG

struct N_PROXY_CFG

Parsed proxy URL components.

Examples: ex_network_proxy.c.

Definition at line 813 of file n_network.h.

Collaboration diagram for N_PROXY_CFG:

Data Fields
char *	host	proxy hostname
char *	password	NULL if no auth.
int	port	proxy port
char *	scheme	"http", "https", or "socks5"
char *	username	NULL if no auth.

◆ N_SOCKET

struct N_SOCKET

Structure of a N_SOCKET.

Definition at line 289 of file n_network.h.

Collaboration diagram for N_SOCKET:

Data Fields
struct addrinfo	hints	address of local machine
char *	ip	ip of the connected socket
unsigned long int	is_blocking	flag to quickly check socket mode
char *	port	port of socket
struct sockaddr_storage	raddr	connected remote addr
struct addrinfo *	rhost	getaddrinfo results
SOCKET	sock	a normal socket

◆ N_SSE_CONN

struct N_SSE_CONN

SSE connection handle.

Examples: ex_network_sse.c.

Definition at line 1012 of file n_network.h.

Collaboration diagram for N_SSE_CONN:

Data Fields
NETWORK *	netw
	underlying network connection

void(*	on_event )(N_SSE_EVENT event, struct N_SSE_CONN conn, void *user_data)
	callback

volatile int	stop_flag
	atomic stop flag

void *	user_data
	user data for callback

Field Documentation

◆ netw

NETWORK* N_SSE_CONN::netw

underlying network connection

Definition at line 1013 of file n_network.h.

Referenced by n_sse_conn_free(), and n_sse_connect().

◆ on_event

void(* N_SSE_CONN::on_event) (N_SSE_EVENT *event, struct N_SSE_CONN *conn, void *user_data)

callback

Definition at line 1015 of file n_network.h.

Referenced by n_sse_connect().

◆ stop_flag

volatile int N_SSE_CONN::stop_flag

atomic stop flag

Definition at line 1014 of file n_network.h.

Referenced by n_sse_connect(), and n_sse_stop().

◆ user_data

void* N_SSE_CONN::user_data

user data for callback

Definition at line 1016 of file n_network.h.

Referenced by n_sse_connect().

◆ N_SSE_EVENT

struct N_SSE_EVENT

SSE event received from server.

Examples: ex_network_sse.c.

Definition at line 1002 of file n_network.h.

Collaboration diagram for N_SSE_EVENT:

Data Fields
N_STR *	data	event data
N_STR *	event	event type (or NULL for default)
N_STR *	id	last event ID (or NULL)
int	retry	retry interval in ms (0 if not set)

◆ N_URL

struct N_URL

parsed URL components

Definition at line 911 of file n_network.h.

Collaboration diagram for N_URL:

Data Fields
char *	host	hostname
int	nb_params	number of parsed parameters
N_URL_PARAM	params[64]	parsed key=value pairs
char *	path	path starting with "/", or "/" if empty
int	port	port number (0 if not specified)
char *	query	raw query string without leading '?', or NULL
char *	scheme	"http" or "https"

◆ N_URL_PARAM

struct N_URL_PARAM

a single query parameter key=value pair

Definition at line 905 of file n_network.h.

Collaboration diagram for N_URL_PARAM:

Data Fields
char *	key	parameter name
char *	value	parameter value

◆ N_WS_CONN

struct N_WS_CONN

WebSocket connection.

Examples: ex_network_ws.c.

Definition at line 953 of file n_network.h.

Collaboration diagram for N_WS_CONN:

Data Fields
int	connected	1 if handshake completed
char *	host	remote hostname
NETWORK *	netw	underlying network connection
char *	path	resource path

◆ N_WS_FRAME

struct N_WS_FRAME

A single parsed WebSocket frame (RFC 6455).

payload points into the parsed buffer and is still masked when masked is set; use n_ws_unmask to decode it.

Examples: ex_network_ws.c.

Definition at line 962 of file n_network.h.

Collaboration diagram for N_WS_FRAME:

Data Fields
int	fin	FIN bit (1 = final fragment)
unsigned char	mask[4]	masking key when masked, else zeroed
int	masked	MASK bit (client-to-server frames are masked)
int	opcode	opcode (N_WS_OP_*)
const unsigned char *	payload	pointer into the input buffer (still masked)
uint64_t	payload_len	payload length in bytes
int	rsv	the three reserved bits, rsv1<<2 \| rsv2<<1 \| rsv3

◆ N_WS_MESSAGE

struct N_WS_MESSAGE

WebSocket message.

Examples: ex_network_ws.c.

Definition at line 946 of file n_network.h.

Collaboration diagram for N_WS_MESSAGE:

Data Fields
int	masked	1 if masked
int	opcode	frame opcode
N_STR *	payload	message payload

◆ NETWORK

struct NETWORK

Structure of a NETWORK.

Examples: ex_accept_pool_client.c, ex_accept_pool_server.c, ex_clock_sync.c, ex_gui_network.c, ex_network.c, ex_network.h, ex_network_connect_abort.c, ex_network_proxy.c, ex_network_reactor.c, ex_network_sni.c, ex_network_ssl.c, and ex_network_ssl_hardened.c.

Definition at line 309 of file n_network.h.

Collaboration diagram for NETWORK:

Data Fields
int	addr_infos_loaded	Internal flag to know if we have to free addr infos.
char *	certificate	openssl certificate file
int	compress_mode	Per-packet compression mode, see NETW_COMPRESS_MODE. Set via netw_set_compression_mode(); default is NETW_COMPRESS_ZLIB to preserve the behaviour from when a single unconditional compression path was the only option. Any NETW_COMPRESSED_* flag on the wire is honoured on recv regardless of this field, so two peers with different send-side picks still interop.
long long	connect_dns_usec	Measured DNS resolution time of the most recent connect, in microseconds (0 if not measured). Populated by netw_connect_ex_to so callers can report a connect-phase timing breakdown.
long long	connect_tcp_usec	Measured TCP connect time of the most recent connect, in microseconds (0 if not measured). Populated by netw_connect_ex_to.
int	crypto_algo	if encryption is on, which one (flags NETW_ENCRYPT_*)
int	crypto_mode	tell if the socket have to be encrypted (flags NETW_CRYPTO_*)
SSL_CTX *	ctx	SSL context holder.
int	deplete_queues_timeout	deplete network queues timeout ( 0 disabled, > 0 wait for timeout and check unset/unack datas)
int	deplete_socket_timeout	deplete socket send buffer timeout ( 0 disabled, > 0 wait for timeout and check unset/unack datas)
pthread_mutex_t	eventbolt	mutex for threaded access of state event
int	in_dirty_list	Dirty-list membership flag. CAS-guards a NETWORK's membership in the reactor's `dirty_pending` list. Producer side (`n_reactor_notify_send`) attempts a 0-to-1 CAS; on success it pushes the NETWORK onto the dirty list and writes the wake-eventfd. Consumer side (`n_reactor_run` wake handler) clears the flag BEFORE draining so a concurrent producer can immediately re-add the NETWORK for the next pass: no message can be lost.
char *	key	openssl key file
N_SOCKET	link	networking socket
const SSL_METHOD *	method	SSL method container.
int	mode	NETWORK mode , 1 listening, 0 connecting.
int	nb_pending	Nb pending connection,if listening.
int	nb_running_threads	nb running threads, if > 0 thread engine is still running
int	netw_err_count	number of captured errors
int	netw_err_next	next write slot in ring buffer
char	netw_errors[8][512]	per-connection error capture ring buffer (max 8 entries, 512 chars each)
LIST *	pools	pointers to network pools if members of any
int	reactor_close_acked	Close handshake. Game thread sets NETW_EXIT_ASKED, notifies the reactor, and waits on this flag. `n_reactor_unregister` publishes it with a release store as its final action, so EVERY unregister path (the EXIT_ASKED sweep, a peer EOF / EPOLLRDHUP, or a hard I/O error) releases the waiter, not just the sweep. The acquire-load on the game side observes, and is ordered after, every side effect of unregister (epoll DEL, cleared reactor_mode, freed accumulators, list removal) before it closes the socket / frees the NETWORK. Reset to 0 in `n_reactor_register`. Always accessed via __atomic builtins (release on the reactor side, acquire on the game side); plain `volatile` would give no happens-before and is a data race.
void *	reactor_handle	Back-pointer to the registered reactor. Opaque void * so n_network.h doesn't need to include n_reactor.h (avoids a header-ordering dependency since n_reactor.h includes n_network.h itself). NULL when reactor_mode == 0. Same atomicity contract as `reactor_mode`: use `netw_atomic_read_reactor_handle` / `netw_atomic_write_reactor_handle`.
int	reactor_mode	Opt-in epoll-reactor mode flag. 0 (default) = classic per-connection thread engine; 1 = registered with an `n_reactor`. Atomically set by `n_reactor_register`, cleared by `n_reactor_unregister`. Read concurrently from the game thread (e.g. `netw_close`, `netw_add_msg`), always access via `netw_atomic_read_reactor_mode` / `netw_atomic_write_reactor_mode` so the read/clear race during peer-driven unregister is well-defined under TSan. Always 0 on platforms where N_REACTOR_AVAILABLE == 0.
unsigned char	reactor_read_hdr_buf[4]	accumulator for header words
int	reactor_read_hdr_have	bytes accumulated in reactor_read_hdr_buf
char *	reactor_read_payload	malloc'd accumulator for payload bytes
size_t	reactor_read_payload_have	bytes accumulated into reactor_read_payload
int	reactor_read_phase	0=STATE, 1=LENGTH, 2=PAYLOAD
uint32_t	reactor_read_pkt_length	payload length for the in-flight frame
uint32_t	reactor_read_pkt_state	state word for the in-flight frame
int	reactor_recv_wants_write	TLS-over-reactor: recv returned NETW_IO_WANT_WRITE, the reactor re-runs the readable drain after the next writable event. Always 0 on cleartext sockets.
int	reactor_registered	Reactor close-handshake latch. Set to 1 by `n_reactor_register` and never cleared by the reactor (unlike `reactor_mode`, which the reactor clears mid-unregister). `netw_close` keys its decision to run `n_reactor_close_netw_sync` on THIS flag rather than on the live `reactor_mode`: otherwise, if the reactor clears reactor_mode during a peer-EOF unregister in the instant before netw_close reads it, the game thread would skip the ack-wait and free the NETWORK while the reactor is still inside `n_reactor_unregister` (a use-after-free / data race). With the latch the game thread always waits for `reactor_close_acked`, which the reactor publishes as the last thing it ever does with the NETWORK. Acquire/release __atomic access, same contract as the other reactor flags.
char *	reactor_send_buf	malloc'd framed bytes, NULL when idle
size_t	reactor_send_len	total bytes in reactor_send_buf
size_t	reactor_send_off	bytes already sent to socket
int	reactor_send_wants_read	TLS-over-reactor: the in-flight send returned NETW_IO_WANT_READ (renegotiation), the reactor retries the write drain after the next readable event instead of waiting on EPOLLOUT. Always 0 on cleartext sockets.
int	reactor_write_armed	1 = EPOLLOUT currently registered
LIST *	recv_buf	reveicing buffer (for incomming usage)
netw_func	recv_data	receive func ptr
netw_func	recv_data_once	single-attempt recv, same contract as send_data_once.
pthread_t	recv_thr	receiving thread
pthread_mutex_t	recvbolt	mutex for threaded access of recv buf
sem_t	send_blocker	block sending func
LIST *	send_buf	sending buffer (for outgoing queuing )
netw_func	send_data	send func ptr
netw_func	send_data_once	single-attempt send (non-blocking / reactor use). Contract: one transport attempt; > 0 bytes written, NETW_IO_WANT_READ / NETW_IO_WANT_WRITE when the transport needs that readiness to progress, NETW_SOCKET_DISCONNECTED, or NETW_SOCKET_ERROR. Dispatches to the TLS variant when crypto is set, this is what lets the epoll reactor carry TLS connections.
int	send_queue_consecutive_wait	send queue consecutive pool interval, used when there are still items to send, in usec
pthread_t	send_thr	sending thread
pthread_mutex_t	sendbolt	mutex for threaded access of send_buf
int	so_keepalive	so keepalive state
int	so_linger	close lingering value (-1 disabled, 0 force close, >0 linger )
int	so_rcvbuf	size of the socket recv buffer, 0 untouched, else size in bytes
int	so_rcvtimeo	send timeout value
int	so_reuseaddr	so reuseaddr state
int	so_sndbuf	size of the socket send buffer, 0 untouched, else size in bytes
int	so_sndtimeo	send timeout value
SSL *	ssl	SSL handle.
uint32_t	state	state of the connection , NETW_RUN, NETW_QUIT, NETW_STOP , NETW_ERR
int	tcpnodelay	state of naggle algorythm, 0 untouched, 1 forcibly disabled
int	threaded_engine_status	Threaded network engine state for this network. NETW_THR_ENGINE_STARTED or NETW_THR_ENGINE_STOPPED
int	transport_type	transport type: NETWORK_TCP (0) or NETWORK_UDP (1)
int	user_id	if part of a user property, id of the user
int	wait_close_timeout	network wait close timeout value ( < 1 disabled, >= 1 timeout sec )

◆ NETWORK_HTTP_INFO

struct NETWORK_HTTP_INFO

structure for splitting HTTP requests

Examples: ex_network_ssl.c, and ex_network_ssl_hardened.c.

Definition at line 569 of file n_network.h.

Collaboration diagram for NETWORK_HTTP_INFO:

Data Fields
char *	body	Pointer to the body data.
size_t	content_length	Store content length.
char	content_type[256]	Store content type.
char *	type	Type of request.

◆ NETWORK_POOL

struct NETWORK_POOL

structure of a network pool

Examples: ex_gui_network.c.

Definition at line 559 of file n_network.h.

Collaboration diagram for NETWORK_POOL:

Data Fields
HASH_TABLE *	pool	table of clients
pthread_rwlock_t	rwlock	thread safety

Macro Definition Documentation

◆ _OPEN_SYS_SOCK_IPV6

#define _OPEN_SYS_SOCK_IPV6 1

Definition at line 226 of file n_network.h.

◆ HEAD_CODE

#define HEAD_CODE 3

Code of a HEAD message.

Definition at line 68 of file n_network.h.

◆ HEAD_SIZE

#define HEAD_SIZE 10

Size of a HEAD message.

Definition at line 66 of file n_network.h.

◆ N_ENUM_netw_code_type

#define N_ENUM_netw_code_type ( _ )

Value:

    _(NETW_CLIENT, 2)                \
    _(NETW_SERVER, 4)                \
    _(NETW_RESTART_TIMER, 8)         \
    _(NETW_EMPTY_SENDBUF, 16)        \
    _(NETW_EMPTY_RECVBUF, 32)        \
    _(NETW_RUN, 64)                  \
    _(NETW_EXIT_ASKED, 128)          \
    _(NETW_EXITED, 256)              \
    _(NETW_ERROR, 512)               \
    _(NETW_ENCRYPT_NONE, 1024)       \
    _(NETW_ENCRYPT_OPENSSL, 2048)    \
    _(NETW_THR_ENGINE_STARTED, 4096) \
    _(NETW_THR_ENGINE_STOPPED, 8192) \
    _(NETW_DESTROY_RECVBUF, 16384)   \
    _(NETW_DESTROY_SENDBUF, 32768)   \
    _(NETW_COMPRESSED_ZLIB, 65536)   \
    _(NETW_COMPRESSED_LZ4, 131072)

Network codes definition.

Definition at line 233 of file n_network.h.

◆ N_URL_MAX_PARAMS

#define N_URL_MAX_PARAMS 64

maximum number of parsed query parameters

Definition at line 902 of file n_network.h.

◆ N_WS_OP_BINARY

#define N_WS_OP_BINARY 0x02

Examples: ex_network_ws.c.

Definition at line 940 of file n_network.h.

◆ N_WS_OP_CLOSE

#define N_WS_OP_CLOSE 0x08

Definition at line 941 of file n_network.h.

◆ N_WS_OP_PING

#define N_WS_OP_PING 0x09

Examples: ex_network_ws.c.

Definition at line 942 of file n_network.h.

◆ N_WS_OP_PONG

#define N_WS_OP_PONG 0x0A

Definition at line 943 of file n_network.h.

◆ N_WS_OP_TEXT

#define N_WS_OP_TEXT 0x01

WebSocket opcodes per RFC 6455.

Examples: ex_network_ws.c.

Definition at line 939 of file n_network.h.

◆ netw_atomic_read_reactor_handle

#define netw_atomic_read_reactor_handle ( netw ) __atomic_load_n(&(netw)->reactor_handle, __ATOMIC_ACQUIRE)

Same contract for the back-pointer to the reactor.

NULL after unregister. Reads in netw_add_msg / n_reactor_close_netw_sync pair with the write inside n_reactor_unregister.

Definition at line 555 of file n_network.h.

◆ netw_atomic_read_reactor_mode

#define netw_atomic_read_reactor_mode ( netw ) __atomic_load_n(&(netw)->reactor_mode, __ATOMIC_ACQUIRE)

Lock-free atomic read of the reactor_mode flag.

The reactor thread clears this flag inside n_reactor_unregister (peer EOF, EXIT_ASKED sweep, or game-thread close handshake), while the game thread reads it from netw_close and netw_add_msg to decide which dispatch path to take. Both outcomes are correct (the close handshake is designed to be idempotent), but TSan still requires synchronised access to the read/write pair.

Definition at line 550 of file n_network.h.

◆ netw_atomic_read_state

#define netw_atomic_read_state ( netw ) __atomic_load_n(&(netw)->state, __ATOMIC_ACQUIRE)

Lock-free atomic read of the network state field.

Uses GCC __atomic builtins (supported on Linux gcc, Solaris gcc, Windows mingw gcc). Provides acquire semantics so subsequent reads see up-to-date values. For use in send/recv thread hot loops to avoid mutex overhead.

Definition at line 536 of file n_network.h.

◆ netw_atomic_write_reactor_handle

#define netw_atomic_write_reactor_handle	(	netw,
		val
	)	__atomic_store_n(&(netw)->reactor_handle, (val), __ATOMIC_RELEASE)

Definition at line 556 of file n_network.h.

◆ netw_atomic_write_reactor_mode

#define netw_atomic_write_reactor_mode	(	netw,
		val
	)	__atomic_store_n(&(netw)->reactor_mode, (val), __ATOMIC_RELEASE)

Definition at line 551 of file n_network.h.

◆ netw_atomic_write_state

#define netw_atomic_write_state	(	netw,
		val
	)	__atomic_store_n(&(netw)->state, (val), __ATOMIC_RELEASE)

Lock-free atomic write of the network state field.

Uses GCC __atomic builtins with release semantics so prior writes are visible to threads performing an acquire load.

Definition at line 541 of file n_network.h.

◆ NETW_COMPRESS_MIN_RATIO

#define NETW_COMPRESS_MIN_RATIO 10u

Definition at line 280 of file n_network.h.

◆ NETW_COMPRESS_THRESHOLD

#define NETW_COMPRESS_THRESHOLD 256u

Opportunistic compression policy.

Outbound payloads shorter than NETW_COMPRESS_THRESHOLD bytes skip the codec entirely; longer payloads are compressed only if the result is at least NETW_COMPRESS_MIN_RATIO percent smaller than the original (otherwise the original is shipped uncompressed). The reactor's send path (n_reactor_drain_writes) shares these knobs with the thread engine's netw_send_func.

Definition at line 279 of file n_network.h.

◆ NETW_COMPRESSED

#define NETW_COMPRESSED NETW_COMPRESSED_ZLIB

Legacy alias, the first compression commit shipped a single NETW_COMPRESSED flag before LZ4 was added.

Keep the name for any downstream consumer that referenced it before this split.

Definition at line 255 of file n_network.h.

◆ NETW_IO_WANT_READ

#define NETW_IO_WANT_READ -10

single-attempt I/O (send_data_once / recv_data_once): the operation cannot progress until the socket is READABLE.

Raw recv maps EAGAIN here; TLS maps SSL_ERROR_WANT_READ, note a TLS send can also return this mid-renegotiation.

Definition at line 77 of file n_network.h.

◆ NETW_IO_WANT_WRITE

#define NETW_IO_WANT_WRITE -11

single-attempt I/O: the operation cannot progress until the socket is WRITABLE.

Raw send maps EAGAIN here; TLS maps SSL_ERROR_WANT_WRITE, a TLS recv can also return this.

Definition at line 81 of file n_network.h.

◆ NETW_MAX_RETRIES

#define NETW_MAX_RETRIES 8

Send or recv max number of retries.

Definition at line 83 of file n_network.h.

◆ NETW_RETRY_DELAY

#define NETW_RETRY_DELAY 1000

Send or recv delay between retries in usec.

Definition at line 85 of file n_network.h.

◆ NETW_SOCKET_DISCONNECTED

#define NETW_SOCKET_DISCONNECTED -2

Code for a disconnected recv.

Definition at line 72 of file n_network.h.

◆ NETW_SOCKET_ERROR

#define NETW_SOCKET_ERROR -1

code for a socket error

Definition at line 70 of file n_network.h.

◆ NETW_THR_EXIT_ERROR

#define NETW_THR_EXIT_ERROR 666

Internal DONE value indicating a send/recv thread observed NETW_ERROR without an in-flight local shutdown.

Definition at line 89 of file n_network.h.

◆ NETW_THR_EXIT_OK

#define NETW_THR_EXIT_OK 100

Internal DONE value indicating a send/recv thread reached end-of-life cleanly (peer QUIT or local NETW_EXIT_ASKED ack'd).

Definition at line 87 of file n_network.h.

◆ NETWORK_CONSECUTIVE_SEND_WAIT

#define NETWORK_CONSECUTIVE_SEND_WAIT 2048

Flag to set consecutive send waiting timeout

Definition at line 62 of file n_network.h.

◆ NETWORK_DEPLETE_QUEUES_TIMEOUT

#define NETWORK_DEPLETE_QUEUES_TIMEOUT 1024

Flag to set network queues depletion timeout

Definition at line 60 of file n_network.h.

◆ NETWORK_DEPLETE_SOCKET_TIMEOUT

#define NETWORK_DEPLETE_SOCKET_TIMEOUT 512

Flag to set send buffer depletion timeout

Definition at line 58 of file n_network.h.

◆ NETWORK_DISABLE_ZERO_LENGTH_RECV

#define NETWORK_DISABLE_ZERO_LENGTH_RECV FALSE

Enable/disable recv of length 0.

Warning: only enable if you know what you are doing ! (TRUE or FALSE)

Definition at line 46 of file n_network.h.

◆ NETWORK_IPALL

#define NETWORK_IPALL 0

Flag for auto detection by OS of ip version to use.

Examples: ex_accept_pool_client.c, ex_accept_pool_server.c, ex_clock_sync.c, ex_gui_network.c, ex_network.c, ex_network_reactor.c, ex_network_sni.c, ex_network_ssl.c, and ex_network_ssl_hardened.c.

Definition at line 48 of file n_network.h.

◆ NETWORK_IPV4

#define NETWORK_IPV4 1

Flag to force IPV4

Examples: ex_network.c, ex_network_connect_abort.c, ex_network_ssl.c, and ex_network_ssl_hardened.c.

Definition at line 50 of file n_network.h.

◆ NETWORK_IPV6

#define NETWORK_IPV6 2

Flag to force IPV6

Examples: ex_network.c, ex_network_ssl.c, and ex_network_ssl_hardened.c.

Definition at line 52 of file n_network.h.

◆ NETWORK_TCP

#define NETWORK_TCP 0

Flag for TCP transport (default)

Definition at line 54 of file n_network.h.

◆ NETWORK_UDP

#define NETWORK_UDP 1

Flag for UDP transport.

Definition at line 56 of file n_network.h.

◆ NETWORK_WAIT_CLOSE_TIMEOUT

#define NETWORK_WAIT_CLOSE_TIMEOUT 4096

Flag to set network closing wait timeout.

Examples: ex_network.c.

Definition at line 64 of file n_network.h.

◆ SOCKET_SIZE_FORMAT

#define SOCKET_SIZE_FORMAT "%d"

socket associated printf style

Examples: ex_network_ssl.c, and ex_network_ssl_hardened.c.

Definition at line 104 of file n_network.h.

Typedef Documentation

◆ netw_func

typedef ssize_t(* netw_func) (void *, char *, uint32_t)

send/recv func ptr type

Definition at line 286 of file n_network.h.

◆ netw_sni_pick_cb

typedef int(* netw_sni_pick_cb) (const char *sni, N_STR **cert_pem, N_STR **key_pem, void *user_data)

SNI cert-pick callback for netw_accept_ssl_with_sni_cb: given the client SNI host (may be NULL), fill *cert_pem and *key_pem with a server certificate and key (newly allocated; n_network frees them).

Return 0 to proceed with the handshake, non-zero to fail it.

Definition at line 607 of file n_network.h.

◆ SOCKET

typedef int SOCKET

default socket declaration

socket type for POSIX systems

Definition at line 102 of file n_network.h.

Enumeration Type Documentation

◆ __netw_code_type

enum __netw_code_type

Network codes declaration.

Enumerator
NETW_CLIENT
NETW_SERVER
NETW_RESTART_TIMER
NETW_EMPTY_SENDBUF
NETW_EMPTY_RECVBUF
NETW_RUN
NETW_EXIT_ASKED
NETW_EXITED
NETW_ERROR
NETW_ENCRYPT_NONE
NETW_ENCRYPT_OPENSSL
NETW_THR_ENGINE_STARTED
NETW_THR_ENGINE_STOPPED
NETW_DESTROY_RECVBUF
NETW_DESTROY_SENDBUF
NETW_COMPRESSED_ZLIB
NETW_COMPRESSED_LZ4
____netw_code_type_UNKNOWN_VALUE__

Definition at line 283 of file n_network.h.

◆ NETW_COMPRESS_MODE

enum NETW_COMPRESS_MODE

Compression mode selector for NETWORK.compress_mode.

The per-packet state word on the wire carries NETW_COMPRESSED_ZLIB or NETW_COMPRESSED_LZ4 so a receiver in NETW_COMPRESS_AUTO (the default) can decode whichever algorithm the sender chose, while a receiver pinned to a specific algorithm will decode only that flag and pass anything else through uncompressed.

Enumerator
NETW_COMPRESS_NONE	no automatic compression on send, still decompresses inbound
NETW_COMPRESS_ZLIB	compress on send with zlib, decompress either on recv
NETW_COMPRESS_LZ4	compress on send with LZ4, decompress either on recv

Definition at line 263 of file n_network.h.

Function Documentation

◆ deplete_send_buffer()

int deplete_send_buffer	(	int	fd,
		int	timeout
	)

wait for send buffer to be empty

Not as reliable as expected.

Parameters

fd	socket descriptor
timeout	timeout value in msec , value <= 0 : disabled

Returns: 0 if timeout or unsupported, -1 on error or the amount of remaining datas in bytes

Definition at line 2631 of file n_network.c.

References LOG_ERR, and n_log.

Referenced by netw_close().

Here is the caller graph for this function:

◆ htonst()

size_t htonst ( size_t value )

host to network size_t

Parameters

value the size_t value to convert to network order

Returns: network ordered value

Definition at line 143 of file n_network.c.

◆ n_http_build_multipart()

N_STR * n_http_build_multipart	(	LIST *	parts,
		const char *	boundary
	)

build a multipart/form-data body from a LIST of N_HTTP_MULTIPART_PART* using boundary (without "--"); returns a new N_STR (free with free_nstr) or NULL.

Definition at line 6049 of file n_network.c.

References char_to_nstr_ex(), Malloc, and mp_emit().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_http_decompress_body()

int n_http_decompress_body	(	const N_STR *	body,
		const char *	encoding,
		N_STR **	out
	)

decompress an HTTP body per its Content-Encoding ("gzip"/"deflate"; identity/NULL/unknown copies through).

Sets *out to a new N_STR (free with free_nstr). Returns 0 on success, -1 on error.

Definition at line 5751 of file n_network.c.

References N_STR::data, n_http_inflate(), nstrdup(), and N_STR::written.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_http_multipart_boundary()

int n_http_multipart_boundary	(	const char *	content_type,
		char *	out,
		size_t	outsz
	)

copy the boundary token from a Content-Type value into out (without the leading "--").

Returns 0 on success, -1 when absent.

Definition at line 5811 of file n_network.c.

Referenced by main().

Here is the caller graph for this function:

◆ n_http_multipart_free()

void n_http_multipart_free ( LIST ** parts )

free a LIST returned by n_http_parse_multipart and NULL the pointer

Definition at line 5850 of file n_network.c.

References list_destroy().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_http_parse_multipart()

LIST * n_http_parse_multipart	(	const N_STR *	body,
		const char *	boundary
	)

parse a multipart body (boundary given without "--") into a LIST of N_HTTP_MULTIPART_PART*; free with n_http_multipart_free.

Returns NULL on a bad argument.

Definition at line 5910 of file n_network.c.

References N_HTTP_MULTIPART_PART::body, N_HTTP_MULTIPART_PART::content_type, N_STR::data, N_HTTP_MULTIPART_PART::filename, list_push(), Malloc, mp_disp_param(), mp_find(), mp_header_value(), mp_part_free(), mp_strndup(), N_HTTP_MULTIPART_PART::name, new_generic_list(), new_nstr(), and N_STR::written.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_http_status_class()

int n_http_status_class ( int status_code )

leading digit of an HTTP status code (1..5), or 0 when outside 100..599

Definition at line 5668 of file n_network.c.

Referenced by main(), n_http_status_is_client_error(), n_http_status_is_informational(), n_http_status_is_redirect(), n_http_status_is_server_error(), and n_http_status_is_success().

Here is the caller graph for this function:

◆ n_http_status_is_client_error()

int n_http_status_is_client_error ( int status_code )

1 when status_code is a client error (4xx), else 0

Definition at line 5686 of file n_network.c.

References n_http_status_class().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_http_status_is_informational()

int n_http_status_is_informational ( int status_code )

1 when status_code is informational (1xx), else 0

Definition at line 5674 of file n_network.c.

References n_http_status_class().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_http_status_is_redirect()

int n_http_status_is_redirect ( int status_code )

1 when status_code is a redirect (3xx), else 0

Definition at line 5682 of file n_network.c.

References n_http_status_class().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_http_status_is_server_error()

int n_http_status_is_server_error ( int status_code )

1 when status_code is a server error (5xx), else 0

Definition at line 5690 of file n_network.c.

References n_http_status_class().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_http_status_is_success()

int n_http_status_is_success ( int status_code )

1 when status_code is success (2xx), else 0

Definition at line 5678 of file n_network.c.

References n_http_status_class().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_mock_server_free()

void n_mock_server_free ( N_MOCK_SERVER ** server )

free a mock server and close the listening socket

Parameters

server pointer to pointer, set to NULL

Definition at line 7224 of file n_network.c.

References __n_assert, FreeNoLog, netw_close(), and server.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_mock_server_run()

void n_mock_server_run ( N_MOCK_SERVER * server )

run the mock server accept loop (blocks until stop_flag is set)

Blocks until stop_flag is set.

Parameters

server mock server handle

Definition at line 7130 of file n_network.c.

References __n_assert, _n_mock_parse_request(), _n_mock_request_clean(), N_HTTP_RESPONSE::body, N_HTTP_RESPONSE::content_type, N_STR::data, free_nstr, NETWORK::link, LOG_INFO, n_log, netw_accept_from_ex(), netw_close(), netw_get_http_status_message(), server, N_SOCKET::sock, N_HTTP_RESPONSE::status_code, and N_STR::written.

Referenced by server_thread().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_mock_server_start()

N_MOCK_SERVER * n_mock_server_start	(	int	port,
		void()(N_HTTP_REQUEST , N_HTTP_RESPONSE , void )	on_request,
		void *	user_data
	)

start a mock HTTP server on localhost:port (returns immediately)

Parameters

port	port number to listen on
on_request	callback for each received HTTP request
user_data	arbitrary pointer passed to callback

Returns: new N_MOCK_SERVER handle, or NULL on failure

Definition at line 7096 of file n_network.c.

References __n_assert, FreeNoLog, LOG_ERR, LOG_INFO, Malloc, n_log, netw_make_listening(), NETWORK_IPALL, on_request(), port, port_str, and server.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_mock_server_stop()

void n_mock_server_stop ( N_MOCK_SERVER * server )

signal the mock server to stop accepting connections

Parameters

server mock server handle

Definition at line 7215 of file n_network.c.

References __n_assert, and server.

Referenced by main().

Here is the caller graph for this function:

◆ n_netw_clear_connect_errors()

void n_netw_clear_connect_errors ( void )

Clear pre-connection errors on this thread.

Definition at line 130 of file n_network.c.

References s_connect_err_count, and s_connect_err_next.

◆ n_netw_clear_errors()

void n_netw_clear_errors ( NETWORK * netw )

Clear captured errors on a NETWORK handle.

Definition at line 114 of file n_network.c.

References netw, NETWORK::netw_err_count, and NETWORK::netw_err_next.

◆ n_netw_get_connect_error()

const char * n_netw_get_connect_error ( int index )

Get pre-connection error message by index.

Returns NULL if out of range

Definition at line 124 of file n_network.c.

References s_connect_err_count, s_connect_err_next, and s_connect_errors.

◆ n_netw_get_connect_error_count()

int n_netw_get_connect_error_count ( void )

Get number of pre-connection errors captured on this thread.

Definition at line 120 of file n_network.c.

References s_connect_err_count.

◆ n_netw_get_error()

const char * n_netw_get_error	(	const NETWORK *	netw,
		int	index
	)

Get captured error message by index (0 = oldest).

Returns NULL if out of range

Definition at line 108 of file n_network.c.

References netw, NETWORK::netw_err_count, NETWORK::netw_err_next, and NETWORK::netw_errors.

◆ n_netw_get_error_count()

int n_netw_get_error_count ( const NETWORK * netw )

Get number of captured errors on a NETWORK handle.

Definition at line 104 of file n_network.c.

References netw, and NETWORK::netw_err_count.

◆ n_proxy_cfg_free()

void n_proxy_cfg_free ( N_PROXY_CFG ** cfg )

Free an N_PROXY_CFG created by n_proxy_cfg_parse().

Parameters

cfg	Pointer to pointer; set to NULL on return.

Definition at line 7692 of file n_network.c.

References FreeNoLog, N_PROXY_CFG::host, N_PROXY_CFG::password, N_PROXY_CFG::scheme, and N_PROXY_CFG::username.

Referenced by main().

Here is the caller graph for this function:

◆ n_proxy_cfg_parse()

N_PROXY_CFG * n_proxy_cfg_parse ( const char * url )

Parse a proxy URL string into an N_PROXY_CFG struct.

Accepted formats: http://host:port http://user:pass@host:port https://host:port https://user:pass@host:port socks5://host:port socks5://user:pass@host:port

Parameters

url	Proxy URL string. Must not be NULL.

Returns: Newly allocated N_PROXY_CFG, or NULL on parse failure. Caller must free with n_proxy_cfg_free().

Definition at line 7597 of file n_network.c.

References FreeNoLog, N_PROXY_CFG::host, LOG_ERR, Malloc, n_log, N_PROXY_CFG::password, port, N_PROXY_CFG::port, N_PROXY_CFG::scheme, and N_PROXY_CFG::username.

Referenced by main().

Here is the caller graph for this function:

◆ n_proxy_connect_socks5()

int n_proxy_connect_socks5	(	const N_PROXY_CFG *	proxy,
		const char *	target_host,
		int	target_port
	)

Open a TCP connection through a SOCKS5 proxy.

Performs the SOCKS5 handshake (no-auth or user/pass auth), requests connection to target_host:target_port. Returns the raw socket fd ready for use.

Parameters

proxy	Parsed proxy configuration. Must not be NULL.
target_host	Destination hostname.
target_port	Destination port.

Returns: Connected socket fd on success, -1 on failure.

Definition at line 7902 of file n_network.c.

References _proxy_tcp_connect(), N_PROXY_CFG::host, LOG_DEBUG, LOG_ERR, n_log, N_PROXY_CFG::password, N_PROXY_CFG::port, and N_PROXY_CFG::username.

Here is the call graph for this function:

◆ n_proxy_connect_tunnel()

int n_proxy_connect_tunnel	(	const N_PROXY_CFG *	proxy,
		const char *	target_host,
		int	target_port
	)

Open a TCP connection through an HTTP proxy using CONNECT tunneling.

Connects to the proxy, issues: CONNECT target_host:target_port HTTP/1.1 Host: target_host:target_port Proxy-Authorization: Basic base64(user:pass) (if credentials present)

Verifies the proxy responds with 200 Connection established. Returns the raw socket file descriptor ready for a TLS handshake or plain HTTP use over the tunnel.

Parameters

proxy	Parsed proxy configuration. Must not be NULL.
target_host	Destination hostname.
target_port	Destination port.

Returns: Connected socket fd on success, -1 on failure.

Definition at line 7703 of file n_network.c.

References _proxy_tcp_connect(), char_to_nstr(), N_STR::data, free_nstr, N_PROXY_CFG::host, LOG_DEBUG, LOG_ERR, n_base64_encode(), n_log, N_PROXY_CFG::password, N_PROXY_CFG::port, and N_PROXY_CFG::username.

Here is the call graph for this function:

◆ n_proxy_connect_tunnel_ssl()

int n_proxy_connect_tunnel_ssl	(	const N_PROXY_CFG *	proxy,
		const char *	target_host,
		int	target_port
	)

Open a TCP connection through an HTTPS proxy using CONNECT tunneling.

Like n_proxy_connect_tunnel(), but connects to the proxy over TLS first. The CONNECT request and response are exchanged over the encrypted channel. After the tunnel is established, the proxy TLS session is torn down and the raw socket fd is returned, ready for a second TLS handshake to the target or plain HTTP use.

Parameters

proxy	Parsed proxy configuration (scheme must be "https").
target_host	Destination hostname.
target_port	Destination port.

Returns: Connected socket fd on success, -1 on failure.

Definition at line 7776 of file n_network.c.

References _proxy_tcp_connect(), char_to_nstr(), N_STR::data, free_nstr, N_PROXY_CFG::host, LOG_DEBUG, LOG_ERR, n_base64_encode(), n_log, netw_init_openssl(), N_PROXY_CFG::password, N_PROXY_CFG::port, and N_PROXY_CFG::username.

Here is the call graph for this function:

◆ n_sse_conn_free()

void n_sse_conn_free ( N_SSE_CONN ** conn )

free an SSE connection

Parameters

conn	pointer to pointer, set to NULL

Definition at line 6626 of file n_network.c.

References __n_assert, FreeNoLog, N_SSE_CONN::netw, and netw_close().

Referenced by main(), and n_sse_connect().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_sse_connect()

N_SSE_CONN * n_sse_connect	(	const char *	host,
		const char *	port,
		const char *	path,
		int	use_ssl,
		const char *	user_agent,
		void()(N_SSE_EVENT , N_SSE_CONN , void )	on_event,
		void *	user_data
	)

connect to an SSE endpoint and start reading events (blocks until stopped).

Parameters

user_agent optional User-Agent header value. NULL emits no User-Agent header; some servers (e.g. Wikimedia) reject anonymous clients with 403.

connect to an SSE endpoint and start reading events (blocks until stopped).

Blocks until stopped or connection closes. Calls on_event for each complete SSE event received.

Parameters

host	hostname
port	port string
path	resource path
use_ssl	1 for https, 0 for http
on_event	callback for each received event
user_data	passed to callback

Returns: new N_SSE_CONN, or NULL on failure

Definition at line 6711 of file n_network.c.

References __n_assert, _netw_capture_error(), _sse_read_byte(), _sse_write(), char_to_nstr(), N_SSE_EVENT::data, N_SSE_EVENT::event, free_nstr, N_SSE_EVENT::id, LOG_DEBUG, LOG_ERR, LOG_INFO, Malloc, n_log, n_sse_conn_free(), n_sse_event_clean(), N_SSE_CONN::netw, netw_connect(), netw_ssl_connect_client(), netw_ssl_do_handshake(), NETWORK_IPALL, nstrprintf_cat, N_SSE_CONN::on_event, port, N_SSE_EVENT::retry, N_SSE_CONN::stop_flag, and N_SSE_CONN::user_data.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_sse_event_clean()

void n_sse_event_clean ( N_SSE_EVENT * event )

free an SSE event's contents (does not free the event struct itself)

Parameters

event the event to clean

Definition at line 6605 of file n_network.c.

References N_SSE_EVENT::data, N_SSE_EVENT::event, free_nstr, and N_SSE_EVENT::id.

Referenced by n_sse_connect().

Here is the caller graph for this function:

◆ n_sse_stop()

void n_sse_stop ( N_SSE_CONN * conn )

signal the SSE connection to stop reading

Parameters

conn	SSE connection

Definition at line 6617 of file n_network.c.

References __n_assert, and N_SSE_CONN::stop_flag.

Referenced by on_sse_event().

Here is the caller graph for this function:

◆ n_url_build()

N_STR * n_url_build ( const N_URL * u )

build a URL string from parsed components

Definition at line 7294 of file n_network.c.

References N_URL::host, new_nstr(), nstrprintf, nstrprintf_cat, N_URL::path, N_URL::port, N_URL::query, and N_URL::scheme.

Here is the call graph for this function:

◆ n_url_canonicalize()

N_STR * n_url_canonicalize ( const N_URL * u )

produce a canonical URL string for dedup (lowercase scheme/host, drop default port, remove .

/ and ../ segments, keep query)

produce a canonical URL string for dedup (lowercase scheme/host, drop default port, remove .

Lowercases the scheme and host, drops the default port (80 for http, 443 for https), removes "." and ".." path segments, and keeps the query verbatim.

Parameters

u	a parsed URL

Returns: a newly allocated N_STR canonical form, or NULL on error

Definition at line 7366 of file n_network.c.

References _n_url_normalize_path(), N_URL::host, new_nstr(), nstrprintf, nstrprintf_cat, N_URL::path, N_URL::port, N_URL::query, and N_URL::scheme.

Referenced by n_url_canonicalize_string().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_url_canonicalize_string()

N_STR * n_url_canonicalize_string ( const char * url )

parse and canonicalize a URL string in one call

Parameters

url	the URL string

Returns: a newly allocated N_STR canonical form, or NULL on error

Definition at line 7395 of file n_network.c.

References n_url_canonicalize(), n_url_free(), and n_url_parse().

Referenced by expect_canon(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_url_decode()

N_STR * n_url_decode ( const char * str )

decode a percent-encoded string (returns N_STR)

Definition at line 7521 of file n_network.c.

References new_nstr(), and nstrprintf_cat.

Here is the call graph for this function:

◆ n_url_encode()

N_STR * n_url_encode ( const char * str )

percent-encode a string for use in URLs (delegates to n_str_url_encode())

Definition at line 7517 of file n_network.c.

References n_str_url_encode().

Here is the call graph for this function:

◆ n_url_free()

void n_url_free ( N_URL ** u )

free a N_URL and all its members

Definition at line 7542 of file n_network.c.

References FreeNoLog, N_URL::host, N_URL_PARAM::key, N_URL::nb_params, N_URL::params, N_URL::path, N_URL::query, N_URL::scheme, and N_URL_PARAM::value.

Referenced by n_url_canonicalize_string(), and n_url_resolve().

Here is the caller graph for this function:

◆ n_url_parse()

N_URL * n_url_parse ( const char * url )

parse a URL string into components

Definition at line 7255 of file n_network.c.

References _n_parse_query_params(), N_URL::host, Malloc, N_URL::path, N_URL::port, N_URL::query, and N_URL::scheme.

Referenced by n_url_canonicalize_string(), and n_url_resolve().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_url_resolve()

N_STR * n_url_resolve	(	const char *	base,
		const char *	ref
	)

resolve a (possibly relative) reference against an absolute base URL (RFC 3986 section 5)

Implements RFC 3986 section 5 reference resolution: a base URL plus a reference found in a document (an href, src, or action) produce an absolute URL. Handles absolute references (returned verbatim), scheme-relative ("//host/path"), absolute-path ("/path"), query-only ("?q"), fragment-only (resolves to the base resource), and relative-path references (merged against the base path). The fragment is dropped (it is not part of the resource identity for crawling) and "." / ".." path segments are removed. The result is not lowercased or otherwise canonicalized; pass it through n_url_canonicalize_string for a dedup key.

Parameters

base	an absolute base URL (scheme://host/...). NULL returns NULL.
ref	the reference to resolve. NULL is treated as the empty string.

Returns: a newly allocated absolute N_STR URL, or NULL on error.

Definition at line 7433 of file n_network.c.

References _n_url_has_scheme(), _n_url_normalize_path(), N_URL::host, n_url_free(), n_url_parse(), new_nstr(), nstrprintf, nstrprintf_cat, N_URL::path, N_URL::port, N_URL::query, and N_URL::scheme.

Referenced by expect_resolve().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_ws_close()

void n_ws_close ( N_WS_CONN * conn )

send close frame and close the connection

Sends a close frame (opcode 0x08), attempts to read a close response, then closes the underlying NETWORK.

Parameters

conn	WebSocket connection

Definition at line 6551 of file n_network.c.

References __n_assert, N_WS_CONN::connected, free_nstr, N_WS_OP_CLOSE, n_ws_recv(), n_ws_send(), N_WS_CONN::netw, netw_close(), and N_WS_MESSAGE::payload.

Referenced by n_ws_conn_free().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_ws_conn_free()

void n_ws_conn_free ( N_WS_CONN ** conn )

free a WebSocket connection structure

Closes the connection if still open, then frees all members.

Parameters

conn	pointer to pointer, set to NULL

Definition at line 6581 of file n_network.c.

References __n_assert, N_WS_CONN::connected, FreeNoLog, N_WS_CONN::host, n_ws_close(), N_WS_CONN::netw, netw_close(), and N_WS_CONN::path.

Referenced by main(), and n_ws_connect().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_ws_connect()

N_WS_CONN * n_ws_connect	(	const char *	host,
		const char *	port,
		const char *	path,
		int	use_ssl
	)

connect to a WebSocket server (ws:// or wss://) and perform the HTTP/1.1 upgrade handshake

Performs the HTTP/1.1 upgrade handshake per RFC 6455.

Parameters

host	hostname to connect to
port	port string (e.g. "443")
path	resource path (e.g. "/")
use_ssl	1 for wss://, 0 for ws://

Returns: new N_WS_CONN, or NULL on failure

Definition at line 6208 of file n_network.c.

References __n_assert, _netw_capture_error(), _ws_write(), N_WS_CONN::connected, NETWORK::crypto_algo, N_STR::data, free_nstr, N_WS_CONN::host, NETWORK::link, LOG_DEBUG, LOG_ERR, LOG_INFO, Malloc, n_base64_encode(), n_log, n_ws_conn_free(), N_WS_CONN::netw, netw_connect(), NETW_ENCRYPT_OPENSSL, netw_ssl_connect_client(), netw_ssl_do_handshake(), NETWORK_IPALL, new_nstr(), N_WS_CONN::path, port, N_SOCKET::sock, NETWORK::ssl, and N_STR::written.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_ws_frame_build()

size_t n_ws_frame_build	(	int	fin,
		int	opcode,
		int	do_mask,
		const unsigned char *	payload,
		size_t	len,
		const unsigned char	mask_key[4],
		unsigned char *	out,
		size_t	out_cap
	)

build a WebSocket frame into out (optionally masking the payload).

Returns the number of bytes written, or 0 when out_cap is too small.

Definition at line 6960 of file n_network.c.

Referenced by test_frame_codec().

Here is the caller graph for this function:

◆ n_ws_frame_parse()

int n_ws_frame_parse	(	const unsigned char *	buf,
		size_t	len,
		N_WS_FRAME *	frame,
		size_t *	consumed
	)

parse one WebSocket frame from a byte buffer (stateless).

Returns 1 and fills frame + *consumed (total frame bytes) on a complete frame, 0 when more bytes are needed, -1 on a malformed or over-large frame. payload aliases buf.

parse one WebSocket frame from a byte buffer (stateless).

Parameters

buf	The input bytes (one or more frames, possibly partial).
len	Number of readable bytes in `buf`.
frame	Receives the parsed header and a payload pointer aliasing `buf`.
consumed	Receives the total frame size in bytes on a complete frame.

Returns: 1 on a complete frame, 0 when more bytes are needed, -1 when malformed or the payload exceeds N_WS_FRAME_MAX_PAYLOAD.

Definition at line 6905 of file n_network.c.

References N_WS_FRAME::fin, N_WS_FRAME::mask, N_WS_FRAME::masked, N_WS_FRAME_MAX_PAYLOAD, N_WS_FRAME::opcode, N_WS_FRAME::payload, N_WS_FRAME::payload_len, and N_WS_FRAME::rsv.

Referenced by test_frame_codec().

Here is the caller graph for this function:

◆ n_ws_recv()

int n_ws_recv	(	N_WS_CONN *	conn,
		N_WS_MESSAGE *	msg_out
	)

receive one WebSocket frame

Reads the frame header, extended length, optional mask, and payload.

Parameters

conn	WebSocket connection
msg_out	output: populated message. Caller must free payload with free_nstr.

Returns: 0 on success, -1 on error or connection closed

Definition at line 6479 of file n_network.c.

References __n_assert, _ws_read(), N_STR::data, free_nstr, N_WS_MESSAGE::masked, N_WS_CONN::netw, new_nstr(), N_WS_MESSAGE::opcode, N_WS_MESSAGE::payload, and N_STR::written.

Referenced by main(), and n_ws_close().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_ws_send()

int n_ws_send	(	N_WS_CONN *	conn,
		const char *	payload,
		size_t	len,
		int	opcode
	)

send a WebSocket frame (client always masks)

Builds a masked WebSocket frame per RFC 6455 and sends it.

Parameters

conn	WebSocket connection
payload	data to send
len	payload length
opcode	frame opcode (N_WS_OP_TEXT, etc.)

Returns: 0 on success, -1 on error

Definition at line 6412 of file n_network.c.

References __n_assert, _netw_capture_error(), _ws_write(), FreeNoLog, LOG_ERR, Malloc, n_log, and N_WS_CONN::netw.

Referenced by main(), and n_ws_close().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_ws_unmask()

void n_ws_unmask	(	unsigned char *	dst,
		const unsigned char *	src,
		size_t	len,
		const unsigned char	mask[4]
	)

XOR-unmask len bytes of src into dst using a 4-byte WebSocket mask key.

Definition at line 6952 of file n_network.c.

Referenced by test_frame_codec().

Here is the caller graph for this function:

◆ netw_accept_from()

NETWORK * netw_accept_from ( NETWORK * from )

Accepting routine.

Network 'from' must be allocated with netw_make_listening.

Parameters

from	The network from which to obtaion the connection

Returns: NULL

Definition at line 3544 of file n_network.c.

References MAX_LIST_ITEMS, and netw_accept_from_ex().

Referenced by main(), and netw_accept_ssl_with_sni_cb().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_accept_from_ex()

NETWORK * netw_accept_from_ex	(	NETWORK *	from,
		size_t	send_list_limit,
		size_t	recv_list_limit,
		int	blocking,
		int *	retval
	)

Accepting routine extended.

Network 'from' must be allocated with netw_make_listening.

Parameters

from	the network from where we accept
send_list_limit	Internal sending list maximum number of item. 0 for unrestricted
recv_list_limit	Internal receiving list maximum number of item. 0 for unrestricted
blocking	set to -1 to make it non blocking, to 0 for blocking, else it's the select timeout value in msecs.
retval	EAGAIN ou EWOULDBLOCK or neterrno (use netstrerr( retval) to obtain a string describing the code )

Returns: NULL on failure, if not a pointer to the connected network

Definition at line 3358 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, NETWORK::crypto_algo, NETWORK::ctx, endif, FreeNoLog, get_in_addr(), N_SOCKET::ip, N_SOCKET::is_blocking, NETWORK::link, LOG_DEBUG, LOG_ERR, Malloc, n_log, neterrno, netstrerror(), netw, netw_close(), NETW_ENCRYPT_OPENSSL, netw_init_wsa(), netw_new(), NETW_RUN, NETW_SERVER, netw_set(), netw_set_blocking(), netw_setsockopt(), netw_ssl_print_errors(), NETW_THR_ENGINE_STOPPED, N_SOCKET::port, N_SOCKET::raddr, NETWORK::recv_data, NETWORK::recv_data_once, recv_ssl_data(), recv_ssl_data_once(), NETWORK::send_data, NETWORK::send_data_once, send_ssl_data(), send_ssl_data_once(), N_SOCKET::sock, SOCKET_SIZE_FORMAT, and NETWORK::ssl.

Referenced by main(), main(), n_mock_server_run(), netw_accept_from(), netw_accept_nonblock_from(), and netw_accept_pool_thread_func().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_accept_nonblock_from()

NETWORK * netw_accept_nonblock_from	(	NETWORK *	from,
		int	blocking
	)

Accepting routine.

Network 'from' must be allocated with netw_make_listening.

Parameters

from	The network from which to obtaion the connection
blocking	set to -1 to make it non blocking, to 0 for blocking, else it's the select timeout value in mseconds.

Returns: NULL

Definition at line 3554 of file n_network.c.

References MAX_LIST_ITEMS, and netw_accept_from_ex().

Here is the call graph for this function:

◆ netw_accept_ssl_with_sni_cb()

NETWORK * netw_accept_ssl_with_sni_cb	(	NETWORK *	listen,
		netw_sni_pick_cb	pick,
		void *	user_data
	)

accept a TLS connection, selecting the server certificate per client SNI via pick() during the handshake

Accepts a plaintext connection from listen, then upgrades it to a TLS server via netw_ssl_server_handshake(), so the pick callback supplies a leaf matching the client's requested host during the handshake.

Parameters

listen	the listening NETWORK from netw_make_listening
pick	callback that supplies a cert/key for a given SNI host
user_data	opaque pointer passed to pick

Returns: the accepted NETWORK, or NULL on error

Definition at line 1846 of file n_network.c.

References __n_assert, netw_accept_from(), netw_close(), and netw_ssl_server_handshake().

Referenced by server_fn().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_add_msg()

int netw_add_msg	(	NETWORK *	netw,
		N_STR *	msg
	)

Add a message to send in aimed NETWORK.

Definition at line 3569 of file n_network.c.

References __n_assert, _netw_capture_error(), N_STR::data, free_nstr_ptr(), g_netw_bytes_sent, N_STR::length, list_push(), LOG_ERR, n_log, n_reactor_notify_send(), netw, netw_atomic_read_reactor_handle, netw_atomic_read_reactor_mode, NETWORK::send_blocker, NETWORK::send_buf, NETWORK::sendbolt, and N_STR::written.

Referenced by client_worker_echo(), handle_client(), netw_pool_broadcast(), netw_send_ident(), netw_send_ping(), netw_send_position(), netw_send_quit(), netw_send_string_to(), netw_send_string_to_all(), on_send_click(), run_client(), run_server(), send_net_datas(), userlist_add_msg_to_ex(), userlist_send_waiting_msgs(), and userlist_user_send_waiting_msgs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_add_msg_ex()

int netw_add_msg_ex	(	NETWORK *	netw,
		char *	str,
		unsigned int	length
	)

Add a char message to send in the aimed NETWORK.

Parameters

netw	NETWORK where add the message
str	the message to add
length	the size of the message to add

Returns: TRUE if success FALSE on error

Definition at line 3635 of file n_network.c.

References __n_assert, N_STR::data, free_nstr_ptr(), N_STR::length, list_push(), Malloc, netw, NETWORK::send_blocker, NETWORK::send_buf, NETWORK::sendbolt, and N_STR::written.

Here is the call graph for this function:

◆ netw_adopt_client_fd()

int netw_adopt_client_fd	(	NETWORK **	netw,
		SOCKET	fd,
		const char *	host,
		const char *	port
	)

adopt an already-connected socket fd into a fresh client NETWORK (plain send/recv)

Wraps a connected socket file descriptor (for example one returned by n_proxy_connect_tunnel / n_proxy_connect_socks5) in a newly allocated client NETWORK so the blocking send/recv helpers (send_data / netw_read_all / ...) can run over it. The NETWORK is created with the plain (non-SSL) send/recv vtable; promote it with netw_ssl_start_client + netw_ssl_do_handshake to speak TLS over the adopted socket. On success the NETWORK owns fd and closes it in netw_close; on failure fd is left open for the caller to close.

Parameters

netw	output: receives the new NETWORK. Must point to NULL on entry.
fd	a connected socket descriptor (must not be INVALID_SOCKET).
host	hostname recorded for logging, or NULL.
port	port string recorded for logging, or NULL.

Returns: TRUE on success, FALSE on error.

Definition at line 8040 of file n_network.c.

References __n_assert, LOG_DEBUG, LOG_ERR, MAX_LIST_ITEMS, n_log, netw, NETW_CLIENT, netw_close(), netw_init_wsa(), netw_new(), NETW_RUN, netw_set(), NETW_THR_ENGINE_STOPPED, and port.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_bind_udp()

int netw_bind_udp	(	NETWORK **	netw,
		char *	addr,
		char *	port,
		int	ip_version
	)

Create a UDP bound socket.

Parameters

netw	A NETWORK **network to bind
addr	Address to bind, NULL for wildcard
port	Port to bind to
ip_version	NETWORK_IPALL for both ipv4 and ipv6 , NETWORK_IPV4 or NETWORK_IPV6

Returns: TRUE on success, FALSE on error

Definition at line 3005 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, addr, FreeNoLog, get_in_addr(), ip_version, LOG_DEBUG, LOG_ERR, Malloc, MAX_LIST_ITEMS, n_log, neterrno, netstrerror(), netw, netw_close(), netw_init_wsa(), netw_new(), NETW_RUN, NETW_SERVER, netw_set(), netw_setsockopt(), NETW_THR_ENGINE_STOPPED, NETWORK_IPV4, NETWORK_IPV6, NETWORK_UDP, port, recv_udp_data(), and send_udp_data().

Referenced by main(), and run_server().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_build_http_response()

int netw_build_http_response	(	N_STR **	http_response,
		int	status_code,
		const char *	server_name,
		const char *	content_type,
		char *	additional_headers,
		N_STR *	body
	)

build HTTP response

Parameters

http_response	pointer to a N_STR *response. Will be set to the response, or NULL
status_code	response http status code
server_name	response 'Server' in headers
content_type	response 'Content-Type' in headers
additional_headers	additional response headers, can be "" if no additional headers, else 'backslash r backslash n' separated key: values
body	response 'Server' in headers

Returns: TRUE if the http_response was built, FALSE if not

Definition at line 6110 of file n_network.c.

References __n_assert, LOG_DEBUG, n_log, netw_get_http_date(), netw_get_http_status_message(), nstrcat, nstrprintf, and N_STR::written.

Referenced by build_secure_response(), and handle_request().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_calculate_urlencoded_size()

size_t netw_calculate_urlencoded_size	(	const char *	str,
		size_t	len
	)

calculate URL-encoded size

Parameters

str	clear string from which we want to know the urlencoded size
len	length of the input string

Returns: the urlencoded size if the string was urlencoded

Definition at line 5291 of file n_network.c.

References __n_assert.

Referenced by netw_urlencode().

Here is the caller graph for this function:

◆ netw_close()

int netw_close ( NETWORK ** netw )

Closing.

Parameters

netw	A NETWORK *network to close

Returns: TRUE on success , FALSE on failure

Definition at line 2662 of file n_network.c.

References __n_assert, _str, deplete_send_buffer(), endif, Free, FreeNoLog, list_destroy(), list_foreach, LOG_DEBUG, LOG_ERR, LOG_WARNING, N_ENUM_ENTRY, n_log, n_reactor_close_netw_sync(), neterrno, netstrerror(), netw, NETW_DESTROY_RECVBUF, NETW_DESTROY_SENDBUF, NETW_ENCRYPT_OPENSSL, netw_get_state(), netw_pool_remove(), NETW_SERVER, netw_set(), netw_stop_thr_engine(), NETW_THR_ENGINE_STARTED, and pool.

Referenced by bind_free(), client_worker_echo(), client_worker_fast(), dispatch_to_pool(), handle_client(), handle_inline_and_count(), handle_request(), main(), main(), main(), manage_client(), n_mock_server_free(), n_mock_server_run(), n_sse_conn_free(), n_ws_close(), n_ws_conn_free(), netw_accept_from_ex(), netw_accept_pool_thread_func(), netw_accept_ssl_with_sni_cb(), netw_adopt_client_fd(), netw_bind_udp(), netw_connect_ex_to(), netw_connect_udp(), netw_make_listening(), netw_new(), netw_set_blocking(), netw_ssl_connect_client_to(), on_accept_pooled(), run_client(), run_client(), run_server(), run_server(), server_fn(), and ssl_network_thread().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_connect()

int netw_connect	(	NETWORK **	netw,
		char *	host,
		char *	port,
		int	ip_version
	)

Connecting.

Parameters

netw	a NETWORK *object
host	Host or IP to connect to
port	Port to use to connect
ip_version	NETWORK_IPALL for both ipv4 and ipv6 , NETWORK_IPV4 or NETWORK_IPV6

Returns: TRUE or FALSE

Definition at line 2359 of file n_network.c.

References _str, ip_version, LOG_INFO, MAX_LIST_ITEMS, n_log, netw, netw_connect_ex(), and port.

Referenced by client_worker_echo(), client_worker_fast(), main(), n_sse_connect(), n_ws_connect(), and run_client().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_connect_ex()

int netw_connect_ex	(	NETWORK **	netw,
		char *	host,
		char *	port,
		size_t	send_list_limit,
		size_t	recv_list_limit,
		int	ip_version,
		char *	ssl_key_file,
		char *	ssl_cert_file
	)

Connecting, extended.

Parameters

netw	a NETWORK *object
host	Host or IP to connect to
port	Port to use to connect
send_list_limit	Internal sending list maximum number of item. From UNLIMITED_LIST_ITEMS (0) to MAX_LIST_ITEMS (SIZE_MAX).
recv_list_limit	Internal receiving list maximum number of item. From UNLIMITED_LIST_ITEMS (0) to MAX_LIST_ITEMS (SIZE_MAX).
ip_version	NETWORK_IPALL for both ipv4 and ipv6 , NETWORK_IPV4 or NETWORK_IPV6
ssl_key_file	NULL or the path to the SSL key file to use. If set, a ssl_cert_file must also be provided
ssl_cert_file	NULL or the path to the SSL certificate file to use. If set, a ssl_key_file must also be provided

Returns: TRUE or FALSE

Definition at line 2347 of file n_network.c.

References ip_version, netw, netw_connect_ex_to(), and port.

Referenced by netw_connect(), and netw_ssl_connect().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_connect_ex_to()

int netw_connect_ex_to	(	NETWORK **	netw,
		char *	host,
		char *	port,
		size_t	send_list_limit,
		size_t	recv_list_limit,
		int	ip_version,
		char *	ssl_key_file,
		char *	ssl_cert_file,
		int	connect_timeout_ms
	)

Connecting, extended, with a bounded connection-establishment time (connect_timeout_ms, 0 = OS default)

Parameters

netw	a NETWORK *object
host	Host or IP to connect to
port	Port to use to connect
send_list_limit	Internal sending list maximum number of item. From UNLIMITED_LIST_ITEMS (0) to MAX_LIST_ITEMS (SIZE_MAX).
recv_list_limit	Internal receiving list maximum number of item. From UNLIMITED_LIST_ITEMS (0) to MAX_LIST_ITEMS (SIZE_MAX).
ip_version	NETWORK_IPALL for both ipv4 and ipv6 , NETWORK_IPV4 or NETWORK_IPV6
ssl_key_file	NULL or the path to the SSL key file to use. If set, a ssl_cert_file must also be provided
ssl_cert_file	NULL or the path to the SSL certificate file to use. If set, a ssl_key_file must also be provided
connect_timeout_ms	connect timeout in milliseconds, 0 = OS default

Returns: TRUE or FALSE

Definition at line 2190 of file n_network.c.

References __n_assert, _netw_capture_connect_error(), _netw_capture_error(), _netw_timed_connect(), _str, FreeNoLog, get_in_addr(), get_usec(), N_SOCKET::ip, ip_version, NETWORK::link, LOG_DEBUG, LOG_ERR, LOG_INFO, Malloc, n_log, neterrno, netstrerror(), netw, NETW_CLIENT, netw_close(), netw_init_wsa(), netw_new(), NETW_RUN, netw_set(), netw_set_crypto(), NETW_THR_ENGINE_STOPPED, NETWORK_IPV4, NETWORK_IPV6, port, and start_HiTimer().

Referenced by netw_connect_ex(), netw_connect_to(), and netw_ssl_connect_client_to().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_connect_to()

int netw_connect_to	(	NETWORK **	netw,
		char *	host,
		char *	port,
		int	ip_version,
		int	connect_timeout_ms
	)

Connecting, with a bounded connection-establishment time (connect_timeout_ms, 0 = OS default)

Parameters

netw	a NETWORK *object
host	Host or IP to connect to
port	Port to use to connect
ip_version	NETWORK_IPALL for both ipv4 and ipv6 , NETWORK_IPV4 or NETWORK_IPV6
connect_timeout_ms	connect timeout in milliseconds, 0 = OS default

Returns: TRUE or FALSE

Definition at line 2373 of file n_network.c.

References _str, ip_version, LOG_INFO, MAX_LIST_ITEMS, n_log, netw, netw_connect_ex_to(), and port.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_connect_udp()

int netw_connect_udp	(	NETWORK **	netw,
		char *	host,
		char *	port,
		int	ip_version
	)

Connect a UDP socket to a remote host.

Parameters

netw	A NETWORK **network to connect
host	Host or IP to connect to
port	Port to connect to
ip_version	NETWORK_IPALL, NETWORK_IPV4 or NETWORK_IPV6

Returns: TRUE on success, FALSE on error

Definition at line 3113 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, FreeNoLog, get_in_addr(), ip_version, LOG_DEBUG, LOG_ERR, LOG_INFO, Malloc, MAX_LIST_ITEMS, n_log, neterrno, netstrerror(), netw, NETW_CLIENT, netw_close(), netw_init_wsa(), netw_new(), NETW_RUN, netw_set(), NETW_THR_ENGINE_STOPPED, NETWORK_IPV4, NETWORK_IPV6, NETWORK_UDP, port, recv_udp_data(), and send_udp_data().

Referenced by main(), and run_client().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_destroy_pool()

int netw_destroy_pool ( NETWORK_POOL ** netw_pool )

destroy pool

Parameters

netw_pool the address of a NETWORK_POOL *pointer to free

Returns: TRUE or FALSE

Definition at line 5002 of file n_network.c.

References __n_assert, destroy_ht(), Free, rw_lock_destroy, unlock, and write_lock.

Here is the call graph for this function:

◆ netw_extract_http_info()

NETWORK_HTTP_INFO netw_extract_http_info ( char * request )

extract HTTP info from request

Parameters

request the raw http request string

Returns: a NETWORK_HTTP_INFO structure, filled with zeros in case of errors

Definition at line 5380 of file n_network.c.

References __n_assert, NETWORK_HTTP_INFO::body, NETWORK_HTTP_INFO::content_length, NETWORK_HTTP_INFO::content_type, LOG_ERR, n_log, netw_extract_http_request_type(), and NETWORK_HTTP_INFO::type.

Referenced by handle_request().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_extract_http_request_type()

char * netw_extract_http_request_type ( const char * request )

extract HTTP request type

Parameters

request the raw http request

Returns: a char *copy of the request type, or NULL

Definition at line 5347 of file n_network.c.

References __n_assert.

Referenced by netw_extract_http_info().

Here is the caller graph for this function:

◆ netw_get_http_date()

int netw_get_http_date	(	char *	buffer,
		size_t	buffer_size
	)

get current HTTP date string

Parameters

buffer	the target buffer, must be big enough to hold the date
buffer_size	the size of the target buffer

Returns: TRUE or FALSE

Definition at line 6078 of file n_network.c.

References __n_assert, LOG_ERR, and n_log.

Referenced by netw_build_http_response().

Here is the caller graph for this function:

◆ netw_get_http_status_message()

const char * netw_get_http_status_message ( int status_code )

get HTTP status message string

Parameters

status_code the code to convert into a human-readable message

Returns: a pointer to the human readable message. 'Unknown' is returned if the status code is not supported

Definition at line 5650 of file n_network.c.

Referenced by n_mock_server_run(), and netw_build_http_response().

Here is the caller graph for this function:

◆ netw_get_msg()

N_STR * netw_get_msg ( NETWORK * netw )

Get a message from aimed NETWORK.

Instant return to NULL if no MSG

Parameters

netw	NETWORK where get the msg

Returns: NULL or a filled N_STR

Definition at line 3666 of file n_network.c.

References __n_assert, g_netw_bytes_recv, list_shift, netw, NETWORK::recv_buf, NETWORK::recvbolt, and N_STR::written.

Referenced by manage_client(), netw_wait_msg(), poll_network_msgs(), and run_server().

Here is the caller graph for this function:

◆ netw_get_queue_status()

int netw_get_queue_status	(	NETWORK *	netw,
		size_t *	nb_to_send,
		size_t *	nb_to_read
	)

get queue status

Parameters

netw	NETWORK object
nb_to_send	Number of messages still in send buffer (not yet submitted to kernel)
nb_to_read	Number of message already read by the kernel, waiting in the local message list

Returns: TRUE or FALSE

Definition at line 4964 of file n_network.c.

References __n_assert, LIST::nb_items, netw, NETWORK::recv_buf, NETWORK::recvbolt, NETWORK::send_buf, and NETWORK::sendbolt.

◆ netw_get_state()

int netw_get_state	(	NETWORK *	netw,
		uint32_t *	state,
		int *	thr_engine_status
	)

Get flags from network.

Parameters

netw	The NETWORK *connection to query
state	pointer to network status storage , NETW_RUN , NETW_EXIT_ASKED , NETW_EXITED
thr_engine_status	pointer to network thread engine status storage ,NETW_THR_ENGINE_STARTED , NETW_THR_ENGINE_STOPPED

Returns: TRUE or FALSE

Definition at line 2532 of file n_network.c.

References NETWORK::eventbolt, LOG_ERR, n_log, netw, netw_atomic_read_state, and NETWORK::threaded_engine_status.

Referenced by main(), manage_client(), netw_close(), netw_stop_thr_engine(), and netw_wait_msg().

Here is the caller graph for this function:

◆ netw_get_url_from_http_request()

int netw_get_url_from_http_request	(	const char *	request,
		char *	url,
		size_t	size
	)

get URL from HTTP request

Parameters

request	raw http request to decode
url	pointer to an allocated char *holder
size	the size of the url holder

Returns: TRUE or FALSE

Definition at line 5466 of file n_network.c.

References __n_assert.

Referenced by handle_request().

Here is the caller graph for this function:

◆ netw_guess_http_content_type()

const char * netw_guess_http_content_type ( const char * url )

guess HTTP content type from URL

Parameters

url	the url from which we want to guess the content type

Returns: a pointer to the detected content type. It will be 'unknown' if no detection worked

Definition at line 5586 of file n_network.c.

References __n_assert.

Referenced by handle_request().

Here is the caller graph for this function:

◆ netw_info_destroy()

int netw_info_destroy ( NETWORK_HTTP_INFO http_request )

destroy HTTP info structure

Parameters

http_request the parsed NETWORK_HTTP_INFO request

Returns: TRUE ;

Definition at line 5453 of file n_network.c.

References NETWORK_HTTP_INFO::body, FreeNoLog, and NETWORK_HTTP_INFO::type.

Referenced by handle_request().

Here is the caller graph for this function:

◆ netw_init_openssl()

int netw_init_openssl ( void )

init ssl helper

Initialize openssl

Returns: TRUE

Definition at line 1333 of file n_network.c.

References netw_init_locks(), and OPENSSL_IS_INITIALIZED.

Referenced by main(), n_proxy_connect_tunnel_ssl(), netw_set_crypto(), netw_set_crypto_pem(), netw_ssl_server_handshake(), and netw_ssl_start_client().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_init_wsa()

int netw_init_wsa	(	int	mode,
		int	v1,
		int	v2
	)

Used by Init & Close network.

Initialize winsock dll loading on windows if needed.

Parameters

mode	1 for opening 0 for close 2 for status
v1	First digit of version requested
v2	Second digit of version requested

Returns: TRUE on success FALSE on error

Definition at line 839 of file n_network.c.

References mode.

Referenced by netw_accept_from_ex(), netw_adopt_client_fd(), netw_bind_udp(), netw_connect_ex_to(), netw_connect_udp(), and netw_make_listening().

Here is the caller graph for this function:

◆ netw_make_listening()

int netw_make_listening	(	NETWORK **	netw,
		char *	addr,
		char *	port,
		int	nbpending,
		int	ip_version
	)

Listening network.

Parameters

netw	A NETWORK **network to make listening
addr	Address to bind, NULL for automatic address filling
port	For choosing a PORT to listen to
nbpending	Number of pending connection when listening
ip_version	NETWORK_IPALL for both ipv4 and ipv6 , NETWORK_IPV4 or NETWORK_IPV6

Returns: TRUE on success, FALSE on error

Definition at line 2885 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, addr, FreeNoLog, get_in_addr(), ip_version, LOG_ERR, Malloc, MAX_LIST_ITEMS, n_log, neterrno, netstrerror(), netw, netw_close(), netw_init_wsa(), netw_new(), NETW_RUN, NETW_SERVER, netw_set(), netw_setsockopt(), NETW_THR_ENGINE_STOPPED, NETWORK_IPV4, NETWORK_IPV6, and port.

Referenced by bind_free(), main(), main(), n_mock_server_start(), and run_server().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_new_pool()

NETWORK_POOL * netw_new_pool ( size_t nb_min_element )

init pools

Parameters

nb_min_element size of internal hash table for network pool

Returns: a new NETWORK_POOL or NULL

Definition at line 4983 of file n_network.c.

References __n_assert, Free, init_lock, Malloc, new_ht(), NETWORK_POOL::pool, and NETWORK_POOL::rwlock.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_parse_post_data()

HASH_TABLE * netw_parse_post_data ( const char * post_data )

parse POST data into hash table

Parameters

post_data the post data to parse

Returns: An allocated HASH_TABLE with post data as keys/values, or NULL

Definition at line 5540 of file n_network.c.

References __n_assert, ht_put_string(), key, netw_urldecode(), and new_ht().

Referenced by handle_request().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_pool_add()

int netw_pool_add	(	NETWORK_POOL *	netw_pool,
		NETWORK *	netw
	)

add network to pool

Parameters

netw_pool	targeted network pool
netw	network to add

Returns: TRUE or FALSE

Definition at line 5034 of file n_network.c.

References __n_assert, _netw_capture_error(), _nstr, free_nstr, ht_get_ptr(), ht_put_ptr(), key, NETWORK::link, list_push(), LOG_DEBUG, LOG_ERR, n_log, netw, netw_pool_netw_close(), nstrprintf, NETWORK_POOL::pool, NETWORK::pools, NETWORK_POOL::rwlock, N_SOCKET::sock, unlock, and write_lock.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_pool_broadcast()

int netw_pool_broadcast	(	NETWORK_POOL *	netw_pool,
		const NETWORK *	from,
		N_STR *	net_msg
	)

broadcast message to pool

Parameters

netw_pool	targeted network pool
from	source network
net_msg	mesage to broadcast

Returns: TRUE or FALSE

Definition at line 5117 of file n_network.c.

References __n_assert, hash_val, ht_foreach, NETWORK::link, netw, netw_add_msg(), nstrdup(), NETWORK_POOL::pool, read_lock, NETWORK_POOL::rwlock, N_SOCKET::sock, and unlock.

Referenced by on_send_click(), and poll_network_msgs().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_pool_nbclients()

size_t netw_pool_nbclients ( NETWORK_POOL * netw_pool )

get nb clients

Parameters

netw_pool targeted network pool

Returns: 0 or the number of networks in netw_pool

Definition at line 5141 of file n_network.c.

References __n_assert, HASH_TABLE::nb_keys, NETWORK_POOL::pool, read_lock, NETWORK_POOL::rwlock, and unlock.

Referenced by main().

Here is the caller graph for this function:

◆ netw_pool_netw_close()

void netw_pool_netw_close ( void * netw_ptr )

close pool

Parameters

netw_ptr NETWORK *network pointer

Definition at line 5021 of file n_network.c.

References __n_assert, NETWORK::link, LOG_DEBUG, n_log, netw, and N_SOCKET::sock.

Referenced by netw_pool_add().

Here is the caller graph for this function:

◆ netw_pool_remove()

int netw_pool_remove	(	NETWORK_POOL *	netw_pool,
		NETWORK *	netw
	)

remove network from pool

Parameters

netw_pool	targeted network pool
netw	network to remove

Returns: TRUE or FALSE

Definition at line 5080 of file n_network.c.

References __n_assert, _netw_capture_error(), _nstr, free_nstr, ht_remove(), key, NETWORK::link, list_search(), LOG_DEBUG, LOG_ERR, n_log, netw, nstrprintf, NETWORK_POOL::pool, NETWORK::pools, remove_list_node, NETWORK_POOL::rwlock, N_SOCKET::sock, unlock, and write_lock.

Referenced by main(), and netw_close().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_recv_func()

void * netw_recv_func ( void * NET )

Thread Receiving management function.

Parameters

NET	the NETWORK connection to use

Returns: NULL ;

Definition at line 3964 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, N_STR::data, DONE, NETWORK::eventbolt, free_nstr, free_nstr_ptr(), N_SOCKET::ip, N_STR::length, NETWORK::link, list_push(), LOG_DEBUG, LOG_ERR, Malloc, n_log, NETWORK::nb_running_threads, netw, netw_atomic_read_state, NETW_COMPRESSED_LZ4, NETW_COMPRESSED_ZLIB, NETW_ERROR, NETW_EXIT_ASKED, NETW_EXITED, netw_set(), NETW_SOCKET_DISCONNECTED, NETW_THR_EXIT_ERROR, NETW_THR_EXIT_OK, NETWORK::recv_buf, NETWORK::recv_data, NETWORK::recvbolt, N_SOCKET::sock, unzip4_nstr(), unzip_nstr(), and N_STR::written.

Referenced by netw_start_thr_engine().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_send_func()

void * netw_send_func ( void * NET )

Thread Sending management function.

Parameters

NET	the NETWORK connection to use, casted into (void*)

Returns: NULL

Definition at line 3781 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, NETWORK::compress_mode, N_STR::data, DONE, NETWORK::eventbolt, Free, free_nstr, N_SOCKET::ip, N_STR::length, NETWORK::link, list_shift, LOG_DEBUG, LOG_ERR, Malloc, n_log, NETWORK::nb_running_threads, netw, netw_atomic_read_state, NETW_COMPRESS_LZ4, NETW_COMPRESS_MIN_RATIO, NETW_COMPRESS_NONE, NETW_COMPRESS_THRESHOLD, NETW_COMPRESSED_LZ4, NETW_COMPRESSED_ZLIB, NETW_ERROR, NETW_EXIT_ASKED, NETW_EXITED, netw_set(), NETW_SOCKET_DISCONNECTED, NETW_THR_EXIT_ERROR, NETW_THR_EXIT_OK, NETWORK::send_blocker, NETWORK::send_buf, NETWORK::send_data, NETWORK::send_queue_consecutive_wait, NETWORK::sendbolt, N_SOCKET::sock, u_sleep(), N_STR::written, zip4_nstr(), and zip_nstr().

Referenced by netw_start_thr_engine().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_send_ident()

int netw_send_ident	(	NETWORK *	netw,
		int	type,
		int	id,
		N_STR *	name,
		N_STR *	passwd
	)

send ident message

Parameters

netw	The aimed NETWORK where we want to add something to send
type	type of identification ( NETW_IDENT_REQUEST , NETW_IDENT_NEW )
id	The ID of the sending client
name	Username
passwd	Password

Returns: TRUE or FALSE

Definition at line 5192 of file n_network.c.

References __n_assert, netmsg_make_ident(), netw, and netw_add_msg().

Here is the call graph for this function:

◆ netw_send_ping()

int netw_send_ping	(	NETWORK *	netw,
		int	type,
		int	id_from,
		int	id_to,
		int	time
	)

send ping message

Parameters

netw	The aimed NETWORK where we want to add something to send
id_from	Identifiant of the sender
id_to	Identifiant of the destination, -1 if the serveur itslef is targetted
time	The time it was when the ping was sended
type	NETW_PING_REQUEST or NETW_PING_REPLY

Returns: TRUE or FALSE

Definition at line 5173 of file n_network.c.

References __n_assert, netmsg_make_ping(), netw, and netw_add_msg().

Here is the call graph for this function:

◆ netw_send_position()

int netw_send_position	(	NETWORK *	netw,
		int	id,
		double	X,
		double	Y,
		double	vx,
		double	vy,
		double	acc_x,
		double	acc_y,
		int	time_stamp
	)

send position message

Parameters

netw	The aimed NETWORK where we want to add something to send
id	The ID of the sending client
X	X position inside a big grid
Y	Y position inside a big grid
vx	X speed
vy	Y speed
acc_x	Y acceleration
acc_y	X acceleration
time_stamp	Current Time when sending (for some delta we would want to compute )

Returns: TRUE or FALSE

Definition at line 5216 of file n_network.c.

References __n_assert, netmsg_make_position_msg(), netw, and netw_add_msg().

Here is the call graph for this function:

◆ netw_send_quit()

int netw_send_quit ( NETWORK * netw )

send quit message

Parameters

netw	The aimed NETWORK

Returns: TRUE or FALSE

Definition at line 5274 of file n_network.c.

References __n_assert, netmsg_make_quit_msg(), netw, and netw_add_msg().

Here is the call graph for this function:

◆ netw_send_string_to()

int netw_send_string_to	(	NETWORK *	netw,
		int	id_to,
		N_STR *	name,
		N_STR *	chan,
		N_STR *	txt,
		int	color
	)

send string to a specific target

Parameters

netw	The aimed NETWORK where we want to add something to send
id_to	The ID of the targetted client
name	Sender Name
chan	channel to use
txt	Sender text
color	Sender text color

Returns: TRUE or FALSE

Definition at line 5238 of file n_network.c.

References __n_assert, netmsg_make_string_msg(), netw, netw_add_msg(), and NETWORK::user_id.

Here is the call graph for this function:

◆ netw_send_string_to_all()

int netw_send_string_to_all	(	NETWORK *	netw,
		N_STR *	name,
		N_STR *	chan,
		N_STR *	txt,
		int	color
	)

send string to all targets

Parameters

netw	The aimed NETWORK where we want to add something to send
name	Name of user
chan	Target Channel, if any. Pass "ALL" to target the default channel
txt	The text to send
color	The color of the text

Returns: TRUE or FALSE;

Definition at line 5258 of file n_network.c.

References __n_assert, netmsg_make_string_msg(), netw, netw_add_msg(), and NETWORK::user_id.

Here is the call graph for this function:

◆ netw_set()

int netw_set	(	NETWORK *	netw,
		int	flag
	)

Set flags on network.

Parameters

netw	The NETWORK *connection to modify
flag	NETW_EMPTY_SENDBUF, NETW_EMPTY_RECVBUF, NETW_RUN , NETW_EXIT_ASKED , NETW_EXITED

Returns: TRUE or FALSE

Definition at line 2554 of file n_network.c.

References __n_assert, NETWORK::eventbolt, list_destroy(), list_empty(), NETWORK::mode, netw, netw_atomic_write_state, NETW_CLIENT, NETW_DESTROY_RECVBUF, NETW_DESTROY_SENDBUF, NETW_EMPTY_RECVBUF, NETW_EMPTY_SENDBUF, NETW_ERROR, NETW_EXIT_ASKED, NETW_EXITED, NETW_RUN, NETW_SERVER, NETW_THR_ENGINE_STARTED, NETW_THR_ENGINE_STOPPED, NETWORK::recv_buf, NETWORK::recvbolt, NETWORK::send_blocker, NETWORK::send_buf, NETWORK::sendbolt, and NETWORK::threaded_engine_status.

Referenced by netw_accept_from_ex(), netw_adopt_client_fd(), netw_bind_udp(), netw_close(), netw_connect_ex_to(), netw_connect_udp(), netw_make_listening(), netw_recv_func(), netw_send_func(), and netw_stop_thr_engine().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_set_blocking()

int netw_set_blocking	(	NETWORK *	netw,
		unsigned long int	is_blocking
	)

set blocking mode

Parameters

netw	The network to configure
is_blocking	0 NON BLOCk , 1 BLOCK

Returns: TRUE or FALSE

Definition at line 909 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, FreeNoLog, N_SOCKET::is_blocking, NETWORK::link, LOG_DEBUG, LOG_ERR, n_log, neterrno, netstrerror(), netw, netw_close(), and N_SOCKET::sock.

Referenced by _netw_timed_connect(), main(), and netw_accept_from_ex().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_set_compression_mode()

int netw_set_compression_mode	(	NETWORK *	netw,
		int	mode
	)

Pick send-side compression algorithm for this NETWORK: NETW_COMPRESS_NONE, _ZLIB, _LZ4.

Independent of the inbound decode path, which always honours whichever flag the sender set.

Pick send-side compression algorithm for this NETWORK: NETW_COMPRESS_NONE, _ZLIB, _LZ4.

Parameters

netw	The network to configure (must be non-NULL).
mode	One of NETW_COMPRESS_NONE / NETW_COMPRESS_ZLIB / NETW_COMPRESS_LZ4. Invalid values are rejected.

Returns: TRUE on success, FALSE on a NULL netw or unknown mode.

Affects outbound packets only. The recv path honours whichever NETW_COMPRESSED_* flag the sender set, so two peers running different modes still interoperate.

Definition at line 891 of file n_network.c.

References __n_assert, NETWORK::compress_mode, LOG_ERR, mode, n_log, netw, NETW_COMPRESS_LZ4, NETW_COMPRESS_NONE, and NETW_COMPRESS_ZLIB.

◆ netw_set_connect_abort_cb()

void netw_set_connect_abort_cb	(	int()(void ctx)	cb,
		void *	ctx
	)

register a process-wide callback polled during connect; non-zero aborts the in-progress connect (NULL removes)

When set, netw_connect_ex_to (and every _to / SSL connect variant built on it) wakes every NETW_CONNECT_ABORT_POLL_MS during the connect wait and calls cb; if it returns non-zero the connect is abandoned at once (the connect call returns FALSE) instead of blocking until connect_timeout_ms. This lets an application interrupt a connect to an unresponsive host (a dropped SYN) the way shutdown() already interrupts a blocking read on a connected socket. The callback must be quick and non-blocking. Pass cb = NULL to remove it. The pointer is a single process-global; set it once at startup before concurrent connects (it is read without a lock).

Parameters

cb	Callback returning non-zero to abort the in-progress connect, or NULL.
ctx	Opaque pointer handed back to `cb` on each poll.

Definition at line 2172 of file n_network.c.

References _netw_connect_abort_cb, and _netw_connect_abort_ctx.

Referenced by main().

Here is the caller graph for this function:

◆ netw_set_crypto()

int netw_set_crypto	(	NETWORK *	netw,
		char *	key,
		char *	certificate
	)

set SSL

Parameters

netw	the NETWORK instance to configure
key	path to the key file
certificate	path to the certificate file

Returns: TRUE of FALSE

Definition at line 1385 of file n_network.c.

References __n_assert, NETWORK::certificate, NETWORK::crypto_algo, NETWORK::ctx, FreeNoLog, key, NETWORK::key, NETWORK::link, LOG_ERR, NETWORK::method, n_log, netw, NETW_ENCRYPT_OPENSSL, netw_init_openssl(), netw_ssl_print_errors(), NETWORK::recv_data, NETWORK::recv_data_once, recv_ssl_data(), recv_ssl_data_once(), NETWORK::send_data, NETWORK::send_data_once, send_ssl_data(), send_ssl_data_once(), and N_SOCKET::sock.

Referenced by main(), netw_connect_ex_to(), and netw_set_crypto_chain().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_set_crypto_chain()

int netw_set_crypto_chain	(	NETWORK *	netw,
		char *	key,
		char *	certificate,
		char *	ca_file
	)

set SSL certificate chain from PEM file

Parameters

netw	the NETWORK to configure
key	path to the key file
certificate	path to the certificate file
ca_file	path to the CA certificate file for chain verification

Returns: TRUE or FALSE

Definition at line 1580 of file n_network.c.

References __n_assert, ca_file, NETWORK::ctx, key, NETWORK::link, LOG_ERR, n_log, netw, netw_set_crypto(), netw_ssl_print_errors(), and N_SOCKET::sock.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_set_crypto_chain_pem()

int netw_set_crypto_chain_pem	(	NETWORK *	netw,
		const char *	key_pem,
		const char *	cert_pem,
		const char *	ca_pem
	)

set SSL certificate chain from PEM strings in memory

Parameters

netw	the NETWORK to configure
key_pem	PEM-formatted private key string
cert_pem	PEM-formatted certificate string
ca_pem	PEM-formatted CA certificate string for verification

Returns: TRUE or FALSE

Definition at line 1615 of file n_network.c.

References __n_assert, NETWORK::ctx, LOG_ERR, n_log, netw, and netw_set_crypto_pem().

Here is the call graph for this function:

◆ netw_set_crypto_pem()

int netw_set_crypto_pem	(	NETWORK *	netw,
		const char *	key_pem,
		const char *	cert_pem
	)

set SSL from PEM strings in memory

Parameters

netw	the NETWORK to configure
key_pem	PEM-formatted private key string
cert_pem	PEM-formatted certificate string

Returns: TRUE or FALSE

Definition at line 1485 of file n_network.c.

References __n_assert, cert, NETWORK::crypto_algo, NETWORK::ctx, NETWORK::link, LOG_ERR, NETWORK::method, n_log, netw, NETW_ENCRYPT_OPENSSL, netw_init_openssl(), netw_ssl_print_errors(), NETWORK::recv_data, NETWORK::recv_data_once, recv_ssl_data(), recv_ssl_data_once(), NETWORK::send_data, NETWORK::send_data_once, send_ssl_data(), send_ssl_data_once(), and N_SOCKET::sock.

Referenced by netw_set_crypto_chain_pem().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_set_crypto_pem_ctx()

int netw_set_crypto_pem_ctx	(	NETWORK *	netw,
		const N_STR *	key_pem,
		const N_STR *	cert_pem
	)

install an in-memory cert/key on THIS connection's SSL only (per-connection, unlike the context-wide netw_set_crypto_pem)

Parameters

netw	the accepted NETWORK (must already hold an SSL handle)
key_pem	the private key PEM
cert_pem	the certificate PEM

Returns: TRUE or FALSE

Definition at line 1729 of file n_network.c.

References __n_assert, _ssl_use_pem(), N_STR::data, NETWORK::link, netw, netw_ssl_print_errors(), N_SOCKET::sock, and NETWORK::ssl.

Here is the call graph for this function:

◆ netw_set_user_id()

int netw_set_user_id	(	NETWORK *	netw,
		int	id
	)

set user id on a netw

Parameters

netw	targeted network
id	id we want to associated with

Returns: TRUE or FALSE

Definition at line 5158 of file n_network.c.

References __n_assert, netw, and NETWORK::user_id.

◆ netw_setsockopt()

int netw_setsockopt	(	NETWORK *	netw,
		int	optname,
		int	value
	)

Set common socket options (disable naggle, send/recv buf, reuse addr)

Parameters

netw	The socket to configure
optname	NETWORK_DEPLETE_SOCKET_TIMEOUT,NETWORK_DEPLETE_QUEUES_TIMEOUT,NETWORK_WAIT_CLOSE_TIMEOUT,NETWORK_CONSECUTIVE_SEND_WAIT ,SO_REUSEADDR,SO_REUSEPORT,SO_KEEPALIVE,TCP_NODELAY,SO_SNDBUF,SO_RCVBUF,SO_LINGER,SO_RCVTIMEO,SO_SNDTIMEO,TCP_USER_TIMEOUT. Please refer to man setsockopt for details
value	The value of the socket parameter

Warning: Beware of TCP_USER_TIMEOUT, it's causing hangs on some systems. It should not be used lightly and tested. It looks like it's messing up with TCP_KEEPALIVE

Returns: TRUE or FALSE

Definition at line 967 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, NETWORK::deplete_queues_timeout, NETWORK::deplete_socket_timeout, FreeNoLog, NETWORK::link, LOG_ERR, n_log, neterrno, netstrerror(), netw, NETWORK_CONSECUTIVE_SEND_WAIT, NETWORK_DEPLETE_QUEUES_TIMEOUT, NETWORK_DEPLETE_SOCKET_TIMEOUT, NETWORK_WAIT_CLOSE_TIMEOUT, NETWORK::send_queue_consecutive_wait, NETWORK::so_keepalive, NETWORK::so_linger, NETWORK::so_rcvbuf, NETWORK::so_rcvtimeo, NETWORK::so_reuseaddr, NETWORK::so_sndbuf, NETWORK::so_sndtimeo, N_SOCKET::sock, NETWORK::tcpnodelay, and NETWORK::wait_close_timeout.

Referenced by main(), netw_accept_from_ex(), netw_bind_udp(), and netw_make_listening().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_ssl_connect()

int netw_ssl_connect	(	NETWORK **	netw,
		char *	host,
		char *	port,
		int	ip_version,
		char *	ssl_key_file,
		char *	ssl_cert_file
	)

connect ssl helper

Parameters

netw	a NETWORK *object
host	Host or IP to connect to
port	Port to use to connect
ip_version	NETWORK_IPALL for both ipv4 and ipv6 , NETWORK_IPV4 or NETWORK_IPV6
ssl_key_file	NULL or the path to the SSL key file to use. If set, a ssl_cert_file must also be provided
ssl_cert_file	NULL or the path to the SSL certificate file to use. If set, a ssl_key_file must also be provided

Returns: TRUE or FALSE

Definition at line 2389 of file n_network.c.

References _str, ip_version, LOG_INFO, MAX_LIST_ITEMS, n_log, netw, netw_connect_ex(), and port.

Here is the call graph for this function:

◆ netw_ssl_connect_client()

int netw_ssl_connect_client	(	NETWORK **	netw,
		char *	host,
		char *	port,
		int	ip_version
	)

connect as SSL client without client certificate (TCP + SSL_CTX, no handshake yet)

Equivalent to netw_ssl_connect_client_to with no connect timeout (the OS decides when the TCP connect gives up). See netw_ssl_connect_client_to.

Parameters

netw	output: new NETWORK (must be NULL on entry)
host	hostname to connect to
port	port string
ip_version	NETWORK_IPALL, NETWORK_IPV4, or NETWORK_IPV6

Returns: TRUE or FALSE

Definition at line 2481 of file n_network.c.

References ip_version, netw, netw_ssl_connect_client_to(), and port.

Referenced by n_sse_connect(), and n_ws_connect().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_ssl_connect_client_to()

int netw_ssl_connect_client_to	(	NETWORK **	netw,
		char *	host,
		char *	port,
		int	ip_version,
		int	connect_timeout_ms
	)

like netw_ssl_connect_client but bounds the TCP connect by connect_timeout_ms (0 = OS default)

Performs TCP connect, creates an SSL_CTX with TLS_client_method and loads default system verify paths. Does NOT perform the SSL handshake. Call netw_ssl_set_ca / netw_ssl_set_verify to configure verification, then netw_ssl_do_handshake to complete the connection.

Parameters

netw	output: new NETWORK (must be NULL on entry)
host	hostname to connect to
port	port string
ip_version	NETWORK_IPALL, NETWORK_IPV4, or NETWORK_IPV6
connect_timeout_ms	connect timeout in milliseconds, 0 = OS default

Returns: TRUE or FALSE

Definition at line 2409 of file n_network.c.

References __n_assert, ip_version, MAX_LIST_ITEMS, netw, netw_close(), netw_connect_ex_to(), netw_ssl_start_client(), and port.

Referenced by main(), and netw_ssl_connect_client().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_ssl_do_handshake()

int netw_ssl_do_handshake	(	NETWORK *	netw,
		const char *	sni_hostname
	)

complete the SSL handshake on a NETWORK whose ctx was already created

The NETWORK must have a valid SSL_CTX (from netw_ssl_connect_client or netw_set_crypto). Optionally sets the SNI hostname for virtual hosting support.

Parameters

netw	connected NETWORK with ctx set
sni_hostname	hostname for SNI extension, or NULL to skip

Returns: TRUE or FALSE

Definition at line 2496 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, NETWORK::ctx, N_SOCKET::ip, NETWORK::link, LOG_DEBUG, LOG_ERR, n_log, netw, netw_ssl_print_errors(), N_SOCKET::port, N_SOCKET::sock, and NETWORK::ssl.

Referenced by main(), n_sse_connect(), and n_ws_connect().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_ssl_get_sni()

const char * netw_ssl_get_sni ( NETWORK * netw )

get the SNI server_name the peer requested in its ClientHello, or NULL

Parameters

netw	the accepted NETWORK

Returns: the requested host name, or NULL if none / not a TLS connection

Definition at line 1715 of file n_network.c.

References __n_assert, netw, and NETWORK::ssl.

◆ netw_ssl_get_verify_result()

int netw_ssl_get_verify_result	(	NETWORK *	netw,
		const char *	expected_host,
		char *	errbuf,
		size_t	errsz
	)

evaluate the peer certificate (chain trust + host match) against the system trust store, independently of the connection verify mode

Verifies the peer certificate chain against the system default trust store and checks that expected_host matches the certificate, independently of the verify mode the handshake ran with. This lets a connection complete with verification disabled (for example an intercepting proxy that must see the traffic regardless) while still reporting whether the real peer certificate would have been trusted.

Parameters

netw	a NETWORK with a completed client handshake (netw->ssl set)
expected_host	hostname to match against the certificate, or NULL to skip
errbuf	optional buffer that receives a short reason on failure
errsz	size of errbuf

Returns: TRUE when the chain is trusted and the host matches, FALSE otherwise

Definition at line 1921 of file n_network.c.

References __n_assert, cert, netw, and NETWORK::ssl.

Referenced by main().

Here is the caller graph for this function:

◆ netw_ssl_server_handshake()

int netw_ssl_server_handshake	(	NETWORK *	netw,
		netw_sni_pick_cb	pick,
		void *	user_data
	)

upgrade an already-accepted plaintext connection to a TLS server, selecting the cert per client SNI via pick() during the handshake (for proxy CONNECT)

Sets up a per-connection SSL server context with no default certificate plus an OpenSSL servername callback, then performs SSL_accept on the socket. The callback runs synchronously inside SSL_accept and asks pick() for a certificate matching the requested host, so the handshake completes with a host-specific leaf. Use this when the socket was accepted in the clear first (for example after a proxy CONNECT) and must then become a TLS server.

Parameters

netw	an already-accepted plaintext NETWORK
pick	callback that supplies a cert/key for a given SNI host
user_data	opaque pointer passed to pick

Returns: TRUE or FALSE

Definition at line 1790 of file n_network.c.

References __n_assert, _netw_sni_servername_cb(), NETWORK::crypto_algo, NETWORK::ctx, NETWORK::link, NETWORK::method, netw, NETW_ENCRYPT_OPENSSL, netw_init_openssl(), netw_ssl_print_errors(), NETW_SNI_ARG::pick, NETWORK::recv_data, NETWORK::recv_data_once, recv_ssl_data(), recv_ssl_data_once(), NETWORK::send_data, NETWORK::send_data_once, send_ssl_data(), send_ssl_data_once(), N_SOCKET::sock, NETWORK::ssl, and NETW_SNI_ARG::user_data.

Referenced by netw_accept_ssl_with_sni_cb().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_ssl_set_ca()

int netw_ssl_set_ca	(	NETWORK *	netw,
		const char *	ca_file,
		const char *	ca_path
	)

set custom CA verify path or file

Parameters

netw	the NETWORK to configure
ca_file	path to a CA certificate file, or NULL
ca_path	path to a directory of CA certificates, or NULL

Returns: TRUE or FALSE

Definition at line 1867 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, ca_file, NETWORK::ctx, NETWORK::link, LOG_ERR, n_log, netw, netw_ssl_print_errors(), and N_SOCKET::sock.

Here is the call graph for this function:

◆ netw_ssl_set_client_cert()

int netw_ssl_set_client_cert	(	NETWORK *	netw,
		const char *	cert_file,
		const char *	key_file
	)

load client certificate and private key for mTLS

Parameters

netw	the NETWORK to configure
cert_file	path to the client certificate file (PEM)
key_file	path to the client private key file (PEM), or NULL to use cert_file

Returns: TRUE or FALSE

Definition at line 1988 of file n_network.c.

References __n_assert, _netw_capture_error(), NETWORK::ctx, NETWORK::link, LOG_ERR, n_log, netw, netw_ssl_print_errors(), and N_SOCKET::sock.

Here is the call graph for this function:

◆ netw_ssl_set_verify()

int netw_ssl_set_verify	(	NETWORK *	netw,
		int	enable
	)

enable or disable peer certificate verification

Parameters

netw	the NETWORK to configure
enable	1 to enable verification, 0 to disable

Returns: TRUE or FALSE

Definition at line 1892 of file n_network.c.

References __n_assert, NETWORK::ctx, LOG_ERR, n_log, and netw.

Referenced by main(), and main().

Here is the caller graph for this function:

◆ netw_ssl_start_client()

int netw_ssl_start_client ( NETWORK * netw )

set up a client SSL_CTX on an already-connected NETWORK (no handshake yet)

Performs the SSL-context half of netw_ssl_connect_client_to on a NETWORK whose TCP connection is already established (for example one returned by netw_adopt_client_fd after an HTTP CONNECT proxy tunnel): it creates an SSL_CTX with TLS_client_method, loads the default system verify paths, and switches the NETWORK send/recv vtable to the SSL variants. It does NOT perform the handshake. Call netw_ssl_set_ca / netw_ssl_set_verify to configure verification, then netw_ssl_do_handshake to complete the connection. On failure the NETWORK is left untouched (the caller owns it and is responsible for netw_close).

Parameters

netw	connected NETWORK to promote to SSL. Must not be NULL.

Returns: TRUE or FALSE

Definition at line 2438 of file n_network.c.

References __n_assert, NETWORK::crypto_algo, NETWORK::ctx, NETWORK::link, NETWORK::method, netw, NETW_ENCRYPT_OPENSSL, netw_init_openssl(), netw_ssl_print_errors(), NETWORK::recv_data, NETWORK::recv_data_once, recv_ssl_data(), recv_ssl_data_once(), NETWORK::send_data, NETWORK::send_data_once, send_ssl_data(), send_ssl_data_once(), and N_SOCKET::sock.

Referenced by netw_ssl_connect_client_to().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_start_thr_engine()

int netw_start_thr_engine ( NETWORK * netw )

Create the sending and receiving thread of a NETWORK.

Create a sending & receiving thread.

Parameters

netw	The aimed NETWORK connection to start receiving data

Returns: TRUE on success FALSE on failure

Definition at line 3740 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, NETWORK::eventbolt, N_SOCKET::ip, NETWORK::link, LOG_ERR, n_log, NETWORK::nb_running_threads, netw, netw_recv_func(), netw_send_func(), NETW_THR_ENGINE_STARTED, NETWORK::recv_thr, NETWORK::send_thr, and NETWORK::threaded_engine_status.

Referenced by client_worker_echo(), handle_client(), main(), manage_client(), and run_client().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_stop_thr_engine()

int netw_stop_thr_engine ( NETWORK * netw )

Stop a NETWORK connection sending and receiving thread.

Parameters

netw	The aimed NETWORK conection to stop

Returns: TRUE on success FALSE on failure

Definition at line 4130 of file n_network.c.

References __n_assert, _netw_capture_error(), NETWORK::link, LOG_DEBUG, LOG_ERR, n_log, netw, NETW_EXIT_ASKED, NETW_EXITED, netw_get_state(), netw_set(), NETW_THR_ENGINE_STARTED, NETW_THR_ENGINE_STOPPED, NETWORK::recv_thr, NETWORK::send_blocker, NETWORK::send_thr, and N_SOCKET::sock.

Referenced by netw_close().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_udp_recvfrom()

ssize_t netw_udp_recvfrom	(	NETWORK *	netw,
		char *	buf,
		uint32_t	n,
		struct sockaddr *	src_addr,
		socklen_t *	src_len
	)

UDP recvfrom with source address capture.

Parameters

netw	NETWORK to use for receiving
buf	pointer to buffer
n	max number of bytes to receive
src_addr	pointer to store source address (can be NULL)
src_len	pointer to length of src_addr (can be NULL)

Returns: NETW_SOCKET_ERROR on error, bytes received on success

Definition at line 3327 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, FreeNoLog, NETWORK::link, LOG_ERR, n_log, neterrno, netstrerror(), netw, NETW_SOCKET_ERROR, and N_SOCKET::sock.

Referenced by main(), and run_server().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_udp_sendto()

ssize_t netw_udp_sendto	(	NETWORK *	netw,
		char *	buf,
		uint32_t	n,
		struct sockaddr *	dest_addr,
		socklen_t	dest_len
	)

UDP sendto with explicit destination.

Parameters

netw	NETWORK to use for sending
buf	pointer to buffer
n	number of bytes to send
dest_addr	destination sockaddr
dest_len	length of dest_addr

Returns: NETW_SOCKET_ERROR on error, bytes sent on success

Definition at line 3295 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, FreeNoLog, NETWORK::link, LOG_ERR, n_log, neterrno, netstrerror(), netw, NETW_SOCKET_ERROR, and N_SOCKET::sock.

Referenced by main(), and run_server().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_unload_openssl()

int netw_unload_openssl ( void )

unload ssl helper

Initialize openssl

Returns: TRUE

Definition at line 1366 of file n_network.c.

References netw_kill_locks(), and OPENSSL_IS_INITIALIZED.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_urldecode()

char * netw_urldecode ( const char * str )

URL-decode a string.

Parameters

str	input string to decode

Returns: url decoded string

Definition at line 5503 of file n_network.c.

References __n_assert, Free, LOG_ERR, and n_log.

Referenced by netw_parse_post_data().

Here is the caller graph for this function:

◆ netw_urlencode()

char * netw_urlencode	(	const char *	str,
		size_t	len
	)

URL-encode a string.

Parameters

str	input string
len	input string length

Returns: urlencoded char *string or NULL

Definition at line 5314 of file n_network.c.

References __n_assert, and netw_calculate_urlencoded_size().

Here is the call graph for this function:

◆ netw_wait_close()

int netw_wait_close ( NETWORK ** netw )

Closing for peer.

◆ netw_wait_close_timed()

int netw_wait_close_timed	(	NETWORK **	netw,
		size_t	timeout
	)

Closing for peer with timeout.

◆ netw_wait_msg()

N_STR * netw_wait_msg	(	NETWORK *	netw,
		unsigned int	refresh,
		size_t	timeout
	)

Wait a message from aimed NETWORK.

Recheck each 'refresh' usec until 'timeout' usec

Recheck each usec until a valid

Parameters

netw	The link on which we wait a message
refresh	The time in usec between each check until there is a message
timeout	in usecs , maximum amount of time to wait before return. 0 to disable.

Returns: NULL or a filled N_STR

Definition at line 3688 of file n_network.c.

References __n_assert, _netw_capture_error(), NETWORK::link, LOG_DEBUG, LOG_ERR, N_ENUM_ENTRY, n_log, netw, NETW_ERROR, NETW_EXITED, netw_get_msg(), netw_get_state(), NETW_RUN, N_SOCKET::sock, and u_sleep().

Referenced by client_worker_echo(), handle_client(), main(), and run_client().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ntohst()

size_t ntohst ( size_t value )

network to host size_t

Parameters

value the size_t value to convert to host order

Returns: host ordered value

Definition at line 160 of file n_network.c.

◆ recv_data()

ssize_t recv_data	(	void *	netw,
		char *	buf,
		uint32_t	n
	)

Reading from a socket.

Parameters

netw	connected NETWORK
buf	pointer to buffer
n	number of characters we want

Returns: NETW_SOCKET_ERROR on error, NETW_RECV_DISCONNECTED on disconnection, 'n' value on success

Definition at line 4231 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, endif, FreeNoLog, LOG_DEBUG, LOG_ERR, n_log, neterrno, netstrerror(), netw, NETW_CALL_RETRY, NETW_MAX_RETRIES, NETW_SOCKET_DISCONNECTED, and NETW_SOCKET_ERROR.

Referenced by netw_new().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ recv_data_once()

ssize_t recv_data_once	(	void *	netw,
		char *	buf,
		uint32_t	n
	)

Single-attempt read (see NETWORK.recv_data_once contract)

Parameters

netw	the NETWORK to use
buf	pointer to buffer
n	max number of bytes to read (> 0)

Returns: > 0 bytes read, NETW_IO_WANT_READ when no data is available, NETW_SOCKET_DISCONNECTED on orderly EOF / reset, or NETW_SOCKET_ERROR

Definition at line 4354 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, endif, FreeNoLog, LOG_DEBUG, LOG_ERR, n_log, neterrno, netstrerror(), netw, NETW_IO_WANT_READ, NETW_SOCKET_DISCONNECTED, and NETW_SOCKET_ERROR.

Referenced by netw_new().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ recv_php()

ssize_t recv_php	(	SOCKET	s,
		int *	_code,
		char **	buf
	)

receive from php

Parameters

s	connected socket
_code	pointer to store the code
buf	pointer to buffer

Returns: -1 on error, size on success

Definition at line 4859 of file n_network.c.

References _str, Free, FreeNoLog, HEAD_CODE, HEAD_SIZE, LOG_ERR, Malloc, n_log, neterrno, and netstrerror().

Here is the call graph for this function:

◆ recv_ssl_data()

ssize_t recv_ssl_data	(	void *	netw,
		char *	buf,
		uint32_t	n
	)

SSL Reading from a socket.

Parameters

netw	connected NETWORK
buf	pointer to buffer
n	number of characters we want

Returns: -1 on error, NETW_SOCKET_DISCONNECTED on disconnection n on success

Definition at line 4504 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, endif, FreeNoLog, LOG_DEBUG, LOG_ERR, n_log, neterrno, netstrerror(), netw, NETW_SOCKET_DISCONNECTED, NETW_SOCKET_ERROR, and u_sleep().

Referenced by main(), netw_accept_from_ex(), netw_set_crypto(), netw_set_crypto_pem(), netw_ssl_server_handshake(), netw_ssl_start_client(), and server_fn().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ recv_ssl_data_once()

ssize_t recv_ssl_data_once	(	void *	netw,
		char *	buf,
		uint32_t	n
	)

SSL single-attempt read (see recv_data_once contract)

The caller must loop until NETW_IO_WANT_READ, SSL_read drains its internal plaintext buffer before reporting WANT_READ, so loop-until-WANT_READ also covers the SSL_pending() case that otherwise stalls TLS over edge-triggered epoll.

Parameters

netw	the NETWORK to use (crypto must be active)
buf	pointer to buffer
n	max number of bytes to read (> 0)

Returns: > 0 bytes read, NETW_IO_WANT_READ / NETW_IO_WANT_WRITE, NETW_SOCKET_DISCONNECTED, or NETW_SOCKET_ERROR

Definition at line 4694 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, endif, FreeNoLog, LOG_DEBUG, LOG_ERR, n_log, neterrno, netstrerror(), netw, NETW_IO_WANT_READ, NETW_IO_WANT_WRITE, NETW_SOCKET_DISCONNECTED, and NETW_SOCKET_ERROR.

Referenced by netw_accept_from_ex(), netw_set_crypto(), netw_set_crypto_pem(), netw_ssl_server_handshake(), and netw_ssl_start_client().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ recv_udp_data()

ssize_t recv_udp_data	(	void *	netw,
		char *	buf,
		uint32_t	n
	)

UDP recv data from socket.

Parameters

netw	connected NETWORK
buf	pointer to buffer
n	max number of bytes to receive

Returns: NETW_SOCKET_ERROR on error, number of bytes received on success

Definition at line 3259 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, FreeNoLog, LOG_DEBUG, LOG_ERR, n_log, neterrno, netstrerror(), netw, and NETW_SOCKET_ERROR.

Referenced by main(), netw_bind_udp(), netw_connect_udp(), and run_client().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_data()

ssize_t send_data	(	void *	netw,
		char *	buf,
		uint32_t	n
	)

Writing to a socket.

Parameters

netw	connected NETWORK
buf	pointer to buffer
n	number of characters we want to send

Returns: NETW_SOCKET_ERROR on error, NETW_SOCKET_DISCONNECTED on disconnection, 'n' value on success

Definition at line 4170 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, endif, FreeNoLog, LOG_DEBUG, LOG_ERR, n_log, neterrno, netstrerror(), netw, NETW_CALL_RETRY, NETW_MAX_RETRIES, NETW_SOCKET_DISCONNECTED, and NETW_SOCKET_ERROR.

Referenced by netw_new().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_data_once()

ssize_t send_data_once	(	void *	netw,
		char *	buf,
		uint32_t	n
	)

Single-attempt write (see NETWORK.send_data_once contract)

One transport attempt, no loop-until-complete, no retry storm: partial writes are the caller's state machine to handle.

Parameters

netw	the NETWORK to use
buf	pointer to buffer
n	number of bytes to try to send (> 0)

Returns: > 0 bytes written, NETW_IO_WANT_WRITE when the socket is not writable, NETW_SOCKET_DISCONNECTED, or NETW_SOCKET_ERROR

Definition at line 4298 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, endif, FreeNoLog, LOG_DEBUG, LOG_ERR, n_log, neterrno, netstrerror(), netw, NETW_IO_WANT_WRITE, NETW_SOCKET_DISCONNECTED, and NETW_SOCKET_ERROR.

Referenced by netw_new().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_php()

ssize_t send_php	(	SOCKET	s,
		int	_code,
		char *	buf,
		int	n
	)

sending to php

Parameters

s	connected socket
buf	pointer to buffer
n	number of characters we want to send
_code	Code for php decoding rule

Returns: -1 on error, n on success

Definition at line 4777 of file n_network.c.

References _str, FreeNoLog, HEAD_CODE, HEAD_SIZE, LOG_ERR, n_log, neterrno, and netstrerror().

Here is the call graph for this function:

◆ send_ssl_data()

ssize_t send_ssl_data	(	void *	netw,
		char *	buf,
		uint32_t	n
	)

SSL Writing to a socket.

Parameters

netw	connected NETWORK in SSL mode
buf	pointer to buffer
n	number of characters we want to send

Returns: -1 on error, NETW_SOCKET_DISCONNECTED on disconnection, n on success

Definition at line 4409 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, endif, FreeNoLog, LOG_DEBUG, LOG_ERR, n_log, neterrno, netstrerror(), netw, NETW_SOCKET_DISCONNECTED, NETW_SOCKET_ERROR, and u_sleep().

Referenced by handle_request(), main(), netw_accept_from_ex(), netw_set_crypto(), netw_set_crypto_pem(), netw_ssl_server_handshake(), netw_ssl_start_client(), and server_fn().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_ssl_data_once()

ssize_t send_ssl_data_once	(	void *	netw,
		char *	buf,
		uint32_t	n
	)

SSL single-attempt write (see send_data_once contract)

One SSL_write attempt; WANT_READ/WANT_WRITE are surfaced to the caller's event loop instead of being spun on. Requires SSL_MODE_ENABLE_PARTIAL_WRITE (set at SSL_CTX creation) so a short write can be resumed from the caller's buffer + offset. Note: a TLS send can return NETW_IO_WANT_READ mid-renegotiation, the caller must retry after the next READABLE event.

Parameters

netw	the NETWORK to use (crypto must be active)
buf	pointer to buffer
n	number of bytes to try to send (> 0)

Returns: > 0 bytes written, NETW_IO_WANT_READ / NETW_IO_WANT_WRITE, NETW_SOCKET_DISCONNECTED, or NETW_SOCKET_ERROR

Definition at line 4620 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, endif, FreeNoLog, LOG_DEBUG, LOG_ERR, n_log, neterrno, netstrerror(), netw, NETW_IO_WANT_READ, NETW_IO_WANT_WRITE, NETW_SOCKET_DISCONNECTED, and NETW_SOCKET_ERROR.

Referenced by netw_accept_from_ex(), netw_set_crypto(), netw_set_crypto_pem(), netw_ssl_server_handshake(), and netw_ssl_start_client().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ send_udp_data()

ssize_t send_udp_data	(	void *	netw,
		char *	buf,
		uint32_t	n
	)

UDP send data to connected peer or specified addr.

Parameters

netw	connected NETWORK
buf	pointer to buffer
n	number of bytes to send

Returns: NETW_SOCKET_ERROR on error, n on success

Definition at line 3218 of file n_network.c.

References __n_assert, _netw_capture_error(), _str, endif, FreeNoLog, LOG_DEBUG, LOG_ERR, n_log, neterrno, netstrerror(), netw, NETW_SOCKET_DISCONNECTED, and NETW_SOCKET_ERROR.

Referenced by main(), netw_bind_udp(), netw_connect_udp(), and run_client().

Here is the call graph for this function:

Here is the caller graph for this function:

Data Structures

Macros

Typedefs

Enumerations

Functions

Detailed Description

Data Structure Documentation

◆ N_HTTP_MULTIPART_PART

◆ N_HTTP_REQUEST

◆ N_HTTP_RESPONSE

◆ N_MOCK_SERVER

Data Fields

Field Documentation

◆ listener

◆ on_request

◆ port

◆ stop_flag

◆ user_data

◆ N_PROXY_CFG

◆ N_SOCKET

◆ N_SSE_CONN

Data Fields

Field Documentation

◆ netw

◆ on_event

◆ stop_flag

◆ user_data

◆ N_SSE_EVENT

◆ N_URL

◆ N_URL_PARAM

◆ N_WS_CONN

◆ N_WS_FRAME

◆ N_WS_MESSAGE

◆ NETWORK

◆ NETWORK_HTTP_INFO

◆ NETWORK_POOL

Macro Definition Documentation

◆ _OPEN_SYS_SOCK_IPV6

◆ HEAD_CODE

◆ HEAD_SIZE

◆ N_ENUM_netw_code_type

◆ N_URL_MAX_PARAMS

◆ N_WS_OP_BINARY

◆ N_WS_OP_CLOSE

◆ N_WS_OP_PING

◆ N_WS_OP_PONG

◆ N_WS_OP_TEXT

◆ netw_atomic_read_reactor_handle

◆ netw_atomic_read_reactor_mode

◆ netw_atomic_read_state

◆ netw_atomic_write_reactor_handle

◆ netw_atomic_write_reactor_mode

◆ netw_atomic_write_state

◆ NETW_COMPRESS_MIN_RATIO

◆ NETW_COMPRESS_THRESHOLD

◆ NETW_COMPRESSED

◆ NETW_IO_WANT_READ

◆ NETW_IO_WANT_WRITE

◆ NETW_MAX_RETRIES

◆ NETW_RETRY_DELAY

◆ NETW_SOCKET_DISCONNECTED

◆ NETW_SOCKET_ERROR

◆ NETW_THR_EXIT_ERROR

◆ NETW_THR_EXIT_OK

◆ NETWORK_CONSECUTIVE_SEND_WAIT

◆ NETWORK_DEPLETE_QUEUES_TIMEOUT

◆ NETWORK_DEPLETE_SOCKET_TIMEOUT

◆ NETWORK_DISABLE_ZERO_LENGTH_RECV

◆ NETWORK_IPALL

◆ NETWORK_IPV4

◆ NETWORK_IPV6

◆ NETWORK_TCP

◆ NETWORK_UDP

◆ NETWORK_WAIT_CLOSE_TIMEOUT

◆ SOCKET_SIZE_FORMAT

Typedef Documentation

◆ netw_func

◆ netw_sni_pick_cb

◆ SOCKET

Enumeration Type Documentation
