ex_gui_network.c File Reference

#include <getopt.h>
#include <sys/time.h>
#include <sys/types.h>
#include "nilorea/n_common.h"
#include "nilorea/n_log.h"
#include "nilorea/n_str.h"
#include "nilorea/n_time.h"
#include "nilorea/n_network.h"
#include "nilorea/n_network_msg.h"
#include "nilorea/n_gui.h"

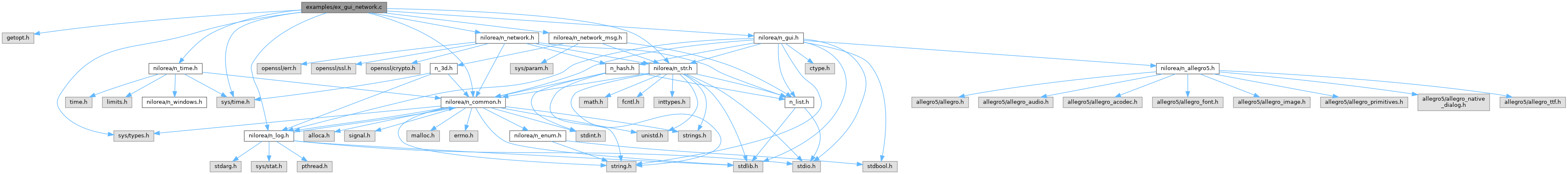

Include dependency graph for ex_gui_network.c:

Go to the source code of this file.

Macros
#define	ALLEGRO_UNSTABLE   1
#define	HEIGHT   600
#define	NETMSG_CHAT   100
#define	WIDTH   800

Functions
N_STR *	build_chat_msg (const char *text)
	build a chat network message
void	chat_log_add (const char *text)
	add a line to the chat log listbox
int	decode_chat_msg (N_STR *str, char **out_text)
	decode a received chat message
int	main (int argc, char **argv)
void	on_send_click (int widget_id, void *user_data)
	send button callback
void	poll_network_msgs (NETWORK *netw, const char *prefix)
	process incoming messages on a single network connection
void	refresh_clients_list (void)
	refresh the connected clients listbox (server only)
void	usage (void)

Variables
static int	btn_send = -1
ALLEGRO_DISPLAY *	display = NULL
static int	DONE = 0
static N_GUI_CTX *	gui = NULL
static int	lbl_clients_header = -1
static int	lbl_status = -1
static int	listbox_clients = -1
static int	listbox_log = -1
static int	mode = -1
static NETWORK *	netw_client = NULL
static NETWORK *	netw_server = NULL
static NETWORK_POOL *	pool = NULL
static char *	port_str = NULL
static char *	server_addr = NULL
static int	textarea_input = -1
static int	win_chat = -1
static int	win_clients = -1

Macro Definition Documentation

ALLEGRO_UNSTABLE

#define ALLEGRO_UNSTABLE   1

Definition at line 45 of file ex_gui_network.c.

HEIGHT

#define HEIGHT   600

Definition at line 43 of file ex_gui_network.c.

NETMSG_CHAT

#define NETMSG_CHAT   100

Examples

ex_gui_network.c.

Definition at line 60 of file ex_gui_network.c.

WIDTH

#define WIDTH   800

Definition at line 42 of file ex_gui_network.c.

Function Documentation

build_chat_msg()

N_STR * build_chat_msg

(

const char *

text

)

build a chat network message

Parameters

text	the chat text

Returns

serialized N_STR ready to send, or NULL on error

Examples

ex_gui_network.c.

Definition at line 130 of file ex_gui_network.c.

References add_int_to_msg(), add_strdup_to_msg(), create_msg(), delete_msg(), make_str_from_msg(), and NETMSG_CHAT.

Referenced by on_send_click(), and poll_network_msgs().

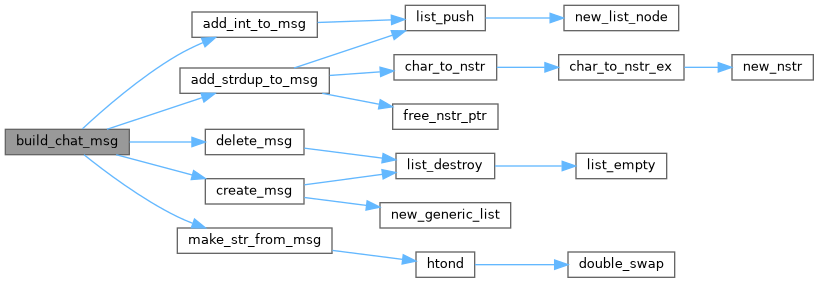

Here is the call graph for this function:

Here is the caller graph for this function:

chat_log_add()

void chat_log_add

(

const char *

text

)

add a line to the chat log listbox

Parameters

text	the text to add

Examples

ex_gui_network.c.

Definition at line 92 of file ex_gui_network.c.

References gui, listbox_log, and n_gui_listbox_add_item().

Referenced by main(), on_send_click(), and poll_network_msgs().

Here is the call graph for this function:

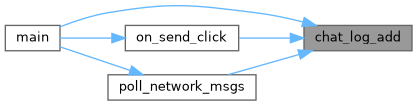

Here is the caller graph for this function:

decode_chat_msg()

int decode_chat_msg	(	N_STR *	str,
		char **	out_text
	)

decode a received chat message

Parameters

str	the serialized message
out_text	output: allocated chat text (caller must Free)

Returns

TRUE on success, FALSE on error

Examples

ex_gui_network.c.

Definition at line 149 of file ex_gui_network.c.

References delete_msg(), get_int_from_msg(), get_str_from_msg(), make_msg_from_str(), and NETMSG_CHAT.

Referenced by poll_network_msgs().

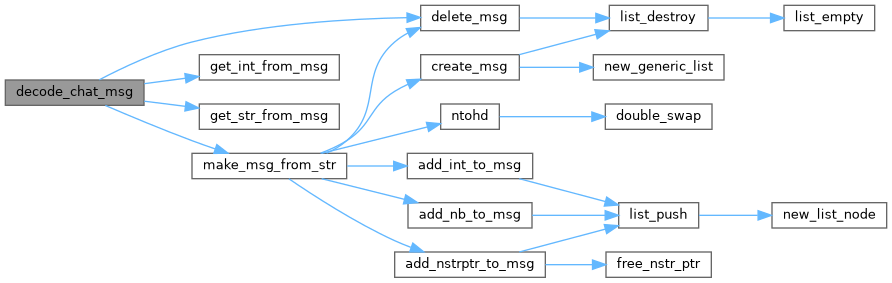

Here is the call graph for this function:

Here is the caller graph for this function:

main()

int main	(	int	argc,
		char **	argv
	)

Definition at line 258 of file ex_gui_network.c.

References btn_send, chat_log_add(), display, DONE, getoptret, gui, HEIGHT, HT_FOREACH, N_SOCKET::ip, lbl_clients_header, lbl_status, NETWORK::link, list_destroy(), list_foreach, listbox_clients, listbox_log, LOG_DEBUG, LOG_ERR, LOG_INFO, log_level, LOG_NOTICE, MAX_LIST_ITEMS, mode, n_gui_add_button(), n_gui_add_label(), n_gui_add_listbox(), n_gui_add_textarea(), n_gui_add_window(), N_GUI_ALIGN_LEFT, n_gui_button_set_keycode(), n_gui_draw(), n_gui_label_set_text(), n_gui_new_ctx(), n_gui_process_event(), N_GUI_SELECT_NONE, n_gui_set_display_size(), N_GUI_SHAPE_ROUNDED, N_GUI_WIN_FIXED_POSITION, N_GUI_WIN_RESIZABLE, n_gui_window_set_flags(), n_log, netw_accept_from_ex(), netw_client, netw_close(), netw_connect(), NETW_ERROR, NETW_EXITED, netw_get_state(), netw_make_listening(), netw_new_pool(), netw_pool_add(), netw_pool_nbclients(), netw_pool_remove(), netw_server, netw_set_blocking(), netw_start_thr_engine(), NETWORK_IPALL, new_generic_list(), on_send_click(), poll_network_msgs(), pool, NETWORK_POOL::pool, N_SOCKET::port, port_str, refresh_clients_list(), server_addr, set_log_level(), textarea_input, usage(), WIDTH, win_chat, and win_clients.

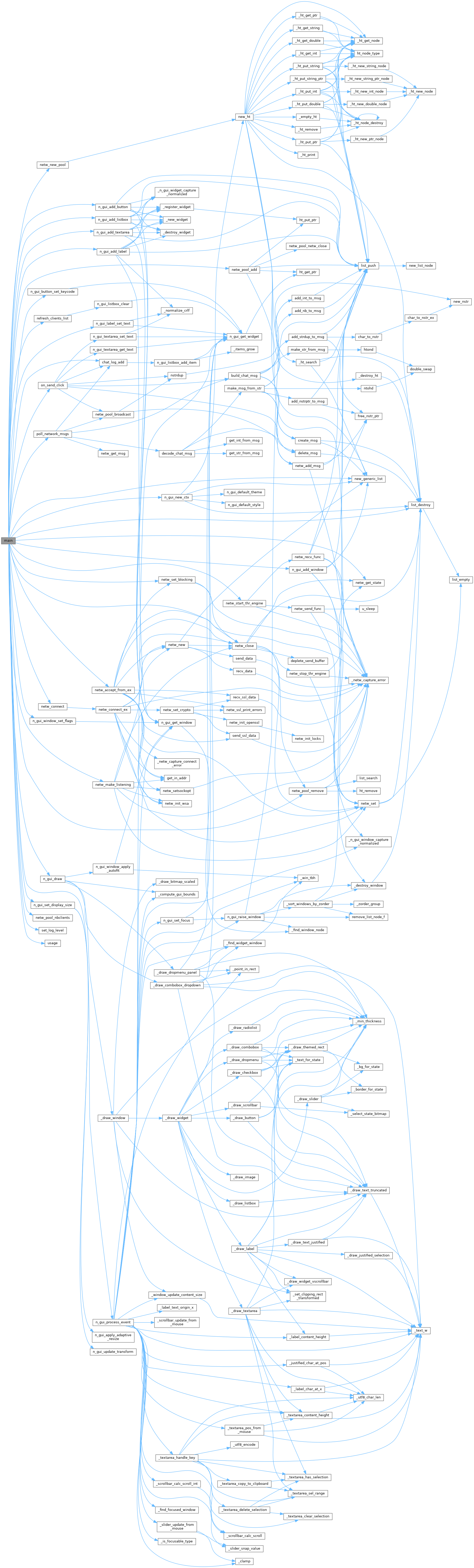

Here is the call graph for this function:

on_send_click()

void on_send_click	(	int	widget_id,
		void *	user_data
	)

send button callback

Parameters

widget_id	the button widget id
user_data	unused

Examples

ex_gui_network.c.

Definition at line 187 of file ex_gui_network.c.

References build_chat_msg(), chat_log_add(), free_nstr, gui, mode, n_gui_textarea_get_text(), n_gui_textarea_set_text(), netw_add_msg(), netw_client, netw_pool_broadcast(), nstrdup(), pool, and textarea_input.

Referenced by main().

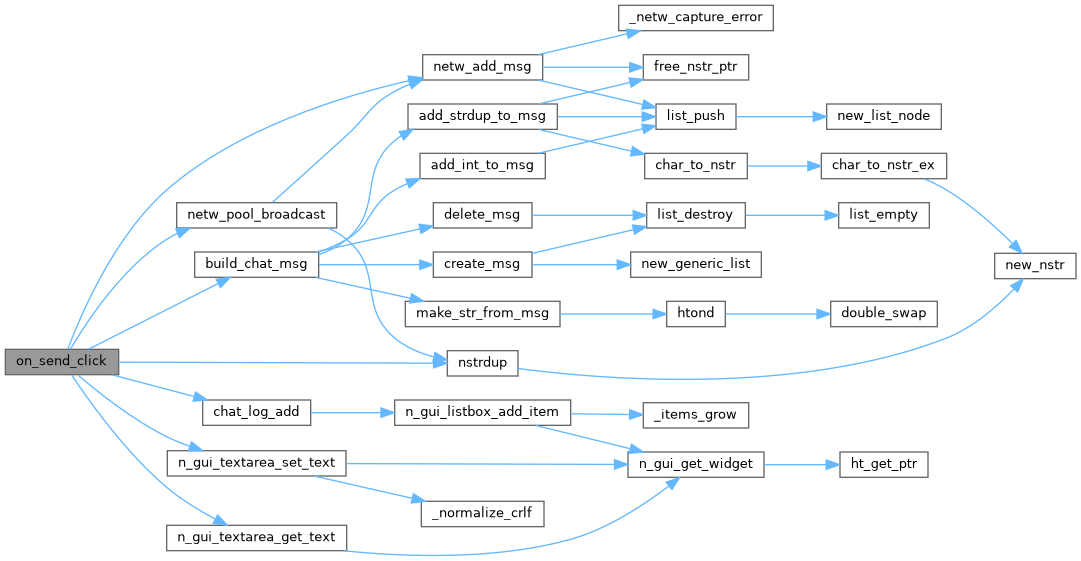

Here is the call graph for this function:

Here is the caller graph for this function:

poll_network_msgs()

void poll_network_msgs	(	NETWORK *	netw,
		const char *	prefix
	)

process incoming messages on a single network connection

Parameters

netw	the network to poll
prefix	label prefix for log display

Examples

ex_gui_network.c.

Definition at line 222 of file ex_gui_network.c.

References build_chat_msg(), chat_log_add(), decode_chat_msg(), Free, free_nstr, mode, netw, netw_get_msg(), netw_pool_broadcast(), and pool.

Referenced by main().

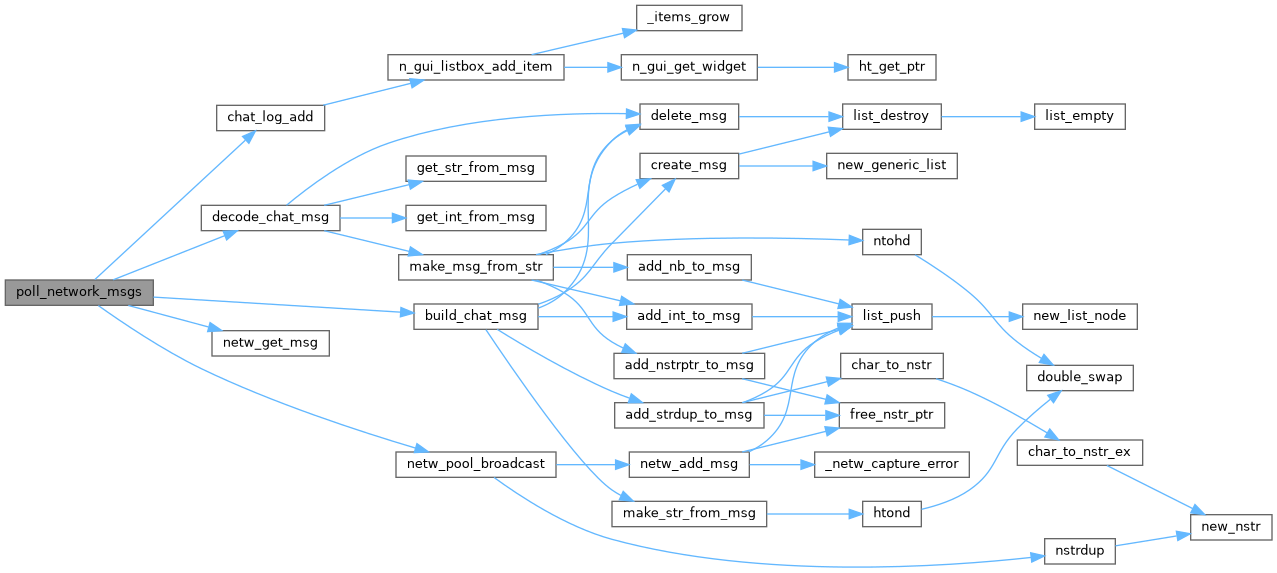

Here is the call graph for this function:

Here is the caller graph for this function:

refresh_clients_list()

void refresh_clients_list

(

void

)

refresh the connected clients listbox (server only)

Examples

ex_gui_network.c.

Definition at line 101 of file ex_gui_network.c.

References gui, HT_FOREACH, listbox_clients, n_gui_listbox_clear(), pool, and NETWORK_POOL::pool.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

usage()

void usage

(

void

)

Definition at line 246 of file ex_gui_network.c.

Variable Documentation

btn_send

int btn_send = -1

static

Examples

ex_gui_network.c.

Definition at line 79 of file ex_gui_network.c.

Referenced by main().

display

ALLEGRO_DISPLAY* display = NULL

Definition at line 62 of file ex_gui_network.c.

DONE

int DONE = 0

static

Definition at line 64 of file ex_gui_network.c.

gui

N_GUI_CTX* gui = NULL

static

Examples

ex_gui.c, ex_gui_dictionary.c, ex_gui_network.c, and ex_gui_particles.c.

Definition at line 86 of file ex_gui_network.c.

Referenced by chat_log_add(), main(), main(), on_clear_click(), on_completion_select(), on_ghost_toggle(), on_grid_toggle(), on_height_toggle(), on_player_toggle(), on_proj_select(), on_search_change(), on_send_click(), on_smooth_toggle(), on_window_toggle_click(), on_windows_menu_open(), refresh_clients_list(), update_completion(), and update_definitions().

lbl_clients_header

int lbl_clients_header = -1

static

Examples

ex_gui_network.c.

Definition at line 83 of file ex_gui_network.c.

Referenced by main().

lbl_status

int lbl_status = -1

static

Definition at line 76 of file ex_gui_network.c.

listbox_clients

int listbox_clients = -1

static

Examples

ex_gui_network.c.

Definition at line 84 of file ex_gui_network.c.

Referenced by main(), and refresh_clients_list().

listbox_log

int listbox_log = -1

static

Examples

ex_gui_network.c.

Definition at line 77 of file ex_gui_network.c.

Referenced by chat_log_add(), and main().

mode

int mode = -1

static

Examples

ex_accept_pool_server.c, ex_clock_sync.c, ex_gui_network.c, ex_network.c, and ex_trajectory.c.

Definition at line 65 of file ex_gui_network.c.

Referenced by __attribute__(), _draw_bitmap_scaled(), add_particle(), add_particle_at(), add_particle_ex(), add_threaded_process(), draw_2d_panel(), draw_map(), main(), main(), n_daemonize_ex(), n_gui_add_slider(), n_gui_add_vslider(), n_gui_set_resize_mode(), n_kafka_load_config(), netw_init_wsa(), on_send_click(), poll_network_msgs(), scan_dir_ex(), and userlist_add_msg_to_ex().

netw_client

NETWORK* netw_client = NULL

static

Examples

ex_gui_network.c.

Definition at line 71 of file ex_gui_network.c.

Referenced by main(), and on_send_click().

netw_server

NETWORK* netw_server = NULL

static

Examples

ex_gui_network.c, and ex_network.c.

Definition at line 70 of file ex_gui_network.c.

Referenced by main().

pool

NETWORK_POOL* pool = NULL

static

Examples

ex_accept_pool_client.c, and ex_gui_network.c.

Definition at line 72 of file ex_gui_network.c.

Referenced by destroy_threaded_pool(), main(), netw_accept_pool_create(), netw_accept_pool_destroy(), netw_accept_pool_get_stats(), netw_accept_pool_start(), netw_accept_pool_stop(), netw_accept_pool_thread_func(), netw_accept_pool_wait(), netw_close(), on_send_click(), poll_network_msgs(), and refresh_clients_list().

port_str

char* port_str = NULL

static

Examples

ex_gui_network.c, and ex_network_mock.c.

Definition at line 67 of file ex_gui_network.c.

Referenced by _proxy_tcp_connect(), main(), main(), and n_mock_server_start().

server_addr

char* server_addr = NULL

static

Examples

ex_gui_network.c.

Definition at line 66 of file ex_gui_network.c.

Referenced by main().

textarea_input

int textarea_input = -1

static

Examples

ex_gui_network.c.

Definition at line 78 of file ex_gui_network.c.

Referenced by main(), and on_send_click().

win_chat

int win_chat = -1

static

Examples

ex_gui_network.c.

Definition at line 75 of file ex_gui_network.c.

Referenced by main().

win_clients

int win_clients = -1

static

Examples

ex_gui_network.c.

Definition at line 82 of file ex_gui_network.c.

Referenced by main().
