Data Structures

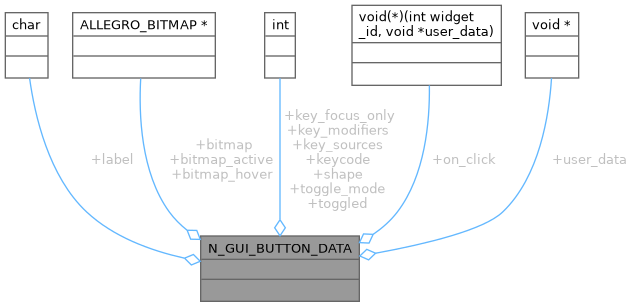

struct	N_GUI_BUTTON_DATA
	button specific data More...

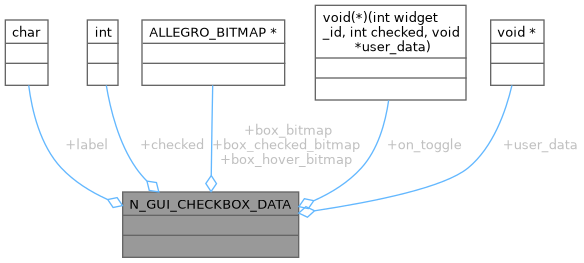

struct	N_GUI_CHECKBOX_DATA
	checkbox specific data More...

struct	N_GUI_COMBOBOX_DATA
	combo box specific data More...

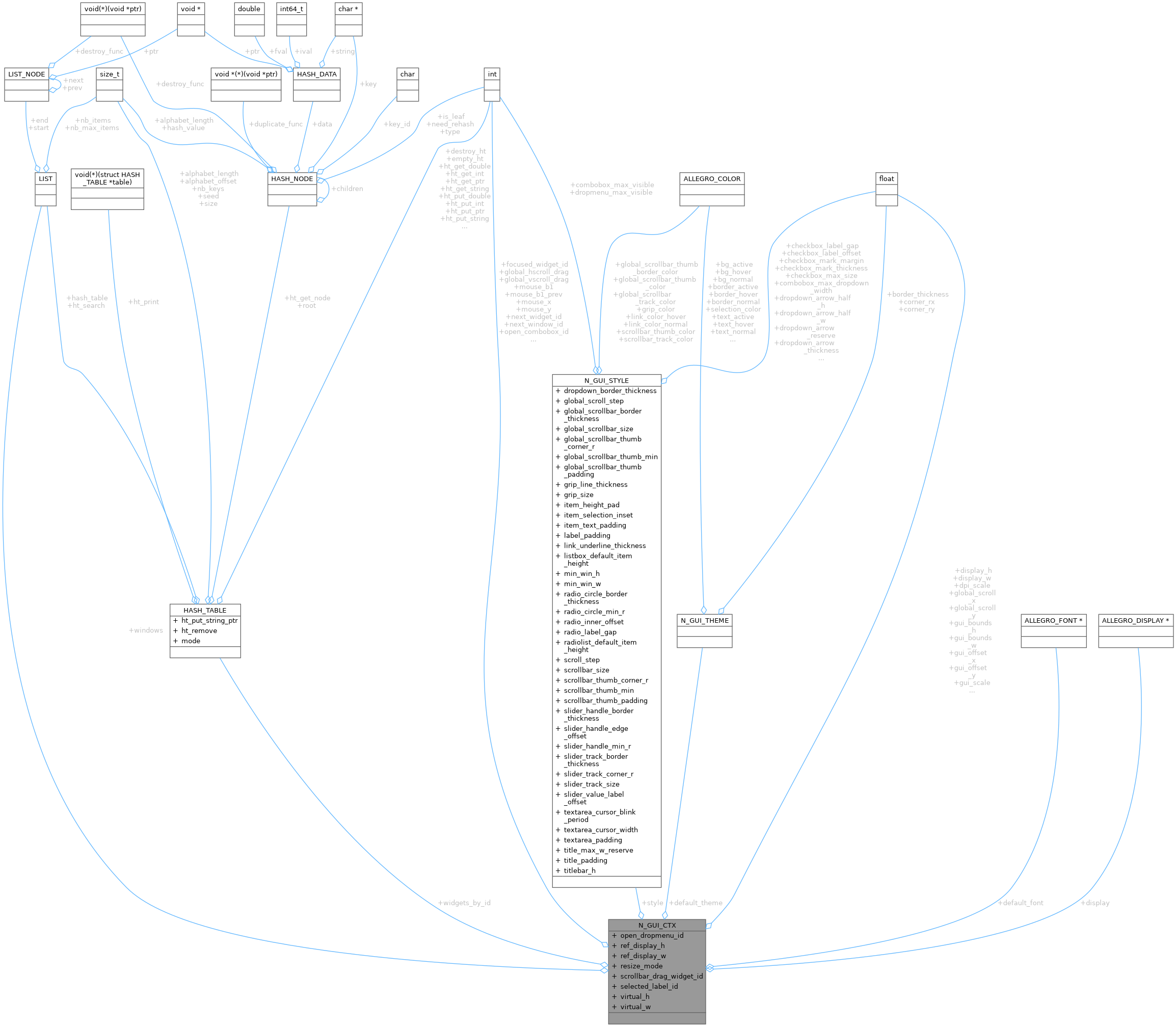

struct	N_GUI_CTX
	The top-level GUI context that holds all windows. More...

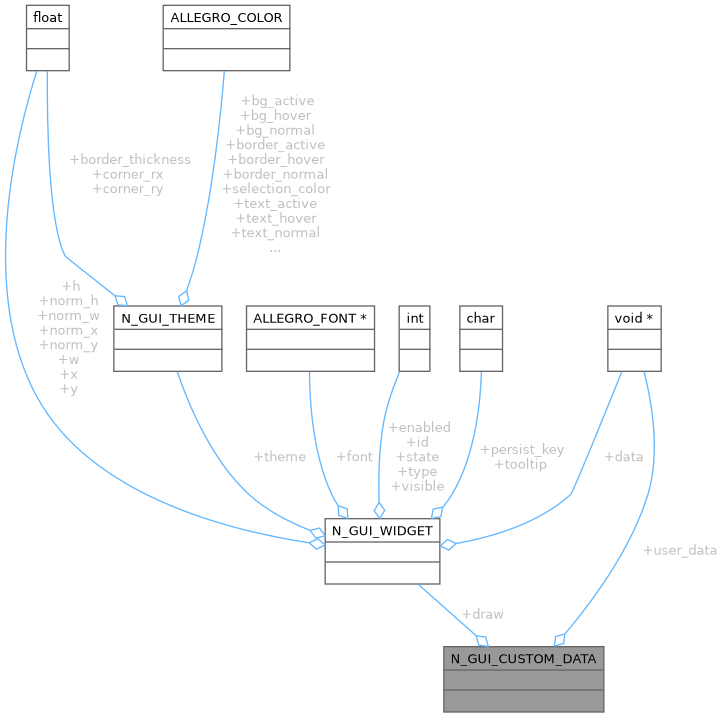

struct	N_GUI_CUSTOM_DATA
	Owner-draw custom widget data: a paint callback plus its user pointer. More...

struct	N_GUI_DATAGRID_COL
	one data grid column definition More...

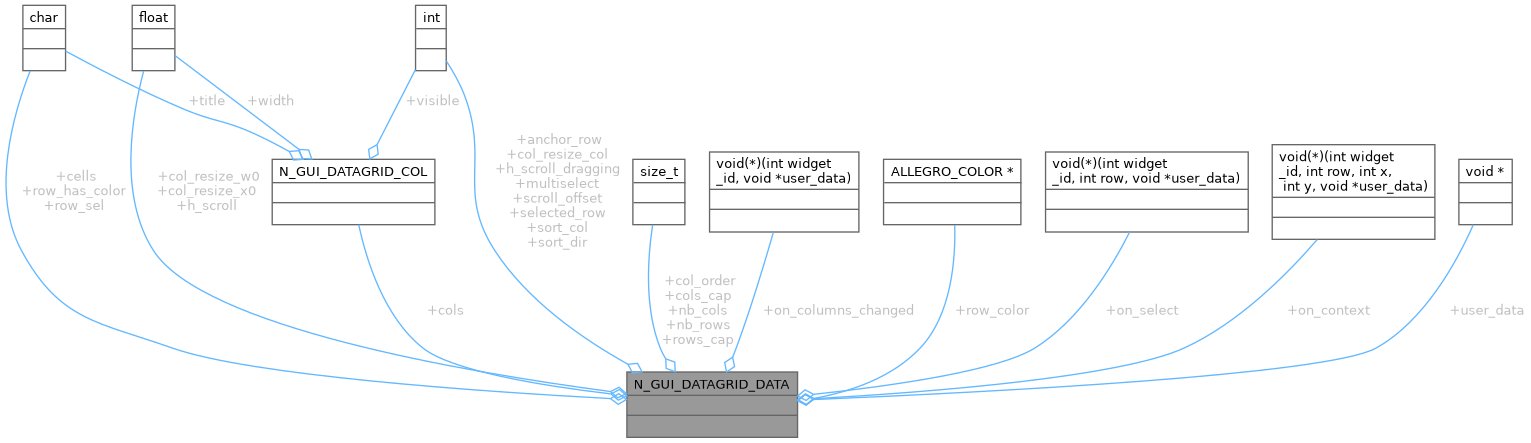

struct	N_GUI_DATAGRID_DATA
	data grid specific data: a sortable column table More...

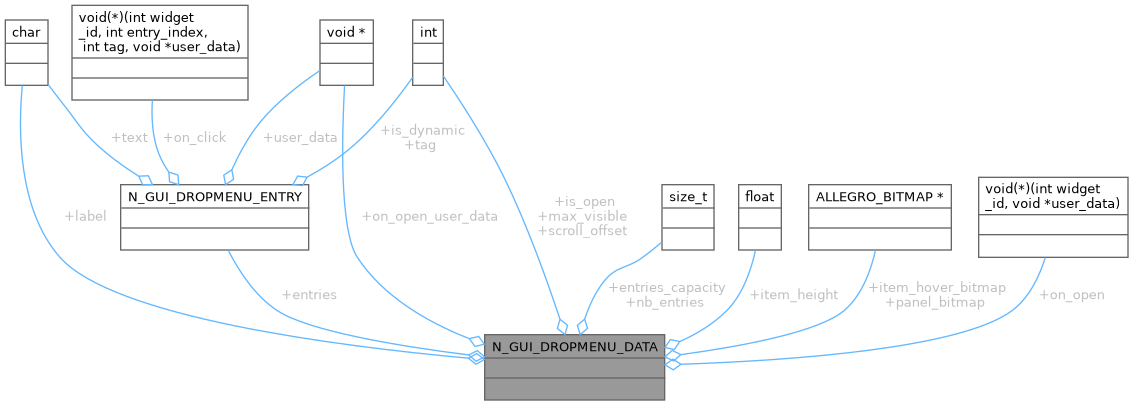

struct	N_GUI_DROPMENU_DATA
	dropdown menu specific data More...

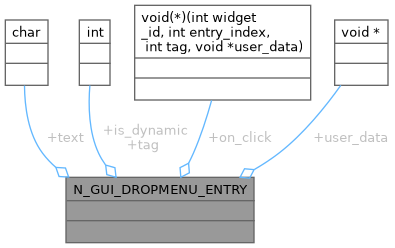

struct	N_GUI_DROPMENU_ENTRY
	A single entry in a dropdown menu (static or dynamic) More...

struct	N_GUI_HEXVIEW_DATA
	hex viewer specific data: a read-only byte dump More...

struct	N_GUI_IMAGE_DATA
	image widget specific data More...

struct	N_GUI_KV_ROW
	a single row in the KV table More...

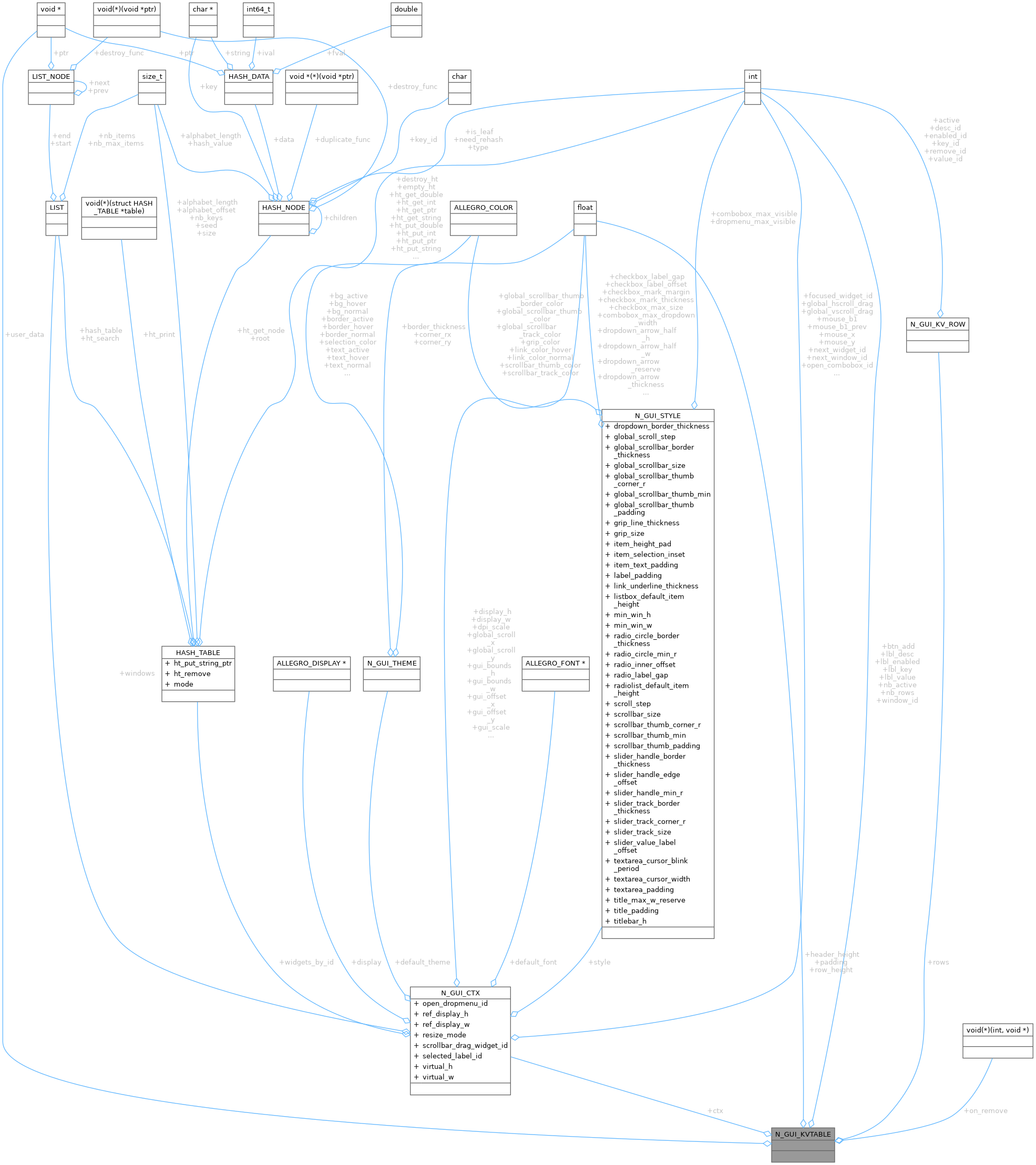

struct	N_GUI_KVTABLE
	key-value table built from textareas, checkboxes, and buttons More...

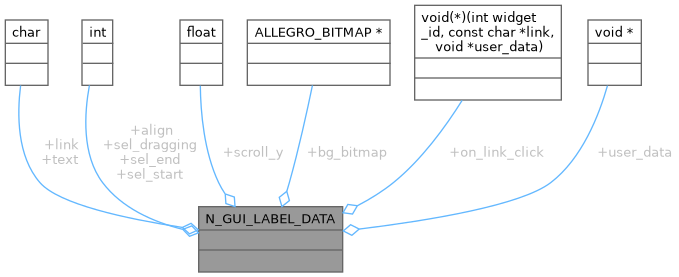

struct	N_GUI_LABEL_DATA
	static text label specific data More...

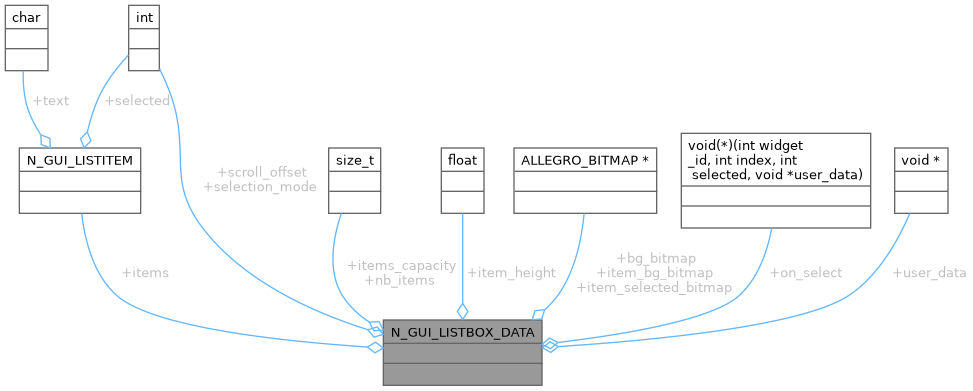

struct	N_GUI_LISTBOX_DATA
	listbox specific data More...

struct	N_GUI_LISTITEM
	a single item in a list/radio/combo widget More...

struct	N_GUI_PENDING_GEOM
	A saved window position retained for a window not yet created at load time (see N_GUI_CTX::pending_layout). More...

struct	N_GUI_PENDING_WIDGET
	Saved user-adjustable state for a keyed widget that did not exist when the layout was loaded (a lazily-created splitpane/datagrid). More...

struct	N_GUI_PROGRESSBAR_DATA
	Progress-bar widget data (display only). More...

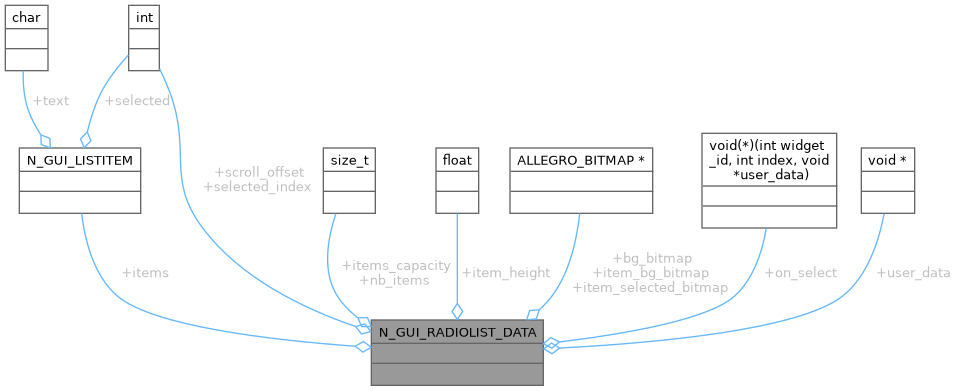

struct	N_GUI_RADIOLIST_DATA
	radio list specific data More...

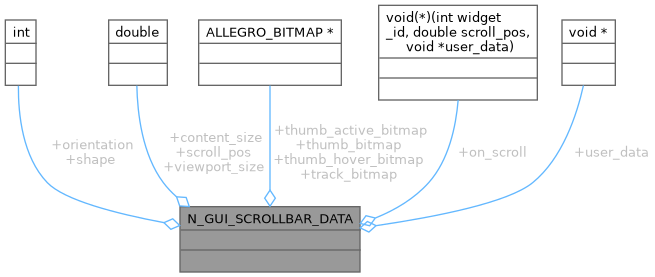

struct	N_GUI_SCROLLBAR_DATA
	scrollbar specific data More...

struct	N_GUI_SECTION
	a single foldable section: a clickable header plus the member widgets it shows/hides More...

struct	N_GUI_SECTIONLIST
	a vertical accordion of foldable sections inside one window; folding hides a section's widgets and re-stacks the rest, leaving the window's N_GUI_WIN_AUTO_SCROLLBAR to absorb any overflow More...

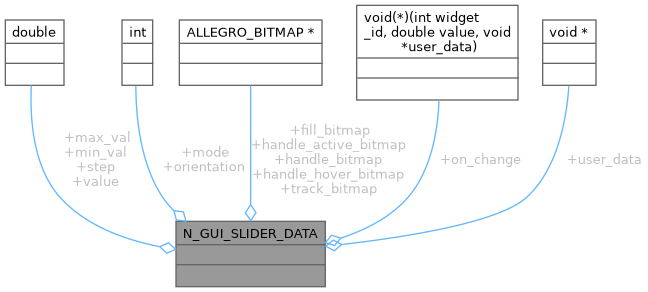

struct	N_GUI_SLIDER_DATA
	slider specific data More...

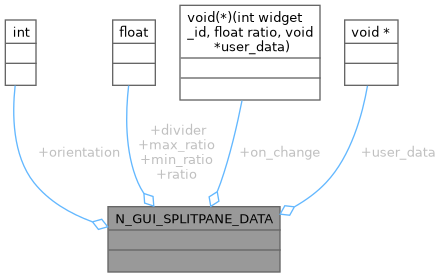

struct	N_GUI_SPLITPANE_DATA
	split pane specific data: a draggable divider between two regions More...

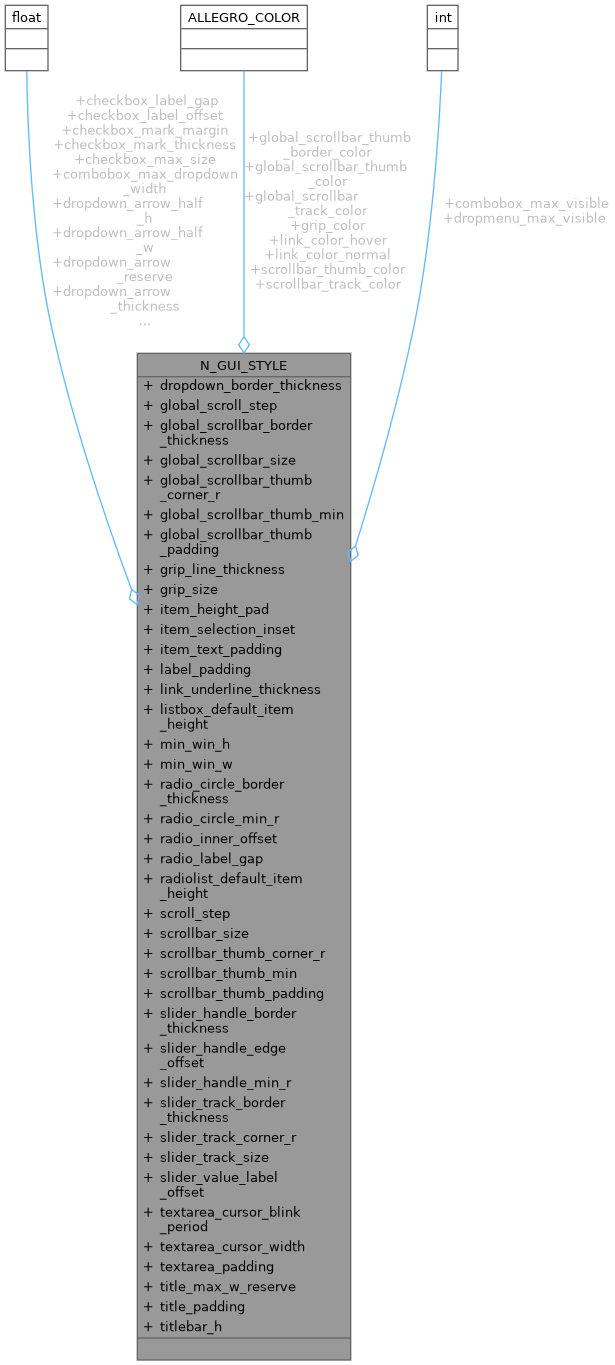

struct	N_GUI_STYLE
	Global style holding every configurable layout constant. More...

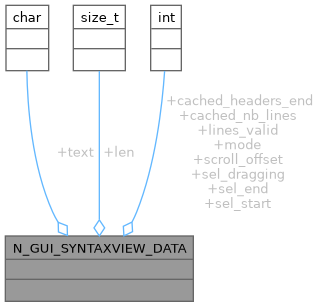

struct	N_GUI_SYNTAXVIEW_DATA
	syntax view specific data: read-only highlighted text More...

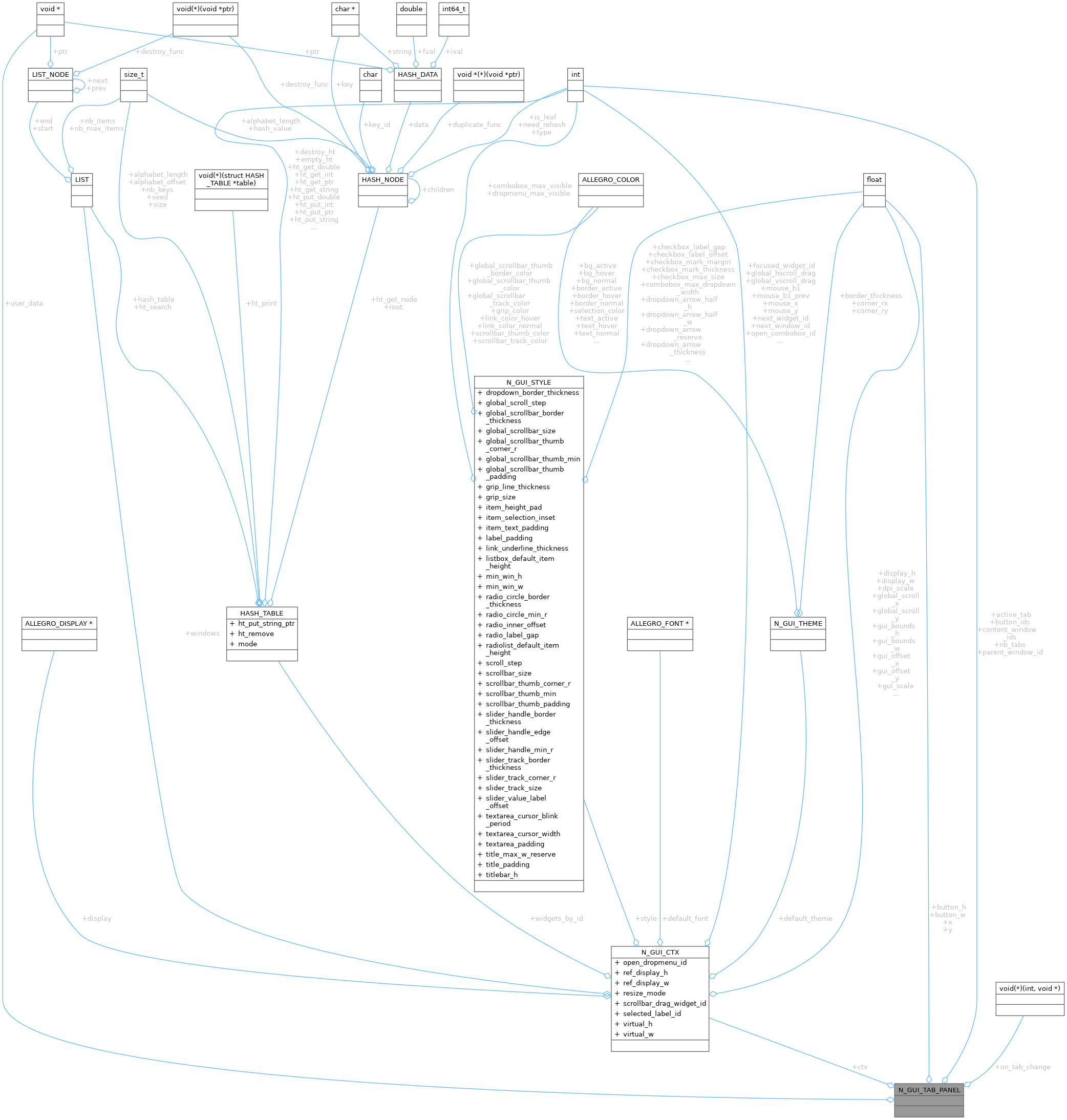

struct	N_GUI_TAB_PANEL
	tab panel built from toggle buttons with content window management More...

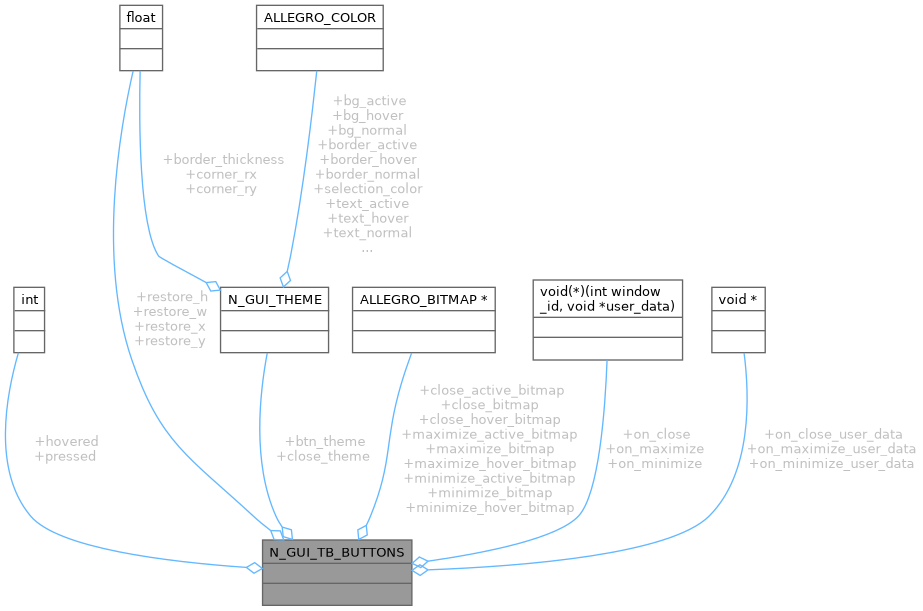

struct	N_GUI_TB_BUTTONS
	Titlebar button state for a window (minimize, maximize, close) More...

struct	N_GUI_TEXT_DIMS
	bounding box dimensions returned by n_gui_get_text_dims() More...

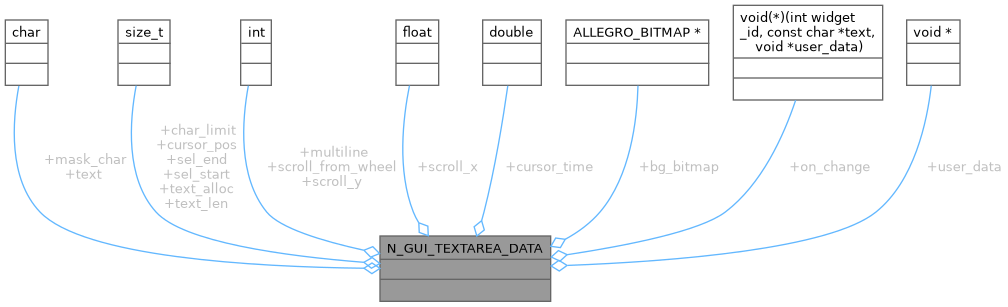

struct	N_GUI_TEXTAREA_DATA
	text area specific data More...

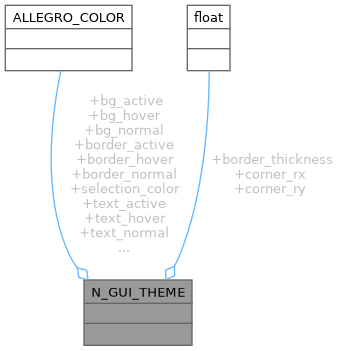

struct	N_GUI_THEME
	Color theme for a widget. More...

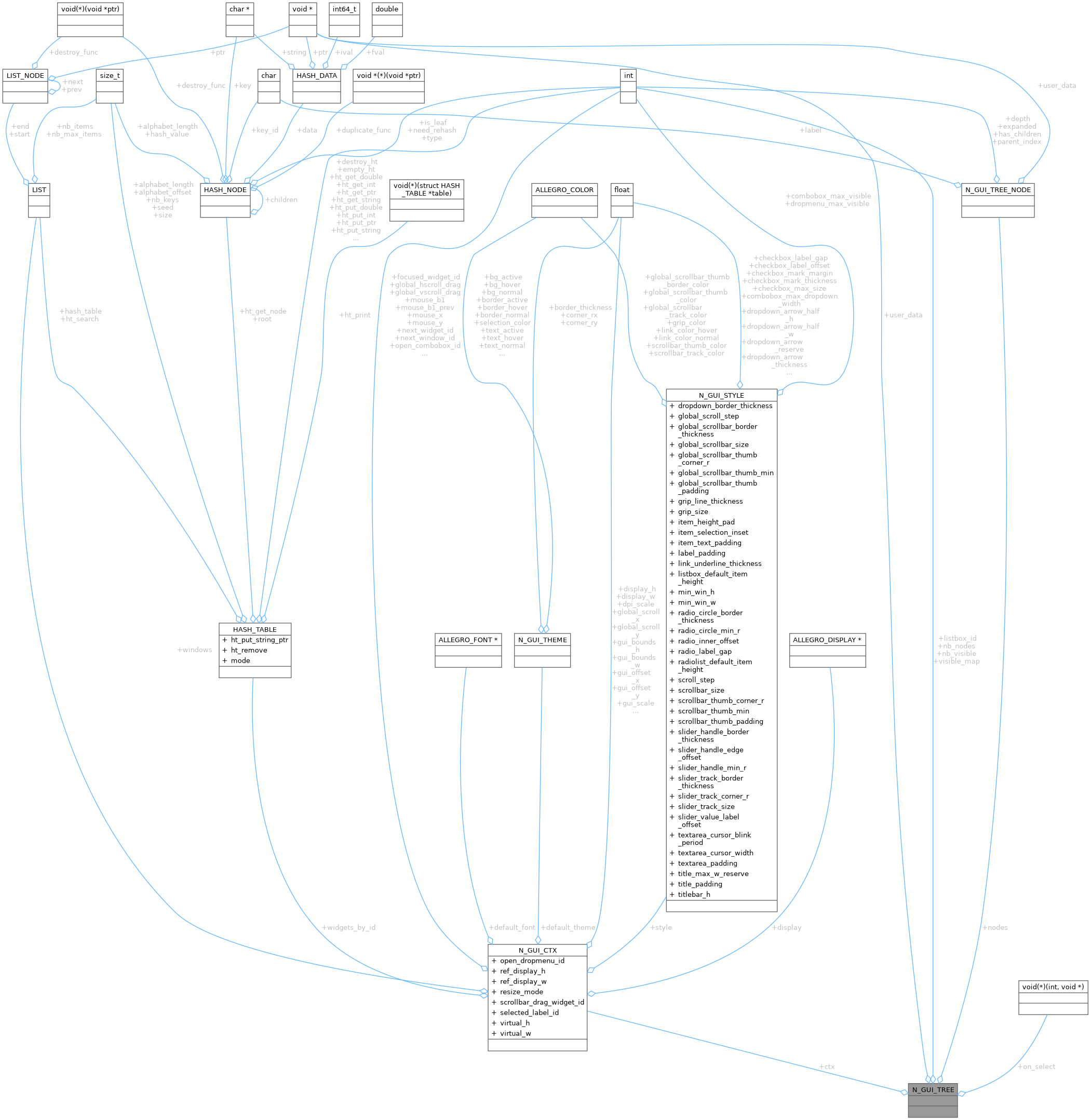

struct	N_GUI_TREE
	tree view built from an N_GUI listbox More...

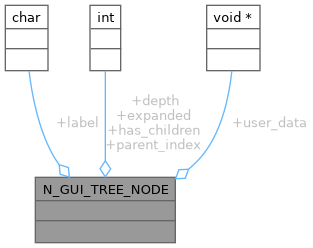

struct	N_GUI_TREE_NODE
	a single node in the tree view More...

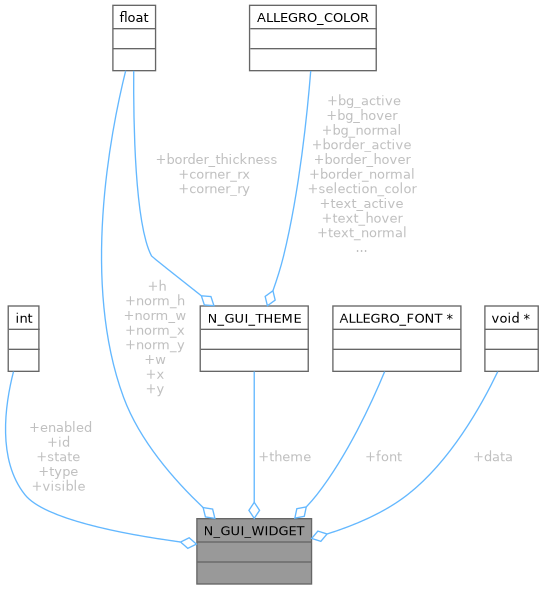

struct	N_GUI_WIDGET
	A single GUI widget. More...

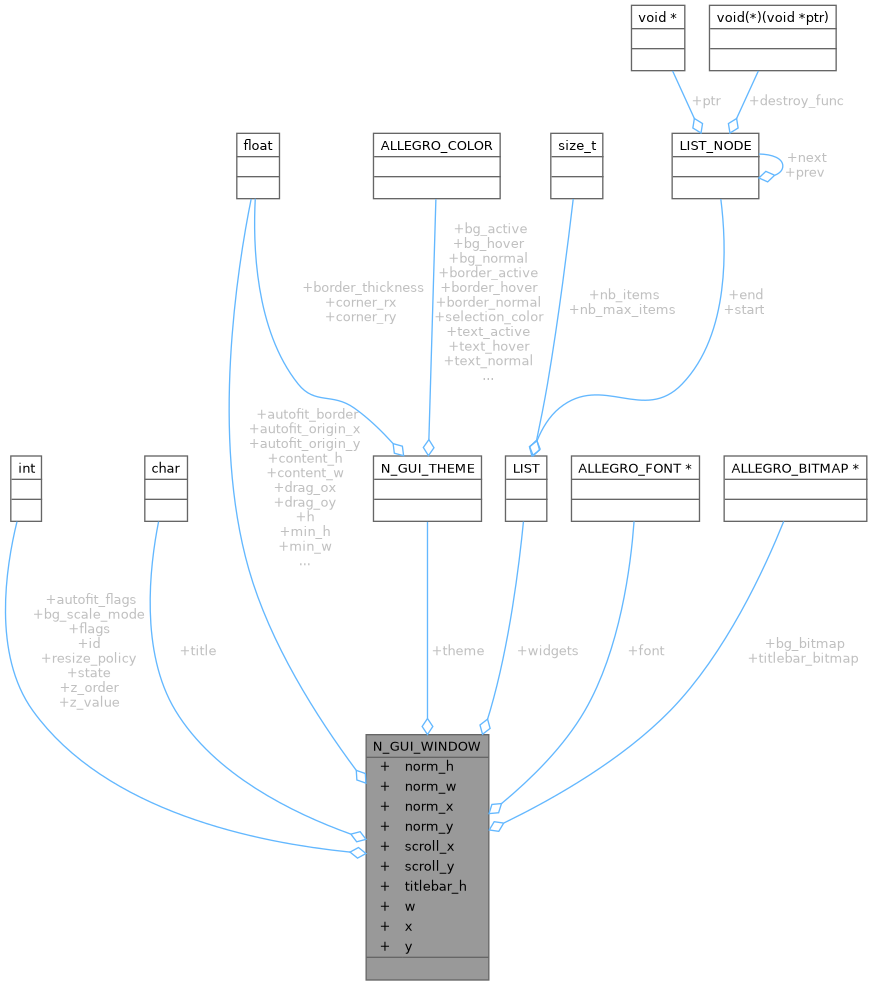

struct	N_GUI_WINDOW
	A pseudo window that contains widgets. More...

Macros
#define	N_GUI_ALIGN_CENTER 1
	center aligned text

#define	N_GUI_ALIGN_JUSTIFIED 3
	justified text (spread words to fill width)

#define	N_GUI_ALIGN_LEFT 0
	left aligned text

#define	N_GUI_ALIGN_RIGHT 2
	right aligned text

#define	N_GUI_AUTOFIT_CENTER 16
	center the window on its insertion point after auto-fit (overrides EXPAND_LEFT/EXPAND_UP for centering)

#define	N_GUI_AUTOFIT_EXPAND_LEFT 4
	expand leftward instead of rightward when adjusting width

#define	N_GUI_AUTOFIT_EXPAND_UP 8
	expand upward instead of downward when adjusting height

#define	N_GUI_AUTOFIT_H 2
	auto-adjust window height to content

#define	N_GUI_AUTOFIT_W 1
	auto-adjust window width to content

#define	N_GUI_AUTOFIT_WH 3
	auto-adjust both width and height (convenience: W\|H)

#define	N_GUI_COMBOBOX_AUTO_WIDTH 1
	dropdown panel expands to fit the longest item text

#define	N_GUI_COMBOBOX_EXPAND_UP 2
	dropdown panel opens upward (above the widget) instead of downward.

#define	N_GUI_DETACH_NONE 0
	no option

#define	N_GUI_DETACH_OWN_CHROME 4
	keep N_GUI's own window chrome instead of the window manager's: the native window is created frameless and the window keeps drawing its own title bar, so a detached window looks and skins exactly like the pop-up it came from.

#define	N_GUI_DETACH_RESIZABLE 1
	the native window can be resized by the user through the OS window manager

#define	N_GUI_DETACH_SCALE_CONTENT 2
	scale the window's widgets when the native window is resized by the user.

#define	N_GUI_DROP_AFTER 2

#define	N_GUI_DROP_BEFORE 0
	drop position relative to a tree row (drag-and-drop)

#define	N_GUI_DROP_INTO 1

#define	N_GUI_DROPMENU_EXPAND_UP 1
	dropdown panel opens upward (above the button) instead of downward.

#define	N_GUI_ID_MAX 128
	maximum length for widget id/name strings

#define	N_GUI_IMAGE_CENTER 2
	draw at original size, centered

#define	N_GUI_IMAGE_FIT 0
	scale to fit within bounds, keep aspect ratio

#define	N_GUI_IMAGE_STRETCH 1
	stretch to fill bounds

#define	N_GUI_KEY_MOD_MASK (ALLEGRO_KEYMOD_SHIFT \| ALLEGRO_KEYMOD_CTRL \| ALLEGRO_KEYMOD_ALT \| ALLEGRO_KEYMOD_ALTGR)
	mask of supported modifier flags for button keybind matching

#define	N_GUI_KEY_SOURCES_MAX 8
	maximum number of source widgets for a focused key binding

#define	N_GUI_KV_MAX 128
	maximum number of rows in a KV table

#define	N_GUI_PERSIST_MAX_COLS 64
	Maximum datagrid columns whose layout is persisted per widget.

#define	N_GUI_RESIZE_ADAPTIVE 1
	virtual size tracks display; windows adapt per their resize_policy

#define	N_GUI_RESIZE_VIRTUAL 0
	fixed virtual canvas with uniform scaling (default/existing behavior)

#define	N_GUI_SCROLLBAR_H 0
	horizontal scrollbar

#define	N_GUI_SCROLLBAR_V 1
	vertical scrollbar

#define	N_GUI_SECTION_WIDGETS_MAX 48
	maximum number of member widgets per section

#define	N_GUI_SECTIONLIST_MAX 16
	maximum number of foldable sections in a section list

#define	N_GUI_SELECT_MULTIPLE 2
	multiple item selection

#define	N_GUI_SELECT_NONE 0
	no selection allowed (display only)

#define	N_GUI_SELECT_SINGLE 1
	single item selection

#define	N_GUI_SHAPE_BITMAP 2
	bitmap-based rendering

#define	N_GUI_SHAPE_RECT 0
	rectangle shape (default)

#define	N_GUI_SHAPE_ROUNDED 1
	rounded rectangle shape

#define	N_GUI_SLIDER_H 0
	horizontal slider (default)

#define	N_GUI_SLIDER_PERCENT 1
	slider uses 0-100 percentage

#define	N_GUI_SLIDER_V 1
	vertical slider

#define	N_GUI_SLIDER_VALUE 0
	slider uses raw start/end values

#define	N_GUI_SPLIT_HORIZONTAL 1
	split pane: horizontal divider, regions are top and bottom

#define	N_GUI_SPLIT_VERTICAL 0
	split pane: vertical divider, regions are left and right

#define	N_GUI_STATE_ACTIVE 2
	widget is being pressed / dragged

#define	N_GUI_STATE_FOCUSED 4
	widget has keyboard focus

#define	N_GUI_STATE_HOVER 1
	mouse is hovering the widget

#define	N_GUI_STATE_IDLE 0
	widget is idle / normal state

#define	N_GUI_STATE_SCROLLBAR_DRAG 8
	widget scrollbar is being dragged

#define	N_GUI_SYNTAX_HTTP 1
	syntax view: HTTP message highlighting (request/status line and headers)

#define	N_GUI_SYNTAX_JS 5
	syntax view: JavaScript highlighting (keywords, strings, numbers, comments)

#define	N_GUI_SYNTAX_JSON 2
	syntax view: JSON highlighting (keys, strings, numbers, punctuation)

#define	N_GUI_SYNTAX_PLAIN 0
	syntax view: no highlighting

#define	N_GUI_SYNTAX_XML 3
	syntax view: XML/HTML highlighting (tags, attributes, quoted values, comments)

#define	N_GUI_SYNTAX_YAML 4
	syntax view: YAML highlighting (keys, quoted values, list markers, comments)

#define	N_GUI_TAB_MAX 16
	maximum number of tabs in a single tab panel

#define	N_GUI_TB_BTN_CLOSE 3
	close titlebar button

#define	N_GUI_TB_BTN_MAXIMIZE 2
	maximize/restore titlebar button

#define	N_GUI_TB_BTN_MINIMIZE 1
	minimize titlebar button

#define	N_GUI_TB_BTN_NONE 0
	no titlebar button

#define	N_GUI_TEXT_MAX 4096
	maximum length for textarea content

#define	N_GUI_TREE_MAX 2048
	maximum number of nodes in a tree view

#define	N_GUI_TYPE_BUTTON 1
	widget type: button

#define	N_GUI_TYPE_CHECKBOX 4
	widget type: checkbox

#define	N_GUI_TYPE_COMBOBOX 8
	widget type: combo box (dropdown)

#define	N_GUI_TYPE_CUSTOM 17
	widget type: owner-draw custom widget (rendering delegated to a callback)

#define	N_GUI_TYPE_DATAGRID 15
	widget type: sortable column data grid

#define	N_GUI_TYPE_DROPMENU 11
	widget type: dropdown menu with static and dynamic entries

#define	N_GUI_TYPE_HEXVIEW 13
	widget type: read-only hexadecimal byte viewer

#define	N_GUI_TYPE_IMAGE 9
	widget type: image display

#define	N_GUI_TYPE_LABEL 10
	widget type: static text label (with optional hyperlink)

#define	N_GUI_TYPE_LISTBOX 6
	widget type: listbox (selectable list)

#define	N_GUI_TYPE_PROGRESSBAR 16
	widget type: horizontal progress bar (display only)

#define	N_GUI_TYPE_RADIOLIST 7
	widget type: radio list (single select radio buttons)

#define	N_GUI_TYPE_SCROLLBAR 5
	widget type: scrollbar

#define	N_GUI_TYPE_SLIDER 2
	widget type: slider

#define	N_GUI_TYPE_SPLITPANE 12
	widget type: split pane with a draggable divider between two regions

#define	N_GUI_TYPE_SYNTAXVIEW 14
	widget type: read-only syntax-highlighted text view

#define	N_GUI_TYPE_TEXTAREA 3
	widget type: text area

#define	N_GUI_WIN_AUTO_SCROLLBAR 16
	enable automatic scrollbars when content exceeds window size

#define	N_GUI_WIN_BTN_ALL (N_GUI_WIN_BTN_MINIMIZE \| N_GUI_WIN_BTN_MAXIMIZE \| N_GUI_WIN_BTN_CLOSE)
	enable all three title bar buttons (minimize + maximize + close)

#define	N_GUI_WIN_BTN_CLOSE 1024
	enable close button on the title bar

#define	N_GUI_WIN_BTN_MAXIMIZE 512
	enable maximize/restore button on the title bar

#define	N_GUI_WIN_BTN_MINIMIZE 256
	enable minimize button on the title bar

#define	N_GUI_WIN_DRAGGING 4
	window is being dragged

#define	N_GUI_WIN_FIXED_POSITION 64
	disable window dragging (default:enable)

#define	N_GUI_WIN_FRAMELESS 128
	frameless window: no title bar drawn, drag via window body unless N_GUI_WIN_FIXED_POSITION is also set

#define	N_GUI_WIN_HSCROLL_DRAG 32
	window horizontal auto-scrollbar is being dragged

#define	N_GUI_WIN_MAXIMISED 64
	window is maximised (full display size)

#define	N_GUI_WIN_MINIMISED 2
	window is minimised (title bar only)

#define	N_GUI_WIN_NO_HSCROLL 2048
	with N_GUI_WIN_AUTO_SCROLLBAR, never show the horizontal scrollbar (vertical-only scrolling): content wider than the window is clipped instead of horizontally scrolled

#define	N_GUI_WIN_OPEN 1
	window is visible

#define	N_GUI_WIN_RESIZABLE 32
	enable user-resizable window with a drag handle at bottom-right

#define	N_GUI_WIN_RESIZE_MOVE 1
	reposition proportionally, keep pixel size

#define	N_GUI_WIN_RESIZE_NONE 0
	no adaptation: absolute position and size unchanged

#define	N_GUI_WIN_RESIZE_SCALE 2
	reposition AND resize proportionally, child widgets scale too

#define	N_GUI_WIN_RESIZING 8
	window is being resized

#define	N_GUI_WIN_VSCROLL_DRAG 16
	window vertical auto-scrollbar is being dragged

#define	N_GUI_ZORDER_ALWAYS_BEHIND 2
	always drawn behind normal windows, cannot be raised above them

#define	N_GUI_ZORDER_ALWAYS_ON_TOP 1
	always drawn on top of normal windows, cannot be lowered behind them

#define	N_GUI_ZORDER_FIXED 3
	fixed z-value: window is sorted within a dedicated group between ALWAYS_BEHIND and NORMAL windows.

#define	N_GUI_ZORDER_NORMAL 0
	default z-order: window participates in normal raise/lower ordering

#define	N_GUI_ZORDER_POPUP 4
	popup/modal dialogs: drawn above EVERYTHING including ALWAYS_ON_TOP windows.

Typedefs
typedef void(*	N_GUI_CUSTOM_DRAW) (N_GUI_WIDGET widget, float x, float y, ALLEGRO_FONT font, void *user_data)
	Owner-draw callback for a custom widget (N_GUI_TYPE_CUSTOM).

typedef int(*	n_gui_tree_on_drop_t) (int src_node, int dst_node, int position, void *user_data)
	drag-reorder drop callback.

Functions

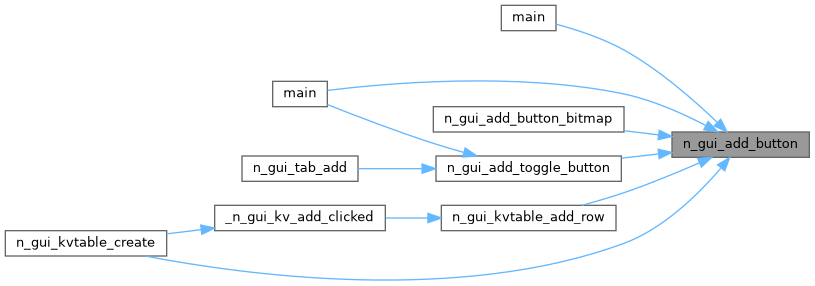

int	n_gui_add_button (N_GUI_CTX ctx, int window_id, const char label, float x, float y, float w, float h, int shape, void(on_click)(int, void ), void *user_data)
	add a button widget

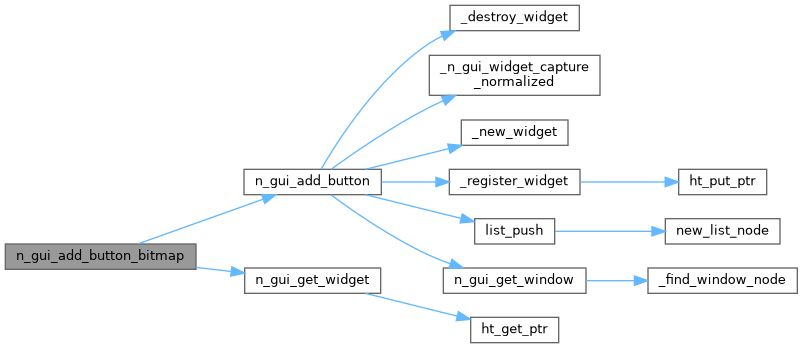

int	n_gui_add_button_bitmap (N_GUI_CTX ctx, int window_id, const char label, float x, float y, float w, float h, ALLEGRO_BITMAP normal, ALLEGRO_BITMAP hover, ALLEGRO_BITMAP active, void(on_click)(int, void ), void user_data)
	add a bitmap-based button widget

int	n_gui_add_checkbox (N_GUI_CTX ctx, int window_id, const char label, float x, float y, float w, float h, int initial_checked, void(on_toggle)(int, int, void ), void *user_data)
	add a checkbox widget

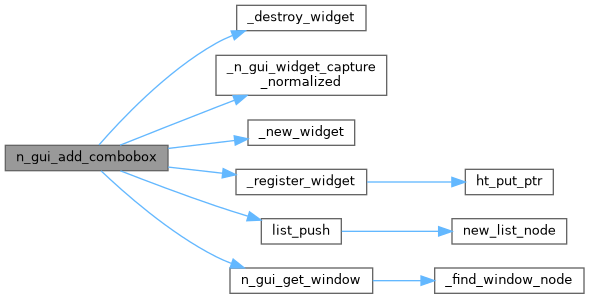

int	n_gui_add_combobox (N_GUI_CTX ctx, int window_id, float x, float y, float w, float h, void(on_select)(int, int, void ), void user_data)
	add a combo box widget

int	n_gui_add_custom (N_GUI_CTX ctx, int window_id, float x, float y, float w, float h, N_GUI_CUSTOM_DRAW draw, void user_data)
	Add an owner-draw custom widget to a window.

int	n_gui_add_datagrid (N_GUI_CTX ctx, int window_id, float x, float y, float w, float h, void(on_select)(int, int, void ), void user_data)
	add a sortable data grid; returns the widget id or -1

int	n_gui_add_dropmenu (N_GUI_CTX ctx, int window_id, const char label, float x, float y, float w, float h, void(on_open)(int, void ), void *on_open_user_data)
	add a dropdown menu widget (button that opens a menu panel with entries)

int	n_gui_add_hexview (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h)
	add a read-only hex viewer; returns the widget id or -1

int	n_gui_add_image (N_GUI_CTX ctx, int window_id, float x, float y, float w, float h, ALLEGRO_BITMAP bitmap, int scale_mode)
	add an image widget

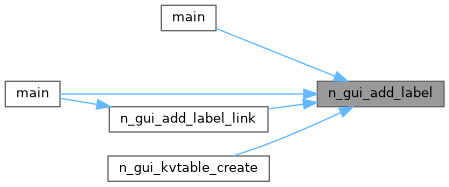

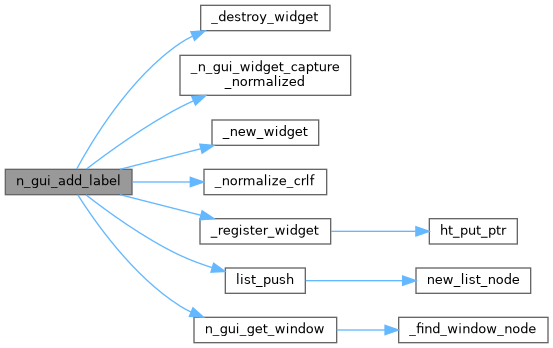

int	n_gui_add_label (N_GUI_CTX ctx, int window_id, const char text, float x, float y, float w, float h, int align)
	add a text label widget

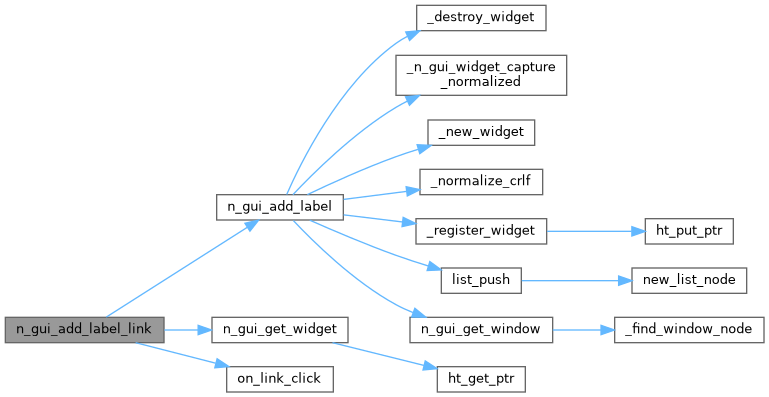

int	n_gui_add_label_link (N_GUI_CTX ctx, int window_id, const char text, const char link, float x, float y, float w, float h, int align, void(on_link_click)(int, const char , void ), void *user_data)
	add a text label with hyperlink

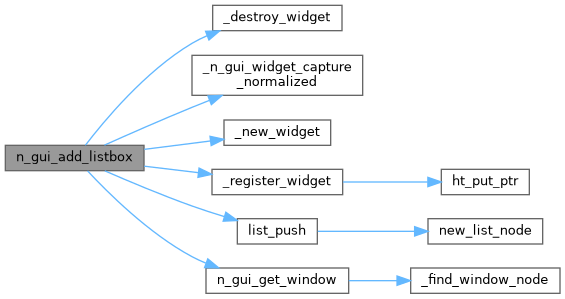

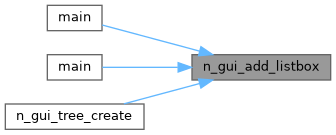

int	n_gui_add_listbox (N_GUI_CTX ctx, int window_id, float x, float y, float w, float h, int selection_mode, void(on_select)(int, int, int, void ), void user_data)
	add a listbox widget

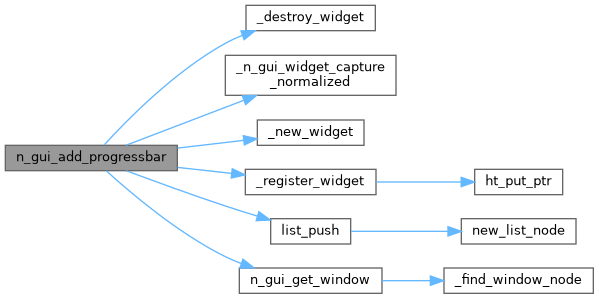

int	n_gui_add_progressbar (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h)
	add a horizontal progress bar (display only); returns the widget id or -1

int	n_gui_add_radiolist (N_GUI_CTX ctx, int window_id, float x, float y, float w, float h, void(on_select)(int, int, void ), void user_data)
	add a radio list widget

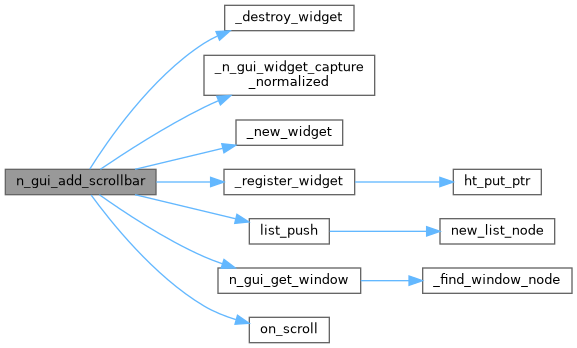

int	n_gui_add_scrollbar (N_GUI_CTX ctx, int window_id, float x, float y, float w, float h, int orientation, int shape, double content_size, double viewport_size, void(on_scroll)(int, double, void ), void user_data)
	add a scrollbar widget

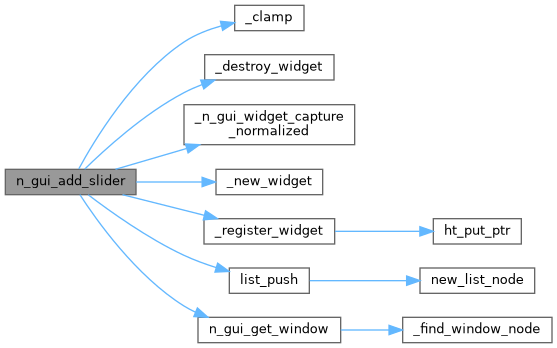

int	n_gui_add_slider (N_GUI_CTX ctx, int window_id, float x, float y, float w, float h, double min_val, double max_val, double initial, int mode, void(on_change)(int, double, void ), void user_data)
	add a horizontal slider widget

int	n_gui_add_splitpane (N_GUI_CTX ctx, int window_id, float x, float y, float w, float h, int orientation, float ratio, void(on_change)(int, float, void ), void user_data)
	add a split pane (draggable divider); returns the widget id or -1

int	n_gui_add_syntaxview (N_GUI_CTX *ctx, int window_id, float x, float y, float w, float h, int mode)
	add a read-only syntax-highlighted text view; returns the widget id or -1

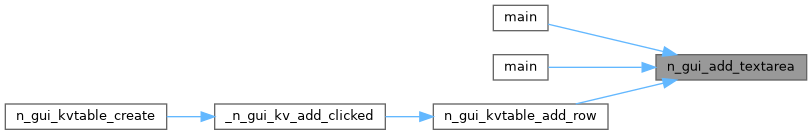

int	n_gui_add_textarea (N_GUI_CTX ctx, int window_id, float x, float y, float w, float h, int multiline, size_t char_limit, void(on_change)(int, const char , void ), void *user_data)
	add a text area widget

int	n_gui_add_toggle_button (N_GUI_CTX ctx, int window_id, const char label, float x, float y, float w, float h, int shape, int initial_state, void(on_click)(int, void ), void *user_data)
	toggle button creation (returns widget id)

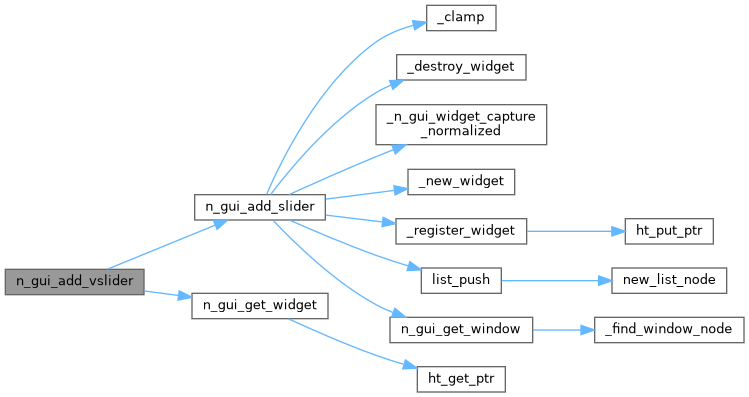

int	n_gui_add_vslider (N_GUI_CTX ctx, int window_id, float x, float y, float w, float h, double min_val, double max_val, double initial, int mode, void(on_change)(int, double, void ), void user_data)
	add a vertical slider (same as n_gui_add_slider but oriented vertically)

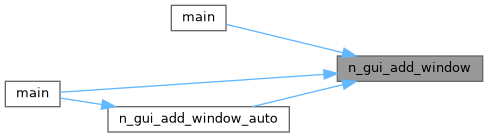

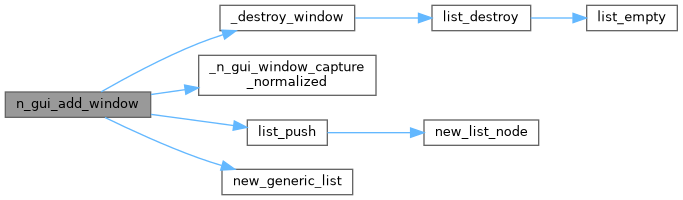

int	n_gui_add_window (N_GUI_CTX ctx, const char title, float x, float y, float w, float h)
	add a window to the GUI context

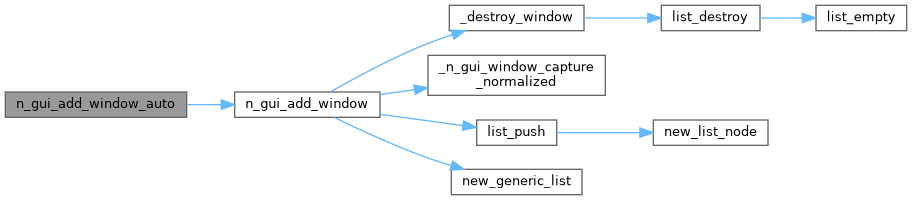

int	n_gui_add_window_auto (N_GUI_CTX ctx, const char title, float x, float y)
	add a window that sizes itself automatically to fit its widgets (call n_gui_window_autosize after adding all widgets)

void	n_gui_apply_adaptive_resize (N_GUI_CTX *ctx, float new_w, float new_h)
	apply adaptive resize: reposition/resize all windows according to their policies for the new display dimensions.

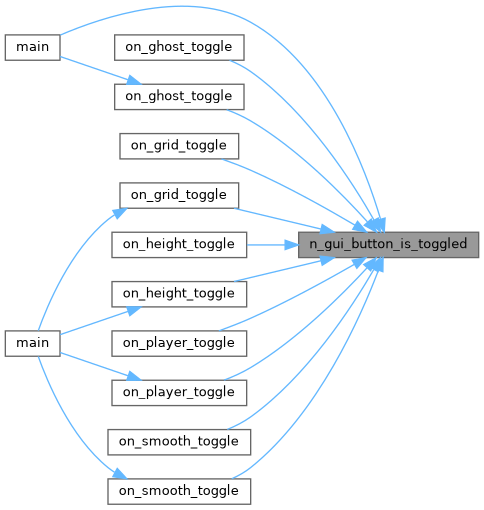

int	n_gui_button_is_toggled (N_GUI_CTX *ctx, int widget_id)
	check if button is toggled

void	n_gui_button_set_keycode (N_GUI_CTX *ctx, int widget_id, int keycode, int modifiers)
	bind a keyboard key with optional modifier requirements to a button.

void	n_gui_button_set_keycode_focused (N_GUI_CTX ctx, int widget_id, int keycode, int modifiers, const int sources, int source_count)
	bind a keyboard key to a button that fires only when specific widgets have focus.

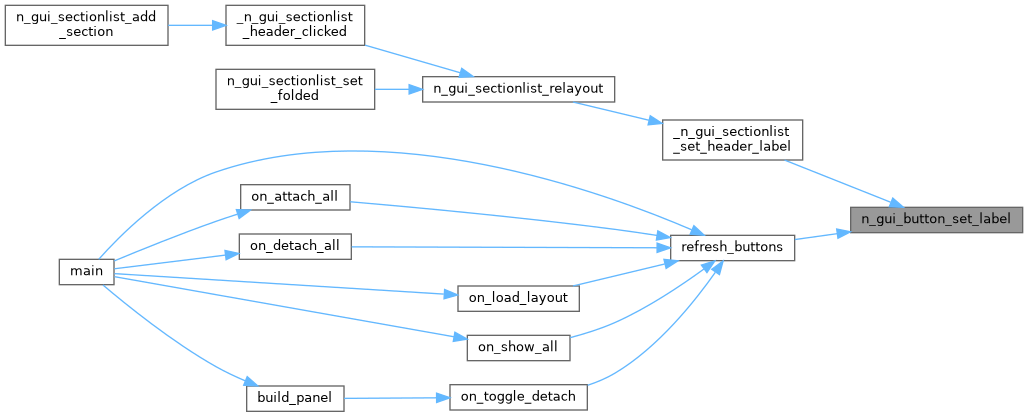

void	n_gui_button_set_label (N_GUI_CTX ctx, int widget_id, const char label)
	replace the label text drawn on a button

void	n_gui_button_set_state_bitmaps (N_GUI_CTX ctx, int widget_id, ALLEGRO_BITMAP normal, ALLEGRO_BITMAP hover, ALLEGRO_BITMAP active)
	skin a button or toggle button with caller-owned per-state bitmaps (switches its shape to N_GUI_SHAPE_BITMAP; toggled-on renders `active`)

void	n_gui_button_set_toggle_mode (N_GUI_CTX *ctx, int widget_id, int toggle_mode)
	set button toggle mode

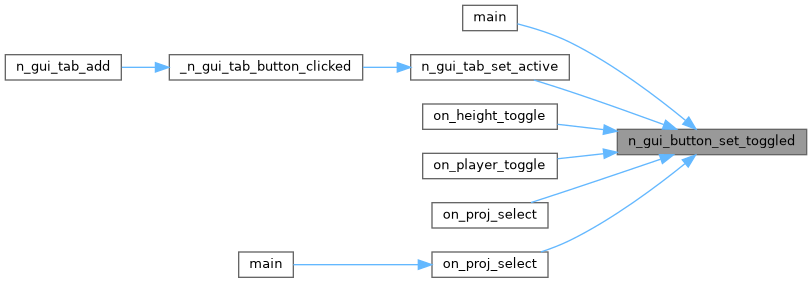

void	n_gui_button_set_toggled (N_GUI_CTX *ctx, int widget_id, int toggled)
	set button toggled state

int	n_gui_checkbox_is_checked (N_GUI_CTX *ctx, int widget_id)
	check if checkbox is checked

void	n_gui_checkbox_set_bitmaps (N_GUI_CTX ctx, int widget_id, ALLEGRO_BITMAP box, ALLEGRO_BITMAP box_checked, ALLEGRO_BITMAP box_hover)
	set optional bitmap overlays on a checkbox widget.

void	n_gui_checkbox_set_checked (N_GUI_CTX *ctx, int widget_id, int checked)
	set checkbox checked state

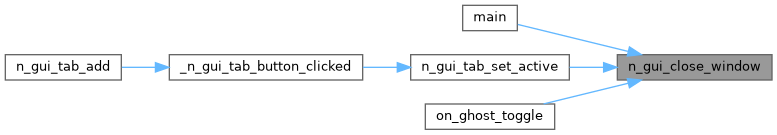

void	n_gui_close_window (N_GUI_CTX *ctx, int window_id)
	close (hide) a window

int	n_gui_combobox_add_item (N_GUI_CTX ctx, int widget_id, const char text)
	add an item to a combo box

void	n_gui_combobox_clear (N_GUI_CTX *ctx, int widget_id)
	remove all items from a combobox

const char *	n_gui_combobox_get_item_text (N_GUI_CTX *ctx, int widget_id, int index)
	get the text of the combobox item at `index` ("" if out of range / not a combobox)

int	n_gui_combobox_get_selected (N_GUI_CTX *ctx, int widget_id)
	get the selected item index

void	n_gui_combobox_set_bitmaps (N_GUI_CTX ctx, int widget_id, ALLEGRO_BITMAP bg, ALLEGRO_BITMAP item_bg, ALLEGRO_BITMAP item_selected)
	set optional bitmap overlays on a combobox widget.

void	n_gui_combobox_set_flags (N_GUI_CTX *ctx, int widget_id, int flags)
	set combobox feature flags (bitmask of N_GUI_COMBOBOX_* values)

void	n_gui_combobox_set_selected (N_GUI_CTX *ctx, int widget_id, int index)
	set the selected item index

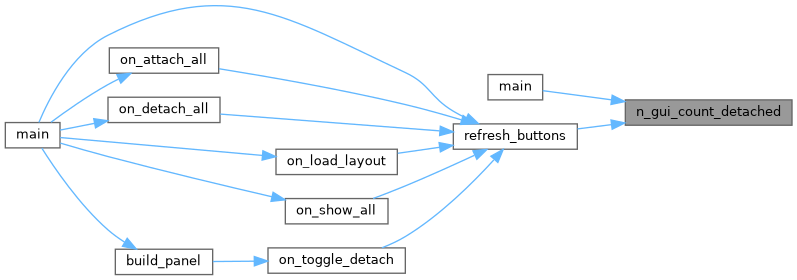

int	n_gui_count_detached (N_GUI_CTX *ctx)
	count the windows currently detached into native OS windows

int	n_gui_datagrid_add_column (N_GUI_CTX ctx, int widget_id, const char title, float width)
	append a column with a header title and pixel width; returns the column index or -1

int	n_gui_datagrid_add_row (N_GUI_CTX ctx, int widget_id, const char *values)
	append a row of cell strings (values must have one entry per column); returns the row index or -1

void	n_gui_datagrid_clear_row_color (N_GUI_CTX *ctx, int widget_id, int row)
	remove the background tint of data row `row` (it draws untinted again)

void	n_gui_datagrid_clear_row_colors (N_GUI_CTX *ctx, int widget_id)
	remove every row background tint (the rows and cells are kept)

void	n_gui_datagrid_clear_rows (N_GUI_CTX *ctx, int widget_id)
	remove all rows from a data grid (columns are kept)

void	n_gui_datagrid_clear_selection (N_GUI_CTX *ctx, int widget_id)
	clear the entire selection (no row selected)

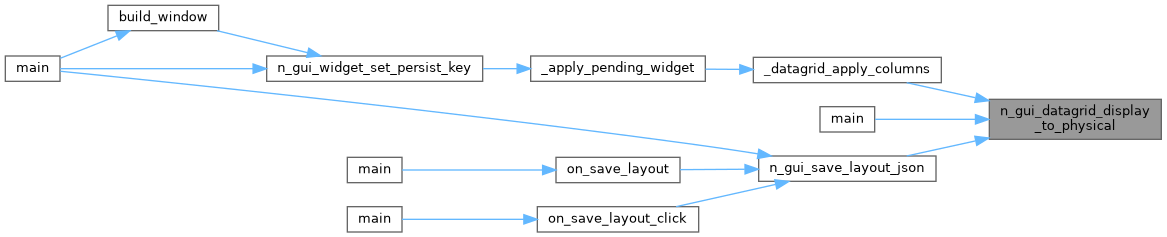

int	n_gui_datagrid_display_to_physical (N_GUI_CTX *ctx, int widget_id, int display_pos)
	physical column shown at display position `display_pos`, or -1 if out of range

const char *	n_gui_datagrid_get_cell (N_GUI_CTX *ctx, int widget_id, int row, int col)
	get a cell string by row and column, or NULL if out of range

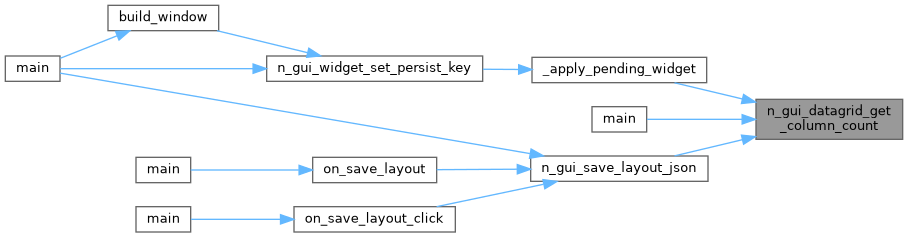

size_t	n_gui_datagrid_get_column_count (N_GUI_CTX *ctx, int widget_id)
	number of columns in a data grid (physical), or 0

const char *	n_gui_datagrid_get_column_title (N_GUI_CTX *ctx, int widget_id, int col)
	header title of physical column `col`, or "" if out of range

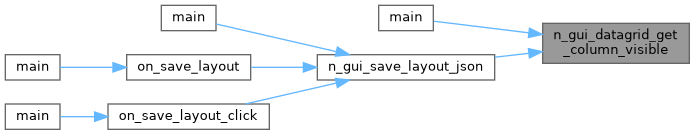

int	n_gui_datagrid_get_column_visible (N_GUI_CTX *ctx, int widget_id, int col)
	whether physical column `col` is visible (1) or hidden (0); 0 if out of range

float	n_gui_datagrid_get_column_width (N_GUI_CTX *ctx, int widget_id, int col)
	current pixel width of physical column `col`, or 0 if out of range

float	n_gui_datagrid_get_h_scroll (N_GUI_CTX *ctx, int widget_id)
	horizontal scroll offset in pixels (how far the columns are scrolled left when their total width exceeds the widget's pane), or 0.

int	n_gui_datagrid_get_row_color (N_GUI_CTX ctx, int widget_id, int row, ALLEGRO_COLOR out)
	report whether data row `row` carries a background tint (1) or not (0), and copy the tint into `out` when it does.

int	n_gui_datagrid_get_row_count (N_GUI_CTX *ctx, int widget_id)
	get the number of rows in a data grid

int	n_gui_datagrid_get_scroll_offset (N_GUI_CTX *ctx, int widget_id)
	first visible data row (the vertical scroll position), or 0.

int	n_gui_datagrid_get_selected (N_GUI_CTX *ctx, int widget_id)
	get the selected row index, or -1 if none

size_t	n_gui_datagrid_get_selected_rows (N_GUI_CTX ctx, int widget_id, int out, size_t max)
	fill `out` with the indices of the selected rows (ascending), up to `max`, and return the total number of selected rows.

int	n_gui_datagrid_is_row_selected (N_GUI_CTX *ctx, int widget_id, int row)
	report whether a given data row is selected (1) or not (0)

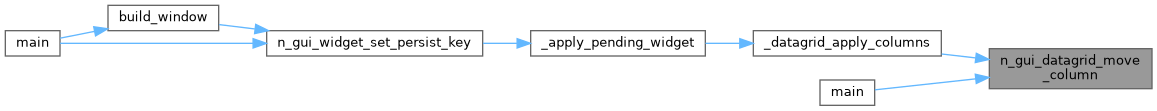

void	n_gui_datagrid_move_column (N_GUI_CTX *ctx, int widget_id, int from, int to)
	move the column at display position `from` to display position `to`, shifting the columns in between (reorders how columns are laid out; the cells and physical indices are unchanged)

void	n_gui_datagrid_select_row (N_GUI_CTX *ctx, int widget_id, int row, int selected)
	select (1) or deselect (0) a single row in a multi-select grid programmatically (e.g.

void	n_gui_datagrid_set_column_visible (N_GUI_CTX *ctx, int widget_id, int col, int visible)
	show (1) or hide (0) physical column `col`; hidden columns keep their cells but are skipped in the header and rows and closed up so no gap remains

void	n_gui_datagrid_set_column_width (N_GUI_CTX *ctx, int widget_id, int col, float width)
	set the pixel width of physical column `col` (clamped to a small minimum)

void	n_gui_datagrid_set_h_scroll (N_GUI_CTX *ctx, int widget_id, float px)
	set the horizontal scroll offset in pixels (clamped to >= 0; the draw path re-clamps to the live content width each frame, so a stale value after a rebuild is harmless).

void	n_gui_datagrid_set_multiselect (N_GUI_CTX *ctx, int widget_id, int enabled)
	enable (1) or disable (0) multi-row selection.

void	n_gui_datagrid_set_on_columns_changed (N_GUI_CTX ctx, int widget_id, void(cb)(int, void *))
	set the callback fired after the user drags a column border to resize it, so the host can persist the layout.

void	n_gui_datagrid_set_on_context (N_GUI_CTX ctx, int widget_id, void(on_context)(int, int, int, int, void *))
	set the right-click context callback; fired (with the cursor x/y in GUI coordinates) when a data row is right-clicked, after selecting that row.

void	n_gui_datagrid_set_row_color (N_GUI_CTX *ctx, int widget_id, int row, ALLEGRO_COLOR color)
	paint data row `row` with a background tint (a per-row highlight, e.g.

void	n_gui_datagrid_set_scroll_offset (N_GUI_CTX *ctx, int widget_id, int offset)
	set the first visible data row (clamped to the row count); the draw path re-clamps to the live viewport each frame, so a stale offset after a rebuild is harmless.

void	n_gui_datagrid_set_selected (N_GUI_CTX *ctx, int widget_id, int row)
	set the selected row index (fires the on_select callback)

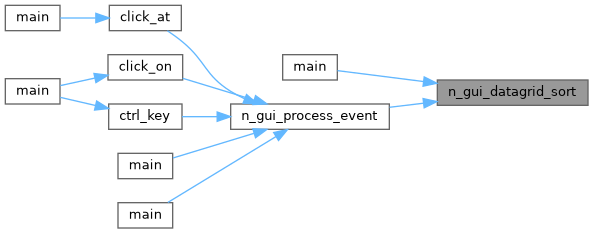

void	n_gui_datagrid_sort (N_GUI_CTX *ctx, int widget_id, int col, int dir)
	sort the rows by a column (dir 1 ascending, -1 descending)

N_GUI_STYLE	n_gui_default_style (void)
	return the built-in default style

N_GUI_THEME	n_gui_default_tb_btn_theme (void)
	return the built-in default theme for titlebar minimize/maximize buttons

N_GUI_THEME	n_gui_default_tb_close_theme (void)
	return the built-in default theme for the titlebar close button (red hover/active)

N_GUI_THEME	n_gui_default_theme (void)
	return the built-in default theme

void	n_gui_destroy_ctx (N_GUI_CTX **ctx)
	destroy a GUI context and free all resources

float	n_gui_detect_dpi_scale (N_GUI_CTX ctx, ALLEGRO_DISPLAY display)
	detect and apply DPI scale from the given allegro display.

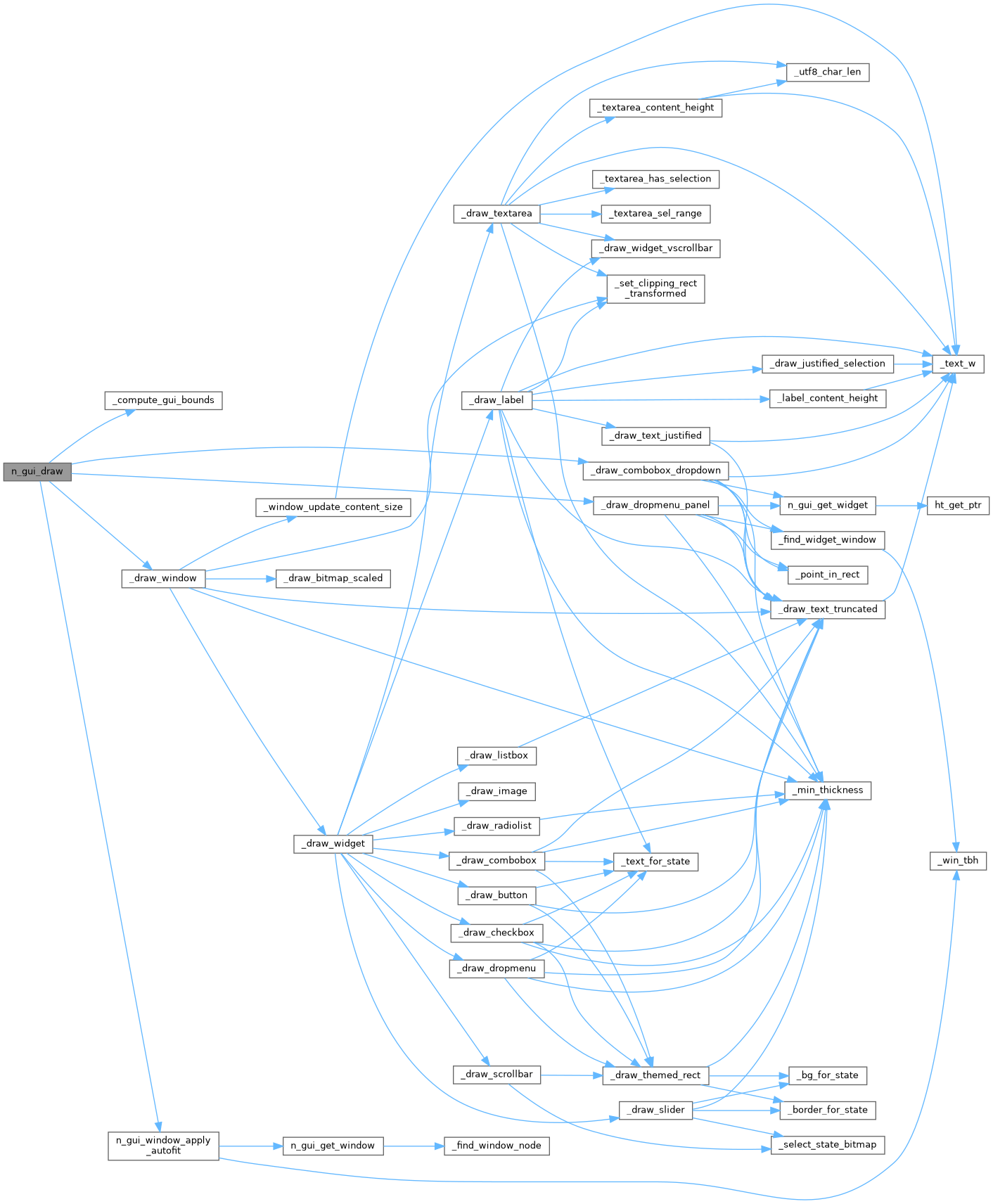

void	n_gui_draw (N_GUI_CTX *ctx)
	draw all visible GUI windows and widgets

void	n_gui_draw_detached (N_GUI_CTX *ctx)
	render and flip every detached window, and release the ones whose native window was closed.

int	n_gui_dropmenu_add_dynamic_entry (N_GUI_CTX ctx, int widget_id, const char text, int tag, void(on_click)(int, int, int, void ), void *user_data)
	add a dynamic entry (rebuilt each time menu opens)

int	n_gui_dropmenu_add_entry (N_GUI_CTX ctx, int widget_id, const char text, int tag, void(on_click)(int, int, int, void ), void *user_data)
	add a static entry to a dropdown menu

void	n_gui_dropmenu_clear (N_GUI_CTX *ctx, int widget_id)
	remove all entries

void	n_gui_dropmenu_clear_dynamic (N_GUI_CTX *ctx, int widget_id)
	remove all dynamic entries (call from on_open callback before re-adding)

int	n_gui_dropmenu_get_count (N_GUI_CTX *ctx, int widget_id)
	get number of entries

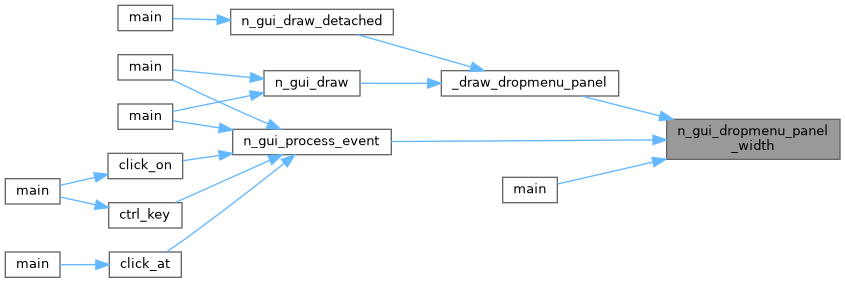

float	n_gui_dropmenu_panel_width (N_GUI_CTX *ctx, int widget_id)
	width the open panel needs to show its entries without truncation: the larger of the collapsed button width and the widest entry text (plus item padding on both sides and the scrollbar width when the entry count overflows the visible window).

void	n_gui_dropmenu_set_bitmaps (N_GUI_CTX ctx, int widget_id, ALLEGRO_BITMAP panel, ALLEGRO_BITMAP *item_hover)
	set optional bitmap overlays on a dropmenu widget.

void	n_gui_dropmenu_set_entry_text (N_GUI_CTX ctx, int widget_id, int index, const char text)
	update text of an existing entry by index

void	n_gui_dropmenu_set_flags (N_GUI_CTX *ctx, int widget_id, int flags)
	set dropmenu feature flags (bitmask of N_GUI_DROPMENU_* values)

void	n_gui_dropmenu_set_label (N_GUI_CTX ctx, int widget_id, const char label)
	replace the button label shown on a dropmenu (NULL clears it)

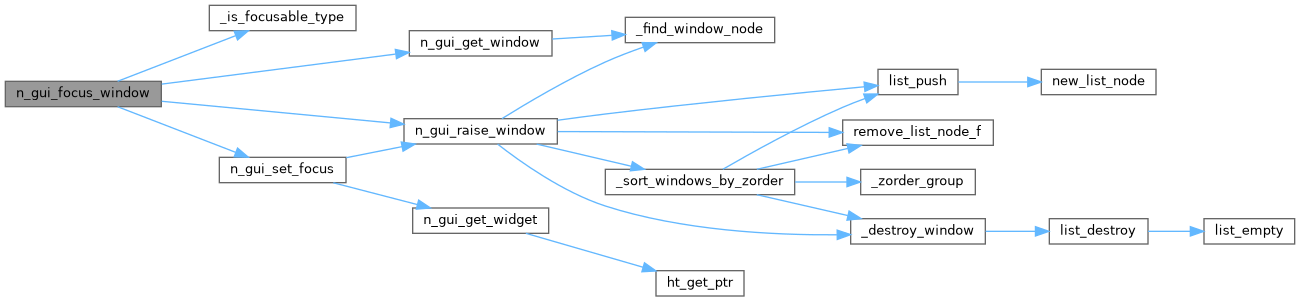

void	n_gui_focus_window (N_GUI_CTX *ctx, int window_id)
	give a window keyboard focus: raise it within its z-order group and focus its first focusable widget (clears focus if it has none)

float	n_gui_get_dpi_scale (const N_GUI_CTX *ctx)
	get current DPI scale factor

ALLEGRO_EVENT_QUEUE *	n_gui_get_event_queue (N_GUI_CTX *ctx)
	get the event queue previously given to n_gui_set_event_queue (NULL if none)

int	n_gui_get_resize_mode (N_GUI_CTX *ctx)
	get current resize mode

int	n_gui_get_shape_mode (N_GUI_CTX *ctx)
	get the global widget shape (N_GUI_SHAPE_ROUNDED or N_GUI_SHAPE_RECT)

N_GUI_TEXT_DIMS	n_gui_get_text_dims (ALLEGRO_FONT font, const char text)
	get the bounding box dimensions of text rendered with the given font.

int	n_gui_get_topmost_open_window (const N_GUI_CTX *ctx)
	get the id of the frontmost open, non-minimized window (the last one in draw order), or -1 if no window is open.

N_GUI_WIDGET *	n_gui_get_widget (N_GUI_CTX *ctx, int widget_id)
	get a widget by id

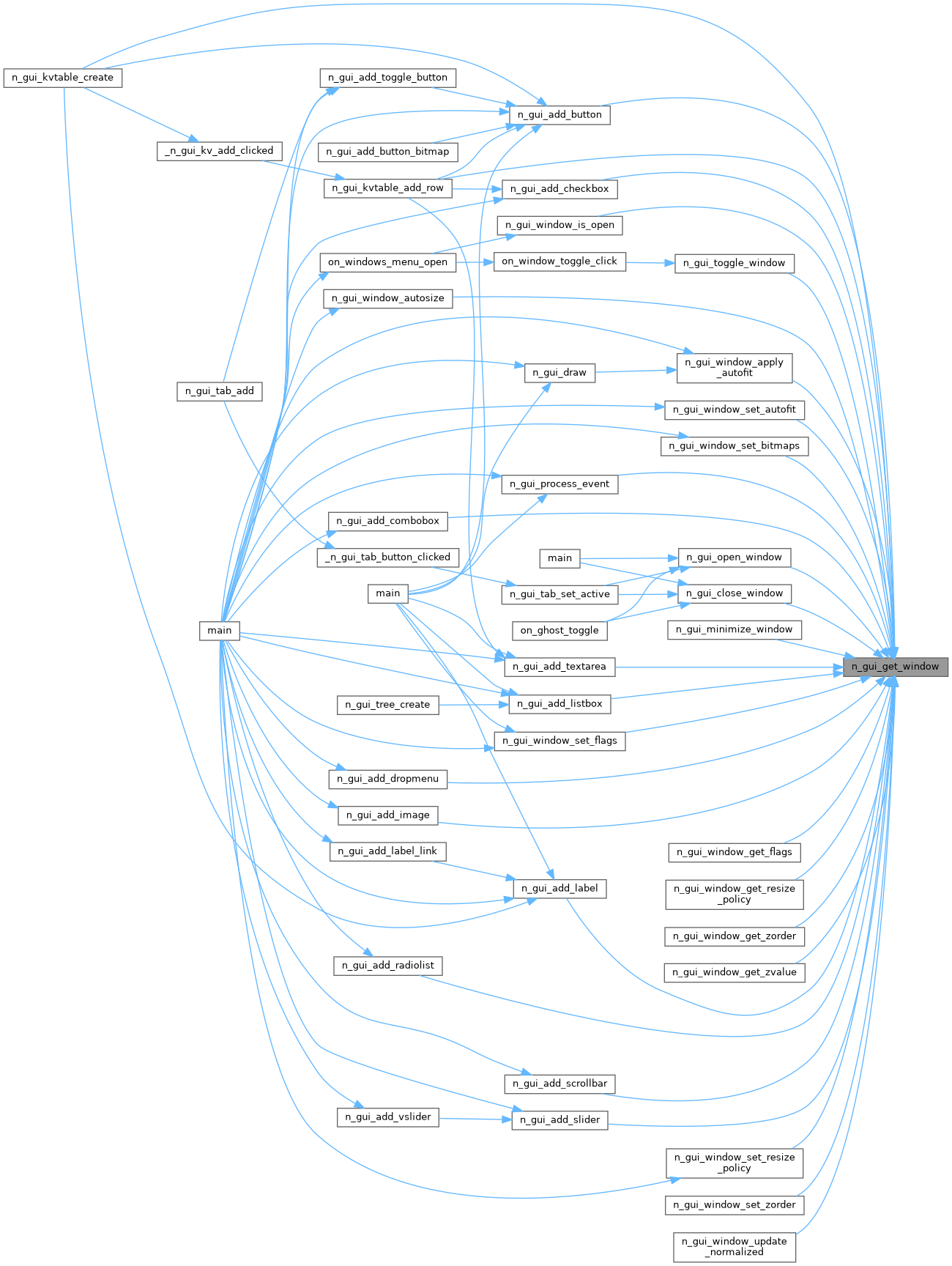

N_GUI_WINDOW *	n_gui_get_window (N_GUI_CTX *ctx, int window_id)
	get a window by id

size_t	n_gui_hexview_get_length (N_GUI_CTX *ctx, int widget_id)
	get the number of bytes currently held by a hex viewer

void	n_gui_hexview_set_data (N_GUI_CTX ctx, int widget_id, const unsigned char data, size_t len)
	set (copy) the bytes shown by a hex viewer; data may be NULL to clear

void	n_gui_image_set_bitmap (N_GUI_CTX ctx, int widget_id, ALLEGRO_BITMAP bitmap)
	set the bitmap on an image widget

int	n_gui_is_widget_enabled (N_GUI_CTX *ctx, int widget_id)
	check if a widget is enabled

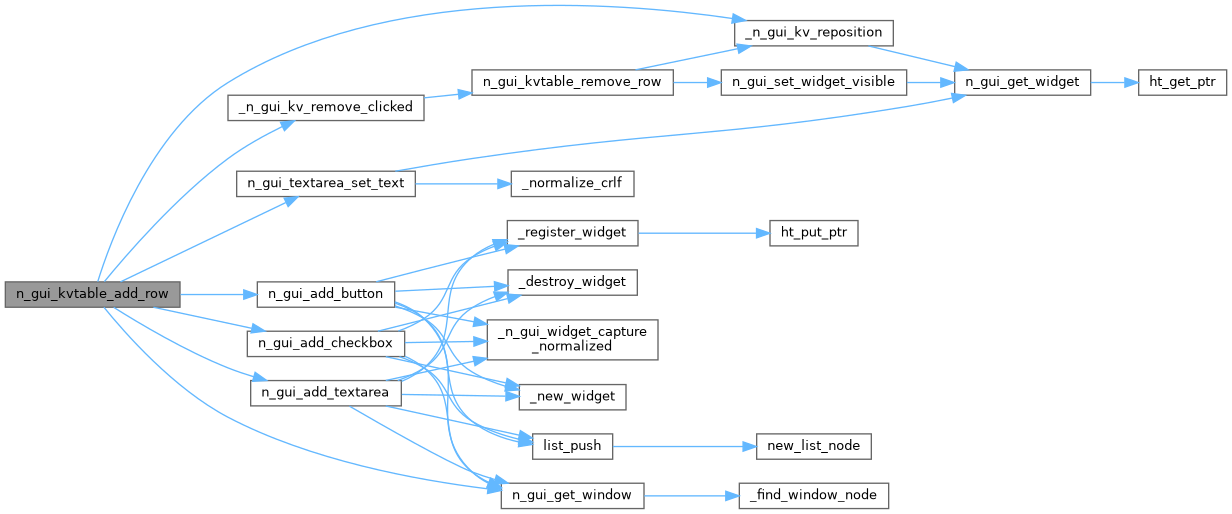

int	n_gui_kvtable_add_row (N_GUI_KVTABLE table, const char key, const char value, const char description, int enabled)
	add a row to the KV table

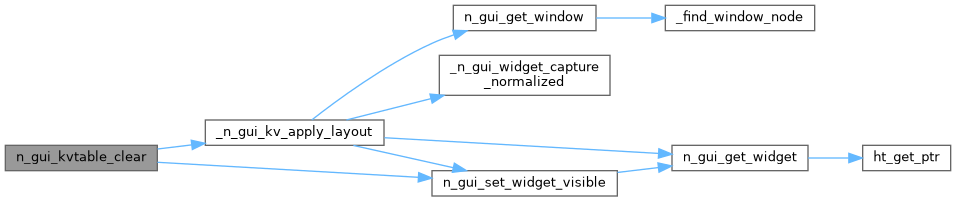

void	n_gui_kvtable_clear (N_GUI_KVTABLE *table)
	remove every row at once.

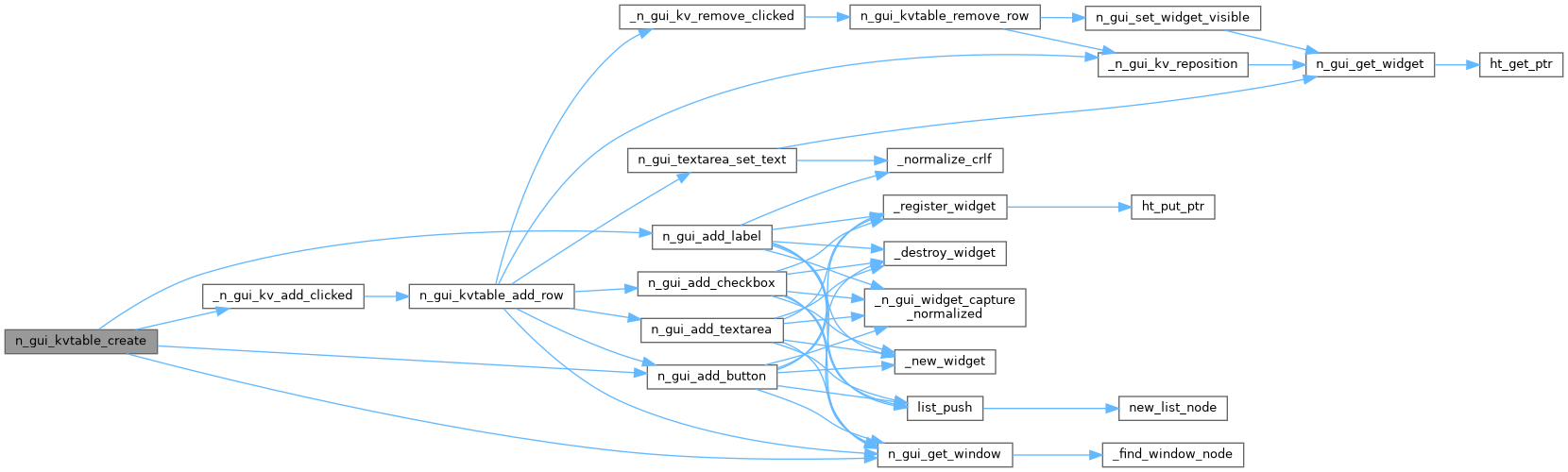

N_GUI_KVTABLE *	n_gui_kvtable_create (N_GUI_CTX ctx, int window_id, float row_height, float padding, void(on_remove)(int, void ), void user_data)
	create a KV table in an existing window

void	n_gui_kvtable_free (N_GUI_KVTABLE **table)
	free a KV table (does not destroy the N_GUI widgets)

int	n_gui_kvtable_get_count (const N_GUI_KVTABLE *table)
	get the number of active rows

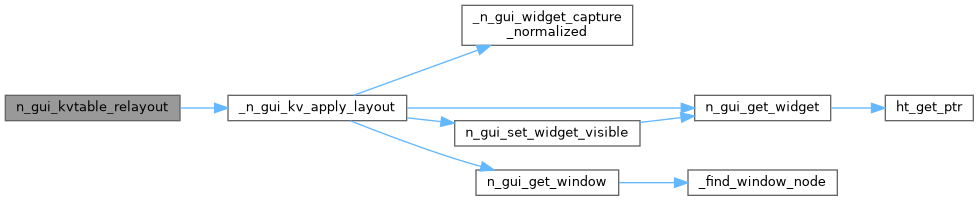

void	n_gui_kvtable_relayout (N_GUI_KVTABLE *table)
	re-apply layout to all KV table widgets (positions, sizes, normalized coords).

void	n_gui_kvtable_remove_row (N_GUI_KVTABLE *table, int row_index)
	remove a row by index (hides widgets, marks inactive)

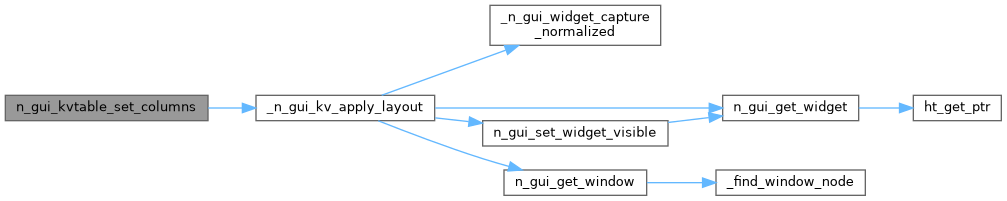

void	n_gui_kvtable_set_columns (N_GUI_KVTABLE *table, int show_value, int show_desc, int show_enabled)
	choose which optional columns are shown: Value, Description, and the enabled checkbox.

void	n_gui_kvtable_set_placeholders (N_GUI_KVTABLE table, const char key_hint, const char *value_hint)
	set the placeholder/hint text shown in each row's key (and value) textarea while it is empty.

void	n_gui_kvtable_set_top_offset (N_GUI_KVTABLE *table, float top_offset)
	reserve `top_offset` unscaled pixels above the header row so other widgets (a toolbar, a heading) can share the table's window without overlapping it.

void	n_gui_label_set_bitmap (N_GUI_CTX ctx, int widget_id, ALLEGRO_BITMAP bg)
	set optional background bitmap on a label widget.

void	n_gui_label_set_link (N_GUI_CTX ctx, int widget_id, const char link)
	set label hyperlink URL

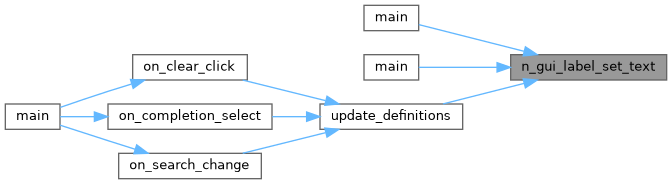

void	n_gui_label_set_text (N_GUI_CTX ctx, int widget_id, const char text)
	set label text content

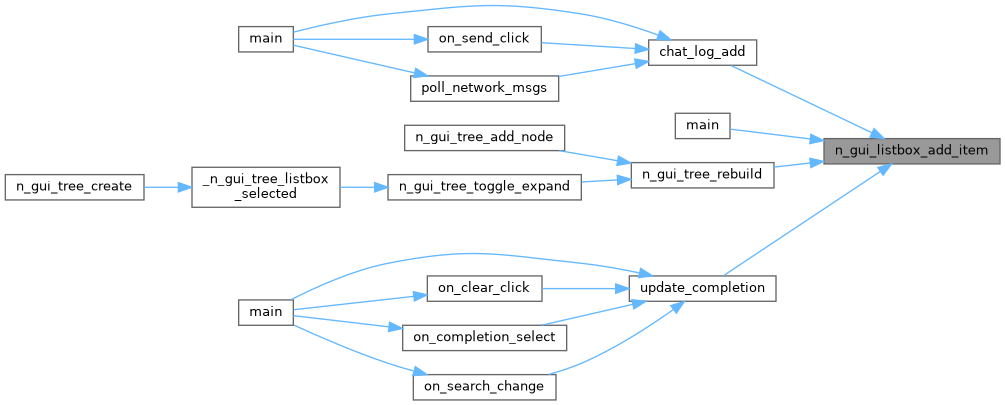

int	n_gui_listbox_add_item (N_GUI_CTX ctx, int widget_id, const char text)
	add an item to a listbox

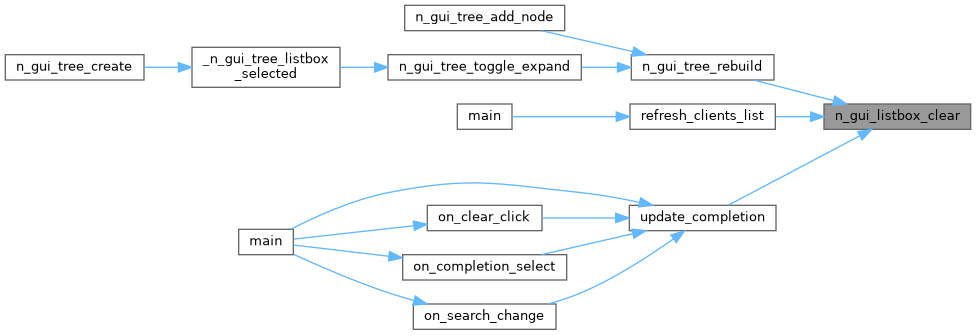

void	n_gui_listbox_clear (N_GUI_CTX *ctx, int widget_id)
	clear all items from a listbox

int	n_gui_listbox_get_count (N_GUI_CTX *ctx, int widget_id)
	get number of items in a listbox

const char *	n_gui_listbox_get_item_text (N_GUI_CTX *ctx, int widget_id, int index)
	get item text by index

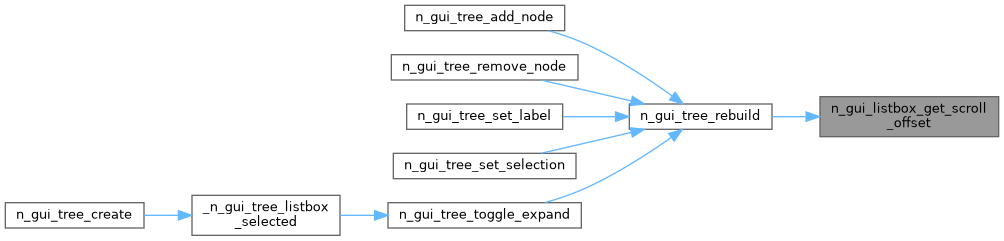

int	n_gui_listbox_get_scroll_offset (N_GUI_CTX *ctx, int widget_id)
	get the current scroll offset (in items)

int	n_gui_listbox_get_selected (N_GUI_CTX *ctx, int widget_id)
	get the first selected item index

int	n_gui_listbox_is_selected (N_GUI_CTX *ctx, int widget_id, int index)
	check if an item is selected

int	n_gui_listbox_remove_item (N_GUI_CTX *ctx, int widget_id, int index)
	remove an item from a listbox by index

void	n_gui_listbox_set_bitmaps (N_GUI_CTX ctx, int widget_id, ALLEGRO_BITMAP bg, ALLEGRO_BITMAP item_bg, ALLEGRO_BITMAP item_selected)
	set optional bitmap overlays on a listbox widget.

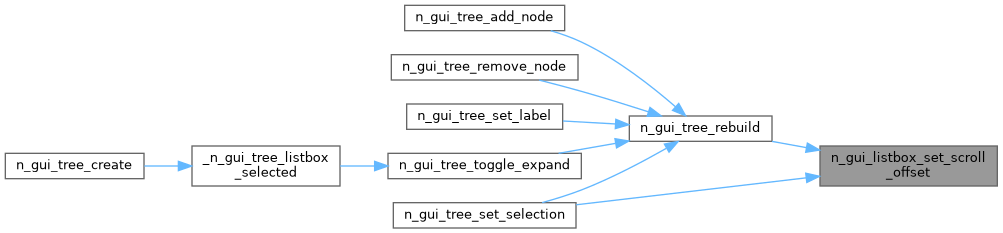

void	n_gui_listbox_set_scroll_offset (N_GUI_CTX *ctx, int widget_id, int offset)
	set the scroll offset (in items), clamps to valid range

void	n_gui_listbox_set_selected (N_GUI_CTX *ctx, int widget_id, int index, int selected)
	set item selection state

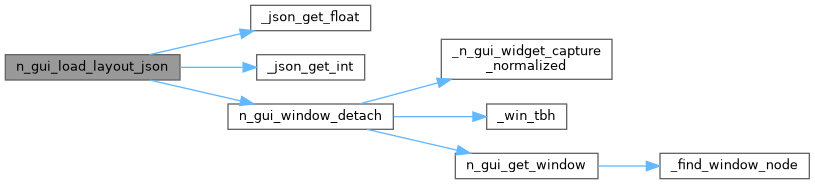

int	n_gui_load_layout_json (N_GUI_CTX ctx, const char filepath)
	Load a JSON window layout file and apply it to matching windows in the context.

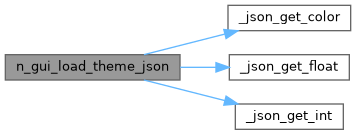

int	n_gui_load_theme_json (N_GUI_CTX ctx, const char filepath)
	Load a JSON theme file and apply it to the context.

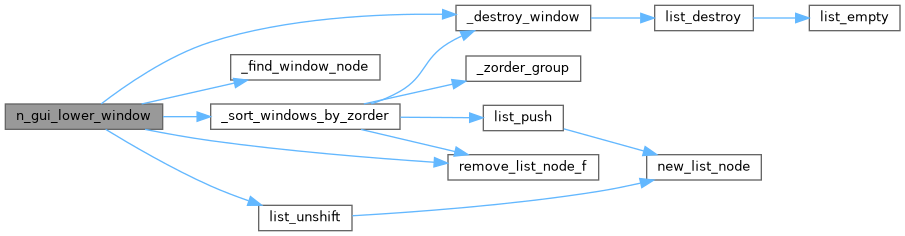

void	n_gui_lower_window (N_GUI_CTX *ctx, int window_id)
	lower a window to the bottom of the stack (respects z-order constraints)

N_GUI_THEME	n_gui_make_theme (ALLEGRO_COLOR bg, ALLEGRO_COLOR bg_hover, ALLEGRO_COLOR bg_active, ALLEGRO_COLOR border, ALLEGRO_COLOR border_hover, ALLEGRO_COLOR border_active, ALLEGRO_COLOR text, ALLEGRO_COLOR text_hover, ALLEGRO_COLOR text_active, float border_thickness, float corner_rx, float corner_ry)
	create a custom theme from individual colors and properties

void	n_gui_mark_dirty (N_GUI_CTX *ctx)
	Mark the GUI as needing a redraw.

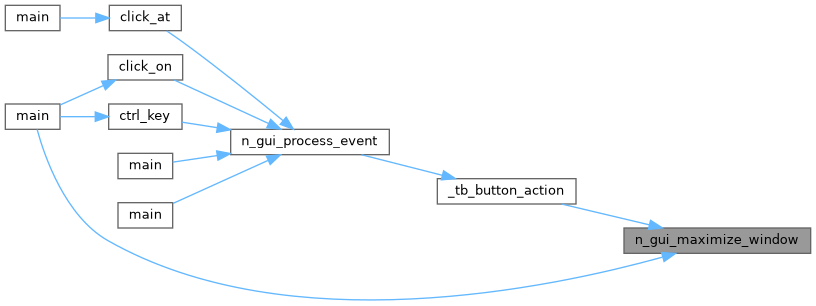

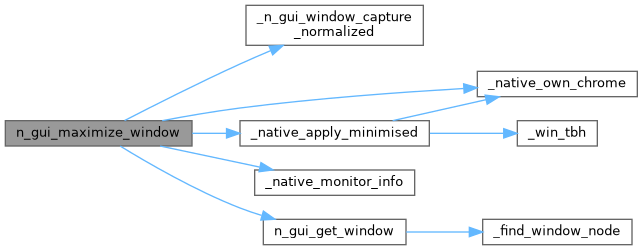

void	n_gui_maximize_window (N_GUI_CTX *ctx, int window_id)
	toggle maximised state (full display or restore to previous size)

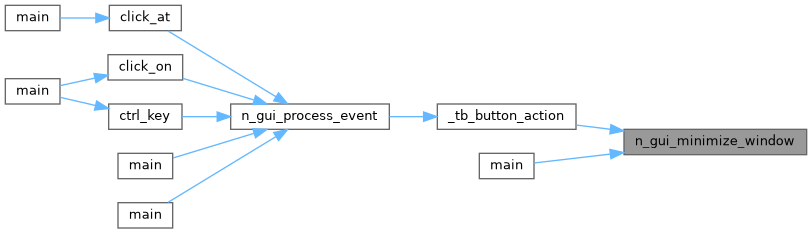

void	n_gui_minimize_window (N_GUI_CTX *ctx, int window_id)
	minimize a window (title bar only)

int	n_gui_needs_redraw (N_GUI_CTX *ctx)
	Return non-zero if the GUI must be redrawn this frame, i.e.

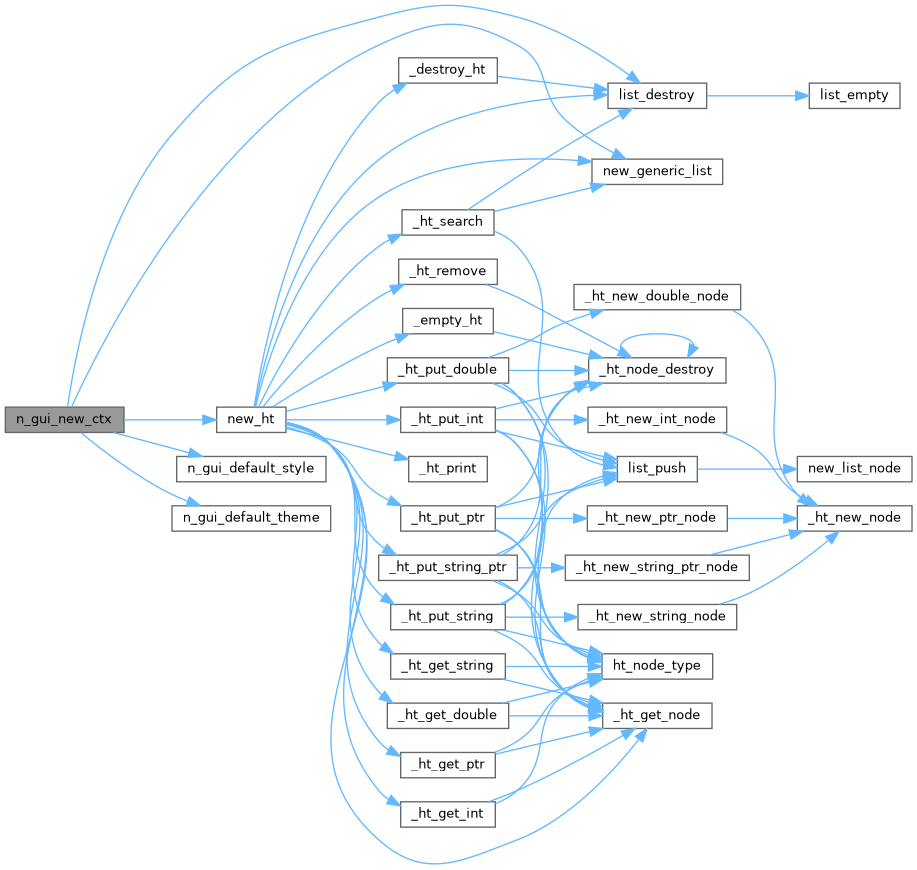

N_GUI_CTX *	n_gui_new_ctx (ALLEGRO_FONT *default_font)
	create a new GUI context

void	n_gui_open_window (N_GUI_CTX *ctx, int window_id)
	open (show) a window

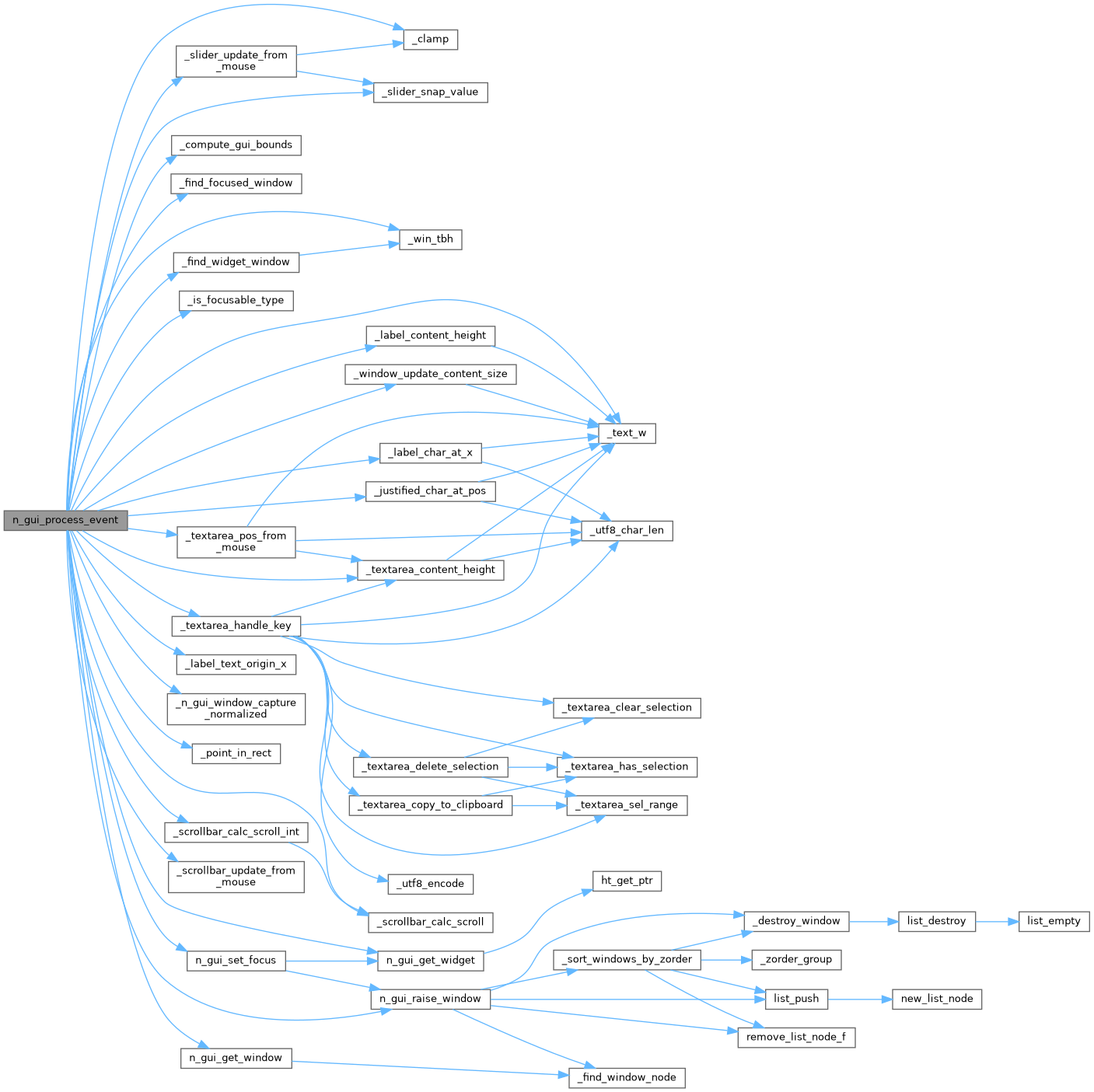

int	n_gui_process_event (N_GUI_CTX *ctx, ALLEGRO_EVENT event)
	process an allegro event for the GUI

float	n_gui_progressbar_get_value (N_GUI_CTX *ctx, int widget_id)
	get the current progress fraction (0.0 on an invalid widget)

void	n_gui_progressbar_set_text (N_GUI_CTX ctx, int widget_id, const char text)
	set the centered overlay text (NULL or "" clears it)

void	n_gui_progressbar_set_value (N_GUI_CTX *ctx, int widget_id, float value)
	set the progress fraction (clamped to 0.0 .

int	n_gui_radiolist_add_item (N_GUI_CTX ctx, int widget_id, const char text)
	add an item to a radio list

void	n_gui_radiolist_clear (N_GUI_CTX *ctx, int widget_id)
	remove all items from a radio list

int	n_gui_radiolist_get_selected (N_GUI_CTX *ctx, int widget_id)
	get the selected item index

void	n_gui_radiolist_set_bitmaps (N_GUI_CTX ctx, int widget_id, ALLEGRO_BITMAP bg, ALLEGRO_BITMAP item_bg, ALLEGRO_BITMAP item_selected)
	set optional bitmap overlays on a radiolist widget.

void	n_gui_radiolist_set_selected (N_GUI_CTX *ctx, int widget_id, int index)
	set the selected item index

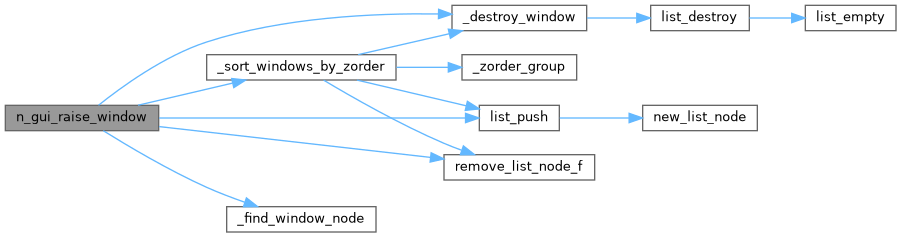

void	n_gui_raise_window (N_GUI_CTX *ctx, int window_id)
	raise a window to the top of the stack (respects z-order constraints)

void	n_gui_reset_all_widget_themes (N_GUI_CTX *ctx)
	reset all widget and window themes to ctx->default_theme

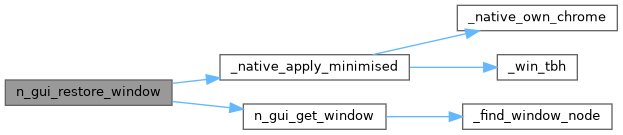

void	n_gui_restore_window (N_GUI_CTX *ctx, int window_id)
	restore a minimised window to its full size

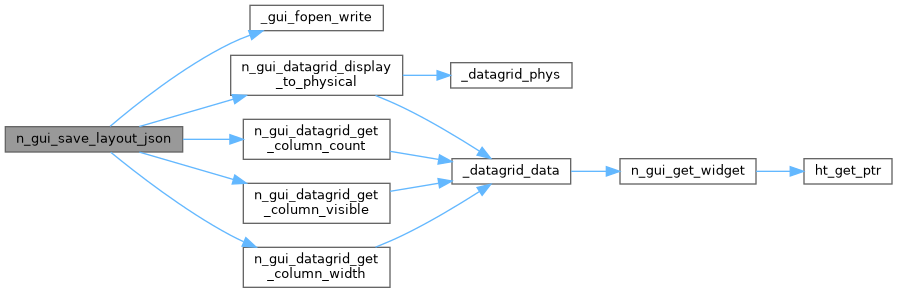

int	n_gui_save_layout_json (N_GUI_CTX ctx, const char filepath)
	Save the geometry + persistent state of every window in the context to a JSON file.

int	n_gui_save_theme_json (N_GUI_CTX ctx, const char filepath)
	Save the full theme (default_theme + style) to a JSON file.

void	n_gui_screen_to_virtual (const N_GUI_CTX ctx, float sx, float sy, float vx, float *vy)
	convert physical screen coordinates to virtual canvas coordinates.

double	n_gui_scrollbar_get_pos (N_GUI_CTX *ctx, int widget_id)
	get scrollbar position

void	n_gui_scrollbar_set_bitmaps (N_GUI_CTX ctx, int widget_id, ALLEGRO_BITMAP track, ALLEGRO_BITMAP thumb, ALLEGRO_BITMAP thumb_hover, ALLEGRO_BITMAP *thumb_active)
	set optional bitmap overlays on a scrollbar widget.

void	n_gui_scrollbar_set_pos (N_GUI_CTX *ctx, int widget_id, double pos)
	set scrollbar position

void	n_gui_scrollbar_set_sizes (N_GUI_CTX *ctx, int widget_id, double content_size, double viewport_size)
	set scrollbar content and viewport sizes

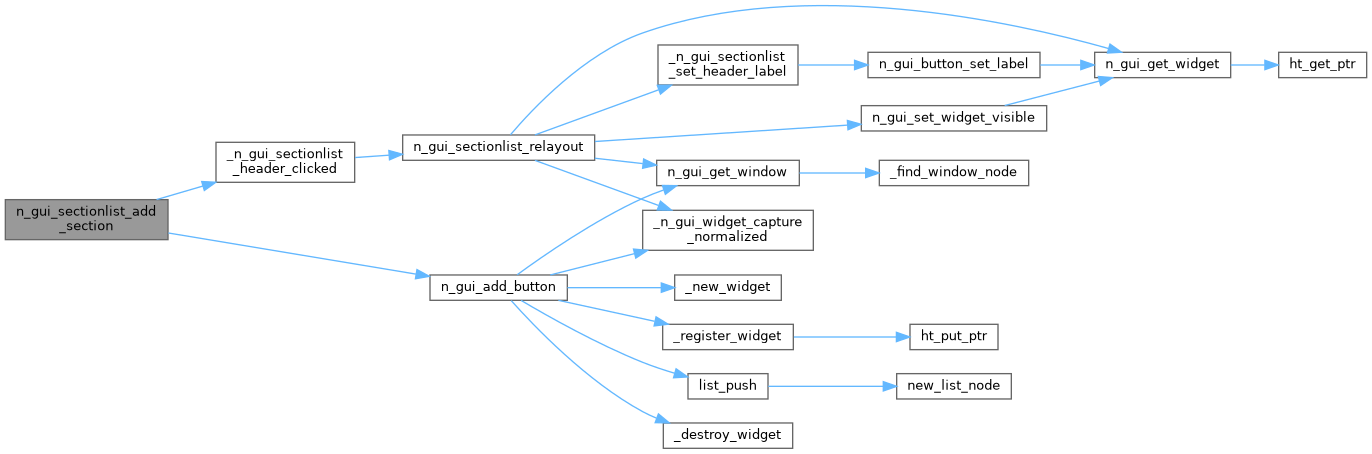

int	n_gui_sectionlist_add_section (N_GUI_SECTIONLIST sl, const char title, float header_y, int folded)
	add a section with a header button at header_y (members added next are captured relative to it); returns the section index or -1

void	n_gui_sectionlist_add_widget (N_GUI_SECTIONLIST *sl, int section_index, int widget_id)
	register an existing widget as a member of a section (captures its current y as the fold offset)

float	n_gui_sectionlist_content_height (const N_GUI_SECTIONLIST *sl)
	total content height in pixels under the current fold state, for sizing/scrolling the host window

N_GUI_SECTIONLIST *	n_gui_sectionlist_create (N_GUI_CTX ctx, int window_id, float x, float y0, float width, float header_h, float gap, void(on_toggle)(int, int, void ), void user_data)
	create an empty section list anchored at (x,y0) in window_id; sections stack downward from y0

void	n_gui_sectionlist_free (N_GUI_SECTIONLIST **sl)
	free the section list (does not destroy the N_GUI widgets or window)

int	n_gui_sectionlist_get_count (const N_GUI_SECTIONLIST *sl)
	number of sections in the list

int	n_gui_sectionlist_is_folded (const N_GUI_SECTIONLIST *sl, int section_index)
	query a section's folded state (1 = folded, 0 = expanded)

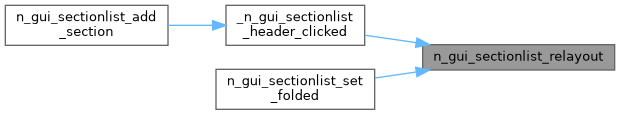

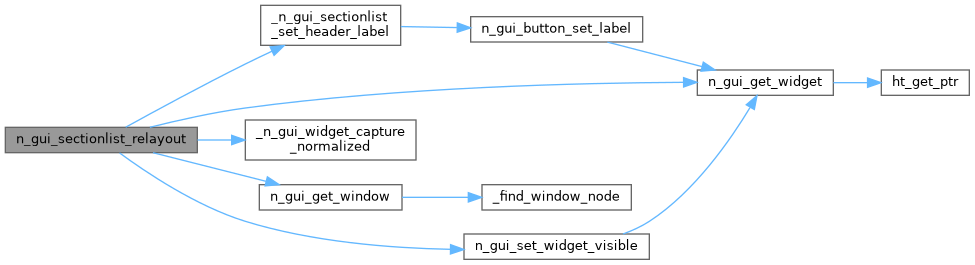

void	n_gui_sectionlist_relayout (N_GUI_SECTIONLIST *sl)
	re-stack all sections from y0 by current fold state: hide folded members, show and reposition expanded ones

void	n_gui_sectionlist_set_first_inset (N_GUI_SECTIONLIST *sl, float inset)
	set a left inset applied to the FIRST section's header only, so a caller can place a button before it on the same row; relayout re-applies it

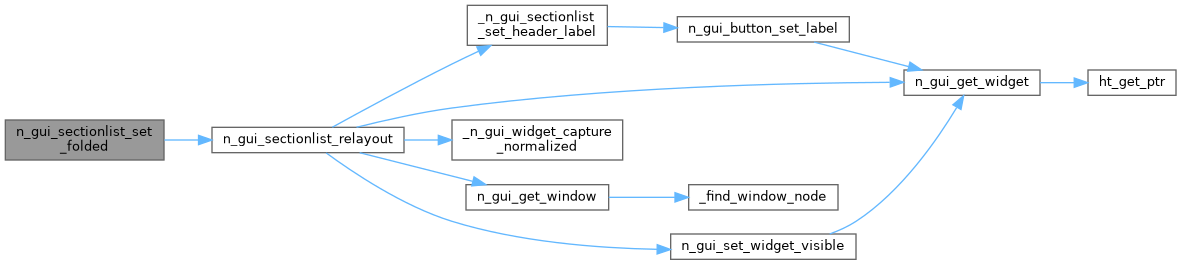

void	n_gui_sectionlist_set_folded (N_GUI_SECTIONLIST *sl, int section_index, int folded)
	set a section's folded state and relayout; does NOT fire on_toggle (for programmatic restore)

void	n_gui_set_default_theme (N_GUI_CTX *ctx, N_GUI_THEME theme)
	Set the default theme on a context and sync scrollbar style colors.

void	n_gui_set_display (N_GUI_CTX ctx, ALLEGRO_DISPLAY display)
	set the display pointer for clipboard operations (copy/paste)

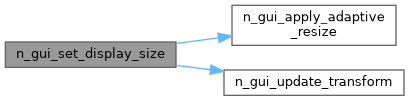

void	n_gui_set_display_size (N_GUI_CTX *ctx, float w, float h)
	set the display (viewport) size so global scrollbars can be computed.

void	n_gui_set_dpi_scale (N_GUI_CTX *ctx, float scale)
	set DPI scale factor manually (default is 1.0).

void	n_gui_set_event_queue (N_GUI_CTX ctx, ALLEGRO_EVENT_QUEUE queue)
	give the context the event queue it registers native window event sources into

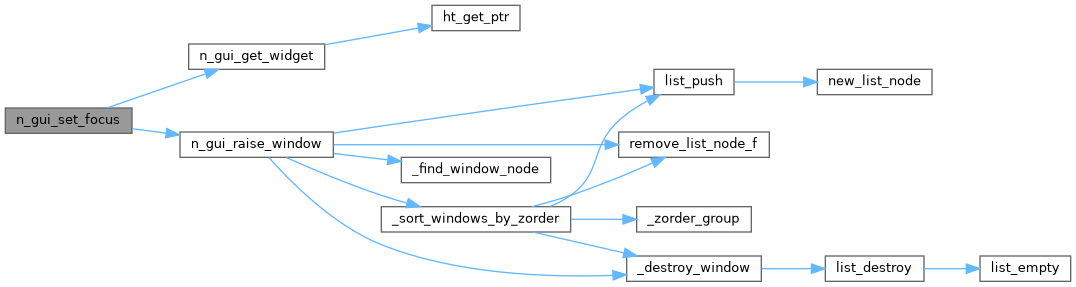

void	n_gui_set_focus (N_GUI_CTX *ctx, int widget_id)
	set keyboard focus to a specific widget (-1 to clear focus)

void	n_gui_set_resize_mode (N_GUI_CTX *ctx, int mode)
	set context-level resize mode: N_GUI_RESIZE_VIRTUAL (default) or N_GUI_RESIZE_ADAPTIVE

void	n_gui_set_shape_mode (N_GUI_CTX *ctx, int shape_mode)
	set the global widget shape (N_GUI_SHAPE_ROUNDED for a round GUI, else square)

void	n_gui_set_virtual_size (N_GUI_CTX *ctx, float w, float h)
	set the virtual canvas size for resolution-independent scaling.

void	n_gui_set_widget_enabled (N_GUI_CTX *ctx, int widget_id, int enabled)
	set widget enabled state (0 = disabled: drawn dimmed and ignores all input)

void	n_gui_set_widget_theme (N_GUI_CTX *ctx, int widget_id, N_GUI_THEME theme)
	set the theme on a widget

void	n_gui_set_widget_tooltip (N_GUI_CTX ctx, int widget_id, const char text)
	set (or clear with "" / NULL) the tooltip text shown after the pointer rests on a widget

void	n_gui_set_widget_visible (N_GUI_CTX *ctx, int widget_id, int visible)
	set widget visibility

double	n_gui_slider_get_value (N_GUI_CTX *ctx, int widget_id)
	get slider current value

void	n_gui_slider_set_bitmaps (N_GUI_CTX ctx, int widget_id, ALLEGRO_BITMAP track, ALLEGRO_BITMAP fill, ALLEGRO_BITMAP handle, ALLEGRO_BITMAP handle_hover, ALLEGRO_BITMAP handle_active)
	set optional bitmap overlays on a slider widget.

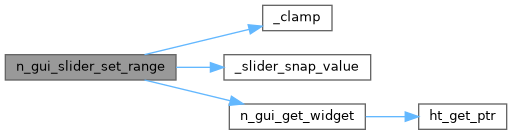

void	n_gui_slider_set_range (N_GUI_CTX *ctx, int widget_id, double min_val, double max_val)
	set slider min/max range, clamping the current value if needed

void	n_gui_slider_set_step (N_GUI_CTX *ctx, int widget_id, double step)
	set slider step increment (0 is treated as 1).

void	n_gui_slider_set_value (N_GUI_CTX *ctx, int widget_id, double value)
	set slider value

void	n_gui_slider_set_value_format (N_GUI_CTX ctx, int widget_id, const char fmt)
	Override the built-in value readout's printf format string.

void	n_gui_slider_set_value_visible (N_GUI_CTX *ctx, int widget_id, int visible)
	Toggle the built-in value label.

float	n_gui_splitpane_get_ratio (N_GUI_CTX *ctx, int widget_id)
	get the current divider ratio (0..1), or 0.5 if the widget is invalid

void	n_gui_splitpane_set_limits (N_GUI_CTX *ctx, int widget_id, float min_ratio, float max_ratio)
	set the minimum and maximum allowed divider ratio

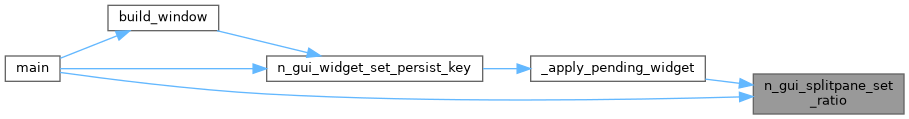

void	n_gui_splitpane_set_ratio (N_GUI_CTX *ctx, int widget_id, float ratio)
	set the divider ratio (clamped to the configured min/max)

int	n_gui_syntaxview_get_line_count (N_GUI_CTX *ctx, int widget_id)
	get the number of text lines in a syntax view

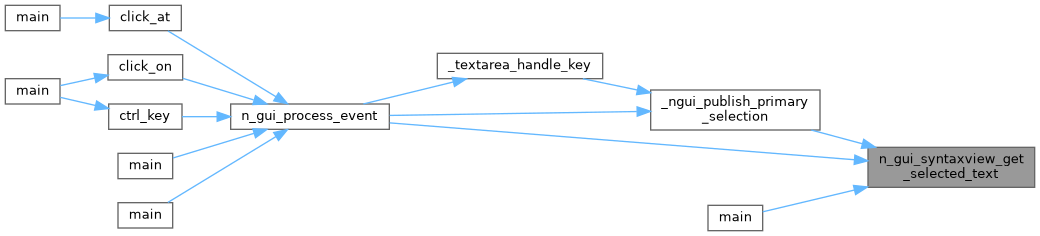

char *	n_gui_syntaxview_get_selected_text (N_GUI_CTX *ctx, int widget_id)
	copy of the currently selected text in a syntax view, or NULL when nothing is selected.

const char *	n_gui_syntaxview_get_text (N_GUI_CTX *ctx, int widget_id)
	get the text shown by a syntax view (borrowed pointer, do not free; NULL if empty)

void	n_gui_syntaxview_scroll_to_offset (N_GUI_CTX *ctx, int widget_id, int byte_offset)
	scroll a syntax view so the line holding the given byte offset is vertically centered

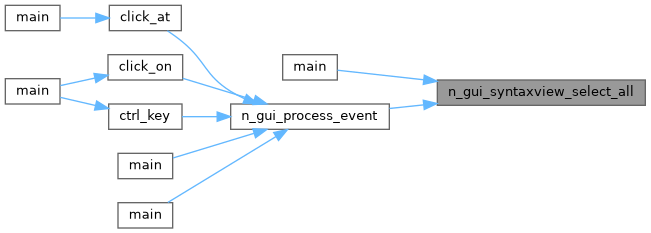

void	n_gui_syntaxview_select_all (N_GUI_CTX *ctx, int widget_id)
	select the entire text of a syntax view

void	n_gui_syntaxview_set_mode (N_GUI_CTX *ctx, int widget_id, int mode)
	set the highlighting mode (N_GUI_SYNTAX_*) of a syntax view

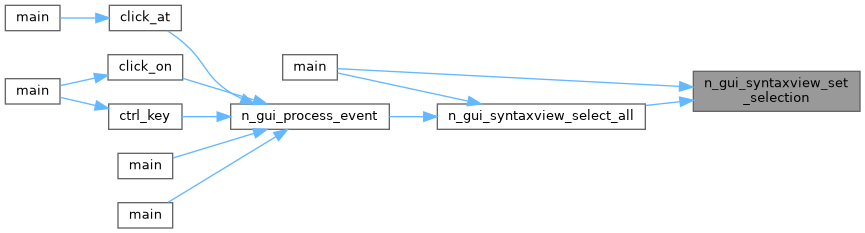

void	n_gui_syntaxview_set_selection (N_GUI_CTX *ctx, int widget_id, int start, int end)
	set the selection range (byte offsets into the text, clamped to its length); pass start == end to clear the selection

void	n_gui_syntaxview_set_text (N_GUI_CTX ctx, int widget_id, const char text)
	set (copy) the text shown by a syntax view; text may be NULL to clear

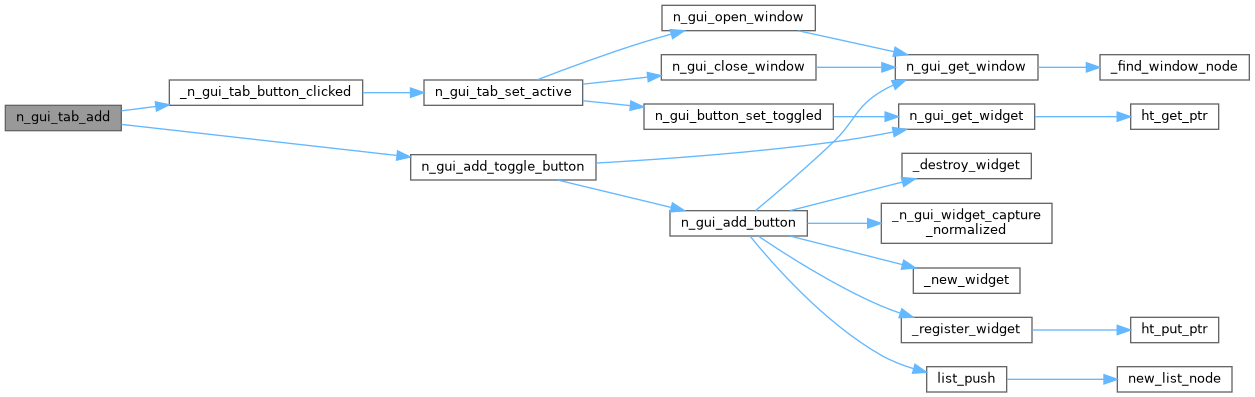

int	n_gui_tab_add (N_GUI_TAB_PANEL panel, const char label)
	add a tab to the panel, returns tab index

N_GUI_TAB_PANEL *	n_gui_tab_create (N_GUI_CTX ctx, int window_id, float x, float y, float button_w, float button_h, void(on_tab_change)(int, void ), void user_data)
	create a tab panel in an existing window

void	n_gui_tab_free (N_GUI_TAB_PANEL **panel)
	free a tab panel (does not destroy the N_GUI widgets)

int	n_gui_tab_get_active (const N_GUI_TAB_PANEL *panel)
	get the active tab index

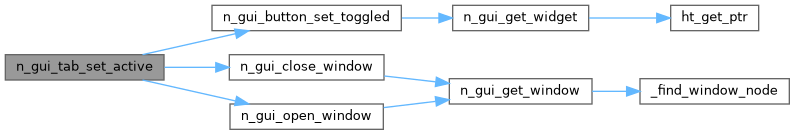

void	n_gui_tab_set_active (N_GUI_TAB_PANEL *panel, int index)
	set the active tab (toggles buttons, opens/closes content windows)

void	n_gui_tab_set_content_window (N_GUI_TAB_PANEL *panel, int tab_index, int window_id)
	associate a content window with a tab

const char *	n_gui_textarea_get_text (N_GUI_CTX *ctx, int widget_id)
	get text area content

size_t	n_gui_textarea_get_text_length (N_GUI_CTX *ctx, int widget_id)
	return the current text length in bytes (0 if widget is invalid)

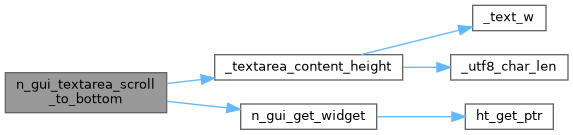

void	n_gui_textarea_scroll_to_bottom (N_GUI_CTX *ctx, int widget_id)
	scroll a multiline textarea to the bottom

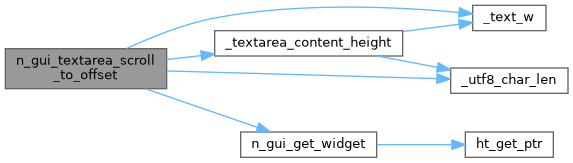

void	n_gui_textarea_scroll_to_offset (N_GUI_CTX *ctx, int widget_id, size_t byte_offset)
	scroll a multiline textarea so that the given byte offset is vertically centered

void	n_gui_textarea_set_bitmap (N_GUI_CTX ctx, int widget_id, ALLEGRO_BITMAP bg)
	set optional background bitmap on a textarea widget.

void	n_gui_textarea_set_mask_char (N_GUI_CTX *ctx, int widget_id, char mask)
	set a mask character for password-style input (e.g.

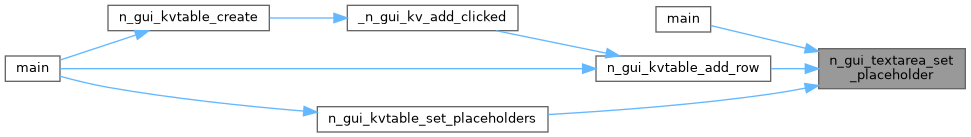

void	n_gui_textarea_set_placeholder (N_GUI_CTX ctx, int widget_id, const char text)
	set placeholder/hint text for a textarea, shown dimmed while the field is empty and cleared from view as soon as the user types.

void	n_gui_textarea_set_selection (N_GUI_CTX *ctx, int widget_id, size_t start, size_t end)
	set the text selection range (byte offsets into text content)

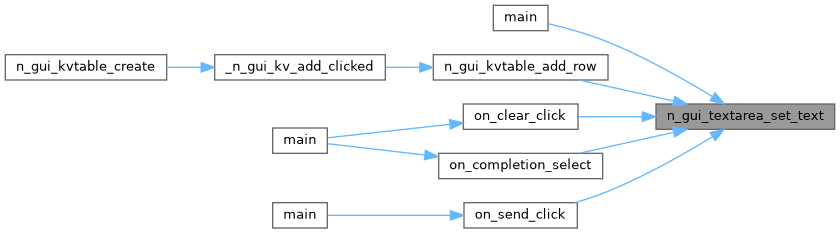

void	n_gui_textarea_set_text (N_GUI_CTX ctx, int widget_id, const char text)
	set text area content

void	n_gui_toggle_window (N_GUI_CTX *ctx, int window_id)
	toggle window visibility (show/hide)

int	n_gui_tooltip_pending (N_GUI_CTX *ctx)
	tooltip phase: 0 = none (or tooltips disabled via style.tooltip_delay <= 0), 1 = arming (hosts with cached GUI renders must keep redrawing so the bubble can appear on time), 2 = shown (static - re-render once on the transition, then stop)

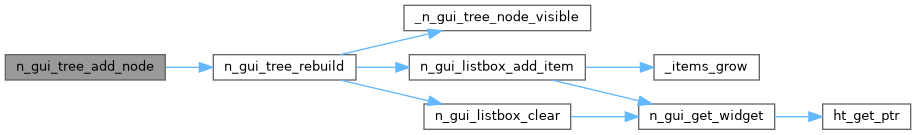

int	n_gui_tree_add_node (N_GUI_TREE tree, const char label, int parent_index, void *user_data)
	add a node to the tree

void	n_gui_tree_clear (N_GUI_TREE *tree)
	remove all nodes and clear the backing listbox; tree object remains valid

N_GUI_TREE *	n_gui_tree_create (N_GUI_CTX ctx, int window_id, float x, float y, float w, float h, void(on_select)(int, void ), void user_data)
	create a tree view in an existing window

void	n_gui_tree_draw_overlay (N_GUI_TREE *tree)
	per-frame overlay drawing: draws the active drop-indicator on top of the listbox.

int	n_gui_tree_find_by_user_data (const N_GUI_TREE tree, const void ptr)
	find the first node whose user_data pointer equals ptr, or -1.

void	n_gui_tree_free (N_GUI_TREE **tree)
	free a tree view (does not destroy the N_GUI listbox)

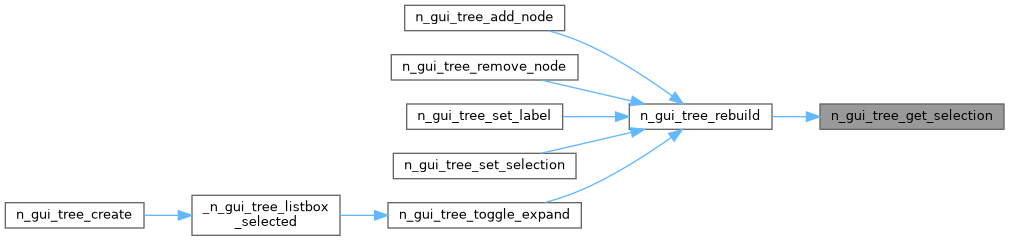

int	n_gui_tree_get_selection (N_GUI_TREE *tree)
	get the index of the currently selected node, or -1 when nothing is selected or the selection points at a hidden row

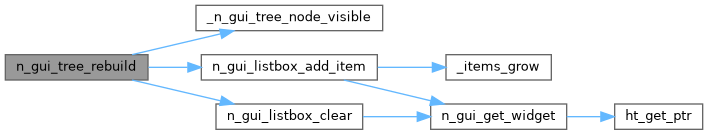

void	n_gui_tree_rebuild (N_GUI_TREE *tree)
	rebuild the listbox to reflect current tree state

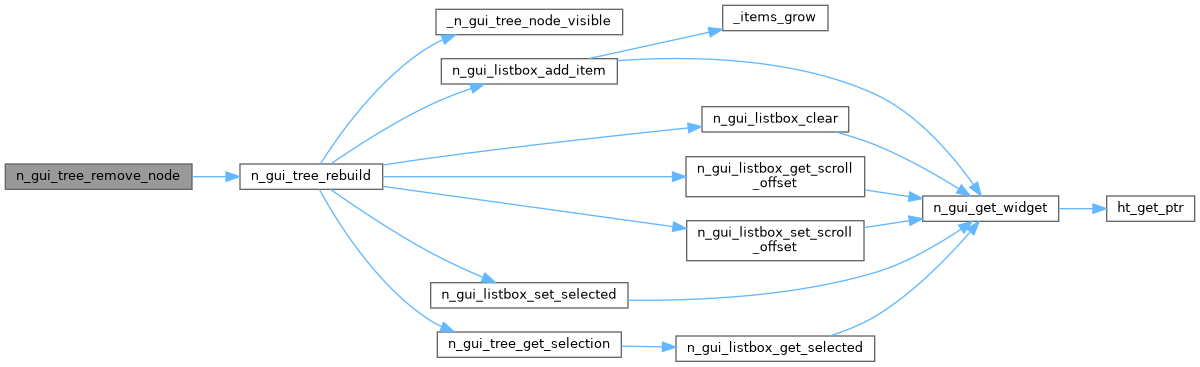

void	n_gui_tree_remove_node (N_GUI_TREE *tree, int node_index)
	remove a node and its entire subtree; remaining node indices are compacted (callers holding indices across the call must discard or re-resolve them)

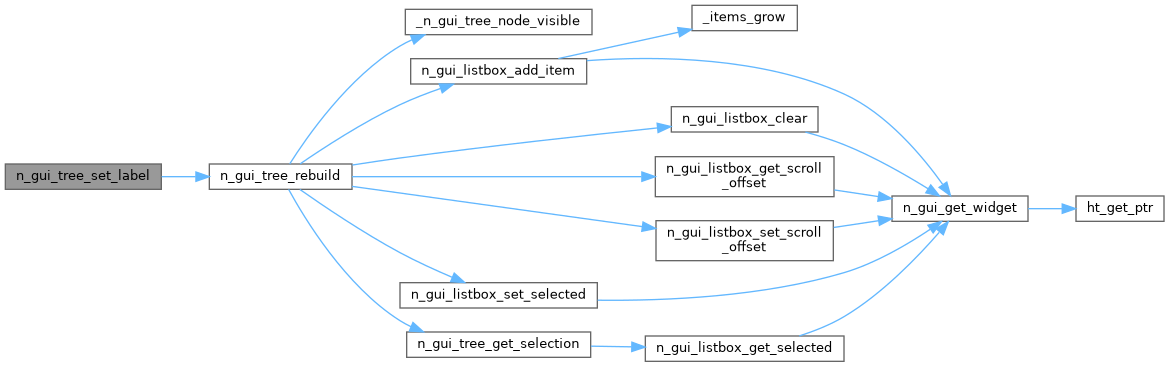

void	n_gui_tree_set_label (N_GUI_TREE tree, int node_index, const char new_label)
	change the display label of a node

void	n_gui_tree_set_on_drop (N_GUI_TREE tree, n_gui_tree_on_drop_t on_drop, void user_data)
	install (or clear, with NULL) a drag-reorder drop callback.

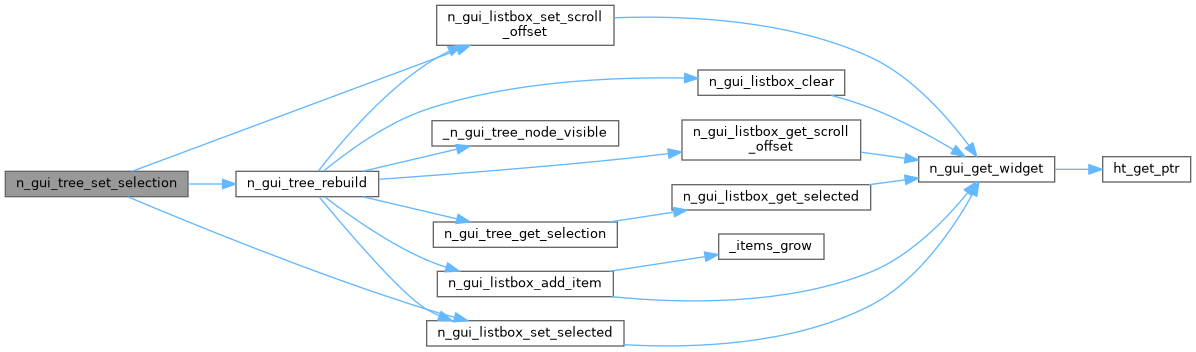

void	n_gui_tree_set_selection (N_GUI_TREE *tree, int node_index)
	programmatically select a node; ancestors are expanded so the node is visible, and the listbox scrolls to reveal it.

void	n_gui_tree_tick (N_GUI_TREE *tree)
	per-frame poll: reads ctx->mouse_* to track drag state and fires the on_drop callback on release.

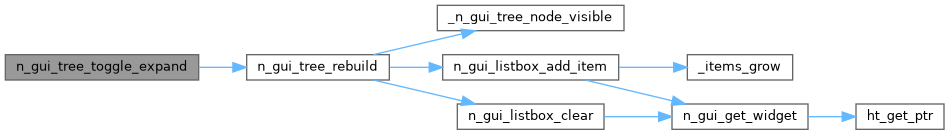

void	n_gui_tree_toggle_expand (N_GUI_TREE *tree, int node_index)
	toggle expand/collapse of a node

void	n_gui_update_transform (N_GUI_CTX *ctx)
	recalculate scale and offset from virtual canvas to display.

int	n_gui_wants_mouse (N_GUI_CTX *ctx)
	check if the mouse is currently over any open GUI window (use to prevent click-through to the game world)

const char *	n_gui_widget_get_persist_key (N_GUI_CTX *ctx, int widget_id)
	Get a widget's persist key ("" when unset), or NULL when the widget is invalid.

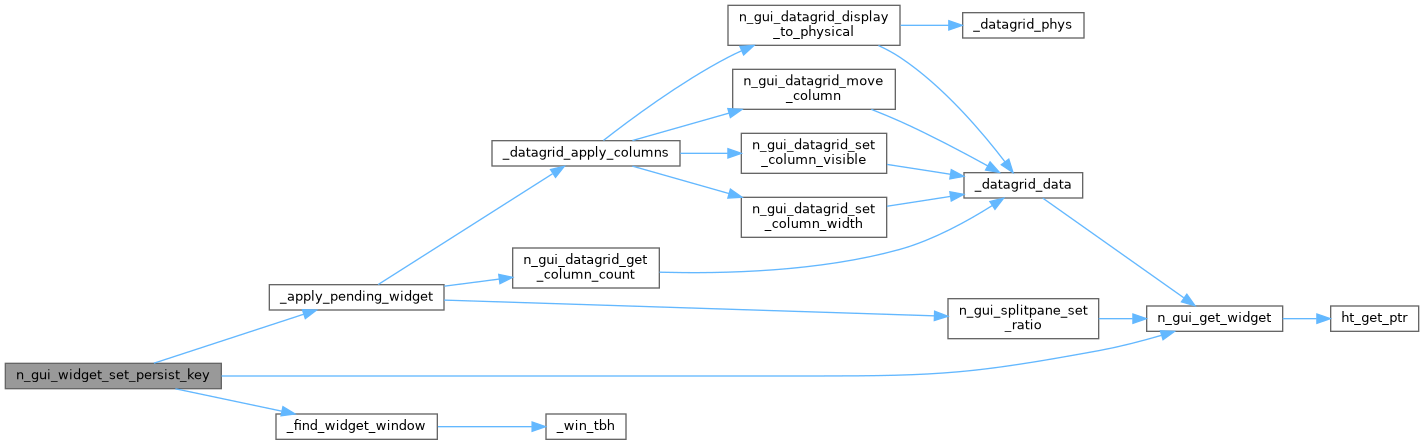

void	n_gui_widget_set_persist_key (N_GUI_CTX ctx, int widget_id, const char key)
	Give a widget a stable key so its user-adjustable state (a splitpane's divider ratio, or a datagrid's column order/visibility/width) is persisted by n_gui_save_layout_json and restored by n_gui_load_layout_json.

void	n_gui_window_apply_autofit (N_GUI_CTX *ctx, int window_id)
	trigger auto-fit recalculation for a window (call after adding/removing/resizing widgets)

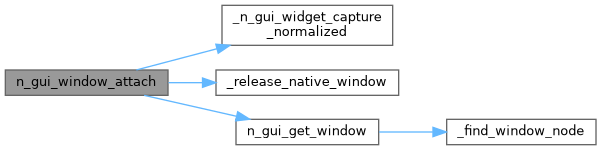

int	n_gui_window_attach (N_GUI_CTX *ctx, int window_id)
	return a detached window to being an in-display pop-up

void	n_gui_window_autosize (N_GUI_CTX *ctx, int window_id)
	recompute and apply minimum-fit size for a window based on its current widgets

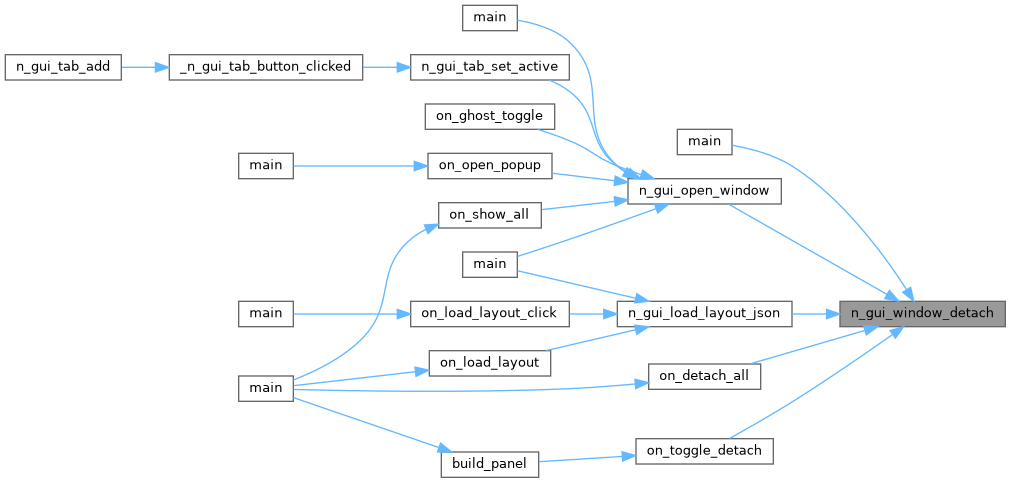

int	n_gui_window_detach (N_GUI_CTX *ctx, int window_id, int detach_flags)
	promote a pop-up window to a native OS window

int	n_gui_window_from_display (N_GUI_CTX ctx, ALLEGRO_DISPLAY display)
	find the window detached into a given display

ALLEGRO_DISPLAY *	n_gui_window_get_display (N_GUI_CTX *ctx, int window_id)
	get the native display backing a window, or NULL when it is a pop-up

int	n_gui_window_get_flags (N_GUI_CTX *ctx, int window_id)
	get feature flags of a window

int	n_gui_window_get_resize_policy (N_GUI_CTX *ctx, int window_id)
	get per-window resize policy

int	n_gui_window_get_zorder (N_GUI_CTX *ctx, int window_id)
	get window z-order mode

int	n_gui_window_get_zvalue (N_GUI_CTX *ctx, int window_id)
	get window z-value (for N_GUI_ZORDER_FIXED mode)

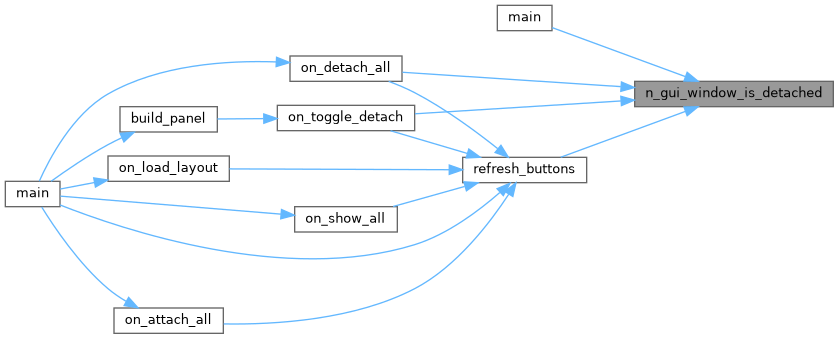

int	n_gui_window_is_detached (N_GUI_CTX *ctx, int window_id)
	check whether a window currently lives in a native OS window

int	n_gui_window_is_maximised (N_GUI_CTX *ctx, int window_id)
	check if a window is currently maximised

int	n_gui_window_is_minimised (N_GUI_CTX *ctx, int window_id)
	check if a window is currently minimised

int	n_gui_window_is_open (N_GUI_CTX *ctx, int window_id)
	check if window is visible

int	n_gui_window_native_is_hidden (N_GUI_CTX *ctx, int window_id)
	check whether a detached window's drawing is currently halted by the OS (Android surface loss) or the window manager has iconified it.

void	n_gui_window_set_autofit (N_GUI_CTX *ctx, int window_id, int autofit_flags, float border)
	configure auto-fit behavior for a dialog window

void	n_gui_window_set_bitmaps (N_GUI_CTX ctx, int window_id, ALLEGRO_BITMAP bg, ALLEGRO_BITMAP *titlebar, int bg_scale_mode)
	set optional bitmap overlays on a window's body and titlebar.

void	n_gui_window_set_close_callback (N_GUI_CTX ctx, int window_id, void(on_close)(int, void ), void user_data)
	set the close button callback for a window (NULL = default: hide window)

void	n_gui_window_set_content_draw_callback (N_GUI_CTX ctx, int window_id, void(on_content_draw)(int, void ), void user_data)
	set a content-draw callback for a window, invoked during n_gui_draw right after the window's own content is drawn (at the window's z-order)

void	n_gui_window_set_flags (N_GUI_CTX *ctx, int window_id, int flags)
	set feature flags on a window (N_GUI_WIN_AUTO_SCROLLBAR, N_GUI_WIN_RESIZABLE, ...)

void	n_gui_window_set_maximize_callback (N_GUI_CTX ctx, int window_id, void(on_maximize)(int, void ), void user_data)
	set the maximize button callback for a window (NULL = default: toggle maximised)

void	n_gui_window_set_minimize_callback (N_GUI_CTX ctx, int window_id, void(on_minimize)(int, void ), void user_data)
	set the minimize button callback for a window (NULL = default: toggle minimised)

int	n_gui_window_set_native_icons (N_GUI_CTX ctx, int window_id, ALLEGRO_BITMAP *icons, int num_icons)
	give a detached window's OS window a taskbar / title bar icon

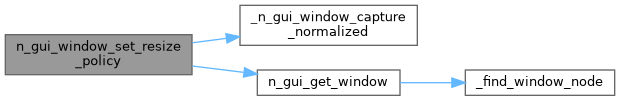

void	n_gui_window_set_resize_policy (N_GUI_CTX *ctx, int window_id, int policy)
	set per-window resize policy (N_GUI_WIN_RESIZE_NONE / _MOVE / _SCALE).

void	n_gui_window_set_tb_btn_theme (N_GUI_CTX *ctx, int window_id, N_GUI_THEME theme)
	set the theme for titlebar minimize/maximize buttons on a specific window

void	n_gui_window_set_tb_button_bitmaps (N_GUI_CTX ctx, int window_id, int btn_type, ALLEGRO_BITMAP normal, ALLEGRO_BITMAP hover, ALLEGRO_BITMAP active)
	set optional bitmap overlays on a titlebar button

void	n_gui_window_set_tb_close_theme (N_GUI_CTX *ctx, int window_id, N_GUI_THEME theme)
	set the theme for the titlebar close button on a specific window

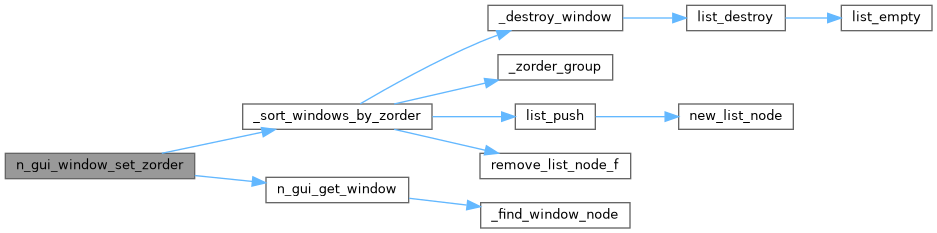

void	n_gui_window_set_zorder (N_GUI_CTX *ctx, int window_id, int z_mode, int z_value)
	set window z-order mode and value

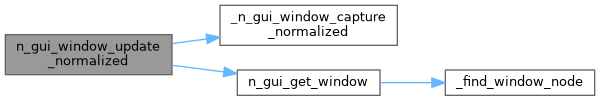

void	n_gui_window_update_normalized (N_GUI_CTX *ctx, int window_id)
	recapture normalized coordinates for a window from its current absolute position/size.

Detailed Description

Bitmap Skinning

All widgets support optional bitmap overlays for visual customization. By default, every bitmap pointer is NULL and the standard color theme is used. To skin a widget element, call the corresponding _set_bitmaps() function after widget creation.

Bitmaps are NOT owned by N_GUI, the caller is responsible for loading and destroying them. N_GUI only stores the pointer.

Fallback Chain

For widgets with per-state bitmaps (normal/hover/active):

If the state-specific bitmap is NULL, the normal bitmap is used.
If the normal bitmap is also NULL, the color theme is used.

Supported Widgets

Windows: body background, titlebar background (n_gui_window_set_bitmaps())
Buttons: already supported via n_gui_add_button_bitmap()
Sliders: track, fill, handle with per-state variants (n_gui_slider_set_bitmaps())
Scrollbars: track, thumb with per-state variants (n_gui_scrollbar_set_bitmaps())
Checkboxes: box unchecked, box checked, box hover (n_gui_checkbox_set_bitmaps())
Textareas: background (n_gui_textarea_set_bitmap())
Listbox/Radiolist/Combobox: background, item background, item selected
Dropmenus: panel background, item hover (n_gui_dropmenu_set_bitmaps())
Labels: background (n_gui_label_set_bitmap())

JSON Theme

Bitmap assignments are programmatic (via setter functions), not part of the JSON theme file. The JSON theme remains the color/layout fallback.

Data Structure Documentation

◆ N_GUI_BUTTON_DATA

struct N_GUI_BUTTON_DATA

button specific data

Definition at line 380 of file n_gui.h.

Collaboration diagram for N_GUI_BUTTON_DATA:

Data Fields
ALLEGRO_BITMAP *	bitmap
	optional bitmap for the button (NULL = color theme)

ALLEGRO_BITMAP *	bitmap_active
	optional bitmap for active/pressed state

ALLEGRO_BITMAP *	bitmap_hover
	optional bitmap for hover state

int	key_focus_only
	if 1, keycode fires only when the button itself or a source widget has focus.

int	key_modifiers
	required modifier key flags for the keybind (0 = no modifier requirement, matches any modifier state for backward compatibility).

double	key_press_until
	absolute al_get_time() deadline until which the button is rendered in its pressed (N_GUI_STATE_ACTIVE) visual state after a keybind trigger.

int	key_sources [8]
	widget IDs that can trigger this focused key binding.

int	keycode
	bound keyboard keycode (0 = none).

char	label [128]
	label displayed on the button

void(*	on_click )(int widget_id, void *user_data)
	callback on click (widget_id passed)

int	shape
	shape type: N_GUI_SHAPE_RECT, N_GUI_SHAPE_ROUNDED, N_GUI_SHAPE_BITMAP

int	toggle_mode
	toggle mode: 0 = momentary (default), 1 = toggle (stays clicked/unclicked)

int	toggled
	toggle state: 0 = off/unclicked, 1 = on/clicked (only used when toggle_mode=1)

void *	user_data
	user data for callback

Field Documentation

◆ bitmap

ALLEGRO_BITMAP* N_GUI_BUTTON_DATA::bitmap

optional bitmap for the button (NULL = color theme)

Definition at line 384 of file n_gui.h.

Referenced by _draw_button(), n_gui_add_button(), n_gui_add_button_bitmap(), and n_gui_button_set_state_bitmaps().

◆ bitmap_active

ALLEGRO_BITMAP* N_GUI_BUTTON_DATA::bitmap_active

optional bitmap for active/pressed state

Definition at line 388 of file n_gui.h.

Referenced by _draw_button(), n_gui_add_button(), n_gui_add_button_bitmap(), and n_gui_button_set_state_bitmaps().

◆ bitmap_hover

ALLEGRO_BITMAP* N_GUI_BUTTON_DATA::bitmap_hover

optional bitmap for hover state

Definition at line 386 of file n_gui.h.

Referenced by _draw_button(), n_gui_add_button(), n_gui_add_button_bitmap(), and n_gui_button_set_state_bitmaps().

◆ key_focus_only

int N_GUI_BUTTON_DATA::key_focus_only

if 1, keycode fires only when the button itself or a source widget has focus.

if 0 (default), keycode fires globally when no interactive widget has focus.

Definition at line 406 of file n_gui.h.

Referenced by n_gui_button_set_keycode_focused(), and n_gui_process_event().

◆ key_modifiers

int N_GUI_BUTTON_DATA::key_modifiers

required modifier key flags for the keybind (0 = no modifier requirement, matches any modifier state for backward compatibility).

Use ALLEGRO_KEYMOD_SHIFT, ALLEGRO_KEYMOD_CTRL, ALLEGRO_KEYMOD_ALT, ALLEGRO_KEYMOD_ALTGR ORed together. When non-zero, only the specified modifier combination triggers the keybind (exact match on N_GUI_KEY_MOD_MASK bits).

Definition at line 403 of file n_gui.h.

Referenced by n_gui_add_button(), n_gui_button_set_keycode(), n_gui_button_set_keycode_focused(), and n_gui_process_event().

◆ key_press_until

double N_GUI_BUTTON_DATA::key_press_until

absolute al_get_time() deadline until which the button is rendered in its pressed (N_GUI_STATE_ACTIVE) visual state after a keybind trigger.

0.0 = no pending key-press flash.

Definition at line 413 of file n_gui.h.

Referenced by _draw_button(), and n_gui_process_event().

◆ key_sources

int N_GUI_BUTTON_DATA::key_sources[8]

widget IDs that can trigger this focused key binding.

Terminated by -1. Only used when key_focus_only == 1. Up to N_GUI_KEY_SOURCES_MAX entries.

Definition at line 409 of file n_gui.h.

Referenced by n_gui_button_set_keycode_focused(), and n_gui_process_event().

◆ keycode

int N_GUI_BUTTON_DATA::keycode

bound keyboard keycode (0 = none).

When this key is pressed and no text input widget has focus, the button's on_click callback is triggered.

Definition at line 397 of file n_gui.h.

Referenced by n_gui_add_button(), n_gui_button_set_keycode(), n_gui_button_set_keycode_focused(), and n_gui_process_event().

◆ label

char N_GUI_BUTTON_DATA::label[128]

label displayed on the button

Definition at line 382 of file n_gui.h.

Referenced by _draw_button(), n_gui_add_button(), and n_gui_button_set_label().

◆ on_click

void(* N_GUI_BUTTON_DATA::on_click) (int widget_id, void *user_data)

callback on click (widget_id passed)

Definition at line 415 of file n_gui.h.

Referenced by n_gui_add_button(), and n_gui_process_event().

◆ shape

int N_GUI_BUTTON_DATA::shape

shape type: N_GUI_SHAPE_RECT, N_GUI_SHAPE_ROUNDED, N_GUI_SHAPE_BITMAP

Definition at line 390 of file n_gui.h.

Referenced by _draw_button(), n_gui_add_button(), and n_gui_button_set_state_bitmaps().

◆ toggle_mode

int N_GUI_BUTTON_DATA::toggle_mode

toggle mode: 0 = momentary (default), 1 = toggle (stays clicked/unclicked)

Definition at line 392 of file n_gui.h.

Referenced by _draw_button(), n_gui_add_button(), n_gui_add_toggle_button(), n_gui_button_set_toggle_mode(), and n_gui_process_event().

◆ toggled

int N_GUI_BUTTON_DATA::toggled

toggle state: 0 = off/unclicked, 1 = on/clicked (only used when toggle_mode=1)

Definition at line 394 of file n_gui.h.

Referenced by _draw_button(), n_gui_add_button(), n_gui_add_toggle_button(), n_gui_button_set_toggle_mode(), and n_gui_process_event().

◆ user_data

void* N_GUI_BUTTON_DATA::user_data

user data for callback

Definition at line 417 of file n_gui.h.

Referenced by n_gui_add_button(), and n_gui_process_event().

◆ N_GUI_CHECKBOX_DATA

struct N_GUI_CHECKBOX_DATA

checkbox specific data

Definition at line 501 of file n_gui.h.

Collaboration diagram for N_GUI_CHECKBOX_DATA:

Data Fields
ALLEGRO_BITMAP *	box_bitmap
	optional bitmap for the checkbox square, unchecked state (NULL = color theme)

ALLEGRO_BITMAP *	box_checked_bitmap
	optional bitmap for the checkbox square, checked state (NULL = color theme)

ALLEGRO_BITMAP *	box_hover_bitmap
	optional bitmap for the checkbox square on hover (NULL = fallback to box_bitmap/box_checked_bitmap)

int	checked
	checked state

char	label [128]
	label displayed next to the checkbox

void(*	on_toggle )(int widget_id, int checked, void *user_data)
	callback on toggle

void *	user_data
	user data for callback

Field Documentation

◆ box_bitmap

ALLEGRO_BITMAP* N_GUI_CHECKBOX_DATA::box_bitmap

optional bitmap for the checkbox square, unchecked state (NULL = color theme)

Definition at line 507 of file n_gui.h.

Referenced by _draw_checkbox(), and n_gui_checkbox_set_bitmaps().

◆ box_checked_bitmap

ALLEGRO_BITMAP* N_GUI_CHECKBOX_DATA::box_checked_bitmap

optional bitmap for the checkbox square, checked state (NULL = color theme)

Definition at line 509 of file n_gui.h.

Referenced by _draw_checkbox(), and n_gui_checkbox_set_bitmaps().

◆ box_hover_bitmap

ALLEGRO_BITMAP* N_GUI_CHECKBOX_DATA::box_hover_bitmap

optional bitmap for the checkbox square on hover (NULL = fallback to box_bitmap/box_checked_bitmap)

Definition at line 511 of file n_gui.h.

Referenced by _draw_checkbox(), and n_gui_checkbox_set_bitmaps().

◆ checked

int N_GUI_CHECKBOX_DATA::checked

checked state

Definition at line 505 of file n_gui.h.

Referenced by _draw_checkbox(), n_gui_add_checkbox(), and n_gui_process_event().

◆ label

char N_GUI_CHECKBOX_DATA::label[128]

label displayed next to the checkbox

Definition at line 503 of file n_gui.h.

Referenced by _draw_checkbox(), and n_gui_add_checkbox().

◆ on_toggle

void(* N_GUI_CHECKBOX_DATA::on_toggle) (int widget_id, int checked, void *user_data)

callback on toggle

Definition at line 513 of file n_gui.h.

Referenced by n_gui_add_checkbox(), and n_gui_process_event().

◆ user_data

void* N_GUI_CHECKBOX_DATA::user_data

user data for callback

Definition at line 515 of file n_gui.h.

Referenced by n_gui_add_checkbox(), and n_gui_process_event().

◆ N_GUI_COMBOBOX_DATA

struct N_GUI_COMBOBOX_DATA

combo box specific data

Examples: ex_gui_dropmenu.c.

Definition at line 746 of file n_gui.h.

Collaboration diagram for N_GUI_COMBOBOX_DATA:

Data Fields
ALLEGRO_BITMAP *	bg_bitmap
	optional bitmap for the combobox background (NULL = color theme)

int	flags
	bitmask of N_GUI_COMBOBOX_* flags

int	highlight_index
	open-panel navigation cursor for the wheel and Up/Down keys (-1 = none).

int	is_open
	is dropdown currently open

ALLEGRO_BITMAP *	item_bg_bitmap
	optional bitmap for per-item background, normal state (NULL = color theme)

float	item_height
	item height in dropdown

ALLEGRO_BITMAP *	item_selected_bitmap
	optional bitmap for per-item background, selected/highlighted (NULL = color theme)

N_GUI_LISTITEM *	items
	dynamic array of items

size_t	items_capacity
	allocated capacity

int	max_visible
	max visible items in dropdown

size_t	nb_items
	number of items

void(*	on_select )(int widget_id, int index, void *user_data)
	callback on selection change (widget_id, selected_index, user_data)

int	scroll_offset
	scroll offset in dropdown

int	selected_index
	currently selected index (-1 = none)

void *	user_data
	user data for callback

Field Documentation

◆ bg_bitmap

ALLEGRO_BITMAP* N_GUI_COMBOBOX_DATA::bg_bitmap

optional bitmap for the combobox background (NULL = color theme)

Definition at line 769 of file n_gui.h.

Referenced by _draw_combobox(), _draw_combobox_dropdown(), and n_gui_combobox_set_bitmaps().

◆ flags

int N_GUI_COMBOBOX_DATA::flags

bitmask of N_GUI_COMBOBOX_* flags

Definition at line 779 of file n_gui.h.

Referenced by _draw_combobox_dropdown(), n_gui_add_combobox(), n_gui_combobox_set_flags(), and n_gui_process_event().

◆ highlight_index

int N_GUI_COMBOBOX_DATA::highlight_index

open-panel navigation cursor for the wheel and Up/Down keys (-1 = none).

While the dropdown is open, the wheel and arrow keys move this; hovering the panel sets it to the item under the pointer; Enter or a click commits it to selected_index. Reset to -1 when the panel closes.

Examples: ex_gui_dropmenu.c.

Definition at line 763 of file n_gui.h.

Referenced by _draw_combobox_dropdown(), main(), n_gui_add_combobox(), n_gui_combobox_clear(), and n_gui_process_event().

◆ is_open

int N_GUI_COMBOBOX_DATA::is_open

is dropdown currently open

Examples: ex_gui_dropmenu.c.

Definition at line 756 of file n_gui.h.

Referenced by _draw_combobox_dropdown(), main(), n_gui_add_combobox(), n_gui_combobox_clear(), and n_gui_process_event().

◆ item_bg_bitmap

ALLEGRO_BITMAP* N_GUI_COMBOBOX_DATA::item_bg_bitmap

optional bitmap for per-item background, normal state (NULL = color theme)

Definition at line 771 of file n_gui.h.

Referenced by _draw_combobox_dropdown(), and n_gui_combobox_set_bitmaps().

◆ item_height

float N_GUI_COMBOBOX_DATA::item_height

item height in dropdown

Definition at line 765 of file n_gui.h.

Referenced by _draw_combobox_dropdown(), n_gui_add_combobox(), and n_gui_process_event().

◆ item_selected_bitmap

ALLEGRO_BITMAP* N_GUI_COMBOBOX_DATA::item_selected_bitmap

optional bitmap for per-item background, selected/highlighted (NULL = color theme)

Definition at line 773 of file n_gui.h.

Referenced by _draw_combobox_dropdown(), and n_gui_combobox_set_bitmaps().

◆ items

N_GUI_LISTITEM* N_GUI_COMBOBOX_DATA::items

dynamic array of items

Definition at line 748 of file n_gui.h.

Referenced by _destroy_widget(), _draw_combobox(), _draw_combobox_dropdown(), n_gui_add_combobox(), n_gui_combobox_add_item(), n_gui_combobox_clear(), n_gui_combobox_get_item_text(), and n_gui_process_event().

◆ items_capacity

size_t N_GUI_COMBOBOX_DATA::items_capacity

allocated capacity

Definition at line 752 of file n_gui.h.

Referenced by n_gui_add_combobox(), and n_gui_combobox_add_item().

◆ max_visible

int N_GUI_COMBOBOX_DATA::max_visible

max visible items in dropdown

Examples: ex_gui_dropmenu.c.

Definition at line 767 of file n_gui.h.

Referenced by _draw_combobox_dropdown(), main(), n_gui_add_combobox(), and n_gui_process_event().

◆ nb_items

size_t N_GUI_COMBOBOX_DATA::nb_items

number of items

Definition at line 750 of file n_gui.h.

Referenced by _draw_combobox(), _draw_combobox_dropdown(), n_gui_add_combobox(), n_gui_combobox_add_item(), n_gui_combobox_clear(), and n_gui_process_event().

◆ on_select

void(* N_GUI_COMBOBOX_DATA::on_select) (int widget_id, int index, void *user_data)

callback on selection change (widget_id, selected_index, user_data)

Definition at line 775 of file n_gui.h.

Referenced by n_gui_add_combobox(), and n_gui_process_event().

◆ scroll_offset

int N_GUI_COMBOBOX_DATA::scroll_offset

scroll offset in dropdown

Definition at line 758 of file n_gui.h.

Referenced by _draw_combobox_dropdown(), n_gui_add_combobox(), n_gui_combobox_clear(), and n_gui_process_event().

◆ selected_index

int N_GUI_COMBOBOX_DATA::selected_index

currently selected index (-1 = none)

Examples: ex_gui_dropmenu.c.

Definition at line 754 of file n_gui.h.

Referenced by _draw_combobox(), _draw_combobox_dropdown(), main(), n_gui_add_combobox(), n_gui_combobox_clear(), n_gui_combobox_set_selected(), and n_gui_process_event().

◆ user_data

void* N_GUI_COMBOBOX_DATA::user_data

user data for callback

Definition at line 777 of file n_gui.h.

Referenced by n_gui_add_combobox(), and n_gui_process_event().

◆ N_GUI_CTX

struct N_GUI_CTX

The top-level GUI context that holds all windows.

Definition at line 1354 of file n_gui.h.

Collaboration diagram for N_GUI_CTX:

Data Fields
ALLEGRO_DISPLAY *	active_display	display that last received input, used to pick the display for clipboard and mouse-cursor calls. NULL falls back to N_GUI_CTX::display.
double	anim_until	deadline (al_get_time seconds) until which a transient animation is in progress (button key-press flash, tooltip reveal): n_gui_needs_redraw keeps returning non-zero until then. 0 when no timed animation is pending.
int	cursor_shape	system mouse cursor currently applied to the display (an ALLEGRO_SYSTEM_MOUSE_CURSOR_* value), so a horizontal-resize cursor is set over a datagrid column border and reset elsewhere without redundant calls
ALLEGRO_FONT *	default_font	default font (must be set before adding widgets)
N_GUI_THEME	default_tb_btn_theme	default theme for titlebar minimize/maximize buttons
N_GUI_THEME	default_tb_close_theme	default theme for titlebar close button
N_GUI_THEME	default_theme	default theme (applied to new widgets/windows)
int	dirty	non-zero when the GUI's appearance may have changed since the last n_gui_draw. Set by widget/window creation, by input events that can change state, and by n_gui_mark_dirty; cleared at the end of n_gui_draw. Read via n_gui_needs_redraw so an event-driven host can skip drawing an unchanged, non-animating GUI. Initialised to 1 so the first frame draws.
ALLEGRO_DISPLAY *	display	display pointer for clipboard operations (set via n_gui_set_display)
float	display_h	display/viewport height
float	display_w	display/viewport width (set via n_gui_set_display_size)
float	dpi_scale	DPI scale factor (1.0 = normal, 1.25 = 125%, 2.0 = HiDPI, etc.)
ALLEGRO_EVENT_QUEUE *	event_queue	event queue the context registers native window event sources into (set via n_gui_set_event_queue). Required by n_gui_window_detach.
int	focused_widget_id	id of the widget that currently has focus, or -1
int	global_hscroll_drag	1 if global scrollbar horizontal thumb is being dragged
float	global_scroll_x	global horizontal scroll offset (when GUI exceeds display)
float	global_scroll_y	global vertical scroll offset (when GUI exceeds display)
int	global_vscroll_drag	1 if global scrollbar vertical thumb is being dragged
float	gui_bounds_h	total bounding box height of all windows (computed internally)
float	gui_bounds_w	total bounding box width of all windows (computed internally)
float	gui_offset_x	horizontal letterbox offset for virtual canvas
float	gui_offset_y	vertical letterbox offset for virtual canvas
float	gui_scale	computed uniform scale factor for virtual canvas
int	mouse_b1	mouse button 1 state
int	mouse_b1_prev	previous mouse button 1 state
int	mouse_x	mouse state tracking
int	mouse_y	mouse state tracking
int	next_widget_id	next widget id to assign
int	next_window_id	next window id to assign
int	open_combobox_id	id of the combobox whose dropdown is currently open, or -1
int	open_dropmenu_id	id of the dropdown menu whose panel is currently open, or -1
ALLEGRO_DISPLAY *	pass_display	display the pass currently being processed or drawn belongs to: NULL for the host's main display (and for the headless case), or a detached window's native display. Internal, maintained by n_gui_process_event and n_gui_draw / n_gui_draw_detached. A window takes part in the pass when its N_GUI_WINDOW::native equals this, so with no detached window every pass is the main one and behaviour is unchanged.
N_GUI_PENDING_GEOM *	pending_layout	layout entries for windows that did NOT exist when the saved layout was loaded (lazily-created panels). n_gui_add_window applies the saved (x,y) to the first window created later with a matching title, giving cross-session position restore without eager-creating every window. Owned by the ctx; freed in n_gui_destroy_ctx.
int	pending_layout_count	number of valid entries in pending_layout
N_GUI_PENDING_WIDGET *	pending_widgets	saved widget state for keyed widgets that did NOT exist when the layout was loaded; n_gui_widget_set_persist_key applies the first matching entry (by owning window title + key) to the widget being keyed. Owned by the ctx; freed in n_gui_destroy_ctx.
int	pending_widgets_count	number of valid entries in pending_widgets
int	prev_over_win	whether the pointer was over a window on the previous motion event, so a motion that leaves the GUI still forces one redraw to clear hover state.
float	ref_display_h	reference display height at the time normalized values were last captured
float	ref_display_w	reference display width at the time normalized values were last captured
int	resize_mode	context resize mode: N_GUI_RESIZE_VIRTUAL or N_GUI_RESIZE_ADAPTIVE
int	scrollbar_drag_widget_id	id of the widget whose scrollbar is being dragged, or -1
int	selected_label_id	id of the label widget with the most recent text selection, or -1
int	selected_syntaxview_id	id of the syntax-view widget with the most recent text selection, or -1
N_GUI_STYLE	style	configurable style (sizes, colours, paddings)
int	tooltip_anchor_x	pointer x when the tooltip was last armed (movement re-arms)
int	tooltip_anchor_y	pointer y when the tooltip was last armed
double	tooltip_armed_at	time the tooltip hover was (re)armed, from al_get_time()
int	tooltip_widget_id	widget the pointer is resting on for tooltip purposes (-1 = none)
float	virtual_h	virtual canvas height (0 = disabled / identity transform)
float	virtual_w	virtual canvas width (0 = disabled / identity transform)
HASH_TABLE *	widgets_by_id	hash table for fast widget lookup by id
LIST *	windows	ordered list of N_GUI_WINDOW* (back to front)

◆ N_GUI_CUSTOM_DATA

struct N_GUI_CUSTOM_DATA

Owner-draw custom widget data: a paint callback plus its user pointer.

Definition at line 937 of file n_gui.h.

Collaboration diagram for N_GUI_CUSTOM_DATA:

Data Fields
N_GUI_CUSTOM_DRAW	draw	paint callback invoked during n_gui_draw (NULL = draw nothing)
void *	user_data	opaque user pointer handed back to the callback (not owned by n_gui)

◆ N_GUI_DATAGRID_COL

struct N_GUI_DATAGRID_COL

one data grid column definition

Definition at line 639 of file n_gui.h.

Collaboration diagram for N_GUI_DATAGRID_COL:

Data Fields
char	title[128]	column header title
int	visible	1 = drawn, 0 = hidden (kept in storage, skipped in the header and rows)
float	width	column width in pixels

◆ N_GUI_DATAGRID_DATA

struct N_GUI_DATAGRID_DATA

data grid specific data: a sortable column table

Definition at line 649 of file n_gui.h.

Collaboration diagram for N_GUI_DATAGRID_DATA:

Data Fields
int	anchor_row
	anchor row for Shift-click range selection, or -1

char **	cells
	row-major cell strings (nb_rows * nb_cols owned char*)

size_t *	col_order
	display order: display_pos -> physical column index (sized cols_cap), or NULL when the display order is still the identity

int	col_resize_col
	physical column being resized by a header-border drag, or -1

float	col_resize_w0
	original width of the column at the start of a resize drag

float	col_resize_x0
	cursor x at the start of a column-resize drag

N_GUI_DATAGRID_COL *	cols
	column definitions (physical/storage order; cells are indexed by these)

size_t	cols_cap
	allocated column capacity

float	h_scroll
	horizontal scroll offset in pixels: how far the columns are scrolled to the left when their total width exceeds the widget's pane.

int	h_scroll_dragging
	1 while the user is dragging the horizontal scrollbar thumb (so the shared scrollbar-drag handler routes the drag to h_scroll, not the vertical scroll).

int	multiselect
	1 = multi-row selection enabled (Ctrl/Shift-click), 0 = single-select

size_t	nb_cols
	number of columns

size_t	nb_rows
	number of rows

void(*	on_columns_changed )(int widget_id, void *user_data)
	callback fired after the user resizes a column by dragging its header border (widget_id, user_data), so the host can persist the new layout.

void(*	on_context )(int widget_id, int row, int x, int y, void *user_data)
	callback on right-click over a data row, for a context menu (widget_id, row, x, y, user_data); x/y are the cursor position in GUI coordinates so the caller can place a popup there.

void(*	on_select )(int widget_id, int row, void *user_data)
	callback on row selection (widget_id, row, user_data)

ALLEGRO_COLOR *	row_color
	per-row background tint, sized rows_cap; NULL until a row color is set

unsigned char *	row_has_color
	per-row tint flags (1 = row_color[row] is painted), sized rows_cap; NULL until a row color is set

unsigned char *	row_sel
	per-row selection flags (1 = selected), sized rows_cap; NULL until needed

size_t	rows_cap
	allocated row capacity (in rows)

int	scroll_offset
	first visible data row

int	selected_row
	selected data row (the primary / last-clicked row), or -1

int	sort_col
	column index used for sorting, or -1

int	sort_dir
	sort direction: 1 ascending, -1 descending

void *	user_data
	user data for callback

Field Documentation

◆ anchor_row

int N_GUI_DATAGRID_DATA::anchor_row

anchor row for Shift-click range selection, or -1

Definition at line 686 of file n_gui.h.

Referenced by n_gui_add_datagrid(), n_gui_datagrid_clear_rows(), n_gui_datagrid_clear_selection(), n_gui_datagrid_select_row(), n_gui_datagrid_set_multiselect(), n_gui_datagrid_sort(), and n_gui_process_event().

◆ cells

char** N_GUI_DATAGRID_DATA::cells

row-major cell strings (nb_rows * nb_cols owned char*)

Definition at line 670 of file n_gui.h.

Referenced by _destroy_widget(), _draw_datagrid(), n_gui_add_datagrid(), n_gui_datagrid_add_row(), n_gui_datagrid_clear_rows(), n_gui_datagrid_get_cell(), and n_gui_datagrid_sort().

◆ col_order

size_t* N_GUI_DATAGRID_DATA::col_order

display order: display_pos -> physical column index (sized cols_cap), or NULL when the display order is still the identity

Definition at line 658 of file n_gui.h.

Referenced by _datagrid_phys(), _destroy_widget(), n_gui_add_datagrid(), n_gui_datagrid_add_column(), and n_gui_datagrid_move_column().

◆ col_resize_col

int N_GUI_DATAGRID_DATA::col_resize_col

physical column being resized by a header-border drag, or -1

Definition at line 660 of file n_gui.h.

Referenced by n_gui_add_datagrid(), and n_gui_process_event().

◆ col_resize_w0

float N_GUI_DATAGRID_DATA::col_resize_w0

original width of the column at the start of a resize drag

Definition at line 664 of file n_gui.h.

Referenced by n_gui_add_datagrid(), and n_gui_process_event().

◆ col_resize_x0

float N_GUI_DATAGRID_DATA::col_resize_x0

cursor x at the start of a column-resize drag

Definition at line 662 of file n_gui.h.

Referenced by n_gui_add_datagrid(), and n_gui_process_event().

◆ cols

N_GUI_DATAGRID_COL* N_GUI_DATAGRID_DATA::cols

column definitions (physical/storage order; cells are indexed by these)

Definition at line 651 of file n_gui.h.

Referenced by _datagrid_hmetrics(), _datagrid_resize_hover(), _destroy_widget(), _draw_datagrid(), n_gui_add_datagrid(), n_gui_datagrid_add_column(), n_gui_datagrid_get_column_title(), n_gui_datagrid_get_column_visible(), n_gui_datagrid_get_column_width(), n_gui_datagrid_set_column_visible(), n_gui_datagrid_set_column_width(), and n_gui_process_event().

◆ cols_cap

size_t N_GUI_DATAGRID_DATA::cols_cap

allocated column capacity

Definition at line 655 of file n_gui.h.

Referenced by n_gui_add_datagrid(), and n_gui_datagrid_add_column().

◆ h_scroll

float N_GUI_DATAGRID_DATA::h_scroll

horizontal scroll offset in pixels: how far the columns are scrolled to the left when their total width exceeds the widget's pane.

0 = leftmost.

Definition at line 696 of file n_gui.h.

Referenced by _datagrid_resize_hover(), _draw_datagrid(), n_gui_add_datagrid(), and n_gui_process_event().

◆ h_scroll_dragging

int N_GUI_DATAGRID_DATA::h_scroll_dragging

1 while the user is dragging the horizontal scrollbar thumb (so the shared scrollbar-drag handler routes the drag to h_scroll, not the vertical scroll).

Definition at line 699 of file n_gui.h.

Referenced by n_gui_add_datagrid(), and n_gui_process_event().

◆ multiselect

int N_GUI_DATAGRID_DATA::multiselect

1 = multi-row selection enabled (Ctrl/Shift-click), 0 = single-select

Definition at line 682 of file n_gui.h.

Referenced by _draw_datagrid(), n_gui_add_datagrid(), n_gui_datagrid_get_selected_rows(), n_gui_datagrid_is_row_selected(), n_gui_datagrid_set_multiselect(), and n_gui_process_event().

◆ nb_cols

size_t N_GUI_DATAGRID_DATA::nb_cols

◆ nb_rows

size_t N_GUI_DATAGRID_DATA::nb_rows

◆ on_columns_changed

void(* N_GUI_DATAGRID_DATA::on_columns_changed) (int widget_id, void *user_data)

callback fired after the user resizes a column by dragging its header border (widget_id, user_data), so the host can persist the new layout.

NULL disables it.

Definition at line 668 of file n_gui.h.

Referenced by n_gui_add_datagrid(), n_gui_datagrid_set_on_columns_changed(), and n_gui_process_event().

◆ on_context

void(* N_GUI_DATAGRID_DATA::on_context) (int widget_id, int row, int x, int y, void *user_data)

callback on right-click over a data row, for a context menu (widget_id, row, x, y, user_data); x/y are the cursor position in GUI coordinates so the caller can place a popup there.

NULL disables it.

Definition at line 705 of file n_gui.h.

Referenced by n_gui_add_datagrid(), and n_gui_process_event().

◆ on_select

void(* N_GUI_DATAGRID_DATA::on_select) (int widget_id, int row, void *user_data)

callback on row selection (widget_id, row, user_data)

Definition at line 701 of file n_gui.h.

Referenced by n_gui_add_datagrid(), n_gui_datagrid_set_selected(), and n_gui_process_event().

◆ row_color

ALLEGRO_COLOR* N_GUI_DATAGRID_DATA::row_color

per-row background tint, sized rows_cap; NULL until a row color is set

Definition at line 688 of file n_gui.h.

Referenced by _datagrid_ensure_colors(), _destroy_widget(), _draw_datagrid(), n_gui_add_datagrid(), n_gui_datagrid_add_row(), n_gui_datagrid_get_row_color(), n_gui_datagrid_set_row_color(), and n_gui_datagrid_sort().

◆ row_has_color

unsigned char* N_GUI_DATAGRID_DATA::row_has_color

per-row tint flags (1 = row_color[row] is painted), sized rows_cap; NULL until a row color is set

Definition at line 691 of file n_gui.h.

Referenced by _datagrid_ensure_colors(), _destroy_widget(), _draw_datagrid(), n_gui_add_datagrid(), n_gui_datagrid_add_row(), n_gui_datagrid_clear_row_color(), n_gui_datagrid_clear_row_colors(), n_gui_datagrid_clear_rows(), n_gui_datagrid_get_row_color(), n_gui_datagrid_set_row_color(), and n_gui_datagrid_sort().

◆ row_sel

unsigned char* N_GUI_DATAGRID_DATA::row_sel

per-row selection flags (1 = selected), sized rows_cap; NULL until needed

Definition at line 684 of file n_gui.h.

Referenced by _datagrid_ensure_sel(), _destroy_widget(), _draw_datagrid(), n_gui_add_datagrid(), n_gui_datagrid_add_row(), n_gui_datagrid_clear_rows(), n_gui_datagrid_clear_selection(), n_gui_datagrid_get_selected_rows(), n_gui_datagrid_is_row_selected(), n_gui_datagrid_select_row(), n_gui_datagrid_set_multiselect(), n_gui_datagrid_sort(), and n_gui_process_event().

◆ rows_cap

size_t N_GUI_DATAGRID_DATA::rows_cap

allocated row capacity (in rows)

Definition at line 674 of file n_gui.h.

Referenced by _datagrid_ensure_colors(), _datagrid_ensure_sel(), n_gui_add_datagrid(), n_gui_datagrid_add_row(), n_gui_datagrid_clear_row_colors(), n_gui_datagrid_clear_rows(), n_gui_datagrid_clear_selection(), n_gui_datagrid_set_multiselect(), n_gui_datagrid_sort(), and n_gui_process_event().

◆ scroll_offset

int N_GUI_DATAGRID_DATA::scroll_offset

first visible data row

Definition at line 693 of file n_gui.h.

Referenced by _draw_datagrid(), n_gui_add_datagrid(), n_gui_datagrid_clear_rows(), n_gui_datagrid_set_scroll_offset(), and n_gui_process_event().

◆ selected_row

int N_GUI_DATAGRID_DATA::selected_row

selected data row (the primary / last-clicked row), or -1

Definition at line 680 of file n_gui.h.

Referenced by _draw_datagrid(), n_gui_add_datagrid(), n_gui_datagrid_clear_rows(), n_gui_datagrid_clear_selection(), n_gui_datagrid_get_selected_rows(), n_gui_datagrid_is_row_selected(), n_gui_datagrid_select_row(), n_gui_datagrid_set_selected(), n_gui_datagrid_sort(), and n_gui_process_event().

◆ sort_col

int N_GUI_DATAGRID_DATA::sort_col

column index used for sorting, or -1

Definition at line 676 of file n_gui.h.

Referenced by _draw_datagrid(), n_gui_add_datagrid(), n_gui_datagrid_sort(), and n_gui_process_event().

◆ sort_dir

int N_GUI_DATAGRID_DATA::sort_dir

sort direction: 1 ascending, -1 descending

Definition at line 678 of file n_gui.h.

Referenced by _draw_datagrid(), n_gui_add_datagrid(), n_gui_datagrid_sort(), and n_gui_process_event().

◆ user_data

void* N_GUI_DATAGRID_DATA::user_data

user data for callback

Definition at line 707 of file n_gui.h.

Referenced by n_gui_add_datagrid(), n_gui_datagrid_set_selected(), and n_gui_process_event().

◆ N_GUI_DROPMENU_DATA

struct N_GUI_DROPMENU_DATA

dropdown menu specific data

Examples: ex_gui_dropmenu.c.

Definition at line 843 of file n_gui.h.

Collaboration diagram for N_GUI_DROPMENU_DATA:

Data Fields
N_GUI_DROPMENU_ENTRY *	entries
	dynamic array of entries

size_t	entries_capacity
	allocated capacity

int	flags
	bitmask of N_GUI_DROPMENU_* flags

int	highlight_index
	open-panel navigation cursor for the wheel and Up/Down keys (-1 = none).

int	is_open
	is the menu currently open

float	item_height
	item height

ALLEGRO_BITMAP *	item_hover_bitmap
	optional bitmap for the hovered entry background (NULL = color theme)

char	label [128]
	menu label (shown on the button)

int	max_visible
	max visible items

size_t	nb_entries
	number of entries

void(*	on_open )(int widget_id, void *user_data)
	callback to rebuild dynamic entries each time the menu is opened.

void *	on_open_user_data
	user data for on_open callback

ALLEGRO_BITMAP *	panel_bitmap
	optional bitmap for the dropdown panel background (NULL = color theme)

int	scroll_offset
	scroll offset

Field Documentation

◆ entries

N_GUI_DROPMENU_ENTRY* N_GUI_DROPMENU_DATA::entries

dynamic array of entries

Definition at line 847 of file n_gui.h.

Referenced by _destroy_widget(), _draw_dropmenu_panel(), n_gui_add_dropmenu(), n_gui_dropmenu_add_dynamic_entry(), n_gui_dropmenu_add_entry(), n_gui_dropmenu_clear_dynamic(), n_gui_dropmenu_panel_width(), n_gui_dropmenu_set_entry_text(), and n_gui_process_event().

◆ entries_capacity

size_t N_GUI_DROPMENU_DATA::entries_capacity

allocated capacity

Definition at line 851 of file n_gui.h.

Referenced by n_gui_add_dropmenu(), and n_gui_dropmenu_add_entry().

◆ flags

int N_GUI_DROPMENU_DATA::flags

bitmask of N_GUI_DROPMENU_* flags

Definition at line 876 of file n_gui.h.

Referenced by _draw_dropmenu_panel(), n_gui_add_dropmenu(), n_gui_dropmenu_set_flags(), and n_gui_process_event().

◆ highlight_index

int N_GUI_DROPMENU_DATA::highlight_index

open-panel navigation cursor for the wheel and Up/Down keys (-1 = none).

While the menu is open, the wheel and arrow keys move this; hovering the panel sets it to the entry under the pointer; Enter or a click activates it. Reset to -1 when the panel closes.

Examples: ex_gui_dropmenu.c.

Definition at line 860 of file n_gui.h.

Referenced by _draw_dropmenu_panel(), main(), n_gui_add_dropmenu(), and n_gui_process_event().

◆ is_open

int N_GUI_DROPMENU_DATA::is_open

is the menu currently open

Examples: ex_gui_dropmenu.c.

Definition at line 853 of file n_gui.h.

Referenced by _draw_dropmenu(), _draw_dropmenu_panel(), main(), n_gui_add_dropmenu(), and n_gui_process_event().

◆ item_height

float N_GUI_DROPMENU_DATA::item_height

item height

Definition at line 864 of file n_gui.h.

Referenced by _draw_dropmenu_panel(), n_gui_add_dropmenu(), and n_gui_process_event().

◆ item_hover_bitmap

ALLEGRO_BITMAP* N_GUI_DROPMENU_DATA::item_hover_bitmap

optional bitmap for the hovered entry background (NULL = color theme)

Definition at line 868 of file n_gui.h.

Referenced by _draw_dropmenu_panel(), n_gui_add_dropmenu(), and n_gui_dropmenu_set_bitmaps().

◆ label

char N_GUI_DROPMENU_DATA::label[128]

menu label (shown on the button)

Definition at line 845 of file n_gui.h.

Referenced by _draw_dropmenu(), n_gui_add_dropmenu(), and n_gui_dropmenu_set_label().

◆ max_visible

int N_GUI_DROPMENU_DATA::max_visible

max visible items

Examples: ex_gui_dropmenu.c.

Definition at line 862 of file n_gui.h.

Referenced by _draw_dropmenu_panel(), main(), n_gui_add_dropmenu(), n_gui_dropmenu_clear_dynamic(), n_gui_dropmenu_panel_width(), and n_gui_process_event().

◆ nb_entries

size_t N_GUI_DROPMENU_DATA::nb_entries

number of entries

Definition at line 849 of file n_gui.h.

Referenced by _draw_dropmenu_panel(), n_gui_add_dropmenu(), n_gui_dropmenu_add_entry(), n_gui_dropmenu_clear(), n_gui_dropmenu_clear_dynamic(), n_gui_dropmenu_panel_width(), n_gui_dropmenu_set_entry_text(), and n_gui_process_event().

◆ on_open

void(* N_GUI_DROPMENU_DATA::on_open) (int widget_id, void *user_data)

callback to rebuild dynamic entries each time the menu is opened.

signature: void rebuild(int widget_id, void* user_data) The callback should call n_gui_dropmenu_clear_dynamic() then add dynamic entries.

Definition at line 872 of file n_gui.h.

Referenced by n_gui_add_dropmenu(), and n_gui_process_event().

◆ on_open_user_data

void* N_GUI_DROPMENU_DATA::on_open_user_data

user data for on_open callback

Definition at line 874 of file n_gui.h.

Referenced by n_gui_add_dropmenu(), and n_gui_process_event().

◆ panel_bitmap

ALLEGRO_BITMAP* N_GUI_DROPMENU_DATA::panel_bitmap

optional bitmap for the dropdown panel background (NULL = color theme)

Definition at line 866 of file n_gui.h.

Referenced by _draw_dropmenu_panel(), n_gui_add_dropmenu(), and n_gui_dropmenu_set_bitmaps().

◆ scroll_offset

int N_GUI_DROPMENU_DATA::scroll_offset

scroll offset

Examples: ex_gui_dropmenu.c.

Definition at line 855 of file n_gui.h.

Referenced by _draw_dropmenu_panel(), main(), n_gui_add_dropmenu(), n_gui_dropmenu_clear(), n_gui_dropmenu_clear_dynamic(), and n_gui_process_event().

◆ N_GUI_DROPMENU_ENTRY

struct N_GUI_DROPMENU_ENTRY

A single entry in a dropdown menu (static or dynamic)

Definition at line 823 of file n_gui.h.

Collaboration diagram for N_GUI_DROPMENU_ENTRY:

Data Fields
int	is_dynamic
	is this entry dynamic (rebuilt via callback each time menu opens)

void(*	on_click )(int widget_id, int entry_index, int tag, void *user_data)
	callback when this entry is clicked (widget_id, entry_index, tag, user_data)

int	tag
	user-defined tag for the entry (e.g.

char	text [128]
	display text

void *	user_data
	user data for callback

Field Documentation

◆ is_dynamic

int N_GUI_DROPMENU_ENTRY::is_dynamic

is this entry dynamic (rebuilt via callback each time menu opens)

Definition at line 827 of file n_gui.h.

Referenced by n_gui_dropmenu_add_dynamic_entry(), n_gui_dropmenu_add_entry(), and n_gui_dropmenu_clear_dynamic().

◆ on_click

void(* N_GUI_DROPMENU_ENTRY::on_click) (int widget_id, int entry_index, int tag, void *user_data)

callback when this entry is clicked (widget_id, entry_index, tag, user_data)

Definition at line 831 of file n_gui.h.

Referenced by n_gui_dropmenu_add_entry(), and n_gui_process_event().

◆ tag

int N_GUI_DROPMENU_ENTRY::tag

user-defined tag for the entry (e.g.

a window id)

Definition at line 829 of file n_gui.h.

Referenced by n_gui_dropmenu_add_entry(), and n_gui_process_event().

◆ text

char N_GUI_DROPMENU_ENTRY::text[128]

display text

Definition at line 825 of file n_gui.h.

Referenced by _draw_dropmenu_panel(), n_gui_dropmenu_add_entry(), n_gui_dropmenu_panel_width(), and n_gui_dropmenu_set_entry_text().

◆ user_data

void* N_GUI_DROPMENU_ENTRY::user_data

user data for callback

Definition at line 833 of file n_gui.h.

Referenced by n_gui_dropmenu_add_entry(), and n_gui_process_event().

◆ N_GUI_HEXVIEW_DATA

struct N_GUI_HEXVIEW_DATA

hex viewer specific data: a read-only byte dump

Definition at line 601 of file n_gui.h.

Collaboration diagram for N_GUI_HEXVIEW_DATA:

Data Fields
int	bytes_per_row	bytes shown per row
unsigned char *	data	owned copy of the bytes, or NULL
size_t	len	number of bytes
int	scroll_offset	first visible row

◆ N_GUI_IMAGE_DATA

struct N_GUI_IMAGE_DATA

image widget specific data

Definition at line 783 of file n_gui.h.

Collaboration diagram for N_GUI_IMAGE_DATA:

Data Fields
ALLEGRO_BITMAP *	bitmap	bitmap to display (not owned, not freed)
int	scale_mode	scale mode: N_GUI_IMAGE_FIT, N_GUI_IMAGE_STRETCH, N_GUI_IMAGE_CENTER

◆ N_GUI_KV_ROW

struct N_GUI_KV_ROW

a single row in the KV table

Definition at line 2552 of file n_gui.h.

Collaboration diagram for N_GUI_KV_ROW:

Data Fields
int	active	1 if active, 0 if removed
int	desc_id	textarea widget ID for the description
int	enabled_id	checkbox widget ID for the enabled toggle
int	key_id	textarea widget ID for the key
int	remove_id	button widget ID for the remove action
int	value_id	textarea widget ID for the value

◆ N_GUI_KVTABLE

struct N_GUI_KVTABLE

key-value table built from textareas, checkboxes, and buttons

Examples: ex_gui_kvtable.c.

Definition at line 2562 of file n_gui.h.

Collaboration diagram for N_GUI_KVTABLE:

Data Fields
int	btn_add
	button widget ID for "+" add row

N_GUI_CTX *	ctx
	GUI context.

float	header_height
	unscaled column-header row height

float	init_win_h
	parent window height at create time

float	init_win_w
	parent window width at create time

char *	key_placeholder
	owned hint shown in each key textarea, or NULL

int	lbl_desc
	label widget ID for "Description" header

int	lbl_enabled
	label widget ID for "On" header

int	lbl_key
	label widget ID for "Key" header

int	lbl_value
	label widget ID for "Value" header

int	nb_active
	active row count

int	nb_rows
	total rows (including removed)

void(*	on_remove )(int, void *)
	callback on row removal

float	padding
	unscaled padding in pixels

float	row_height
	unscaled row height in pixels

N_GUI_KV_ROW	rows [128]
	row storage

int	show_desc
	1 to show the Description column (default 1)

int	show_enabled
	1 to show the enabled-checkbox column (default 1)

int	show_value
	1 to show the Value column (default 1)

float	top_offset
	unscaled y offset of the header row from the window top (default 0), to reserve space above the table for other widgets

void *	user_data
	user data for callback

char *	value_placeholder
	owned hint shown in each value textarea, or NULL

int	window_id
	parent window

Field Documentation

◆ btn_add

int N_GUI_KVTABLE::btn_add

button widget ID for "+" add row

Examples: ex_gui_kvtable.c.

Definition at line 2577 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), main(), and n_gui_kvtable_create().

◆ ctx

N_GUI_CTX* N_GUI_KVTABLE::ctx

GUI context.

Definition at line 2563 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), n_gui_kvtable_add_row(), n_gui_kvtable_clear(), n_gui_kvtable_create(), n_gui_kvtable_remove_row(), and n_gui_kvtable_set_placeholders().

◆ header_height

float N_GUI_KVTABLE::header_height

unscaled column-header row height

Definition at line 2570 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), and n_gui_kvtable_create().

◆ init_win_h

float N_GUI_KVTABLE::init_win_h

parent window height at create time

Definition at line 2572 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), and n_gui_kvtable_create().

◆ init_win_w

float N_GUI_KVTABLE::init_win_w

parent window width at create time

Definition at line 2571 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), and n_gui_kvtable_create().

◆ key_placeholder

char* N_GUI_KVTABLE::key_placeholder

owned hint shown in each key textarea, or NULL

Definition at line 2583 of file n_gui.h.

Referenced by n_gui_kvtable_add_row(), n_gui_kvtable_create(), and n_gui_kvtable_set_placeholders().

◆ lbl_desc

int N_GUI_KVTABLE::lbl_desc

label widget ID for "Description" header

Definition at line 2575 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), and n_gui_kvtable_create().

◆ lbl_enabled

int N_GUI_KVTABLE::lbl_enabled

label widget ID for "On" header

Definition at line 2576 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), and n_gui_kvtable_create().

◆ lbl_key

int N_GUI_KVTABLE::lbl_key

label widget ID for "Key" header

Examples: ex_gui_kvtable.c.

Definition at line 2573 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), main(), and n_gui_kvtable_create().

◆ lbl_value

int N_GUI_KVTABLE::lbl_value

label widget ID for "Value" header

Examples: ex_gui_kvtable.c.

Definition at line 2574 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), main(), and n_gui_kvtable_create().

◆ nb_active

int N_GUI_KVTABLE::nb_active

active row count

Definition at line 2567 of file n_gui.h.

Referenced by n_gui_kvtable_add_row(), n_gui_kvtable_clear(), n_gui_kvtable_create(), n_gui_kvtable_get_count(), and n_gui_kvtable_remove_row().

◆ nb_rows

int N_GUI_KVTABLE::nb_rows

total rows (including removed)

Examples: ex_gui_kvtable.c.

Definition at line 2566 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), _n_gui_kv_remove_clicked(), main(), n_gui_kvtable_add_row(), n_gui_kvtable_clear(), n_gui_kvtable_create(), n_gui_kvtable_remove_row(), and n_gui_kvtable_set_placeholders().

◆ on_remove

void(* N_GUI_KVTABLE::on_remove) (int, void *)

callback on row removal

Definition at line 2578 of file n_gui.h.

Referenced by _n_gui_kv_remove_clicked(), and n_gui_kvtable_create().

◆ padding

float N_GUI_KVTABLE::padding

unscaled padding in pixels

Definition at line 2569 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), n_gui_kvtable_add_row(), and n_gui_kvtable_create().

◆ row_height

float N_GUI_KVTABLE::row_height

unscaled row height in pixels

Definition at line 2568 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), n_gui_kvtable_add_row(), and n_gui_kvtable_create().

◆ rows

N_GUI_KV_ROW N_GUI_KVTABLE::rows[128]

row storage

Examples: ex_gui_kvtable.c.

Definition at line 2565 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), _n_gui_kv_remove_clicked(), main(), n_gui_kvtable_add_row(), n_gui_kvtable_clear(), n_gui_kvtable_remove_row(), and n_gui_kvtable_set_placeholders().

◆ show_desc

int N_GUI_KVTABLE::show_desc

1 to show the Description column (default 1)

Definition at line 2581 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), n_gui_kvtable_create(), and n_gui_kvtable_set_columns().

◆ show_enabled

int N_GUI_KVTABLE::show_enabled

1 to show the enabled-checkbox column (default 1)

Definition at line 2582 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), n_gui_kvtable_create(), and n_gui_kvtable_set_columns().

◆ show_value

int N_GUI_KVTABLE::show_value

1 to show the Value column (default 1)

Definition at line 2580 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), n_gui_kvtable_create(), and n_gui_kvtable_set_columns().

◆ top_offset

float N_GUI_KVTABLE::top_offset

unscaled y offset of the header row from the window top (default 0), to reserve space above the table for other widgets

Definition at line 2585 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), n_gui_kvtable_create(), and n_gui_kvtable_set_top_offset().

◆ user_data

void* N_GUI_KVTABLE::user_data

user data for callback

Definition at line 2579 of file n_gui.h.

Referenced by _n_gui_kv_remove_clicked(), and n_gui_kvtable_create().

◆ value_placeholder

char* N_GUI_KVTABLE::value_placeholder

owned hint shown in each value textarea, or NULL

Definition at line 2584 of file n_gui.h.

Referenced by n_gui_kvtable_add_row(), n_gui_kvtable_create(), and n_gui_kvtable_set_placeholders().

◆ window_id

int N_GUI_KVTABLE::window_id

parent window

Definition at line 2564 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), n_gui_kvtable_add_row(), and n_gui_kvtable_create().

◆ N_GUI_LABEL_DATA

struct N_GUI_LABEL_DATA

static text label specific data

Definition at line 791 of file n_gui.h.

Collaboration diagram for N_GUI_LABEL_DATA:

Data Fields
int	align
	text alignment: N_GUI_ALIGN_LEFT, N_GUI_ALIGN_CENTER, N_GUI_ALIGN_RIGHT

ALLEGRO_BITMAP *	bg_bitmap
	optional bitmap for the label background (NULL = no background)

char	link [4096]
	optional hyperlink URL (empty string = no link)

void(*	on_link_click )(int widget_id, const char link, void user_data)
	callback when link is clicked (widget_id, link_url, user_data)

float	scroll_y
	vertical scroll offset for overflowing text (pixels)

int	sel_dragging
	1 if mouse is actively dragging to select text

int	sel_end
	selection end byte offset (-1 = no selection)

int	sel_start
	selection start byte offset (-1 = no selection)

char	text [4096]
	text to display

void *	user_data
	user data for callback

Field Documentation

◆ align

int N_GUI_LABEL_DATA::align

text alignment: N_GUI_ALIGN_LEFT, N_GUI_ALIGN_CENTER, N_GUI_ALIGN_RIGHT

Definition at line 797 of file n_gui.h.

Referenced by _draw_label(), _label_text_origin_x(), _window_update_content_size(), n_gui_add_label(), and n_gui_process_event().

◆ bg_bitmap

ALLEGRO_BITMAP* N_GUI_LABEL_DATA::bg_bitmap

optional bitmap for the label background (NULL = no background)

Definition at line 807 of file n_gui.h.

Referenced by _draw_label().

◆ link

char N_GUI_LABEL_DATA::link[4096]

optional hyperlink URL (empty string = no link)

Definition at line 795 of file n_gui.h.

Referenced by _draw_label(), n_gui_add_label(), n_gui_add_label_link(), n_gui_label_set_link(), and n_gui_process_event().

◆ on_link_click

void(* N_GUI_LABEL_DATA::on_link_click) (int widget_id, const char *link, void *user_data)

callback when link is clicked (widget_id, link_url, user_data)

Definition at line 809 of file n_gui.h.

Referenced by n_gui_add_label(), n_gui_add_label_link(), and n_gui_process_event().

◆ scroll_y

float N_GUI_LABEL_DATA::scroll_y

vertical scroll offset for overflowing text (pixels)

Definition at line 799 of file n_gui.h.

Referenced by _draw_label(), n_gui_add_label(), and n_gui_process_event().

◆ sel_dragging

int N_GUI_LABEL_DATA::sel_dragging

1 if mouse is actively dragging to select text

Definition at line 805 of file n_gui.h.

Referenced by n_gui_add_label(), and n_gui_process_event().

◆ sel_end

int N_GUI_LABEL_DATA::sel_end

selection end byte offset (-1 = no selection)

Definition at line 803 of file n_gui.h.

Referenced by _draw_label(), _ngui_publish_primary_selection(), n_gui_add_label(), and n_gui_process_event().

◆ sel_start

int N_GUI_LABEL_DATA::sel_start

selection start byte offset (-1 = no selection)

Definition at line 801 of file n_gui.h.

Referenced by _draw_label(), _ngui_publish_primary_selection(), n_gui_add_label(), and n_gui_process_event().

◆ text

char N_GUI_LABEL_DATA::text[4096]

text to display

Definition at line 793 of file n_gui.h.

Referenced by _draw_label(), _label_char_at_x(), _label_text_origin_x(), _ngui_publish_primary_selection(), _window_update_content_size(), n_gui_add_label(), n_gui_label_set_text(), and n_gui_process_event().

◆ user_data

void* N_GUI_LABEL_DATA::user_data

user data for callback

Definition at line 811 of file n_gui.h.

Referenced by n_gui_add_label(), n_gui_add_label_link(), and n_gui_process_event().

◆ N_GUI_LISTBOX_DATA

struct N_GUI_LISTBOX_DATA

listbox specific data

Definition at line 553 of file n_gui.h.

Collaboration diagram for N_GUI_LISTBOX_DATA:

Data Fields
ALLEGRO_BITMAP *	bg_bitmap
	optional bitmap for the listbox background (NULL = color theme)

int	hover_row
	index of the row the mouse is currently over, or -1.

ALLEGRO_BITMAP *	item_bg_bitmap
	optional bitmap for per-item background, normal state (NULL = color theme)

float	item_height
	item height in pixels

ALLEGRO_BITMAP *	item_selected_bitmap
	optional bitmap for per-item background, selected/highlighted (NULL = color theme)

N_GUI_LISTITEM *	items
	dynamic array of items

size_t	items_capacity
	allocated capacity

size_t	nb_items
	number of items

void(*	on_select )(int widget_id, int index, int selected, void *user_data)
	callback on selection change (widget_id, item_index, selected, user_data)

int	scroll_offset
	scroll offset in items

int	selection_mode
	selection mode: N_GUI_SELECT_NONE, N_GUI_SELECT_SINGLE, N_GUI_SELECT_MULTIPLE

void *	user_data
	user data for callback

Field Documentation

◆ bg_bitmap

ALLEGRO_BITMAP* N_GUI_LISTBOX_DATA::bg_bitmap

optional bitmap for the listbox background (NULL = color theme)

Definition at line 567 of file n_gui.h.

Referenced by _draw_listbox(), and n_gui_listbox_set_bitmaps().

◆ hover_row

int N_GUI_LISTBOX_DATA::hover_row

index of the row the mouse is currently over, or -1.

Updated in the event loop when the widget gains N_GUI_STATE_HOVER; consumed by the draw path to paint a hover highlight.

Definition at line 579 of file n_gui.h.

Referenced by _draw_listbox(), n_gui_add_listbox(), and n_gui_process_event().

◆ item_bg_bitmap

ALLEGRO_BITMAP* N_GUI_LISTBOX_DATA::item_bg_bitmap

optional bitmap for per-item background, normal state (NULL = color theme)

Definition at line 569 of file n_gui.h.

Referenced by _draw_listbox(), and n_gui_listbox_set_bitmaps().

◆ item_height

float N_GUI_LISTBOX_DATA::item_height

item height in pixels

Definition at line 565 of file n_gui.h.

Referenced by _draw_listbox(), _n_gui_tree_listbox_bounds(), n_gui_add_listbox(), n_gui_listbox_set_scroll_offset(), and n_gui_process_event().

◆ item_selected_bitmap

ALLEGRO_BITMAP* N_GUI_LISTBOX_DATA::item_selected_bitmap

optional bitmap for per-item background, selected/highlighted (NULL = color theme)

Definition at line 571 of file n_gui.h.

Referenced by _draw_listbox(), and n_gui_listbox_set_bitmaps().

◆ items

N_GUI_LISTITEM* N_GUI_LISTBOX_DATA::items

dynamic array of items

Definition at line 555 of file n_gui.h.

Referenced by _destroy_widget(), _draw_listbox(), n_gui_add_listbox(), n_gui_listbox_add_item(), n_gui_listbox_get_item_text(), n_gui_listbox_get_selected(), n_gui_listbox_is_selected(), n_gui_listbox_remove_item(), n_gui_listbox_set_selected(), and n_gui_process_event().

◆ items_capacity

size_t N_GUI_LISTBOX_DATA::items_capacity

allocated capacity

Definition at line 559 of file n_gui.h.

Referenced by n_gui_add_listbox(), and n_gui_listbox_add_item().

◆ nb_items

size_t N_GUI_LISTBOX_DATA::nb_items

number of items

Definition at line 557 of file n_gui.h.

Referenced by _draw_listbox(), _n_gui_tree_listbox_bounds(), n_gui_add_listbox(), n_gui_listbox_add_item(), n_gui_listbox_clear(), n_gui_listbox_get_selected(), n_gui_listbox_remove_item(), n_gui_listbox_set_scroll_offset(), n_gui_listbox_set_selected(), and n_gui_process_event().

◆ on_select

void(* N_GUI_LISTBOX_DATA::on_select) (int widget_id, int index, int selected, void *user_data)

callback on selection change (widget_id, item_index, selected, user_data)

Definition at line 573 of file n_gui.h.

Referenced by n_gui_add_listbox(), and n_gui_process_event().

◆ scroll_offset

int N_GUI_LISTBOX_DATA::scroll_offset

scroll offset in items

Definition at line 563 of file n_gui.h.

Referenced by _draw_listbox(), _n_gui_tree_listbox_bounds(), n_gui_add_listbox(), n_gui_listbox_clear(), n_gui_listbox_get_scroll_offset(), n_gui_listbox_remove_item(), n_gui_listbox_set_scroll_offset(), and n_gui_process_event().

◆ selection_mode

int N_GUI_LISTBOX_DATA::selection_mode

selection mode: N_GUI_SELECT_NONE, N_GUI_SELECT_SINGLE, N_GUI_SELECT_MULTIPLE

Definition at line 561 of file n_gui.h.

Referenced by n_gui_add_listbox(), n_gui_listbox_set_selected(), and n_gui_process_event().

◆ user_data

void* N_GUI_LISTBOX_DATA::user_data

user data for callback

Definition at line 575 of file n_gui.h.

Referenced by n_gui_add_listbox(), and n_gui_process_event().

◆ N_GUI_LISTITEM

struct N_GUI_LISTITEM

a single item in a list/radio/combo widget

Definition at line 545 of file n_gui.h.

Collaboration diagram for N_GUI_LISTITEM:

Data Fields
int	selected	selection state (for listbox)
char	text[128]	item display text

◆ N_GUI_PENDING_GEOM

struct N_GUI_PENDING_GEOM

A saved window position retained for a window not yet created at load time (see N_GUI_CTX::pending_layout).

Applied on first matching create.

Definition at line 1324 of file n_gui.h.

Collaboration diagram for N_GUI_PENDING_GEOM:

Data Fields
unsigned char	consumed	1 once applied to a created window
float	h	saved height (display-scaled), 0 when absent
int	state	saved minimised/maximised bits, applied on create
char	title[128]	window title to match on
float	w	saved width (display-scaled), 0 when absent
float	x	saved x (already display-scaled)
float	y	saved y

◆ N_GUI_PENDING_WIDGET

struct N_GUI_PENDING_WIDGET

Saved user-adjustable state for a keyed widget that did not exist when the layout was loaded (a lazily-created splitpane/datagrid).

Applied on the first n_gui_widget_set_persist_key that matches the owning window title + key (consume-once), the widget-level analog of N_GUI_PENDING_GEOM.

Definition at line 1341 of file n_gui.h.

Collaboration diagram for N_GUI_PENDING_WIDGET:

Data Fields
unsigned char	consumed	1 once applied
char	key[128]	widget persist key to match on
int	kind	N_GUI_TYPE_SPLITPANE or N_GUI_TYPE_DATAGRID.
int	ncols	column count (kind == DATAGRID)
int	order[64]	display position -> physical column
float	ratio	divider ratio (kind == SPLITPANE)
char	title[128]	owning window title to match on
int	visible[64]	per-physical-column visibility
float	width[64]	per-physical-column width

◆ N_GUI_PROGRESSBAR_DATA

struct N_GUI_PROGRESSBAR_DATA

Progress-bar widget data (display only).

Definition at line 815 of file n_gui.h.

Collaboration diagram for N_GUI_PROGRESSBAR_DATA:

Data Fields
char	text[4096]	optional centered overlay text (empty string = none)
float	value	progress fraction, clamped to 0.0 . . 1.0

◆ N_GUI_RADIOLIST_DATA

struct N_GUI_RADIOLIST_DATA

radio list specific data

Definition at line 711 of file n_gui.h.

Collaboration diagram for N_GUI_RADIOLIST_DATA:

Data Fields
ALLEGRO_BITMAP *	bg_bitmap
	optional bitmap for the radiolist background (NULL = color theme)

ALLEGRO_BITMAP *	item_bg_bitmap
	optional bitmap for per-item background, normal state (NULL = color theme)

float	item_height
	item height in pixels

ALLEGRO_BITMAP *	item_selected_bitmap
	optional bitmap for per-item background, selected/highlighted (NULL = color theme)

N_GUI_LISTITEM *	items
	dynamic array of items

size_t	items_capacity
	allocated capacity

size_t	nb_items
	number of items

void(*	on_select )(int widget_id, int index, void *user_data)
	callback on selection change (widget_id, selected_index, user_data)

int	scroll_offset
	scroll offset in items

int	selected_index
	currently selected index (-1 = none)

void *	user_data
	user data for callback

Field Documentation

◆ bg_bitmap

ALLEGRO_BITMAP* N_GUI_RADIOLIST_DATA::bg_bitmap

optional bitmap for the radiolist background (NULL = color theme)

Definition at line 725 of file n_gui.h.

Referenced by _draw_radiolist(), and n_gui_radiolist_set_bitmaps().

◆ item_bg_bitmap

ALLEGRO_BITMAP* N_GUI_RADIOLIST_DATA::item_bg_bitmap

optional bitmap for per-item background, normal state (NULL = color theme)

Definition at line 727 of file n_gui.h.

Referenced by _draw_radiolist(), and n_gui_radiolist_set_bitmaps().

◆ item_height

float N_GUI_RADIOLIST_DATA::item_height

item height in pixels

Definition at line 723 of file n_gui.h.

Referenced by _draw_radiolist(), n_gui_add_radiolist(), and n_gui_process_event().

◆ item_selected_bitmap

ALLEGRO_BITMAP* N_GUI_RADIOLIST_DATA::item_selected_bitmap

optional bitmap for per-item background, selected/highlighted (NULL = color theme)

Definition at line 729 of file n_gui.h.

Referenced by _draw_radiolist(), and n_gui_radiolist_set_bitmaps().

◆ items

N_GUI_LISTITEM* N_GUI_RADIOLIST_DATA::items

dynamic array of items

Definition at line 713 of file n_gui.h.

Referenced by _destroy_widget(), _draw_radiolist(), n_gui_add_radiolist(), and n_gui_radiolist_add_item().

◆ items_capacity

size_t N_GUI_RADIOLIST_DATA::items_capacity

allocated capacity

Definition at line 717 of file n_gui.h.

Referenced by n_gui_add_radiolist(), and n_gui_radiolist_add_item().

◆ nb_items

size_t N_GUI_RADIOLIST_DATA::nb_items

number of items

Definition at line 715 of file n_gui.h.

Referenced by _draw_radiolist(), n_gui_add_radiolist(), n_gui_process_event(), n_gui_radiolist_add_item(), and n_gui_radiolist_clear().

◆ on_select

void(* N_GUI_RADIOLIST_DATA::on_select) (int widget_id, int index, void *user_data)

callback on selection change (widget_id, selected_index, user_data)

Definition at line 731 of file n_gui.h.

Referenced by n_gui_add_radiolist(), and n_gui_process_event().

◆ scroll_offset

int N_GUI_RADIOLIST_DATA::scroll_offset

scroll offset in items

Definition at line 721 of file n_gui.h.

Referenced by _draw_radiolist(), n_gui_add_radiolist(), n_gui_process_event(), and n_gui_radiolist_clear().

◆ selected_index

int N_GUI_RADIOLIST_DATA::selected_index

currently selected index (-1 = none)

Definition at line 719 of file n_gui.h.

Referenced by _draw_radiolist(), n_gui_add_radiolist(), n_gui_process_event(), n_gui_radiolist_clear(), and n_gui_radiolist_set_selected().

◆ user_data

void* N_GUI_RADIOLIST_DATA::user_data

user data for callback

Definition at line 733 of file n_gui.h.

Referenced by n_gui_add_radiolist(), and n_gui_process_event().

◆ N_GUI_SCROLLBAR_DATA

struct N_GUI_SCROLLBAR_DATA

scrollbar specific data

Definition at line 519 of file n_gui.h.

Collaboration diagram for N_GUI_SCROLLBAR_DATA:

Data Fields
double	content_size
	total content size

void(*	on_scroll )(int widget_id, double scroll_pos, void *user_data)
	callback on scroll

int	orientation
	orientation: N_GUI_SCROLLBAR_H or N_GUI_SCROLLBAR_V

double	scroll_pos
	current scroll position

int	shape
	shape type: N_GUI_SHAPE_RECT or N_GUI_SHAPE_ROUNDED

ALLEGRO_BITMAP *	thumb_active_bitmap
	optional bitmap for the thumb while dragging (NULL = fallback to thumb_bitmap)

ALLEGRO_BITMAP *	thumb_bitmap
	optional bitmap for the thumb/handle, normal state (NULL = color theme)

ALLEGRO_BITMAP *	thumb_hover_bitmap
	optional bitmap for the thumb on hover (NULL = fallback to thumb_bitmap)

ALLEGRO_BITMAP *	track_bitmap
	optional bitmap for the scrollbar track background (NULL = color theme)

void *	user_data
	user data for callback

double	viewport_size
	visible viewport size

Field Documentation

◆ content_size

double N_GUI_SCROLLBAR_DATA::content_size

total content size

Definition at line 523 of file n_gui.h.

Referenced by _draw_scrollbar(), _scrollbar_update_from_mouse(), n_gui_add_scrollbar(), n_gui_process_event(), n_gui_scrollbar_set_pos(), and n_gui_scrollbar_set_sizes().

◆ on_scroll

void(* N_GUI_SCROLLBAR_DATA::on_scroll) (int widget_id, double scroll_pos, void *user_data)

callback on scroll

Definition at line 539 of file n_gui.h.

Referenced by _scrollbar_update_from_mouse(), n_gui_add_scrollbar(), and n_gui_process_event().

◆ orientation

int N_GUI_SCROLLBAR_DATA::orientation

orientation: N_GUI_SCROLLBAR_H or N_GUI_SCROLLBAR_V

Definition at line 521 of file n_gui.h.

Referenced by _draw_scrollbar(), _scrollbar_update_from_mouse(), n_gui_add_scrollbar(), and n_gui_process_event().

◆ scroll_pos

double N_GUI_SCROLLBAR_DATA::scroll_pos

current scroll position

Definition at line 527 of file n_gui.h.

Referenced by _draw_scrollbar(), _scrollbar_update_from_mouse(), n_gui_add_scrollbar(), n_gui_process_event(), n_gui_scrollbar_set_pos(), and n_gui_scrollbar_set_sizes().

◆ shape

int N_GUI_SCROLLBAR_DATA::shape

shape type: N_GUI_SHAPE_RECT or N_GUI_SHAPE_ROUNDED

Definition at line 529 of file n_gui.h.

Referenced by _draw_scrollbar(), and n_gui_add_scrollbar().

◆ thumb_active_bitmap

ALLEGRO_BITMAP* N_GUI_SCROLLBAR_DATA::thumb_active_bitmap

optional bitmap for the thumb while dragging (NULL = fallback to thumb_bitmap)

Definition at line 537 of file n_gui.h.

Referenced by _draw_scrollbar(), and n_gui_scrollbar_set_bitmaps().

◆ thumb_bitmap

ALLEGRO_BITMAP* N_GUI_SCROLLBAR_DATA::thumb_bitmap

optional bitmap for the thumb/handle, normal state (NULL = color theme)

Definition at line 533 of file n_gui.h.

Referenced by _draw_scrollbar(), and n_gui_scrollbar_set_bitmaps().

◆ thumb_hover_bitmap

ALLEGRO_BITMAP* N_GUI_SCROLLBAR_DATA::thumb_hover_bitmap

optional bitmap for the thumb on hover (NULL = fallback to thumb_bitmap)

Definition at line 535 of file n_gui.h.

Referenced by _draw_scrollbar(), and n_gui_scrollbar_set_bitmaps().

◆ track_bitmap

ALLEGRO_BITMAP* N_GUI_SCROLLBAR_DATA::track_bitmap

optional bitmap for the scrollbar track background (NULL = color theme)

Definition at line 531 of file n_gui.h.

Referenced by _draw_scrollbar(), and n_gui_scrollbar_set_bitmaps().

◆ user_data

void* N_GUI_SCROLLBAR_DATA::user_data

user data for callback

Definition at line 541 of file n_gui.h.

Referenced by _scrollbar_update_from_mouse(), n_gui_add_scrollbar(), and n_gui_process_event().

◆ viewport_size

double N_GUI_SCROLLBAR_DATA::viewport_size

visible viewport size

Definition at line 525 of file n_gui.h.

Referenced by _draw_scrollbar(), _scrollbar_update_from_mouse(), n_gui_add_scrollbar(), n_gui_process_event(), n_gui_scrollbar_set_pos(), and n_gui_scrollbar_set_sizes().

◆ N_GUI_SECTION

struct N_GUI_SECTION

a single foldable section: a clickable header plus the member widgets it shows/hides

Definition at line 2401 of file n_gui.h.

Collaboration diagram for N_GUI_SECTION:

Data Fields
int	folded	1 = collapsed (members hidden), 0 = expanded
int	header_id	clickable header button widget id
float	natural_h	stacked height of the members when expanded
int	nb_widgets	number of member widgets
char	title[64]	section title (header label minus the fold glyph)
float	widget_dy[48]	each member's y offset from the section content top, captured at add time
int	widget_ids[48]	member widget ids

◆ N_GUI_SECTIONLIST

struct N_GUI_SECTIONLIST

a vertical accordion of foldable sections inside one window; folding hides a section's widgets and re-stacks the rest, leaving the window's N_GUI_WIN_AUTO_SCROLLBAR to absorb any overflow

Definition at line 2414 of file n_gui.h.

Collaboration diagram for N_GUI_SECTIONLIST:

Data Fields
N_GUI_CTX *	ctx
	GUI context.

float	first_inset
	content-local left inset applied to the FIRST header only, so a button can sit before it on the same row (0 = none)

float	gap
	vertical gap between rows

float	header_h
	header button height

int	nb_sections
	number of sections

void(*	on_toggle )(int, int, void *)
	callback(section_index, folded, user_data) on a header click (may be NULL)

N_GUI_SECTION	sections [16]
	section storage

void *	user_data
	user data for the callback

float	width
	header width

int	window_id
	window holding the headers and members

float	x
	content-local x of every header and the layout origin

float	y0
	content-local y of the first header

Field Documentation

◆ ctx

N_GUI_CTX* N_GUI_SECTIONLIST::ctx

GUI context.

Definition at line 2415 of file n_gui.h.

Referenced by _n_gui_sectionlist_set_header_label(), n_gui_sectionlist_add_section(), n_gui_sectionlist_add_widget(), n_gui_sectionlist_create(), and n_gui_sectionlist_relayout().

◆ first_inset

float N_GUI_SECTIONLIST::first_inset

content-local left inset applied to the FIRST header only, so a button can sit before it on the same row (0 = none)

Definition at line 2424 of file n_gui.h.

Referenced by n_gui_sectionlist_relayout(), and n_gui_sectionlist_set_first_inset().

◆ gap

float N_GUI_SECTIONLIST::gap

vertical gap between rows

Definition at line 2421 of file n_gui.h.

Referenced by n_gui_sectionlist_add_widget(), n_gui_sectionlist_content_height(), n_gui_sectionlist_create(), and n_gui_sectionlist_relayout().

◆ header_h

float N_GUI_SECTIONLIST::header_h

header button height

Definition at line 2420 of file n_gui.h.

Referenced by n_gui_sectionlist_add_section(), n_gui_sectionlist_add_widget(), n_gui_sectionlist_content_height(), n_gui_sectionlist_create(), and n_gui_sectionlist_relayout().

◆ nb_sections

int N_GUI_SECTIONLIST::nb_sections

number of sections

Definition at line 2423 of file n_gui.h.

Referenced by _n_gui_sectionlist_header_clicked(), n_gui_sectionlist_add_section(), n_gui_sectionlist_add_widget(), n_gui_sectionlist_content_height(), n_gui_sectionlist_create(), n_gui_sectionlist_get_count(), n_gui_sectionlist_is_folded(), n_gui_sectionlist_relayout(), and n_gui_sectionlist_set_folded().

◆ on_toggle

void(* N_GUI_SECTIONLIST::on_toggle) (int, int, void *)

callback(section_index, folded, user_data) on a header click (may be NULL)

Definition at line 2425 of file n_gui.h.

Referenced by _n_gui_sectionlist_header_clicked(), and n_gui_sectionlist_create().

◆ sections

N_GUI_SECTION N_GUI_SECTIONLIST::sections[16]

section storage

Definition at line 2422 of file n_gui.h.

Referenced by _n_gui_sectionlist_header_clicked(), _n_gui_sectionlist_set_header_label(), n_gui_sectionlist_add_section(), n_gui_sectionlist_add_widget(), n_gui_sectionlist_content_height(), n_gui_sectionlist_is_folded(), n_gui_sectionlist_relayout(), and n_gui_sectionlist_set_folded().

◆ user_data

void* N_GUI_SECTIONLIST::user_data

user data for the callback

Definition at line 2426 of file n_gui.h.

Referenced by _n_gui_sectionlist_header_clicked(), and n_gui_sectionlist_create().

◆ width

float N_GUI_SECTIONLIST::width

header width

Definition at line 2419 of file n_gui.h.

Referenced by n_gui_sectionlist_add_section(), n_gui_sectionlist_create(), and n_gui_sectionlist_relayout().

◆ window_id

int N_GUI_SECTIONLIST::window_id

window holding the headers and members

Definition at line 2416 of file n_gui.h.

Referenced by n_gui_sectionlist_add_section(), n_gui_sectionlist_create(), and n_gui_sectionlist_relayout().

◆ x

float N_GUI_SECTIONLIST::x

content-local x of every header and the layout origin

Definition at line 2417 of file n_gui.h.

Referenced by n_gui_sectionlist_add_section(), n_gui_sectionlist_create(), and n_gui_sectionlist_relayout().

◆ y0

float N_GUI_SECTIONLIST::y0

content-local y of the first header

Definition at line 2418 of file n_gui.h.

Referenced by n_gui_sectionlist_content_height(), n_gui_sectionlist_create(), and n_gui_sectionlist_relayout().

◆ N_GUI_SLIDER_DATA

struct N_GUI_SLIDER_DATA

slider specific data

Definition at line 421 of file n_gui.h.

Collaboration diagram for N_GUI_SLIDER_DATA:

Data Fields
ALLEGRO_BITMAP *	fill_bitmap
	optional bitmap for the filled portion of the track (NULL = color theme)

ALLEGRO_BITMAP *	handle_active_bitmap
	optional bitmap for the handle while dragging (NULL = fallback to handle_bitmap)

ALLEGRO_BITMAP *	handle_bitmap
	optional bitmap for the draggable handle, normal state (NULL = color theme)

ALLEGRO_BITMAP *	handle_hover_bitmap
	optional bitmap for the handle on hover (NULL = fallback to handle_bitmap)

double	max_val
	maximum value

double	min_val
	minimum value

int	mode
	mode: N_GUI_SLIDER_VALUE or N_GUI_SLIDER_PERCENT

void(*	on_change )(int widget_id, double value, void *user_data)
	callback on value change

int	orientation
	orientation: N_GUI_SLIDER_H or N_GUI_SLIDER_V

double	step
	step increment (0 is treated as 1).

ALLEGRO_BITMAP *	track_bitmap
	optional bitmap for the track/rail background (NULL = color theme)

void *	user_data
	user data for callback

double	value
	current value (always snapped to step)

char	value_format [32]
	printf-style format string applied to the numeric value when the built-in readout draws.

int	value_visible
	draw the built-in value label next to/below the handle.

Field Documentation

◆ fill_bitmap

ALLEGRO_BITMAP* N_GUI_SLIDER_DATA::fill_bitmap

optional bitmap for the filled portion of the track (NULL = color theme)

Definition at line 437 of file n_gui.h.

Referenced by _draw_slider(), and n_gui_slider_set_bitmaps().

◆ handle_active_bitmap

ALLEGRO_BITMAP* N_GUI_SLIDER_DATA::handle_active_bitmap

optional bitmap for the handle while dragging (NULL = fallback to handle_bitmap)

Definition at line 443 of file n_gui.h.

Referenced by _draw_slider(), and n_gui_slider_set_bitmaps().

◆ handle_bitmap

ALLEGRO_BITMAP* N_GUI_SLIDER_DATA::handle_bitmap

optional bitmap for the draggable handle, normal state (NULL = color theme)

Definition at line 439 of file n_gui.h.

Referenced by _draw_slider(), and n_gui_slider_set_bitmaps().

◆ handle_hover_bitmap

ALLEGRO_BITMAP* N_GUI_SLIDER_DATA::handle_hover_bitmap

optional bitmap for the handle on hover (NULL = fallback to handle_bitmap)

Definition at line 441 of file n_gui.h.

Referenced by _draw_slider(), and n_gui_slider_set_bitmaps().

◆ max_val

double N_GUI_SLIDER_DATA::max_val

maximum value

Definition at line 425 of file n_gui.h.

Referenced by _draw_slider(), _slider_update_from_mouse(), n_gui_add_slider(), n_gui_process_event(), n_gui_slider_set_range(), n_gui_slider_set_step(), and n_gui_slider_set_value().

◆ min_val

double N_GUI_SLIDER_DATA::min_val

minimum value

Definition at line 423 of file n_gui.h.

Referenced by _draw_slider(), _slider_update_from_mouse(), n_gui_add_slider(), n_gui_process_event(), n_gui_slider_set_range(), n_gui_slider_set_step(), and n_gui_slider_set_value().

◆ mode

int N_GUI_SLIDER_DATA::mode

mode: N_GUI_SLIDER_VALUE or N_GUI_SLIDER_PERCENT

Definition at line 431 of file n_gui.h.

Referenced by _draw_slider(), and n_gui_add_slider().

◆ on_change

void(* N_GUI_SLIDER_DATA::on_change) (int widget_id, double value, void *user_data)

callback on value change

Definition at line 445 of file n_gui.h.

Referenced by _slider_update_from_mouse(), n_gui_add_slider(), and n_gui_process_event().

◆ orientation

int N_GUI_SLIDER_DATA::orientation

orientation: N_GUI_SLIDER_H or N_GUI_SLIDER_V

Definition at line 433 of file n_gui.h.

Referenced by _draw_slider(), _slider_update_from_mouse(), n_gui_add_slider(), and n_gui_process_event().

◆ step

double N_GUI_SLIDER_DATA::step

step increment (0 is treated as 1).

All values snap to nearest multiple of step from min_val.

Definition at line 429 of file n_gui.h.

Referenced by _slider_update_from_mouse(), n_gui_add_slider(), n_gui_process_event(), n_gui_slider_set_range(), n_gui_slider_set_step(), and n_gui_slider_set_value().

◆ track_bitmap

ALLEGRO_BITMAP* N_GUI_SLIDER_DATA::track_bitmap

optional bitmap for the track/rail background (NULL = color theme)

Definition at line 435 of file n_gui.h.

Referenced by _draw_slider(), and n_gui_slider_set_bitmaps().

◆ user_data

void* N_GUI_SLIDER_DATA::user_data

user data for callback

Definition at line 447 of file n_gui.h.

Referenced by _slider_update_from_mouse(), n_gui_add_slider(), and n_gui_process_event().

◆ value

double N_GUI_SLIDER_DATA::value

current value (always snapped to step)

Definition at line 427 of file n_gui.h.

Referenced by _draw_slider(), _slider_update_from_mouse(), n_gui_add_slider(), n_gui_process_event(), n_gui_slider_set_range(), n_gui_slider_set_step(), and n_gui_slider_set_value().

◆ value_format

char N_GUI_SLIDER_DATA::value_format[32]

printf-style format string applied to the numeric value when the built-in readout draws.

Empty (first byte '\0') selects the legacy defaults: "%.1f" for VALUE mode, "%.0f%%" for PERCENT. Set via n_gui_slider_set_value_format().

Definition at line 452 of file n_gui.h.

Referenced by _draw_slider(), n_gui_add_slider(), and n_gui_slider_set_value_format().

◆ value_visible

int N_GUI_SLIDER_DATA::value_visible

draw the built-in value label next to/below the handle.

Default 1 (on) for backward compatibility. Set to 0 when the consumer is already painting the value elsewhere (e.g. a status bar) to avoid the double-render gotcha.

Definition at line 457 of file n_gui.h.

Referenced by _draw_slider(), n_gui_add_slider(), and n_gui_slider_set_value_visible().

◆ N_GUI_SPLITPANE_DATA

struct N_GUI_SPLITPANE_DATA

split pane specific data: a draggable divider between two regions

Definition at line 583 of file n_gui.h.

Collaboration diagram for N_GUI_SPLITPANE_DATA:

Data Fields
float	divider
	divider thickness in pixels

float	max_ratio
	upper clamp applied to ratio

float	min_ratio
	lower clamp applied to ratio

void(*	on_change )(int widget_id, float ratio, void *user_data)
	callback fired while the divider is dragged (widget_id, ratio, user_data)

int	orientation
	N_GUI_SPLIT_VERTICAL or N_GUI_SPLIT_HORIZONTAL.

float	ratio
	divider position as a fraction of the widget extent (0..1)

void *	user_data
	user data for callback

Field Documentation

◆ divider

float N_GUI_SPLITPANE_DATA::divider

divider thickness in pixels

Definition at line 593 of file n_gui.h.

Referenced by _draw_splitpane(), n_gui_add_splitpane(), and n_gui_process_event().

◆ max_ratio

float N_GUI_SPLITPANE_DATA::max_ratio

upper clamp applied to ratio

Definition at line 591 of file n_gui.h.

Referenced by n_gui_add_splitpane(), n_gui_process_event(), n_gui_splitpane_set_limits(), and n_gui_splitpane_set_ratio().

◆ min_ratio

float N_GUI_SPLITPANE_DATA::min_ratio

lower clamp applied to ratio

Definition at line 589 of file n_gui.h.

Referenced by n_gui_add_splitpane(), n_gui_process_event(), n_gui_splitpane_set_limits(), and n_gui_splitpane_set_ratio().

◆ on_change

void(* N_GUI_SPLITPANE_DATA::on_change) (int widget_id, float ratio, void *user_data)

callback fired while the divider is dragged (widget_id, ratio, user_data)

Definition at line 595 of file n_gui.h.

Referenced by n_gui_add_splitpane(), and n_gui_process_event().

◆ orientation

int N_GUI_SPLITPANE_DATA::orientation

N_GUI_SPLIT_VERTICAL or N_GUI_SPLIT_HORIZONTAL.

Definition at line 585 of file n_gui.h.

Referenced by _draw_splitpane(), n_gui_add_splitpane(), and n_gui_process_event().

◆ ratio

float N_GUI_SPLITPANE_DATA::ratio

divider position as a fraction of the widget extent (0..1)

Definition at line 587 of file n_gui.h.

Referenced by _draw_splitpane(), n_gui_add_splitpane(), n_gui_process_event(), n_gui_splitpane_set_limits(), and n_gui_splitpane_set_ratio().

◆ user_data

void* N_GUI_SPLITPANE_DATA::user_data

user data for callback

Definition at line 597 of file n_gui.h.

Referenced by n_gui_add_splitpane(), and n_gui_process_event().

◆ N_GUI_STYLE

struct N_GUI_STYLE

Global style holding every configurable layout constant.

Initialised with sensible defaults by n_gui_default_style(). Can be serialised/deserialised to/from JSON with n_gui_style_to_json / n_gui_style_from_json.

Definition at line 1147 of file n_gui.h.

Collaboration diagram for N_GUI_STYLE:

Data Fields
float	checkbox_label_gap	gap between box and label text
float	checkbox_label_offset	horizontal offset from box edge to label text
float	checkbox_mark_margin	checkmark inset from box edge
float	checkbox_mark_thickness	checkmark line thickness
float	checkbox_max_size	maximum box size
float	combobox_max_dropdown_width	maximum dropdown width for N_GUI_COMBOBOX_AUTO_WIDTH (0 = display width)
int	combobox_max_visible	default max visible items for combobox dropdown
float	dropdown_arrow_half_h	vertical half-extent of the arrow chevron
float	dropdown_arrow_half_w	horizontal half-extent of the arrow chevron
float	dropdown_arrow_reserve	horizontal space reserved for the arrow on the right
float	dropdown_arrow_thickness	arrow stroke thickness
float	dropdown_border_thickness	dropdown panel border thickness
int	dropmenu_max_visible	default max visible items for dropmenu panel
float	global_scroll_step	pixels per mouse wheel notch for global scroll
float	global_scrollbar_border_thickness	global thumb border thickness
float	global_scrollbar_size	global scrollbar track width/height
ALLEGRO_COLOR	global_scrollbar_thumb_border_color	global scrollbar thumb border colour
ALLEGRO_COLOR	global_scrollbar_thumb_color	global scrollbar thumb colour
float	global_scrollbar_thumb_corner_r	global thumb corner radius
float	global_scrollbar_thumb_min	global minimum thumb dimension
float	global_scrollbar_thumb_padding	global thumb inset from track edge
ALLEGRO_COLOR	global_scrollbar_track_color	global scrollbar track colour
ALLEGRO_COLOR	grip_color	grip line colour
float	grip_line_thickness	grip line thickness
float	grip_size	grip area size
float	item_height_pad	min padding added to font height for item height
float	item_selection_inset	item highlight inset from left/right edges
float	item_text_padding	text padding inside list/combo/dropmenu items
float	label_padding	horizontal padding each side
ALLEGRO_COLOR	link_color_hover	link colour (hover)
ALLEGRO_COLOR	link_color_normal	link colour (normal)
float	link_underline_thickness	link underline thickness
float	listbox_default_item_height	default item height for listbox
float	min_win_h	minimum window height (for resize)
float	min_win_w	minimum window width (for resize)
float	radio_circle_border_thickness	outer circle border thickness
float	radio_circle_min_r	minimum outer circle radius
float	radio_inner_offset	inner filled circle shrink from outer
float	radio_label_gap	gap between circle and label text
float	radiolist_default_item_height	default item height for radiolist
float	scroll_step	pixels per mouse wheel notch for window auto-scroll
float	scrollbar_size	scrollbar track width/height
ALLEGRO_COLOR	scrollbar_thumb_color	scrollbar thumb colour
float	scrollbar_thumb_corner_r	thumb corner radius
float	scrollbar_thumb_min	minimum thumb dimension
float	scrollbar_thumb_padding	thumb inset from track edge
ALLEGRO_COLOR	scrollbar_track_color	scrollbar track colour
int	shape_mode	global widget shape override: N_GUI_SHAPE_ROUNDED forces a rounded GUI, N_GUI_SHAPE_RECT forces a square one, and -1 (default) leaves each widget on its own shape (the dropmenu button + panel still default to rounded). Buttons and comboboxes follow this when it is set. Toggle with n_gui_set_shape_mode() for a round/square GUI.
float	slider_handle_border_thickness	handle border thickness
float	slider_handle_edge_offset	handle circle offset from edge
float	slider_handle_min_r	minimum handle circle radius
float	slider_track_border_thickness	track outline thickness
float	slider_track_corner_r	track corner radius
float	slider_track_size	track width (vertical) or height (horizontal)
float	slider_value_label_offset	gap between slider end and value label
float	tb_btn_glyph_thickness	line thickness for titlebar button glyphs
float	tb_btn_right_margin	right margin from window edge to rightmost button
float	tb_btn_size	titlebar button size (0 = auto: titlebar_h - 4)
float	tb_btn_spacing	gap between titlebar buttons
float	textarea_cursor_blink_period	cursor blink period in seconds (full cycle on+off)
float	textarea_cursor_width	cursor width in pixels
float	textarea_padding
float	title_max_w_reserve	pixels reserved right of title for truncation
float	title_padding	padding left of title text
float	titlebar_h	title bar height
ALLEGRO_COLOR	tooltip_bg	tooltip bubble background color
ALLEGRO_COLOR	tooltip_border	tooltip bubble border color
float	tooltip_delay	inner padding seconds the pointer must rest on a widget before its tooltip shows
ALLEGRO_COLOR	tooltip_fg	tooltip text color

◆ N_GUI_SYNTAXVIEW_DATA

struct N_GUI_SYNTAXVIEW_DATA

syntax view specific data: read-only highlighted text

Examples: ex_gui_syntaxview.c.

Definition at line 613 of file n_gui.h.

Collaboration diagram for N_GUI_SYNTAXVIEW_DATA:

Data Fields
int	cached_headers_end	cached first blank-line index (HTTP headers end), or INT_MAX; valid when lines_valid
int	cached_nb_lines	cached line count (matches _text_line_count), valid when lines_valid
size_t	len	text length in bytes
int	lines_valid	0 when cached_nb_lines / cached_headers_end are stale (rebuild on next use). Zero-initialised so a freshly created widget rebuilds on first draw; set back to 0 by n_gui_syntaxview_set_text.
int	mode	highlighting mode: N_GUI_SYNTAX_*
int	scroll_offset	first visible line
int	sel_dragging	1 while a mouse drag is extending the selection, 0 otherwise
int	sel_end	selection end byte offset (tracks the cursor while a drag is in progress)
int	sel_start	selection start byte offset into text, or -1 when nothing is selected
char *	text	owned copy of the text, or NULL

◆ N_GUI_TAB_PANEL

struct N_GUI_TAB_PANEL

tab panel built from toggle buttons with content window management

Definition at line 2366 of file n_gui.h.

Collaboration diagram for N_GUI_TAB_PANEL:

Data Fields
int	active_tab
	currently active tab index

float	button_h
	height of each tab button

int	button_ids [16]
	toggle button widget IDs

float	button_w
	width of each tab button

int	content_window_ids [16]
	content window IDs (-1 = none)

N_GUI_CTX *	ctx
	GUI context.

int	nb_tabs
	number of tabs

void(*	on_tab_change )(int, void *)
	callback on tab switch (may be NULL)

int	parent_window_id
	parent window for tab buttons

void *	user_data
	user data for callback

float	x
	x origin of first tab button

float	y
	y origin of tab button row

Field Documentation

◆ active_tab

int N_GUI_TAB_PANEL::active_tab

currently active tab index

Definition at line 2372 of file n_gui.h.

Referenced by n_gui_tab_add(), n_gui_tab_create(), n_gui_tab_get_active(), and n_gui_tab_set_active().

◆ button_h

float N_GUI_TAB_PANEL::button_h

height of each tab button

Definition at line 2376 of file n_gui.h.

Referenced by n_gui_tab_add(), and n_gui_tab_create().

◆ button_ids

int N_GUI_TAB_PANEL::button_ids[16]

toggle button widget IDs

Definition at line 2369 of file n_gui.h.

Referenced by _n_gui_tab_button_clicked(), n_gui_tab_add(), n_gui_tab_create(), and n_gui_tab_set_active().

◆ button_w

float N_GUI_TAB_PANEL::button_w

width of each tab button

Definition at line 2375 of file n_gui.h.

Referenced by n_gui_tab_add(), and n_gui_tab_create().

◆ content_window_ids

int N_GUI_TAB_PANEL::content_window_ids[16]

content window IDs (-1 = none)

Definition at line 2370 of file n_gui.h.

Referenced by n_gui_tab_create(), n_gui_tab_set_active(), and n_gui_tab_set_content_window().

◆ ctx

N_GUI_CTX* N_GUI_TAB_PANEL::ctx

GUI context.

Definition at line 2367 of file n_gui.h.

Referenced by n_gui_tab_add(), n_gui_tab_create(), and n_gui_tab_set_active().

◆ nb_tabs

int N_GUI_TAB_PANEL::nb_tabs

number of tabs

Definition at line 2371 of file n_gui.h.

Referenced by _n_gui_tab_button_clicked(), n_gui_tab_add(), n_gui_tab_create(), n_gui_tab_set_active(), and n_gui_tab_set_content_window().

◆ on_tab_change

void(* N_GUI_TAB_PANEL::on_tab_change) (int, void *)

callback on tab switch (may be NULL)

Definition at line 2377 of file n_gui.h.

Referenced by _n_gui_tab_button_clicked(), and n_gui_tab_create().

◆ parent_window_id

int N_GUI_TAB_PANEL::parent_window_id

parent window for tab buttons

Definition at line 2368 of file n_gui.h.

Referenced by n_gui_tab_add(), and n_gui_tab_create().

◆ user_data

void* N_GUI_TAB_PANEL::user_data

user data for callback

Definition at line 2378 of file n_gui.h.

Referenced by _n_gui_tab_button_clicked(), and n_gui_tab_create().

◆ x

float N_GUI_TAB_PANEL::x

x origin of first tab button

Definition at line 2373 of file n_gui.h.

Referenced by n_gui_tab_add(), and n_gui_tab_create().

◆ y

float N_GUI_TAB_PANEL::y

y origin of tab button row

Definition at line 2374 of file n_gui.h.

Referenced by n_gui_tab_add(), and n_gui_tab_create().

◆ N_GUI_TB_BUTTONS

struct N_GUI_TB_BUTTONS

Titlebar button state for a window (minimize, maximize, close)

Definition at line 947 of file n_gui.h.

Collaboration diagram for N_GUI_TB_BUTTONS:

Data Fields
N_GUI_THEME	btn_theme
	theme for minimize and maximize buttons

ALLEGRO_BITMAP *	close_active_bitmap
	optional bitmap for close button active state

ALLEGRO_BITMAP *	close_bitmap
	optional bitmap for close button normal state (NULL = color theme)

ALLEGRO_BITMAP *	close_hover_bitmap
	optional bitmap for close button hover state

N_GUI_THEME	close_theme
	theme for close button (defaults to red hover/active)

int	hovered
	which button is currently hovered (N_GUI_TB_BTN_*)

ALLEGRO_BITMAP *	maximize_active_bitmap
	optional bitmap for maximize button active state

ALLEGRO_BITMAP *	maximize_bitmap
	optional bitmap for maximize button normal state (NULL = color theme)

ALLEGRO_BITMAP *	maximize_hover_bitmap
	optional bitmap for maximize button hover state

ALLEGRO_BITMAP *	minimize_active_bitmap
	optional bitmap for minimize button active state

ALLEGRO_BITMAP *	minimize_bitmap
	optional bitmap for minimize button normal state (NULL = color theme)

ALLEGRO_BITMAP *	minimize_hover_bitmap
	optional bitmap for minimize button hover state

void(*	on_close )(int window_id, void *user_data)
	callback on close button click (NULL = default: clear N_GUI_WIN_OPEN)

void *	on_close_user_data
	user data for on_close callback

void(*	on_maximize )(int window_id, void *user_data)
	callback on maximize button click (NULL = default: toggle N_GUI_WIN_MAXIMISED)

void *	on_maximize_user_data
	user data for on_maximize callback

void(*	on_minimize )(int window_id, void *user_data)
	callback on minimize button click (NULL = default: toggle N_GUI_WIN_MINIMISED)

void *	on_minimize_user_data
	user data for on_minimize callback

int	pressed
	which button is currently pressed (N_GUI_TB_BTN_*)

float	restore_h
	saved height before maximise (for restore)

float	restore_w
	saved width before maximise (for restore)

float	restore_x
	saved x position before maximise (for restore)

float	restore_y
	saved y position before maximise (for restore)

Field Documentation

◆ btn_theme

N_GUI_THEME N_GUI_TB_BUTTONS::btn_theme

theme for minimize and maximize buttons

Definition at line 961 of file n_gui.h.

Referenced by _draw_tb_buttons(), n_gui_add_window(), n_gui_reset_all_widget_themes(), and n_gui_window_set_tb_btn_theme().

◆ close_active_bitmap

ALLEGRO_BITMAP* N_GUI_TB_BUTTONS::close_active_bitmap

optional bitmap for close button active state

Definition at line 981 of file n_gui.h.

Referenced by _draw_tb_buttons(), and n_gui_window_set_tb_button_bitmaps().

◆ close_bitmap

ALLEGRO_BITMAP* N_GUI_TB_BUTTONS::close_bitmap

optional bitmap for close button normal state (NULL = color theme)

Definition at line 977 of file n_gui.h.

Referenced by _draw_tb_buttons(), and n_gui_window_set_tb_button_bitmaps().

◆ close_hover_bitmap

ALLEGRO_BITMAP* N_GUI_TB_BUTTONS::close_hover_bitmap

optional bitmap for close button hover state

Definition at line 979 of file n_gui.h.

Referenced by _draw_tb_buttons(), and n_gui_window_set_tb_button_bitmaps().

◆ close_theme

N_GUI_THEME N_GUI_TB_BUTTONS::close_theme

theme for close button (defaults to red hover/active)

Definition at line 963 of file n_gui.h.

Referenced by _draw_tb_buttons(), n_gui_add_window(), n_gui_reset_all_widget_themes(), and n_gui_window_set_tb_close_theme().

◆ hovered

int N_GUI_TB_BUTTONS::hovered

which button is currently hovered (N_GUI_TB_BTN_*)

Definition at line 949 of file n_gui.h.

Referenced by _draw_tb_buttons(), n_gui_process_event(), and n_gui_window_detach().

◆ maximize_active_bitmap

ALLEGRO_BITMAP* N_GUI_TB_BUTTONS::maximize_active_bitmap

optional bitmap for maximize button active state

Definition at line 975 of file n_gui.h.

Referenced by _draw_tb_buttons(), and n_gui_window_set_tb_button_bitmaps().

◆ maximize_bitmap

ALLEGRO_BITMAP* N_GUI_TB_BUTTONS::maximize_bitmap

optional bitmap for maximize button normal state (NULL = color theme)

Definition at line 971 of file n_gui.h.

Referenced by _draw_tb_buttons(), and n_gui_window_set_tb_button_bitmaps().

◆ maximize_hover_bitmap

ALLEGRO_BITMAP* N_GUI_TB_BUTTONS::maximize_hover_bitmap

optional bitmap for maximize button hover state

Definition at line 973 of file n_gui.h.

Referenced by _draw_tb_buttons(), and n_gui_window_set_tb_button_bitmaps().

◆ minimize_active_bitmap

ALLEGRO_BITMAP* N_GUI_TB_BUTTONS::minimize_active_bitmap

optional bitmap for minimize button active state

Definition at line 969 of file n_gui.h.

Referenced by _draw_tb_buttons(), and n_gui_window_set_tb_button_bitmaps().

◆ minimize_bitmap

ALLEGRO_BITMAP* N_GUI_TB_BUTTONS::minimize_bitmap

optional bitmap for minimize button normal state (NULL = color theme)

Definition at line 965 of file n_gui.h.

Referenced by _draw_tb_buttons(), and n_gui_window_set_tb_button_bitmaps().

◆ minimize_hover_bitmap

ALLEGRO_BITMAP* N_GUI_TB_BUTTONS::minimize_hover_bitmap

optional bitmap for minimize button hover state

Definition at line 967 of file n_gui.h.

Referenced by _draw_tb_buttons(), and n_gui_window_set_tb_button_bitmaps().

◆ on_close

void(* N_GUI_TB_BUTTONS::on_close) (int window_id, void *user_data)

callback on close button click (NULL = default: clear N_GUI_WIN_OPEN)

Definition at line 991 of file n_gui.h.

Referenced by _tb_button_action(), n_gui_process_event(), and n_gui_window_set_close_callback().

◆ on_close_user_data

void* N_GUI_TB_BUTTONS::on_close_user_data

user data for on_close callback

Definition at line 993 of file n_gui.h.

Referenced by _tb_button_action(), n_gui_process_event(), and n_gui_window_set_close_callback().

◆ on_maximize

void(* N_GUI_TB_BUTTONS::on_maximize) (int window_id, void *user_data)

callback on maximize button click (NULL = default: toggle N_GUI_WIN_MAXIMISED)

Definition at line 987 of file n_gui.h.

Referenced by _tb_button_action(), and n_gui_window_set_maximize_callback().

◆ on_maximize_user_data

void* N_GUI_TB_BUTTONS::on_maximize_user_data

user data for on_maximize callback

Definition at line 989 of file n_gui.h.

Referenced by _tb_button_action(), and n_gui_window_set_maximize_callback().

◆ on_minimize

void(* N_GUI_TB_BUTTONS::on_minimize) (int window_id, void *user_data)

callback on minimize button click (NULL = default: toggle N_GUI_WIN_MINIMISED)

Definition at line 983 of file n_gui.h.

Referenced by _tb_button_action(), and n_gui_window_set_minimize_callback().

◆ on_minimize_user_data

void* N_GUI_TB_BUTTONS::on_minimize_user_data

user data for on_minimize callback

Definition at line 985 of file n_gui.h.

Referenced by _tb_button_action(), and n_gui_window_set_minimize_callback().

◆ pressed

int N_GUI_TB_BUTTONS::pressed

which button is currently pressed (N_GUI_TB_BTN_*)

Definition at line 951 of file n_gui.h.

Referenced by _draw_tb_buttons(), n_gui_process_event(), and n_gui_window_detach().

◆ restore_h

float N_GUI_TB_BUTTONS::restore_h

saved height before maximise (for restore)

Definition at line 959 of file n_gui.h.

Referenced by n_gui_maximize_window().

◆ restore_w

float N_GUI_TB_BUTTONS::restore_w

saved width before maximise (for restore)

Definition at line 957 of file n_gui.h.

Referenced by n_gui_maximize_window().

◆ restore_x

float N_GUI_TB_BUTTONS::restore_x

saved x position before maximise (for restore)

Definition at line 953 of file n_gui.h.

Referenced by n_gui_maximize_window().

◆ restore_y

float N_GUI_TB_BUTTONS::restore_y

saved y position before maximise (for restore)

Definition at line 955 of file n_gui.h.

Referenced by n_gui_maximize_window().

◆ N_GUI_TEXT_DIMS

struct N_GUI_TEXT_DIMS

bounding box dimensions returned by n_gui_get_text_dims()

Definition at line 331 of file n_gui.h.

Collaboration diagram for N_GUI_TEXT_DIMS:

Data Fields
int	h	bounding box height in pixels
int	w	bounding box width in pixels
int	x	bounding box x offset from draw origin
int	y	bounding box y offset from draw origin

◆ N_GUI_TEXTAREA_DATA

struct N_GUI_TEXTAREA_DATA

text area specific data

Examples: ex_gui_placeholder.c.

Definition at line 461 of file n_gui.h.

Collaboration diagram for N_GUI_TEXTAREA_DATA:

Data Fields
ALLEGRO_BITMAP *	bg_bitmap
	optional bitmap for the text area background (NULL = color theme)

size_t	char_limit
	maximum character limit (0 = N_GUI_TEXT_MAX)

size_t	cursor_pos
	cursor position in text

double	cursor_time
	timestamp of last cursor activity (for blink reset)

char	mask_char
	mask character for password fields (0 = no masking, e.g.

int	multiline
	0 = single line, 1 = multiline

void(*	on_change )(int widget_id, const char text, void user_data)
	callback on text change

char *	placeholder
	optional placeholder/hint text drawn dimmed while the field is empty (NULL = none); cleared from view as soon as any text is entered

int	scroll_from_wheel
	set to 1 when scroll was changed by mouse wheel, cleared on key input

float	scroll_x
	horizontal scroll offset for single-line text (pixels)

int	scroll_y
	scroll offset for long text

size_t	sel_end
	selection end position (tracks cursor during selection)

size_t	sel_start
	selection anchor position (where shift-click/shift-arrow started).

char *	text
	text content (dynamically allocated, text_alloc bytes)

size_t	text_alloc
	allocated buffer size (char_limit + 1)

size_t	text_len
	current text length

void *	user_data
	user data for callback

Field Documentation

◆ bg_bitmap

ALLEGRO_BITMAP* N_GUI_TEXTAREA_DATA::bg_bitmap

optional bitmap for the text area background (NULL = color theme)

Definition at line 488 of file n_gui.h.

Referenced by _draw_textarea(), and n_gui_add_textarea().

◆ char_limit

size_t N_GUI_TEXTAREA_DATA::char_limit

maximum character limit (0 = N_GUI_TEXT_MAX)

Definition at line 469 of file n_gui.h.

Referenced by _textarea_handle_key(), n_gui_add_textarea(), and n_gui_textarea_set_text().

◆ cursor_pos

size_t N_GUI_TEXTAREA_DATA::cursor_pos

cursor position in text

Definition at line 473 of file n_gui.h.

Referenced by _draw_textarea(), _textarea_clear_selection(), _textarea_delete_selection(), _textarea_handle_key(), _textarea_paste_clip(), n_gui_add_textarea(), n_gui_process_event(), n_gui_textarea_set_selection(), and n_gui_textarea_set_text().

◆ cursor_time

double N_GUI_TEXTAREA_DATA::cursor_time

timestamp of last cursor activity (for blink reset)

Definition at line 486 of file n_gui.h.

Referenced by _draw_textarea(), _textarea_handle_key(), n_gui_add_textarea(), n_gui_process_event(), and n_gui_set_focus().

◆ mask_char

char N_GUI_TEXTAREA_DATA::mask_char

mask character for password fields (0 = no masking, e.g.

'*')

Definition at line 490 of file n_gui.h.

Referenced by _draw_textarea(), _textarea_pos_from_mouse(), and n_gui_add_textarea().

◆ multiline

int N_GUI_TEXTAREA_DATA::multiline

0 = single line, 1 = multiline

Definition at line 471 of file n_gui.h.

Referenced by _draw_textarea(), _textarea_handle_key(), _textarea_paste_clip(), _textarea_pos_from_mouse(), n_gui_add_textarea(), n_gui_process_event(), n_gui_textarea_scroll_to_bottom(), and n_gui_textarea_scroll_to_offset().

◆ on_change

void(* N_GUI_TEXTAREA_DATA::on_change) (int widget_id, const char *text, void *user_data)

callback on text change

Definition at line 495 of file n_gui.h.

Referenced by _textarea_delete_selection(), _textarea_handle_key(), _textarea_paste_clip(), and n_gui_add_textarea().

◆ placeholder

char* N_GUI_TEXTAREA_DATA::placeholder

optional placeholder/hint text drawn dimmed while the field is empty (NULL = none); cleared from view as soon as any text is entered

Definition at line 493 of file n_gui.h.

Referenced by _destroy_widget(), _draw_textarea_placeholder(), and n_gui_textarea_set_placeholder().

◆ scroll_from_wheel

int N_GUI_TEXTAREA_DATA::scroll_from_wheel

set to 1 when scroll was changed by mouse wheel, cleared on key input

Definition at line 484 of file n_gui.h.

Referenced by _draw_textarea(), _textarea_handle_key(), n_gui_process_event(), and n_gui_textarea_scroll_to_offset().

◆ scroll_x

float N_GUI_TEXTAREA_DATA::scroll_x

horizontal scroll offset for single-line text (pixels)

Definition at line 482 of file n_gui.h.

Referenced by _draw_textarea(), _textarea_pos_from_mouse(), n_gui_add_textarea(), and n_gui_textarea_set_text().

◆ scroll_y

int N_GUI_TEXTAREA_DATA::scroll_y

scroll offset for long text

Definition at line 480 of file n_gui.h.

Referenced by _draw_textarea(), _textarea_pos_from_mouse(), n_gui_add_textarea(), n_gui_process_event(), n_gui_textarea_scroll_to_bottom(), and n_gui_textarea_scroll_to_offset().

◆ sel_end

size_t N_GUI_TEXTAREA_DATA::sel_end

selection end position (tracks cursor during selection)

Definition at line 478 of file n_gui.h.

Referenced by _textarea_clear_selection(), _textarea_handle_key(), _textarea_has_selection(), _textarea_sel_range(), n_gui_add_textarea(), n_gui_process_event(), and n_gui_textarea_set_selection().

◆ sel_start

size_t N_GUI_TEXTAREA_DATA::sel_start

selection anchor position (where shift-click/shift-arrow started).

When sel_start == sel_end, no selection is active.

Definition at line 476 of file n_gui.h.

Referenced by _textarea_clear_selection(), _textarea_handle_key(), _textarea_has_selection(), _textarea_sel_range(), n_gui_add_textarea(), n_gui_process_event(), and n_gui_textarea_set_selection().

◆ text

char* N_GUI_TEXTAREA_DATA::text

text content (dynamically allocated, text_alloc bytes)

Definition at line 463 of file n_gui.h.

Referenced by _destroy_widget(), _draw_textarea(), _ngui_publish_primary_selection(), _textarea_content_height(), _textarea_copy_to_clipboard(), _textarea_delete_selection(), _textarea_handle_key(), _textarea_paste_clip(), _textarea_pos_from_mouse(), n_gui_add_textarea(), n_gui_textarea_scroll_to_offset(), and n_gui_textarea_set_text().

◆ text_alloc

size_t N_GUI_TEXTAREA_DATA::text_alloc

allocated buffer size (char_limit + 1)

Definition at line 467 of file n_gui.h.

Referenced by n_gui_add_textarea().

◆ text_len

size_t N_GUI_TEXTAREA_DATA::text_len

current text length

Definition at line 465 of file n_gui.h.

Referenced by _draw_textarea(), _draw_textarea_placeholder(), _textarea_content_height(), _textarea_delete_selection(), _textarea_handle_key(), _textarea_paste_clip(), _textarea_pos_from_mouse(), n_gui_add_textarea(), n_gui_textarea_get_text_length(), n_gui_textarea_scroll_to_bottom(), n_gui_textarea_scroll_to_offset(), n_gui_textarea_set_selection(), and n_gui_textarea_set_text().

◆ user_data

void* N_GUI_TEXTAREA_DATA::user_data

user data for callback

Definition at line 497 of file n_gui.h.

Referenced by _textarea_delete_selection(), _textarea_handle_key(), _textarea_paste_clip(), and n_gui_add_textarea().

◆ N_GUI_THEME

struct N_GUI_THEME

Color theme for a widget.

Examples: ex_gui.c.

Definition at line 341 of file n_gui.h.

Collaboration diagram for N_GUI_THEME:

Data Fields
ALLEGRO_COLOR	bg_active	background active/pressed
ALLEGRO_COLOR	bg_hover	background hover
ALLEGRO_COLOR	bg_normal	background normal
ALLEGRO_COLOR	border_active	border active
ALLEGRO_COLOR	border_hover	border hover
ALLEGRO_COLOR	border_normal	border normal
float	border_thickness	border thickness
float	corner_rx	corner radius for rounded shapes
float	corner_ry	corner radius Y for rounded shapes
ALLEGRO_COLOR	selection_color	text selection highlight colour (semi-transparent recommended)
ALLEGRO_COLOR	text_active	text active
ALLEGRO_COLOR	text_hover	text hover
ALLEGRO_COLOR	text_normal	text normal

◆ N_GUI_TREE

struct N_GUI_TREE

tree view built from an N_GUI listbox

Definition at line 2477 of file n_gui.h.

Collaboration diagram for N_GUI_TREE:

Data Fields
N_GUI_CTX *	ctx
	GUI context.

int	drag_active
	1 once past threshold

int	drag_armed_node
	pressed-but-not-yet-dragging

int	drag_hover_node
	current hover node, or -1

float	drag_press_x
	mouse x at press time

float	drag_press_y
	mouse y at press time

int	drag_source_node
	node being dragged, or -1

int	drop_position
	N_GUI_DROP_BEFORE / INTO / AFTER.

void *	drop_user_data
	user data for on_drop

int	listbox_id
	listbox widget ID

int	mouse_b1_prev
	previous frame's b1 state

int	nb_nodes
	number of nodes

int	nb_visible
	number of visible rows

N_GUI_TREE_NODE	nodes [2048]
	node storage

n_gui_tree_on_drop_t	on_drop
	drag-reorder state (managed by n_gui_tree_tick)

void(*	on_select )(int, void *)
	selection callback

void *	user_data
	user data for callback

int	visible_map [2048]
	visible row to node index

int	window_id
	owning window for coord math

Field Documentation

◆ ctx

N_GUI_CTX* N_GUI_TREE::ctx

GUI context.

Definition at line 2478 of file n_gui.h.

Referenced by _n_gui_tree_listbox_bounds(), n_gui_tree_clear(), n_gui_tree_create(), n_gui_tree_draw_overlay(), n_gui_tree_get_selection(), n_gui_tree_rebuild(), n_gui_tree_set_selection(), and n_gui_tree_tick().

◆ drag_active

int N_GUI_TREE::drag_active

1 once past threshold

Definition at line 2495 of file n_gui.h.

Referenced by n_gui_tree_create(), n_gui_tree_draw_overlay(), n_gui_tree_set_on_drop(), and n_gui_tree_tick().

◆ drag_armed_node

int N_GUI_TREE::drag_armed_node

pressed-but-not-yet-dragging

Definition at line 2492 of file n_gui.h.

Referenced by n_gui_tree_create(), n_gui_tree_set_on_drop(), and n_gui_tree_tick().

◆ drag_hover_node

int N_GUI_TREE::drag_hover_node

current hover node, or -1

Definition at line 2493 of file n_gui.h.

Referenced by n_gui_tree_create(), n_gui_tree_draw_overlay(), n_gui_tree_set_on_drop(), and n_gui_tree_tick().

◆ drag_press_x

float N_GUI_TREE::drag_press_x

mouse x at press time

Definition at line 2496 of file n_gui.h.

Referenced by n_gui_tree_create(), and n_gui_tree_tick().

◆ drag_press_y

float N_GUI_TREE::drag_press_y

mouse y at press time

Definition at line 2497 of file n_gui.h.

Referenced by n_gui_tree_create(), and n_gui_tree_tick().

◆ drag_source_node

int N_GUI_TREE::drag_source_node

node being dragged, or -1

Definition at line 2491 of file n_gui.h.

Referenced by n_gui_tree_create(), n_gui_tree_set_on_drop(), and n_gui_tree_tick().

◆ drop_position

int N_GUI_TREE::drop_position

N_GUI_DROP_BEFORE / INTO / AFTER.

Definition at line 2494 of file n_gui.h.

Referenced by n_gui_tree_create(), n_gui_tree_draw_overlay(), and n_gui_tree_tick().

◆ drop_user_data

void* N_GUI_TREE::drop_user_data

user data for on_drop

Definition at line 2490 of file n_gui.h.

Referenced by n_gui_tree_create(), n_gui_tree_set_on_drop(), and n_gui_tree_tick().

◆ listbox_id

int N_GUI_TREE::listbox_id

listbox widget ID

Definition at line 2479 of file n_gui.h.

Referenced by _n_gui_tree_listbox_bounds(), n_gui_tree_clear(), n_gui_tree_create(), n_gui_tree_draw_overlay(), n_gui_tree_get_selection(), n_gui_tree_rebuild(), and n_gui_tree_set_selection().

◆ mouse_b1_prev

int N_GUI_TREE::mouse_b1_prev

previous frame's b1 state

Definition at line 2498 of file n_gui.h.

Referenced by n_gui_tree_create(), and n_gui_tree_tick().

◆ nb_nodes

int N_GUI_TREE::nb_nodes

number of nodes

Definition at line 2482 of file n_gui.h.

Referenced by _n_gui_tree_hit_row(), _n_gui_tree_listbox_selected(), n_gui_tree_add_node(), n_gui_tree_clear(), n_gui_tree_create(), n_gui_tree_find_by_user_data(), n_gui_tree_rebuild(), n_gui_tree_remove_node(), n_gui_tree_set_label(), n_gui_tree_set_selection(), and n_gui_tree_toggle_expand().

◆ nb_visible

int N_GUI_TREE::nb_visible

number of visible rows

Definition at line 2484 of file n_gui.h.

Referenced by _n_gui_tree_hit_row(), _n_gui_tree_listbox_selected(), n_gui_tree_clear(), n_gui_tree_create(), n_gui_tree_draw_overlay(), n_gui_tree_get_selection(), n_gui_tree_rebuild(), and n_gui_tree_set_selection().

◆ nodes

N_GUI_TREE_NODE N_GUI_TREE::nodes[2048]

node storage

Definition at line 2481 of file n_gui.h.

Referenced by _n_gui_tree_listbox_selected(), _n_gui_tree_node_visible(), n_gui_tree_add_node(), n_gui_tree_find_by_user_data(), n_gui_tree_rebuild(), n_gui_tree_remove_node(), n_gui_tree_set_label(), n_gui_tree_set_selection(), and n_gui_tree_toggle_expand().

◆ on_drop

n_gui_tree_on_drop_t N_GUI_TREE::on_drop

drag-reorder state (managed by n_gui_tree_tick)

drop callback, or NULL

Definition at line 2489 of file n_gui.h.

Referenced by n_gui_tree_create(), n_gui_tree_set_on_drop(), and n_gui_tree_tick().

◆ on_select

void(* N_GUI_TREE::on_select) (int, void *)

selection callback

Definition at line 2485 of file n_gui.h.

Referenced by _n_gui_tree_listbox_selected(), and n_gui_tree_create().

◆ user_data

void* N_GUI_TREE::user_data

user data for callback

Definition at line 2486 of file n_gui.h.

Referenced by _n_gui_tree_listbox_selected(), and n_gui_tree_create().

◆ visible_map

int N_GUI_TREE::visible_map[2048]

visible row to node index

Definition at line 2483 of file n_gui.h.

Referenced by _n_gui_tree_hit_row(), _n_gui_tree_listbox_selected(), n_gui_tree_draw_overlay(), n_gui_tree_get_selection(), n_gui_tree_rebuild(), and n_gui_tree_set_selection().

◆ window_id

int N_GUI_TREE::window_id

owning window for coord math

Definition at line 2480 of file n_gui.h.

Referenced by _n_gui_tree_listbox_bounds(), and n_gui_tree_create().

◆ N_GUI_TREE_NODE

struct N_GUI_TREE_NODE

a single node in the tree view

Definition at line 2454 of file n_gui.h.

Collaboration diagram for N_GUI_TREE_NODE:

Data Fields
int	depth	depth in tree (0 = root)
int	expanded	1 if expanded
int	has_children	1 if node has children
char	label[128]	display text
int	parent_index	parent node index, or -1 for root
void *	user_data	user data for this node

◆ N_GUI_WIDGET

struct N_GUI_WIDGET

A single GUI widget.

Examples: ex_gui_custom.c, ex_gui_dropmenu.c, ex_gui_kvtable.c, ex_gui_placeholder.c, and ex_gui_syntaxview.c.

Definition at line 882 of file n_gui.h.

Collaboration diagram for N_GUI_WIDGET:

Data Fields
void *	data	widget-specific data (union via void pointer)
int	enabled	enabled flag (1 = enabled, 0 = disabled: drawn dimmed and ignores input)
ALLEGRO_FONT *	font	font used by this widget (NULL = context default)
float	h	height
int	id	unique widget id
float	norm_h	normalized height (fraction of parent window h)
float	norm_w	normalized width (fraction of parent window w)
float	norm_x	normalized position x (fraction of parent window w, used for SCALE resize)
float	norm_y	normalized position y (fraction of parent window h, used for SCALE resize)
char	persist_key[128]	optional stable key for persisting this widget's user-adjustable state (splitpane divider ratio, datagrid column order/visibility/width) across sessions inside the layout JSON. "" (the default) = not persisted. Set with n_gui_widget_set_persist_key.
int	state	current state flags (N_GUI_STATE_*)
N_GUI_THEME	theme	color theme for this widget
char *	tooltip	owned tooltip text shown after the pointer rests on the widget (NULL = none); heap-allocated with no length cap so long tooltips are not truncated
int	type	widget type (N_GUI_TYPE_*)
int	visible	visibility flag
float	w	width
float	x	position x relative to parent window
float	y	position y relative to parent window

◆ N_GUI_WINDOW

struct N_GUI_WINDOW

A pseudo window that contains widgets.

Examples: ex_gui_kvtable.c, ex_gui_layout_persist.c, and ex_gui_multiwin.c.

Definition at line 999 of file n_gui.h.

Collaboration diagram for N_GUI_WINDOW:

Data Fields
float	autofit_border
	padding/border around content for auto-fit (pixels, applied on each side)

int	autofit_flags
	bitmask of N_GUI_AUTOFIT_* flags (0 = no auto-fitting)

float	autofit_origin_x
	original insertion point x for N_GUI_AUTOFIT_CENTER (set by n_gui_window_set_autofit)

float	autofit_origin_y
	original insertion point y for N_GUI_AUTOFIT_CENTER (set by n_gui_window_set_autofit)

ALLEGRO_BITMAP *	bg_bitmap
	optional bitmap for the window body background (NULL = color fill)

int	bg_scale_mode
	scale mode for bg_bitmap: N_GUI_IMAGE_FIT, N_GUI_IMAGE_STRETCH, or N_GUI_IMAGE_CENTER

float	content_h
	total content height computed from widgets (internal)

float	content_w
	total content width computed from widgets (internal)

int	detach_flags
	options the window was detached with (N_GUI_DETACH_*), remembered so a close/open cycle and a restored layout can re-create the same native window

float	drag_ox
	drag offset x (internal)

float	drag_oy
	drag offset y (internal)

int	flags
	feature flags (N_GUI_WIN_AUTO_SCROLLBAR, N_GUI_WIN_RESIZABLE, etc.)

ALLEGRO_FONT *	font
	font for the title bar

float	h
	window height

int	id
	unique window id

float	min_h
	minimum height

float	min_w
	minimum width

ALLEGRO_DISPLAY *	native
	native OS window backing this pseudo-window, or NULL (the default) when the window is drawn as a pop-up inside the host's main display.

int	native_close_pending
	1 when the native window must be released at the next safe point (an ALLEGRO_EVENT_DISPLAY_CLOSE arrived, or the window was closed while detached).

int	native_drag_anchored
	1 when the four native_drag_* fields hold a usable grab, that is when al_get_mouse_cursor_position worked.

int	native_drag_cx
	desktop x of the mouse cursor when a native (N_GUI_DETACH_OWN_CHROME) title bar drag started.

int	native_drag_cy
	desktop y of the mouse cursor at the drag grab (see native_drag_cx)

int	native_drag_wx
	native window x at the drag grab, the move is native_drag_wx plus the desktop cursor travel since the grab

int	native_drag_wy
	native window y at the drag grab (see native_drag_wx)

float	native_h
	last known native window height (see native_w)

int	native_halted
	1 while the native window's drawing is halted.

int	native_pos_x
	last known native window position on the desktop, applied when the native window is re-created.

int	native_pos_y
	last known native window y position (see native_pos_x)

float	native_w
	last known native window width, 0 until the window is first detached.

float	norm_h
	normalized height (fraction of reference display height, used in SCALE mode)

float	norm_w
	normalized width (fraction of reference display width, used in SCALE mode)

float	norm_x
	normalized position x (0.0-1.0 fraction of reference display width)

float	norm_y
	normalized position y (0.0-1.0 fraction of reference display height)

void(*	on_content_draw )(int window_id, void *user_data)
	optional callback invoked during n_gui_draw immediately after this window's own content is drawn, at the window's z-order (NULL = none).

void *	on_content_draw_data
	user data passed to on_content_draw

int	resize_policy
	per-window resize policy: N_GUI_WIN_RESIZE_NONE, _MOVE, or _SCALE

int	saved_flags
	embedded feature flags saved by n_gui_window_detach (a detached window is forced frameless because the OS draws the title bar)

float	saved_h
	embedded height saved by n_gui_window_detach, restored by n_gui_window_attach

float	saved_w
	embedded width saved by n_gui_window_detach, restored by n_gui_window_attach

float	saved_x
	embedded x saved by n_gui_window_detach, restored by n_gui_window_attach

float	saved_y
	embedded y saved by n_gui_window_detach, restored by n_gui_window_attach

float	scroll_x
	horizontal scroll offset for auto-scrollbar (pixels)

float	scroll_y
	vertical scroll offset for auto-scrollbar (pixels)

int	state
	state flags (N_GUI_WIN_*)

N_GUI_TB_BUTTONS	tb_buttons
	titlebar button state (minimize, maximize, close)

N_GUI_THEME	theme
	color theme for this window chrome

char	title [128]
	window title

ALLEGRO_BITMAP *	titlebar_bitmap
	optional bitmap for the titlebar background (NULL = color fill)

float	titlebar_h
	title bar height

float	w
	window width

int	want_native
	1 when the window should live in a native OS window: set by n_gui_window_detach and by a loaded layout, cleared by n_gui_window_attach.

LIST *	widgets
	list of N_GUI_WIDGET* contained in this window

float	x
	position x on screen

float	y
	position y on screen

int	z_order
	z-order mode (N_GUI_ZORDER_NORMAL, _ALWAYS_ON_TOP, _ALWAYS_BEHIND, _FIXED)

int	z_value
	z-value for N_GUI_ZORDER_FIXED mode (lower = behind, higher = on top)

Field Documentation

◆ autofit_border

float N_GUI_WINDOW::autofit_border

padding/border around content for auto-fit (pixels, applied on each side)

Definition at line 1053 of file n_gui.h.

Referenced by n_gui_add_window(), n_gui_load_layout_json(), n_gui_save_layout_json(), n_gui_window_apply_autofit(), and n_gui_window_set_autofit().

◆ autofit_flags

int N_GUI_WINDOW::autofit_flags

bitmask of N_GUI_AUTOFIT_* flags (0 = no auto-fitting)

Definition at line 1051 of file n_gui.h.

Referenced by n_gui_add_window(), n_gui_draw(), n_gui_draw_detached(), n_gui_load_layout_json(), n_gui_save_layout_json(), n_gui_window_apply_autofit(), and n_gui_window_set_autofit().

◆ autofit_origin_x

float N_GUI_WINDOW::autofit_origin_x

original insertion point x for N_GUI_AUTOFIT_CENTER (set by n_gui_window_set_autofit)

Definition at line 1055 of file n_gui.h.

Referenced by n_gui_add_window(), n_gui_window_apply_autofit(), and n_gui_window_set_autofit().

◆ autofit_origin_y

float N_GUI_WINDOW::autofit_origin_y

original insertion point y for N_GUI_AUTOFIT_CENTER (set by n_gui_window_set_autofit)

Definition at line 1057 of file n_gui.h.

Referenced by n_gui_add_window(), n_gui_window_apply_autofit(), and n_gui_window_set_autofit().

◆ bg_bitmap

ALLEGRO_BITMAP* N_GUI_WINDOW::bg_bitmap

optional bitmap for the window body background (NULL = color fill)

Definition at line 1045 of file n_gui.h.

Referenced by _draw_window(), and n_gui_window_set_bitmaps().

◆ bg_scale_mode

int N_GUI_WINDOW::bg_scale_mode

scale mode for bg_bitmap: N_GUI_IMAGE_FIT, N_GUI_IMAGE_STRETCH, or N_GUI_IMAGE_CENTER

Definition at line 1049 of file n_gui.h.

Referenced by _draw_window(), and n_gui_window_set_bitmaps().

◆ content_h

float N_GUI_WINDOW::content_h

total content height computed from widgets (internal)

Definition at line 1037 of file n_gui.h.

Referenced by _draw_window(), _window_update_content_size(), n_gui_add_window(), n_gui_process_event(), and n_gui_window_apply_autofit().

◆ content_w

float N_GUI_WINDOW::content_w

total content width computed from widgets (internal)

Definition at line 1039 of file n_gui.h.

Referenced by _draw_window(), _window_update_content_size(), n_gui_add_window(), n_gui_process_event(), and n_gui_window_apply_autofit().

◆ detach_flags

int N_GUI_WINDOW::detach_flags

options the window was detached with (N_GUI_DETACH_*), remembered so a close/open cycle and a restored layout can re-create the same native window

Definition at line 1084 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), _native_own_chrome(), n_gui_add_window(), n_gui_load_layout_json(), n_gui_open_window(), n_gui_process_event(), n_gui_save_layout_json(), and n_gui_window_detach().

◆ drag_ox

float N_GUI_WINDOW::drag_ox

drag offset x (internal)

Definition at line 1025 of file n_gui.h.

Referenced by n_gui_add_window(), and n_gui_process_event().

◆ drag_oy

float N_GUI_WINDOW::drag_oy

drag offset y (internal)

Definition at line 1027 of file n_gui.h.

Referenced by n_gui_add_window(), and n_gui_process_event().

◆ flags

int N_GUI_WINDOW::flags

feature flags (N_GUI_WIN_AUTO_SCROLLBAR, N_GUI_WIN_RESIZABLE, etc.)

Examples: ex_gui_multiwin.c.

Definition at line 1017 of file n_gui.h.

Referenced by _draw_window(), _tb_button_rect(), _tb_buttons_area_width(), _win_tbh(), _window_update_content_size(), main(), n_gui_add_window(), n_gui_apply_adaptive_resize(), n_gui_draw_detached(), n_gui_load_layout_json(), n_gui_process_event(), n_gui_save_layout_json(), n_gui_window_attach(), n_gui_window_detach(), n_gui_window_get_flags(), and n_gui_window_set_flags().

◆ font

ALLEGRO_FONT* N_GUI_WINDOW::font

font for the title bar

Definition at line 1023 of file n_gui.h.

Referenced by _draw_window(), and n_gui_add_window().

◆ h

float N_GUI_WINDOW::h

◆ id

int N_GUI_WINDOW::id

unique window id

Definition at line 1001 of file n_gui.h.

Referenced by _find_window_node(), _tb_button_action(), n_gui_add_window(), n_gui_draw(), n_gui_draw_detached(), n_gui_get_topmost_open_window(), n_gui_load_layout_json(), n_gui_process_event(), n_gui_set_focus(), and n_gui_window_from_display().

◆ min_h

float N_GUI_WINDOW::min_h

minimum height

Examples: ex_gui_multiwin.c.

Definition at line 1031 of file n_gui.h.

Referenced by _native_apply_minimised(), main(), n_gui_add_window(), n_gui_apply_adaptive_resize(), n_gui_process_event(), n_gui_window_apply_autofit(), n_gui_window_autosize(), and n_gui_window_detach().

◆ min_w

float N_GUI_WINDOW::min_w

minimum width

Examples: ex_gui_multiwin.c.

Definition at line 1029 of file n_gui.h.

Referenced by _native_apply_minimised(), main(), n_gui_add_window(), n_gui_apply_adaptive_resize(), n_gui_process_event(), n_gui_window_apply_autofit(), n_gui_window_autosize(), and n_gui_window_detach().

◆ native

ALLEGRO_DISPLAY* N_GUI_WINDOW::native

native OS window backing this pseudo-window, or NULL (the default) when the window is drawn as a pop-up inside the host's main display.

Set by n_gui_window_detach, cleared by n_gui_window_attach. Owned by the context: n_gui_destroy_ctx destroys any display still attached here.

Definition at line 1081 of file n_gui.h.

Referenced by _draw_tooltip(), _n_gui_kv_apply_layout(), _native_apply_minimised(), _native_drag_begin(), _native_own_chrome(), _release_native_window(), _tb_button_action(), _win_on_pass(), n_gui_add_window(), n_gui_apply_adaptive_resize(), n_gui_close_window(), n_gui_count_detached(), n_gui_destroy_ctx(), n_gui_draw_detached(), n_gui_load_layout_json(), n_gui_maximize_window(), n_gui_open_window(), n_gui_process_event(), n_gui_save_layout_json(), n_gui_wants_mouse(), n_gui_window_attach(), n_gui_window_detach(), n_gui_window_from_display(), n_gui_window_get_display(), n_gui_window_is_detached(), n_gui_window_native_is_hidden(), and n_gui_window_set_native_icons().

◆ native_close_pending

int N_GUI_WINDOW::native_close_pending

1 when the native window must be released at the next safe point (an ALLEGRO_EVENT_DISPLAY_CLOSE arrived, or the window was closed while detached).

Destroying a display from inside event processing would leave already-queued events pointing at freed memory, so n_gui_draw_detached performs the actual release once the queue has been drained.

Definition at line 1094 of file n_gui.h.

Referenced by _release_native_window(), _tb_button_action(), n_gui_add_window(), n_gui_close_window(), n_gui_draw_detached(), n_gui_open_window(), n_gui_process_event(), and n_gui_window_detach().

◆ native_drag_anchored

int N_GUI_WINDOW::native_drag_anchored

1 when the four native_drag_* fields hold a usable grab, that is when al_get_mouse_cursor_position worked.

0 falls the drag back to the display-local delta, which is all a platform without desktop cursor coordinates can offer.

Definition at line 1133 of file n_gui.h.

Referenced by _native_drag_begin(), n_gui_add_window(), n_gui_process_event(), and n_gui_window_detach().

◆ native_drag_cx

int N_GUI_WINDOW::native_drag_cx

desktop x of the mouse cursor when a native (N_GUI_DETACH_OWN_CHROME) title bar drag started.

Desktop coordinates are unaffected by the window moving, so the whole drag is expressed against this single grab point instead of accumulating display-local deltas.

Definition at line 1121 of file n_gui.h.

Referenced by _native_drag_begin(), n_gui_add_window(), and n_gui_process_event().

◆ native_drag_cy

int N_GUI_WINDOW::native_drag_cy

desktop y of the mouse cursor at the drag grab (see native_drag_cx)

Definition at line 1123 of file n_gui.h.

Referenced by _native_drag_begin(), n_gui_add_window(), and n_gui_process_event().

◆ native_drag_wx

int N_GUI_WINDOW::native_drag_wx

native window x at the drag grab, the move is native_drag_wx plus the desktop cursor travel since the grab

Definition at line 1126 of file n_gui.h.

Referenced by _native_drag_begin(), n_gui_add_window(), and n_gui_process_event().

◆ native_drag_wy

int N_GUI_WINDOW::native_drag_wy

native window y at the drag grab (see native_drag_wx)

Definition at line 1128 of file n_gui.h.

Referenced by _native_drag_begin(), n_gui_add_window(), and n_gui_process_event().

◆ native_h

float N_GUI_WINDOW::native_h

last known native window height (see native_w)

Definition at line 1111 of file n_gui.h.

Referenced by _release_native_window(), n_gui_add_window(), n_gui_load_layout_json(), n_gui_process_event(), n_gui_save_layout_json(), and n_gui_window_detach().

◆ native_halted

int N_GUI_WINDOW::native_halted

1 while the native window's drawing is halted.

Set on ALLEGRO_EVENT_DISPLAY_HALT_DRAWING and cleared on RESUME_DRAWING, both acknowledged to Allegro. n_gui_draw_detached skips a halted window: drawing into one is undefined, and on Android the OS has taken the surface away entirely.

Definition at line 1139 of file n_gui.h.

Referenced by n_gui_add_window(), n_gui_draw_detached(), n_gui_process_event(), and n_gui_window_native_is_hidden().

◆ native_pos_x

int N_GUI_WINDOW::native_pos_x

last known native window position on the desktop, applied when the native window is re-created.

INT_MIN means "unknown, let the OS place it".

Definition at line 1114 of file n_gui.h.

Referenced by _release_native_window(), n_gui_add_window(), n_gui_load_layout_json(), n_gui_process_event(), n_gui_save_layout_json(), and n_gui_window_detach().

◆ native_pos_y

int N_GUI_WINDOW::native_pos_y

last known native window y position (see native_pos_x)

Definition at line 1116 of file n_gui.h.

Referenced by _release_native_window(), n_gui_add_window(), n_gui_load_layout_json(), n_gui_process_event(), n_gui_save_layout_json(), and n_gui_window_detach().

◆ native_w

float N_GUI_WINDOW::native_w

last known native window width, 0 until the window is first detached.

Tracked across resizes and persisted, so a re-created native window comes back at the size the user left it rather than at the pop-up's size.

Definition at line 1109 of file n_gui.h.

Referenced by _release_native_window(), n_gui_add_window(), n_gui_load_layout_json(), n_gui_process_event(), n_gui_save_layout_json(), and n_gui_window_detach().

◆ norm_h

float N_GUI_WINDOW::norm_h

normalized height (fraction of reference display height, used in SCALE mode)

Definition at line 1067 of file n_gui.h.

Referenced by _n_gui_window_capture_normalized(), n_gui_add_window(), n_gui_apply_adaptive_resize(), n_gui_load_layout_json(), and n_gui_save_layout_json().

◆ norm_w

float N_GUI_WINDOW::norm_w

normalized width (fraction of reference display width, used in SCALE mode)

Definition at line 1065 of file n_gui.h.

Referenced by _n_gui_window_capture_normalized(), n_gui_add_window(), n_gui_apply_adaptive_resize(), n_gui_load_layout_json(), and n_gui_save_layout_json().

◆ norm_x

float N_GUI_WINDOW::norm_x

normalized position x (0.0-1.0 fraction of reference display width)

Definition at line 1061 of file n_gui.h.

Referenced by _n_gui_window_capture_normalized(), n_gui_add_window(), n_gui_apply_adaptive_resize(), n_gui_load_layout_json(), and n_gui_save_layout_json().

◆ norm_y

float N_GUI_WINDOW::norm_y

normalized position y (0.0-1.0 fraction of reference display height)

Definition at line 1063 of file n_gui.h.

Referenced by _n_gui_window_capture_normalized(), n_gui_add_window(), n_gui_apply_adaptive_resize(), n_gui_load_layout_json(), and n_gui_save_layout_json().

◆ on_content_draw

void(* N_GUI_WINDOW::on_content_draw) (int window_id, void *user_data)

optional callback invoked during n_gui_draw immediately after this window's own content is drawn, at the window's z-order (NULL = none).

Lets a caller add custom immediate-mode rendering that is correctly occluded by any window drawn on top of this one.

Definition at line 1074 of file n_gui.h.

Referenced by n_gui_draw(), n_gui_draw_detached(), and n_gui_window_set_content_draw_callback().

◆ on_content_draw_data

void* N_GUI_WINDOW::on_content_draw_data

user data passed to on_content_draw

Definition at line 1076 of file n_gui.h.

Referenced by n_gui_draw(), n_gui_draw_detached(), and n_gui_window_set_content_draw_callback().

◆ resize_policy

int N_GUI_WINDOW::resize_policy

per-window resize policy: N_GUI_WIN_RESIZE_NONE, _MOVE, or _SCALE

Definition at line 1059 of file n_gui.h.

Referenced by _n_gui_kv_apply_layout(), _n_gui_window_capture_normalized(), n_gui_add_window(), n_gui_apply_adaptive_resize(), n_gui_load_layout_json(), n_gui_save_layout_json(), n_gui_window_get_resize_policy(), and n_gui_window_set_resize_policy().

◆ saved_flags

int N_GUI_WINDOW::saved_flags

embedded feature flags saved by n_gui_window_detach (a detached window is forced frameless because the OS draws the title bar)

Definition at line 1105 of file n_gui.h.

Referenced by n_gui_add_window(), n_gui_draw_detached(), n_gui_load_layout_json(), n_gui_save_layout_json(), n_gui_window_attach(), and n_gui_window_detach().

◆ saved_h

float N_GUI_WINDOW::saved_h

embedded height saved by n_gui_window_detach, restored by n_gui_window_attach

Examples: ex_gui_multiwin.c.

Definition at line 1102 of file n_gui.h.

Referenced by main(), n_gui_add_window(), n_gui_draw_detached(), n_gui_load_layout_json(), n_gui_save_layout_json(), n_gui_window_attach(), and n_gui_window_detach().

◆ saved_w

float N_GUI_WINDOW::saved_w

embedded width saved by n_gui_window_detach, restored by n_gui_window_attach

Examples: ex_gui_multiwin.c.

Definition at line 1100 of file n_gui.h.

Referenced by main(), n_gui_add_window(), n_gui_draw_detached(), n_gui_load_layout_json(), n_gui_save_layout_json(), n_gui_window_attach(), and n_gui_window_detach().

◆ saved_x

float N_GUI_WINDOW::saved_x

embedded x saved by n_gui_window_detach, restored by n_gui_window_attach

Definition at line 1096 of file n_gui.h.

Referenced by n_gui_add_window(), n_gui_draw_detached(), n_gui_load_layout_json(), n_gui_save_layout_json(), n_gui_window_attach(), and n_gui_window_detach().

◆ saved_y

float N_GUI_WINDOW::saved_y

embedded y saved by n_gui_window_detach, restored by n_gui_window_attach

Definition at line 1098 of file n_gui.h.

Referenced by n_gui_add_window(), n_gui_draw_detached(), n_gui_load_layout_json(), n_gui_save_layout_json(), n_gui_window_attach(), and n_gui_window_detach().

◆ scroll_x

float N_GUI_WINDOW::scroll_x

horizontal scroll offset for auto-scrollbar (pixels)

Definition at line 1035 of file n_gui.h.

Referenced by _datagrid_resize_hover(), _draw_window(), _find_widget_window(), _tooltip_widget_at(), n_gui_add_window(), n_gui_process_event(), n_gui_window_attach(), and n_gui_window_detach().

◆ scroll_y

float N_GUI_WINDOW::scroll_y

vertical scroll offset for auto-scrollbar (pixels)

Definition at line 1033 of file n_gui.h.

Referenced by _datagrid_resize_hover(), _draw_window(), _find_widget_window(), _tooltip_widget_at(), n_gui_add_window(), n_gui_process_event(), n_gui_window_attach(), and n_gui_window_detach().

◆ state

int N_GUI_WINDOW::state

◆ tb_buttons

N_GUI_TB_BUTTONS N_GUI_WINDOW::tb_buttons

titlebar button state (minimize, maximize, close)

Definition at line 1069 of file n_gui.h.

Referenced by _draw_tb_buttons(), _tb_button_action(), n_gui_add_window(), n_gui_maximize_window(), n_gui_process_event(), n_gui_reset_all_widget_themes(), n_gui_window_detach(), n_gui_window_set_close_callback(), n_gui_window_set_maximize_callback(), n_gui_window_set_minimize_callback(), n_gui_window_set_tb_btn_theme(), n_gui_window_set_tb_button_bitmaps(), and n_gui_window_set_tb_close_theme().

◆ theme

N_GUI_THEME N_GUI_WINDOW::theme

color theme for this window chrome

Examples: ex_gui_multiwin.c.

Definition at line 1021 of file n_gui.h.

Referenced by _draw_window(), n_gui_add_window(), n_gui_draw_detached(), n_gui_load_theme_json(), n_gui_reset_all_widget_themes(), and sample_chrome_titlebar().

◆ title

char N_GUI_WINDOW::title[128]

window title

Definition at line 1003 of file n_gui.h.

Referenced by _draw_window(), n_gui_add_window(), n_gui_load_layout_json(), n_gui_save_layout_json(), n_gui_widget_set_persist_key(), n_gui_window_attach(), and n_gui_window_detach().

◆ titlebar_bitmap

ALLEGRO_BITMAP* N_GUI_WINDOW::titlebar_bitmap

optional bitmap for the titlebar background (NULL = color fill)

Definition at line 1047 of file n_gui.h.

Referenced by _draw_window(), and n_gui_window_set_bitmaps().

◆ titlebar_h

float N_GUI_WINDOW::titlebar_h

title bar height

Examples: ex_gui_multiwin.c.

Definition at line 1013 of file n_gui.h.

Referenced by _draw_window(), _n_gui_tree_listbox_bounds(), _tb_btn_resolved_size(), _tb_button_rect(), _win_tbh(), main(), and n_gui_add_window().

◆ w

float N_GUI_WINDOW::w

◆ want_native

int N_GUI_WINDOW::want_native

1 when the window should live in a native OS window: set by n_gui_window_detach and by a loaded layout, cleared by n_gui_window_attach.

n_gui_open_window re-creates the native window when this is set.

Definition at line 1088 of file n_gui.h.

Referenced by n_gui_add_window(), n_gui_draw_detached(), n_gui_load_layout_json(), n_gui_open_window(), n_gui_save_layout_json(), n_gui_window_attach(), and n_gui_window_detach().

◆ widgets

LIST* N_GUI_WINDOW::widgets

list of N_GUI_WIDGET* contained in this window

Definition at line 1019 of file n_gui.h.

Referenced by _datagrid_resize_hover(), _destroy_window(), _draw_window(), _find_focused_window(), _find_widget_window(), _n_gui_window_capture_normalized(), _tooltip_widget_at(), _window_update_content_size(), n_gui_add_button(), n_gui_add_checkbox(), n_gui_add_combobox(), n_gui_add_custom(), n_gui_add_datagrid(), n_gui_add_dropmenu(), n_gui_add_hexview(), n_gui_add_image(), n_gui_add_label(), n_gui_add_listbox(), n_gui_add_progressbar(), n_gui_add_radiolist(), n_gui_add_scrollbar(), n_gui_add_slider(), n_gui_add_splitpane(), n_gui_add_syntaxview(), n_gui_add_textarea(), n_gui_add_window(), n_gui_apply_adaptive_resize(), n_gui_focus_window(), n_gui_load_theme_json(), n_gui_process_event(), n_gui_reset_all_widget_themes(), n_gui_save_layout_json(), n_gui_set_focus(), n_gui_window_apply_autofit(), n_gui_window_attach(), n_gui_window_autosize(), and n_gui_window_detach().

◆ x

float N_GUI_WINDOW::x

◆ y

float N_GUI_WINDOW::y

◆ z_order

int N_GUI_WINDOW::z_order

z-order mode (N_GUI_ZORDER_NORMAL, _ALWAYS_ON_TOP, _ALWAYS_BEHIND, _FIXED)

Definition at line 1041 of file n_gui.h.

Referenced by _zorder_group(), n_gui_add_window(), n_gui_load_layout_json(), n_gui_lower_window(), n_gui_raise_window(), n_gui_save_layout_json(), n_gui_window_get_zorder(), and n_gui_window_set_zorder().

◆ z_value

int N_GUI_WINDOW::z_value

z-value for N_GUI_ZORDER_FIXED mode (lower = behind, higher = on top)

Definition at line 1043 of file n_gui.h.

Referenced by _sort_windows_by_zorder(), n_gui_add_window(), n_gui_load_layout_json(), n_gui_save_layout_json(), n_gui_window_get_zvalue(), and n_gui_window_set_zorder().

Macro Definition Documentation

◆ N_GUI_ALIGN_CENTER

#define N_GUI_ALIGN_CENTER 1

center aligned text

Examples: ex_gui.c.

Definition at line 191 of file n_gui.h.

◆ N_GUI_ALIGN_JUSTIFIED

#define N_GUI_ALIGN_JUSTIFIED 3

justified text (spread words to fill width)

Examples: ex_gui.c, ex_gui_bench.c, and ex_gui_dictionary.c.

Definition at line 195 of file n_gui.h.

◆ N_GUI_ALIGN_LEFT

#define N_GUI_ALIGN_LEFT 0

left aligned text

Examples: ex_gui.c, ex_gui_bench.c, ex_gui_detach.c, ex_gui_dictionary.c, ex_gui_isometric.c, ex_gui_network.c, ex_gui_particles.c, ex_gui_placeholder.c, and ex_gui_progressbar.c.

Definition at line 189 of file n_gui.h.

◆ N_GUI_ALIGN_RIGHT

#define N_GUI_ALIGN_RIGHT 2

right aligned text

Examples: ex_gui.c.

Definition at line 193 of file n_gui.h.

◆ N_GUI_AUTOFIT_CENTER

#define N_GUI_AUTOFIT_CENTER 16

center the window on its insertion point after auto-fit (overrides EXPAND_LEFT/EXPAND_UP for centering)

Examples: ex_gui.c.

Definition at line 304 of file n_gui.h.

◆ N_GUI_AUTOFIT_EXPAND_LEFT

#define N_GUI_AUTOFIT_EXPAND_LEFT 4

expand leftward instead of rightward when adjusting width

Definition at line 300 of file n_gui.h.

◆ N_GUI_AUTOFIT_EXPAND_UP

#define N_GUI_AUTOFIT_EXPAND_UP 8

expand upward instead of downward when adjusting height

Definition at line 302 of file n_gui.h.

◆ N_GUI_AUTOFIT_H

#define N_GUI_AUTOFIT_H 2

auto-adjust window height to content

Definition at line 296 of file n_gui.h.

◆ N_GUI_AUTOFIT_W

#define N_GUI_AUTOFIT_W 1

auto-adjust window width to content

Definition at line 294 of file n_gui.h.

◆ N_GUI_AUTOFIT_WH

#define N_GUI_AUTOFIT_WH 3

auto-adjust both width and height (convenience: W|H)

Examples: ex_gui.c.

Definition at line 298 of file n_gui.h.

◆ N_GUI_COMBOBOX_AUTO_WIDTH

#define N_GUI_COMBOBOX_AUTO_WIDTH 1

dropdown panel expands to fit the longest item text

Definition at line 738 of file n_gui.h.

◆ N_GUI_COMBOBOX_EXPAND_UP

#define N_GUI_COMBOBOX_EXPAND_UP 2

dropdown panel opens upward (above the widget) instead of downward.

Useful for bottom-anchored comboboxes where the default downward panel would render off-screen. Without the flag, an auto-flip fallback still kicks in whenever the panel doesn't fit below and does fit above.

Definition at line 743 of file n_gui.h.

◆ N_GUI_DETACH_NONE

#define N_GUI_DETACH_NONE 0

no option

Definition at line 248 of file n_gui.h.

◆ N_GUI_DETACH_OWN_CHROME

#define N_GUI_DETACH_OWN_CHROME 4

keep N_GUI's own window chrome instead of the window manager's: the native window is created frameless and the window keeps drawing its own title bar, so a detached window looks and skins exactly like the pop-up it came from.

Dragging the title bar moves the OS window, the resize grip resizes it, and the minimise / maximise / close buttons act on it.

Without this flag (the default) the OS supplies the title bar and all of the above is the window manager's job. Frameless windows are the less well trodden path on some window managers, which is why this is opt-in.

Examples: ex_gui_detach.c, and ex_gui_multiwin.c.

Definition at line 266 of file n_gui.h.

◆ N_GUI_DETACH_RESIZABLE

#define N_GUI_DETACH_RESIZABLE 1

the native window can be resized by the user through the OS window manager

Examples: ex_gui_detach.c, and ex_gui_multiwin.c.

Definition at line 250 of file n_gui.h.

◆ N_GUI_DETACH_SCALE_CONTENT

#define N_GUI_DETACH_SCALE_CONTENT 2

scale the window's widgets when the native window is resized by the user.

Requires N_GUI_DETACH_RESIZABLE and normalized widget coords, which n_gui_window_detach captures at detach time. Without it the widgets keep their pixel layout and the extra room is just empty space (or scrolled, when the window carries N_GUI_WIN_AUTO_SCROLLBAR).

Examples: ex_gui_detach.c.

Definition at line 256 of file n_gui.h.

◆ N_GUI_DROP_AFTER

#define N_GUI_DROP_AFTER 2

Definition at line 2466 of file n_gui.h.

◆ N_GUI_DROP_BEFORE

#define N_GUI_DROP_BEFORE 0

drop position relative to a tree row (drag-and-drop)

Definition at line 2464 of file n_gui.h.

◆ N_GUI_DROP_INTO

#define N_GUI_DROP_INTO 1

Definition at line 2465 of file n_gui.h.

◆ N_GUI_DROPMENU_EXPAND_UP

#define N_GUI_DROPMENU_EXPAND_UP 1

dropdown panel opens upward (above the button) instead of downward.

Auto-flip fallback (pick direction based on available space) also kicks in whenever the panel doesn't fit below and does fit above.

Definition at line 840 of file n_gui.h.

◆ N_GUI_ID_MAX

#define N_GUI_ID_MAX 128

maximum length for widget id/name strings

Examples: ex_gui.c.

Definition at line 85 of file n_gui.h.

◆ N_GUI_IMAGE_CENTER

#define N_GUI_IMAGE_CENTER 2

draw at original size, centered

Examples: ex_gui.c.

Definition at line 185 of file n_gui.h.

◆ N_GUI_IMAGE_FIT

#define N_GUI_IMAGE_FIT 0

scale to fit within bounds, keep aspect ratio

Examples: ex_gui.c.

Definition at line 181 of file n_gui.h.

◆ N_GUI_IMAGE_STRETCH

#define N_GUI_IMAGE_STRETCH 1

stretch to fill bounds

Examples: ex_gui.c.

Definition at line 183 of file n_gui.h.

◆ N_GUI_KEY_MOD_MASK

#define N_GUI_KEY_MOD_MASK (ALLEGRO_KEYMOD_SHIFT | ALLEGRO_KEYMOD_CTRL | ALLEGRO_KEYMOD_ALT | ALLEGRO_KEYMOD_ALTGR)

mask of supported modifier flags for button keybind matching

Definition at line 372 of file n_gui.h.

◆ N_GUI_KEY_SOURCES_MAX

#define N_GUI_KEY_SOURCES_MAX 8

maximum number of source widgets for a focused key binding

Definition at line 375 of file n_gui.h.

◆ N_GUI_KV_MAX

#define N_GUI_KV_MAX 128

maximum number of rows in a KV table

Definition at line 2549 of file n_gui.h.

◆ N_GUI_PERSIST_MAX_COLS

#define N_GUI_PERSIST_MAX_COLS 64

Maximum datagrid columns whose layout is persisted per widget.

Definition at line 1335 of file n_gui.h.

◆ N_GUI_RESIZE_ADAPTIVE

#define N_GUI_RESIZE_ADAPTIVE 1

virtual size tracks display; windows adapt per their resize_policy

Examples: ex_gui.c, and ex_gui_kvtable.c.

Definition at line 282 of file n_gui.h.

◆ N_GUI_RESIZE_VIRTUAL

#define N_GUI_RESIZE_VIRTUAL 0

fixed virtual canvas with uniform scaling (default/existing behavior)

Definition at line 280 of file n_gui.h.

◆ N_GUI_SCROLLBAR_H

#define N_GUI_SCROLLBAR_H 0

horizontal scrollbar

Examples: ex_gui.c.

Definition at line 167 of file n_gui.h.

◆ N_GUI_SCROLLBAR_V

#define N_GUI_SCROLLBAR_V 1

vertical scrollbar

Examples: ex_gui.c.

Definition at line 169 of file n_gui.h.

◆ N_GUI_SECTION_WIDGETS_MAX

#define N_GUI_SECTION_WIDGETS_MAX 48

maximum number of member widgets per section

Definition at line 2398 of file n_gui.h.

◆ N_GUI_SECTIONLIST_MAX

#define N_GUI_SECTIONLIST_MAX 16

maximum number of foldable sections in a section list

Definition at line 2395 of file n_gui.h.

◆ N_GUI_SELECT_MULTIPLE

#define N_GUI_SELECT_MULTIPLE 2

multiple item selection

Examples: ex_gui.c.

Definition at line 177 of file n_gui.h.

◆ N_GUI_SELECT_NONE

#define N_GUI_SELECT_NONE 0

no selection allowed (display only)

Examples: ex_gui_network.c.

Definition at line 173 of file n_gui.h.

◆ N_GUI_SELECT_SINGLE

#define N_GUI_SELECT_SINGLE 1

single item selection

Examples: ex_gui.c, ex_gui_bench.c, ex_gui_detach.c, ex_gui_dictionary.c, and ex_gui_isometric.c.

Definition at line 175 of file n_gui.h.

◆ N_GUI_SHAPE_BITMAP

#define N_GUI_SHAPE_BITMAP 2

bitmap-based rendering

Definition at line 151 of file n_gui.h.

◆ N_GUI_SHAPE_RECT

#define N_GUI_SHAPE_RECT 0

rectangle shape (default)

Examples: ex_gui.c, ex_gui_dropmenu.c, and ex_gui_multiwin.c.

Definition at line 147 of file n_gui.h.

◆ N_GUI_SHAPE_ROUNDED

#define N_GUI_SHAPE_ROUNDED 1

rounded rectangle shape

Examples: ex_gui.c, ex_gui_bench.c, ex_gui_detach.c, ex_gui_dictionary.c, ex_gui_dropmenu.c, ex_gui_isometric.c, ex_gui_network.c, and ex_gui_reentrant.c.

Definition at line 149 of file n_gui.h.

◆ N_GUI_SLIDER_H

#define N_GUI_SLIDER_H 0

horizontal slider (default)

Definition at line 161 of file n_gui.h.

◆ N_GUI_SLIDER_PERCENT

#define N_GUI_SLIDER_PERCENT 1

slider uses 0-100 percentage

Examples: ex_gui.c, and ex_gui_detach.c.

Definition at line 157 of file n_gui.h.

◆ N_GUI_SLIDER_V

#define N_GUI_SLIDER_V 1

vertical slider

Definition at line 163 of file n_gui.h.

◆ N_GUI_SLIDER_VALUE

#define N_GUI_SLIDER_VALUE 0

slider uses raw start/end values

Examples: ex_gui.c, and ex_gui_isometric.c.

Definition at line 155 of file n_gui.h.

◆ N_GUI_SPLIT_HORIZONTAL

#define N_GUI_SPLIT_HORIZONTAL 1

split pane: horizontal divider, regions are top and bottom

Examples: ex_gui_layout_persist.c.

Definition at line 130 of file n_gui.h.

◆ N_GUI_SPLIT_VERTICAL

#define N_GUI_SPLIT_VERTICAL 0

split pane: vertical divider, regions are left and right

Examples: ex_gui_layout_persist.c, ex_gui_splitpane.c, and ex_gui_zorder.c.

Definition at line 128 of file n_gui.h.

◆ N_GUI_STATE_ACTIVE

#define N_GUI_STATE_ACTIVE 2

widget is being pressed / dragged

Definition at line 203 of file n_gui.h.

◆ N_GUI_STATE_FOCUSED

#define N_GUI_STATE_FOCUSED 4

widget has keyboard focus

Definition at line 205 of file n_gui.h.

◆ N_GUI_STATE_HOVER

#define N_GUI_STATE_HOVER 1

mouse is hovering the widget

Examples: ex_gui_dropmenu.c.

Definition at line 201 of file n_gui.h.

◆ N_GUI_STATE_IDLE

#define N_GUI_STATE_IDLE 0

widget is idle / normal state

Definition at line 199 of file n_gui.h.

◆ N_GUI_STATE_SCROLLBAR_DRAG

#define N_GUI_STATE_SCROLLBAR_DRAG 8

widget scrollbar is being dragged

Definition at line 207 of file n_gui.h.

◆ N_GUI_SYNTAX_HTTP

#define N_GUI_SYNTAX_HTTP 1

syntax view: HTTP message highlighting (request/status line and headers)

Examples: ex_gui_syntaxview.c.

Definition at line 135 of file n_gui.h.

◆ N_GUI_SYNTAX_JS

#define N_GUI_SYNTAX_JS 5

syntax view: JavaScript highlighting (keywords, strings, numbers, comments)

Examples: ex_gui_syntaxview.c.

Definition at line 143 of file n_gui.h.

◆ N_GUI_SYNTAX_JSON

#define N_GUI_SYNTAX_JSON 2

syntax view: JSON highlighting (keys, strings, numbers, punctuation)

Examples: ex_gui_bench.c, and ex_gui_syntaxview.c.

Definition at line 137 of file n_gui.h.

◆ N_GUI_SYNTAX_PLAIN

#define N_GUI_SYNTAX_PLAIN 0

syntax view: no highlighting

Examples: ex_gui_syntaxview.c.

Definition at line 133 of file n_gui.h.

◆ N_GUI_SYNTAX_XML

#define N_GUI_SYNTAX_XML 3

syntax view: XML/HTML highlighting (tags, attributes, quoted values, comments)

Examples: ex_gui_syntaxview.c.

Definition at line 139 of file n_gui.h.

◆ N_GUI_SYNTAX_YAML

#define N_GUI_SYNTAX_YAML 4

syntax view: YAML highlighting (keys, quoted values, list markers, comments)

Examples: ex_gui_syntaxview.c.

Definition at line 141 of file n_gui.h.

◆ N_GUI_TAB_MAX

#define N_GUI_TAB_MAX 16

maximum number of tabs in a single tab panel

Definition at line 2363 of file n_gui.h.

◆ N_GUI_TB_BTN_CLOSE

#define N_GUI_TB_BTN_CLOSE 3

close titlebar button

Examples: ex_gui.c.

Definition at line 276 of file n_gui.h.

◆ N_GUI_TB_BTN_MAXIMIZE

#define N_GUI_TB_BTN_MAXIMIZE 2

maximize/restore titlebar button

Definition at line 274 of file n_gui.h.

◆ N_GUI_TB_BTN_MINIMIZE

#define N_GUI_TB_BTN_MINIMIZE 1

minimize titlebar button

Definition at line 272 of file n_gui.h.

◆ N_GUI_TB_BTN_NONE

#define N_GUI_TB_BTN_NONE 0

no titlebar button

Definition at line 270 of file n_gui.h.

◆ N_GUI_TEXT_MAX

#define N_GUI_TEXT_MAX 4096

maximum length for textarea content

Definition at line 87 of file n_gui.h.

◆ N_GUI_TREE_MAX

#define N_GUI_TREE_MAX 2048

maximum number of nodes in a tree view

Definition at line 2451 of file n_gui.h.

◆ N_GUI_TYPE_BUTTON

#define N_GUI_TYPE_BUTTON 1

widget type: button

Definition at line 91 of file n_gui.h.

◆ N_GUI_TYPE_CHECKBOX

#define N_GUI_TYPE_CHECKBOX 4

widget type: checkbox

Definition at line 97 of file n_gui.h.

◆ N_GUI_TYPE_COMBOBOX

#define N_GUI_TYPE_COMBOBOX 8

widget type: combo box (dropdown)

Definition at line 105 of file n_gui.h.

◆ N_GUI_TYPE_CUSTOM

#define N_GUI_TYPE_CUSTOM 17

widget type: owner-draw custom widget (rendering delegated to a callback)

Examples: ex_gui_custom.c.

Definition at line 125 of file n_gui.h.

◆ N_GUI_TYPE_DATAGRID

#define N_GUI_TYPE_DATAGRID 15

widget type: sortable column data grid

Definition at line 119 of file n_gui.h.

◆ N_GUI_TYPE_DROPMENU

#define N_GUI_TYPE_DROPMENU 11

widget type: dropdown menu with static and dynamic entries

Examples: ex_gui_dropmenu.c.

Definition at line 111 of file n_gui.h.

◆ N_GUI_TYPE_HEXVIEW

#define N_GUI_TYPE_HEXVIEW 13

widget type: read-only hexadecimal byte viewer

Definition at line 115 of file n_gui.h.

◆ N_GUI_TYPE_IMAGE

#define N_GUI_TYPE_IMAGE 9

widget type: image display

Definition at line 107 of file n_gui.h.

◆ N_GUI_TYPE_LABEL

#define N_GUI_TYPE_LABEL 10

widget type: static text label (with optional hyperlink)

Definition at line 109 of file n_gui.h.

◆ N_GUI_TYPE_LISTBOX

#define N_GUI_TYPE_LISTBOX 6

widget type: listbox (selectable list)

Definition at line 101 of file n_gui.h.

◆ N_GUI_TYPE_PROGRESSBAR

#define N_GUI_TYPE_PROGRESSBAR 16

widget type: horizontal progress bar (display only)

Definition at line 122 of file n_gui.h.

◆ N_GUI_TYPE_RADIOLIST

#define N_GUI_TYPE_RADIOLIST 7

widget type: radio list (single select radio buttons)

Definition at line 103 of file n_gui.h.

◆ N_GUI_TYPE_SCROLLBAR

#define N_GUI_TYPE_SCROLLBAR 5

widget type: scrollbar

Definition at line 99 of file n_gui.h.

◆ N_GUI_TYPE_SLIDER

#define N_GUI_TYPE_SLIDER 2

widget type: slider

Definition at line 93 of file n_gui.h.

◆ N_GUI_TYPE_SPLITPANE

#define N_GUI_TYPE_SPLITPANE 12

widget type: split pane with a draggable divider between two regions

Definition at line 113 of file n_gui.h.

◆ N_GUI_TYPE_SYNTAXVIEW

#define N_GUI_TYPE_SYNTAXVIEW 14

widget type: read-only syntax-highlighted text view

Definition at line 117 of file n_gui.h.

◆ N_GUI_TYPE_TEXTAREA

#define N_GUI_TYPE_TEXTAREA 3

widget type: text area

Examples: ex_gui_placeholder.c.

Definition at line 95 of file n_gui.h.

◆ N_GUI_WIN_AUTO_SCROLLBAR

#define N_GUI_WIN_AUTO_SCROLLBAR 16

enable automatic scrollbars when content exceeds window size

Examples: ex_gui.c.

Definition at line 227 of file n_gui.h.

◆ N_GUI_WIN_BTN_ALL

#define N_GUI_WIN_BTN_ALL (N_GUI_WIN_BTN_MINIMIZE | N_GUI_WIN_BTN_MAXIMIZE | N_GUI_WIN_BTN_CLOSE)

enable all three title bar buttons (minimize + maximize + close)

Examples: ex_gui_detach.c, and ex_gui_multiwin.c.

Definition at line 241 of file n_gui.h.

◆ N_GUI_WIN_BTN_CLOSE

#define N_GUI_WIN_BTN_CLOSE 1024

enable close button on the title bar

Definition at line 239 of file n_gui.h.

◆ N_GUI_WIN_BTN_MAXIMIZE

#define N_GUI_WIN_BTN_MAXIMIZE 512

enable maximize/restore button on the title bar

Definition at line 237 of file n_gui.h.

◆ N_GUI_WIN_BTN_MINIMIZE

#define N_GUI_WIN_BTN_MINIMIZE 256

enable minimize button on the title bar

Examples: ex_gui_detach.c.

Definition at line 235 of file n_gui.h.

◆ N_GUI_WIN_DRAGGING

#define N_GUI_WIN_DRAGGING 4

window is being dragged

Examples: ex_gui_multiwin.c.

Definition at line 215 of file n_gui.h.

◆ N_GUI_WIN_FIXED_POSITION

#define N_GUI_WIN_FIXED_POSITION 64

disable window dragging (default:enable)

Examples: ex_gui.c, ex_gui_dictionary.c, and ex_gui_network.c.

Definition at line 231 of file n_gui.h.

◆ N_GUI_WIN_FRAMELESS

#define N_GUI_WIN_FRAMELESS 128

frameless window: no title bar drawn, drag via window body unless N_GUI_WIN_FIXED_POSITION is also set

Examples: ex_gui.c, ex_gui_datagrid.c, ex_gui_dropmenu.c, ex_gui_multiwin.c, ex_gui_reentrant.c, and ex_gui_zorder.c.

Definition at line 233 of file n_gui.h.

◆ N_GUI_WIN_HSCROLL_DRAG

#define N_GUI_WIN_HSCROLL_DRAG 32

window horizontal auto-scrollbar is being dragged

Definition at line 221 of file n_gui.h.

◆ N_GUI_WIN_MAXIMISED

#define N_GUI_WIN_MAXIMISED 64

window is maximised (full display size)

Examples: ex_gui_multiwin.c.

Definition at line 223 of file n_gui.h.

◆ N_GUI_WIN_MINIMISED

#define N_GUI_WIN_MINIMISED 2

window is minimised (title bar only)

Examples: ex_gui_multiwin.c.

Definition at line 213 of file n_gui.h.

◆ N_GUI_WIN_NO_HSCROLL

#define N_GUI_WIN_NO_HSCROLL 2048

with N_GUI_WIN_AUTO_SCROLLBAR, never show the horizontal scrollbar (vertical-only scrolling): content wider than the window is clipped instead of horizontally scrolled

Examples: ex_gui.c.

Definition at line 244 of file n_gui.h.

◆ N_GUI_WIN_OPEN

#define N_GUI_WIN_OPEN 1

window is visible

Definition at line 211 of file n_gui.h.

◆ N_GUI_WIN_RESIZABLE

#define N_GUI_WIN_RESIZABLE 32

enable user-resizable window with a drag handle at bottom-right

Examples: ex_gui.c, ex_gui_detach.c, ex_gui_multiwin.c, and ex_gui_network.c.

Definition at line 229 of file n_gui.h.

◆ N_GUI_WIN_RESIZE_MOVE

#define N_GUI_WIN_RESIZE_MOVE 1

reposition proportionally, keep pixel size

Examples: ex_gui.c, and ex_gui_kvtable.c.

Definition at line 288 of file n_gui.h.

◆ N_GUI_WIN_RESIZE_NONE

#define N_GUI_WIN_RESIZE_NONE 0

no adaptation: absolute position and size unchanged

Examples: ex_gui.c.

Definition at line 286 of file n_gui.h.

◆ N_GUI_WIN_RESIZE_SCALE

#define N_GUI_WIN_RESIZE_SCALE 2

reposition AND resize proportionally, child widgets scale too

Examples: ex_gui.c, and ex_gui_kvtable.c.

Definition at line 290 of file n_gui.h.

◆ N_GUI_WIN_RESIZING

#define N_GUI_WIN_RESIZING 8

window is being resized

Examples: ex_gui_multiwin.c.

Definition at line 217 of file n_gui.h.

◆ N_GUI_WIN_VSCROLL_DRAG

#define N_GUI_WIN_VSCROLL_DRAG 16

window vertical auto-scrollbar is being dragged

Definition at line 219 of file n_gui.h.

◆ N_GUI_ZORDER_ALWAYS_BEHIND

#define N_GUI_ZORDER_ALWAYS_BEHIND 2

always drawn behind normal windows, cannot be raised above them

Definition at line 312 of file n_gui.h.

◆ N_GUI_ZORDER_ALWAYS_ON_TOP

#define N_GUI_ZORDER_ALWAYS_ON_TOP 1

always drawn on top of normal windows, cannot be lowered behind them

Definition at line 310 of file n_gui.h.

◆ N_GUI_ZORDER_FIXED

#define N_GUI_ZORDER_FIXED 3

fixed z-value: window is sorted within a dedicated group between ALWAYS_BEHIND and NORMAL windows.

The draw order of groups is: ALWAYS_BEHIND < FIXED < NORMAL < ALWAYS_ON_TOP < POPUP. Within the FIXED group, windows are ordered by z_value (lower = drawn first / behind, higher = drawn last / on top). z_value has no effect on other z-order modes. Windows with the same z_value preserve their relative list order (stable sort).

Definition at line 319 of file n_gui.h.

◆ N_GUI_ZORDER_NORMAL

#define N_GUI_ZORDER_NORMAL 0

default z-order: window participates in normal raise/lower ordering

Definition at line 308 of file n_gui.h.

◆ N_GUI_ZORDER_POPUP

#define N_GUI_ZORDER_POPUP 4

popup/modal dialogs: drawn above EVERYTHING including ALWAYS_ON_TOP windows.

Use for transient attention-demanding windows (confirmations, invitations, NPC dialogs, loot/reward popups, context menus). Unlike ALWAYS_ON_TOP, POPUP windows ARE raisable (n_gui_raise_window / click-to-raise) WITHIN their group, so the most recently opened/clicked popup wins among popups while none of them can ever be covered by HUD furniture.

Examples: ex_gui_reentrant.c.

Definition at line 326 of file n_gui.h.

Typedef Documentation

◆ N_GUI_CUSTOM_DRAW

typedef void(* N_GUI_CUSTOM_DRAW) (N_GUI_WIDGET *widget, float x, float y, ALLEGRO_FONT *font, void *user_data)

Owner-draw callback for a custom widget (N_GUI_TYPE_CUSTOM).

Invoked during n_gui_draw with the widget's absolute top-left screen position. The callback renders anything it likes inside the rectangle [x, y, x + widget->w, y + widget->h] using Allegro drawing primitives.

Parameters

widget	the custom widget being drawn (read its w, h, theme, state)
x	absolute screen x of the widget's top-left corner
y	absolute screen y of the widget's top-left corner
font	the effective font (the widget's own font, or the context default)
user_data	the user pointer passed to n_gui_add_custom

Definition at line 934 of file n_gui.h.

◆ n_gui_tree_on_drop_t

typedef int(* n_gui_tree_on_drop_t) (int src_node, int dst_node, int position, void *user_data)

drag-reorder drop callback.

Called when the user drags node src_node and releases the mouse over dst_node at position (N_GUI_DROP_BEFORE / INTO / AFTER). Return 1 to accept; the caller is responsible for mutating the underlying data model and rebuilding the tree. Return 0 to reject (widget clears its drag state silently).

Definition at line 2474 of file n_gui.h.

Function Documentation

◆ n_gui_add_button()

int n_gui_add_button	(	N_GUI_CTX *	ctx,
		int	window_id,
		const char *	label,
		float	x,
		float	y,
		float	w,
		float	h,
		int	shape,
		void()(int, void )	on_click,
		void *	user_data
	)

add a button widget

Returns: widget id, or -1 on error

Definition at line 2124 of file n_gui.c.

Referenced by build_panel(), build_widgets_window(), main(), main(), n_gui_add_button_bitmap(), n_gui_add_toggle_button(), n_gui_kvtable_add_row(), n_gui_kvtable_create(), and n_gui_sectionlist_add_section().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_button_bitmap()

int n_gui_add_button_bitmap	(	N_GUI_CTX *	ctx,
		int	window_id,
		const char *	label,
		float	x,
		float	y,
		float	w,
		float	h,
		ALLEGRO_BITMAP *	normal,
		ALLEGRO_BITMAP *	hover,
		ALLEGRO_BITMAP *	active,
		void()(int, void )	on_click,
		void *	user_data
	)

add a bitmap-based button widget

Returns: widget id, or -1 on error

Definition at line 2165 of file n_gui.c.

References N_GUI_BUTTON_DATA::bitmap, N_GUI_BUTTON_DATA::bitmap_active, N_GUI_BUTTON_DATA::bitmap_hover, N_GUI_WIDGET::data, n_gui_add_button(), n_gui_get_widget(), and N_GUI_SHAPE_BITMAP.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_checkbox()

int n_gui_add_checkbox	(	N_GUI_CTX *	ctx,
		int	window_id,
		const char *	label,
		float	x,
		float	y,
		float	w,
		float	h,
		int	initial_checked,
		void()(int, int, void )	on_toggle,
		void *	user_data
	)

add a checkbox widget

Returns: widget id, or -1 on error

Definition at line 2543 of file n_gui.c.

References __n_assert, _destroy_widget(), _n_gui_widget_capture_normalized(), _new_widget(), _register_widget(), N_GUI_CHECKBOX_DATA::checked, N_GUI_WIDGET::data, Free, N_GUI_WIDGET::id, N_GUI_CHECKBOX_DATA::label, list_push(), Malloc, n_gui_get_window(), N_GUI_ID_MAX, N_GUI_TYPE_CHECKBOX, N_GUI_WIDGET::norm_h, N_GUI_WIDGET::norm_w, N_GUI_WIDGET::norm_x, N_GUI_WIDGET::norm_y, N_GUI_CHECKBOX_DATA::on_toggle, N_GUI_CHECKBOX_DATA::user_data, and N_GUI_WINDOW::widgets.

Referenced by build_widgets_window(), main(), main(), and n_gui_kvtable_add_row().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_combobox()

int n_gui_add_combobox	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	w,
		float	h,
		void()(int, int, void )	on_select,
		void *	user_data
	)

add a combo box widget

Returns: widget id, or -1 on error

Definition at line 2874 of file n_gui.c.

Referenced by main(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_custom()

int n_gui_add_custom	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	w,
		float	h,
		N_GUI_CUSTOM_DRAW	draw,
		void *	user_data
	)

Add an owner-draw custom widget to a window.

The widget participates in the window layout, z-order, visibility, enable/ disable dimming, and resize like any other widget, but its interior is painted by draw during n_gui_draw. This is the general extension point for rendering a chart, a canvas, a custom editor, or any host-supplied content that no stock widget covers. Input is not routed to the widget (place stock widgets around it for interaction); the callback is paint-only.

Parameters

ctx	the GUI context
window_id	the window to add the widget to
x	widget x relative to the window
y	widget y relative to the window
w	widget width
h	widget height
draw	the paint callback (NULL draws nothing but reserves the space)
user_data	opaque pointer handed back to the callback (not owned by n_gui)

Returns: the new widget id, or -1 on error

Add an owner-draw custom widget to a window.

Definition at line 4315 of file n_gui.c.

References __n_assert, _destroy_widget(), _n_gui_widget_capture_normalized(), _new_widget(), _register_widget(), N_GUI_WIDGET::data, N_GUI_CUSTOM_DATA::draw, Free, N_GUI_WIDGET::id, list_push(), Malloc, n_gui_get_window(), N_GUI_TYPE_CUSTOM, N_GUI_WIDGET::norm_h, N_GUI_WIDGET::norm_w, N_GUI_WIDGET::norm_x, N_GUI_WIDGET::norm_y, N_GUI_CUSTOM_DATA::user_data, and N_GUI_WINDOW::widgets.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_datagrid()

int n_gui_add_datagrid	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	w,
		float	h,
		void()(int, int, void )	on_select,
		void *	user_data
	)

add a sortable data grid; returns the widget id or -1

Parameters

ctx	the GUI context
window_id	the parent window id
x	widget x within the window content area
y	widget y within the window content area
w	widget width
h	widget height
on_select	callback fired on row selection, or NULL
user_data	user data passed to on_select

Returns: widget id, or -1 on error

Definition at line 2787 of file n_gui.c.

Referenced by build_datagrid_window(), build_window(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_dropmenu()

int n_gui_add_dropmenu	(	N_GUI_CTX *	ctx,
		int	window_id,
		const char *	label,
		float	x,
		float	y,
		float	w,
		float	h,
		void()(int, void )	on_open,
		void *	on_open_user_data
	)

add a dropdown menu widget (button that opens a menu panel with entries)

Parameters

ctx	the GUI context
window_id	id of the parent window
label	button label text
x	horizontal position
y	vertical position
w	widget width
h	widget height
on_open	callback invoked when the menu is opened (or NULL)
on_open_user_data	user data passed to on_open callback

Returns: widget id, or -1 on error

add a dropdown menu widget (button that opens a menu panel with entries)

Returns: widget id, or -1 on error

Definition at line 4568 of file n_gui.c.

Referenced by main(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_hexview()

int n_gui_add_hexview	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	w,
		float	h
	)

add a read-only hex viewer; returns the widget id or -1

Parameters

ctx	the GUI context
window_id	the parent window id
x	widget x within the window content area
y	widget y within the window content area
w	widget width
h	widget height

Returns: widget id, or -1 on error

Definition at line 2707 of file n_gui.c.

References __n_assert, _destroy_widget(), _n_gui_widget_capture_normalized(), _new_widget(), _register_widget(), N_GUI_HEXVIEW_DATA::bytes_per_row, N_GUI_HEXVIEW_DATA::data, N_GUI_WIDGET::data, Free, N_GUI_WIDGET::id, N_GUI_HEXVIEW_DATA::len, list_push(), Malloc, n_gui_get_window(), N_GUI_TYPE_HEXVIEW, N_GUI_WIDGET::norm_h, N_GUI_WIDGET::norm_w, N_GUI_WIDGET::norm_x, N_GUI_WIDGET::norm_y, N_GUI_HEXVIEW_DATA::scroll_offset, and N_GUI_WINDOW::widgets.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_image()

int n_gui_add_image	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	w,
		float	h,
		ALLEGRO_BITMAP *	bitmap,
		int	scale_mode
	)

add an image widget

Parameters

ctx	the GUI context
window_id	id of the parent window
x	horizontal position
y	vertical position
w	widget width
h	widget height
bitmap	the bitmap to display (not owned by the widget)
scale_mode	N_GUI_IMAGE_FIT, N_GUI_IMAGE_STRETCH, or N_GUI_IMAGE_CENTER

Returns: widget id, or -1 on error

Definition at line 2937 of file n_gui.c.

References __n_assert, _destroy_widget(), _n_gui_widget_capture_normalized(), _new_widget(), _register_widget(), N_GUI_WIDGET::data, Free, N_GUI_WIDGET::id, list_push(), Malloc, n_gui_get_window(), N_GUI_TYPE_IMAGE, N_GUI_WIDGET::norm_h, N_GUI_WIDGET::norm_w, N_GUI_WIDGET::norm_x, N_GUI_WIDGET::norm_y, and N_GUI_WINDOW::widgets.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_label()

int n_gui_add_label	(	N_GUI_CTX *	ctx,
		int	window_id,
		const char *	text,
		float	x,
		float	y,
		float	w,
		float	h,
		int	align
	)

add a text label widget

Returns: widget id, or -1 on error

Definition at line 2966 of file n_gui.c.

References __n_assert, _destroy_widget(), _n_gui_widget_capture_normalized(), _new_widget(), _normalize_crlf(), _register_widget(), N_GUI_LABEL_DATA::align, N_GUI_WIDGET::data, Free, N_GUI_WIDGET::id, N_GUI_LABEL_DATA::link, list_push(), Malloc, n_gui_get_window(), N_GUI_TEXT_MAX, N_GUI_TYPE_LABEL, N_GUI_WIDGET::norm_h, N_GUI_WIDGET::norm_w, N_GUI_WIDGET::norm_x, N_GUI_WIDGET::norm_y, N_GUI_LABEL_DATA::on_link_click, N_GUI_LABEL_DATA::scroll_y, N_GUI_LABEL_DATA::sel_dragging, N_GUI_LABEL_DATA::sel_end, N_GUI_LABEL_DATA::sel_start, N_GUI_LABEL_DATA::text, N_GUI_LABEL_DATA::user_data, and N_GUI_WINDOW::widgets.

Referenced by build_widgets_window(), main(), main(), n_gui_add_label_link(), and n_gui_kvtable_create().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_label_link()

int n_gui_add_label_link	(	N_GUI_CTX *	ctx,
		int	window_id,
		const char *	text,
		const char *	link,
		float	x,
		float	y,
		float	w,
		float	h,
		int	align,
		void()(int, const char , void *)	on_link_click,
		void *	user_data
	)

add a text label with hyperlink

Returns: widget id, or -1 on error

Definition at line 3007 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_LABEL_DATA::link, n_gui_add_label(), n_gui_get_widget(), N_GUI_TEXT_MAX, on_link_click(), N_GUI_LABEL_DATA::on_link_click, and N_GUI_LABEL_DATA::user_data.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_listbox()

int n_gui_add_listbox	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	w,
		float	h,
		int	selection_mode,
		void()(int, int, int, void )	on_select,
		void *	user_data
	)

add a listbox widget

Parameters

ctx	the GUI context
window_id	id of the parent window
x	horizontal position
y	vertical position
w	widget width
h	widget height
selection_mode	N_GUI_SELECT_NONE, N_GUI_SELECT_SINGLE, or N_GUI_SELECT_MULTIPLE
on_select	callback invoked when an item is selected (or NULL)
user_data	user data passed to on_select callback

Returns: widget id, or -1 on error

Definition at line 2620 of file n_gui.c.

Referenced by build_widgets_window(), main(), main(), and n_gui_tree_create().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_progressbar()

int n_gui_add_progressbar	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	w,
		float	h
	)

add a horizontal progress bar (display only); returns the widget id or -1

Definition at line 4253 of file n_gui.c.

References __n_assert, _destroy_widget(), _n_gui_widget_capture_normalized(), _new_widget(), _register_widget(), N_GUI_WIDGET::data, N_GUI_WIDGET::enabled, Free, N_GUI_WIDGET::id, list_push(), Malloc, n_gui_get_window(), N_GUI_TYPE_PROGRESSBAR, N_GUI_WIDGET::norm_h, N_GUI_WIDGET::norm_w, N_GUI_WIDGET::norm_x, N_GUI_WIDGET::norm_y, N_GUI_PROGRESSBAR_DATA::text, N_GUI_PROGRESSBAR_DATA::value, and N_GUI_WINDOW::widgets.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_radiolist()

int n_gui_add_radiolist	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	w,
		float	h,
		void()(int, int, void )	on_select,
		void *	user_data
	)

add a radio list widget

Returns: widget id, or -1 on error

Definition at line 2839 of file n_gui.c.

Referenced by build_widgets_window(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_scrollbar()

int n_gui_add_scrollbar	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	w,
		float	h,
		int	orientation,
		int	shape,
		double	content_size,
		double	viewport_size,
		void()(int, double, void )	on_scroll,
		void *	user_data
	)

add a scrollbar widget

Returns: widget id, or -1 on error

Definition at line 2577 of file n_gui.c.

References __n_assert, _destroy_widget(), _n_gui_widget_capture_normalized(), _new_widget(), _register_widget(), N_GUI_SCROLLBAR_DATA::content_size, N_GUI_WIDGET::data, Free, N_GUI_WIDGET::id, list_push(), Malloc, n_gui_get_window(), N_GUI_TYPE_SCROLLBAR, N_GUI_WIDGET::norm_h, N_GUI_WIDGET::norm_w, N_GUI_WIDGET::norm_x, N_GUI_WIDGET::norm_y, on_scroll(), N_GUI_SCROLLBAR_DATA::on_scroll, N_GUI_SCROLLBAR_DATA::orientation, N_GUI_SCROLLBAR_DATA::scroll_pos, N_GUI_SCROLLBAR_DATA::shape, N_GUI_SCROLLBAR_DATA::user_data, N_GUI_SCROLLBAR_DATA::viewport_size, and N_GUI_WINDOW::widgets.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_slider()

int n_gui_add_slider	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	w,
		float	h,
		double	min_val,
		double	max_val,
		double	initial,
		int	mode,
		void()(int, double, void )	on_change,
		void *	user_data
	)

add a horizontal slider widget

Returns: widget id, or -1 on error

Definition at line 2442 of file n_gui.c.

Referenced by build_widgets_window(), main(), main(), and n_gui_add_vslider().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_splitpane()

int n_gui_add_splitpane	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	w,
		float	h,
		int	orientation,
		float	ratio,
		void()(int, float, void )	on_change,
		void *	user_data
	)

add a split pane (draggable divider); returns the widget id or -1

Parameters

ctx	the GUI context
window_id	the parent window id
x	widget x within the window content area
y	widget y within the window content area
w	widget width
h	widget height
orientation	N_GUI_SPLIT_VERTICAL or N_GUI_SPLIT_HORIZONTAL
ratio	initial divider position as a fraction (0..1)
on_change	callback fired while the divider is dragged, or NULL
user_data	user data passed to on_change

Returns: widget id, or -1 on error

Definition at line 2666 of file n_gui.c.

References __n_assert, _destroy_widget(), _n_gui_widget_capture_normalized(), _new_widget(), _register_widget(), N_GUI_WIDGET::data, N_GUI_SPLITPANE_DATA::divider, Free, N_GUI_WIDGET::id, list_push(), Malloc, N_GUI_SPLITPANE_DATA::max_ratio, N_GUI_SPLITPANE_DATA::min_ratio, n_gui_get_window(), N_GUI_SPLIT_HORIZONTAL, N_GUI_SPLIT_VERTICAL, N_GUI_TYPE_SPLITPANE, N_GUI_WIDGET::norm_h, N_GUI_WIDGET::norm_w, N_GUI_WIDGET::norm_x, N_GUI_WIDGET::norm_y, N_GUI_SPLITPANE_DATA::on_change, N_GUI_SPLITPANE_DATA::orientation, N_GUI_SPLITPANE_DATA::ratio, N_GUI_SPLITPANE_DATA::user_data, and N_GUI_WINDOW::widgets.

Referenced by build_window(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_syntaxview()

int n_gui_add_syntaxview	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	w,
		float	h,
		int	mode
	)

add a read-only syntax-highlighted text view; returns the widget id or -1

Parameters

ctx	the GUI context
window_id	the parent window id
x	widget x within the window content area
y	widget y within the window content area
w	widget width
h	widget height
mode	highlighting mode (N_GUI_SYNTAX_PLAIN, _HTTP, _JSON, _XML, _YAML or _JS)

Returns: widget id, or -1 on error

Definition at line 2745 of file n_gui.c.

References __n_assert, _destroy_widget(), _n_gui_widget_capture_normalized(), _new_widget(), _register_widget(), N_GUI_WIDGET::data, Free, N_GUI_WIDGET::id, N_GUI_SYNTAXVIEW_DATA::len, list_push(), Malloc, mode, N_GUI_SYNTAXVIEW_DATA::mode, n_gui_get_window(), N_GUI_TYPE_SYNTAXVIEW, N_GUI_WIDGET::norm_h, N_GUI_WIDGET::norm_w, N_GUI_WIDGET::norm_x, N_GUI_WIDGET::norm_y, N_GUI_SYNTAXVIEW_DATA::scroll_offset, N_GUI_SYNTAXVIEW_DATA::sel_dragging, N_GUI_SYNTAXVIEW_DATA::sel_end, N_GUI_SYNTAXVIEW_DATA::sel_start, N_GUI_SYNTAXVIEW_DATA::text, and N_GUI_WINDOW::widgets.

Referenced by build_syntaxview_window(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_textarea()

int n_gui_add_textarea	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	w,
		float	h,
		int	multiline,
		size_t	char_limit,
		void()(int, const char , void *)	on_change,
		void *	user_data
	)

add a text area widget

Returns: widget id, or -1 on error

Definition at line 2498 of file n_gui.c.

Referenced by build_textarea_window(), main(), main(), and n_gui_kvtable_add_row().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_toggle_button()

int n_gui_add_toggle_button	(	N_GUI_CTX *	ctx,
		int	window_id,
		const char *	label,
		float	x,
		float	y,
		float	w,
		float	h,
		int	shape,
		int	initial_state,
		void()(int, void )	on_click,
		void *	user_data
	)

toggle button creation (returns widget id)

Parameters

ctx	the GUI context
window_id	id of the parent window
label	button label text
x	horizontal position
y	vertical position
w	widget width
h	widget height
shape	button shape (N_GUI_SHAPE_*)
initial_state	0 = off, 1 = on
on_click	callback invoked on click (or NULL)
user_data	user data passed to on_click callback

Returns: widget id, or -1 on error

Definition at line 2193 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_add_button(), n_gui_get_widget(), N_GUI_BUTTON_DATA::toggle_mode, and N_GUI_BUTTON_DATA::toggled.

Referenced by main(), and n_gui_tab_add().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_vslider()

int n_gui_add_vslider	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	w,
		float	h,
		double	min_val,
		double	max_val,
		double	initial,
		int	mode,
		void()(int, double, void )	on_change,
		void *	user_data
	)

add a vertical slider (same as n_gui_add_slider but oriented vertically)

Returns: widget id, or -1 on error

Definition at line 2484 of file n_gui.c.

References N_GUI_WIDGET::data, mode, n_gui_add_slider(), n_gui_get_widget(), and N_GUI_SLIDER_V.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_window()

int n_gui_add_window	(	N_GUI_CTX *	ctx,
		const char *	title,
		float	x,
		float	y,
		float	w,
		float	h
	)

add a window to the GUI context

Returns: the window id, or -1 on error

Definition at line 1063 of file n_gui.c.

Referenced by build_datagrid_window(), build_panel(), build_syntaxview_window(), build_textarea_window(), build_widgets_window(), build_window(), main(), main(), and n_gui_add_window_auto().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_add_window_auto()

int n_gui_add_window_auto	(	N_GUI_CTX *	ctx,
		const char *	title,
		float	x,
		float	y
	)

add a window that sizes itself automatically to fit its widgets (call n_gui_window_autosize after adding all widgets)

Returns: the window id, or -1 on error

Definition at line 1942 of file n_gui.c.

References N_GUI_STYLE::min_win_h, N_GUI_STYLE::min_win_w, n_gui_add_window(), and N_GUI_CTX::style.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_apply_adaptive_resize()

void n_gui_apply_adaptive_resize	(	N_GUI_CTX *	ctx,
		float	new_w,
		float	new_h
	)

apply adaptive resize: reposition/resize all windows according to their policies for the new display dimensions.

Called automatically from n_gui_set_display_size() when in ADAPTIVE mode, but can also be called manually.

apply adaptive resize: reposition/resize all windows according to their policies for the new display dimensions.

Called automatically from n_gui_set_display_size() when in ADAPTIVE mode, but can also be called manually.

Definition at line 8978 of file n_gui.c.

References __n_assert, N_GUI_WINDOW::flags, N_GUI_WIDGET::h, N_GUI_WINDOW::h, list_foreach, N_GUI_WINDOW::min_h, N_GUI_WINDOW::min_w, N_GUI_WIN_FRAMELESS, N_GUI_WIN_RESIZE_MOVE, N_GUI_WIN_RESIZE_NONE, N_GUI_WIN_RESIZE_SCALE, N_GUI_WINDOW::native, N_GUI_WIDGET::norm_h, N_GUI_WINDOW::norm_h, N_GUI_WIDGET::norm_w, N_GUI_WINDOW::norm_w, N_GUI_WIDGET::norm_x, N_GUI_WINDOW::norm_x, N_GUI_WIDGET::norm_y, N_GUI_WINDOW::norm_y, N_GUI_WINDOW::resize_policy, N_GUI_WIDGET::w, N_GUI_WINDOW::w, N_GUI_WINDOW::widgets, N_GUI_CTX::windows, N_GUI_WIDGET::x, N_GUI_WINDOW::x, N_GUI_WIDGET::y, and N_GUI_WINDOW::y.

Referenced by n_gui_set_display_size().

Here is the caller graph for this function:

◆ n_gui_button_is_toggled()

int n_gui_button_is_toggled	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

check if button is toggled

Returns: 1 if toggled on, 0 if off or not a toggle button

Definition at line 2209 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_BUTTON, and N_GUI_WIDGET::type.

Referenced by main(), on_ghost_toggle(), on_ghost_toggle(), on_grid_toggle(), on_grid_toggle(), on_height_toggle(), on_height_toggle(), on_player_toggle(), on_player_toggle(), on_smooth_toggle(), and on_smooth_toggle().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_button_set_keycode()

void n_gui_button_set_keycode	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	keycode,
		int	modifiers
	)

bind a keyboard key with optional modifier requirements to a button.

When the key is pressed (with matching modifiers) and no text input widget has focus, the button's on_click callback is triggered. Pass keycode 0 to unbind. Use ALLEGRO_KEY_* constants for the keycode. When modifiers is 0, any modifier state matches (no modifier requirement). When modifiers is non-zero, only an exact match of the specified modifiers (masked by N_GUI_KEY_MOD_MASK) triggers the keybind. Example: n_gui_button_set_keycode(ctx, id, ALLEGRO_KEY_A, ALLEGRO_KEYMOD_SHIFT | ALLEGRO_KEYMOD_CTRL)

Parameters

ctx	GUI context
widget_id	button widget id
keycode	ALLEGRO_KEY_* constant, or 0 to unbind
modifiers	ALLEGRO_KEYMOD_* flags ORed together, or 0 for no requirement

bind a keyboard key with optional modifier requirements to a button.

When the key is pressed (with matching modifiers) and no text input widget has focus, the button's on_click callback is triggered (and toggle state flipped for toggle buttons). Pass keycode 0 to unbind. When modifiers is 0, any modifier state matches (no modifier requirement). When modifiers is non-zero, only an exact match triggers the keybind. Example: ALLEGRO_KEY_A with ALLEGRO_KEYMOD_SHIFT | ALLEGRO_KEYMOD_CTRL

Definition at line 2411 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_BUTTON_DATA::key_modifiers, N_GUI_BUTTON_DATA::keycode, n_gui_get_widget(), N_GUI_KEY_MOD_MASK, N_GUI_TYPE_BUTTON, and N_GUI_WIDGET::type.

Referenced by main(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_button_set_keycode_focused()

void n_gui_button_set_keycode_focused	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	keycode,
		int	modifiers,
		const int *	sources,
		int	source_count
	)

bind a keyboard key to a button that fires only when specific widgets have focus.

Unlike n_gui_button_set_keycode (global), this binding triggers only when the button itself or one of the listed source widgets currently has focus. This allows e.g. ENTER in a URL textarea to trigger a Send button without interfering with ENTER in other textareas.

Parameters

ctx	GUI context
widget_id	button widget id
keycode	ALLEGRO_KEY_* constant, or 0 to unbind
modifiers	ALLEGRO_KEYMOD_* flags ORed together, or 0 for no requirement
sources	array of widget IDs whose focus can trigger this binding
source_count	number of entries in sources (max N_GUI_KEY_SOURCES_MAX)

bind a keyboard key to a button that fires only when specific widgets have focus.

Definition at line 2421 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_BUTTON_DATA::key_focus_only, N_GUI_BUTTON_DATA::key_modifiers, N_GUI_BUTTON_DATA::key_sources, N_GUI_BUTTON_DATA::keycode, n_gui_get_widget(), N_GUI_KEY_MOD_MASK, N_GUI_KEY_SOURCES_MAX, N_GUI_TYPE_BUTTON, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_button_set_label()

void n_gui_button_set_label	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	label
	)

replace the label text drawn on a button

No-op on non-button widgets or NULL label.

Definition at line 2221 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_BUTTON_DATA::label, n_gui_get_widget(), N_GUI_TYPE_BUTTON, and N_GUI_WIDGET::type.

Referenced by _n_gui_sectionlist_set_header_label(), and refresh_buttons().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_button_set_state_bitmaps()

void n_gui_button_set_state_bitmaps	(	N_GUI_CTX *	ctx,
		int	widget_id,
		ALLEGRO_BITMAP *	normal,
		ALLEGRO_BITMAP *	hover,
		ALLEGRO_BITMAP *	active
	)

skin a button or toggle button with caller-owned per-state bitmaps (switches its shape to N_GUI_SHAPE_BITMAP; toggled-on renders active)

Switches the button shape to N_GUI_SHAPE_BITMAP and assigns the three state bitmaps; a toggled-on toggle button renders active persistently (the draw path already maps toggled to the ACTIVE visual state). The bitmaps stay owned by the caller, exactly like n_gui_add_button_bitmap; the label keeps drawing on top, so pass "" at creation for icon-only buttons. No-op on non-button widgets.

Parameters

ctx	the GUI context
widget_id	id of the target button widget
normal	bitmap for the idle state
hover	bitmap for the hover state (NULL = normal)
active	bitmap for the pressed / toggled-on state (NULL = normal)

Definition at line 2365 of file n_gui.c.

References N_GUI_BUTTON_DATA::bitmap, N_GUI_BUTTON_DATA::bitmap_active, N_GUI_BUTTON_DATA::bitmap_hover, N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_SHAPE_BITMAP, N_GUI_TYPE_BUTTON, N_GUI_BUTTON_DATA::shape, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_button_set_toggle_mode()

void n_gui_button_set_toggle_mode	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	toggle_mode
	)

set button toggle mode

Parameters

ctx	the GUI context
widget_id	id of the target button widget
toggle_mode	0 = momentary, 1 = toggle

Definition at line 2392 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_BUTTON, N_GUI_BUTTON_DATA::toggle_mode, N_GUI_BUTTON_DATA::toggled, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_button_set_toggled()

void n_gui_button_set_toggled	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	toggled
	)

set button toggled state

Definition at line 2379 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_BUTTON, and N_GUI_WIDGET::type.

Referenced by main(), n_gui_tab_set_active(), on_height_toggle(), on_player_toggle(), on_proj_select(), and on_proj_select().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_checkbox_is_checked()

int n_gui_checkbox_is_checked	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

check if checkbox is checked

Parameters

ctx	GUI context
widget_id	id of the checkbox widget

Returns: 1 if checked, 0 otherwise

Definition at line 3290 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_CHECKBOX, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_checkbox_set_bitmaps()

void n_gui_checkbox_set_bitmaps	(	N_GUI_CTX *	ctx,
		int	widget_id,
		ALLEGRO_BITMAP *	box,
		ALLEGRO_BITMAP *	box_checked,
		ALLEGRO_BITMAP *	box_hover
	)

set optional bitmap overlays on a checkbox widget.

Pass NULL for any bitmap you don't want to set.

Note: Bitmaps are NOT owned by N_GUI. The caller must keep them alive for the widget's lifetime and destroy them after the GUI context is destroyed.

set optional bitmap overlays on a checkbox widget.

Note: Bitmaps are NOT owned by N_GUI.

Definition at line 4847 of file n_gui.c.

References N_GUI_CHECKBOX_DATA::box_bitmap, N_GUI_CHECKBOX_DATA::box_checked_bitmap, N_GUI_CHECKBOX_DATA::box_hover_bitmap, N_GUI_WIDGET::data, LOG_WARNING, n_gui_get_widget(), N_GUI_TYPE_CHECKBOX, n_log, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_checkbox_set_checked()

void n_gui_checkbox_set_checked	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	checked
	)

set checkbox checked state

Parameters

ctx	GUI context
widget_id	id of the checkbox widget
checked	1 to check, 0 to uncheck

Definition at line 3304 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_CHECKBOX, and N_GUI_WIDGET::type.

Referenced by n_gui_kvtable_add_row().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_close_window()

void n_gui_close_window	(	N_GUI_CTX *	ctx,
		int	window_id
	)

close (hide) a window

Definition at line 1191 of file n_gui.c.

References n_gui_get_window(), N_GUI_WINDOW::native, N_GUI_WINDOW::native_close_pending, and N_GUI_WINDOW::state.

Referenced by _tb_button_action(), main(), main(), n_gui_tab_set_active(), on_ghost_toggle(), and on_panel_close().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_combobox_add_item()

int n_gui_combobox_add_item	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	text
	)

add an item to a combo box

Definition at line 4431 of file n_gui.c.

References _items_grow(), N_GUI_WIDGET::data, N_GUI_COMBOBOX_DATA::items, N_GUI_COMBOBOX_DATA::items_capacity, n_gui_get_widget(), N_GUI_ID_MAX, N_GUI_TYPE_COMBOBOX, N_GUI_COMBOBOX_DATA::nb_items, N_GUI_LISTITEM::selected, N_GUI_LISTITEM::text, and N_GUI_WIDGET::type.

Referenced by main(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_combobox_clear()

void n_gui_combobox_clear	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

remove all items from a combobox

Parameters

ctx	GUI context
widget_id	id of the combobox widget

Definition at line 4417 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_COMBOBOX_DATA::highlight_index, N_GUI_COMBOBOX_DATA::is_open, N_GUI_COMBOBOX_DATA::items, n_gui_get_widget(), N_GUI_TYPE_COMBOBOX, N_GUI_COMBOBOX_DATA::nb_items, N_GUI_COMBOBOX_DATA::scroll_offset, N_GUI_COMBOBOX_DATA::selected_index, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_combobox_get_item_text()

const char * n_gui_combobox_get_item_text	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	index
	)

get the text of the combobox item at index ("" if out of range / not a combobox)

Definition at line 4461 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_COMBOBOX_DATA::items, n_gui_get_widget(), N_GUI_TYPE_COMBOBOX, N_GUI_LISTITEM::text, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_combobox_get_selected()

int n_gui_combobox_get_selected	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get the selected item index

Parameters

ctx	GUI context
widget_id	id of the combobox widget

Returns: index of the selected item, or -1 if none

Definition at line 4453 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_COMBOBOX, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_combobox_set_bitmaps()

void n_gui_combobox_set_bitmaps	(	N_GUI_CTX *	ctx,
		int	widget_id,
		ALLEGRO_BITMAP *	bg,
		ALLEGRO_BITMAP *	item_bg,
		ALLEGRO_BITMAP *	item_selected
	)

set optional bitmap overlays on a combobox widget.

Pass NULL for any bitmap you don't want to set.

Note: Bitmaps are NOT owned by N_GUI. The caller must keep them alive for the widget's lifetime and destroy them after the GUI context is destroyed.

set optional bitmap overlays on a combobox widget.

Note: Bitmaps are NOT owned by N_GUI.

Definition at line 4938 of file n_gui.c.

References N_GUI_COMBOBOX_DATA::bg_bitmap, N_GUI_WIDGET::data, N_GUI_COMBOBOX_DATA::item_bg_bitmap, N_GUI_COMBOBOX_DATA::item_selected_bitmap, LOG_WARNING, n_gui_get_widget(), N_GUI_TYPE_COMBOBOX, n_log, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_combobox_set_flags()

void n_gui_combobox_set_flags	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	flags
	)

set combobox feature flags (bitmask of N_GUI_COMBOBOX_* values)

Parameters

ctx	GUI context. Must not be NULL.
widget_id	Combobox widget id.
flags	Bitmask of N_GUI_COMBOBOX_* values.

Definition at line 2915 of file n_gui.c.

References __n_assert, N_GUI_WIDGET::data, N_GUI_COMBOBOX_DATA::flags, n_gui_get_widget(), N_GUI_TYPE_COMBOBOX, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_combobox_set_selected()

void n_gui_combobox_set_selected	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	index
	)

set the selected item index

Parameters

ctx	GUI context
widget_id	id of the combobox widget
index	index of the item to select, or -1 for none

Definition at line 4478 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_COMBOBOX, N_GUI_COMBOBOX_DATA::selected_index, and N_GUI_WIDGET::type.

Referenced by main(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_count_detached()

int n_gui_count_detached ( N_GUI_CTX * ctx )

count the windows currently detached into native OS windows

Definition at line 1609 of file n_gui.c.

References __n_assert, list_foreach, N_GUI_WINDOW::native, and N_GUI_CTX::windows.

Referenced by main(), and refresh_buttons().

Here is the caller graph for this function:

◆ n_gui_datagrid_add_column()

int n_gui_datagrid_add_column	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	title,
		float	width
	)

append a column with a header title and pixel width; returns the column index or -1

Definition at line 3805 of file n_gui.c.

References N_GUI_DATAGRID_DATA::col_order, N_GUI_DATAGRID_DATA::cols, N_GUI_DATAGRID_DATA::cols_cap, N_GUI_WIDGET::data, FreeNoLog, Malloc, n_gui_get_widget(), N_GUI_ID_MAX, N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::nb_cols, N_GUI_DATAGRID_DATA::nb_rows, N_GUI_DATAGRID_COL::title, N_GUI_WIDGET::type, N_GUI_DATAGRID_COL::visible, and N_GUI_DATAGRID_COL::width.

Referenced by build_datagrid_window(), build_window(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_add_row()

int n_gui_datagrid_add_row	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char **	values
	)

append a row of cell strings (values must have one entry per column); returns the row index or -1

Definition at line 3862 of file n_gui.c.

References N_GUI_DATAGRID_DATA::cells, N_GUI_WIDGET::data, FreeNoLog, Malloc, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::nb_cols, N_GUI_DATAGRID_DATA::nb_rows, N_GUI_DATAGRID_DATA::row_color, N_GUI_DATAGRID_DATA::row_has_color, N_GUI_DATAGRID_DATA::row_sel, N_GUI_DATAGRID_DATA::rows_cap, and N_GUI_WIDGET::type.

Referenced by build_datagrid_window(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_clear_row_color()

void n_gui_datagrid_clear_row_color	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	row
	)

remove the background tint of data row row (it draws untinted again)

Definition at line 4051 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::nb_rows, N_GUI_DATAGRID_DATA::row_has_color, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_clear_row_colors()

void n_gui_datagrid_clear_row_colors	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

remove every row background tint (the rows and cells are kept)

Definition at line 4069 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::row_has_color, N_GUI_DATAGRID_DATA::rows_cap, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_clear_rows()

void n_gui_datagrid_clear_rows	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

remove all rows from a data grid (columns are kept)

Definition at line 3920 of file n_gui.c.

References N_GUI_DATAGRID_DATA::anchor_row, N_GUI_DATAGRID_DATA::cells, N_GUI_WIDGET::data, FreeNoLog, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::nb_cols, N_GUI_DATAGRID_DATA::nb_rows, N_GUI_DATAGRID_DATA::row_has_color, N_GUI_DATAGRID_DATA::row_sel, N_GUI_DATAGRID_DATA::rows_cap, N_GUI_DATAGRID_DATA::scroll_offset, N_GUI_DATAGRID_DATA::selected_row, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_clear_selection()

void n_gui_datagrid_clear_selection	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

clear the entire selection (no row selected)

Definition at line 4016 of file n_gui.c.

References N_GUI_DATAGRID_DATA::anchor_row, N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::row_sel, N_GUI_DATAGRID_DATA::rows_cap, N_GUI_DATAGRID_DATA::selected_row, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_display_to_physical()

int n_gui_datagrid_display_to_physical	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	display_pos
	)

physical column shown at display position display_pos, or -1 if out of range

Definition at line 4150 of file n_gui.c.

References _datagrid_data(), _datagrid_phys(), and N_GUI_DATAGRID_DATA::nb_cols.

Referenced by _datagrid_apply_columns(), main(), and n_gui_save_layout_json().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_get_cell()

const char * n_gui_datagrid_get_cell	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	row,
		int	col
	)

get a cell string by row and column, or NULL if out of range

Definition at line 3944 of file n_gui.c.

References N_GUI_DATAGRID_DATA::cells, N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::nb_cols, N_GUI_DATAGRID_DATA::nb_rows, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_get_column_count()

size_t n_gui_datagrid_get_column_count	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

number of columns in a data grid (physical), or 0

Definition at line 4115 of file n_gui.c.

References _datagrid_data(), and N_GUI_DATAGRID_DATA::nb_cols.

Referenced by _apply_pending_widget(), main(), and n_gui_save_layout_json().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_get_column_title()

const char * n_gui_datagrid_get_column_title	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	col
	)

header title of physical column col, or "" if out of range

Definition at line 4120 of file n_gui.c.

References _datagrid_data(), N_GUI_DATAGRID_DATA::cols, N_GUI_DATAGRID_DATA::nb_cols, and N_GUI_DATAGRID_COL::title.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_get_column_visible()

int n_gui_datagrid_get_column_visible	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	col
	)

whether physical column col is visible (1) or hidden (0); 0 if out of range

Definition at line 4132 of file n_gui.c.

References _datagrid_data(), N_GUI_DATAGRID_DATA::cols, N_GUI_DATAGRID_DATA::nb_cols, and N_GUI_DATAGRID_COL::visible.

Referenced by main(), and n_gui_save_layout_json().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_get_column_width()

float n_gui_datagrid_get_column_width	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	col
	)

current pixel width of physical column col, or 0 if out of range

Definition at line 4144 of file n_gui.c.

References _datagrid_data(), N_GUI_DATAGRID_DATA::cols, N_GUI_DATAGRID_DATA::nb_cols, and N_GUI_DATAGRID_COL::width.

Referenced by main(), and n_gui_save_layout_json().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_get_h_scroll()

float n_gui_datagrid_get_h_scroll	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

horizontal scroll offset in pixels (how far the columns are scrolled left when their total width exceeds the widget's pane), or 0.

Read it before a rebuild and pass it back to n_gui_datagrid_set_h_scroll to preserve the horizontal view across a clear/refill.

Definition at line 4093 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_get_row_color()

int n_gui_datagrid_get_row_color	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	row,
		ALLEGRO_COLOR *	out
	)

report whether data row row carries a background tint (1) or not (0), and copy the tint into out when it does.

out may be NULL to just test.

Definition at line 4059 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::nb_rows, N_GUI_DATAGRID_DATA::row_color, N_GUI_DATAGRID_DATA::row_has_color, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_get_row_count()

int n_gui_datagrid_get_row_count	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get the number of rows in a data grid

Definition at line 3938 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_get_scroll_offset()

int n_gui_datagrid_get_scroll_offset	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

first visible data row (the vertical scroll position), or 0.

Read it before a rebuild and pass it back to n_gui_datagrid_set_scroll_offset so an in-place edit that clears and refills the grid does not jump the view back to the top.

Definition at line 4076 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_get_selected()

int n_gui_datagrid_get_selected	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get the selected row index, or -1 if none

Definition at line 3952 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_get_selected_rows()

size_t n_gui_datagrid_get_selected_rows	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int *	out,
		size_t	max
	)

fill out with the indices of the selected rows (ascending), up to max, and return the total number of selected rows.

With multi-select disabled this reports the single selected row. out may be NULL to just count.

Definition at line 3995 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_DATAGRID_DATA::multiselect, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::nb_rows, N_GUI_DATAGRID_DATA::row_sel, N_GUI_DATAGRID_DATA::selected_row, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_is_row_selected()

int n_gui_datagrid_is_row_selected	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	row
	)

report whether a given data row is selected (1) or not (0)

Definition at line 3986 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_DATAGRID_DATA::multiselect, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::nb_rows, N_GUI_DATAGRID_DATA::row_sel, N_GUI_DATAGRID_DATA::selected_row, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_move_column()

void n_gui_datagrid_move_column	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	from,
		int	to
	)

move the column at display position from to display position to, shifting the columns in between (reorders how columns are laid out; the cells and physical indices are unchanged)

Definition at line 4156 of file n_gui.c.

References _datagrid_data(), N_GUI_DATAGRID_DATA::col_order, and N_GUI_DATAGRID_DATA::nb_cols.

Referenced by _datagrid_apply_columns(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_select_row()

void n_gui_datagrid_select_row	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	row,
		int	selected
	)

select (1) or deselect (0) a single row in a multi-select grid programmatically (e.g.

a select-all action); selecting also makes it the primary selected row

Definition at line 4025 of file n_gui.c.

References _datagrid_ensure_sel(), N_GUI_DATAGRID_DATA::anchor_row, N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::nb_rows, N_GUI_DATAGRID_DATA::row_sel, N_GUI_DATAGRID_DATA::selected_row, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_set_column_visible()

void n_gui_datagrid_set_column_visible	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	col,
		int	visible
	)

show (1) or hide (0) physical column col; hidden columns keep their cells but are skipped in the header and rows and closed up so no gap remains

Definition at line 4126 of file n_gui.c.

References _datagrid_data(), N_GUI_DATAGRID_DATA::cols, N_GUI_DATAGRID_DATA::nb_cols, and N_GUI_DATAGRID_COL::visible.

Referenced by _datagrid_apply_columns(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_set_column_width()

void n_gui_datagrid_set_column_width	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	col,
		float	width
	)

set the pixel width of physical column col (clamped to a small minimum)

Definition at line 4138 of file n_gui.c.

References _datagrid_data(), N_GUI_DATAGRID_DATA::cols, N_GUI_DATAGRID_DATA::nb_cols, and N_GUI_DATAGRID_COL::width.

Referenced by _datagrid_apply_columns(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_set_h_scroll()

void n_gui_datagrid_set_h_scroll	(	N_GUI_CTX *	ctx,
		int	widget_id,
		float	px
	)

set the horizontal scroll offset in pixels (clamped to >= 0; the draw path re-clamps to the live content width each frame, so a stale value after a rebuild is harmless).

Pairs with n_gui_datagrid_get_h_scroll.

Definition at line 4099 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_set_multiselect()

void n_gui_datagrid_set_multiselect	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	enabled
	)

enable (1) or disable (0) multi-row selection.

When enabled, a plain click selects one row, Ctrl-click toggles a row, and Shift-click selects the range from the anchor; all selected rows are highlighted. Single-select consumers are unaffected (the default is disabled).

Definition at line 3973 of file n_gui.c.

References _datagrid_ensure_sel(), N_GUI_DATAGRID_DATA::anchor_row, N_GUI_WIDGET::data, N_GUI_DATAGRID_DATA::multiselect, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::row_sel, N_GUI_DATAGRID_DATA::rows_cap, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_set_on_columns_changed()

void n_gui_datagrid_set_on_columns_changed	(	N_GUI_CTX *	ctx,
		int	widget_id,
		void()(int, void )	cb
	)

set the callback fired after the user drags a column border to resize it, so the host can persist the layout.

Pass NULL to disable.

Definition at line 4171 of file n_gui.c.

References _datagrid_data(), and N_GUI_DATAGRID_DATA::on_columns_changed.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_set_on_context()

void n_gui_datagrid_set_on_context	(	N_GUI_CTX *	ctx,
		int	widget_id,
		void()(int, int, int, int, void )	on_context
	)

set the right-click context callback; fired (with the cursor x/y in GUI coordinates) when a data row is right-clicked, after selecting that row.

The callback shares the data grid's user_data. Pass NULL to disable.

Definition at line 3967 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_set_row_color()

void n_gui_datagrid_set_row_color	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	row,
		ALLEGRO_COLOR	color
	)

paint data row row with a background tint (a per-row highlight, e.g.

a rule engine coloring matching entries). The tint is drawn under the cell text and follows the row through a sort; the selection is drawn over it as a darkening wash plus an active border so a tinted row still reads as selected. Cell text switches to black or white per the tint luminance so it stays legible. Row colors are dropped by n_gui_datagrid_clear_rows() along with the rows they belong to.

Definition at line 4041 of file n_gui.c.

References _datagrid_ensure_colors(), N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::nb_rows, N_GUI_DATAGRID_DATA::row_color, N_GUI_DATAGRID_DATA::row_has_color, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_set_scroll_offset()

void n_gui_datagrid_set_scroll_offset	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	offset
	)

set the first visible data row (clamped to the row count); the draw path re-clamps to the live viewport each frame, so a stale offset after a rebuild is harmless.

Pairs with n_gui_datagrid_get_scroll_offset to preserve the scroll position across a clear/refill.

Definition at line 4082 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::nb_rows, N_GUI_DATAGRID_DATA::scroll_offset, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_set_selected()

void n_gui_datagrid_set_selected	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	row
	)

set the selected row index (fires the on_select callback)

Definition at line 3958 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::nb_rows, N_GUI_DATAGRID_DATA::on_select, N_GUI_DATAGRID_DATA::selected_row, N_GUI_WIDGET::type, and N_GUI_DATAGRID_DATA::user_data.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_datagrid_sort()

void n_gui_datagrid_sort	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	col,
		int	dir
	)

sort the rows by a column (dir 1 ascending, -1 descending)

Definition at line 4176 of file n_gui.c.

References _cell_cmp(), N_GUI_DATAGRID_DATA::anchor_row, N_GUI_DATAGRID_DATA::cells, N_GUI_WIDGET::data, FreeNoLog, key, Malloc, n_gui_get_widget(), N_GUI_TYPE_DATAGRID, N_GUI_DATAGRID_DATA::nb_cols, N_GUI_DATAGRID_DATA::nb_rows, N_GUI_DATAGRID_DATA::row_color, N_GUI_DATAGRID_DATA::row_has_color, N_GUI_DATAGRID_DATA::row_sel, N_GUI_DATAGRID_DATA::rows_cap, N_GUI_DATAGRID_DATA::selected_row, N_GUI_DATAGRID_DATA::sort_col, N_GUI_DATAGRID_DATA::sort_dir, and N_GUI_WIDGET::type.

Referenced by main(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_default_style()

N_GUI_STYLE n_gui_default_style ( void )

return the built-in default style

Definition at line 788 of file n_gui.c.

Referenced by n_gui_new_ctx().

Here is the caller graph for this function:

◆ n_gui_default_tb_btn_theme()

N_GUI_THEME n_gui_default_tb_btn_theme ( void )

return the built-in default theme for titlebar minimize/maximize buttons

Semi-transparent, blends with the titlebar background.

Definition at line 728 of file n_gui.c.

References N_GUI_THEME::bg_active, N_GUI_THEME::bg_hover, N_GUI_THEME::bg_normal, N_GUI_THEME::border_active, N_GUI_THEME::border_hover, N_GUI_THEME::border_normal, N_GUI_THEME::border_thickness, N_GUI_THEME::corner_rx, N_GUI_THEME::corner_ry, N_GUI_THEME::selection_color, N_GUI_THEME::text_active, N_GUI_THEME::text_hover, and N_GUI_THEME::text_normal.

Referenced by n_gui_default_tb_close_theme(), and n_gui_new_ctx().

Here is the caller graph for this function:

◆ n_gui_default_tb_close_theme()

N_GUI_THEME n_gui_default_tb_close_theme ( void )

return the built-in default theme for the titlebar close button (red hover/active)

Same as the btn theme but with red hover/active backgrounds.

Definition at line 751 of file n_gui.c.

References N_GUI_THEME::bg_active, N_GUI_THEME::bg_hover, and n_gui_default_tb_btn_theme().

Referenced by n_gui_new_ctx().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_default_theme()

N_GUI_THEME n_gui_default_theme ( void )

return the built-in default theme

Returns: a N_GUI_THEME with dark-ish colours

Definition at line 651 of file n_gui.c.

References N_GUI_THEME::bg_active, N_GUI_THEME::bg_hover, N_GUI_THEME::bg_normal, N_GUI_THEME::border_active, N_GUI_THEME::border_hover, N_GUI_THEME::border_normal, N_GUI_THEME::border_thickness, N_GUI_THEME::corner_rx, N_GUI_THEME::corner_ry, N_GUI_THEME::selection_color, N_GUI_THEME::text_active, N_GUI_THEME::text_hover, and N_GUI_THEME::text_normal.

Referenced by n_gui_new_ctx().

Here is the caller graph for this function:

◆ n_gui_destroy_ctx()

void n_gui_destroy_ctx ( N_GUI_CTX ** ctx )

destroy a GUI context and free all resources

Parameters

ctx	pointer to the context pointer (set to NULL)

Definition at line 995 of file n_gui.c.

References __n_assert, _release_native_window(), destroy_ht(), Free, FreeNoLog, list_destroy(), list_foreach, n_clipboard_destroy(), and N_GUI_WINDOW::native.

Referenced by main(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_detect_dpi_scale()

float n_gui_detect_dpi_scale	(	N_GUI_CTX *	ctx,
		ALLEGRO_DISPLAY *	display
	)

detect and apply DPI scale from the given allegro display.

Works on Linux (X11/Wayland), Windows, and Android. Returns the detected scale factor.

detect and apply DPI scale from the given allegro display.

Detection strategy (cross-platform):

Compare the physical pixel size (framebuffer) to the logical window size. On HiDPI displays these differ (e.g. a 1920-logical window may have a 3840-pixel framebuffer on a 2x Retina display).
On Android, al_get_display_option(ALLEGRO_DEFAULT_DISPLAY_ADAPTER) and the framebuffer/window ratio gives the density scale.
On Windows with per-monitor DPI awareness, the ratio reflects the OS scaling percentage (125% = 1.25, 150% = 1.5, etc.).
On Linux/X11/Wayland, the ratio picks up Xft.dpi or Wayland scale factor if Allegro was built with the appropriate backend.

If the framebuffer and window sizes are both reported identically (no HiDPI support from the Allegro build), the function falls back to 1.0.

Returns: the detected scale factor (also stored in ctx->dpi_scale)

Definition at line 9113 of file n_gui.c.

References __n_assert, display, and N_GUI_CTX::dpi_scale.

Referenced by main().

Here is the caller graph for this function:

◆ n_gui_draw()

void n_gui_draw ( N_GUI_CTX * ctx )

draw all visible GUI windows and widgets

When a display size has been set (via n_gui_set_display_size) and the total GUI bounding box exceeds it, global scrollbars are drawn at the edges of the display and all windows are offset by the global scroll position.

Parameters

ctx	the GUI context

Definition at line 8542 of file n_gui.c.

Referenced by main(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_draw_detached()

void n_gui_draw_detached ( N_GUI_CTX * ctx )

render and flip every detached window, and release the ones whose native window was closed.

Call once per frame, after the event queue has been drained. Restores the caller's target bitmap before returning, and does not touch the main display's backbuffer.

render and flip every detached window, and release the ones whose native window was closed.

Call once per frame, after the event queue has been drained: this is the safe point where a display whose close was requested is actually destroyed, so no already-queued event can name a freed display.

Each native window is drawn with an identity transform, the virtual canvas, global scroll and global scrollbars belong to the main display only. The caller's target bitmap is restored before returning.

Definition at line 8737 of file n_gui.c.

References __n_assert, _draw_combobox_dropdown(), _draw_dropmenu_panel(), _draw_tooltip(), _draw_window(), _release_native_window(), N_GUI_WINDOW::autofit_flags, N_GUI_THEME::bg_normal, N_GUI_CTX::default_font, N_GUI_WINDOW::flags, N_GUI_WINDOW::h, N_GUI_WINDOW::id, list_foreach, N_GUI_WIN_MINIMISED, N_GUI_WIN_OPEN, n_gui_window_apply_autofit(), N_GUI_WINDOW::native, N_GUI_WINDOW::native_close_pending, N_GUI_WINDOW::native_halted, N_GUI_WINDOW::on_content_draw, N_GUI_WINDOW::on_content_draw_data, N_GUI_CTX::pass_display, N_GUI_WINDOW::saved_flags, N_GUI_WINDOW::saved_h, N_GUI_WINDOW::saved_w, N_GUI_WINDOW::saved_x, N_GUI_WINDOW::saved_y, N_GUI_WINDOW::state, N_GUI_CTX::style, N_GUI_WINDOW::theme, N_GUI_WINDOW::w, N_GUI_WINDOW::want_native, N_GUI_CTX::windows, N_GUI_WINDOW::x, and N_GUI_WINDOW::y.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_dropmenu_add_dynamic_entry()

int n_gui_dropmenu_add_dynamic_entry	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	text,
		int	tag,
		void()(int, int, int, void )	on_click,
		void *	user_data
	)

add a dynamic entry (rebuilt each time menu opens)

Returns: entry index, or -1 on error

Definition at line 4669 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_DROPMENU_DATA::entries, N_GUI_DROPMENU_ENTRY::is_dynamic, LOG_ERR, n_gui_dropmenu_add_entry(), n_gui_get_widget(), and n_log.

Referenced by on_windows_menu_open().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_dropmenu_add_entry()

int n_gui_dropmenu_add_entry	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	text,
		int	tag,
		void()(int, int, int, void )	on_click,
		void *	user_data
	)

add a static entry to a dropdown menu

Returns: entry index, or -1 on error

Definition at line 4646 of file n_gui.c.

References _dropmenu_entries_grow(), N_GUI_WIDGET::data, N_GUI_DROPMENU_DATA::entries, N_GUI_DROPMENU_DATA::entries_capacity, N_GUI_DROPMENU_ENTRY::is_dynamic, n_gui_get_widget(), N_GUI_ID_MAX, N_GUI_TYPE_DROPMENU, N_GUI_DROPMENU_DATA::nb_entries, N_GUI_DROPMENU_ENTRY::on_click, N_GUI_DROPMENU_ENTRY::tag, N_GUI_DROPMENU_ENTRY::text, N_GUI_WIDGET::type, and N_GUI_DROPMENU_ENTRY::user_data.

Referenced by main(), main(), and n_gui_dropmenu_add_dynamic_entry().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_dropmenu_clear()

void n_gui_dropmenu_clear	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

remove all entries

Definition at line 4723 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DROPMENU, N_GUI_DROPMENU_DATA::nb_entries, N_GUI_DROPMENU_DATA::scroll_offset, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_dropmenu_clear_dynamic()

void n_gui_dropmenu_clear_dynamic	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

remove all dynamic entries (call from on_open callback before re-adding)

Definition at line 4694 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_DROPMENU_DATA::entries, N_GUI_DROPMENU_ENTRY::is_dynamic, N_GUI_DROPMENU_DATA::max_visible, n_gui_get_widget(), N_GUI_TYPE_DROPMENU, N_GUI_DROPMENU_DATA::nb_entries, N_GUI_DROPMENU_DATA::scroll_offset, and N_GUI_WIDGET::type.

Referenced by on_windows_menu_open().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_dropmenu_get_count()

int n_gui_dropmenu_get_count	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get number of entries

Definition at line 4748 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_DROPMENU, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_dropmenu_panel_width()

float n_gui_dropmenu_panel_width	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

width the open panel needs to show its entries without truncation: the larger of the collapsed button width and the widest entry text (plus item padding on both sides and the scrollbar width when the entry count overflows the visible window).

Returns 0 for a non-dropmenu widget.

width the open panel needs to show its entries without truncation: the larger of the collapsed button width and the widest entry text (plus item padding on both sides and the scrollbar width when the entry count overflows the visible window).

The collapsed dropmenu button is often narrow (it only shows a short category label), but the floating panel must be wide enough that its entries read in full. This returns the larger of the button width and the widest entry text, padded by the item text padding on both sides and, when the entry count overflows the visible window, the scrollbar width. The draw and hit-test paths share it so the panel background, the clickable item area, and the scrollbar all use one width.

Parameters

ctx	the GUI context
widget_id	the dropmenu widget id

Returns: the panel width in pixels, or 0 for a non-dropmenu widget

Definition at line 4771 of file n_gui.c.

References _text_w(), N_GUI_WIDGET::data, N_GUI_CTX::default_font, N_GUI_DROPMENU_DATA::entries, N_GUI_WIDGET::font, N_GUI_STYLE::item_text_padding, N_GUI_DROPMENU_DATA::max_visible, n_gui_get_widget(), N_GUI_TYPE_DROPMENU, N_GUI_DROPMENU_DATA::nb_entries, N_GUI_STYLE::scrollbar_size, N_GUI_CTX::style, N_GUI_DROPMENU_ENTRY::text, N_GUI_WIDGET::type, and N_GUI_WIDGET::w.

Referenced by _draw_dropmenu_panel(), main(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_dropmenu_set_bitmaps()

void n_gui_dropmenu_set_bitmaps	(	N_GUI_CTX *	ctx,
		int	widget_id,
		ALLEGRO_BITMAP *	panel,
		ALLEGRO_BITMAP *	item_hover
	)

set optional bitmap overlays on a dropmenu widget.

Pass NULL for any bitmap you don't want to set.

Note: Bitmaps are NOT owned by N_GUI. The caller must keep them alive for the widget's lifetime and destroy them after the GUI context is destroyed.

set optional bitmap overlays on a dropmenu widget.

Note: Bitmaps are NOT owned by N_GUI.

Definition at line 4954 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_DROPMENU_DATA::item_hover_bitmap, LOG_WARNING, n_gui_get_widget(), N_GUI_TYPE_DROPMENU, n_log, N_GUI_DROPMENU_DATA::panel_bitmap, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_dropmenu_set_entry_text()

void n_gui_dropmenu_set_entry_text	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	index,
		const char *	text
	)

update text of an existing entry by index

Definition at line 4734 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_DROPMENU_DATA::entries, n_gui_get_widget(), N_GUI_ID_MAX, N_GUI_TYPE_DROPMENU, N_GUI_DROPMENU_DATA::nb_entries, N_GUI_DROPMENU_ENTRY::text, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_dropmenu_set_flags()

void n_gui_dropmenu_set_flags	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	flags
	)

set dropmenu feature flags (bitmask of N_GUI_DROPMENU_* values)

Definition at line 4612 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_DROPMENU_DATA::flags, n_gui_get_widget(), N_GUI_TYPE_DROPMENU, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_dropmenu_set_label()

void n_gui_dropmenu_set_label	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	label
	)

replace the button label shown on a dropmenu (NULL clears it)

The label is the text drawn on the collapsed dropmenu button (before the arrow). Useful when a single dropmenu widget is reused to present different menus (a pooled toolbar category button, for instance). A NULL label clears it. The text is truncated to N_GUI_ID_MAX-1 bytes.

Parameters

ctx	the GUI context
widget_id	the dropmenu widget id
label	new button label, or NULL to clear

Definition at line 4631 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_DROPMENU_DATA::label, n_gui_get_widget(), N_GUI_TYPE_DROPMENU, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_focus_window()

void n_gui_focus_window	(	N_GUI_CTX *	ctx,
		int	window_id
	)

give a window keyboard focus: raise it within its z-order group and focus its first focusable widget (clears focus if it has none)

Raises the window within its z-order group (so it is drawn on top of its peers) and moves keyboard focus to its first focusable, visible, enabled widget. If the window has no focusable widget, focus is cleared so global key bindings still fire. Does nothing if the window id is unknown.

Definition at line 1881 of file n_gui.c.

References __n_assert, _is_focusable_type(), N_GUI_WIDGET::enabled, N_GUI_WIDGET::id, list_foreach, n_gui_get_window(), n_gui_raise_window(), n_gui_set_focus(), N_GUI_WIDGET::type, N_GUI_WIDGET::visible, and N_GUI_WINDOW::widgets.

Here is the call graph for this function:

◆ n_gui_get_dpi_scale()

float n_gui_get_dpi_scale ( const N_GUI_CTX * ctx )

get current DPI scale factor

Definition at line 9089 of file n_gui.c.

References __n_assert, and N_GUI_CTX::dpi_scale.

◆ n_gui_get_event_queue()

ALLEGRO_EVENT_QUEUE * n_gui_get_event_queue ( N_GUI_CTX * ctx )

get the event queue previously given to n_gui_set_event_queue (NULL if none)

Definition at line 1365 of file n_gui.c.

References __n_assert, and N_GUI_CTX::event_queue.

Referenced by main().

Here is the caller graph for this function:

◆ n_gui_get_resize_mode()

int n_gui_get_resize_mode ( N_GUI_CTX * ctx )

get current resize mode

Returns: N_GUI_RESIZE_VIRTUAL or N_GUI_RESIZE_ADAPTIVE

Definition at line 8926 of file n_gui.c.

References __n_assert, and N_GUI_CTX::resize_mode.

◆ n_gui_get_shape_mode()

int n_gui_get_shape_mode ( N_GUI_CTX * ctx )

get the global widget shape (N_GUI_SHAPE_ROUNDED or N_GUI_SHAPE_RECT)

Parameters

ctx	GUI context.

Returns: N_GUI_SHAPE_ROUNDED or N_GUI_SHAPE_RECT (rounded when ctx is NULL).

Definition at line 9064 of file n_gui.c.

References N_GUI_SHAPE_ROUNDED, N_GUI_STYLE::shape_mode, and N_GUI_CTX::style.

Referenced by main().

Here is the caller graph for this function:

◆ n_gui_get_text_dims()

N_GUI_TEXT_DIMS n_gui_get_text_dims	(	ALLEGRO_FONT *	font,
		const char *	text
	)

get the bounding box dimensions of text rendered with the given font.

Uses al_get_text_dimensions for accurate measurement including glyph overhangs.

Definition at line 103 of file n_gui.c.

References N_GUI_TEXT_DIMS::h, N_GUI_TEXT_DIMS::w, N_GUI_TEXT_DIMS::x, and N_GUI_TEXT_DIMS::y.

◆ n_gui_get_topmost_open_window()

int n_gui_get_topmost_open_window ( const N_GUI_CTX * ctx )

get the id of the frontmost open, non-minimized window (the last one in draw order), or -1 if no window is open.

Because the window list is kept sorted by z-order group, this is the topmost window currently on screen.

get the id of the frontmost open, non-minimized window (the last one in draw order), or -1 if no window is open.

The window list is kept sorted by z-order group with the topmost group last, so the last open window in list order is the one drawn on top. Returns -1 when no window is open.

Definition at line 1861 of file n_gui.c.

References __n_assert, LIST::end, N_GUI_WINDOW::id, N_GUI_WIN_MINIMISED, N_GUI_WIN_OPEN, N_GUI_WINDOW::state, and N_GUI_CTX::windows.

◆ n_gui_get_widget()

N_GUI_WIDGET * n_gui_get_widget	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get a widget by id

Definition at line 3028 of file n_gui.c.

References __n_assert, ht_get_ptr(), key, and N_GUI_CTX::widgets_by_id.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_get_window()

N_GUI_WINDOW * n_gui_get_window	(	N_GUI_CTX *	ctx,
		int	window_id
	)

get a window by id

Definition at line 1182 of file n_gui.c.

References _find_window_node(), and LIST_NODE::ptr.

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_hexview_get_length()

size_t n_gui_hexview_get_length	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get the number of bytes currently held by a hex viewer

Parameters

ctx	GUI context
widget_id	id of the hex viewer widget

Returns: the byte count, or 0 if the widget is invalid

Definition at line 3610 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_HEXVIEW, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_hexview_set_data()

void n_gui_hexview_set_data	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const unsigned char *	data,
		size_t	len
	)

set (copy) the bytes shown by a hex viewer; data may be NULL to clear

Parameters

ctx	GUI context
widget_id	id of the hex viewer widget
data	the bytes to display, or NULL to clear
len	number of bytes in data

Definition at line 3588 of file n_gui.c.

References N_GUI_HEXVIEW_DATA::data, N_GUI_WIDGET::data, FreeNoLog, N_GUI_HEXVIEW_DATA::len, Malloc, n_gui_get_widget(), N_GUI_TYPE_HEXVIEW, N_GUI_HEXVIEW_DATA::scroll_offset, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_image_set_bitmap()

void n_gui_image_set_bitmap	(	N_GUI_CTX *	ctx,
		int	widget_id,
		ALLEGRO_BITMAP *	bitmap
	)

set the bitmap on an image widget

Parameters

ctx	GUI context
widget_id	id of the image widget
bitmap	pointer to the ALLEGRO_BITMAP to set

Definition at line 4496 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_IMAGE, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_is_widget_enabled()

int n_gui_is_widget_enabled	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

check if a widget is enabled

Returns: 1 if enabled, 0 if disabled

Definition at line 3093 of file n_gui.c.

References N_GUI_WIDGET::enabled, and n_gui_get_widget().

Here is the call graph for this function:

◆ n_gui_kvtable_add_row()

int n_gui_kvtable_add_row	(	N_GUI_KVTABLE *	table,
		const char *	key,
		const char *	value,
		const char *	description,
		int	enabled
	)

add a row to the KV table

Definition at line 14053 of file n_gui.c.

References _n_gui_kv_apply_layout(), _n_gui_kv_remove_clicked(), N_GUI_KV_ROW::active, N_GUI_KVTABLE::ctx, N_GUI_KV_ROW::desc_id, N_GUI_KV_ROW::enabled_id, key, N_GUI_KV_ROW::key_id, N_GUI_KVTABLE::key_placeholder, n_gui_add_button(), n_gui_add_checkbox(), n_gui_add_textarea(), n_gui_checkbox_set_checked(), N_GUI_KV_MAX, n_gui_set_widget_visible(), N_GUI_SHAPE_RECT, n_gui_textarea_set_placeholder(), n_gui_textarea_set_text(), N_GUI_KVTABLE::nb_active, N_GUI_KVTABLE::nb_rows, N_GUI_KVTABLE::padding, N_GUI_KV_ROW::remove_id, N_GUI_KVTABLE::row_height, N_GUI_KVTABLE::rows, N_GUI_KV_ROW::value_id, N_GUI_KVTABLE::value_placeholder, and N_GUI_KVTABLE::window_id.

Referenced by _n_gui_kv_add_clicked(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_kvtable_clear()

void n_gui_kvtable_clear ( N_GUI_KVTABLE * table )

remove every row at once.

The key column and remove button are always kept; the freed row slots (and their widgets) are reused by the next add_row calls, so repeated clear+repopulate cycles do not grow the widget count toward N_GUI_KV_MAX. Use before reloading a table's contents.

Definition at line 14126 of file n_gui.c.

References _n_gui_kv_apply_layout(), N_GUI_KV_ROW::active, N_GUI_KVTABLE::ctx, N_GUI_KV_ROW::desc_id, N_GUI_KV_ROW::enabled_id, N_GUI_KV_ROW::key_id, n_gui_set_widget_visible(), N_GUI_KVTABLE::nb_active, N_GUI_KVTABLE::nb_rows, N_GUI_KV_ROW::remove_id, N_GUI_KVTABLE::rows, and N_GUI_KV_ROW::value_id.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_kvtable_create()

N_GUI_KVTABLE * n_gui_kvtable_create	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	row_height,
		float	padding,
		void()(int, void )	on_remove,
		void *	user_data
	)

create a KV table in an existing window

Definition at line 14004 of file n_gui.c.

References _n_gui_kv_add_clicked(), _n_gui_kv_apply_layout(), N_GUI_KVTABLE::btn_add, N_GUI_KVTABLE::ctx, N_GUI_WINDOW::h, N_GUI_KVTABLE::header_height, N_GUI_KVTABLE::init_win_h, N_GUI_KVTABLE::init_win_w, N_GUI_KVTABLE::key_placeholder, N_GUI_KVTABLE::lbl_desc, N_GUI_KVTABLE::lbl_enabled, N_GUI_KVTABLE::lbl_key, N_GUI_KVTABLE::lbl_value, Malloc, n_gui_add_button(), n_gui_add_label(), N_GUI_ALIGN_LEFT, n_gui_get_window(), N_GUI_SHAPE_ROUNDED, N_GUI_KVTABLE::nb_active, N_GUI_KVTABLE::nb_rows, N_GUI_KVTABLE::on_remove, N_GUI_KVTABLE::padding, N_GUI_KVTABLE::row_height, N_GUI_KVTABLE::show_desc, N_GUI_KVTABLE::show_enabled, N_GUI_KVTABLE::show_value, N_GUI_KVTABLE::top_offset, N_GUI_KVTABLE::user_data, N_GUI_KVTABLE::value_placeholder, N_GUI_WINDOW::w, and N_GUI_KVTABLE::window_id.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_kvtable_free()

void n_gui_kvtable_free ( N_GUI_KVTABLE ** table )

free a KV table (does not destroy the N_GUI widgets)

Definition at line 14180 of file n_gui.c.

References FreeNoLog.

Referenced by main().

Here is the caller graph for this function:

◆ n_gui_kvtable_get_count()

int n_gui_kvtable_get_count ( const N_GUI_KVTABLE * table )

get the number of active rows

Definition at line 14172 of file n_gui.c.

References N_GUI_KVTABLE::nb_active.

Referenced by main().

Here is the caller graph for this function:

◆ n_gui_kvtable_relayout()

void n_gui_kvtable_relayout ( N_GUI_KVTABLE * table )

re-apply layout to all KV table widgets (positions, sizes, normalized coords).

Called automatically on create/add/remove; callers should invoke it after any manual window size change the kvtable cannot see.

Definition at line 14176 of file n_gui.c.

References _n_gui_kv_apply_layout().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_kvtable_remove_row()

void n_gui_kvtable_remove_row	(	N_GUI_KVTABLE *	table,
		int	row_index
	)

remove a row by index (hides widgets, marks inactive)

Definition at line 14112 of file n_gui.c.

References _n_gui_kv_apply_layout(), N_GUI_KV_ROW::active, N_GUI_KVTABLE::ctx, N_GUI_KV_ROW::desc_id, N_GUI_KV_ROW::enabled_id, N_GUI_KV_ROW::key_id, n_gui_set_widget_visible(), N_GUI_KVTABLE::nb_active, N_GUI_KVTABLE::nb_rows, N_GUI_KV_ROW::remove_id, N_GUI_KVTABLE::rows, and N_GUI_KV_ROW::value_id.

Referenced by _n_gui_kv_remove_clicked(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_kvtable_set_columns()

void n_gui_kvtable_set_columns	(	N_GUI_KVTABLE *	table,
		int	show_value,
		int	show_desc,
		int	show_enabled
	)

choose which optional columns are shown: Value, Description, and the enabled checkbox.

The key column and the remove ("x") button are always shown. Defaults to all shown (a full three-column table, backward compatible). Pass 0 to hide a column for a simpler table, e.g. a single-value list (0,0,0). Hidden columns' widgets are hidden and the visible columns reflow to fill the width.

Definition at line 14144 of file n_gui.c.

References _n_gui_kv_apply_layout(), N_GUI_KVTABLE::show_desc, N_GUI_KVTABLE::show_enabled, and N_GUI_KVTABLE::show_value.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_kvtable_set_placeholders()

void n_gui_kvtable_set_placeholders	(	N_GUI_KVTABLE *	table,
		const char *	key_hint,
		const char *	value_hint
	)

set the placeholder/hint text shown in each row's key (and value) textarea while it is empty.

Applies to existing rows and to rows added afterwards. Either argument may be NULL to clear that hint.

Definition at line 14152 of file n_gui.c.

References N_GUI_KVTABLE::ctx, FreeNoLog, N_GUI_KV_ROW::key_id, N_GUI_KVTABLE::key_placeholder, n_gui_textarea_set_placeholder(), N_GUI_KVTABLE::nb_rows, N_GUI_KVTABLE::rows, N_GUI_KV_ROW::value_id, and N_GUI_KVTABLE::value_placeholder.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_kvtable_set_top_offset()

void n_gui_kvtable_set_top_offset	(	N_GUI_KVTABLE *	table,
		float	top_offset
	)

reserve top_offset unscaled pixels above the header row so other widgets (a toolbar, a heading) can share the table's window without overlapping it.

The offset scales with the window like the rest of the table. Default 0.

Definition at line 14166 of file n_gui.c.

References _n_gui_kv_apply_layout(), and N_GUI_KVTABLE::top_offset.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_label_set_bitmap()

void n_gui_label_set_bitmap	(	N_GUI_CTX *	ctx,
		int	widget_id,
		ALLEGRO_BITMAP *	bg
	)

set optional background bitmap on a label widget.

Note: Bitmaps are NOT owned by N_GUI. The caller must keep them alive for the widget's lifetime and destroy them after the GUI context is destroyed.

set optional background bitmap on a label widget.

Note: Bitmaps are NOT owned by N_GUI.

Definition at line 4969 of file n_gui.c.

References N_GUI_WIDGET::data, LOG_WARNING, n_gui_get_widget(), N_GUI_TYPE_LABEL, n_log, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_label_set_link()

void n_gui_label_set_link	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	link
	)

set label hyperlink URL

Parameters

ctx	GUI context
widget_id	id of the label widget
link	the URL to set, or NULL to clear

Definition at line 4531 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_LABEL_DATA::link, n_gui_get_widget(), N_GUI_TEXT_MAX, N_GUI_TYPE_LABEL, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_label_set_text()

void n_gui_label_set_text	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	text
	)

set label text content

Parameters

ctx	GUI context
widget_id	id of the label widget
text	the text to set, or NULL to clear

Definition at line 4511 of file n_gui.c.

References _normalize_crlf(), N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TEXT_MAX, N_GUI_TYPE_LABEL, N_GUI_LABEL_DATA::text, and N_GUI_WIDGET::type.

Referenced by main(), main(), refresh_buttons(), and update_definitions().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_listbox_add_item()

int n_gui_listbox_add_item	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	text
	)

add an item to a listbox

Parameters

ctx	GUI context
widget_id	id of the listbox widget
text	text of the item to add

Returns: index of the new item or -1 on error

Definition at line 3371 of file n_gui.c.

References _items_grow(), N_GUI_WIDGET::data, N_GUI_LISTBOX_DATA::items, N_GUI_LISTBOX_DATA::items_capacity, n_gui_get_widget(), N_GUI_ID_MAX, N_GUI_TYPE_LISTBOX, N_GUI_LISTBOX_DATA::nb_items, N_GUI_LISTITEM::selected, N_GUI_LISTITEM::text, and N_GUI_WIDGET::type.

Referenced by build_widgets_window(), chat_log_add(), main(), main(), n_gui_tree_rebuild(), and update_completion().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_listbox_clear()

void n_gui_listbox_clear	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

clear all items from a listbox

Parameters

ctx	GUI context
widget_id	id of the listbox widget

Definition at line 3418 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_LISTBOX, N_GUI_LISTBOX_DATA::nb_items, N_GUI_LISTBOX_DATA::scroll_offset, and N_GUI_WIDGET::type.

Referenced by n_gui_tree_clear(), n_gui_tree_rebuild(), refresh_clients_list(), and update_completion().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_listbox_get_count()

int n_gui_listbox_get_count	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get number of items in a listbox

Parameters

ctx	GUI context
widget_id	id of the listbox widget

Returns: number of items

Definition at line 3433 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_LISTBOX, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_listbox_get_item_text()

const char * n_gui_listbox_get_item_text	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	index
	)

get item text by index

Parameters

ctx	GUI context
widget_id	id of the listbox widget
index	index of the item

Returns: pointer to the item text, or empty string on error

Definition at line 3448 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_LISTBOX_DATA::items, n_gui_get_widget(), N_GUI_TYPE_LISTBOX, N_GUI_LISTITEM::text, and N_GUI_WIDGET::type.

Referenced by on_completion_select().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_listbox_get_scroll_offset()

int n_gui_listbox_get_scroll_offset	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get the current scroll offset (in items)

Definition at line 3512 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_LISTBOX, N_GUI_LISTBOX_DATA::scroll_offset, and N_GUI_WIDGET::type.

Referenced by n_gui_tree_rebuild().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_listbox_get_selected()

int n_gui_listbox_get_selected	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get the first selected item index

Parameters

ctx	GUI context
widget_id	id of the listbox widget

Returns: index of the first selected item, or -1 if none

Definition at line 3465 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_LISTBOX_DATA::items, n_gui_get_widget(), N_GUI_TYPE_LISTBOX, N_GUI_LISTBOX_DATA::nb_items, N_GUI_LISTITEM::selected, and N_GUI_WIDGET::type.

Referenced by main(), and n_gui_tree_get_selection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_listbox_is_selected()

int n_gui_listbox_is_selected	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	index
	)

check if an item is selected

Parameters

ctx	GUI context
widget_id	id of the listbox widget
index	index of the item to check

Returns: 1 if selected, 0 otherwise

Definition at line 3483 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_LISTBOX_DATA::items, n_gui_get_widget(), N_GUI_TYPE_LISTBOX, N_GUI_LISTITEM::selected, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_listbox_remove_item()

int n_gui_listbox_remove_item	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	index
	)

remove an item from a listbox by index

Parameters

ctx	GUI context
widget_id	id of the listbox widget
index	index of the item to remove

Returns: 0 on success, -1 on error

Definition at line 3394 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_LISTBOX_DATA::items, n_gui_get_widget(), N_GUI_TYPE_LISTBOX, N_GUI_LISTBOX_DATA::nb_items, N_GUI_LISTBOX_DATA::scroll_offset, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_listbox_set_bitmaps()

void n_gui_listbox_set_bitmaps	(	N_GUI_CTX *	ctx,
		int	widget_id,
		ALLEGRO_BITMAP *	bg,
		ALLEGRO_BITMAP *	item_bg,
		ALLEGRO_BITMAP *	item_selected
	)

set optional bitmap overlays on a listbox widget.

Pass NULL for any bitmap you don't want to set.

Note: Bitmaps are NOT owned by N_GUI. The caller must keep them alive for the widget's lifetime and destroy them after the GUI context is destroyed.

set optional bitmap overlays on a listbox widget.

Note: Bitmaps are NOT owned by N_GUI.

Definition at line 4906 of file n_gui.c.

References N_GUI_LISTBOX_DATA::bg_bitmap, N_GUI_WIDGET::data, N_GUI_LISTBOX_DATA::item_bg_bitmap, N_GUI_LISTBOX_DATA::item_selected_bitmap, LOG_WARNING, n_gui_get_widget(), N_GUI_TYPE_LISTBOX, n_log, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_listbox_set_scroll_offset()

void n_gui_listbox_set_scroll_offset	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	offset
	)

set the scroll offset (in items), clamps to valid range

Definition at line 3519 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_WIDGET::h, N_GUI_LISTBOX_DATA::item_height, n_gui_get_widget(), N_GUI_TYPE_LISTBOX, N_GUI_LISTBOX_DATA::nb_items, N_GUI_LISTBOX_DATA::scroll_offset, and N_GUI_WIDGET::type.

Referenced by n_gui_tree_rebuild(), and n_gui_tree_set_selection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_listbox_set_selected()

void n_gui_listbox_set_selected	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	index,
		int	selected
	)

set item selection state

Parameters

ctx	GUI context
widget_id	id of the listbox widget
index	index of the item
selected	1 to select, 0 to deselect

Definition at line 3501 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_LISTBOX_DATA::items, n_gui_get_widget(), N_GUI_SELECT_SINGLE, N_GUI_TYPE_LISTBOX, N_GUI_LISTBOX_DATA::nb_items, N_GUI_LISTITEM::selected, N_GUI_LISTBOX_DATA::selection_mode, and N_GUI_WIDGET::type.

Referenced by main(), n_gui_tree_rebuild(), and n_gui_tree_set_selection().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_load_layout_json()

int n_gui_load_layout_json	(	N_GUI_CTX *	ctx,
		const char *	filepath
	)

Load a JSON window layout file and apply it to matching windows in the context.

Matching is by window title (IDs are not stable across runs). If multiple windows share a title, they are matched in creation order (first-seen-first-match). Unknown titles in the file are ignored (defensive for versions). Missing titles in the context are ignored (no-op for windows not yet created). A missing file is treated as a successful no-op (returns -1 with LOG_DEBUG). Saved per-window widget state (see n_gui_save_layout_json) is stashed as pending and applied to each keyed widget when n_gui_widget_set_persist_key is next called with a matching window title + key (so lazily-created widgets restore too). Returns 0 on success, -1 on error.

Load a JSON window layout file and apply it to matching windows in the context.

Parameters

ctx	GUI context
filepath	path to the input JSON file

Returns: 0 on success, -1 on error

Definition at line 12870 of file n_gui.c.

Referenced by main(), on_load_layout(), and on_load_layout_click().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_load_theme_json()

int n_gui_load_theme_json	(	N_GUI_CTX *	ctx,
		const char *	filepath
	)

Load a JSON theme file and apply it to the context.

Returns 0 on success, -1 on error.

Load a JSON theme file and apply it to the context.

Parameters

ctx	GUI context
filepath	path to the input JSON file

Returns: 0 on success, -1 on error

Definition at line 12558 of file n_gui.c.

References __n_assert, _json_get_color(), _json_get_float(), _json_get_int(), N_GUI_THEME::bg_active, N_GUI_THEME::bg_hover, N_GUI_THEME::bg_normal, N_GUI_THEME::border_active, N_GUI_THEME::border_hover, N_GUI_THEME::border_normal, N_GUI_THEME::border_thickness, N_GUI_STYLE::checkbox_label_gap, N_GUI_STYLE::checkbox_label_offset, N_GUI_STYLE::checkbox_mark_margin, N_GUI_STYLE::checkbox_mark_thickness, N_GUI_STYLE::checkbox_max_size, N_GUI_STYLE::combobox_max_dropdown_width, N_GUI_STYLE::combobox_max_visible, N_GUI_THEME::corner_rx, N_GUI_THEME::corner_ry, N_GUI_CTX::default_theme, N_GUI_STYLE::dropdown_arrow_half_h, N_GUI_STYLE::dropdown_arrow_half_w, N_GUI_STYLE::dropdown_arrow_reserve, N_GUI_STYLE::dropdown_arrow_thickness, N_GUI_STYLE::dropdown_border_thickness, N_GUI_STYLE::dropmenu_max_visible, FreeNoLog, N_GUI_STYLE::global_scroll_step, N_GUI_STYLE::global_scrollbar_border_thickness, N_GUI_STYLE::global_scrollbar_size, N_GUI_STYLE::global_scrollbar_thumb_border_color, N_GUI_STYLE::global_scrollbar_thumb_color, N_GUI_STYLE::global_scrollbar_thumb_corner_r, N_GUI_STYLE::global_scrollbar_thumb_min, N_GUI_STYLE::global_scrollbar_thumb_padding, N_GUI_STYLE::global_scrollbar_track_color, N_GUI_STYLE::grip_color, N_GUI_STYLE::grip_line_thickness, N_GUI_STYLE::grip_size, N_GUI_STYLE::item_height_pad, N_GUI_STYLE::item_selection_inset, N_GUI_STYLE::item_text_padding, N_GUI_STYLE::label_padding, N_GUI_STYLE::link_color_hover, N_GUI_STYLE::link_color_normal, N_GUI_STYLE::link_underline_thickness, list_foreach, N_GUI_STYLE::listbox_default_item_height, Malloc, N_GUI_STYLE::min_win_h, N_GUI_STYLE::min_win_w, N_GUI_STYLE::radio_circle_border_thickness, N_GUI_STYLE::radio_circle_min_r, N_GUI_STYLE::radio_inner_offset, N_GUI_STYLE::radio_label_gap, N_GUI_STYLE::radiolist_default_item_height, N_GUI_STYLE::scroll_step, N_GUI_STYLE::scrollbar_size, N_GUI_STYLE::scrollbar_thumb_color, N_GUI_STYLE::scrollbar_thumb_corner_r, N_GUI_STYLE::scrollbar_thumb_min, N_GUI_STYLE::scrollbar_thumb_padding, N_GUI_STYLE::scrollbar_track_color, N_GUI_THEME::selection_color, N_GUI_STYLE::shape_mode, N_GUI_STYLE::slider_handle_border_thickness, N_GUI_STYLE::slider_handle_edge_offset, N_GUI_STYLE::slider_handle_min_r, N_GUI_STYLE::slider_track_border_thickness, N_GUI_STYLE::slider_track_corner_r, N_GUI_STYLE::slider_track_size, N_GUI_STYLE::slider_value_label_offset, N_GUI_CTX::style, N_GUI_STYLE::tb_btn_glyph_thickness, N_GUI_STYLE::tb_btn_right_margin, N_GUI_STYLE::tb_btn_size, N_GUI_STYLE::tb_btn_spacing, N_GUI_THEME::text_active, N_GUI_THEME::text_hover, N_GUI_THEME::text_normal, N_GUI_STYLE::textarea_cursor_blink_period, N_GUI_STYLE::textarea_cursor_width, N_GUI_STYLE::textarea_padding, N_GUI_WIDGET::theme, N_GUI_WINDOW::theme, N_GUI_STYLE::title_max_w_reserve, N_GUI_STYLE::title_padding, N_GUI_STYLE::titlebar_h, N_GUI_WINDOW::widgets, and N_GUI_CTX::windows.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_lower_window()

void n_gui_lower_window	(	N_GUI_CTX *	ctx,
		int	window_id
	)

lower a window to the bottom of the stack (respects z-order constraints)

Only NORMAL windows can be lowered.

Definition at line 1842 of file n_gui.c.

References __n_assert, _destroy_window(), _find_window_node(), _sort_windows_by_zorder(), LIST_NODE::destroy_func, list_unshift(), N_GUI_ZORDER_NORMAL, LIST_NODE::ptr, remove_list_node_f(), N_GUI_CTX::windows, and N_GUI_WINDOW::z_order.

Here is the call graph for this function:

◆ n_gui_make_theme()

N_GUI_THEME n_gui_make_theme	(	ALLEGRO_COLOR	bg,
		ALLEGRO_COLOR	bg_hover,
		ALLEGRO_COLOR	bg_active,
		ALLEGRO_COLOR	border,
		ALLEGRO_COLOR	border_hover,
		ALLEGRO_COLOR	border_active,
		ALLEGRO_COLOR	text,
		ALLEGRO_COLOR	text_hover,
		ALLEGRO_COLOR	text_active,
		float	border_thickness,
		float	corner_rx,
		float	corner_ry
	)

create a custom theme from individual colors and properties

Parameters

bg	background colour
bg_hover	background colour on hover
bg_active	background colour when active
border	border colour
border_hover	border colour on hover
border_active	border colour when active
text	text colour
text_hover	text colour on hover
text_active	text colour when active
border_thickness	border thickness in pixels
corner_rx	horizontal corner radius
corner_ry	vertical corner radius

Returns: configured N_GUI_THEME

Definition at line 685 of file n_gui.c.

References N_GUI_THEME::bg_active, N_GUI_THEME::bg_hover, N_GUI_THEME::bg_normal, N_GUI_THEME::border_active, N_GUI_THEME::border_hover, N_GUI_THEME::border_normal, N_GUI_THEME::border_thickness, N_GUI_THEME::corner_rx, N_GUI_THEME::corner_ry, N_GUI_THEME::selection_color, N_GUI_THEME::text_active, N_GUI_THEME::text_hover, and N_GUI_THEME::text_normal.

Referenced by main().

Here is the caller graph for this function:

◆ n_gui_mark_dirty()

void n_gui_mark_dirty ( N_GUI_CTX * ctx )

Mark the GUI as needing a redraw.

Call after changing widget or window state from outside n_gui_process_event (for example a host timer that updates a label or progress bar); state changed inside an event callback is already covered because the event itself marks the GUI dirty. Cheap and idempotent.

Definition at line 974 of file n_gui.c.

References N_GUI_CTX::dirty.

Referenced by main().

Here is the caller graph for this function:

◆ n_gui_maximize_window()

void n_gui_maximize_window	(	N_GUI_CTX *	ctx,
		int	window_id
	)

toggle maximised state (full display or restore to previous size)

When maximising: saves current position/size, expands to fill the display (or virtual canvas if enabled), and clears minimised state. When restoring: returns to the saved position/size.

Definition at line 1267 of file n_gui.c.

References __n_assert, _n_gui_window_capture_normalized(), _native_apply_minimised(), _native_monitor_info(), _native_own_chrome(), N_GUI_CTX::display_h, N_GUI_CTX::display_w, N_GUI_WINDOW::h, LOG_DEBUG, n_gui_get_window(), N_GUI_RESIZE_ADAPTIVE, N_GUI_WIN_MAXIMISED, n_log, N_GUI_WINDOW::native, N_GUI_CTX::resize_mode, N_GUI_TB_BUTTONS::restore_h, N_GUI_TB_BUTTONS::restore_w, N_GUI_TB_BUTTONS::restore_x, N_GUI_TB_BUTTONS::restore_y, N_GUI_WINDOW::state, N_GUI_WINDOW::tb_buttons, N_GUI_CTX::virtual_h, N_GUI_CTX::virtual_w, N_GUI_WINDOW::w, N_GUI_WINDOW::x, and N_GUI_WINDOW::y.

Referenced by _tb_button_action(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_minimize_window()

void n_gui_minimize_window	(	N_GUI_CTX *	ctx,
		int	window_id
	)

minimize a window (title bar only)

Definition at line 1224 of file n_gui.c.

References _native_apply_minimised(), n_gui_get_window(), N_GUI_WIN_MINIMISED, and N_GUI_WINDOW::state.

Referenced by _tb_button_action(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_needs_redraw()

int n_gui_needs_redraw ( N_GUI_CTX * ctx )

Return non-zero if the GUI must be redrawn this frame, i.e.

something changed since the last n_gui_draw OR a time-based animation is in progress (focused text-area cursor blink, tooltip reveal, button key-press flash). Lets an event-driven host skip n_gui_draw + al_flip_display while the GUI is idle and unchanged: while (running) { while (al_get_next_event(q, &ev)) n_gui_process_event(ctx, &ev); if (n_gui_needs_redraw(ctx)) { clear; n_gui_draw(ctx); flip; } } Hosts that redraw every frame regardless (a GUI composited over a live game scene) can ignore this. Optional and additive: the dirty bit is maintained whether or not it is queried, so calling n_gui_draw unconditionally is unchanged. Detached native windows still need n_gui_draw_detached each frame.

Definition at line 978 of file n_gui.c.

References N_GUI_CTX::anim_until, N_GUI_CTX::dirty, N_GUI_CTX::focused_widget_id, n_gui_get_widget(), N_GUI_TYPE_TEXTAREA, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_new_ctx()

N_GUI_CTX * n_gui_new_ctx ( ALLEGRO_FONT * default_font )

create a new GUI context

Parameters

default_font the default ALLEGRO_FONT to use

Returns: a new N_GUI_CTX or NULL on error

Definition at line 903 of file n_gui.c.

References __n_assert, N_GUI_CTX::active_display, N_GUI_CTX::anim_until, N_GUI_CTX::cursor_shape, N_GUI_CTX::default_font, N_GUI_CTX::default_tb_btn_theme, N_GUI_CTX::default_tb_close_theme, N_GUI_CTX::default_theme, N_GUI_CTX::dirty, N_GUI_CTX::display, N_GUI_CTX::display_h, N_GUI_CTX::display_w, N_GUI_CTX::dpi_scale, N_GUI_CTX::event_queue, N_GUI_CTX::focused_widget_id, Free, N_GUI_CTX::global_hscroll_drag, N_GUI_CTX::global_scroll_x, N_GUI_CTX::global_scroll_y, N_GUI_CTX::global_vscroll_drag, N_GUI_CTX::gui_bounds_h, N_GUI_CTX::gui_bounds_w, N_GUI_CTX::gui_offset_x, N_GUI_CTX::gui_offset_y, N_GUI_CTX::gui_scale, list_destroy(), LOG_ERR, Malloc, N_GUI_CTX::mouse_b1, N_GUI_CTX::mouse_b1_prev, N_GUI_CTX::mouse_x, N_GUI_CTX::mouse_y, n_gui_default_style(), n_gui_default_tb_btn_theme(), n_gui_default_tb_close_theme(), n_gui_default_theme(), N_GUI_RESIZE_VIRTUAL, n_log, new_generic_list(), new_ht(), N_GUI_CTX::next_widget_id, N_GUI_CTX::next_window_id, N_GUI_CTX::open_combobox_id, N_GUI_CTX::open_dropmenu_id, N_GUI_CTX::pass_display, N_GUI_CTX::pending_layout, N_GUI_CTX::pending_layout_count, N_GUI_CTX::pending_widgets, N_GUI_CTX::pending_widgets_count, N_GUI_CTX::prev_over_win, N_GUI_CTX::ref_display_h, N_GUI_CTX::ref_display_w, N_GUI_CTX::resize_mode, N_GUI_CTX::scrollbar_drag_widget_id, N_GUI_CTX::selected_label_id, N_GUI_CTX::selected_syntaxview_id, N_GUI_CTX::style, N_GUI_CTX::tooltip_anchor_x, N_GUI_CTX::tooltip_anchor_y, N_GUI_CTX::tooltip_armed_at, N_GUI_CTX::tooltip_widget_id, UNLIMITED_LIST_ITEMS, N_GUI_CTX::virtual_h, N_GUI_CTX::virtual_w, N_GUI_CTX::widgets_by_id, and N_GUI_CTX::windows.

Referenced by main(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_open_window()

void n_gui_open_window	(	N_GUI_CTX *	ctx,
		int	window_id
	)

open (show) a window

Definition at line 1206 of file n_gui.c.

References N_GUI_WINDOW::detach_flags, N_GUI_CTX::event_queue, n_gui_get_window(), N_GUI_WIN_OPEN, n_gui_window_detach(), N_GUI_WINDOW::native, N_GUI_WINDOW::native_close_pending, N_GUI_WINDOW::state, and N_GUI_WINDOW::want_native.

Referenced by main(), main(), n_gui_tab_set_active(), on_ghost_toggle(), on_open_popup(), and on_show_all().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_process_event()

int n_gui_process_event	(	N_GUI_CTX *	ctx,
		ALLEGRO_EVENT	event
	)

process an allegro event for the GUI

Parameters

ctx	the GUI context
event	the allegro event to process

Returns: 1 if the event was consumed by the GUI (mouse over a window/widget, active capture operation, keyboard input to focused widget, etc.), 0 if the event was not handled by the GUI and can be processed by the application (e.g. game logic).

Definition at line 9836 of file n_gui.c.

Referenced by click_at(), click_on(), ctrl_key(), main(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_progressbar_get_value()

float n_gui_progressbar_get_value	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get the current progress fraction (0.0 on an invalid widget)

Definition at line 4290 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_PROGRESSBAR, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_progressbar_set_text()

void n_gui_progressbar_set_text	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	text
	)

set the centered overlay text (NULL or "" clears it)

Definition at line 4297 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TEXT_MAX, N_GUI_TYPE_PROGRESSBAR, N_GUI_PROGRESSBAR_DATA::text, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_progressbar_set_value()

void n_gui_progressbar_set_value	(	N_GUI_CTX *	ctx,
		int	widget_id,
		float	value
	)

set the progress fraction (clamped to 0.0 .

. 1.0)

Definition at line 4279 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_PROGRESSBAR, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_radiolist_add_item()

int n_gui_radiolist_add_item	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	text
	)

add an item to a radio list

Parameters

ctx	GUI context
widget_id	id of the radiolist widget
text	text of the item to add

Returns: index of the new item or -1 on error

Definition at line 4349 of file n_gui.c.

References _items_grow(), N_GUI_WIDGET::data, N_GUI_RADIOLIST_DATA::items, N_GUI_RADIOLIST_DATA::items_capacity, n_gui_get_widget(), N_GUI_ID_MAX, N_GUI_TYPE_RADIOLIST, N_GUI_RADIOLIST_DATA::nb_items, N_GUI_LISTITEM::selected, N_GUI_LISTITEM::text, and N_GUI_WIDGET::type.

Referenced by build_widgets_window(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_radiolist_clear()

void n_gui_radiolist_clear	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

remove all items from a radio list

Parameters

ctx	GUI context
widget_id	id of the radiolist widget

Definition at line 4370 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_RADIOLIST, N_GUI_RADIOLIST_DATA::nb_items, N_GUI_RADIOLIST_DATA::scroll_offset, N_GUI_RADIOLIST_DATA::selected_index, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_radiolist_get_selected()

int n_gui_radiolist_get_selected	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get the selected item index

Parameters

ctx	GUI context
widget_id	id of the radiolist widget

Returns: index of the selected item, or -1 if none

Definition at line 4386 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_RADIOLIST, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_radiolist_set_bitmaps()

void n_gui_radiolist_set_bitmaps	(	N_GUI_CTX *	ctx,
		int	widget_id,
		ALLEGRO_BITMAP *	bg,
		ALLEGRO_BITMAP *	item_bg,
		ALLEGRO_BITMAP *	item_selected
	)

set optional bitmap overlays on a radiolist widget.

Pass NULL for any bitmap you don't want to set.

Note: Bitmaps are NOT owned by N_GUI. The caller must keep them alive for the widget's lifetime and destroy them after the GUI context is destroyed.

set optional bitmap overlays on a radiolist widget.

Note: Bitmaps are NOT owned by N_GUI.

Definition at line 4922 of file n_gui.c.

References N_GUI_RADIOLIST_DATA::bg_bitmap, N_GUI_WIDGET::data, N_GUI_RADIOLIST_DATA::item_bg_bitmap, N_GUI_RADIOLIST_DATA::item_selected_bitmap, LOG_WARNING, n_gui_get_widget(), N_GUI_TYPE_RADIOLIST, n_log, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_radiolist_set_selected()

void n_gui_radiolist_set_selected	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	index
	)

set the selected item index

Parameters

ctx	GUI context
widget_id	id of the radiolist widget
index	index of the item to select, or -1 for none

Definition at line 4400 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_RADIOLIST, N_GUI_RADIOLIST_DATA::selected_index, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_raise_window()

void n_gui_raise_window	(	N_GUI_CTX *	ctx,
		int	window_id
	)

raise a window to the top of the stack (respects z-order constraints)

Respects z-order constraints: ALWAYS_BEHIND, FIXED and ALWAYS_ON_TOP windows are not moved. NORMAL and POPUP windows are raised WITHIN their own z-group (the stable re-sort keeps group boundaries). After raising, the window list is re-sorted.

Definition at line 1824 of file n_gui.c.

References __n_assert, _destroy_window(), _find_window_node(), _sort_windows_by_zorder(), LIST_NODE::destroy_func, list_push(), N_GUI_ZORDER_NORMAL, N_GUI_ZORDER_POPUP, LIST_NODE::ptr, remove_list_node_f(), N_GUI_CTX::windows, and N_GUI_WINDOW::z_order.

Referenced by n_gui_focus_window(), n_gui_process_event(), n_gui_set_focus(), and on_open_popup().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_reset_all_widget_themes()

void n_gui_reset_all_widget_themes ( N_GUI_CTX * ctx )

reset all widget and window themes to ctx->default_theme

Iterates every window and every widget, setting their theme to the context default. Call this after changing ctx->default_theme so that all existing widgets pick up the new palette. Widgets that need a custom theme (accent buttons, status labels, etc.) must be re-themed individually after this call.

Definition at line 3056 of file n_gui.c.

References N_GUI_TB_BUTTONS::btn_theme, N_GUI_TB_BUTTONS::close_theme, N_GUI_CTX::default_tb_btn_theme, N_GUI_CTX::default_tb_close_theme, N_GUI_CTX::default_theme, list_foreach, N_GUI_WINDOW::tb_buttons, N_GUI_WIDGET::theme, N_GUI_WINDOW::theme, N_GUI_WINDOW::widgets, and N_GUI_CTX::windows.

◆ n_gui_restore_window()

void n_gui_restore_window	(	N_GUI_CTX *	ctx,
		int	window_id
	)

restore a minimised window to its full size

Unlike n_gui_minimize_window, which toggles, this always clears the minimised state, so a caller that is about to show a window (an "open this dialog" action) can guarantee the content is visible without knowing the current state. A window that is not minimised is left untouched, and the maximised state is not affected.

Parameters

ctx	the gui context
window_id	the id of the window to restore

Definition at line 1242 of file n_gui.c.

References _native_apply_minimised(), n_gui_get_window(), and N_GUI_WINDOW::state.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_save_layout_json()

int n_gui_save_layout_json	(	N_GUI_CTX *	ctx,
		const char *	filepath
	)

Save the geometry + persistent state of every window in the context to a JSON file.

Persists per-window: title, x, y, w, h, state (persistent bits only), z_order, z_value, flags, norm_x/y/w/h, autofit_flags, autofit_border, resize_policy. Widget content and callbacks are NOT saved, they are domain data owned by the calling program, EXCEPT the user-adjustable state of widgets that were given a persist key (n_gui_widget_set_persist_key): each such widget's splitpane divider ratio, or datagrid column order/visibility/width, is saved under a per-window "widgets" array so the layout survives a restart. Returns 0 on success, -1 on error.

Save the geometry + persistent state of every window in the context to a JSON file.

Parameters

ctx	GUI context
filepath	path to the output JSON file

Returns: 0 on success, -1 on error

Definition at line 12712 of file n_gui.c.

References __n_assert, _gui_fopen_write(), _N_GUI_WIN_STATE_PERSIST_MASK, N_GUI_WINDOW::autofit_border, N_GUI_WINDOW::autofit_flags, N_GUI_WIDGET::data, N_GUI_WINDOW::detach_flags, N_GUI_CTX::display_h, N_GUI_CTX::display_w, N_GUI_WINDOW::flags, N_GUI_WINDOW::h, N_GUI_WIDGET::id, list_foreach, n_gui_datagrid_display_to_physical(), n_gui_datagrid_get_column_count(), n_gui_datagrid_get_column_visible(), n_gui_datagrid_get_column_width(), N_GUI_PERSIST_MAX_COLS, N_GUI_TYPE_DATAGRID, N_GUI_TYPE_SPLITPANE, N_GUI_WINDOW::native, N_GUI_WINDOW::native_h, N_GUI_WINDOW::native_pos_x, N_GUI_WINDOW::native_pos_y, N_GUI_WINDOW::native_w, N_GUI_WINDOW::norm_h, N_GUI_WINDOW::norm_w, N_GUI_WINDOW::norm_x, N_GUI_WINDOW::norm_y, N_GUI_WIDGET::persist_key, N_GUI_WINDOW::resize_policy, N_GUI_WINDOW::saved_flags, N_GUI_WINDOW::saved_h, N_GUI_WINDOW::saved_w, N_GUI_WINDOW::saved_x, N_GUI_WINDOW::saved_y, N_GUI_WINDOW::state, N_GUI_WINDOW::title, N_GUI_WIDGET::type, N_GUI_WINDOW::w, N_GUI_WINDOW::want_native, N_GUI_WINDOW::widgets, N_GUI_CTX::windows, N_GUI_WINDOW::x, N_GUI_WINDOW::y, N_GUI_WINDOW::z_order, and N_GUI_WINDOW::z_value.

Referenced by main(), on_save_layout(), and on_save_layout_click().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_save_theme_json()

int n_gui_save_theme_json	(	N_GUI_CTX *	ctx,
		const char *	filepath
	)

Save the full theme (default_theme + style) to a JSON file.

Returns 0 on success, -1 on error.

Save the full theme (default_theme + style) to a JSON file.

Parameters

ctx	GUI context
filepath	path to the output JSON file

Returns: 0 on success, -1 on error

Definition at line 12429 of file n_gui.c.

Here is the call graph for this function:

◆ n_gui_screen_to_virtual()

void n_gui_screen_to_virtual	(	const N_GUI_CTX *	ctx,
		float	sx,
		float	sy,
		float *	vx,
		float *	vy
	)

convert physical screen coordinates to virtual canvas coordinates.

If virtual canvas is disabled, outputs equal inputs.

Parameters

ctx	GUI context
sx	screen X (physical pixels)
sy	screen Y (physical pixels)
vx	output virtual X (may be NULL)
vy	output virtual Y (may be NULL)

convert physical screen coordinates to virtual canvas coordinates.

If virtual canvas is disabled (virtual_w/virtual_h == 0), outputs equal inputs.

Definition at line 8876 of file n_gui.c.

References __n_assert, N_GUI_CTX::gui_offset_x, N_GUI_CTX::gui_offset_y, N_GUI_CTX::gui_scale, N_GUI_CTX::virtual_h, and N_GUI_CTX::virtual_w.

Referenced by main().

Here is the caller graph for this function:

◆ n_gui_scrollbar_get_pos()

double n_gui_scrollbar_get_pos	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get scrollbar position

Parameters

ctx	GUI context
widget_id	id of the scrollbar widget

Returns: current scroll position

Definition at line 3319 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_SCROLLBAR, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_scrollbar_set_bitmaps()

void n_gui_scrollbar_set_bitmaps	(	N_GUI_CTX *	ctx,
		int	widget_id,
		ALLEGRO_BITMAP *	track,
		ALLEGRO_BITMAP *	thumb,
		ALLEGRO_BITMAP *	thumb_hover,
		ALLEGRO_BITMAP *	thumb_active
	)

set optional bitmap overlays on a scrollbar widget.

Pass NULL for any bitmap you don't want to set.

Note: Bitmaps are NOT owned by N_GUI. The caller must keep them alive for the widget's lifetime and destroy them after the GUI context is destroyed.

set optional bitmap overlays on a scrollbar widget.

Note: Bitmaps are NOT owned by N_GUI.

Definition at line 4830 of file n_gui.c.

References N_GUI_WIDGET::data, LOG_WARNING, n_gui_get_widget(), N_GUI_TYPE_SCROLLBAR, n_log, N_GUI_SCROLLBAR_DATA::thumb_active_bitmap, N_GUI_SCROLLBAR_DATA::thumb_bitmap, N_GUI_SCROLLBAR_DATA::thumb_hover_bitmap, N_GUI_SCROLLBAR_DATA::track_bitmap, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_scrollbar_set_pos()

void n_gui_scrollbar_set_pos	(	N_GUI_CTX *	ctx,
		int	widget_id,
		double	pos
	)

set scrollbar position

Parameters

ctx	GUI context
widget_id	id of the scrollbar widget
pos	new scroll position

Definition at line 3333 of file n_gui.c.

References _clamp(), N_GUI_SCROLLBAR_DATA::content_size, N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_SCROLLBAR, N_GUI_SCROLLBAR_DATA::scroll_pos, N_GUI_WIDGET::type, and N_GUI_SCROLLBAR_DATA::viewport_size.

Here is the call graph for this function:

◆ n_gui_scrollbar_set_sizes()

void n_gui_scrollbar_set_sizes	(	N_GUI_CTX *	ctx,
		int	widget_id,
		double	content_size,
		double	viewport_size
	)

set scrollbar content and viewport sizes

Parameters

ctx	GUI context
widget_id	id of the scrollbar widget
content_size	total size of the content
viewport_size	visible viewport size

Definition at line 3350 of file n_gui.c.

References _clamp(), N_GUI_SCROLLBAR_DATA::content_size, N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_SCROLLBAR, N_GUI_SCROLLBAR_DATA::scroll_pos, N_GUI_WIDGET::type, and N_GUI_SCROLLBAR_DATA::viewport_size.

Here is the call graph for this function:

◆ n_gui_sectionlist_add_section()

int n_gui_sectionlist_add_section	(	N_GUI_SECTIONLIST *	sl,
		const char *	title,
		float	header_y,
		int	folded
	)

add a section with a header button at header_y (members added next are captured relative to it); returns the section index or -1

Definition at line 14238 of file n_gui.c.

References _n_gui_sectionlist_header_clicked(), N_GUI_SECTIONLIST::ctx, N_GUI_SECTION::folded, N_GUI_SECTIONLIST::header_h, N_GUI_SECTION::header_id, n_gui_add_button(), N_GUI_SECTIONLIST_MAX, N_GUI_SHAPE_ROUNDED, N_GUI_SECTION::natural_h, N_GUI_SECTIONLIST::nb_sections, N_GUI_SECTION::nb_widgets, N_GUI_SECTIONLIST::sections, N_GUI_SECTION::title, N_GUI_SECTIONLIST::width, N_GUI_SECTIONLIST::window_id, and N_GUI_SECTIONLIST::x.

Here is the call graph for this function:

◆ n_gui_sectionlist_add_widget()

void n_gui_sectionlist_add_widget	(	N_GUI_SECTIONLIST *	sl,
		int	section_index,
		int	widget_id
	)

register an existing widget as a member of a section (captures its current y as the fold offset)

Definition at line 14255 of file n_gui.c.

References N_GUI_SECTIONLIST::ctx, N_GUI_SECTIONLIST::gap, N_GUI_WIDGET::h, N_GUI_SECTIONLIST::header_h, N_GUI_SECTION::header_id, n_gui_get_widget(), N_GUI_SECTION_WIDGETS_MAX, N_GUI_SECTION::natural_h, N_GUI_SECTIONLIST::nb_sections, N_GUI_SECTION::nb_widgets, N_GUI_SECTIONLIST::sections, N_GUI_SECTION::widget_dy, N_GUI_SECTION::widget_ids, and N_GUI_WIDGET::y.

Here is the call graph for this function:

◆ n_gui_sectionlist_content_height()

float n_gui_sectionlist_content_height ( const N_GUI_SECTIONLIST * sl )

total content height in pixels under the current fold state, for sizing/scrolling the host window

Definition at line 14322 of file n_gui.c.

References N_GUI_SECTION::folded, N_GUI_SECTIONLIST::gap, N_GUI_SECTIONLIST::header_h, N_GUI_SECTION::natural_h, N_GUI_SECTIONLIST::nb_sections, N_GUI_SECTIONLIST::sections, and N_GUI_SECTIONLIST::y0.

◆ n_gui_sectionlist_create()

N_GUI_SECTIONLIST * n_gui_sectionlist_create	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y0,
		float	width,
		float	header_h,
		float	gap,
		void()(int, int, void )	on_toggle,
		void *	user_data
	)

create an empty section list anchored at (x,y0) in window_id; sections stack downward from y0

Definition at line 14219 of file n_gui.c.

References N_GUI_SECTIONLIST::ctx, N_GUI_SECTIONLIST::gap, N_GUI_SECTIONLIST::header_h, Malloc, N_GUI_SECTIONLIST::nb_sections, N_GUI_SECTIONLIST::on_toggle, N_GUI_SECTIONLIST::user_data, N_GUI_SECTIONLIST::width, N_GUI_SECTIONLIST::window_id, N_GUI_SECTIONLIST::x, and N_GUI_SECTIONLIST::y0.

◆ n_gui_sectionlist_free()

void n_gui_sectionlist_free ( N_GUI_SECTIONLIST ** sl )

free the section list (does not destroy the N_GUI widgets or window)

Definition at line 14336 of file n_gui.c.

References FreeNoLog.

◆ n_gui_sectionlist_get_count()

int n_gui_sectionlist_get_count ( const N_GUI_SECTIONLIST * sl )

number of sections in the list

Definition at line 14332 of file n_gui.c.

References N_GUI_SECTIONLIST::nb_sections.

◆ n_gui_sectionlist_is_folded()

int n_gui_sectionlist_is_folded	(	const N_GUI_SECTIONLIST *	sl,
		int	section_index
	)

query a section's folded state (1 = folded, 0 = expanded)

Definition at line 14317 of file n_gui.c.

References N_GUI_SECTION::folded, N_GUI_SECTIONLIST::nb_sections, and N_GUI_SECTIONLIST::sections.

◆ n_gui_sectionlist_relayout()

void n_gui_sectionlist_relayout ( N_GUI_SECTIONLIST * sl )

re-stack all sections from y0 by current fold state: hide folded members, show and reposition expanded ones

Definition at line 14278 of file n_gui.c.

Referenced by _n_gui_sectionlist_header_clicked(), and n_gui_sectionlist_set_folded().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_sectionlist_set_first_inset()

void n_gui_sectionlist_set_first_inset	(	N_GUI_SECTIONLIST *	sl,
		float	inset
	)

set a left inset applied to the FIRST section's header only, so a caller can place a button before it on the same row; relayout re-applies it

Definition at line 14273 of file n_gui.c.

References N_GUI_SECTIONLIST::first_inset.

◆ n_gui_sectionlist_set_folded()

void n_gui_sectionlist_set_folded	(	N_GUI_SECTIONLIST *	sl,
		int	section_index,
		int	folded
	)

set a section's folded state and relayout; does NOT fire on_toggle (for programmatic restore)

Definition at line 14311 of file n_gui.c.

References N_GUI_SECTION::folded, n_gui_sectionlist_relayout(), N_GUI_SECTIONLIST::nb_sections, and N_GUI_SECTIONLIST::sections.

Here is the call graph for this function:

◆ n_gui_set_default_theme()

void n_gui_set_default_theme	(	N_GUI_CTX *	ctx,
		N_GUI_THEME	theme
	)

Set the default theme on a context and sync scrollbar style colors.

Sets ctx->default_theme and derives scrollbar track/thumb colors from the theme's bg_normal and border_normal fields so scrollbars match the active theme automatically.

Parameters

ctx	N_GUI context. Must not be NULL.
theme	Theme to apply as the new default.

Definition at line 758 of file n_gui.c.

References _color_with_alpha(), N_GUI_THEME::bg_active, N_GUI_THEME::bg_normal, N_GUI_THEME::border_normal, N_GUI_CTX::default_tb_btn_theme, N_GUI_CTX::default_tb_close_theme, N_GUI_CTX::default_theme, N_GUI_STYLE::global_scrollbar_thumb_border_color, N_GUI_STYLE::global_scrollbar_thumb_color, N_GUI_STYLE::global_scrollbar_track_color, N_GUI_STYLE::scrollbar_thumb_color, N_GUI_STYLE::scrollbar_track_color, N_GUI_CTX::style, N_GUI_THEME::text_active, N_GUI_THEME::text_hover, and N_GUI_THEME::text_normal.

Here is the call graph for this function:

◆ n_gui_set_display()

void n_gui_set_display	(	N_GUI_CTX *	ctx,
		ALLEGRO_DISPLAY *	display
	)

set the display pointer for clipboard operations (copy/paste)

Definition at line 9071 of file n_gui.c.

References __n_assert, display, and N_GUI_CTX::display.

Referenced by main(), and main().

Here is the caller graph for this function:

◆ n_gui_set_display_size()

void n_gui_set_display_size	(	N_GUI_CTX *	ctx,
		float	w,
		float	h
	)

set the display (viewport) size so global scrollbars can be computed.

Call this on startup and whenever the display is resized. When virtual canvas is enabled, also updates the virtual-to-display transform.

set the display (viewport) size so global scrollbars can be computed.

Call on startup and whenever ALLEGRO_EVENT_DISPLAY_RESIZE is received. When virtual canvas is enabled, also recalculates the virtual-to-display transform.

Definition at line 9034 of file n_gui.c.

References __n_assert, N_GUI_CTX::display_h, N_GUI_CTX::display_w, n_gui_apply_adaptive_resize(), N_GUI_RESIZE_ADAPTIVE, n_gui_update_transform(), N_GUI_CTX::resize_mode, N_GUI_CTX::virtual_h, and N_GUI_CTX::virtual_w.

Referenced by main(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_set_dpi_scale()

void n_gui_set_dpi_scale	(	N_GUI_CTX *	ctx,
		float	scale
	)

set DPI scale factor manually (default is 1.0).

Affects global scrollbar rendering and can be queried by the application.

set DPI scale factor manually (default is 1.0).

Definition at line 9079 of file n_gui.c.

References __n_assert, and N_GUI_CTX::dpi_scale.

◆ n_gui_set_event_queue()

void n_gui_set_event_queue	(	N_GUI_CTX *	ctx,
		ALLEGRO_EVENT_QUEUE *	queue
	)

give the context the event queue it registers native window event sources into

Parameters

ctx	the GUI context
queue	the host's event queue, or NULL to forget it. Must be set before n_gui_window_detach, and must outlive every detached window.

give the context the event queue it registers native window event sources into

Definition at line 1356 of file n_gui.c.

References __n_assert, and N_GUI_CTX::event_queue.

Referenced by main().

Here is the caller graph for this function:

◆ n_gui_set_focus()

void n_gui_set_focus	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

set keyboard focus to a specific widget (-1 to clear focus)

Parameters

ctx	the GUI context
widget_id	the widget to focus (-1 to clear focus)

set keyboard focus to a specific widget (-1 to clear focus)

Pass widget_id = -1 to clear focus. If the widget is a textarea, resets cursor blink timer. Raises the parent window if it exists and is open.

Definition at line 3105 of file n_gui.c.

References __n_assert, N_GUI_TEXTAREA_DATA::cursor_time, N_GUI_WIDGET::data, N_GUI_CTX::focused_widget_id, N_GUI_WIDGET::id, N_GUI_WINDOW::id, list_foreach, LOG_ERR, n_gui_get_widget(), n_gui_raise_window(), N_GUI_STATE_FOCUSED, N_GUI_TYPE_TEXTAREA, N_GUI_WIN_OPEN, n_log, N_GUI_WIDGET::state, N_GUI_WINDOW::state, N_GUI_WIDGET::type, N_GUI_WINDOW::widgets, and N_GUI_CTX::windows.

Referenced by main(), main(), n_gui_focus_window(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_set_resize_mode()

void n_gui_set_resize_mode	(	N_GUI_CTX *	ctx,
		int	mode
	)

set context-level resize mode: N_GUI_RESIZE_VIRTUAL (default) or N_GUI_RESIZE_ADAPTIVE

When switching to ADAPTIVE, the virtual canvas is disabled and normalized coordinates are captured for all existing windows.

Definition at line 8897 of file n_gui.c.

References __n_assert, _n_gui_window_capture_normalized(), N_GUI_CTX::display_h, N_GUI_CTX::display_w, N_GUI_CTX::gui_offset_x, N_GUI_CTX::gui_offset_y, N_GUI_CTX::gui_scale, list_foreach, mode, N_GUI_RESIZE_ADAPTIVE, N_GUI_CTX::ref_display_h, N_GUI_CTX::ref_display_w, N_GUI_CTX::resize_mode, N_GUI_CTX::virtual_h, N_GUI_CTX::virtual_w, and N_GUI_CTX::windows.

Referenced by main(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_set_shape_mode()

void n_gui_set_shape_mode	(	N_GUI_CTX *	ctx,
		int	shape_mode
	)

set the global widget shape (N_GUI_SHAPE_ROUNDED for a round GUI, else square)

Parameters

ctx	GUI context. Ignored when NULL.
shape_mode	N_GUI_SHAPE_ROUNDED for a rounded look, anything else for rectangular. Shape-aware widgets (the dropmenu button + panel, and the buttons/comboboxes that consult it) redraw accordingly on the next frame.

Definition at line 9054 of file n_gui.c.

References __n_assert, N_GUI_SHAPE_RECT, N_GUI_SHAPE_ROUNDED, N_GUI_STYLE::shape_mode, and N_GUI_CTX::style.

Referenced by main().

Here is the caller graph for this function:

◆ n_gui_set_virtual_size()

void n_gui_set_virtual_size	(	N_GUI_CTX *	ctx,
		float	w,
		float	h
	)

set the virtual canvas size for resolution-independent scaling.

When set (w > 0 && h > 0), all widget coordinates are in virtual space. An ALLEGRO_TRANSFORM is applied during draw and mouse input is reverse- transformed automatically. Pass (0, 0) to disable (identity transform). This is opt-in: the virtual canvas is enabled only when both w and h are > 0, and disabled when both are 0 (legacy behaviour).

set the virtual canvas size for resolution-independent scaling.

When enabled (w > 0 && h > 0), all widget coordinates are treated as virtual pixels. An ALLEGRO_TRANSFORM is applied in n_gui_draw() and mouse input is reverse-transformed in n_gui_process_event(). Pass (0, 0) to disable (identity transform, legacy behaviour).

Definition at line 8831 of file n_gui.c.

References __n_assert, LOG_ERR, n_gui_update_transform(), n_log, N_GUI_CTX::virtual_h, and N_GUI_CTX::virtual_w.

Referenced by main(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_set_widget_enabled()

void n_gui_set_widget_enabled	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	enabled
	)

set widget enabled state (0 = disabled: drawn dimmed and ignores all input)

Disabled widgets are drawn dimmed and ignore all mouse/keyboard input.

Definition at line 3084 of file n_gui.c.

References N_GUI_WIDGET::enabled, and n_gui_get_widget().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_set_widget_theme()

void n_gui_set_widget_theme	(	N_GUI_CTX *	ctx,
		int	widget_id,
		N_GUI_THEME	theme
	)

set the theme on a widget

Definition at line 3042 of file n_gui.c.

References n_gui_get_widget(), and N_GUI_WIDGET::theme.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_set_widget_tooltip()

void n_gui_set_widget_tooltip	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	text
	)

set (or clear with "" / NULL) the tooltip text shown after the pointer rests on a widget

The tooltip appears after the pointer rests on the widget for style.tooltip_delay seconds and hides on movement, click, or leave.

Parameters

ctx	the GUI context
widget_id	id of the target widget
text	tooltip text; NULL or "" clears it

Definition at line 2240 of file n_gui.c.

References FreeNoLog, n_gui_get_widget(), and N_GUI_WIDGET::tooltip.

Referenced by build_panel().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_set_widget_visible()

void n_gui_set_widget_visible	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	visible
	)

set widget visibility

Definition at line 3075 of file n_gui.c.

References n_gui_get_widget(), and N_GUI_WIDGET::visible.

Referenced by _n_gui_kv_apply_layout(), main(), n_gui_kvtable_add_row(), n_gui_kvtable_clear(), n_gui_kvtable_remove_row(), and n_gui_sectionlist_relayout().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_slider_get_value()

double n_gui_slider_get_value	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get slider current value

Parameters

ctx	GUI context
widget_id	id of the slider widget

Returns: current slider value

Definition at line 3159 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_SLIDER, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_slider_set_bitmaps()

void n_gui_slider_set_bitmaps	(	N_GUI_CTX *	ctx,
		int	widget_id,
		ALLEGRO_BITMAP *	track,
		ALLEGRO_BITMAP *	fill,
		ALLEGRO_BITMAP *	handle,
		ALLEGRO_BITMAP *	handle_hover,
		ALLEGRO_BITMAP *	handle_active
	)

set optional bitmap overlays on a slider widget.

Pass NULL for any bitmap you don't want to set.

Note: Bitmaps are NOT owned by N_GUI. The caller must keep them alive for the widget's lifetime and destroy them after the GUI context is destroyed.

set optional bitmap overlays on a slider widget.

Note: Bitmaps are NOT owned by N_GUI.

Definition at line 4812 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_SLIDER_DATA::fill_bitmap, N_GUI_SLIDER_DATA::handle_active_bitmap, N_GUI_SLIDER_DATA::handle_bitmap, N_GUI_SLIDER_DATA::handle_hover_bitmap, LOG_WARNING, n_gui_get_widget(), N_GUI_TYPE_SLIDER, n_log, N_GUI_SLIDER_DATA::track_bitmap, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_slider_set_range()

void n_gui_slider_set_range	(	N_GUI_CTX *	ctx,
		int	widget_id,
		double	min_val,
		double	max_val
	)

set slider min/max range, clamping the current value if needed

Parameters

ctx	GUI context
widget_id	id of the slider widget
min_val	new minimum value
max_val	new maximum value

Definition at line 3191 of file n_gui.c.

References _clamp(), _slider_snap_value(), N_GUI_WIDGET::data, N_GUI_SLIDER_DATA::max_val, N_GUI_SLIDER_DATA::min_val, n_gui_get_widget(), N_GUI_TYPE_SLIDER, N_GUI_SLIDER_DATA::step, N_GUI_WIDGET::type, and N_GUI_SLIDER_DATA::value.

Here is the call graph for this function:

◆ n_gui_slider_set_step()

void n_gui_slider_set_step	(	N_GUI_CTX *	ctx,
		int	widget_id,
		double	step
	)

set slider step increment (0 is treated as 1).

Value is re-snapped.

set slider step increment (0 is treated as 1).

0 means continuous (no snapping). When step > 0, the current value is immediately snapped.

Parameters

ctx	GUI context
widget_id	id of the slider widget
step	step increment (0 = continuous)

Definition at line 3211 of file n_gui.c.

References _slider_snap_value(), N_GUI_WIDGET::data, N_GUI_SLIDER_DATA::max_val, N_GUI_SLIDER_DATA::min_val, n_gui_get_widget(), N_GUI_TYPE_SLIDER, N_GUI_SLIDER_DATA::step, N_GUI_WIDGET::type, and N_GUI_SLIDER_DATA::value.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_slider_set_value()

void n_gui_slider_set_value	(	N_GUI_CTX *	ctx,
		int	widget_id,
		double	value
	)

set slider value

Parameters

ctx	GUI context
widget_id	id of the slider widget
value	new value to set

Definition at line 3173 of file n_gui.c.

References _clamp(), _slider_snap_value(), N_GUI_WIDGET::data, N_GUI_SLIDER_DATA::max_val, N_GUI_SLIDER_DATA::min_val, n_gui_get_widget(), N_GUI_TYPE_SLIDER, N_GUI_SLIDER_DATA::step, N_GUI_WIDGET::type, and N_GUI_SLIDER_DATA::value.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_slider_set_value_format()

void n_gui_slider_set_value_format	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	fmt
	)

Override the built-in value readout's printf format string.

Pass NULL or "" to restore the default ("%.1f" in VALUE mode, "%.0f%%" in PERCENT mode). Format must consume the slider's double value (use f/g/e or cast with a precision width, a single d works too via stringification fallbacks). Buffer cap is 32 bytes.

Definition at line 3222 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_SLIDER, N_GUI_WIDGET::type, and N_GUI_SLIDER_DATA::value_format.

Here is the call graph for this function:

◆ n_gui_slider_set_value_visible()

void n_gui_slider_set_value_visible	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	visible
	)

Toggle the built-in value label.

Default 1 (visible). Set to 0 when the caller is already painting the value elsewhere so the slider doesn't double-render it.

Definition at line 3234 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_SLIDER, N_GUI_WIDGET::type, and N_GUI_SLIDER_DATA::value_visible.

Here is the call graph for this function:

◆ n_gui_splitpane_get_ratio()

float n_gui_splitpane_get_ratio	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get the current divider ratio (0..1), or 0.5 if the widget is invalid

Parameters

ctx	GUI context
widget_id	id of the split pane widget

Returns: the divider ratio (0..1), or 0.5 if the widget is invalid

Definition at line 3538 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_SPLITPANE, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_splitpane_set_limits()

void n_gui_splitpane_set_limits	(	N_GUI_CTX *	ctx,
		int	widget_id,
		float	min_ratio,
		float	max_ratio
	)

set the minimum and maximum allowed divider ratio

Parameters

ctx	GUI context
widget_id	id of the split pane widget
min_ratio	lower clamp (0..1)
max_ratio	upper clamp (0..1)

Definition at line 3566 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_SPLITPANE_DATA::max_ratio, N_GUI_SPLITPANE_DATA::min_ratio, n_gui_get_widget(), N_GUI_TYPE_SPLITPANE, N_GUI_SPLITPANE_DATA::ratio, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_splitpane_set_ratio()

void n_gui_splitpane_set_ratio	(	N_GUI_CTX *	ctx,
		int	widget_id,
		float	ratio
	)

set the divider ratio (clamped to the configured min/max)

Parameters

ctx	GUI context
widget_id	id of the split pane widget
ratio	the requested divider ratio (0..1)

Definition at line 3550 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_SPLITPANE_DATA::max_ratio, N_GUI_SPLITPANE_DATA::min_ratio, n_gui_get_widget(), N_GUI_TYPE_SPLITPANE, N_GUI_SPLITPANE_DATA::ratio, and N_GUI_WIDGET::type.

Referenced by _apply_pending_widget(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_syntaxview_get_line_count()

int n_gui_syntaxview_get_line_count	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get the number of text lines in a syntax view

Parameters

ctx	GUI context
widget_id	id of the syntax view widget

Returns: the line count, or 0 if the widget is invalid

Definition at line 3667 of file n_gui.c.

References _text_line_count(), N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_SYNTAXVIEW, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_syntaxview_get_selected_text()

char * n_gui_syntaxview_get_selected_text	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

copy of the currently selected text in a syntax view, or NULL when nothing is selected.

The caller owns the returned buffer and must Free() it.

copy of the currently selected text in a syntax view, or NULL when nothing is selected.

Parameters

ctx	GUI context
widget_id	id of the syntax view widget

Returns: a newly allocated copy of the selected substring (caller frees with Free()), or NULL when nothing is selected or the widget is invalid

Definition at line 3692 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_SYNTAXVIEW_DATA::len, Malloc, n_gui_get_widget(), N_GUI_TYPE_SYNTAXVIEW, N_GUI_SYNTAXVIEW_DATA::sel_end, N_GUI_SYNTAXVIEW_DATA::sel_start, N_GUI_SYNTAXVIEW_DATA::text, and N_GUI_WIDGET::type.

Referenced by _ngui_publish_primary_selection(), main(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_syntaxview_get_text()

const char * n_gui_syntaxview_get_text	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get the text shown by a syntax view (borrowed pointer, do not free; NULL if empty)

Parameters

ctx	GUI context
widget_id	id of the syntax view widget

Returns: a borrowed pointer to the text (do not free), or NULL when empty/invalid

Definition at line 3679 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_SYNTAXVIEW, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_syntaxview_scroll_to_offset()

void n_gui_syntaxview_scroll_to_offset	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	byte_offset
	)

scroll a syntax view so the line holding the given byte offset is vertically centered

Parameters

ctx	GUI context
widget_id	id of the syntax view widget
byte_offset	byte offset into the text (clamped to the text length)

Definition at line 3751 of file n_gui.c.

References _syntaxview_ensure_lines(), N_GUI_SYNTAXVIEW_DATA::cached_nb_lines, N_GUI_WIDGET::data, N_GUI_CTX::default_font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_SYNTAXVIEW_DATA::len, n_gui_get_widget(), N_GUI_TYPE_SYNTAXVIEW, N_GUI_SYNTAXVIEW_DATA::scroll_offset, N_GUI_CTX::style, N_GUI_SYNTAXVIEW_DATA::text, N_GUI_STYLE::textarea_padding, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_syntaxview_select_all()

void n_gui_syntaxview_select_all	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

select the entire text of a syntax view

Parameters

ctx	GUI context
widget_id	id of the syntax view widget

Definition at line 3739 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), n_gui_syntaxview_set_selection(), N_GUI_TYPE_SYNTAXVIEW, and N_GUI_WIDGET::type.

Referenced by main(), and n_gui_process_event().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_syntaxview_set_mode()

void n_gui_syntaxview_set_mode	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	mode
	)

set the highlighting mode (N_GUI_SYNTAX_*) of a syntax view

Parameters

ctx	GUI context
widget_id	id of the syntax view widget
mode	one of the N_GUI_SYNTAX_* modes (PLAIN, HTTP, JSON, XML, YAML, JS)

Definition at line 3655 of file n_gui.c.

References N_GUI_WIDGET::data, mode, n_gui_get_widget(), N_GUI_TYPE_SYNTAXVIEW, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_syntaxview_set_selection()

void n_gui_syntaxview_set_selection	(	N_GUI_CTX *	ctx,
		int	widget_id,
		int	start,
		int	end
	)

set the selection range (byte offsets into the text, clamped to its length); pass start == end to clear the selection

Parameters

ctx	GUI context
widget_id	id of the syntax view widget
start	selection start byte offset (clamped to the text length)
end	selection end byte offset (clamped to the text length); start == end clears

Definition at line 3719 of file n_gui.c.

References N_GUI_WIDGET::data, N_GUI_SYNTAXVIEW_DATA::len, n_gui_get_widget(), N_GUI_TYPE_SYNTAXVIEW, N_GUI_SYNTAXVIEW_DATA::sel_end, N_GUI_SYNTAXVIEW_DATA::sel_start, N_GUI_CTX::selected_syntaxview_id, and N_GUI_WIDGET::type.

Referenced by main(), and n_gui_syntaxview_select_all().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_syntaxview_set_text()

void n_gui_syntaxview_set_text	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	text
	)

set (copy) the text shown by a syntax view; text may be NULL to clear

Parameters

ctx	GUI context
widget_id	id of the syntax view widget
text	the text to display, or NULL to clear

Definition at line 3624 of file n_gui.c.

References N_GUI_WIDGET::data, FreeNoLog, N_GUI_SYNTAXVIEW_DATA::len, N_GUI_SYNTAXVIEW_DATA::lines_valid, Malloc, n_gui_get_widget(), N_GUI_TYPE_SYNTAXVIEW, N_GUI_SYNTAXVIEW_DATA::scroll_offset, N_GUI_SYNTAXVIEW_DATA::sel_dragging, N_GUI_SYNTAXVIEW_DATA::sel_end, N_GUI_SYNTAXVIEW_DATA::sel_start, N_GUI_CTX::selected_syntaxview_id, N_GUI_SYNTAXVIEW_DATA::text, and N_GUI_WIDGET::type.

Referenced by build_syntaxview_window(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_tab_add()

int n_gui_tab_add	(	N_GUI_TAB_PANEL *	panel,
		const char *	label
	)

add a tab to the panel, returns tab index

Definition at line 13284 of file n_gui.c.

References _n_gui_tab_button_clicked(), N_GUI_TAB_PANEL::active_tab, N_GUI_TAB_PANEL::button_h, N_GUI_TAB_PANEL::button_ids, N_GUI_TAB_PANEL::button_w, N_GUI_TAB_PANEL::ctx, n_gui_add_toggle_button(), N_GUI_SHAPE_RECT, N_GUI_TAB_MAX, N_GUI_TAB_PANEL::nb_tabs, N_GUI_TAB_PANEL::parent_window_id, N_GUI_TAB_PANEL::x, and N_GUI_TAB_PANEL::y.

Here is the call graph for this function:

◆ n_gui_tab_create()

N_GUI_TAB_PANEL * n_gui_tab_create	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	button_w,
		float	button_h,
		void()(int, void )	on_tab_change,
		void *	user_data
	)

create a tab panel in an existing window

Definition at line 13262 of file n_gui.c.

References N_GUI_TAB_PANEL::active_tab, N_GUI_TAB_PANEL::button_h, N_GUI_TAB_PANEL::button_ids, N_GUI_TAB_PANEL::button_w, N_GUI_TAB_PANEL::content_window_ids, N_GUI_TAB_PANEL::ctx, Malloc, N_GUI_TAB_MAX, N_GUI_TAB_PANEL::nb_tabs, N_GUI_TAB_PANEL::on_tab_change, N_GUI_TAB_PANEL::parent_window_id, N_GUI_TAB_PANEL::user_data, N_GUI_TAB_PANEL::x, and N_GUI_TAB_PANEL::y.

◆ n_gui_tab_free()

void n_gui_tab_free ( N_GUI_TAB_PANEL ** panel )

free a tab panel (does not destroy the N_GUI widgets)

Definition at line 13322 of file n_gui.c.

References FreeNoLog.

◆ n_gui_tab_get_active()

int n_gui_tab_get_active ( const N_GUI_TAB_PANEL * panel )

get the active tab index

Definition at line 13318 of file n_gui.c.

References N_GUI_TAB_PANEL::active_tab.

◆ n_gui_tab_set_active()

void n_gui_tab_set_active	(	N_GUI_TAB_PANEL *	panel,
		int	index
	)

set the active tab (toggles buttons, opens/closes content windows)

Definition at line 13304 of file n_gui.c.

References N_GUI_TAB_PANEL::active_tab, N_GUI_TAB_PANEL::button_ids, N_GUI_TAB_PANEL::content_window_ids, N_GUI_TAB_PANEL::ctx, n_gui_button_set_toggled(), n_gui_close_window(), n_gui_open_window(), and N_GUI_TAB_PANEL::nb_tabs.

Referenced by _n_gui_tab_button_clicked().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_tab_set_content_window()

void n_gui_tab_set_content_window	(	N_GUI_TAB_PANEL *	panel,
		int	tab_index,
		int	window_id
	)

associate a content window with a tab

Definition at line 13299 of file n_gui.c.

References N_GUI_TAB_PANEL::content_window_ids, and N_GUI_TAB_PANEL::nb_tabs.

◆ n_gui_textarea_get_text()

const char * n_gui_textarea_get_text	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

get text area content

Parameters

ctx	GUI context
widget_id	id of the textarea widget

Returns: pointer to the text content

Definition at line 3249 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_TEXTAREA, and N_GUI_WIDGET::type.

Referenced by on_send_click().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_textarea_get_text_length()

size_t n_gui_textarea_get_text_length	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

return the current text length in bytes (0 if widget is invalid)

Parameters

ctx	GUI context
widget_id	id of the textarea widget

Returns: text length in bytes, or 0 if widget is invalid

Definition at line 5336 of file n_gui.c.

References N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_TEXTAREA, N_GUI_TEXTAREA_DATA::text_len, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_textarea_scroll_to_bottom()

void n_gui_textarea_scroll_to_bottom	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

scroll a multiline textarea to the bottom

Parameters

ctx	GUI context
widget_id	id of the textarea widget

Definition at line 5236 of file n_gui.c.

References _textarea_content_height(), N_GUI_WIDGET::data, N_GUI_CTX::default_font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_TEXTAREA_DATA::multiline, n_gui_get_widget(), N_GUI_TYPE_TEXTAREA, N_GUI_TEXTAREA_DATA::scroll_y, N_GUI_CTX::style, N_GUI_TEXTAREA_DATA::text_len, N_GUI_STYLE::textarea_padding, N_GUI_WIDGET::type, and N_GUI_WIDGET::w.

Here is the call graph for this function:

◆ n_gui_textarea_scroll_to_offset()

void n_gui_textarea_scroll_to_offset	(	N_GUI_CTX *	ctx,
		int	widget_id,
		size_t	byte_offset
	)

scroll a multiline textarea so that the given byte offset is vertically centered

Parameters

ctx	GUI context
widget_id	id of the textarea widget
byte_offset	byte offset in text to center on screen

Definition at line 5275 of file n_gui.c.

References _text_w(), _textarea_content_height(), _utf8_char_len(), N_GUI_WIDGET::data, N_GUI_CTX::default_font, N_GUI_WIDGET::font, N_GUI_WIDGET::h, N_GUI_TEXTAREA_DATA::multiline, n_gui_get_widget(), N_GUI_TYPE_TEXTAREA, N_GUI_TEXTAREA_DATA::scroll_from_wheel, N_GUI_TEXTAREA_DATA::scroll_y, N_GUI_STYLE::scrollbar_size, N_GUI_CTX::style, N_GUI_TEXTAREA_DATA::text, N_GUI_TEXTAREA_DATA::text_len, N_GUI_STYLE::textarea_padding, N_GUI_WIDGET::type, and N_GUI_WIDGET::w.

Here is the call graph for this function:

◆ n_gui_textarea_set_bitmap()

void n_gui_textarea_set_bitmap	(	N_GUI_CTX *	ctx,
		int	widget_id,
		ALLEGRO_BITMAP *	bg
	)

set optional background bitmap on a textarea widget.

Note: Bitmaps are NOT owned by N_GUI. The caller must keep them alive for the widget's lifetime and destroy them after the GUI context is destroyed.

set optional background bitmap on a textarea widget.

Note: Bitmaps are NOT owned by N_GUI.

Definition at line 4863 of file n_gui.c.

References N_GUI_WIDGET::data, LOG_WARNING, n_gui_get_widget(), N_GUI_TYPE_TEXTAREA, n_log, and N_GUI_WIDGET::type.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_textarea_set_mask_char()

void n_gui_textarea_set_mask_char	(	N_GUI_CTX *	ctx,
		int	widget_id,
		char	mask
	)

set a mask character for password-style input (e.g.

'*'). Set to '\0' to disable masking. Only affects single-line textareas.

Parameters

ctx	the GUI context
widget_id	id of the textarea widget

set a mask character for password-style input (e.g.

Parameters

mask	The character to display instead of actual text (e.g. '*'). Set to '\0' to disable masking.

Definition at line 4877 of file n_gui.c.

References N_GUI_WIDGET::data, LOG_WARNING, n_gui_get_widget(), N_GUI_TYPE_TEXTAREA, n_log, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_textarea_set_placeholder()

void n_gui_textarea_set_placeholder	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	text
	)

set placeholder/hint text for a textarea, shown dimmed while the field is empty and cleared from view as soon as the user types.

Pass NULL or "" to remove the placeholder. The string is copied.

Parameters

ctx	the GUI context
widget_id	id of the textarea widget
text	the placeholder text, or NULL to clear

set placeholder/hint text for a textarea, shown dimmed while the field is empty and cleared from view as soon as the user types.

Definition at line 4889 of file n_gui.c.

References N_GUI_WIDGET::data, FreeNoLog, LOG_WARNING, n_gui_get_widget(), N_GUI_TYPE_TEXTAREA, n_log, N_GUI_TEXTAREA_DATA::placeholder, and N_GUI_WIDGET::type.

Referenced by main(), n_gui_kvtable_add_row(), and n_gui_kvtable_set_placeholders().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_textarea_set_selection()

void n_gui_textarea_set_selection	(	N_GUI_CTX *	ctx,
		int	widget_id,
		size_t	start,
		size_t	end
	)

set the text selection range (byte offsets into text content)

Parameters

ctx	GUI context
widget_id	id of the textarea widget
start	selection start byte offset
end	selection end byte offset

Definition at line 5258 of file n_gui.c.

References N_GUI_TEXTAREA_DATA::cursor_pos, N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_TEXTAREA, N_GUI_TEXTAREA_DATA::sel_end, N_GUI_TEXTAREA_DATA::sel_start, N_GUI_TEXTAREA_DATA::text_len, and N_GUI_WIDGET::type.

Here is the call graph for this function:

◆ n_gui_textarea_set_text()

void n_gui_textarea_set_text	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	text
	)

set text area content

Parameters

ctx	GUI context
widget_id	id of the textarea widget
text	the text to set, or NULL to clear

Definition at line 3263 of file n_gui.c.

References _normalize_crlf(), N_GUI_TEXTAREA_DATA::char_limit, N_GUI_TEXTAREA_DATA::cursor_pos, N_GUI_WIDGET::data, n_gui_get_widget(), N_GUI_TYPE_TEXTAREA, N_GUI_TEXTAREA_DATA::scroll_x, N_GUI_TEXTAREA_DATA::text, N_GUI_TEXTAREA_DATA::text_len, and N_GUI_WIDGET::type.

Referenced by build_textarea_window(), main(), main(), n_gui_kvtable_add_row(), on_clear_click(), on_completion_select(), and on_send_click().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_toggle_window()

void n_gui_toggle_window	(	N_GUI_CTX *	ctx,
		int	window_id
	)

toggle window visibility (show/hide)

Definition at line 1950 of file n_gui.c.

References n_gui_get_window(), N_GUI_WIN_OPEN, and N_GUI_WINDOW::state.

Referenced by on_window_toggle_click().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_tooltip_pending()

int n_gui_tooltip_pending ( N_GUI_CTX * ctx )

tooltip phase: 0 = none (or tooltips disabled via style.tooltip_delay <= 0), 1 = arming (hosts with cached GUI renders must keep redrawing so the bubble can appear on time), 2 = shown (static - re-render once on the transition, then stop)

Hosts that cache the GUI render must keep invalidating/redrawing while this returns 1 (arming), or the bubble can never appear - it shows only after the pointer STOPS, when no more input events trigger redraws. A steady 2 (shown) needs one re-render on the transition and none after; re-rendering every tick during 2 would burn the cache for nothing.

Parameters

ctx	the GUI context

Returns: 0 = none/disabled, 1 = arming, 2 = shown

Definition at line 2323 of file n_gui.c.

References N_GUI_CTX::style, N_GUI_CTX::tooltip_armed_at, N_GUI_STYLE::tooltip_delay, and N_GUI_CTX::tooltip_widget_id.

◆ n_gui_tree_add_node()

int n_gui_tree_add_node	(	N_GUI_TREE *	tree,
		const char *	label,
		int	parent_index,
		void *	user_data
	)

add a node to the tree

Definition at line 13380 of file n_gui.c.

References N_GUI_TREE_NODE::depth, N_GUI_TREE_NODE::expanded, N_GUI_TREE_NODE::has_children, N_GUI_TREE_NODE::label, N_GUI_TREE_MAX, n_gui_tree_rebuild(), N_GUI_TREE::nb_nodes, N_GUI_TREE::nodes, N_GUI_TREE_NODE::parent_index, and N_GUI_TREE_NODE::user_data.

Here is the call graph for this function:

◆ n_gui_tree_clear()

void n_gui_tree_clear ( N_GUI_TREE * tree )

remove all nodes and clear the backing listbox; tree object remains valid

Definition at line 13401 of file n_gui.c.

References N_GUI_TREE::ctx, N_GUI_TREE::listbox_id, n_gui_listbox_clear(), N_GUI_TREE::nb_nodes, and N_GUI_TREE::nb_visible.

Here is the call graph for this function:

◆ n_gui_tree_create()

N_GUI_TREE * n_gui_tree_create	(	N_GUI_CTX *	ctx,
		int	window_id,
		float	x,
		float	y,
		float	w,
		float	h,
		void()(int, void )	on_select,
		void *	user_data
	)

create a tree view in an existing window

Definition at line 13341 of file n_gui.c.

References _n_gui_tree_listbox_selected(), N_GUI_TREE::ctx, N_GUI_TREE::drag_active, N_GUI_TREE::drag_armed_node, N_GUI_TREE::drag_hover_node, N_GUI_TREE::drag_press_x, N_GUI_TREE::drag_press_y, N_GUI_TREE::drag_source_node, N_GUI_TREE::drop_position, N_GUI_TREE::drop_user_data, FreeNoLog, N_GUI_TREE::listbox_id, Malloc, N_GUI_TREE::mouse_b1_prev, n_gui_add_listbox(), N_GUI_DROP_INTO, N_GUI_SELECT_SINGLE, N_GUI_TREE::nb_nodes, N_GUI_TREE::nb_visible, N_GUI_TREE::on_drop, N_GUI_TREE::on_select, N_GUI_TREE::user_data, and N_GUI_TREE::window_id.

Here is the call graph for this function:

◆ n_gui_tree_draw_overlay()

void n_gui_tree_draw_overlay ( N_GUI_TREE * tree )

per-frame overlay drawing: draws the active drop-indicator on top of the listbox.

Call after n_gui_draw(). No-op when no drag is in progress.

Definition at line 13730 of file n_gui.c.

References _n_gui_tree_listbox_bounds(), N_GUI_THEME::border_active, N_GUI_TREE::ctx, N_GUI_CTX::default_theme, N_GUI_TREE::drag_active, N_GUI_TREE::drag_hover_node, N_GUI_TREE::drop_position, N_GUI_TREE::listbox_id, N_GUI_DROP_BEFORE, N_GUI_DROP_INTO, n_gui_get_widget(), N_GUI_TREE::nb_visible, N_GUI_WIDGET::theme, and N_GUI_TREE::visible_map.

Here is the call graph for this function:

◆ n_gui_tree_find_by_user_data()

int n_gui_tree_find_by_user_data	(	const N_GUI_TREE *	tree,
		const void *	ptr
	)

find the first node whose user_data pointer equals ptr, or -1.

Used to re-resolve a node index after a rebuild compacted the array: the caller stashes the stable user_data pointer before the rebuild, then calls this to find the new index.

Definition at line 13499 of file n_gui.c.

References N_GUI_TREE::nb_nodes, N_GUI_TREE::nodes, and N_GUI_TREE_NODE::user_data.

◆ n_gui_tree_free()

void n_gui_tree_free ( N_GUI_TREE ** tree )

free a tree view (does not destroy the N_GUI listbox)

Definition at line 13562 of file n_gui.c.

References FreeNoLog.

◆ n_gui_tree_get_selection()

int n_gui_tree_get_selection ( N_GUI_TREE * tree )

get the index of the currently selected node, or -1 when nothing is selected or the selection points at a hidden row

Definition at line 13470 of file n_gui.c.

References N_GUI_TREE::ctx, N_GUI_TREE::listbox_id, n_gui_listbox_get_selected(), N_GUI_TREE::nb_visible, and N_GUI_TREE::visible_map.

Referenced by n_gui_tree_rebuild().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_tree_rebuild()

void n_gui_tree_rebuild ( N_GUI_TREE * tree )

rebuild the listbox to reflect current tree state

Definition at line 13514 of file n_gui.c.

References _n_gui_tree_node_visible(), N_GUI_TREE::ctx, N_GUI_TREE_NODE::depth, display, N_GUI_TREE_NODE::expanded, N_GUI_TREE_NODE::has_children, N_GUI_TREE_NODE::label, N_GUI_TREE::listbox_id, n_gui_listbox_add_item(), n_gui_listbox_clear(), n_gui_listbox_get_scroll_offset(), n_gui_listbox_set_scroll_offset(), n_gui_listbox_set_selected(), n_gui_tree_get_selection(), N_GUI_TREE_MAX, N_GUI_TREE::nb_nodes, N_GUI_TREE::nb_visible, N_GUI_TREE::nodes, and N_GUI_TREE::visible_map.

Referenced by n_gui_tree_add_node(), n_gui_tree_remove_node(), n_gui_tree_set_label(), n_gui_tree_set_selection(), and n_gui_tree_toggle_expand().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_tree_remove_node()

void n_gui_tree_remove_node	(	N_GUI_TREE *	tree,
		int	node_index
	)

remove a node and its entire subtree; remaining node indices are compacted (callers holding indices across the call must discard or re-resolve them)

Definition at line 13408 of file n_gui.c.

References N_GUI_TREE_NODE::has_children, N_GUI_TREE_MAX, n_gui_tree_rebuild(), N_GUI_TREE::nb_nodes, N_GUI_TREE::nodes, and N_GUI_TREE_NODE::parent_index.

Here is the call graph for this function:

◆ n_gui_tree_set_label()

void n_gui_tree_set_label	(	N_GUI_TREE *	tree,
		int	node_index,
		const char *	new_label
	)

change the display label of a node

Definition at line 13462 of file n_gui.c.

References N_GUI_TREE_NODE::label, n_gui_tree_rebuild(), N_GUI_TREE::nb_nodes, and N_GUI_TREE::nodes.

Here is the call graph for this function:

◆ n_gui_tree_set_on_drop()

void n_gui_tree_set_on_drop	(	N_GUI_TREE *	tree,
		n_gui_tree_on_drop_t	on_drop,
		void *	user_data
	)

install (or clear, with NULL) a drag-reorder drop callback.

Drag state is only tracked when on_drop is non-NULL.

Definition at line 13573 of file n_gui.c.

References N_GUI_TREE::drag_active, N_GUI_TREE::drag_armed_node, N_GUI_TREE::drag_hover_node, N_GUI_TREE::drag_source_node, N_GUI_TREE::drop_user_data, and N_GUI_TREE::on_drop.

◆ n_gui_tree_set_selection()

void n_gui_tree_set_selection	(	N_GUI_TREE *	tree,
		int	node_index
	)

programmatically select a node; ancestors are expanded so the node is visible, and the listbox scrolls to reveal it.

Does not fire the on_select callback. No-op if node_index is out of range.

Definition at line 13477 of file n_gui.c.

References N_GUI_TREE::ctx, N_GUI_TREE_NODE::expanded, N_GUI_TREE::listbox_id, n_gui_listbox_set_scroll_offset(), n_gui_listbox_set_selected(), n_gui_tree_rebuild(), N_GUI_TREE::nb_nodes, N_GUI_TREE::nb_visible, N_GUI_TREE::nodes, N_GUI_TREE_NODE::parent_index, and N_GUI_TREE::visible_map.

Here is the call graph for this function:

◆ n_gui_tree_tick()

void n_gui_tree_tick ( N_GUI_TREE * tree )

per-frame poll: reads ctx->mouse_* to track drag state and fires the on_drop callback on release.

Call once per frame while the tree is visible, before n_gui_draw(). No-op when on_drop is NULL.

Definition at line 13668 of file n_gui.c.

References _N_GUI_TREE_DRAG_THRESHOLD_PX, _n_gui_tree_hit_row(), N_GUI_TREE::ctx, N_GUI_TREE::drag_active, N_GUI_TREE::drag_armed_node, N_GUI_TREE::drag_hover_node, N_GUI_TREE::drag_press_x, N_GUI_TREE::drag_press_y, N_GUI_TREE::drag_source_node, N_GUI_TREE::drop_position, N_GUI_TREE::drop_user_data, N_GUI_CTX::mouse_b1, N_GUI_TREE::mouse_b1_prev, N_GUI_CTX::mouse_x, N_GUI_CTX::mouse_y, N_GUI_DROP_INTO, and N_GUI_TREE::on_drop.

Here is the call graph for this function:

◆ n_gui_tree_toggle_expand()

void n_gui_tree_toggle_expand	(	N_GUI_TREE *	tree,
		int	node_index
	)

toggle expand/collapse of a node

Definition at line 13507 of file n_gui.c.

References N_GUI_TREE_NODE::expanded, N_GUI_TREE_NODE::has_children, n_gui_tree_rebuild(), N_GUI_TREE::nb_nodes, and N_GUI_TREE::nodes.

Referenced by _n_gui_tree_listbox_selected().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_update_transform()

void n_gui_update_transform ( N_GUI_CTX * ctx )

recalculate scale and offset from virtual canvas to display.

Called automatically by n_gui_set_display_size when virtual canvas is set. You should not normally need to call this directly.

recalculate scale and offset from virtual canvas to display.

Uses uniform (aspect-preserving) scaling with centred letterboxing, identical to the approach used by BlockBlaster's update_view_offset(). Called automatically by n_gui_set_display_size() when virtual canvas is set.

Definition at line 8849 of file n_gui.c.

References __n_assert, N_GUI_CTX::display_h, N_GUI_CTX::display_w, N_GUI_CTX::gui_offset_x, N_GUI_CTX::gui_offset_y, N_GUI_CTX::gui_scale, N_GUI_CTX::virtual_h, and N_GUI_CTX::virtual_w.

Referenced by n_gui_set_display_size(), and n_gui_set_virtual_size().

Here is the caller graph for this function:

◆ n_gui_wants_mouse()

int n_gui_wants_mouse ( N_GUI_CTX * ctx )

check if the mouse is currently over any open GUI window (use to prevent click-through to the game world)

Use this to prevent mouse clicks from passing through the GUI to the game.

Parameters

ctx	the GUI context

Returns: 1 if the mouse is over a GUI window, 0 otherwise

Definition at line 12337 of file n_gui.c.

References __n_assert, _point_in_rect(), _win_tbh(), N_GUI_CTX::gui_offset_x, N_GUI_CTX::gui_offset_y, N_GUI_CTX::gui_scale, N_GUI_WINDOW::h, list_foreach, N_GUI_CTX::mouse_x, N_GUI_CTX::mouse_y, N_GUI_WIN_MINIMISED, N_GUI_WIN_OPEN, N_GUI_WINDOW::native, N_GUI_WINDOW::state, N_GUI_CTX::virtual_h, N_GUI_CTX::virtual_w, N_GUI_WINDOW::w, N_GUI_CTX::windows, N_GUI_WINDOW::x, and N_GUI_WINDOW::y.

Referenced by main(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_widget_get_persist_key()

const char * n_gui_widget_get_persist_key	(	N_GUI_CTX *	ctx,
		int	widget_id
	)

Get a widget's persist key ("" when unset), or NULL when the widget is invalid.

Definition at line 2306 of file n_gui.c.

References n_gui_get_widget(), and N_GUI_WIDGET::persist_key.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_widget_set_persist_key()

void n_gui_widget_set_persist_key	(	N_GUI_CTX *	ctx,
		int	widget_id,
		const char *	key
	)

Give a widget a stable key so its user-adjustable state (a splitpane's divider ratio, or a datagrid's column order/visibility/width) is persisted by n_gui_save_layout_json and restored by n_gui_load_layout_json.

The key is unique within its window (matching is by owning-window title + key). Passing NULL/"" clears the key (stops persisting). If a saved layout was already loaded, the matching pending state is applied to the widget immediately (consume-once). No-op for a widget type that carries no persistable state.

Definition at line 2293 of file n_gui.c.

References _apply_pending_widget(), _find_widget_window(), key, n_gui_get_widget(), N_GUI_WIDGET::persist_key, and N_GUI_WINDOW::title.

Referenced by build_window(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_apply_autofit()

void n_gui_window_apply_autofit	(	N_GUI_CTX *	ctx,
		int	window_id
	)

trigger auto-fit recalculation for a window (call after adding/removing/resizing widgets)

Parameters

ctx	the GUI context
window_id	the window to recalculate

trigger auto-fit recalculation for a window (call after adding/removing/resizing widgets)

Computes content bounding box from visible widgets and adjusts window dimensions based on autofit_flags and autofit_border.

Definition at line 2035 of file n_gui.c.

References __n_assert, _win_tbh(), N_GUI_WINDOW::autofit_border, N_GUI_WINDOW::autofit_flags, N_GUI_WINDOW::autofit_origin_x, N_GUI_WINDOW::autofit_origin_y, N_GUI_WINDOW::content_h, N_GUI_WINDOW::content_w, N_GUI_WIDGET::h, N_GUI_WINDOW::h, list_foreach, N_GUI_WINDOW::min_h, N_GUI_WINDOW::min_w, N_GUI_AUTOFIT_CENTER, N_GUI_AUTOFIT_EXPAND_LEFT, N_GUI_AUTOFIT_EXPAND_UP, N_GUI_AUTOFIT_H, N_GUI_AUTOFIT_W, n_gui_get_window(), N_GUI_WIDGET::visible, N_GUI_WIDGET::w, N_GUI_WINDOW::w, N_GUI_WINDOW::widgets, N_GUI_WIDGET::x, N_GUI_WINDOW::x, N_GUI_WIDGET::y, and N_GUI_WINDOW::y.

Referenced by main(), n_gui_draw(), and n_gui_draw_detached().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_attach()

int n_gui_window_attach	(	N_GUI_CTX *	ctx,
		int	window_id
	)

return a detached window to being an in-display pop-up

Parameters

ctx	the GUI context
window_id	the window to re-attach

Returns: 0 on success (or if the window was not detached), -1 on error

return a detached window to being an in-display pop-up

Definition at line 1542 of file n_gui.c.

References __n_assert, _n_gui_widget_capture_normalized(), _release_native_window(), N_GUI_WINDOW::flags, N_GUI_WINDOW::h, list_foreach, LOG_DEBUG, LOG_ERR, n_gui_get_window(), n_log, N_GUI_WINDOW::native, N_GUI_WINDOW::saved_flags, N_GUI_WINDOW::saved_h, N_GUI_WINDOW::saved_w, N_GUI_WINDOW::saved_x, N_GUI_WINDOW::saved_y, N_GUI_WINDOW::scroll_x, N_GUI_WINDOW::scroll_y, N_GUI_WINDOW::title, N_GUI_WINDOW::w, N_GUI_WINDOW::want_native, N_GUI_WINDOW::widgets, N_GUI_WINDOW::x, and N_GUI_WINDOW::y.

Referenced by main(), on_attach_all(), and on_toggle_detach().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_autosize()

void n_gui_window_autosize	(	N_GUI_CTX *	ctx,
		int	window_id
	)

recompute and apply minimum-fit size for a window based on its current widgets

Adds padding around the furthest widget extents.

Definition at line 1987 of file n_gui.c.

References _win_tbh(), N_GUI_WIDGET::h, N_GUI_WINDOW::h, list_foreach, N_GUI_WINDOW::min_h, N_GUI_WINDOW::min_w, n_gui_get_window(), N_GUI_WIDGET::w, N_GUI_WINDOW::w, N_GUI_WINDOW::widgets, N_GUI_WIDGET::x, and N_GUI_WIDGET::y.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_detach()

int n_gui_window_detach	(	N_GUI_CTX *	ctx,
		int	window_id,
		int	detach_flags
	)

promote a pop-up window to a native OS window

Creates an ALLEGRO_DISPLAY sized to the window's body, registers its event source in the context's event queue, and moves the window to (0,0) inside it. The window is forced frameless: the OS supplies the title bar, so dragging, resizing, minimising and maximising are handled by the window manager and the window's own title bar buttons are no longer drawn. The window's title becomes the OS window title.

The host must call n_gui_draw_detached() once per frame to render and flip the native windows, and keep feeding every event to n_gui_process_event(), which routes each one to the display it came from.

Parameters

ctx	the GUI context. An event queue must have been set.
window_id	the window to detach
detach_flags	bitmask of N_GUI_DETACH_* options

Returns: 0 on success (or if the window was already detached), -1 on error

promote a pop-up window to a native OS window

Definition at line 1409 of file n_gui.c.

References __n_assert, _n_gui_widget_capture_normalized(), _win_tbh(), N_GUI_WINDOW::detach_flags, N_GUI_CTX::event_queue, N_GUI_WINDOW::flags, N_GUI_WINDOW::h, N_GUI_TB_BUTTONS::hovered, list_foreach, LOG_DEBUG, LOG_ERR, N_GUI_WINDOW::min_h, N_GUI_WINDOW::min_w, N_GUI_DETACH_OWN_CHROME, N_GUI_DETACH_RESIZABLE, n_gui_get_window(), N_GUI_TB_BTN_NONE, N_GUI_WIN_DRAGGING, N_GUI_WIN_FRAMELESS, N_GUI_WIN_HSCROLL_DRAG, N_GUI_WIN_MAXIMISED, N_GUI_WIN_MINIMISED, N_GUI_WIN_OPEN, N_GUI_WIN_RESIZING, N_GUI_WIN_VSCROLL_DRAG, n_log, N_GUI_WINDOW::native, N_GUI_WINDOW::native_close_pending, N_GUI_WINDOW::native_drag_anchored, N_GUI_WINDOW::native_h, N_GUI_WINDOW::native_pos_x, N_GUI_WINDOW::native_pos_y, N_GUI_WINDOW::native_w, N_GUI_TB_BUTTONS::pressed, N_GUI_WINDOW::saved_flags, N_GUI_WINDOW::saved_h, N_GUI_WINDOW::saved_w, N_GUI_WINDOW::saved_x, N_GUI_WINDOW::saved_y, N_GUI_WINDOW::scroll_x, N_GUI_WINDOW::scroll_y, N_GUI_WINDOW::state, N_GUI_WINDOW::tb_buttons, N_GUI_WINDOW::title, N_GUI_WINDOW::w, N_GUI_WINDOW::want_native, N_GUI_WINDOW::widgets, N_GUI_WINDOW::x, and N_GUI_WINDOW::y.

Referenced by main(), n_gui_load_layout_json(), n_gui_open_window(), on_detach_all(), and on_toggle_detach().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_from_display()

int n_gui_window_from_display	(	N_GUI_CTX *	ctx,
		ALLEGRO_DISPLAY *	display
	)

find the window detached into a given display

Returns: the window id, or -1 when no detached window owns display

find the window detached into a given display

Definition at line 1596 of file n_gui.c.

References __n_assert, display, N_GUI_WINDOW::id, list_foreach, N_GUI_WINDOW::native, and N_GUI_CTX::windows.

Referenced by main().

Here is the caller graph for this function:

◆ n_gui_window_get_display()

ALLEGRO_DISPLAY * n_gui_window_get_display	(	N_GUI_CTX *	ctx,
		int	window_id
	)

get the native display backing a window, or NULL when it is a pop-up

Definition at line 1584 of file n_gui.c.

References __n_assert, n_gui_get_window(), and N_GUI_WINDOW::native.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_get_flags()

int n_gui_window_get_flags	(	N_GUI_CTX *	ctx,
		int	window_id
	)

get feature flags of a window

Returns: the flags, or 0

Definition at line 1977 of file n_gui.c.

References N_GUI_WINDOW::flags, and n_gui_get_window().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_get_resize_policy()

int n_gui_window_get_resize_policy	(	N_GUI_CTX *	ctx,
		int	window_id
	)

get per-window resize policy

Returns: N_GUI_WIN_RESIZE_NONE, _MOVE, or _SCALE

Definition at line 8949 of file n_gui.c.

References __n_assert, n_gui_get_window(), and N_GUI_WINDOW::resize_policy.

Here is the call graph for this function:

◆ n_gui_window_get_zorder()

int n_gui_window_get_zorder	(	N_GUI_CTX *	ctx,
		int	window_id
	)

get window z-order mode

Definition at line 1921 of file n_gui.c.

References __n_assert, n_gui_get_window(), N_GUI_ZORDER_NORMAL, and N_GUI_WINDOW::z_order.

Here is the call graph for this function:

◆ n_gui_window_get_zvalue()

int n_gui_window_get_zvalue	(	N_GUI_CTX *	ctx,
		int	window_id
	)

get window z-value (for N_GUI_ZORDER_FIXED mode)

Definition at line 1931 of file n_gui.c.

References __n_assert, n_gui_get_window(), and N_GUI_WINDOW::z_value.

Here is the call graph for this function:

◆ n_gui_window_is_detached()

int n_gui_window_is_detached	(	N_GUI_CTX *	ctx,
		int	window_id
	)

check whether a window currently lives in a native OS window

Definition at line 1575 of file n_gui.c.

References __n_assert, n_gui_get_window(), and N_GUI_WINDOW::native.

Referenced by main(), on_detach_all(), on_toggle_detach(), and refresh_buttons().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_is_maximised()

int n_gui_window_is_maximised	(	N_GUI_CTX *	ctx,
		int	window_id
	)

check if a window is currently maximised

Returns: 1 if maximised, 0 if not (or invalid id)

Definition at line 1344 of file n_gui.c.

References __n_assert, n_gui_get_window(), N_GUI_WIN_MAXIMISED, and N_GUI_WINDOW::state.

Here is the call graph for this function:

◆ n_gui_window_is_minimised()

int n_gui_window_is_minimised	(	N_GUI_CTX *	ctx,
		int	window_id
	)

check if a window is currently minimised

Parameters

ctx	the gui context
window_id	the id of the window to query

Returns: 1 if the window is minimised, 0 otherwise (or on a bad id)

Definition at line 1255 of file n_gui.c.

References n_gui_get_window(), N_GUI_WIN_MINIMISED, and N_GUI_WINDOW::state.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_is_open()

int n_gui_window_is_open	(	N_GUI_CTX *	ctx,
		int	window_id
	)

check if window is visible

Returns: 1 if open, 0 if closed

Definition at line 1959 of file n_gui.c.

References n_gui_get_window(), N_GUI_WIN_OPEN, and N_GUI_WINDOW::state.

Referenced by main(), and on_windows_menu_open().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_native_is_hidden()

int n_gui_window_native_is_hidden	(	N_GUI_CTX *	ctx,
		int	window_id
	)

check whether a detached window's drawing is currently halted by the OS (Android surface loss) or the window manager has iconified it.

A halted window is skipped by n_gui_draw_detached.

Returns: 1 when the window is detached and not currently drawable, else 0

check whether a detached window's drawing is currently halted by the OS (Android surface loss) or the window manager has iconified it.

Definition at line 1644 of file n_gui.c.

References __n_assert, n_gui_get_window(), N_GUI_WINDOW::native, and N_GUI_WINDOW::native_halted.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_set_autofit()

void n_gui_window_set_autofit	(	N_GUI_CTX *	ctx,
		int	window_id,
		int	autofit_flags,
		float	border
	)

configure auto-fit behavior for a dialog window

Parameters

ctx	the GUI context
window_id	the window to configure
autofit_flags	bitmask of N_GUI_AUTOFIT_W, N_GUI_AUTOFIT_H, N_GUI_AUTOFIT_EXPAND_LEFT, N_GUI_AUTOFIT_EXPAND_UP
border	padding in pixels between content bounding box and window edge (on each side)

configure auto-fit behavior for a dialog window

Store the flags and border value in the window struct.

Definition at line 2016 of file n_gui.c.

References __n_assert, N_GUI_WINDOW::autofit_border, N_GUI_WINDOW::autofit_flags, N_GUI_WINDOW::autofit_origin_x, N_GUI_WINDOW::autofit_origin_y, LOG_ERR, n_gui_get_window(), n_log, N_GUI_WINDOW::x, and N_GUI_WINDOW::y.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_set_bitmaps()

void n_gui_window_set_bitmaps	(	N_GUI_CTX *	ctx,
		int	window_id,
		ALLEGRO_BITMAP *	bg,
		ALLEGRO_BITMAP *	titlebar,
		int	bg_scale_mode
	)

set optional bitmap overlays on a window's body and titlebar.

Pass NULL for any bitmap you don't want to set.

Note: Bitmaps are NOT owned by N_GUI. The caller must keep them alive for the window's lifetime and destroy them after the GUI context is destroyed.

Parameters

ctx	the GUI context
window_id	id of the target window
bg	body background bitmap (NULL = color fill)
titlebar	titlebar background bitmap (NULL = color fill)
bg_scale_mode	scale mode for bg: N_GUI_IMAGE_FIT, N_GUI_IMAGE_STRETCH, or N_GUI_IMAGE_CENTER

set optional bitmap overlays on a window's body and titlebar.

Note: Bitmaps are NOT owned by N_GUI. The caller must keep them alive for the window's lifetime and destroy them after the GUI context is destroyed.

Definition at line 4797 of file n_gui.c.

References N_GUI_WINDOW::bg_bitmap, N_GUI_WINDOW::bg_scale_mode, LOG_WARNING, n_gui_get_window(), n_log, and N_GUI_WINDOW::titlebar_bitmap.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_set_close_callback()

void n_gui_window_set_close_callback	(	N_GUI_CTX *	ctx,
		int	window_id,
		void()(int, void )	on_close,
		void *	user_data
	)

set the close button callback for a window (NULL = default: hide window)

Parameters

ctx	the GUI context
window_id	the target window
on_close	callback receiving (window_id, user_data). Must call n_gui_close_window() itself if desired.
user_data	user data passed to the callback

set the close button callback for a window (NULL = default: hide window)

Definition at line 1655 of file n_gui.c.

References __n_assert, n_gui_get_window(), N_GUI_TB_BUTTONS::on_close, N_GUI_TB_BUTTONS::on_close_user_data, and N_GUI_WINDOW::tb_buttons.

Referenced by build_panel(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_set_content_draw_callback()

void n_gui_window_set_content_draw_callback	(	N_GUI_CTX *	ctx,
		int	window_id,
		void()(int, void )	on_content_draw,
		void *	user_data
	)

set a content-draw callback for a window, invoked during n_gui_draw right after the window's own content is drawn (at the window's z-order)

Parameters

ctx	the GUI context
window_id	the target window
on_content_draw	callback receiving (window_id, user_data); NULL clears it
user_data	user data passed to the callback

set a content-draw callback for a window, invoked during n_gui_draw right after the window's own content is drawn (at the window's z-order)

The callback runs during n_gui_draw immediately after the window's own content is drawn, at the window's z-order, so any custom rendering it performs is occluded by windows that draw on top of this one.

Definition at line 1670 of file n_gui.c.

References __n_assert, n_gui_get_window(), N_GUI_WINDOW::on_content_draw, and N_GUI_WINDOW::on_content_draw_data.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_set_flags()

void n_gui_window_set_flags	(	N_GUI_CTX *	ctx,
		int	window_id,
		int	flags
	)

set feature flags on a window (N_GUI_WIN_AUTO_SCROLLBAR, N_GUI_WIN_RESIZABLE, ...)

Parameters

ctx	the GUI context
window_id	id of the target window
flags	bitmask of N_GUI_WIN_* flags to set

set feature flags on a window (N_GUI_WIN_AUTO_SCROLLBAR, N_GUI_WIN_RESIZABLE, ...)

Definition at line 1968 of file n_gui.c.

References N_GUI_WINDOW::flags, and n_gui_get_window().

Referenced by build_panel(), main(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_set_maximize_callback()

void n_gui_window_set_maximize_callback	(	N_GUI_CTX *	ctx,
		int	window_id,
		void()(int, void )	on_maximize,
		void *	user_data
	)

set the maximize button callback for a window (NULL = default: toggle maximised)

Parameters

ctx	the GUI context
window_id	the target window
on_maximize	callback receiving (window_id, user_data)
user_data	user data passed to the callback

set the maximize button callback for a window (NULL = default: toggle maximised)

Definition at line 1692 of file n_gui.c.

References __n_assert, n_gui_get_window(), N_GUI_TB_BUTTONS::on_maximize, N_GUI_TB_BUTTONS::on_maximize_user_data, and N_GUI_WINDOW::tb_buttons.

Here is the call graph for this function:

◆ n_gui_window_set_minimize_callback()

void n_gui_window_set_minimize_callback	(	N_GUI_CTX *	ctx,
		int	window_id,
		void()(int, void )	on_minimize,
		void *	user_data
	)

set the minimize button callback for a window (NULL = default: toggle minimised)

Parameters

ctx	the GUI context
window_id	the target window
on_minimize	callback receiving (window_id, user_data)
user_data	user data passed to the callback

set the minimize button callback for a window (NULL = default: toggle minimised)

Definition at line 1681 of file n_gui.c.

References __n_assert, n_gui_get_window(), N_GUI_TB_BUTTONS::on_minimize, N_GUI_TB_BUTTONS::on_minimize_user_data, and N_GUI_WINDOW::tb_buttons.

Here is the call graph for this function:

◆ n_gui_window_set_native_icons()

int n_gui_window_set_native_icons	(	N_GUI_CTX *	ctx,
		int	window_id,
		ALLEGRO_BITMAP **	icons,
		int	num_icons
	)

give a detached window's OS window a taskbar / title bar icon

Only meaningful while the window is detached, a pop-up has no OS window to put an icon on. Like every other bitmap N_GUI is handed, the bitmaps are BORROWED: Allegro copies what it needs at call time, but keep them alive for as long as you may re-apply them and destroy them yourself.

Parameters

ctx	the GUI context
window_id	a detached window
icons	array of bitmaps, ideally several sizes so the platform can pick
num_icons	number of entries in `icons` (1 is fine)

Returns: 0 on success, -1 when the window does not exist or is not detached

give a detached window's OS window a taskbar / title bar icon

Definition at line 1622 of file n_gui.c.

References __n_assert, LOG_ERR, n_gui_get_window(), n_log, and N_GUI_WINDOW::native.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_set_resize_policy()

void n_gui_window_set_resize_policy	(	N_GUI_CTX *	ctx,
		int	window_id,
		int	policy
	)

set per-window resize policy (N_GUI_WIN_RESIZE_NONE / _MOVE / _SCALE).

Automatically captures normalized coordinates from the window's current position/size relative to the current display size.

set per-window resize policy (N_GUI_WIN_RESIZE_NONE / _MOVE / _SCALE).

Automatically captures normalized coordinates from the window's current position/size relative to the current display size.

Definition at line 8936 of file n_gui.c.

References __n_assert, _n_gui_window_capture_normalized(), n_gui_get_window(), and N_GUI_WINDOW::resize_policy.

Referenced by main(), and main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_set_tb_btn_theme()

void n_gui_window_set_tb_btn_theme	(	N_GUI_CTX *	ctx,
		int	window_id,
		N_GUI_THEME	theme
	)

set the theme for titlebar minimize/maximize buttons on a specific window

Definition at line 1703 of file n_gui.c.

References __n_assert, N_GUI_TB_BUTTONS::btn_theme, n_gui_get_window(), and N_GUI_WINDOW::tb_buttons.

Here is the call graph for this function:

◆ n_gui_window_set_tb_button_bitmaps()

void n_gui_window_set_tb_button_bitmaps	(	N_GUI_CTX *	ctx,
		int	window_id,
		int	btn_type,
		ALLEGRO_BITMAP *	normal,
		ALLEGRO_BITMAP *	hover,
		ALLEGRO_BITMAP *	active
	)

set optional bitmap overlays on a titlebar button

Parameters

ctx	the GUI context
window_id	the target window
btn_type	N_GUI_TB_BTN_MINIMIZE, N_GUI_TB_BTN_MAXIMIZE, or N_GUI_TB_BTN_CLOSE
normal	bitmap for normal state (NULL = color theme)
hover	bitmap for hover state (NULL = fallback to normal)
active	bitmap for active/pressed state (NULL = fallback to normal)

set optional bitmap overlays on a titlebar button

Definition at line 1723 of file n_gui.c.

References __n_assert, N_GUI_TB_BUTTONS::close_active_bitmap, N_GUI_TB_BUTTONS::close_bitmap, N_GUI_TB_BUTTONS::close_hover_bitmap, N_GUI_TB_BUTTONS::maximize_active_bitmap, N_GUI_TB_BUTTONS::maximize_bitmap, N_GUI_TB_BUTTONS::maximize_hover_bitmap, N_GUI_TB_BUTTONS::minimize_active_bitmap, N_GUI_TB_BUTTONS::minimize_bitmap, N_GUI_TB_BUTTONS::minimize_hover_bitmap, n_gui_get_window(), N_GUI_TB_BTN_CLOSE, N_GUI_TB_BTN_MAXIMIZE, N_GUI_TB_BTN_MINIMIZE, and N_GUI_WINDOW::tb_buttons.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_set_tb_close_theme()

void n_gui_window_set_tb_close_theme	(	N_GUI_CTX *	ctx,
		int	window_id,
		N_GUI_THEME	theme
	)

set the theme for the titlebar close button on a specific window

Definition at line 1713 of file n_gui.c.

References __n_assert, N_GUI_TB_BUTTONS::close_theme, n_gui_get_window(), and N_GUI_WINDOW::tb_buttons.

Here is the call graph for this function:

◆ n_gui_window_set_zorder()

void n_gui_window_set_zorder	(	N_GUI_CTX *	ctx,
		int	window_id,
		int	z_mode,
		int	z_value
	)

set window z-order mode and value

Parameters

ctx	the GUI context
window_id	the window to configure
z_mode	one of N_GUI_ZORDER_NORMAL, N_GUI_ZORDER_ALWAYS_ON_TOP, N_GUI_ZORDER_ALWAYS_BEHIND, N_GUI_ZORDER_FIXED, N_GUI_ZORDER_POPUP
z_value	z-value for N_GUI_ZORDER_FIXED mode (lower = behind, higher = on top), ignored for other modes

set window z-order mode and value

Re-sorts the window list after changing.

Definition at line 1903 of file n_gui.c.

References __n_assert, _sort_windows_by_zorder(), LOG_ERR, n_gui_get_window(), N_GUI_ZORDER_ALWAYS_BEHIND, N_GUI_ZORDER_ALWAYS_ON_TOP, N_GUI_ZORDER_FIXED, N_GUI_ZORDER_NORMAL, N_GUI_ZORDER_POPUP, n_log, N_GUI_WINDOW::z_order, and N_GUI_WINDOW::z_value.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_gui_window_update_normalized()

void n_gui_window_update_normalized	(	N_GUI_CTX *	ctx,
		int	window_id
	)

recapture normalized coordinates for a window from its current absolute position/size.

Call after programmatically moving/resizing a window if you want the new position to be the adaptive reference point.

recapture normalized coordinates for a window from its current absolute position/size.

Call after programmatically moving/resizing a window if you want the new position to be the adaptive reference point.

Definition at line 8962 of file n_gui.c.

References __n_assert, _n_gui_window_capture_normalized(), N_GUI_CTX::display_h, N_GUI_CTX::display_w, n_gui_get_window(), N_GUI_CTX::ref_display_h, and N_GUI_CTX::ref_display_w.

Here is the call graph for this function:

Data Structures

Macros

Typedefs

Functions

Detailed Description

Bitmap Skinning

Fallback Chain

Supported Widgets

JSON Theme

Data Structure Documentation

◆ N_GUI_BUTTON_DATA

Data Fields

Field Documentation

◆ bitmap

◆ bitmap_active

◆ bitmap_hover

◆ key_focus_only

◆ key_modifiers

◆ key_press_until

◆ key_sources

◆ keycode

◆ label

◆ on_click

◆ shape

◆ toggle_mode

◆ toggled

◆ user_data

◆ N_GUI_CHECKBOX_DATA

Data Fields

Field Documentation

◆ box_bitmap

◆ box_checked_bitmap

◆ box_hover_bitmap

◆ checked

◆ label

◆ on_toggle

◆ user_data

◆ N_GUI_COMBOBOX_DATA

Data Fields

Field Documentation

◆ bg_bitmap

◆ flags

◆ highlight_index

◆ is_open

◆ item_bg_bitmap

◆ item_height

◆ item_selected_bitmap

◆ items

◆ items_capacity

◆ max_visible

◆ nb_items

◆ on_select

◆ scroll_offset

◆ selected_index

◆ user_data

◆ N_GUI_CTX

◆ N_GUI_CUSTOM_DATA

◆ N_GUI_DATAGRID_COL

◆ N_GUI_DATAGRID_DATA

Data Fields

Field Documentation

◆ anchor_row

◆ cells

◆ col_order

◆ col_resize_col

◆ col_resize_w0

◆ col_resize_x0

◆ cols

◆ cols_cap

◆ h_scroll

◆ h_scroll_dragging

◆ multiselect

◆ nb_cols

◆ nb_rows

◆ on_columns_changed

◆ on_context

◆ on_select

◆ row_color

◆ row_has_color

◆ row_sel
