Network Engine. More...

#include <errno.h>
#include <limits.h>
#include <stdarg.h>
#include <pthread.h>
#include <unistd.h>
#include <string.h>
#include <ctype.h>
#include <sys/types.h>
#include "nilorea/n_network.h"
#include "nilorea/n_network_msg.h"
#include "nilorea/n_log.h"
#include "nilorea/n_hash.h"
#include "nilorea/n_base64.h"
#include <openssl/sha.h>
#include <openssl/rand.h>
#include <sys/wait.h>

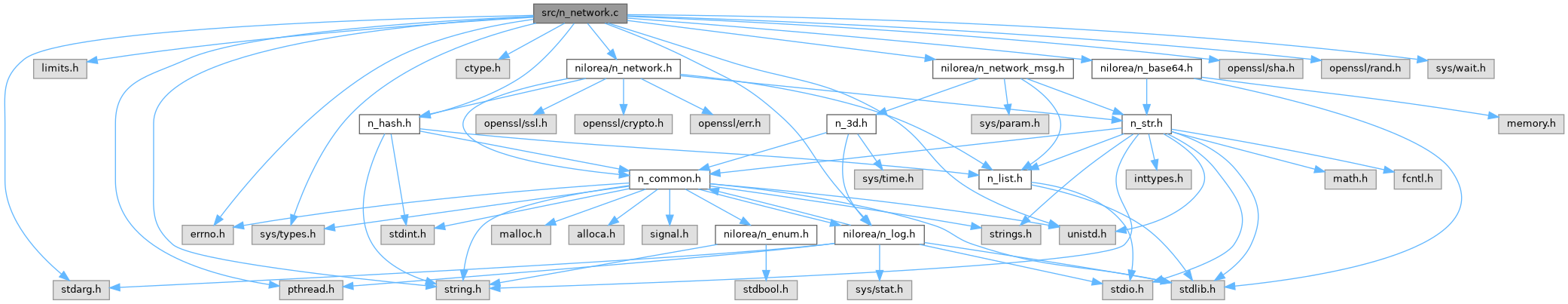

Include dependency graph for n_network.c:

Go to the source code of this file.

Macros
#define	_Thread_local __thread
	thread-local pre-connection error buffer (DNS, socket creation)

#define	neterrno errno
	get last socket error code, linux version

#define	netstrerror(code)
	BSD style errno string NO WORKING ON REDHAT.

#define	NETW_BUFLEN_CAST(x) ((size_t)(x))
	cast for send/recv buffer length: int on Windows, size_t on POSIX

#define	NETW_CALL_RETRY(__retvar, __expression, __max_tries)
	network-aware retry macro: retries on EINTR and EAGAIN/EWOULDBLOCK

Functions
	__attribute__ ((unused))

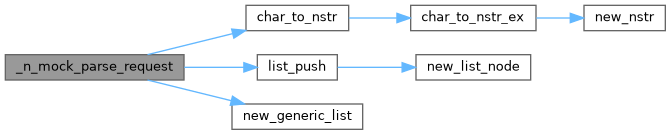

static void	_n_mock_parse_request (const char buf, N_HTTP_REQUEST req)
	Parse a raw HTTP request buffer into an N_HTTP_REQUEST.

static void	_n_mock_request_clean (N_HTTP_REQUEST *req)
	Free the contents of an N_HTTP_REQUEST (does not free the struct itself).

static void	_n_parse_query_params (N_URL u, const char qs)

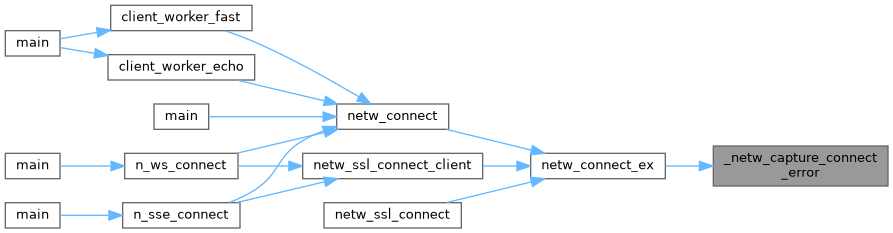

static void	_netw_capture_connect_error (const char *fmt,...)
	capture a pre-connection error (thread-local)

static void	_netw_capture_error (NETWORK netw, const char fmt,...)
	capture an error into a NETWORK handle's ring buffer

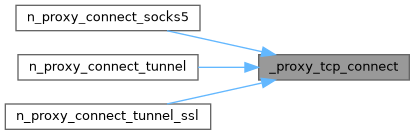

static int	_proxy_tcp_connect (const char *host, int port)
	Helper: connect a plain TCP socket to host:port.

static ssize_t	_sse_read_byte (NETWORK netw, char ch, volatile int *stop_flag)
	read one byte from an SSE connection (SSL or plain).

static ssize_t	_sse_write (NETWORK netw, const void buf, size_t len)
	write bytes to an SSE connection (SSL or plain)

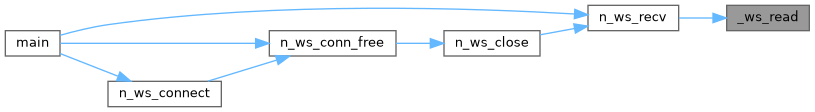

static ssize_t	_ws_read (N_WS_CONN conn, void buf, size_t len)
	read exactly len bytes from a WebSocket connection

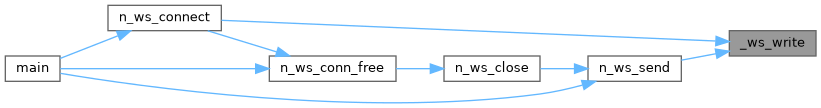

static ssize_t	_ws_write (N_WS_CONN conn, const void buf, size_t len)
	write bytes to a WebSocket connection (SSL or plain)

int	deplete_send_buffer (int fd, int timeout)
	wait until the socket is empty or timeout, checking each 100 msec.

char *	get_in_addr (struct sockaddr *sa)
	get sockaddr, IPv4 or IPv6

__netw_code_type size_t	htonst (size_t value)
	host to network size_t

void	n_mock_server_free (N_MOCK_SERVER **server)
	Free a mock server and close the listening socket.

void	n_mock_server_run (N_MOCK_SERVER *server)
	Run the mock server accept loop.

N_MOCK_SERVER *	n_mock_server_start (int port, void(on_request)(N_HTTP_REQUEST , N_HTTP_RESPONSE , void ), void *user_data)
	Start a mock HTTP server: set up listener and return immediately.

void	n_mock_server_stop (N_MOCK_SERVER *server)
	Signal the mock server to stop accepting connections.

void	n_netw_clear_connect_errors (void)
	Clear pre-connection errors on this thread.

void	n_netw_clear_errors (NETWORK *netw)
	Clear captured errors on a NETWORK handle.

const char *	n_netw_get_connect_error (int index)
	Get pre-connection error message by index.

int	n_netw_get_connect_error_count (void)
	Get number of pre-connection errors captured on this thread.

const char *	n_netw_get_error (NETWORK *netw, int index)
	Get captured error message by index (0 = oldest).

int	n_netw_get_error_count (NETWORK *netw)
	Get number of captured errors on a NETWORK handle.

void	n_proxy_cfg_free (N_PROXY_CFG **cfg)
	Free an N_PROXY_CFG created by n_proxy_cfg_parse().

N_PROXY_CFG *	n_proxy_cfg_parse (const char *url)
	Parse a proxy URL string into an N_PROXY_CFG struct.

int	n_proxy_connect_socks5 (const N_PROXY_CFG proxy, const char target_host, int target_port)
	Open a TCP connection through a SOCKS5 proxy.

int	n_proxy_connect_tunnel (const N_PROXY_CFG proxy, const char target_host, int target_port)
	Open a TCP connection through an HTTP proxy using CONNECT tunneling.

int	n_proxy_connect_tunnel_ssl (const N_PROXY_CFG proxy, const char target_host, int target_port)
	Open a TCP connection through an HTTPS proxy using CONNECT tunneling.

void	n_sse_conn_free (N_SSE_CONN **conn)
	Free an SSE connection structure.

N_SSE_CONN *	n_sse_connect (const char host, const char port, const char path, int use_ssl, void(on_event)(N_SSE_EVENT , N_SSE_CONN , void ), void user_data)
	Connect to an SSE endpoint and start reading events.

void	n_sse_event_clean (N_SSE_EVENT *event)
	Free the contents of an SSE event (does not free the struct itself).

void	n_sse_stop (N_SSE_CONN *conn)
	Signal the SSE connection to stop reading.

N_STR *	n_url_build (const N_URL *u)
	build a URL string from parsed components

N_STR *	n_url_decode (const char *str)
	decode a percent-encoded string (returns N_STR)

N_STR *	n_url_encode (const char *str)
	percent-encode a string for use in URLs (returns N_STR)

void	n_url_free (N_URL **u)
	free a N_URL and all its members

N_URL *	n_url_parse (const char *url)
	parse a URL string into components

void	n_ws_close (N_WS_CONN *conn)
	Send close frame and close the connection.

void	n_ws_conn_free (N_WS_CONN **conn)
	Free a WebSocket connection structure.

N_WS_CONN *	n_ws_connect (const char host, const char port, const char *path, int use_ssl)
	Connect to a WebSocket server (ws:// or wss://).

int	n_ws_recv (N_WS_CONN conn, N_WS_MESSAGE msg_out)
	Receive one WebSocket frame.

int	n_ws_send (N_WS_CONN conn, const char payload, size_t len, int opcode)
	Send a WebSocket frame (client always masks).

NETWORK *	netw_accept_from (NETWORK *from)
	make a normal blocking 'accept' .

NETWORK *	netw_accept_from_ex (NETWORK from, size_t send_list_limit, size_t recv_list_limit, int blocking, int retval)
	make a normal 'accept' .

NETWORK *	netw_accept_nonblock_from (NETWORK *from, int blocking)
	make a normal blocking 'accept' .

int	netw_add_msg (NETWORK netw, N_STR msg)
	Add a message to send in aimed NETWORK.

int	netw_add_msg_ex (NETWORK netw, char str, unsigned int length)
	Add a message to send in aimed NETWORK.

int	netw_bind_udp (NETWORK *netw, char addr, char *port, int ip_version)
	Create a UDP bound socket for receiving datagrams.

int	netw_build_http_response (N_STR *http_response, int status_code, const char server_name, const char content_type, char additional_headers, N_STR *body)
	function to dynamically generate an HTTP response

size_t	netw_calculate_urlencoded_size (const char *str, size_t len)
	function to calculate the required size for the URL-encoded string

int	netw_close (NETWORK **netw)
	Closing a specified Network, destroy queues, free the structure.

int	netw_connect (NETWORK *netw, char host, char *port, int ip_version)
	Use this to connect a NETWORK to any listening one, unrestricted send/recv lists.

int	netw_connect_ex (NETWORK *netw, char host, char port, size_t send_list_limit, size_t recv_list_limit, int ip_version, char ssl_key_file, char *ssl_cert_file)
	Use this to connect a NETWORK to any listening one.

int	netw_connect_udp (NETWORK *netw, char host, char *port, int ip_version)
	Connect a UDP socket to a remote host.

int	netw_destroy_pool (NETWORK_POOL **netw_pool)
	free a NETWORK_POOL *pool

NETWORK_HTTP_INFO	netw_extract_http_info (char *request)
	extract a lot of informations, mostly as pointers, and populate a NETWORK_HTTP_INFO structure

char *	netw_extract_http_request_type (const char *request)
	function to extract the request method from an http request

int	netw_get_http_date (char *buffer, size_t buffer_size)
	helper function to generate the current date in HTTP format

const char *	netw_get_http_status_message (int status_code)
	helper function to convert status code to a human-readable message

N_STR *	netw_get_msg (NETWORK *netw)
	Get a message from aimed NETWORK.

char *	netw_get_openssl_error_string ()
	get the OpenSSL error string

int	netw_get_queue_status (NETWORK netw, size_t nb_to_send, size_t *nb_to_read)
	retrieve network send queue status

int	netw_get_state (NETWORK netw, uint32_t state, int *thr_engine_status)
	Get the state of a network.

int	netw_get_url_from_http_request (const char request, char url, size_t size)
	Helper function to extract the URL from the HTTP request line.

const char *	netw_guess_http_content_type (const char *url)
	function to guess the content type based on URL extension

int	netw_info_destroy (NETWORK_HTTP_INFO http_request)
	destroy a NETWORK_HTTP_INFO loaded informations

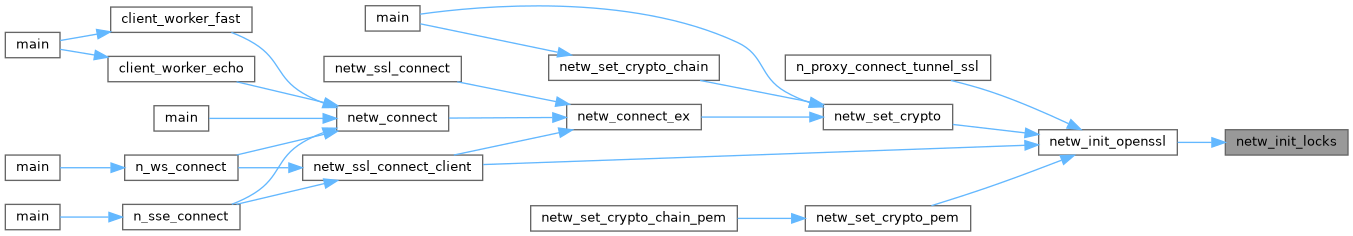

static void	netw_init_locks (void)

int	netw_init_openssl (void)
	Do not directly use, internal api.

int	netw_init_wsa (int mode, int v1, int v2)
	Do not directly use, internal api.

static void	netw_kill_locks (void)

int	netw_make_listening (NETWORK *netw, char addr, char *port, int nbpending, int ip_version)
	Make a NETWORK be a Listening network.

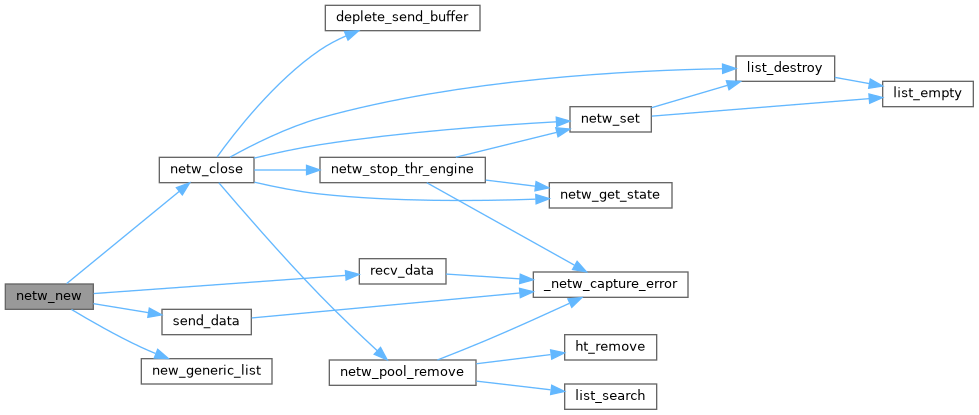

NETWORK *	netw_new (size_t send_list_limit, size_t recv_list_limit)
	Return an empty allocated network ready to be netw_closed.

NETWORK_POOL *	netw_new_pool (size_t nb_min_element)
	return a new network pool of nb_min_element

HASH_TABLE *	netw_parse_post_data (const char *post_data)
	Function to parse POST data.

int	netw_pool_add (NETWORK_POOL netw_pool, NETWORK netw)
	add a NETWORK netw to a NETWORK_POOL pool

int	netw_pool_broadcast (NETWORK_POOL netw_pool, const NETWORK from, N_STR *net_msg)
	add net_msg to all network in netork pool

size_t	netw_pool_nbclients (NETWORK_POOL *netw_pool)
	return the number of networks in netw_pool

void	netw_pool_netw_close (void *netw_ptr)
	close a network from a network pool

int	netw_pool_remove (NETWORK_POOL netw_pool, NETWORK netw)
	remove a NETWORK netw to a NETWORK_POOL pool

void *	netw_recv_func (void *NET)
	To Thread Receiving function.

void *	netw_send_func (void *NET)
	Thread send function.

int	netw_send_ident (NETWORK netw, int type, int id, N_STR name, N_STR *passwd)
	Add a formatted NETWMSG_IDENT message to the specified network.

int	netw_send_ping (NETWORK *netw, int type, int id_from, int id_to, int time)
	Add a ping reply to the network.

int	netw_send_position (NETWORK *netw, int id, double X, double Y, double vx, double vy, double acc_x, double acc_y, int time_stamp)
	Add a formatted NETWMSG_IDENT message to the specified network.

int	netw_send_quit (NETWORK *netw)
	Add a formatted NETMSG_QUIT message to the specified network.

int	netw_send_string_to (NETWORK netw, int id_to, N_STR name, N_STR chan, N_STR txt, int color)
	Add a string to the network, aiming a specific user.

int	netw_send_string_to_all (NETWORK netw, N_STR name, N_STR chan, N_STR txt, int color)
	Add a string to the network, aiming all server-side users.

int	netw_set (NETWORK *netw, int flag)
	Restart or reset the specified network ability.

int	netw_set_blocking (NETWORK *netw, unsigned long int is_blocking)
	Modify blocking socket mode.

int	netw_set_crypto (NETWORK netw, char key, char *certificate)
	activate SSL encryption on selected network, using key and certificate

int	netw_set_crypto_chain (NETWORK netw, char key, char certificate, char ca_file)
	activate SSL encryption using key/certificate files and a CA file for chain verification

int	netw_set_crypto_chain_pem (NETWORK netw, const char key_pem, const char cert_pem, const char ca_pem)
	activate SSL encryption using PEM strings for key, certificate, and CA

int	netw_set_crypto_pem (NETWORK netw, const char key_pem, const char *cert_pem)
	activate SSL encryption using PEM-formatted key and certificate strings loaded from memory

int	netw_set_user_id (NETWORK *netw, int id)
	associate an id and a network

int	netw_setsockopt (NETWORK *netw, int optname, int value)
	Modify common socket options on the given netw.

int	netw_ssl_connect (NETWORK *netw, char host, char port, int ip_version, char ssl_key_file, char *ssl_cert_file)
	Use this to connect a NETWORK to any listening one, unrestricted send/recv lists.

int	netw_ssl_connect_client (NETWORK *netw, char host, char *port, int ip_version)
	Connect as an SSL client without providing a client certificate.

int	netw_ssl_do_handshake (NETWORK netw, const char sni_hostname)
	Complete the SSL handshake on an already-connected NETWORK.

void	netw_ssl_print_errors (SOCKET socket)
	print OpenSSL errors for a given socket

int	netw_ssl_set_ca (NETWORK netw, const char ca_file, const char *ca_path)
	set custom CA verify location for SSL context

int	netw_ssl_set_client_cert (NETWORK netw, const char cert_file, const char *key_file)
	load a client certificate and private key for mTLS

int	netw_ssl_set_verify (NETWORK *netw, int enable)
	enable or disable SSL peer certificate verification

int	netw_start_thr_engine (NETWORK *netw)
	Start the NETWORK netw Threaded Engine.

int	netw_stop_thr_engine (NETWORK *netw)
	Stop a NETWORK connection sending and receing thread.

ssize_t	netw_udp_recvfrom (NETWORK netw, char buf, uint32_t n, struct sockaddr src_addr, socklen_t src_len)
	recv data via UDP and capture the source address

ssize_t	netw_udp_sendto (NETWORK netw, char buf, uint32_t n, struct sockaddr *dest_addr, socklen_t dest_len)
	send data via UDP to a specific destination address

int	netw_unload_openssl (void)
	Do not directly use, internal api.

char *	netw_urldecode (const char *str)
	Function to decode URL-encoded data.

char *	netw_urlencode (const char *str, size_t len)
	function to perform URL encoding

N_STR *	netw_wait_msg (NETWORK *netw, unsigned int refresh, size_t timeout)
	Wait a message from aimed NETWORK.

size_t	ntohst (size_t value)
	network to host size_t

ssize_t	recv_data (void netw, char buf, uint32_t n)
	recv data from the socket

ssize_t	recv_php (SOCKET s, int _code, char *buf)
	recv data from the socket

ssize_t	recv_ssl_data (void netw, char buf, uint32_t n)
	recv data from the socket

ssize_t	recv_udp_data (void netw, char buf, uint32_t n)
	recv data via UDP from a connected socket

ssize_t	send_data (void netw, char buf, uint32_t n)
	send data onto the socket

ssize_t	send_php (SOCKET s, int _code, char *buf, int n)
	send data onto the socket

ssize_t	send_ssl_data (void netw, char buf, uint32_t n)
	send data onto the socket

ssize_t	send_udp_data (void netw, char buf, uint32_t n)
	send data via UDP on a connected socket

Variables
	N_ENUM_netw_code_type
	network error code

static pthread_mutex_t *	netw_ssl_lockarray

static int	OPENSSL_IS_INITIALIZED = 0

static __thread int	s_connect_err_count = 0

static __thread int	s_connect_err_next = 0

static __thread char	s_connect_errors [8][512]

Detailed Description

Network Engine.

Author: Castagnier Mickael

Version: 1.0

Date: 10/05/2005

Definition in file n_network.c.

Macro Definition Documentation

◆ _Thread_local

#define _Thread_local __thread

thread-local pre-connection error buffer (DNS, socket creation)

Definition at line 66 of file n_network.c.

◆ neterrno

#define neterrno errno

get last socket error code, linux version

Definition at line 670 of file n_network.c.

◆ netstrerror

#define netstrerror ( code )

Value:

    ({           \
    char* __errmsg = NULL;             \
    errno = 0;                         \
    __errmsg = strdup(strerror(code)); \
    if (errno == ENOMEM) {             \
        __errmsg = NULL;               \
    }                                  \
    __errmsg;                          \
})

BSD style errno string NO WORKING ON REDHAT.

get last socket error code as a string, linux version

Definition at line 685 of file n_network.c.

◆ NETW_BUFLEN_CAST

#define NETW_BUFLEN_CAST ( x ) ((size_t)(x))

cast for send/recv buffer length: int on Windows, size_t on POSIX

Definition at line 656 of file n_network.c.

◆ NETW_CALL_RETRY

#define NETW_CALL_RETRY	(	__retvar,
		__expression,
		__max_tries
	)

Value:

    do {                                                                                                                         \
        int __nb_retries = 0;                                                                                                    \
        do {                                                                                                                     \
            __retvar = (__expression);                                                                                           \
            __nb_retries++;                                                                                                      \
        } while (__retvar == -1 && (errno == EINTR || errno == EAGAIN || errno == EWOULDBLOCK) && __nb_retries < (__max_tries)); \
        if (__retvar == -1 && __nb_retries >= (__max_tries)) __retvar = -2;                                                      \
    } while (0)

network-aware retry macro: retries on EINTR and EAGAIN/EWOULDBLOCK

Definition at line 659 of file n_network.c.

Function Documentation

◆ attribute()

__attribute__ ( (unused) )

Examples: ex_fluid.c, ex_gui_dictionary.c, and ex_gui_particles.c.

Definition at line 1233 of file n_network.c.

References mode, and netw_ssl_lockarray.

Referenced by main().

Here is the caller graph for this function:

◆ _n_mock_parse_request()

static void _n_mock_parse_request	(	const char *	buf,
		N_HTTP_REQUEST *	req
	)

static

Parse a raw HTTP request buffer into an N_HTTP_REQUEST.

Parameters

buf	raw request data (null-terminated)
req	output request structure (must be zeroed by caller)

Definition at line 5352 of file n_network.c.

References N_HTTP_REQUEST::body, char_to_nstr(), N_HTTP_REQUEST::headers, list_push(), N_HTTP_REQUEST::method, new_generic_list(), N_HTTP_REQUEST::path, and N_HTTP_REQUEST::query.

Referenced by n_mock_server_run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _n_mock_request_clean()

static void _n_mock_request_clean ( N_HTTP_REQUEST * req )

static

Free the contents of an N_HTTP_REQUEST (does not free the struct itself).

Parameters

req	request to clean

Definition at line 5429 of file n_network.c.

References N_HTTP_REQUEST::body, free_nstr, N_HTTP_REQUEST::headers, and list_destroy().

Referenced by n_mock_server_run().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ _n_parse_query_params()

static void _n_parse_query_params	(	N_URL *	u,
		const char *	qs
	)

static

Definition at line 5579 of file n_network.c.

References N_URL_PARAM::key, N_URL_MAX_PARAMS, N_URL::nb_params, N_URL::params, and N_URL_PARAM::value.

Referenced by n_url_parse().

Here is the caller graph for this function:

◆ _netw_capture_connect_error()

static void _netw_capture_connect_error	(	const char *	fmt,
			...
	)

static

capture a pre-connection error (thread-local)

Definition at line 84 of file n_network.c.

References s_connect_err_count, s_connect_err_next, and s_connect_errors.

Referenced by netw_connect_ex().

Here is the caller graph for this function:

◆ _netw_capture_error()

static void _netw_capture_error	(	NETWORK *	netw,
		const char *	fmt,
			...
	)

static

capture an error into a NETWORK handle's ring buffer

Definition at line 73 of file n_network.c.

References netw, NETWORK::netw_err_count, NETWORK::netw_err_next, and NETWORK::netw_errors.

Referenced by n_sse_connect(), n_ws_connect(), n_ws_send(), netw_accept_from_ex(), netw_add_msg(), netw_bind_udp(), netw_connect_ex(), netw_connect_udp(), netw_make_listening(), netw_pool_add(), netw_pool_remove(), netw_recv_func(), netw_send_func(), netw_set_blocking(), netw_setsockopt(), netw_ssl_do_handshake(), netw_ssl_set_ca(), netw_ssl_set_client_cert(), netw_start_thr_engine(), netw_stop_thr_engine(), netw_udp_recvfrom(), netw_udp_sendto(), netw_wait_msg(), recv_data(), recv_ssl_data(), recv_udp_data(), send_data(), send_ssl_data(), and send_udp_data().

Here is the caller graph for this function:

◆ _proxy_tcp_connect()

static int _proxy_tcp_connect	(	const char *	host,
		int	port
	)

static

Helper: connect a plain TCP socket to host:port.

Parameters

host	hostname
port	port number

Returns: socket fd on success, -1 on failure.

Definition at line 5711 of file n_network.c.

References LOG_ERR, n_log, port, and port_str.

Referenced by n_proxy_connect_socks5(), n_proxy_connect_tunnel(), and n_proxy_connect_tunnel_ssl().

Here is the caller graph for this function:

◆ _sse_read_byte()

static ssize_t _sse_read_byte	(	NETWORK *	netw,
		char *	ch,
		volatile int *	stop_flag
	)

static

read one byte from an SSE connection (SSL or plain).

Uses a short poll timeout so the caller can check stop_flag.

Parameters

netw	NETWORK connection
ch	output byte
stop_flag	pointer to atomic stop flag (checked on timeout)

Returns: 1 on success, 0 on timeout (retry), -1 on error or EOF

Definition at line 5112 of file n_network.c.

References __n_assert, NETWORK::crypto_algo, NETWORK::link, netw, NETW_ENCRYPT_OPENSSL, N_SOCKET::sock, and NETWORK::ssl.

Referenced by n_sse_connect().

Here is the caller graph for this function:

◆ _sse_write()

static ssize_t _sse_write	(	NETWORK *	netw,
		const void *	buf,
		size_t	len
	)

static

write bytes to an SSE connection (SSL or plain)

Parameters

netw	NETWORK connection
buf	data to write
len	number of bytes

Returns: number of bytes written, or -1 on error

Definition at line 5155 of file n_network.c.

References __n_assert, NETWORK::crypto_algo, NETWORK::link, netw, NETW_ENCRYPT_OPENSSL, N_SOCKET::sock, and NETWORK::ssl.

Referenced by n_sse_connect().

Here is the caller graph for this function:

◆ _ws_read()

static ssize_t _ws_read	(	N_WS_CONN *	conn,
		void *	buf,
		size_t	len
	)

static

read exactly len bytes from a WebSocket connection

Parameters

conn	WebSocket connection
buf	output buffer
len	number of bytes to read

Returns: number of bytes read, or -1 on error

Definition at line 4645 of file n_network.c.

References __n_assert, NETWORK::crypto_algo, NETWORK::link, N_WS_CONN::netw, NETW_ENCRYPT_OPENSSL, N_SOCKET::sock, and NETWORK::ssl.

Referenced by n_ws_recv().

Here is the caller graph for this function:

◆ _ws_write()

static ssize_t _ws_write	(	N_WS_CONN *	conn,
		const void *	buf,
		size_t	len
	)

static

write bytes to a WebSocket connection (SSL or plain)

Parameters

conn	WebSocket connection
buf	data to write
len	number of bytes

Returns: number of bytes written, or -1 on error

Definition at line 4629 of file n_network.c.

References __n_assert, NETWORK::crypto_algo, NETWORK::link, N_WS_CONN::netw, NETW_ENCRYPT_OPENSSL, N_SOCKET::sock, and NETWORK::ssl.

Referenced by n_ws_connect(), and n_ws_send().

Here is the caller graph for this function:

◆ get_in_addr()

char * get_in_addr ( struct sockaddr * sa )

get sockaddr, IPv4 or IPv6

Parameters

sa	addrinfo to get

Returns: socket address

Definition at line 811 of file n_network.c.

Referenced by netw_accept_from_ex(), netw_bind_udp(), netw_connect_ex(), netw_connect_udp(), and netw_make_listening().

Here is the caller graph for this function:

◆ netw_get_openssl_error_string()

char * netw_get_openssl_error_string ( )

get the OpenSSL error string

Returns: allocated string containing the error messages, or NULL

Definition at line 1160 of file n_network.c.

◆ netw_init_locks()

static void netw_init_locks ( void )

static

Definition at line 1250 of file n_network.c.

References netw_ssl_lockarray.

Referenced by netw_init_openssl().

Here is the caller graph for this function:

◆ netw_kill_locks()

static void netw_kill_locks ( void )

static

Definition at line 1264 of file n_network.c.

References netw_ssl_lockarray.

Referenced by netw_unload_openssl().

Here is the caller graph for this function:

◆ netw_new()

NETWORK * netw_new	(	size_t	send_list_limit,
		size_t	recv_list_limit
	)

Return an empty allocated network ready to be netw_closed.

Parameters

send_list_limit	Thread engine number of tosend message limit. From UNLIMITED_LIST_ITEMS (0) to MAX_LIST_ITEMS (SIZE_MAX).
recv_list_limit	Thread engine number of received message limit. From UNLIMITED_LIST_ITEMS (0) to MAX_LIST_ITEMS (SIZE_MAX).

Returns: NULL or a new empty network

Definition at line 703 of file n_network.c.

References __n_assert, NETWORK::addr_infos_loaded, NETWORK::certificate, NETWORK::crypto_algo, NETWORK::ctx, NETWORK::deplete_queues_timeout, NETWORK::deplete_socket_timeout, NETWORK::eventbolt, Free, N_SOCKET::hints, N_SOCKET::ip, N_SOCKET::is_blocking, NETWORK::key, NETWORK::link, LOG_ERR, Malloc, MAX_LIST_ITEMS, NETWORK::method, NETWORK::mode, n_log, NETWORK::nb_pending, NETWORK::nb_running_threads, netw, netw_atomic_write_state, netw_close(), NETW_ENCRYPT_NONE, NETW_EXITED, NETW_THR_ENGINE_STOPPED, NETWORK_TCP, new_generic_list(), NETWORK::pools, N_SOCKET::port, N_SOCKET::raddr, NETWORK::recv_buf, NETWORK::recv_data, recv_data(), NETWORK::recvbolt, NETWORK::send_blocker, NETWORK::send_buf, NETWORK::send_data, send_data(), NETWORK::send_queue_consecutive_wait, NETWORK::sendbolt, NETWORK::so_keepalive, NETWORK::so_linger, NETWORK::so_rcvbuf, NETWORK::so_rcvtimeo, NETWORK::so_reuseaddr, NETWORK::so_sndbuf, NETWORK::so_sndtimeo, N_SOCKET::sock, NETWORK::ssl, NETWORK::tcpnodelay, NETWORK::threaded_engine_status, NETWORK::transport_type, NETWORK::user_id, and NETWORK::wait_close_timeout.

Referenced by netw_accept_from_ex(), netw_bind_udp(), netw_connect_ex(), netw_connect_udp(), and netw_make_listening().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ netw_ssl_print_errors()

void netw_ssl_print_errors ( SOCKET socket )

print OpenSSL errors for a given socket

Parameters

socket the socket to report errors for

Definition at line 1187 of file n_network.c.

References LOG_ERR, and n_log.

Referenced by netw_accept_from_ex(), netw_set_crypto(), netw_set_crypto_chain(), netw_set_crypto_pem(), netw_ssl_connect_client(), netw_ssl_do_handshake(), netw_ssl_set_ca(), and netw_ssl_set_client_cert().

Here is the caller graph for this function:

Variable Documentation

◆ N_ENUM_netw_code_type

N_ENUM_netw_code_type

network error code

Definition at line 127 of file n_network.c.

◆ netw_ssl_lockarray

pthread_mutex_t* netw_ssl_lockarray

static

Definition at line 1231 of file n_network.c.

Referenced by __attribute__(), netw_init_locks(), and netw_kill_locks().

◆ OPENSSL_IS_INITIALIZED

int OPENSSL_IS_INITIALIZED = 0

static

Definition at line 1274 of file n_network.c.

Referenced by netw_init_openssl(), and netw_unload_openssl().

◆ s_connect_err_count

__thread int s_connect_err_count = 0

static

Definition at line 69 of file n_network.c.

Referenced by _netw_capture_connect_error(), n_netw_clear_connect_errors(), n_netw_get_connect_error(), and n_netw_get_connect_error_count().

◆ s_connect_err_next

__thread int s_connect_err_next = 0

static

Definition at line 70 of file n_network.c.

Referenced by _netw_capture_connect_error(), n_netw_clear_connect_errors(), and n_netw_get_connect_error().

◆ s_connect_errors

__thread char s_connect_errors[8][512]

static

Definition at line 68 of file n_network.c.

Referenced by _netw_capture_connect_error(), and n_netw_get_connect_error().

Macros

Functions

Variables

Detailed Description

Macro Definition Documentation

◆ _Thread_local

◆ neterrno

◆ netstrerror

◆ NETW_BUFLEN_CAST

◆ NETW_CALL_RETRY

Function Documentation

◆ __attribute__()

◆ _n_mock_parse_request()

◆ _n_mock_request_clean()

◆ _n_parse_query_params()

◆ _netw_capture_connect_error()

◆ _netw_capture_error()

◆ _proxy_tcp_connect()

◆ _sse_read_byte()

◆ _sse_write()

◆ _ws_read()

◆ _ws_write()

◆ get_in_addr()

◆ netw_get_openssl_error_string()

◆ netw_init_locks()

◆ netw_kill_locks()

◆ netw_new()

◆ netw_ssl_print_errors()

Variable Documentation

◆ N_ENUM_netw_code_type

◆ netw_ssl_lockarray

◆ OPENSSL_IS_INITIALIZED

◆ s_connect_err_count

◆ s_connect_err_next

◆ s_connect_errors

◆ attribute()
