ex_network_sni.c File Reference

#include "nilorea/n_common.h"
#include "nilorea/n_log.h"
#include "nilorea/n_network.h"
#include "nilorea/n_str.h"
#include "nilorea/n_x509.h"
#include <pthread.h>
#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include <unistd.h>
#include <openssl/ssl.h>
#include <openssl/x509.h>

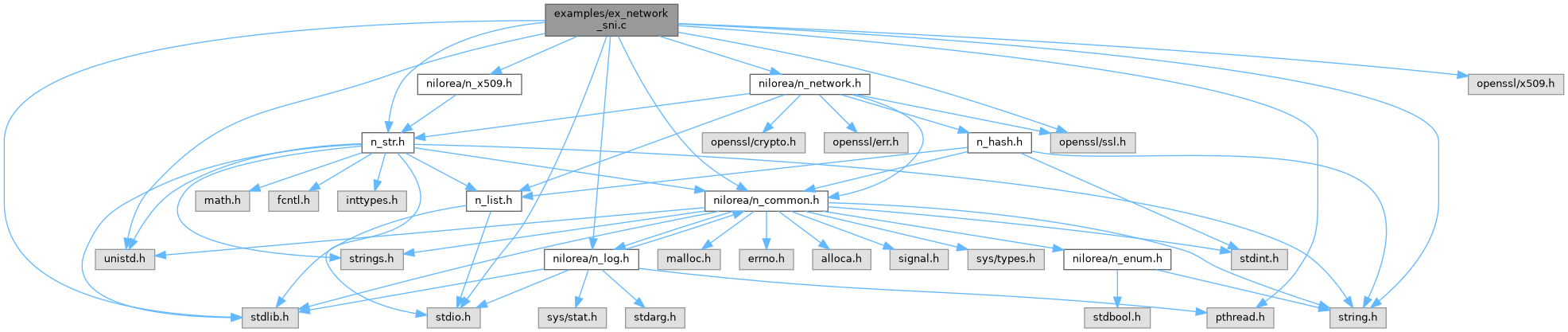

Include dependency graph for ex_network_sni.c:

Go to the source code of this file.

Data Structures
struct	CA_CTX
	CA used by the server to mint per-host leaves. More...
struct	SRV
	server worker context More...

Macros
#define	MSG_LEN   18
	fixed exchange message length (both messages are 17 chars + NUL)
#define	SNI_HOST   "test.host.example"
	the host name the client requests via SNI

Functions
static NETWORK *	bind_free (char *port_out, size_t port_out_len)
int	main (int argc, char **argv)
static int	pick_cb (const char *sni, N_STR **cert_pem, N_STR **key_pem, void *user_data)
void	process_args (int argc, char **argv)
static void *	server_fn (void *p)

---

Data Structure Documentation

CA_CTX

struct CA_CTX

CA used by the server to mint per-host leaves.

Examples

ex_network_sni.c.

Definition at line 48 of file ex_network_sni.c.

Collaboration diagram for CA_CTX:

Data Fields
N_STR *	cert
N_STR *	key

SRV

struct SRV

server worker context

Examples

ex_network_sni.c.

Definition at line 54 of file ex_network_sni.c.

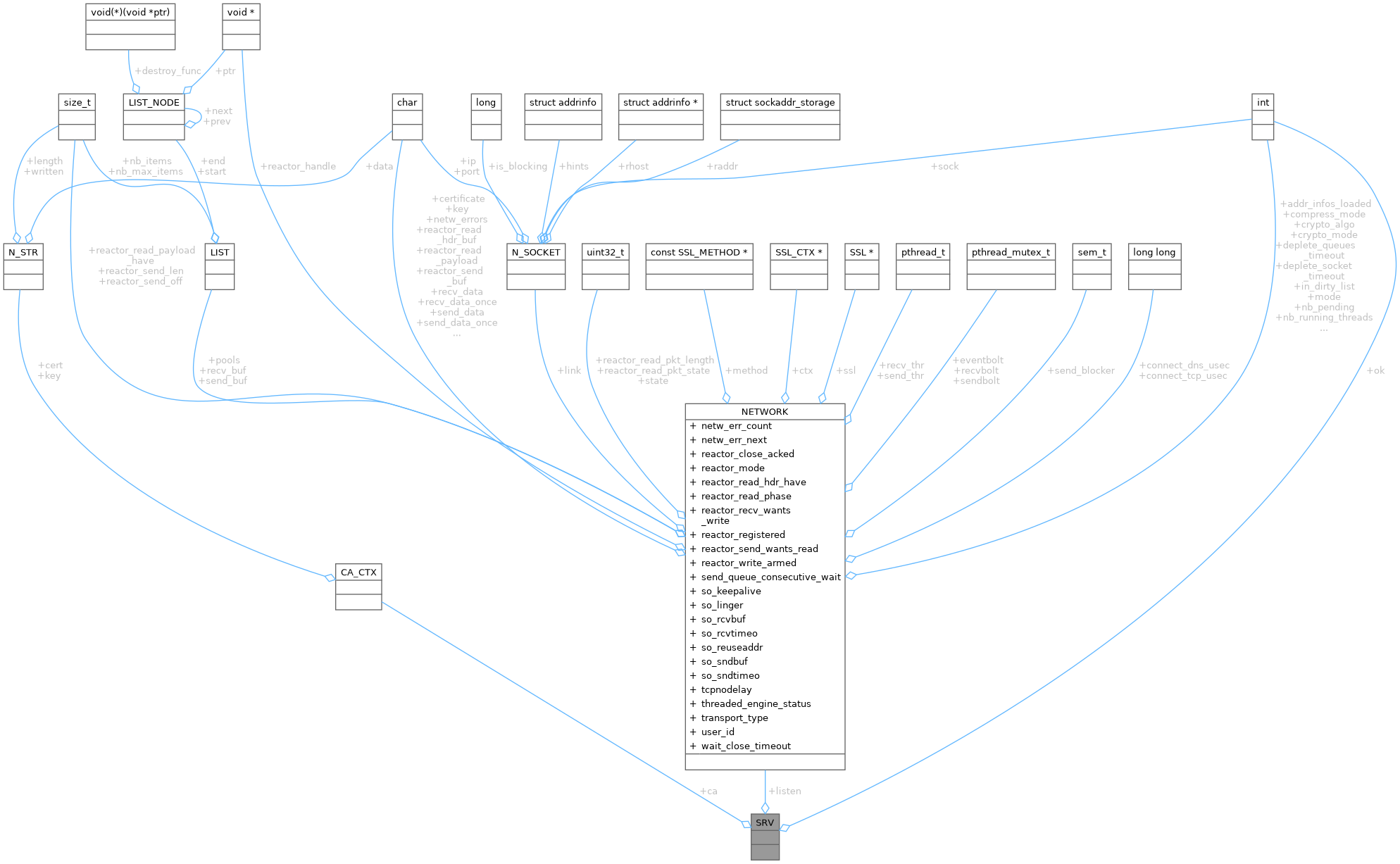

Collaboration diagram for SRV:

Data Fields
CA_CTX *	ca
NETWORK *	listen
int	ok

Macro Definition Documentation

MSG_LEN

#define MSG_LEN   18

fixed exchange message length (both messages are 17 chars + NUL)

Examples

ex_network_sni.c.

Definition at line 45 of file ex_network_sni.c.

SNI_HOST

#define SNI_HOST   "test.host.example"

the host name the client requests via SNI

Examples

ex_network_sni.c.

Definition at line 43 of file ex_network_sni.c.

Function Documentation

bind_free()

static NETWORK * bind_free ( char *  port_out, size_t  port_out_len  )

static

Examples

ex_network_sni.c.

Definition at line 119 of file ex_network_sni.c.

References netw_close(), netw_make_listening(), and NETWORK_IPALL.

Referenced by main().

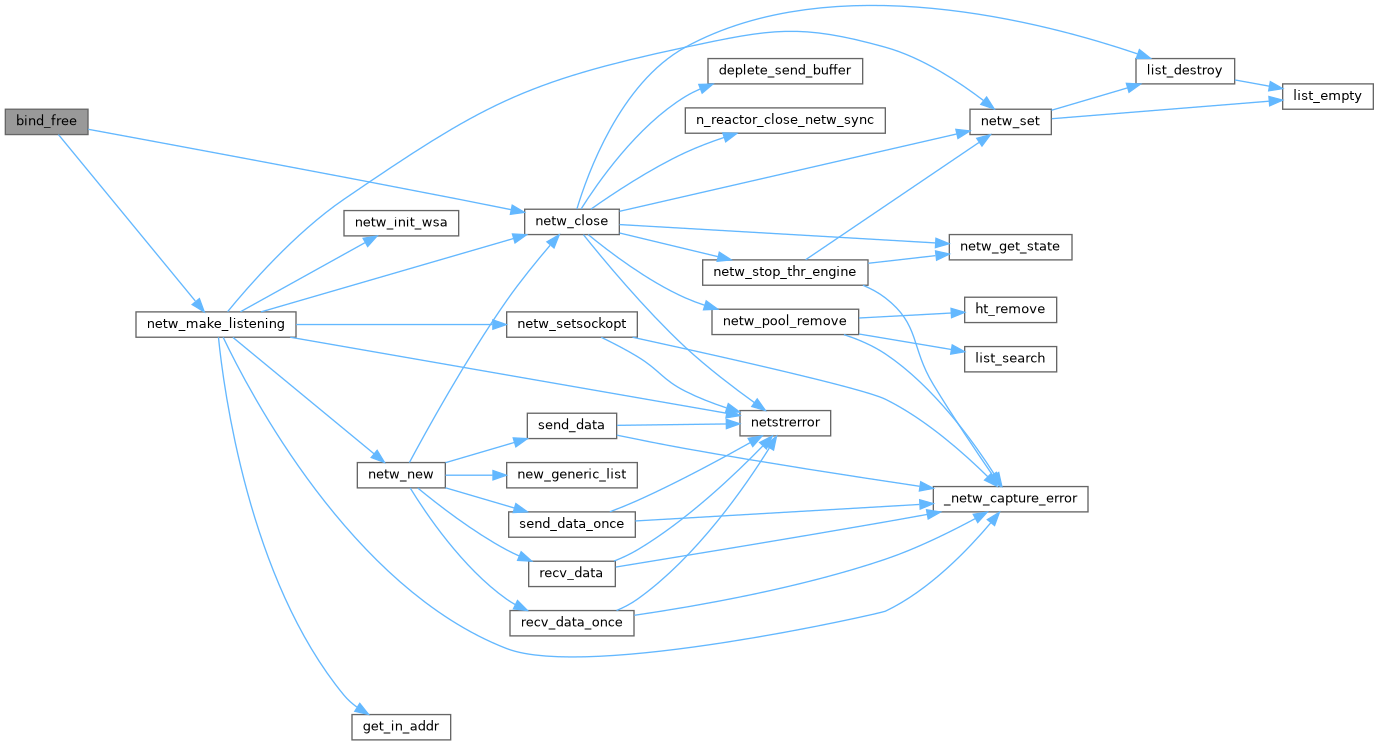

Here is the call graph for this function:

Here is the caller graph for this function:

main()

int main	(	int	argc,
		char **	argv
	)

Definition at line 135 of file ex_network_sni.c.

References bind_free(), SRV::ca, CA_CTX::cert, failures, free_nstr, CA_CTX::key, SRV::listen, LOG_ERR, LOG_NOTICE, MSG_LEN, n_log, n_x509_generate_ca(), netw_close(), netw_init_openssl(), netw_ssl_connect_client_to(), netw_ssl_do_handshake(), netw_ssl_get_verify_result(), netw_ssl_set_verify(), netw_unload_openssl(), NETWORK_IPALL, SRV::ok, port, process_args(), recv_ssl_data(), send_ssl_data(), server_fn(), set_log_level(), SNI_HOST, and NETWORK::ssl.

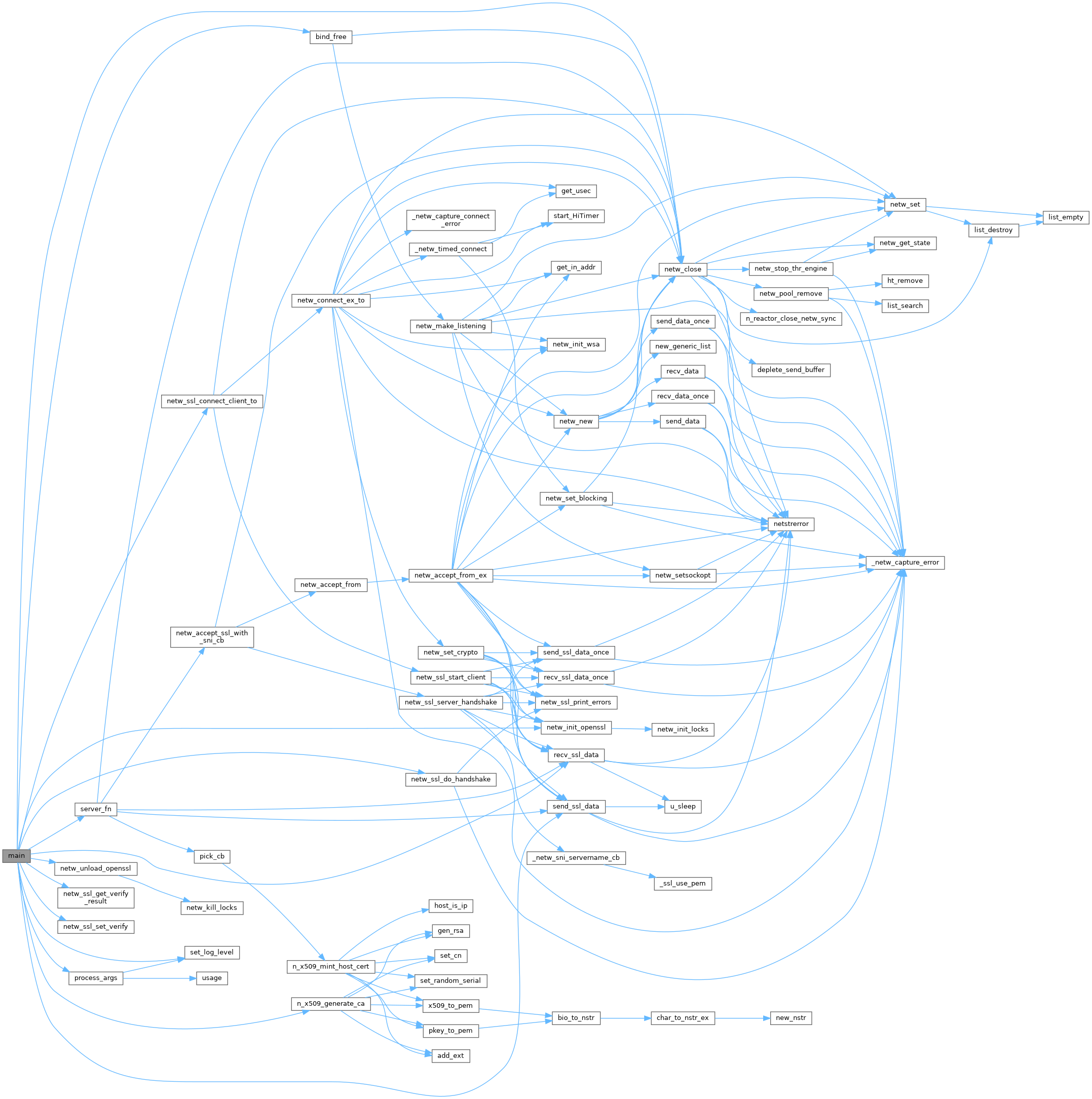

Here is the call graph for this function:

pick_cb()

static int pick_cb ( const char *  sni, N_STR **  cert_pem, N_STR **  key_pem, void *  user_data  )

static

Examples

ex_network_sni.c.

Definition at line 93 of file ex_network_sni.c.

References CA_CTX::cert, CA_CTX::key, LOG_DEBUG, n_log, and n_x509_mint_host_cert().

Referenced by server_fn().

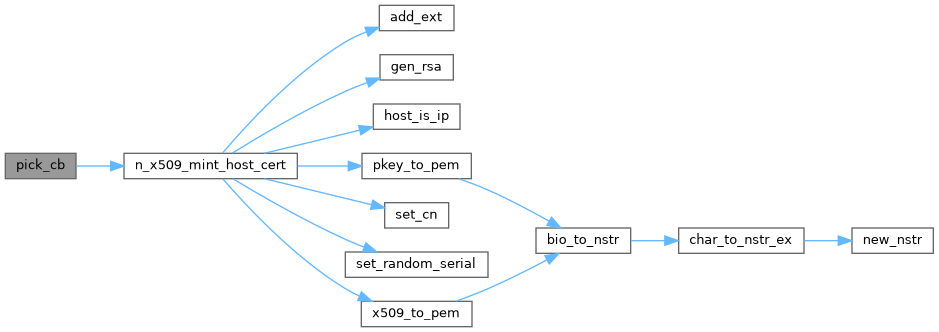

Here is the call graph for this function:

Here is the caller graph for this function:

process_args()

void process_args	(	int	argc,
		char **	argv
	)

Definition at line 61 of file ex_network_sni.c.

References LOG_DEBUG, LOG_ERR, LOG_INFO, LOG_NOTICE, LOG_NULL, and set_log_level().

Here is the call graph for this function:

server_fn()

static void * server_fn ( void *  p )

static

Examples

ex_network_sni.c.

Definition at line 101 of file ex_network_sni.c.

References SRV::ca, SRV::listen, LOG_NOTICE, MSG_LEN, n_log, netw_accept_ssl_with_sni_cb(), netw_close(), SRV::ok, pick_cb(), recv_ssl_data(), and send_ssl_data().

Referenced by main().

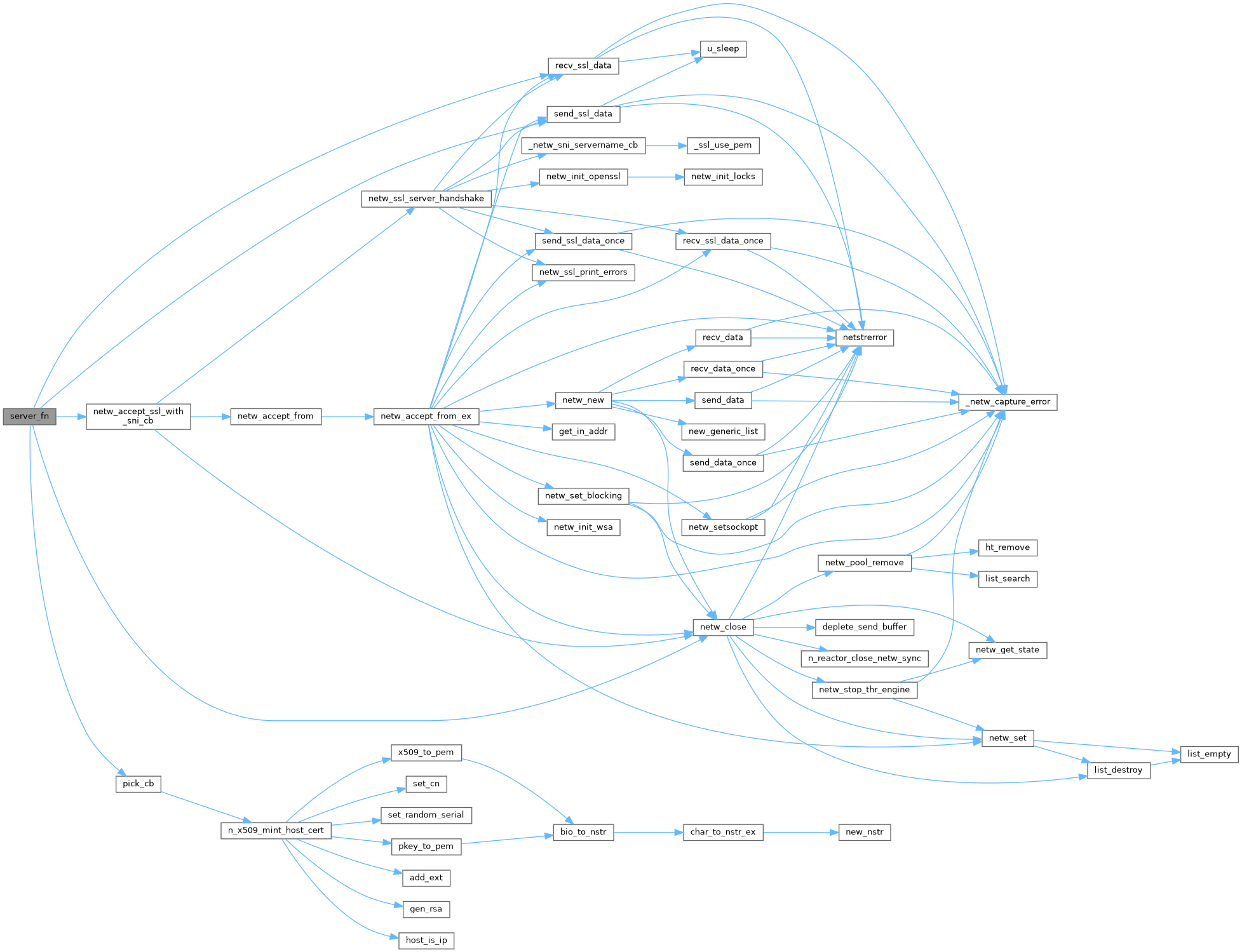

Here is the call graph for this function:

Here is the caller graph for this function:
