n_trees.h File Reference

trees module headers More...

#include "nilorea/n_common.h"
#include "nilorea/n_str.h"
#include "nilorea/n_log.h"
#include "nilorea/n_list.h"
#include "nilorea/n_hash.h"
#include "nilorea/n_3d.h"

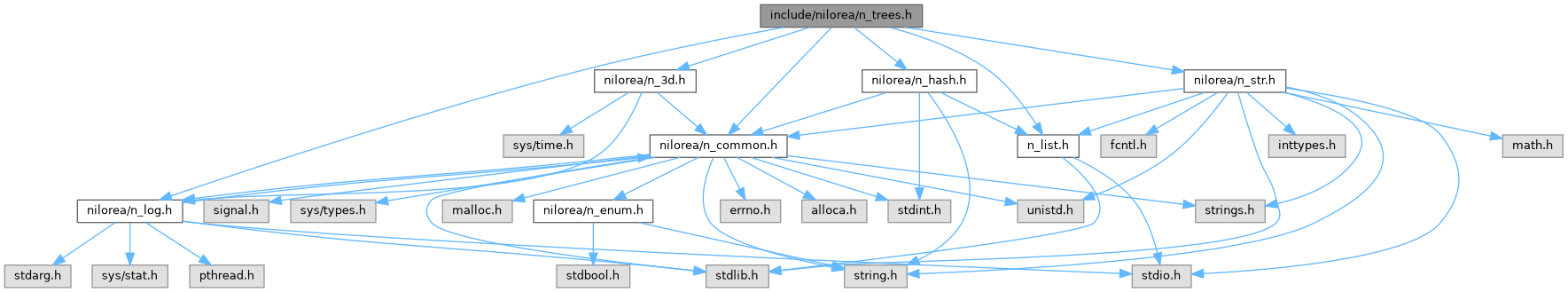

Include dependency graph for n_trees.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
union	COORD_VALUE
	Union to store the coordinate values. More...
struct	NODE_DATA
	structure of a TREE node data More...
union	NODE_DATA_TYPES
	union of the possibles data values of a TREE node More...
struct	OCTREE
	structure of an OCTREE More...
struct	OCTREE_NODE
	structure of an OCTREE node More...
struct	POINT2D
	Structure for a POINT2D in the 2D space. More...
struct	POINT3D
	Structure for a POINT3D in the 3D space. More...
struct	QUADTREE
	structure of a quad tree More...
struct	QUADTREE_NODE
	structure of a quad tree node More...
struct	TREE
	structure of a TREE More...
struct	TREE_NODE
	structure of a n-ary TREE node More...

Typedefs
typedef int(*	compare_func) (COORD_VALUE a, COORD_VALUE b)
	function pointer types for comparison
typedef void(*	print_func) (COORD_VALUE val)
	function pointer types for debug print

Enumerations
enum	COORD_TYPE { COORD_INT , COORD_FLOAT , COORD_DOUBLE }
	Enum for coordinate types. More...

Functions
QUADTREE_NODE *	create_node (COORD_VALUE x, COORD_VALUE y, void *data_ptr)
	create a new quadtree node with position and data pointer
OCTREE *	create_octree (int type)
	create a new octree for the given coordinate type
OCTREE_NODE *	create_octree_node (POINT3D point, void *data_ptr)
	create a new octree node with position and data pointer
QUADTREE *	create_quadtree (int coord_type)
	create a new quadtree for the given coordinate type
void	free_octree (OCTREE *OCTREE)
	free the entire octree and its root
void	free_octree_node (OCTREE_NODE *node)
	recursively free an octree node and its children
void	free_quadtree (QUADTREE_NODE *root)
	recursively free all nodes of a quadtree
void	insert (QUADTREE *qt, QUADTREE_NODE **root, COORD_VALUE x, COORD_VALUE y, void *data_ptr)
	insert a point with data into the quadtree
void	insert_octree (OCTREE *OCTREE, POINT3D point, void *data_ptr)
	insert a point with data into the octree
TREE *	new_tree ()
	create a new empty n-ary TREE
QUADTREE_NODE *	search (QUADTREE *qt, QUADTREE_NODE *root, COORD_VALUE x, COORD_VALUE y)
	search for a point in the quadtree, return matching node or NULL
TREE_NODE *	tree_create_node (NODE_DATA value, void(*destroy_func)(void *ptr))
	create a TREE_NODE with the given value and optional destructor
int	tree_delete_node (TREE *tree, TREE_NODE *node)
	delete a TREE_NODE and all its children from the tree
void	tree_destroy (TREE **tree)
	destroy a TREE and all its nodes, set pointer to NULL
int	tree_insert_child (TREE_NODE *parent, TREE_NODE *child)
	insert a child node under the given parent node

Detailed Description

trees module headers

Author

Castagnier Mickael

Version

1.0

Date

07/08/2024

Definition in file n_trees.h.
