n_network_msg.h File Reference

Network messages , serialization tools. More...

#include <sys/param.h>
#include "n_str.h"
#include "n_list.h"
#include "n_3d.h"

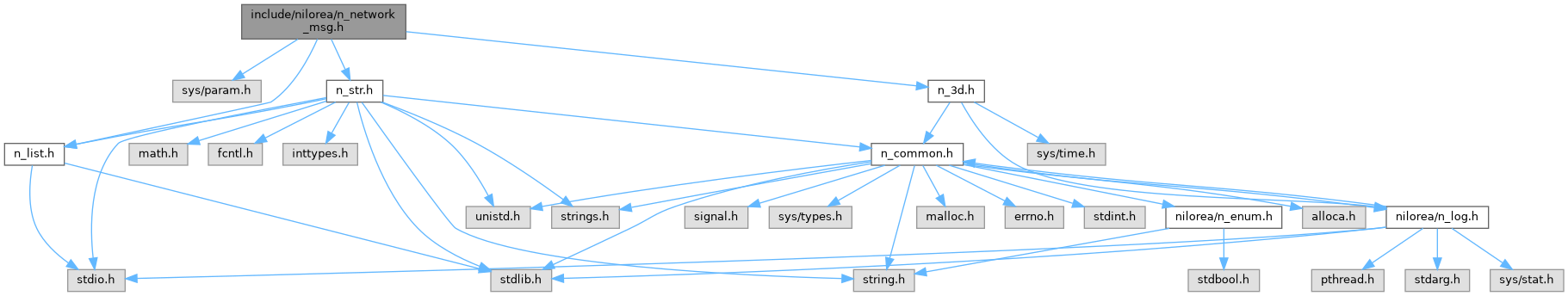

Include dependency graph for n_network_msg.h:

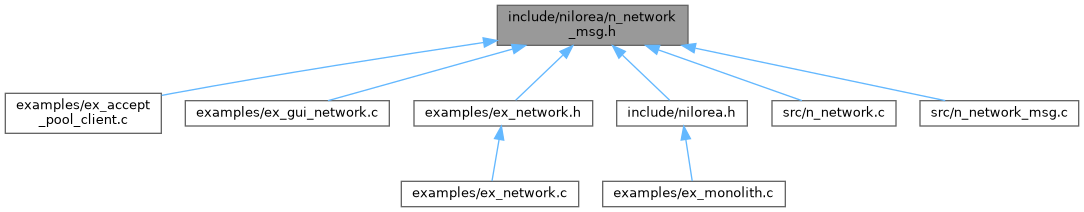

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	NETW_MSG
	network message, array of char and int More...

Macros
#define	NETMSG_BOX   8
	Network Message is box retrieving reply: (int x , int y , int z , N_STR *data )
#define	NETMSG_GET_BOX   7
	Network Message is box retrieve: int x , int y , int z.
#define	NETMSG_IDENT_REPLY_NOK   2
	Network Message is identification reply NON OK: (int)type , (int)id , (N_STR *)name , (N_STR *)password.
#define	NETMSG_IDENT_REPLY_OK   1
	Network Message is identification reply OK : (int)type , (int)id , (N_STR *)name , (N_STR *)password.
#define	NETMSG_IDENT_REQUEST   0
	Network Message is identification request: (int)type , (int)id , (N_STR *)name , (N_STR *)password.
#define	NETMSG_PING_REPLY   6
	Network Message is ping reply: (int)type , (int)id_from , (int)id_to.
#define	NETMSG_PING_REQUEST   5
	Network Message is ping request: (int)type , (int)id_from , (int)id_to.
#define	NETMSG_POSITION   4
	Network Message position: (int)type , (int)id , (int)X , (int)Y , (int)x_shift , (int)y_shift ,(int)vx ,(int)vy , (int)speed , (int)acceleration , (int)time_stamp.
#define	NETMSG_QUIT   9
	Network asking for exit.
#define	NETMSG_STRING   3
	Network Message is string: (int)type , (int)id , (N_STR *)name , (N_STR *)chan , (N_STR *)text , (int)color.
#define	NETW_MSG_MAX_STRING_LENGTH   (1024UL * 1024UL * 1024UL)
	Maximum allowed length for a single string inside a network message (default: 1 GB).

Functions
int	add_int_to_msg (NETW_MSG *msg, int value)
	add an int to the message
int	add_nb_to_msg (NETW_MSG *msg, double value)
	add a float/double to the message
int	add_nstrdup_to_msg (NETW_MSG *msg, N_STR *str)
	add a duplicate of a N_STR to the message
int	add_nstrptr_to_msg (NETW_MSG *msg, N_STR *str)
	add a N_STR pointer to the message without copying
int	add_strdup_to_msg (NETW_MSG *msg, const char *str)
	add a duplicate of a char string to the message
int	create_msg (NETW_MSG **msg)
	create a NETW_MSG object
int	delete_msg (NETW_MSG **msg)
	delete a NETW_MSG object
double	double_swap (double value)
	swap bytes of a double value
int	empty_msg (NETW_MSG **msg)
	empty a NETW_MSG object
int	get_int_from_msg (NETW_MSG *msg, int *value)
	get an int from the message
int	get_nb_from_msg (NETW_MSG *msg, double *value)
	get a float/double value from the message
int	get_nstr_from_msg (NETW_MSG *msg, N_STR **str)
	get a N_STR string from the message
int	get_str_from_msg (NETW_MSG *msg, char **str)
	get a char string from the message
double	htond (double value)
	convert host double to network byte order
NETW_MSG *	make_msg_from_str (N_STR *str)
	deserialize a N_STR into a NETW_MSG
N_STR *	make_str_from_msg (NETW_MSG *msg)
	serialize a NETW_MSG into a single N_STR
N_STR *	netmsg_make_ident (int type, int id, N_STR *name, N_STR *passwd)
	create an identification network message
N_STR *	netmsg_make_ping (int type, int id_from, int id_to, int time)
	create a ping network message
N_STR *	netmsg_make_position_msg (int id, double X, double Y, double vx, double vy, double acc_x, double acc_y, int time_stamp)
	create a position network message
N_STR *	netmsg_make_quit_msg (void)
	create a quit network message
N_STR *	netmsg_make_string_msg (int id_from, int id_to, N_STR *name, N_STR *chan, N_STR *txt, int color)
	create a string network message
int	netw_get_ident (N_STR *msg, int *type, int *ident, N_STR **name, N_STR **passwd)
	get identification data from a network message
int	netw_get_ping (N_STR *msg, int *type, int *from, int *to, int *time)
	get ping data from a network message
int	netw_get_position (N_STR *msg, int *id, double *X, double *Y, double *vx, double *vy, double *acc_x, double *acc_y, int *time_stamp)
	get position data from a network message
int	netw_get_quit (N_STR *msg)
	get quit data from a network message
int	netw_get_string (N_STR *msg, int *id, N_STR **name, N_STR **chan, N_STR **txt, int *color)
	get string data from a network message
int	netw_msg_get_type (N_STR *msg)
	get the type of a network message.
double	ntohd (double value)
	convert network double to host byte order

Detailed Description

Network messages , serialization tools.

Author

Castagnier Mickael

Version

1.0

Date

10/05/2005

Definition in file n_network_msg.h.
