n_dead_reckoning.h File Reference

Dead Reckoning API for latency hiding in networked games. More...

#include <stdbool.h>
#include <math.h>

Include dependency graph for n_dead_reckoning.h:

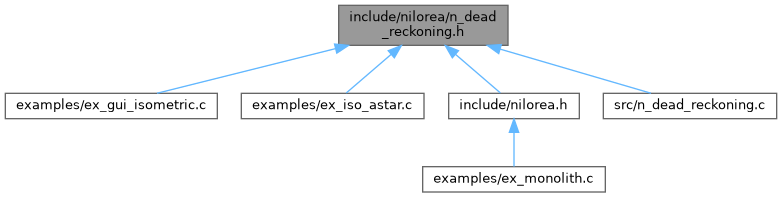

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	DR_ENTITY
	Dead reckoned entity with extrapolation and convergence state. More...
struct	DR_STATE
	A snapshot of entity kinematic state at a point in time. More...
struct	DR_VEC3
	3D vector used for position, velocity, and acceleration More...

Enumerations
enum	DR_ALGO { DR_ALGO_STATIC = 0 , DR_ALGO_VEL = 1 , DR_ALGO_VEL_ACC = 2 }
	Dead reckoning extrapolation algorithm. More...
enum	DR_BLEND { DR_BLEND_SNAP = 0 , DR_BLEND_PVB = 1 , DR_BLEND_CUBIC = 2 }
	Dead reckoning convergence/blending mode. More...

Functions
bool	dr_entity_check_threshold (const DR_ENTITY *entity, const DR_VEC3 *true_pos, const DR_VEC3 *true_vel, const DR_VEC3 *true_acc, double time)
	check if the owner's true state has diverged beyond the threshold
void	dr_entity_compute (DR_ENTITY *entity, double time, DR_VEC3 *out_pos)
	compute the dead reckoned display position at a given time
DR_ENTITY *	dr_entity_create (DR_ALGO algo, DR_BLEND blend_mode, double pos_threshold, double blend_time)
	create a new dead reckoning entity
void	dr_entity_destroy (DR_ENTITY **entity_ptr)
	destroy a dead reckoning entity and free its memory
DR_VEC3	dr_entity_extrapolate (const DR_ENTITY *entity, const DR_STATE *state, double dt)
	extrapolate a kinematic state forward by dt seconds
void	dr_entity_receive_state (DR_ENTITY *entity, const DR_VEC3 *pos, const DR_VEC3 *vel, const DR_VEC3 *acc, double time)
	receive a new authoritative state update from the network
void	dr_entity_set_algo (DR_ENTITY *entity, DR_ALGO algo)
	set the extrapolation algorithm
void	dr_entity_set_blend_mode (DR_ENTITY *entity, DR_BLEND blend_mode)
	set the convergence blending mode
void	dr_entity_set_blend_time (DR_ENTITY *entity, double blend_time)
	set the convergence blend duration
void	dr_entity_set_position (DR_ENTITY *entity, const DR_VEC3 *pos, const DR_VEC3 *vel, const DR_VEC3 *acc, double time)
	force-set entity position without blending
void	dr_entity_set_threshold (DR_ENTITY *entity, double threshold)
	set the position error threshold
static DR_VEC3	dr_vec3 (double x, double y, double z)
	Create a DR_VEC3 from components.
static DR_VEC3	dr_vec3_add (DR_VEC3 a, DR_VEC3 b)
	Vector addition: a + b.
static double	dr_vec3_distance (DR_VEC3 a, DR_VEC3 b)
	Distance between two points.
static double	dr_vec3_length (DR_VEC3 v)
	Length of vector.
static double	dr_vec3_length_sq (DR_VEC3 v)
	Squared length of vector.
static DR_VEC3	dr_vec3_lerp (DR_VEC3 a, DR_VEC3 b, double t)
	Linear interpolation: a + (b - a) * t.
static DR_VEC3	dr_vec3_scale (DR_VEC3 v, double s)
	Scalar multiplication: v * s.
static DR_VEC3	dr_vec3_sub (DR_VEC3 a, DR_VEC3 b)
	Vector subtraction: a - b.
static DR_VEC3	dr_vec3_zero (void)
	Zero vector.

Detailed Description

Dead Reckoning API for latency hiding in networked games.

Implements dead reckoning (DR) as described in:

• "Dead Reckoning: Latency Hiding for Networked Games" (Game Developer)
• "Believable Dead Reckoning for Networked Games" by Curtiss Murphy (Game Engine Gems 2, 2011)

Dead reckoning is a technique where every participant in a networked game simulates all entities using agreed-upon extrapolation algorithms. When the owner's true state diverges from the extrapolated state beyond a configurable threshold, a new state update is sent. On receipt, the remote side uses a convergence algorithm to smoothly blend from the predicted position to the newly received authoritative state.

Can be used together with n_trajectory for cubic Hermite spline interpolation between known states, while dead reckoning provides the network-level threshold checking and convergence blending.

Supports three extrapolation models:

• DR_ALGO_STATIC: entity stays at last known position
• DR_ALGO_VEL: P(t) = P0 + V0 * t
• DR_ALGO_VEL_ACC: P(t) = P0 + V0 * t + 0.5 * A0 * t^2

Supports three convergence/blending modes:

• DR_BLEND_SNAP: immediately snap to new state (no smoothing)
• DR_BLEND_PVB: Projective Velocity Blending (recommended)
• DR_BLEND_CUBIC: Cubic Bezier spline convergence

Usage:

// Create entity with default settings (VEL_ACC extrapolation, PVB blending)
DR_ENTITY *ent = dr_entity_create(DR_ALGO_VEL_ACC, DR_BLEND_PVB, 0.2, 5.0);

// When an authoritative state update arrives from the network:
DR_VEC3 pos = {10.0, 5.0, 0.0};
DR_VEC3 vel = {2.0, 1.0, 0.0};
DR_VEC3 acc = {0.0, 0.0, 0.0};
dr_entity_receive_state(ent, &pos, &vel, &acc, current_time);

// Each frame, compute the blended display position:
DR_VEC3 display_pos;
dr_entity_compute(ent, current_time, &display_pos);

// For the owning player: check if a network update should be sent:
DR_VEC3 true_pos = { ... };
DR_VEC3 true_vel = { ... };
DR_VEC3 true_acc = { ... };
if (dr_entity_check_threshold(ent, &true_pos, &true_vel, &true_acc, current_time)) {
    // send state update to other players
    dr_entity_receive_state(ent, &true_pos, &true_vel, &true_acc, current_time);
}

dr_entity_destroy(&ent);

Author

Castagnier Mickael

Version

1.0

Date

01/03/2026

Definition in file n_dead_reckoning.h.
