Data Structures
struct	N_HTTP3_RESPONSE
	Result of an HTTP/3 exchange. More...

Macros
#define	N_HTTP3_BODY_CAP (16u * 1024u * 1024u)
	Hard cap on the response body kept in memory (bytes).

#define	N_HTTP3_DEFAULT_TIMEOUT_MS 15000
	Default per-request budget (milliseconds) when the caller passes <= 0.

#define	N_HTTP3_REQ_ALLOW_ILLEGAL_HEADERS 1u
	n_http3_request_ex flag: send the caller's extra headers WITHOUT the built-in connection-specific / framing filter (so an otherwise-forbidden header such as transfer-encoding, connection or upgrade reaches the wire).

Functions
int	n_http3_available (void)
	Report whether HTTP/3 support was compiled into the library.

int	n_http3_get (const char url, int timeout_ms, N_HTTP3_RESPONSE out)
	Convenience wrapper: HTTP/3 GET of `url`.

int	n_http3_parse_url (const char url, char host, size_t hostsz, char port, size_t portsz, char path, size_t pathsz)
	Split an https URL into host, port and path (pure; available in every build).

int	n_http3_request (const char method, const char url, const char headers, const unsigned char body, size_t body_len, int timeout_ms, N_HTTP3_RESPONSE *out)
	Perform one blocking HTTP/3 request over a fresh QUIC connection.

int	n_http3_request_ex (const char method, const char url, const char headers, const unsigned char body, size_t body_len, int timeout_ms, unsigned flags, N_HTTP3_RESPONSE *out)
	Perform one blocking HTTP/3 request, with request flags.

void	n_http3_response_free (N_HTTP3_RESPONSE *r)
	Free the heap buffers held by `r` and zero the struct (safe on NULL / zeroed).

Detailed Description

Data Structure Documentation

◆ N_HTTP3_RESPONSE

struct N_HTTP3_RESPONSE

Result of an HTTP/3 exchange.

Free the inner buffers with n_http3_response_free.

Definition at line 69 of file n_http3.h.

Collaboration diagram for N_HTTP3_RESPONSE:

Data Fields
unsigned char *	body	Response body bytes (NOT NUL-terminated), or NULL.
size_t	body_len	Number of valid bytes in body.
char *	error	Failure reason (heap), or NULL on a completed exchange.
char *	headers	Response header block as joined "name: value\r\n" lines (lowercased names), or NULL.
int	status	HTTP status code, or 0 if none was received.

Macro Definition Documentation

◆ N_HTTP3_BODY_CAP

#define N_HTTP3_BODY_CAP (16u * 1024u * 1024u)

Hard cap on the response body kept in memory (bytes).

Definition at line 58 of file n_http3.h.

◆ N_HTTP3_DEFAULT_TIMEOUT_MS

#define N_HTTP3_DEFAULT_TIMEOUT_MS 15000

Default per-request budget (milliseconds) when the caller passes <= 0.

Definition at line 56 of file n_http3.h.

◆ N_HTTP3_REQ_ALLOW_ILLEGAL_HEADERS

#define N_HTTP3_REQ_ALLOW_ILLEGAL_HEADERS 1u

n_http3_request_ex flag: send the caller's extra headers WITHOUT the built-in connection-specific / framing filter (so an otherwise-forbidden header such as transfer-encoding, connection or upgrade reaches the wire).

For protocol-conformance and request-smuggling security testing of how an HTTP/3 endpoint or a downgrading front-end handles an illegal framing header. Pseudo-headers (a name starting with ':') are still rejected. Use only against authorized targets.

Definition at line 66 of file n_http3.h.

Function Documentation

◆ n_http3_available()

int n_http3_available ( void )

Report whether HTTP/3 support was compiled into the library.

Returns: 1 when built with HAVE_HTTP3 (n_http3_request can run), 0 otherwise.

Definition at line 1104 of file n_http3.c.

Referenced by main().

Here is the caller graph for this function:

◆ n_http3_get()

int n_http3_get	(	const char *	url,
		int	timeout_ms,
		N_HTTP3_RESPONSE *	out
	)

Convenience wrapper: HTTP/3 GET of url.

Parameters

url	The absolute https URL. NULL/empty returns -1.
timeout_ms	Overall budget in ms; <= 0 uses the default.
out	Result (see n_http3_request). NULL returns -1.

Returns: 0 on a completed exchange, -1 otherwise.

Definition at line 128 of file n_http3.c.

References n_http3_request().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_http3_parse_url()

int n_http3_parse_url	(	const char *	url,
		char *	host,
		size_t	hostsz,
		char *	port,
		size_t	portsz,
		char *	path,
		size_t	pathsz
	)

Split an https URL into host, port and path (pure; available in every build).

Only the https scheme is accepted. When the URL omits the port, "443" is written. When it omits the path, "/" is written. IPv6 literals in brackets are accepted and the brackets are stripped from the host.

Parameters

url	The absolute URL (must start with "https://"). NULL returns -1.
host	Out buffer for the host. May be NULL to skip.
hostsz	Size of `host`.
port	Out buffer for the port (decimal string). May be NULL to skip.
portsz	Size of `port`.
path	Out buffer for the path (with a leading '/'). May be NULL to skip.
pathsz	Size of `path`.

Returns: 0 on success, -1 on a malformed URL or a too-small buffer.

Definition at line 57 of file n_http3.c.

References port.

Referenced by test_parse_url().

Here is the caller graph for this function:

◆ n_http3_request()

int n_http3_request	(	const char *	method,
		const char *	url,
		const char *	headers,
		const unsigned char *	body,
		size_t	body_len,
		int	timeout_ms,
		N_HTTP3_RESPONSE *	out
	)

Perform one blocking HTTP/3 request over a fresh QUIC connection.

Resolves the host, opens a QUIC connection with ALPN "h3", sends the request, and collects the response. On success out->status is set and out->error is NULL; on failure the function returns -1 and out->error holds the reason. The caller always frees out with n_http3_response_free.

Parameters

method	The HTTP method (e.g. "GET", "POST"). NULL uses "GET".
url	The absolute https URL. NULL/empty returns -1.
headers	Optional extra request headers as "Name: Value\r\n" lines, or NULL.
body	Optional request body bytes, or NULL.
body_len	Length of `body` in bytes (0 when none).
timeout_ms	Overall budget in ms; <= 0 uses N_HTTP3_DEFAULT_TIMEOUT_MS.
out	Result, zeroed then filled. NULL returns -1.

Returns: 0 on a completed exchange (status received), -1 otherwise (out->error set).

Definition at line 1108 of file n_http3.c.

References N_HTTP3_RESPONSE::error.

Referenced by n_http3_get(), n_http3_request_ex(), and test_request_guards().

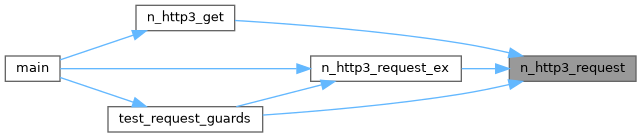

Here is the caller graph for this function:

◆ n_http3_request_ex()

int n_http3_request_ex	(	const char *	method,
		const char *	url,
		const char *	headers,
		const unsigned char *	body,
		size_t	body_len,
		int	timeout_ms,
		unsigned	flags,
		N_HTTP3_RESPONSE *	out
	)

Perform one blocking HTTP/3 request, with request flags.

As n_http3_request, plus flags. With N_HTTP3_REQ_ALLOW_ILLEGAL_HEADERS the caller's extra headers bypass the connection-specific / framing filter, so a normally-forbidden header (transfer-encoding, connection, upgrade, keep-alive, proxy-connection) is placed on the HTTP/3 request as-is. This is for protocol-conformance and request-smuggling security testing (how an endpoint or a downgrading front-end treats an illegal framing header); pseudo-headers (names starting with ':') are still rejected. n_http3_request is exactly n_http3_request_ex with flags 0.

Parameters

method	The HTTP method (e.g. "GET", "POST"). NULL uses "GET".
url	The absolute https URL. NULL/empty returns -1.
headers	Optional extra request headers as "Name: Value\r\n" lines, or NULL.
body	Optional request body bytes, or NULL.
body_len	Length of `body` in bytes (0 when none).
timeout_ms	Overall budget in ms; <= 0 uses N_HTTP3_DEFAULT_TIMEOUT_MS.
flags	Bitwise OR of N_HTTP3_REQ_* flags (0 for the default, filtered behaviour).
out	Result, zeroed then filled. NULL returns -1.
