Data Structures
struct	N_FLUID
	structure of a fluid More...

struct	N_FLUID_THREAD_PARAMS
	structure passed to a threaded fluid process More...

Macros
#define	_z(__fluid, __component) ((__fluid->__component) > (__fluid->negative_float_tolerance) && (__fluid->__component) < (__fluid->positive_float_tolerance))
	test if component is near zero, according to fluid's precision

#define	_zd(__fluid, __value) ((__value) > (__fluid->negative_float_tolerance) && (__value) < (__fluid->positive_float_tolerance))
	test if value is near zero, according to fluid's precision

Functions
int	destroy_n_fluid (N_FLUID **fluid)
	destroy a fluid simulation

int	n_fluid_advectSmoke (N_FLUID *fluid)
	advect smoke density field

int	n_fluid_advectVel (N_FLUID *fluid)
	advect velocity field

double	n_fluid_avgU (N_FLUID *fluid, size_t i, size_t j)
	compute average U velocity at cell

double	n_fluid_avgV (N_FLUID *fluid, size_t i, size_t j)
	compute average V velocity at cell

int	n_fluid_draw (N_FLUID *fluid)
	draw the fluid simulation

int	n_fluid_extrapolate (N_FLUID *fluid)
	extrapolate fluid boundaries

ALLEGRO_COLOR	n_fluid_getSciColor (const N_FLUID *fluid, double val, double minVal, double maxVal)
	get a scientific color for a value

int	n_fluid_integrate (N_FLUID *fluid)
	integrate fluid velocities

int	n_fluid_resetObstacles (N_FLUID *fluid)
	reset all obstacles

double	n_fluid_sampleField (N_FLUID *fluid, double x, double y, uint32_t field)
	sample a field value at given coordinates

int	n_fluid_setObstacle (N_FLUID *fluid, double x, double y, double vx, double vy, double r)
	set an obstacle in the fluid

int	n_fluid_simulate (N_FLUID *fluid)
	run one simulation step

int	n_fluid_simulate_threaded (N_FLUID fluid, THREAD_POOL thread_pool)
	run one simulation step using thread pool

int	n_fluid_solveIncompressibility (N_FLUID *fluid)
	solve incompressibility constraint

N_FLUID *	new_n_fluid (double density, double gravity, size_t numIters, double dt, double overRelaxation, size_t sx, size_t sy)
	create a new fluid simulation

Detailed Description

Data Structure Documentation

◆ N_FLUID

struct N_FLUID

structure of a fluid

Examples: ex_fluid.c, ex_fluid_config.c, and ex_fluid_config.h.

Definition at line 69 of file n_fluids.h.

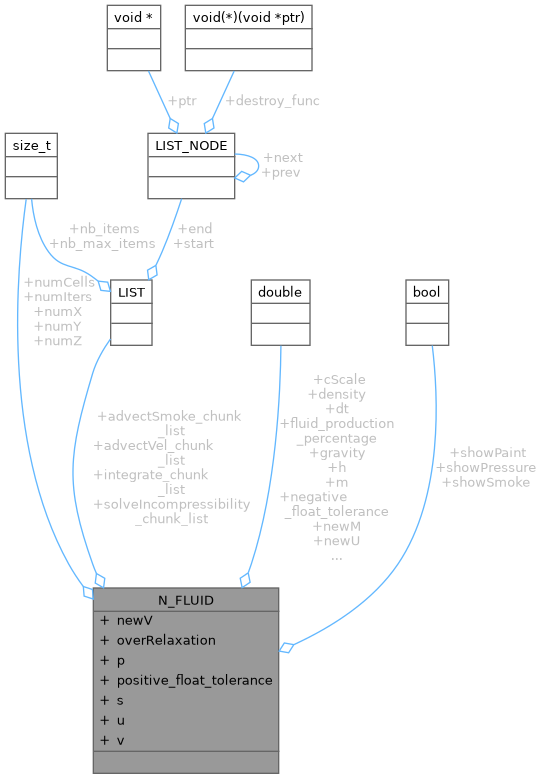

Collaboration diagram for N_FLUID:

Data Fields
LIST *	advectSmoke_chunk_list	preprocessed list of threaded procs parameters, for n_fluid_advectSmoke
LIST *	advectVel_chunk_list	preprocessed list of threaded procs parameters, for n_fluid_advectVel
double	cScale	scale used to deduce cellX and cellY from screen/window width and height
double	density	density of the fluid (not working ?)
double	dt	time between frames
double	fluid_production_percentage	size of the produced fluid
double	gravity	gravity on Y
double	h
LIST *	integrate_chunk_list	preprocessed list of threaded procs parameters, for n_fluid_integrate
double *	m	holder for m arrays
double	negative_float_tolerance	fluid double negative precision setting
double *	newM	holder for newM arrays
double *	newU	holder for newU arrays
double *	newV	holder for newV arrays
size_t	numCells	total number of cells
size_t	numIters	number of fluid processing iterations for each frame
size_t	numX	number of cells in X
size_t	numY	number of cells in Y
size_t	numZ	number of cells in Z
double	overRelaxation	over relaxation
double *	p	holder for p arrays
double	positive_float_tolerance	fluid double positive precision setting
double *	s	holder for s arrays
bool	showPaint	activate a fonky palette, override smoke and pressure display
bool	showPressure	display fluids pressures as color variations, can be combined with showSmoke
bool	showSmoke	display fluid as a colored cloud instead of black and white, can be combined with showPressure
LIST *	solveIncompressibility_chunk_list	preprocessed list of threaded procs parameters, for n_fluid_solveIncompressibility
double *	u	holder for u arrays
double *	v	holder for v arrays

◆ N_FLUID_THREAD_PARAMS

struct N_FLUID_THREAD_PARAMS

structure passed to a threaded fluid process

Definition at line 55 of file n_fluids.h.

Collaboration diagram for N_FLUID_THREAD_PARAMS:

Data Fields
void *	ptr	pointer to data which will be used in the proc
size_t	x_end	x end point
size_t	x_start	x start point
size_t	y_end	y end point
size_t	y_start	y start point

Macro Definition Documentation

◆ _z

#define _z	(	__fluid,
		__component
	)	((__fluid->__component) > (__fluid->negative_float_tolerance) && (__fluid->__component) < (__fluid->positive_float_tolerance))

test if component is near zero, according to fluid's precision

Definition at line 46 of file n_fluids.h.

◆ _zd

#define _zd	(	__fluid,
		__value
	)	((__value) > (__fluid->negative_float_tolerance) && (__value) < (__fluid->positive_float_tolerance))

test if value is near zero, according to fluid's precision

Definition at line 51 of file n_fluids.h.

Function Documentation

◆ destroy_n_fluid()

int destroy_n_fluid ( N_FLUID ** fluid )

destroy a fluid simulation

Parameters

fluid pointer to the structure to destroy

Returns: TRUE or FALSE

Definition at line 63 of file n_fluids.c.

References __n_assert, FreeNoLog, and list_destroy().

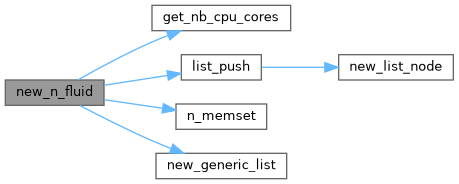

Here is the call graph for this function:

◆ n_fluid_advectSmoke()

int n_fluid_advectSmoke ( N_FLUID * fluid )

advect smoke density field

Parameters

fluid a N_FLUID ptr

Returns: TRUE or FALSE

Definition at line 590 of file n_fluids.c.

References __n_assert, _z, N_FLUID::dt, N_FLUID::h, N_FLUID::m, N_FLUID_S_FIELD, n_fluid_sampleField(), N_FLUID::newM, N_FLUID::numCells, N_FLUID::numX, N_FLUID::numY, N_FLUID::u, and N_FLUID::v.

Referenced by n_fluid_simulate().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_fluid_advectVel()

int n_fluid_advectVel ( N_FLUID * fluid )

advect velocity field

Parameters

fluid a N_FLUID ptr

Returns: TRUE or FALSE

Definition at line 510 of file n_fluids.c.

References __n_assert, _z, N_FLUID::dt, N_FLUID::h, n_fluid_avgU(), n_fluid_avgV(), n_fluid_sampleField(), N_FLUID_U_FIELD, N_FLUID_V_FIELD, N_FLUID::newU, N_FLUID::newV, N_FLUID::numCells, N_FLUID::numX, N_FLUID::numY, N_FLUID::u, and N_FLUID::v.

Referenced by n_fluid_simulate().

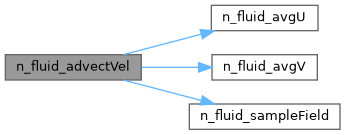

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_fluid_avgU()

double n_fluid_avgU	(	N_FLUID *	fluid,
		size_t	i,
		size_t	j
	)

compute average U velocity at cell

Parameters

fluid	targeted N_FLUID
i	X position in the fluid grid
j	Y position in the fluid grid

Returns: the average computed value

Definition at line 434 of file n_fluids.c.

References __n_assert, N_FLUID::numY, and N_FLUID::u.

Referenced by n_fluid_advectVel(), and n_fluid_advectVel_proc().

Here is the caller graph for this function:

◆ n_fluid_avgV()

double n_fluid_avgV	(	N_FLUID *	fluid,
		size_t	i,
		size_t	j
	)

compute average V velocity at cell

Parameters

fluid	targeted N_FLUID
i	X position in the fluid grid
j	Y position in the fluid grid

Returns: the average computed value

Definition at line 452 of file n_fluids.c.

References __n_assert, N_FLUID::numY, and N_FLUID::v.

Referenced by n_fluid_advectVel(), and n_fluid_advectVel_proc().

Here is the caller graph for this function:

◆ n_fluid_draw()

int n_fluid_draw ( N_FLUID * fluid )

draw the fluid simulation

Parameters

fluid the N_FLUID to draw

Returns: TRUE or FALSE

Definition at line 842 of file n_fluids.c.

References __n_assert, N_FLUID::cScale, N_FLUID::m, n_fluid_getSciColor(), N_FLUID::numCells, N_FLUID::numX, N_FLUID::numY, N_FLUID::p, N_FLUID::showPaint, N_FLUID::showPressure, and N_FLUID::showSmoke.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_fluid_extrapolate()

int n_fluid_extrapolate ( N_FLUID * fluid )

extrapolate fluid boundaries

Parameters

fluid a N_FLUID to extrapolate

Returns: TRUE or FALSE

Definition at line 352 of file n_fluids.c.

References __n_assert, N_FLUID::numX, N_FLUID::numY, N_FLUID::u, and N_FLUID::v.

Referenced by n_fluid_simulate(), and n_fluid_simulate_threaded().

Here is the caller graph for this function:

◆ n_fluid_getSciColor()

ALLEGRO_COLOR n_fluid_getSciColor	(	const N_FLUID *	fluid,
		double	val,
		double	minVal,
		double	maxVal
	)

get a scientific color for a value

Parameters

fluid	targeted N_FLUID
val	value mixer
minVal	minimum output value
maxVal	maximum output value

Returns: the generated ALLEGRO_COLOR

Definition at line 799 of file n_fluids.c.

References _zd.

Referenced by n_fluid_draw().

Here is the caller graph for this function:

◆ n_fluid_integrate()

int n_fluid_integrate ( N_FLUID * fluid )

integrate fluid velocities

Parameters

fluid a N_FLUID to integrate_chunk_list

Returns: TRUE or FALSE

Definition at line 259 of file n_fluids.c.

References __n_assert, _z, N_FLUID::dt, N_FLUID::gravity, N_FLUID::numX, N_FLUID::numY, and N_FLUID::v.

Referenced by n_fluid_simulate().

Here is the caller graph for this function:

◆ n_fluid_resetObstacles()

int n_fluid_resetObstacles ( N_FLUID * fluid )

reset all obstacles

Parameters

fluid the targeted N_FLUID

Returns: TRUE or FALSE

Definition at line 739 of file n_fluids.c.

References __n_assert, N_FLUID::numX, N_FLUID::numY, and N_FLUID::s.

Referenced by main().

Here is the caller graph for this function:

◆ n_fluid_sampleField()

double n_fluid_sampleField	(	N_FLUID *	fluid,
		double	x,
		double	y,
		uint32_t	field
	)

sample a field value at given coordinates

Parameters

fluid	target N_FLUID
x	X position in the fluid grid
y	Y position in the fluid grid
field	type of field wanted, one of N_FLUID_U_FIELD, N_FLUID_V_FIELD, N_FLUID_S_FIELD

Returns: the computed value

Definition at line 374 of file n_fluids.c.

References __n_assert, N_FLUID::h, N_FLUID::m, N_FLUID_S_FIELD, N_FLUID_U_FIELD, N_FLUID_V_FIELD, N_FLUID::numX, N_FLUID::numY, N_FLUID::u, and N_FLUID::v.

Referenced by n_fluid_advectSmoke(), n_fluid_advectSmoke_proc(), n_fluid_advectVel(), and n_fluid_advectVel_proc().

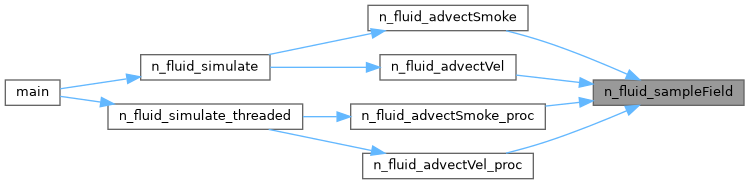

Here is the caller graph for this function:

◆ n_fluid_setObstacle()

int n_fluid_setObstacle	(	N_FLUID *	fluid,
		double	x,
		double	y,
		double	vx,
		double	vy,
		double	r
	)

set an obstacle in the fluid

Parameters

fluid	targeted N_FLUID
x	X position in fluid grid
y	y position in fluid grid
vx	X velocity for the point
vy	Y velocity for the point
r	radius

Returns: TRUE or FALSE

Definition at line 712 of file n_fluids.c.

References __n_assert, N_FLUID::m, N_FLUID::numX, N_FLUID::numY, N_FLUID::s, N_FLUID::u, and N_FLUID::v.

Referenced by main().

Here is the caller graph for this function:

◆ n_fluid_simulate()

int n_fluid_simulate ( N_FLUID * fluid )

run one simulation step

Parameters

fluid a N_FLUID ptr

Returns: TRUE or FALSE

Definition at line 623 of file n_fluids.c.

References __n_assert, n_fluid_advectSmoke(), n_fluid_advectVel(), n_fluid_extrapolate(), n_fluid_integrate(), n_fluid_solveIncompressibility(), N_FLUID::numCells, and N_FLUID::p.

Referenced by main().

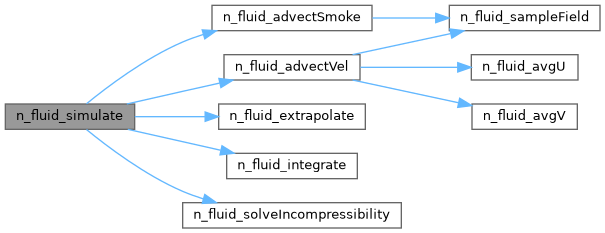

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_fluid_simulate_threaded()

int n_fluid_simulate_threaded	(	N_FLUID *	fluid,
		THREAD_POOL *	thread_pool
	)

run one simulation step using thread pool

Parameters

fluid	a N_FLUID ptr
thread_pool	a THREAD_POOL pool to use

Returns: TRUE or FALSE

Definition at line 640 of file n_fluids.c.

References __n_assert, add_threaded_process(), N_FLUID::advectSmoke_chunk_list, N_FLUID::advectVel_chunk_list, N_FLUID::integrate_chunk_list, list_foreach, N_FLUID::m, n_fluid_advectSmoke_proc(), n_fluid_advectVel_proc(), n_fluid_extrapolate(), n_fluid_integrate_proc(), n_fluid_solveIncompressibility_proc(), N_FLUID::newM, N_FLUID::newU, N_FLUID::newV, N_FLUID::numCells, N_FLUID::numIters, N_FLUID::p, refresh_thread_pool(), N_FLUID::solveIncompressibility_chunk_list, start_threaded_pool(), SYNCED_PROC, thread_pool, N_FLUID::u, N_FLUID::v, and wait_for_synced_threaded_pool().

Referenced by main().

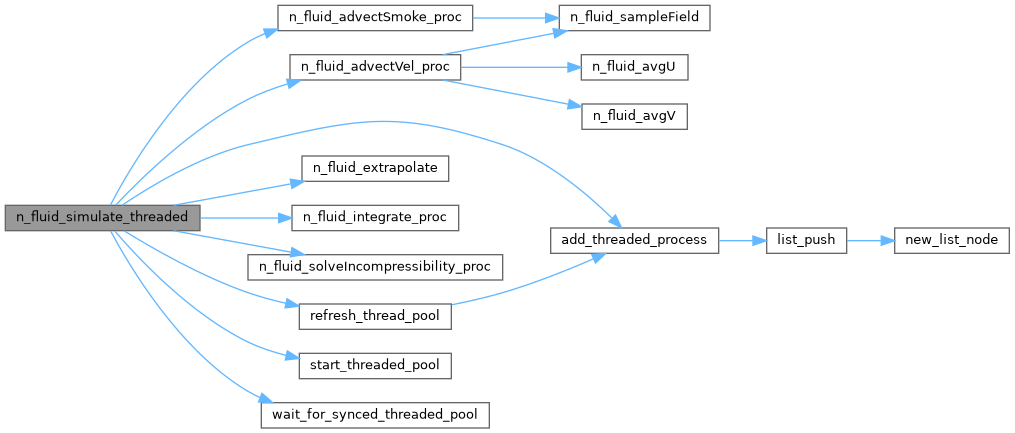

Here is the call graph for this function:

Here is the caller graph for this function:

◆ n_fluid_solveIncompressibility()

int n_fluid_solveIncompressibility ( N_FLUID * fluid )

solve incompressibility constraint

Parameters

fluid N_FLUID to solve

Returns: TRUE or FALSE

Definition at line 314 of file n_fluids.c.

References __n_assert, _z, _zd, N_FLUID::density, N_FLUID::dt, N_FLUID::h, N_FLUID::numIters, N_FLUID::numX, N_FLUID::numY, N_FLUID::overRelaxation, N_FLUID::p, N_FLUID::s, N_FLUID::u, and N_FLUID::v.

Referenced by n_fluid_simulate().

Here is the caller graph for this function:

◆ new_n_fluid()

N_FLUID * new_n_fluid	(	double	density,
		double	gravity,
		size_t	numIters,
		double	dt,
		double	overRelaxation,
		size_t	sx,
		size_t	sy
	)

create a new fluid simulation

Parameters

density	density of the fluid
gravity	gravity applied (Y axe)
numIters	predefined number of iterations for each frames
dt	preconfigured delta time
overRelaxation	over predefined over relaxation value
sx	number of cells on x axis
sy	number of cells on y axis

Returns: a newly allocated N_FLUID structure

Definition at line 95 of file n_fluids.c.

References __n_assert, N_FLUID::advectSmoke_chunk_list, N_FLUID::advectVel_chunk_list, N_FLUID::cScale, N_FLUID::density, N_FLUID::dt, LIST::end, N_FLUID::fluid_production_percentage, FreeNoLog, get_nb_cpu_cores(), N_FLUID::gravity, N_FLUID::h, N_FLUID::integrate_chunk_list, list_push(), N_FLUID::m, Malloc, n_memset(), N_FLUID::negative_float_tolerance, new_generic_list(), N_FLUID::newM, N_FLUID::newU, N_FLUID::newV, N_FLUID::numCells, N_FLUID::numIters, N_FLUID::numX, N_FLUID::numY, N_FLUID::numZ, N_FLUID::overRelaxation, N_FLUID::p, N_FLUID::positive_float_tolerance, N_FLUID_THREAD_PARAMS::ptr, LIST_NODE::ptr, N_FLUID::s, N_FLUID::showPaint, N_FLUID::showPressure, N_FLUID::showSmoke, N_FLUID::solveIncompressibility_chunk_list, N_FLUID::u, N_FLUID::v, N_FLUID_THREAD_PARAMS::x_end, N_FLUID_THREAD_PARAMS::x_start, N_FLUID_THREAD_PARAMS::y_end, and N_FLUID_THREAD_PARAMS::y_start.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

Data Structures

Macros

Functions

Detailed Description

Data Structure Documentation

◆ N_FLUID

◆ N_FLUID_THREAD_PARAMS

Macro Definition Documentation

◆ _z

◆ _zd

Function Documentation

◆ destroy_n_fluid()

◆ n_fluid_advectSmoke()

◆ n_fluid_advectVel()

◆ n_fluid_avgU()

◆ n_fluid_avgV()

◆ n_fluid_draw()

◆ n_fluid_extrapolate()

◆ n_fluid_getSciColor()

◆ n_fluid_integrate()

◆ n_fluid_resetObstacles()

◆ n_fluid_sampleField()

◆ n_fluid_setObstacle()

◆ n_fluid_simulate()

◆ n_fluid_simulate_threaded()

◆ n_fluid_solveIncompressibility()

◆ new_n_fluid()
