CLOCK_SYNC: client/server clock offset estimation

Data Structures
struct	N_CLOCK_SYNC
	clock synchronization estimator More...

Macros
#define	N_CLOCK_SYNC_BURST_INTERVAL   0.5
	accelerated interval used until N_CLOCK_SYNC_BURST_SAMPLES real responses have been collected — a fresh estimator converges in a couple of seconds instead of minutes
#define	N_CLOCK_SYNC_BURST_SAMPLES   5
	number of REAL samples below which the burst interval applies
#define	N_CLOCK_SYNC_INTERVAL   3.0
	default interval between sync requests in seconds
#define	N_CLOCK_SYNC_MAX_RTT   10.0
	responses with an RTT above this are rejected outright (retransmit storms / suspend-resume artefacts — not usable timing data)
#define	N_CLOCK_SYNC_SAMPLE_COUNT   11
	number of samples for the median filter
#define	N_CLOCK_SYNC_SLEW_SECONDS   1.0
	seconds over which n_clock_sync_server_time slews from the previous offset estimate to a new one (smoothstep).

Functions
static double	clock_sync_effective_offset (const N_CLOCK_SYNC *cs, double local_now)
	effective (slewed) offset at local_now — pure function of the stored state so the const getter needs no mutation.
static void	clock_sync_store_sample (N_CLOCK_SYNC *cs, double offset, double rtt, double local_now)
	store one (offset, rtt) sample and recompute the estimates.
static int	cmp_double (const void *a, const void *b)
	comparison function for qsort on doubles
static double	median_of (const double *samples, int count)
	compute the median of an array of doubles
void	n_clock_sync_delete (N_CLOCK_SYNC **cs)
	free a clock sync estimator
void	n_clock_sync_mark_sent (N_CLOCK_SYNC *cs, double local_now)
	mark that a sync request was just sent
N_CLOCK_SYNC *	n_clock_sync_new (void)
	allocate and initialize a new clock sync estimator
int	n_clock_sync_process_response (N_CLOCK_SYNC *cs, double client_send_time, double server_time, double local_now)
	record a sync response: client_send_time is the local time the request was sent, server_time is the server's timestamp from the response, local_now is the current local time when the response was received.
void	n_clock_sync_seed (N_CLOCK_SYNC *cs, double offset, double rtt)
	Inject a synthetic (offset, rtt) sample, e.g.
double	n_clock_sync_server_time (const N_CLOCK_SYNC *cs, double local_now)
	get estimated server time given a local time value.
int	n_clock_sync_should_send (const N_CLOCK_SYNC *cs, double local_now)
	check if it's time to send a new sync request (returns TRUE/FALSE).

Detailed Description

---

Data Structure Documentation

N_CLOCK_SYNC

struct N_CLOCK_SYNC

clock synchronization estimator

Examples

ex_clock_sync.c.

Definition at line 105 of file n_clock_sync.h.

Collaboration diagram for N_CLOCK_SYNC:

Data Fields
double	estimated_offset	add to local time to get estimated server time (raw best-RTT target — n_clock_sync_server_time applies the slew on top)
double	estimated_rtt	current estimated round-trip time
double	last_sync_time	local time of last sync request sent
double	offset_change_time	local time at which estimated_offset last changed
double	offset_prev	effective offset at the moment estimated_offset last changed — the slew blends offset_prev → estimated_offset
double	offset_samples[11]	circular buffer of offset estimates
double	rtt_samples[11]	circular buffer of RTT values
int	sample_count	number of samples collected so far
int	sample_index	current write position in circular buffer
int	synthetic	TRUE while the buffer holds only a synthetic n_clock_sync_seed sample — flushed wholesale by the first real response so a low-synthetic-rtt seed can never pin the estimate on links whose real RTT exceeds the synthetic one.

Macro Definition Documentation

N_CLOCK_SYNC_BURST_INTERVAL

#define N_CLOCK_SYNC_BURST_INTERVAL   0.5

accelerated interval used until N_CLOCK_SYNC_BURST_SAMPLES real responses have been collected — a fresh estimator converges in a couple of seconds instead of minutes

Definition at line 83 of file n_clock_sync.h.

N_CLOCK_SYNC_BURST_SAMPLES

#define N_CLOCK_SYNC_BURST_SAMPLES   5

number of REAL samples below which the burst interval applies

Definition at line 88 of file n_clock_sync.h.

N_CLOCK_SYNC_INTERVAL

#define N_CLOCK_SYNC_INTERVAL   3.0

default interval between sync requests in seconds

Definition at line 76 of file n_clock_sync.h.

N_CLOCK_SYNC_MAX_RTT

#define N_CLOCK_SYNC_MAX_RTT   10.0

responses with an RTT above this are rejected outright (retransmit storms / suspend-resume artefacts — not usable timing data)

Definition at line 94 of file n_clock_sync.h.

N_CLOCK_SYNC_SAMPLE_COUNT

#define N_CLOCK_SYNC_SAMPLE_COUNT   11

number of samples for the median filter

Definition at line 71 of file n_clock_sync.h.

N_CLOCK_SYNC_SLEW_SECONDS

#define N_CLOCK_SYNC_SLEW_SECONDS   1.0

seconds over which n_clock_sync_server_time slews from the previous offset estimate to a new one (smoothstep).

A consumer that anchors motion on this clock sees a bounded rate change instead of a step.

Definition at line 101 of file n_clock_sync.h.

Function Documentation

clock_sync_effective_offset()

static double clock_sync_effective_offset ( const N_CLOCK_SYNC *  cs, double  local_now  )

static

effective (slewed) offset at local_now — pure function of the stored state so the const getter needs no mutation.

Blends offset_prev → estimated_offset with a smoothstep over N_CLOCK_SYNC_SLEW_SECONDS from the moment the estimate last changed.

Definition at line 90 of file n_clock_sync.c.

References N_CLOCK_SYNC::estimated_offset, N_CLOCK_SYNC_SLEW_SECONDS, N_CLOCK_SYNC::offset_change_time, and N_CLOCK_SYNC::offset_prev.

Referenced by clock_sync_store_sample(), and n_clock_sync_server_time().

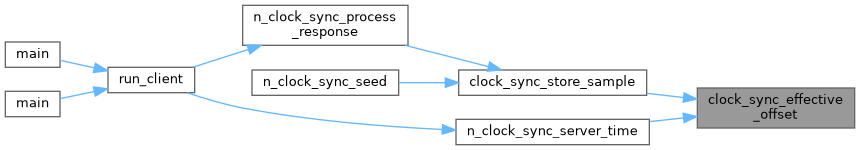

Here is the caller graph for this function:

clock_sync_store_sample()

static void clock_sync_store_sample ( N_CLOCK_SYNC *  cs, double  offset, double  rtt, double  local_now  )

static

store one (offset, rtt) sample and recompute the estimates.

Offset selection is NTP-style: the sample with the LOWEST rtt wins, because its one-way uncertainty (+/-rtt/2) is the smallest. A plain median is poisoned for minutes when the link is congested at startup (e.g. an MMO client receiving its login chunk burst: every early sample carries seconds of queueing delay, and the median needs a majority of clean samples to recover). estimated_rtt stays a median, it feeds timeout heuristics, where typical beats best.

local_now anchors the slew when the adopted offset changes: n_clock_sync_server_time blends from the previous effective offset instead of stepping.

Definition at line 113 of file n_clock_sync.c.

References clock_sync_effective_offset(), N_CLOCK_SYNC::estimated_offset, N_CLOCK_SYNC::estimated_rtt, median_of(), N_CLOCK_SYNC_SAMPLE_COUNT, N_CLOCK_SYNC::offset_change_time, N_CLOCK_SYNC::offset_prev, N_CLOCK_SYNC::offset_samples, N_CLOCK_SYNC::rtt_samples, N_CLOCK_SYNC::sample_count, and N_CLOCK_SYNC::sample_index.

Referenced by n_clock_sync_process_response(), and n_clock_sync_seed().

Here is the call graph for this function:

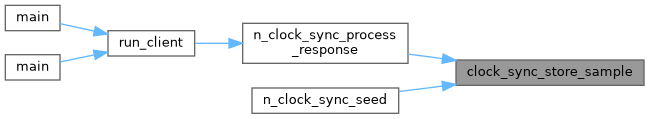

Here is the caller graph for this function:

cmp_double()

static int cmp_double ( const void *  a, const void *  b  )

static

comparison function for qsort on doubles

Definition at line 40 of file n_clock_sync.c.

Referenced by median_of().

Here is the caller graph for this function:

median_of()

static double median_of ( const double *  samples, int  count  )

static

compute the median of an array of doubles

Definition at line 49 of file n_clock_sync.c.

References cmp_double(), and N_CLOCK_SYNC_SAMPLE_COUNT.

Referenced by clock_sync_store_sample().

Here is the call graph for this function:

Here is the caller graph for this function:

n_clock_sync_delete()

void n_clock_sync_delete

(

N_CLOCK_SYNC **

cs

)

free a clock sync estimator

Examples

ex_clock_sync.c.

Definition at line 79 of file n_clock_sync.c.

References __n_assert, and Free.

Referenced by run_client().

Here is the caller graph for this function:

n_clock_sync_mark_sent()

void n_clock_sync_mark_sent	(	N_CLOCK_SYNC *	cs,
		double	local_now
	)

mark that a sync request was just sent

Examples

ex_clock_sync.c.

Definition at line 199 of file n_clock_sync.c.

References __n_assert, and N_CLOCK_SYNC::last_sync_time.

Referenced by run_client().

Here is the caller graph for this function:

n_clock_sync_new()

N_CLOCK_SYNC * n_clock_sync_new

(

void

)

allocate and initialize a new clock sync estimator

Examples

ex_clock_sync.c.

Definition at line 63 of file n_clock_sync.c.

References __n_assert, N_CLOCK_SYNC::estimated_offset, N_CLOCK_SYNC::estimated_rtt, N_CLOCK_SYNC::last_sync_time, Malloc, N_CLOCK_SYNC_INTERVAL, N_CLOCK_SYNC::sample_count, and N_CLOCK_SYNC::sample_index.

Referenced by run_client().

Here is the caller graph for this function:

n_clock_sync_process_response()

int n_clock_sync_process_response	(	N_CLOCK_SYNC *	cs,
		double	client_send_time,
		double	server_time,
		double	local_now
	)

record a sync response: client_send_time is the local time the request was sent, server_time is the server's timestamp from the response, local_now is the current local time when the response was received.

Updates estimated_offset and estimated_rtt. Returns TRUE on success, FALSE on error.

Examples

ex_clock_sync.c.

Definition at line 136 of file n_clock_sync.c.

References __n_assert, clock_sync_store_sample(), N_CLOCK_SYNC::estimated_offset, N_CLOCK_SYNC::estimated_rtt, LOG_DEBUG, LOG_ERR, LOG_WARNING, N_CLOCK_SYNC_MAX_RTT, n_log, N_CLOCK_SYNC::sample_count, N_CLOCK_SYNC::sample_index, and N_CLOCK_SYNC::synthetic.

Referenced by run_client().

Here is the call graph for this function:

Here is the caller graph for this function:

n_clock_sync_seed()

void n_clock_sync_seed	(	N_CLOCK_SYNC *	cs,
		double	offset,
		double	rtt
	)

Inject a synthetic (offset, rtt) sample, e.g.

a server-supplied clock value at login, so the estimator is usable BEFORE the first request/response round-trip completes. Pass the believed offset (server_time - local_now) and a conservative synthetic rtt. RESETS the estimator to this single sample and adopts the offset immediately (no slew — at login there is nothing to slew from). The FIRST real response flushes the seed wholesale, so a seed with a synthetic rtt lower than the link's real RTT can never pin the estimate (offset selection is best-rtt, NTP-style).

Definition at line 170 of file n_clock_sync.c.

References __n_assert, clock_sync_store_sample(), N_CLOCK_SYNC::estimated_offset, LOG_DEBUG, n_log, N_CLOCK_SYNC::offset_change_time, N_CLOCK_SYNC::offset_prev, N_CLOCK_SYNC::sample_count, N_CLOCK_SYNC::sample_index, and N_CLOCK_SYNC::synthetic.

Here is the call graph for this function:

n_clock_sync_server_time()

double n_clock_sync_server_time	(	const N_CLOCK_SYNC *	cs,
		double	local_now
	)

get estimated server time given a local time value.

When the underlying offset estimate changes, the returned time SLEWS from the previous estimate to the new one over N_CLOCK_SYNC_SLEW_SECONDS (smoothstep) instead of stepping — pure function of the stored state, safe to call at any rate.

Examples

ex_clock_sync.c.

Definition at line 184 of file n_clock_sync.c.

References __n_assert, and clock_sync_effective_offset().

Referenced by run_client().

Here is the call graph for this function:

Here is the caller graph for this function:

n_clock_sync_should_send()

int n_clock_sync_should_send	(	const N_CLOCK_SYNC *	cs,
		double	local_now
	)

check if it's time to send a new sync request (returns TRUE/FALSE).

Uses N_CLOCK_SYNC_BURST_INTERVAL until N_CLOCK_SYNC_BURST_SAMPLES real responses have been collected, then N_CLOCK_SYNC_INTERVAL.

Examples

ex_clock_sync.c.

Definition at line 189 of file n_clock_sync.c.

References __n_assert, N_CLOCK_SYNC::last_sync_time, N_CLOCK_SYNC_BURST_INTERVAL, N_CLOCK_SYNC_BURST_SAMPLES, N_CLOCK_SYNC_INTERVAL, N_CLOCK_SYNC::sample_count, and N_CLOCK_SYNC::synthetic.

Referenced by run_client().

Here is the caller graph for this function:
