Data Structures
struct	AVRO_FIELD
	Avro schema field (for records) More...

struct	AVRO_READER
	Avro read cursor for decoding. More...

struct	AVRO_SCHEMA
	Avro schema definition. More...

Macros
#define	AVRO_MAGIC "Obj\x01"
	Avro object container file magic bytes.

#define	AVRO_MAGIC_LEN 4
	Avro magic length.

#define	AVRO_SYNC_LEN 16
	Avro sync marker length.

Enumerations
enum	AVRO_TYPE { AVRO_NULL = 0 , AVRO_BOOLEAN , AVRO_INT , AVRO_LONG , AVRO_FLOAT , AVRO_DOUBLE , AVRO_BYTES , AVRO_STRING , AVRO_RECORD , AVRO_ENUM , AVRO_ARRAY , AVRO_MAP , AVRO_UNION , AVRO_FIXED }
	Avro schema type enumeration. More...

Functions
cJSON *	avro_decode_container (const AVRO_SCHEMA schema, const N_STR avro_data)
	Decode an Avro container format N_STR into a cJSON array of records.

cJSON *	avro_decode_datum (AVRO_READER reader, const AVRO_SCHEMA schema)
	Decode an Avro binary datum into cJSON according to schema.

int	avro_decode_long (AVRO_READER reader, int64_t value)
	Decode a zig-zag varint from reader into a 64-bit signed integer.

N_STR *	avro_encode_container (const AVRO_SCHEMA schema, const cJSON records)
	Encode a cJSON array of records into Avro container format N_STR.

int	avro_encode_datum (N_STR *dest, const AVRO_SCHEMA schema, const cJSON *json)
	Encode a cJSON value as Avro binary according to schema.

int	avro_encode_long (N_STR **dest, int64_t value)
	Encode a 64-bit signed integer as zig-zag varint into N_STR.

int	avro_file_to_json (const char avro_filename, const char schema_filename, const char *json_filename)
	Read an Avro object container file and produce a JSON file using a schema file.

int	avro_json_to_file (const char avro_filename, const char schema_filename, const char *json_filename)
	Write an Avro object container file from a JSON file and schema file.

N_STR *	avro_nstr_avro_to_json (const N_STR schema_nstr, const N_STR avro_nstr)
	Convert Avro N_STR to JSON N_STR using schema N_STR (all in-memory)

N_STR *	avro_nstr_json_to_avro (const N_STR schema_nstr, const N_STR json_nstr)
	Convert JSON N_STR to Avro N_STR using schema N_STR (all in-memory)

void	avro_schema_free (AVRO_SCHEMA **schema)
	Free an Avro schema.

AVRO_SCHEMA *	avro_schema_from_cjson (const cJSON *json)
	Parse an Avro schema from a cJSON object.

AVRO_SCHEMA *	avro_schema_parse (const char *json_str)
	Parse an Avro schema from a JSON string.

AVRO_SCHEMA *	avro_schema_parse_nstr (const N_STR *schema_nstr)
	Parse schema from N_STR.

char *	avro_schema_to_json (const AVRO_SCHEMA *schema)
	Convert an Avro schema back to JSON string (caller must free)

Detailed Description

Data Structure Documentation

◆ AVRO_FIELD

struct AVRO_FIELD

Avro schema field (for records)

Definition at line 76 of file n_avro.h.

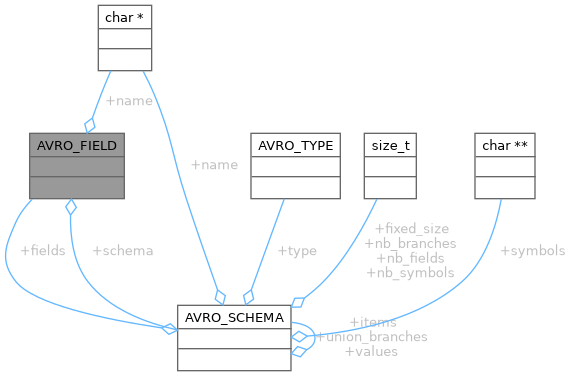

Collaboration diagram for AVRO_FIELD:

Data Fields
char *	name	field name
AVRO_SCHEMA *	schema	field schema

◆ AVRO_READER

struct AVRO_READER

Avro read cursor for decoding.

Definition at line 112 of file n_avro.h.

Collaboration diagram for AVRO_READER:

Data Fields
const unsigned char *	data	data buffer
size_t	pos	current position
size_t	size	total size

◆ AVRO_SCHEMA

struct AVRO_SCHEMA

Avro schema definition.

Forward declaration.

Definition at line 84 of file n_avro.h.

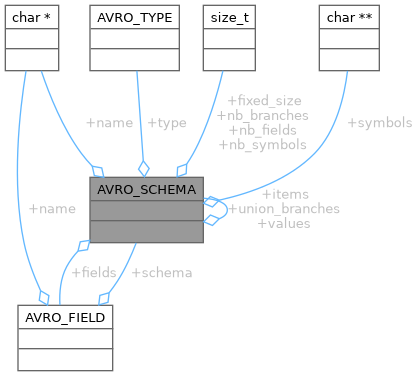

Collaboration diagram for AVRO_SCHEMA:

Data Fields
AVRO_FIELD *	fields	namespace (for record, enum) fields array (for record)
size_t	fixed_size	fixed size
AVRO_SCHEMA *	items	item schema (for array)
char *	name	name (for record, enum, fixed)
size_t	nb_branches	number of union branches
size_t	nb_fields	number of fields (for record)
size_t	nb_symbols	number of enum symbols
char **	symbols	enum symbols
AVRO_TYPE	type	schema type
AVRO_SCHEMA **	union_branches	union branch schemas
AVRO_SCHEMA *	values	value schema (for map)

Macro Definition Documentation

◆ AVRO_MAGIC

#define AVRO_MAGIC "Obj\x01"

Avro object container file magic bytes.

Definition at line 48 of file n_avro.h.

◆ AVRO_MAGIC_LEN

#define AVRO_MAGIC_LEN 4

Avro magic length.

Definition at line 50 of file n_avro.h.

◆ AVRO_SYNC_LEN

#define AVRO_SYNC_LEN 16

Avro sync marker length.

Definition at line 52 of file n_avro.h.

Enumeration Type Documentation

◆ AVRO_TYPE

enum AVRO_TYPE

Avro schema type enumeration.

Enumerator
AVRO_NULL
AVRO_BOOLEAN
AVRO_INT
AVRO_LONG
AVRO_FLOAT
AVRO_DOUBLE
AVRO_BYTES
AVRO_STRING
AVRO_RECORD
AVRO_ENUM
AVRO_ARRAY
AVRO_MAP
AVRO_UNION
AVRO_FIXED

Definition at line 55 of file n_avro.h.

Function Documentation

◆ avro_decode_container()

cJSON * avro_decode_container	(	const AVRO_SCHEMA *	schema,
		const N_STR *	avro_data
	)

Decode an Avro container format N_STR into a cJSON array of records.

Definition at line 1025 of file n_avro.c.

References __n_assert, avro_decode_bytes_raw(), avro_decode_datum(), avro_decode_long(), AVRO_MAGIC, AVRO_MAGIC_LEN, AVRO_SYNC_LEN, AVRO_READER::data, N_STR::data, Free, key, LOG_ERR, LOG_WARNING, n_log, AVRO_READER::pos, AVRO_READER::size, and N_STR::written.

Referenced by avro_file_to_json(), and avro_nstr_avro_to_json().

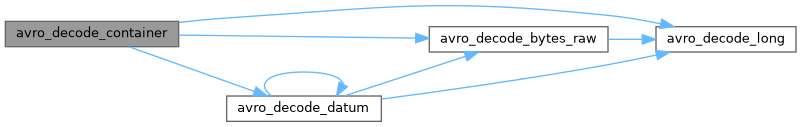

Here is the call graph for this function:

Here is the caller graph for this function:

◆ avro_decode_datum()

cJSON * avro_decode_datum	(	AVRO_READER *	reader,
		const AVRO_SCHEMA *	schema
	)

Decode an Avro binary datum into cJSON according to schema.

Definition at line 717 of file n_avro.c.

References __n_assert, AVRO_ARRAY, AVRO_BOOLEAN, AVRO_BYTES, avro_decode_bytes_raw(), avro_decode_datum(), avro_decode_long(), AVRO_DOUBLE, AVRO_ENUM, AVRO_FIXED, AVRO_FLOAT, AVRO_INT, AVRO_LONG, AVRO_MAP, AVRO_NULL, AVRO_RECORD, AVRO_STRING, AVRO_UNION, AVRO_READER::data, AVRO_SCHEMA::fields, AVRO_SCHEMA::fixed_size, Free, AVRO_SCHEMA::items, key, LOG_ERR, Malloc, n_log, AVRO_FIELD::name, AVRO_SCHEMA::nb_branches, AVRO_SCHEMA::nb_fields, AVRO_SCHEMA::nb_symbols, AVRO_READER::pos, AVRO_FIELD::schema, AVRO_READER::size, AVRO_SCHEMA::symbols, AVRO_SCHEMA::type, AVRO_SCHEMA::union_branches, and AVRO_SCHEMA::values.

Referenced by avro_decode_container(), and avro_decode_datum().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ avro_decode_long()

int avro_decode_long	(	AVRO_READER *	reader,
		int64_t *	value
	)

Decode a zig-zag varint from reader into a 64-bit signed integer.

Definition at line 394 of file n_avro.c.

References __n_assert, AVRO_READER::data, LOG_ERR, n_log, AVRO_READER::pos, and AVRO_READER::size.

Referenced by avro_decode_bytes_raw(), avro_decode_container(), and avro_decode_datum().

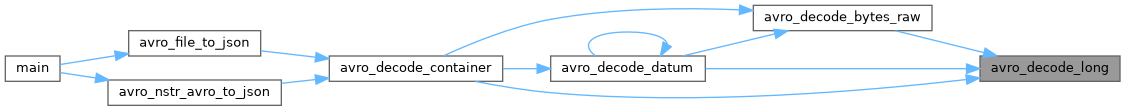

Here is the caller graph for this function:

◆ avro_encode_container()

N_STR * avro_encode_container	(	const AVRO_SCHEMA *	schema,
		const cJSON *	records
	)

Encode a cJSON array of records into Avro container format N_STR.

Definition at line 942 of file n_avro.c.

References __n_assert, avro_encode_datum(), avro_encode_long(), AVRO_MAGIC, AVRO_MAGIC_LEN, avro_schema_to_json(), AVRO_SYNC_LEN, N_STR::data, Free, free_nstr, LOG_ERR, n_log, nstrcat_ex(), nstrprintf, and N_STR::written.

Referenced by avro_json_to_file(), and avro_nstr_json_to_avro().

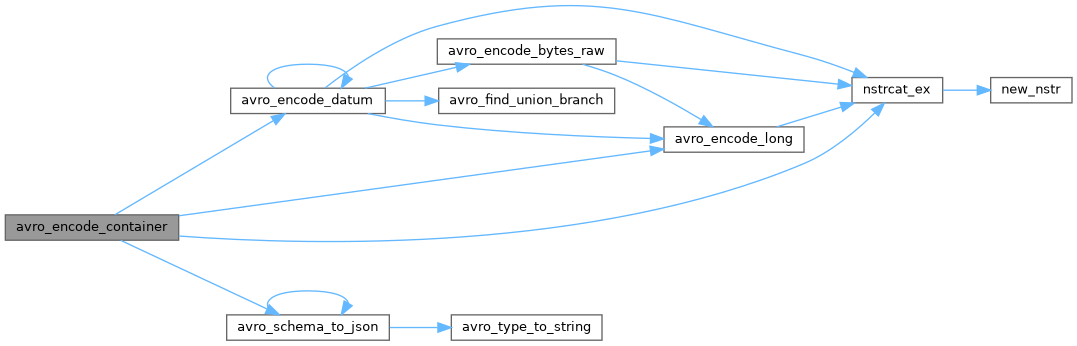

Here is the call graph for this function:

Here is the caller graph for this function:

◆ avro_encode_datum()

int avro_encode_datum	(	N_STR **	dest,
		const AVRO_SCHEMA *	schema,
		const cJSON *	json
	)

Encode a cJSON value as Avro binary according to schema.

Definition at line 475 of file n_avro.c.

References __n_assert, AVRO_ARRAY, AVRO_BOOLEAN, AVRO_BYTES, AVRO_DOUBLE, avro_encode_bytes_raw(), avro_encode_datum(), avro_encode_long(), AVRO_ENUM, avro_find_union_branch(), AVRO_FIXED, AVRO_FLOAT, AVRO_INT, AVRO_LONG, AVRO_MAP, AVRO_NULL, AVRO_RECORD, AVRO_STRING, AVRO_UNION, AVRO_SCHEMA::fields, AVRO_SCHEMA::fixed_size, Free, AVRO_SCHEMA::items, key, LOG_ERR, Malloc, n_log, AVRO_FIELD::name, AVRO_SCHEMA::nb_fields, AVRO_SCHEMA::nb_symbols, nstrcat_ex(), AVRO_FIELD::schema, AVRO_SCHEMA::symbols, AVRO_SCHEMA::type, AVRO_SCHEMA::union_branches, and AVRO_SCHEMA::values.

Referenced by avro_encode_container(), and avro_encode_datum().

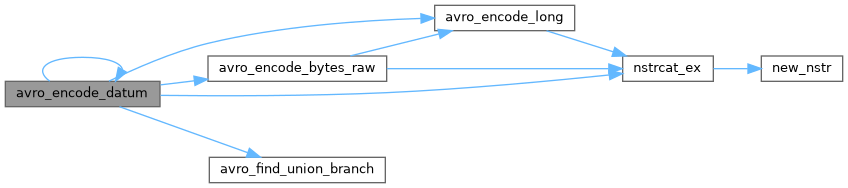

Here is the call graph for this function:

Here is the caller graph for this function:

◆ avro_encode_long()

int avro_encode_long	(	N_STR **	dest,
		int64_t	value
	)

Encode a 64-bit signed integer as zig-zag varint into N_STR.

Definition at line 376 of file n_avro.c.

References __n_assert, and nstrcat_ex().

Referenced by avro_encode_bytes_raw(), avro_encode_container(), and avro_encode_datum().

Here is the call graph for this function:

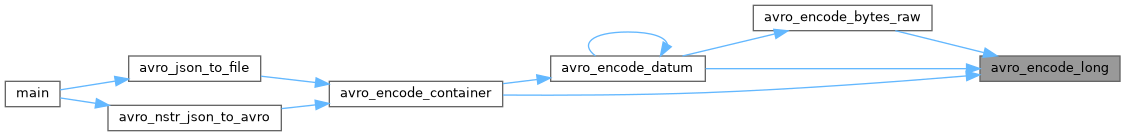

Here is the caller graph for this function:

◆ avro_file_to_json()

int avro_file_to_json	(	const char *	avro_filename,
		const char *	schema_filename,
		const char *	json_filename
	)

Read an Avro object container file and produce a JSON file using a schema file.

Definition at line 1210 of file n_avro.c.

References __n_assert, avro_decode_container(), avro_schema_free(), avro_schema_parse(), char_to_nstr(), N_STR::data, file_to_nstr(), free_nstr, LOG_ERR, LOG_INFO, n_log, and nstr_to_file().

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ avro_json_to_file()

int avro_json_to_file	(	const char *	avro_filename,
		const char *	schema_filename,
		const char *	json_filename
	)

Write an Avro object container file from a JSON file and schema file.

Definition at line 1146 of file n_avro.c.

References __n_assert, _str, avro_encode_container(), avro_schema_free(), avro_schema_parse(), N_STR::data, file_to_nstr(), free_nstr, LOG_ERR, LOG_INFO, n_log, and nstr_to_file().

Referenced by main().

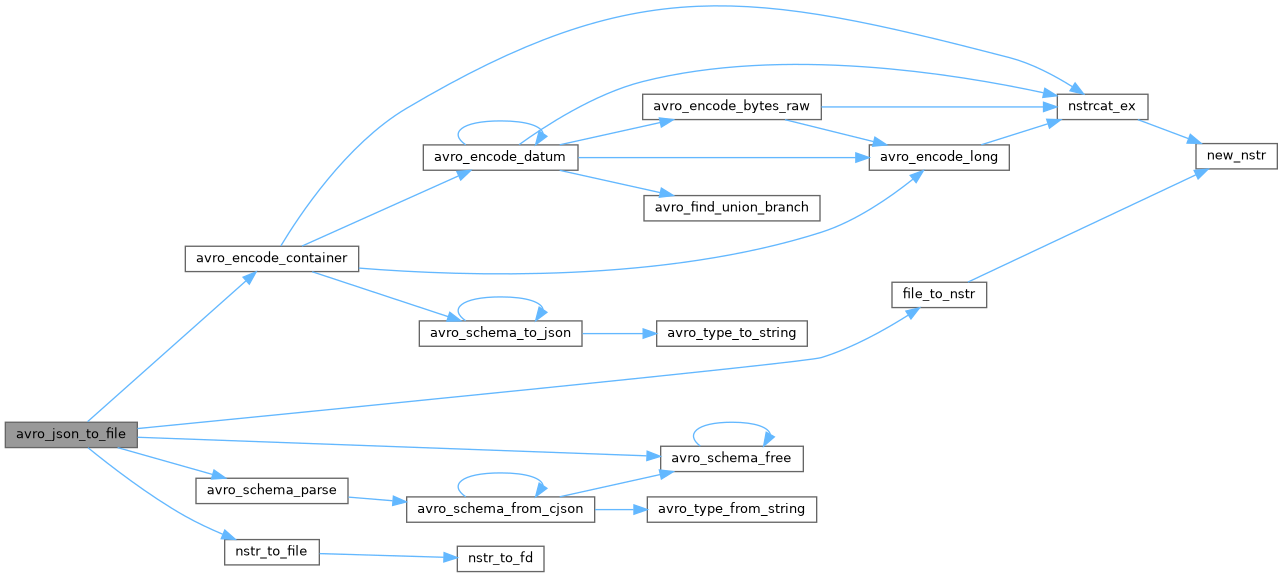

Here is the call graph for this function:

Here is the caller graph for this function:

◆ avro_nstr_avro_to_json()

N_STR * avro_nstr_avro_to_json	(	const N_STR *	schema_nstr,
		const N_STR *	avro_nstr
	)

Convert Avro N_STR to JSON N_STR using schema N_STR (all in-memory)

Definition at line 1315 of file n_avro.c.

References __n_assert, avro_decode_container(), avro_schema_free(), avro_schema_parse(), char_to_nstr(), N_STR::data, LOG_ERR, and n_log.

Referenced by main().

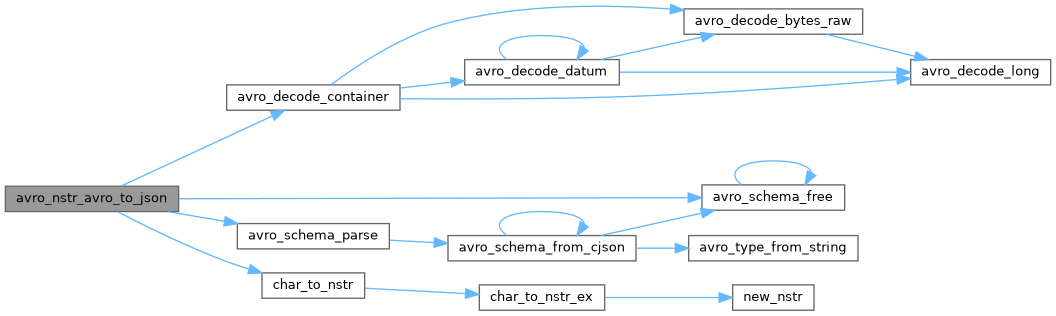

Here is the call graph for this function:

Here is the caller graph for this function:

◆ avro_nstr_json_to_avro()

N_STR * avro_nstr_json_to_avro	(	const N_STR *	schema_nstr,
		const N_STR *	json_nstr
	)

Convert JSON N_STR to Avro N_STR using schema N_STR (all in-memory)

Definition at line 1279 of file n_avro.c.

References __n_assert, _str, avro_encode_container(), avro_schema_free(), avro_schema_parse(), N_STR::data, LOG_ERR, and n_log.

Referenced by main().

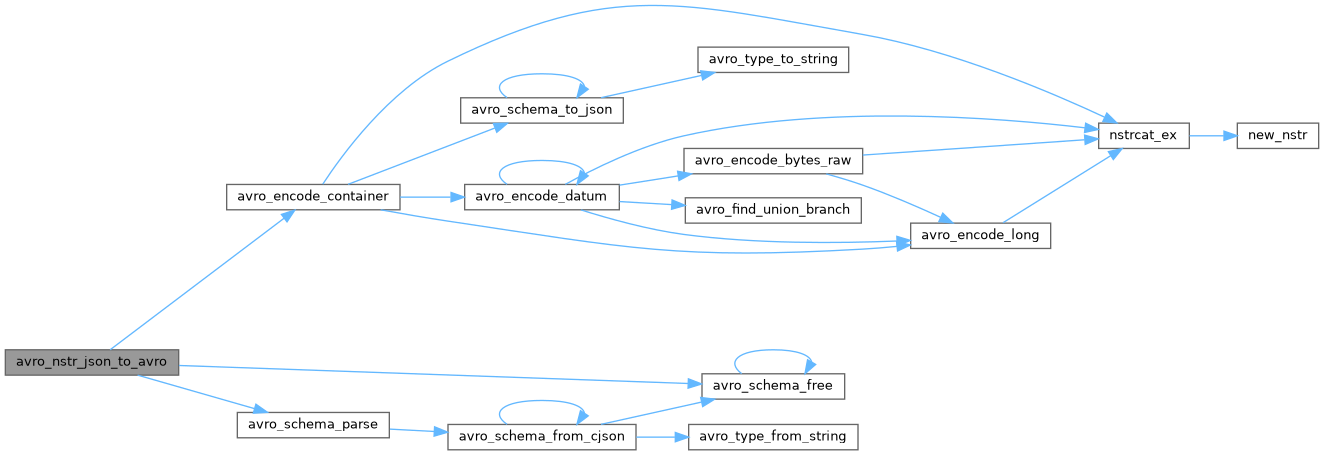

Here is the call graph for this function:

Here is the caller graph for this function:

◆ avro_schema_free()

void avro_schema_free ( AVRO_SCHEMA ** schema )

Free an Avro schema.

Definition at line 222 of file n_avro.c.

References avro_schema_free(), AVRO_SCHEMA::fields, FreeNoLog, AVRO_SCHEMA::items, AVRO_FIELD::name, AVRO_SCHEMA::name, AVRO_SCHEMA::nb_branches, AVRO_SCHEMA::nb_fields, AVRO_SCHEMA::nb_symbols, AVRO_FIELD::schema, AVRO_SCHEMA::symbols, AVRO_SCHEMA::union_branches, and AVRO_SCHEMA::values.

Referenced by avro_file_to_json(), avro_json_to_file(), avro_nstr_avro_to_json(), avro_nstr_json_to_avro(), avro_schema_free(), avro_schema_from_cjson(), and main().

Here is the call graph for this function:

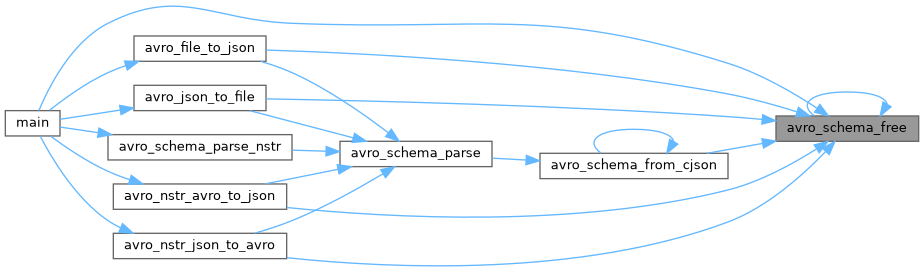

Here is the caller graph for this function:

◆ avro_schema_from_cjson()

AVRO_SCHEMA * avro_schema_from_cjson ( const cJSON * json )

Parse an Avro schema from a cJSON object.

Definition at line 73 of file n_avro.c.

References __n_assert, AVRO_ARRAY, AVRO_ENUM, AVRO_FIXED, AVRO_MAP, AVRO_NULL, AVRO_RECORD, avro_schema_free(), avro_schema_from_cjson(), avro_type_from_string(), AVRO_UNION, AVRO_SCHEMA::fields, AVRO_SCHEMA::fixed_size, Free, AVRO_SCHEMA::items, local_strdup, Malloc, AVRO_FIELD::name, AVRO_SCHEMA::name, AVRO_SCHEMA::nb_branches, AVRO_SCHEMA::nb_fields, AVRO_SCHEMA::nb_symbols, AVRO_FIELD::schema, AVRO_SCHEMA::symbols, AVRO_SCHEMA::type, AVRO_SCHEMA::union_branches, and AVRO_SCHEMA::values.

Referenced by avro_schema_from_cjson(), and avro_schema_parse().

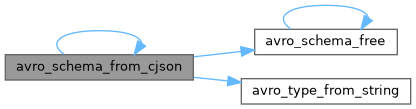

Here is the call graph for this function:

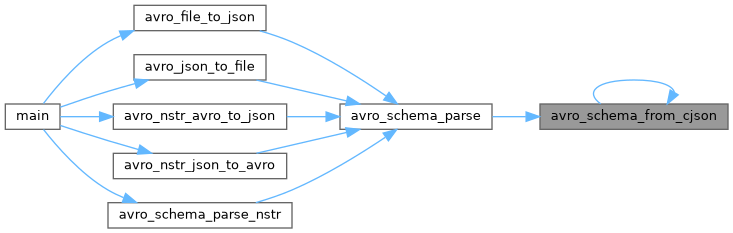

Here is the caller graph for this function:

◆ avro_schema_parse()

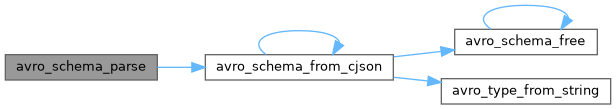

AVRO_SCHEMA * avro_schema_parse ( const char * json_str )

Parse an Avro schema from a JSON string.

Definition at line 211 of file n_avro.c.

References __n_assert, and avro_schema_from_cjson().

Referenced by avro_file_to_json(), avro_json_to_file(), avro_nstr_avro_to_json(), avro_nstr_json_to_avro(), and avro_schema_parse_nstr().

Here is the call graph for this function:

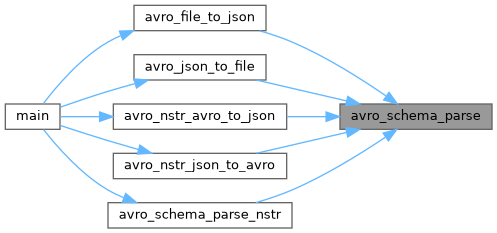

Here is the caller graph for this function:

◆ avro_schema_parse_nstr()

AVRO_SCHEMA * avro_schema_parse_nstr ( const N_STR * schema_nstr )

Parse schema from N_STR.

Definition at line 1272 of file n_avro.c.

References __n_assert, avro_schema_parse(), and N_STR::data.

Referenced by main().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ avro_schema_to_json()

char * avro_schema_to_json ( const AVRO_SCHEMA * schema )

Convert an Avro schema back to JSON string (caller must free)

Definition at line 258 of file n_avro.c.

References __n_assert, AVRO_ARRAY, AVRO_BOOLEAN, AVRO_BYTES, AVRO_DOUBLE, AVRO_ENUM, AVRO_FIXED, AVRO_FLOAT, AVRO_INT, AVRO_LONG, AVRO_MAP, AVRO_NULL, AVRO_RECORD, avro_schema_to_json(), AVRO_STRING, avro_type_to_string(), AVRO_UNION, AVRO_SCHEMA::fields, AVRO_SCHEMA::fixed_size, Free, AVRO_SCHEMA::items, AVRO_FIELD::name, AVRO_SCHEMA::name, AVRO_SCHEMA::nb_branches, AVRO_SCHEMA::nb_fields, AVRO_SCHEMA::nb_symbols, AVRO_FIELD::schema, AVRO_SCHEMA::symbols, AVRO_SCHEMA::type, AVRO_SCHEMA::union_branches, and AVRO_SCHEMA::values.

Referenced by avro_encode_container(), avro_schema_to_json(), and main().

Here is the call graph for this function:

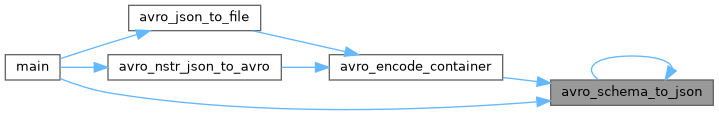

Here is the caller graph for this function:
